2013 TOYOTA HILUX Owners Manual (in English)

401 3-3. Using the “touch screen”
3
Interior features

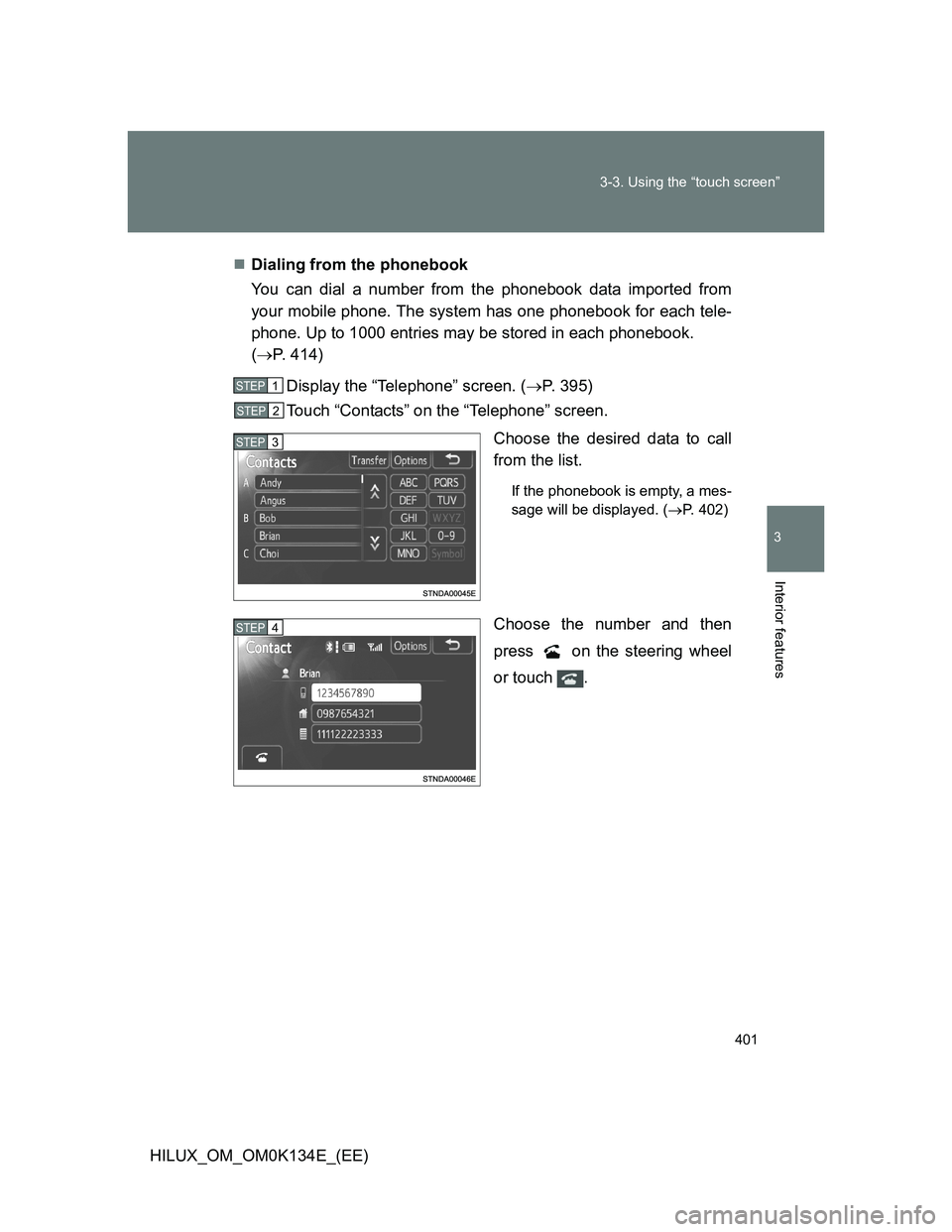

HILUX_OM_OM0K134E_(EE)Dialing from the phonebook
You can dial a number from the phonebook data imported from
your mobile phone. The system has one phonebook for each tele-
phone. Up to 1000 entries may be stored in each phonebook.
(P. 414)
Display the “Telephone” screen. (P. 395)
Touch “Contacts” on the “Telephone” screen.
Choose the desired data to call
from the list.
If the phonebook is empty, a mes-
sage will be displayed. (P. 402)
Choose the number and then
press on the steering wheel
or touch .
STEP1
STEP2
STEP3
STEP4

402 3-3. Using the “touch screen”

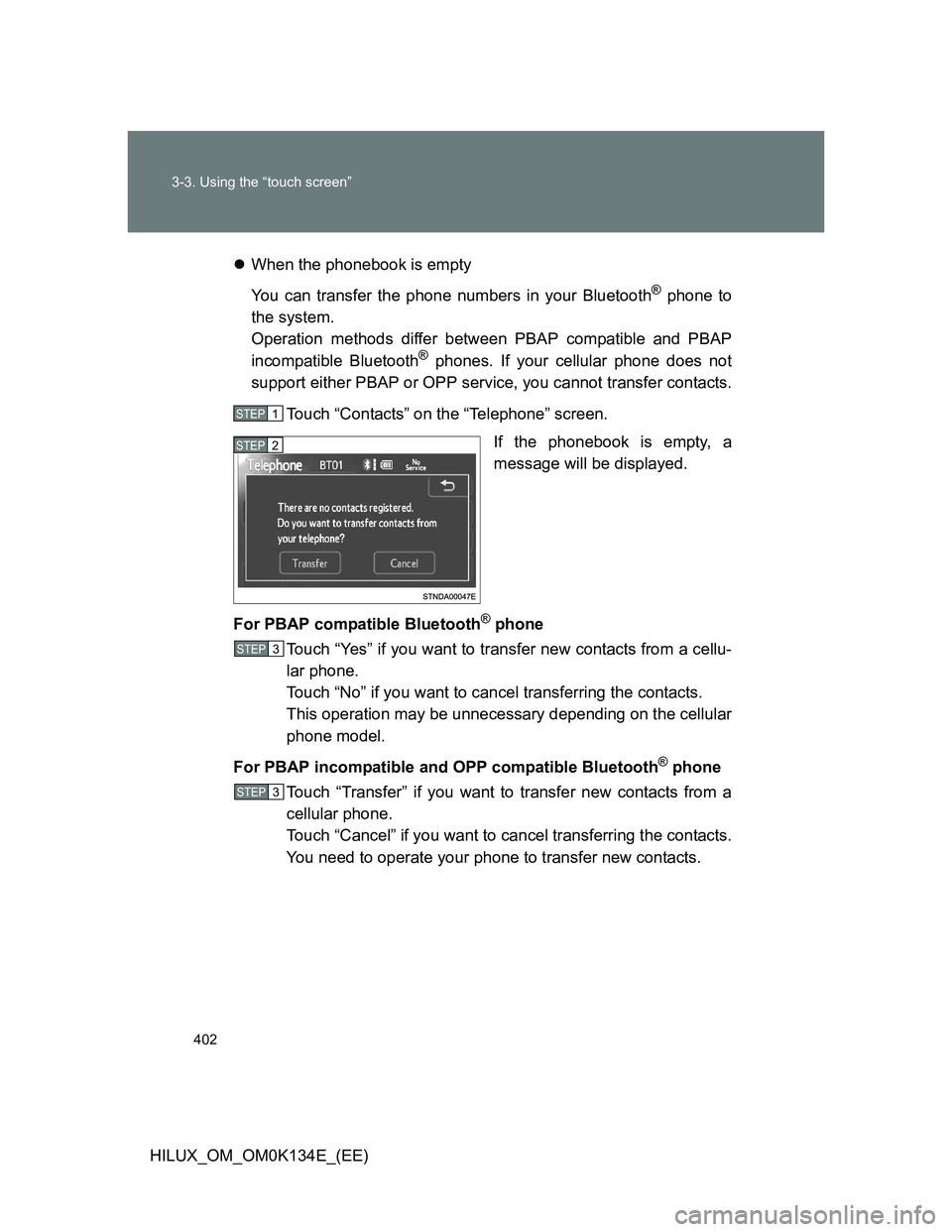

HILUX_OM_OM0K134E_(EE)When the phonebook is empty
You can transfer the phone numbers in your Bluetooth
® phone to
the system.
Operation methods differ between PBAP compatible and PBAP
incompatible Bluetooth
® phones. If your cellular phone does not
support either PBAP or OPP service, you cannot transfer contacts.
Touch “Contacts” on the “Telephone” screen.
If the phonebook is empty, a
message will be displayed.
For PBAP compatible Bluetooth
® phone
Touch “Yes” if you want to transfer new contacts from a cellu-
lar phone.
Touch “No” if you want to cancel transferring the contacts.
This operation may be unnecessary depending on the cellular
phone model.
For PBAP incompatible and OPP compatible Bluetooth
® phone
Touch “Transfer” if you want to transfer new contacts from a
cellular phone.
Touch “Cancel” if you want to cancel transferring the contacts.
You need to operate your phone to transfer new contacts.
STEP1
STEP2
STEP3
STEP3

403 3-3. Using the “touch screen”
3
Interior features
HILUX_OM_OM0K134E_(EE)Calling using speed dial
You can make a call using numbers registered from the phone-
book.
Display the “Telephone” screen. (P. 395)
Touch “Speed dials” on the “Telephone” screen.
Select the desired tab and
choose the desired number to
make a call.
STEP1
STEP2
STEP3

404 3-3. Using the “touch screen”
HILUX_OM_OM0K134E_(EE)Dialing from history
You can call using the call history which has the 4 functions below.
“All”: all the calls below which were memorized
“Missed”: calls which you missed
“Incoming”: calls which you received
“Outgoing”: calls which you called
Display the “Telephone” screen. (P. 395)
Touch “Call history” on the “Telephone” screen.
Select the desired tab and
choose the desired data from the
list.
Press on the steering wheel
or touch .
STEP1
STEP2
STEP3
STEP4

405 3-3. Using the “touch screen”
3
Interior features
HILUX_OM_OM0K134E_(EE)

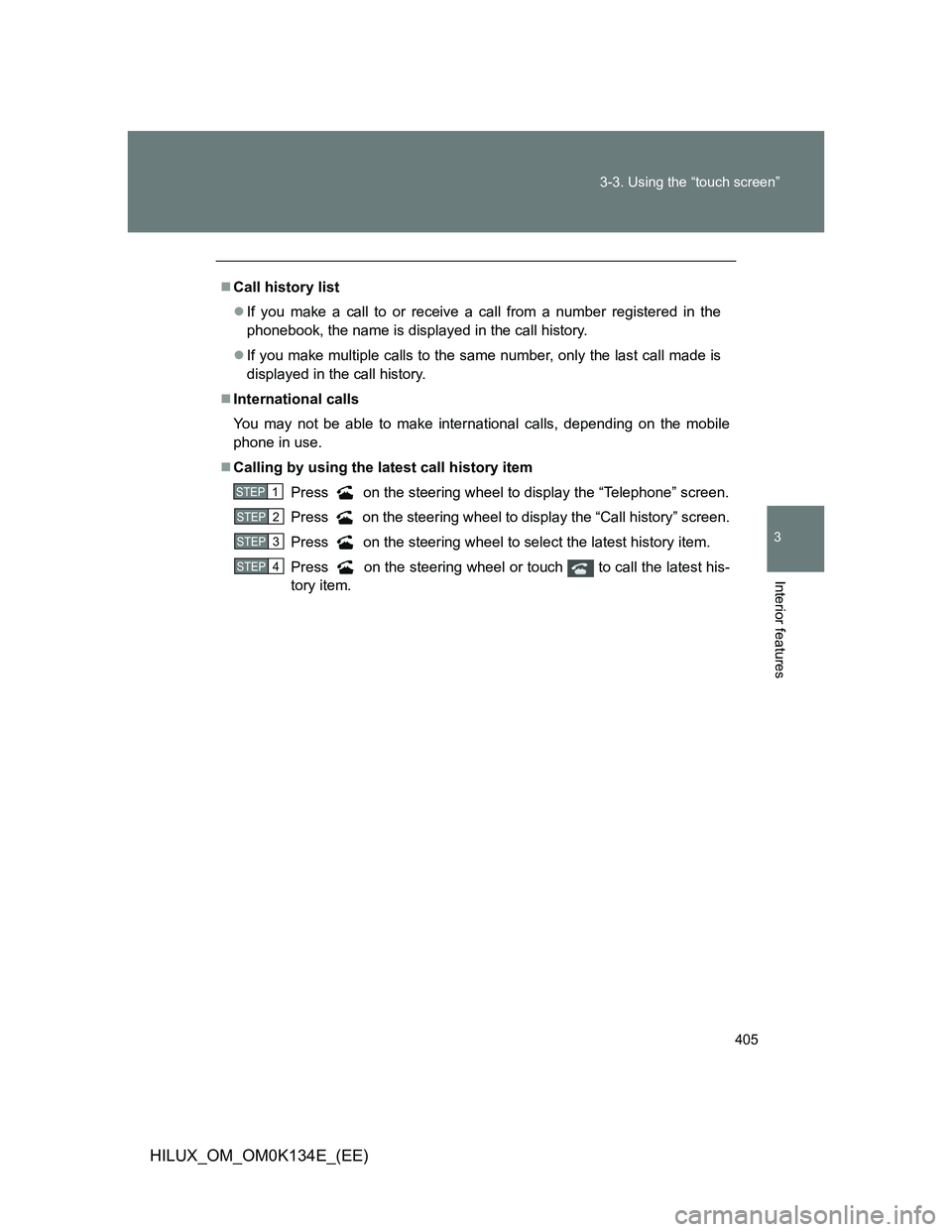

Call history list
If you make a call to or receive a call from a number registered in the
phonebook, the name is displayed in the call history.
If you make multiple calls to the same number, only the last call made is
displayed in the call history.
International calls
You may not be able to make international calls, depending on the mobile
phone in use.
Calling by using the latest call history item
Press on the steering wheel to display the “Telephone” screen.
Press on the steering wheel to display the “Call history” screen.
Press on the steering wheel to select the latest history item.
Press on the steering wheel or touch to call the latest his-
tory item.
STEP1
STEP2
STEP3
STEP4

406 3-3. Using the “touch screen”
HILUX_OM_OM0K134E_(EE)

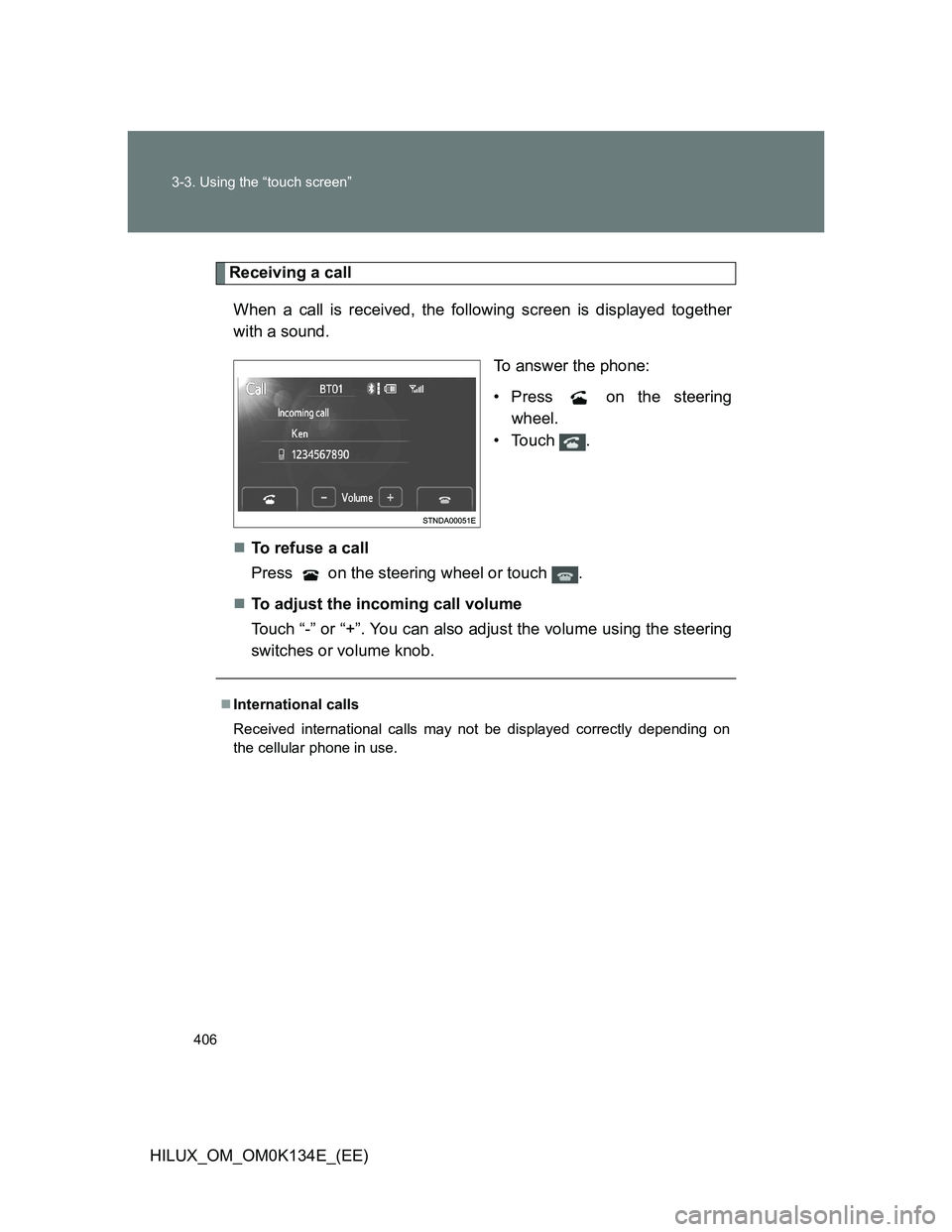

Receiving a call
When a call is received, the following screen is displayed together
with a sound.
To answer the phone:
• Press on the steering
wheel.
•Touch .
To refuse a call
Press on the steering wheel or touch .
To adjust the incoming call volume
Touch “-” or “+”. You can also adjust the volume using the steering
switches or volume knob.
International calls
Received international calls may not be displayed correctly depending on
the cellular phone in use.

407 3-3. Using the “touch screen”
3
Interior features
HILUX_OM_OM0K134E_(EE)

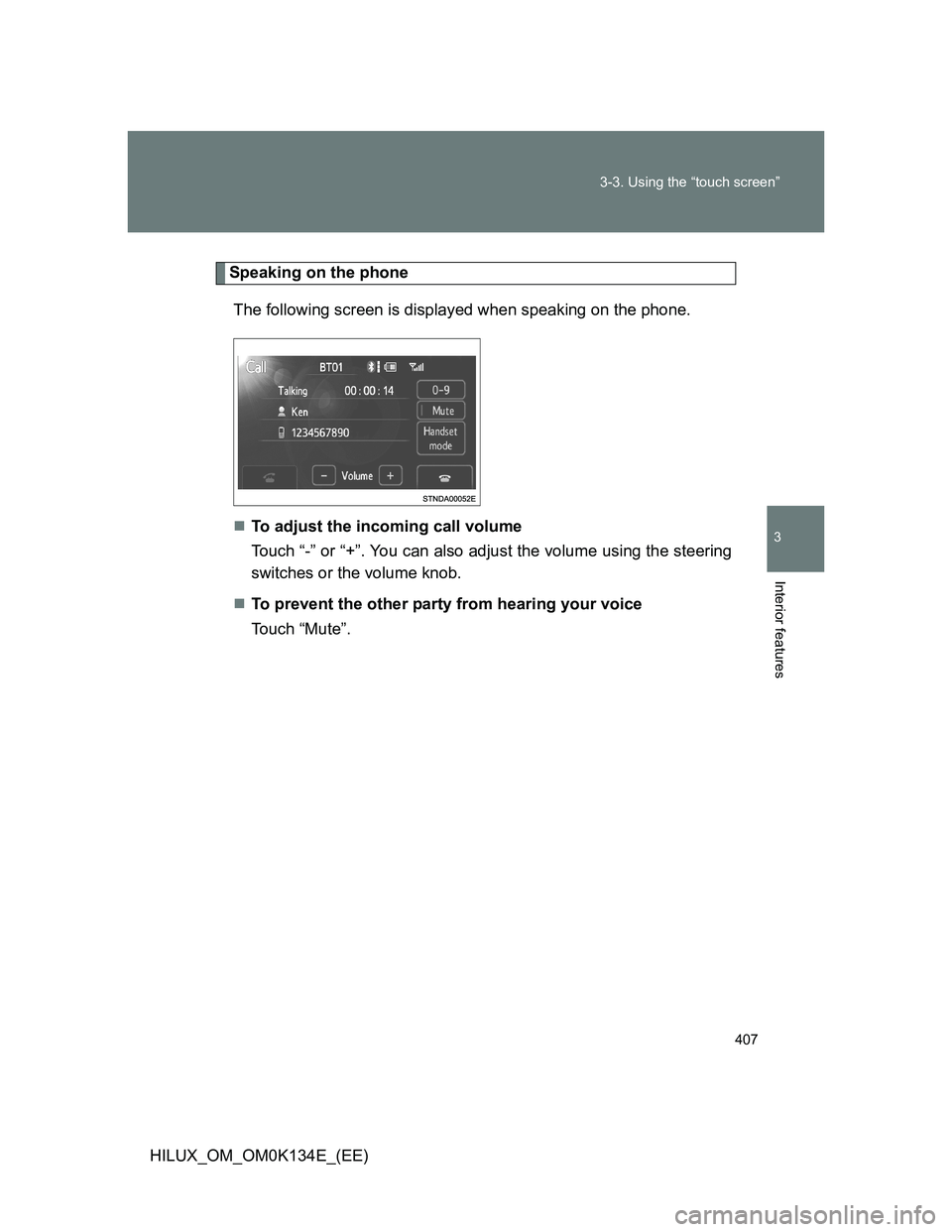

Speaking on the phone
The following screen is displayed when speaking on the phone.
To adjust the incoming call volume
Touch “-” or “+”. You can also adjust the volume using the steering
switches or the volume knob.
To prevent the other party from hearing your voice
Touch “Mute”.

408 3-3. Using the “touch screen”
HILUX_OM_OM0K134E_(EE)Inputting tones
When using phone services such as an answering service or a
bank, you can store phone numbers and code numbers in the
phonebook.
Touch “0-9”.
Input the number.
If repeated tone symbols* are
stored in the phone book, “Send”
and “Exit” are displayed on the
right side of the screen.
*: Repeated tone symbols are sym-
bols or numbers displayed as p or
w, that come after the phone
number. (e.g. 056133w0123p#1
)
Confirm the number displayed on the screen, and touch
“Send”.
If you touch “Exit”, this function will end.
STEP1
STEP2
STEP3
STEP4
