641 What to do if...
HILUX_OM_OM0K134E_(EE)

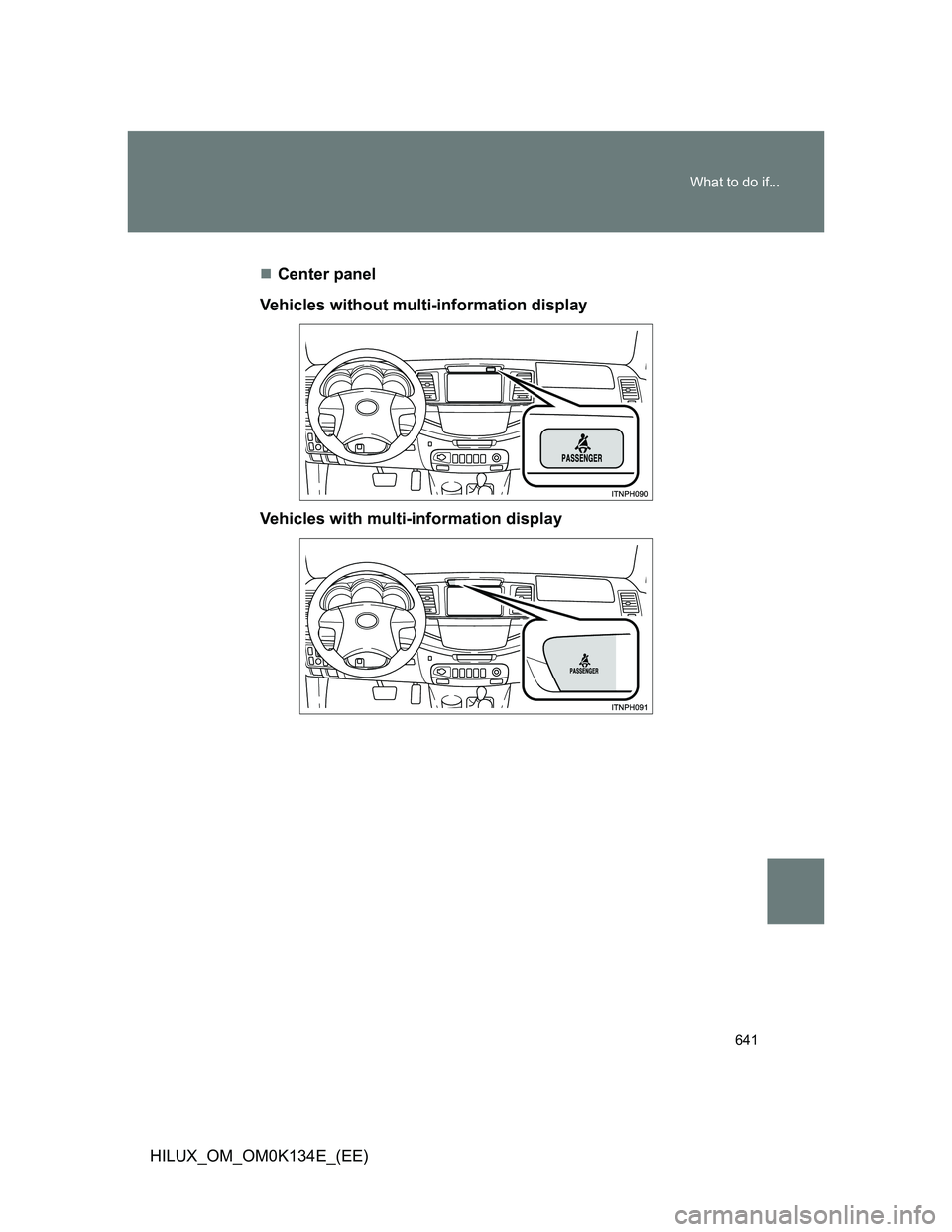

Center panel
Vehicles without multi-information display
Vehicles with multi-information display

642 What to do if...
HILUX_OM_OM0K134E_(EE)
Warning lights
P. 5 5 7P. 559
P. 5 5 8P. 560
P. 5 5 8P. 560
P. 5 5 8P. 561
P. 5 5 9P. 561
P. 5 5 9P. 561
P. 5 5 9P. 561
P. 5 5 9P. 561
P. 5 5 9P. 562
P. 5 5 9P. 562
P. 559
Brake system warning
lightTiming belt replacement
warning light
Charging system
warning lightFuel system warning
light
Low engine oil pressure
warning lightDPF system warning
light
Malfunction indicator
lampOpen door warning light
SRS warning lightLow fuel level warning
light
ABS warning lightDriver’s seat belt
reminder light
VSC OFF indicator lightFront passenger’s seat belt
reminder light
Slip indicator lightUnengaged “Park”
warning light
Cruise control indicator
lightLow engine oil level
warning light
Engine oil change
reminder light
Four-wheel drive
indicator light
Automatic transmission
fluid temperature warning
light

643 What to do if...
HILUX_OM_OM0K134E_(EE)

644
HILUX_OM_OM0K134E_(EE)

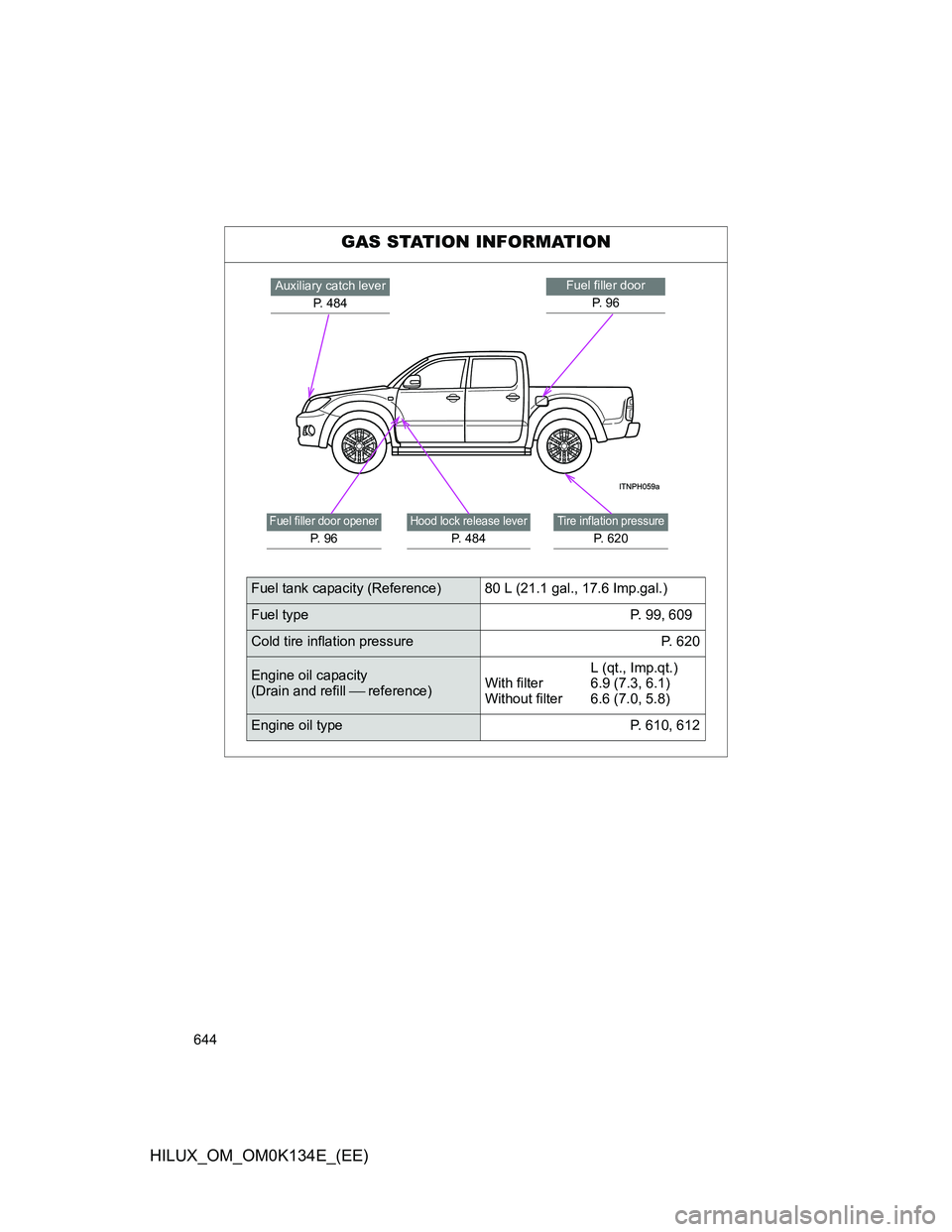

GAS STATION INFORMATION
Fuel filler door
P. 9 6Auxiliary catch lever
P. 484
Tire inflation pressure
P. 620
Fuel filler door opener
P. 9 6
Hood lock release lever
P. 484
Fuel tank capacity (Reference) 80 L (21.1 gal., 17.6 Imp.gal.)
Fuel type P. 99, 609
Cold tire inflation pressure P. 620
Engine oil capacity
(Drain and refill
reference)L (qt., Imp.qt.)
With filter 6.9 (7.3, 6.1)
Without filter 6.6 (7.0, 5.8)
Engine oil type P. 610, 612
