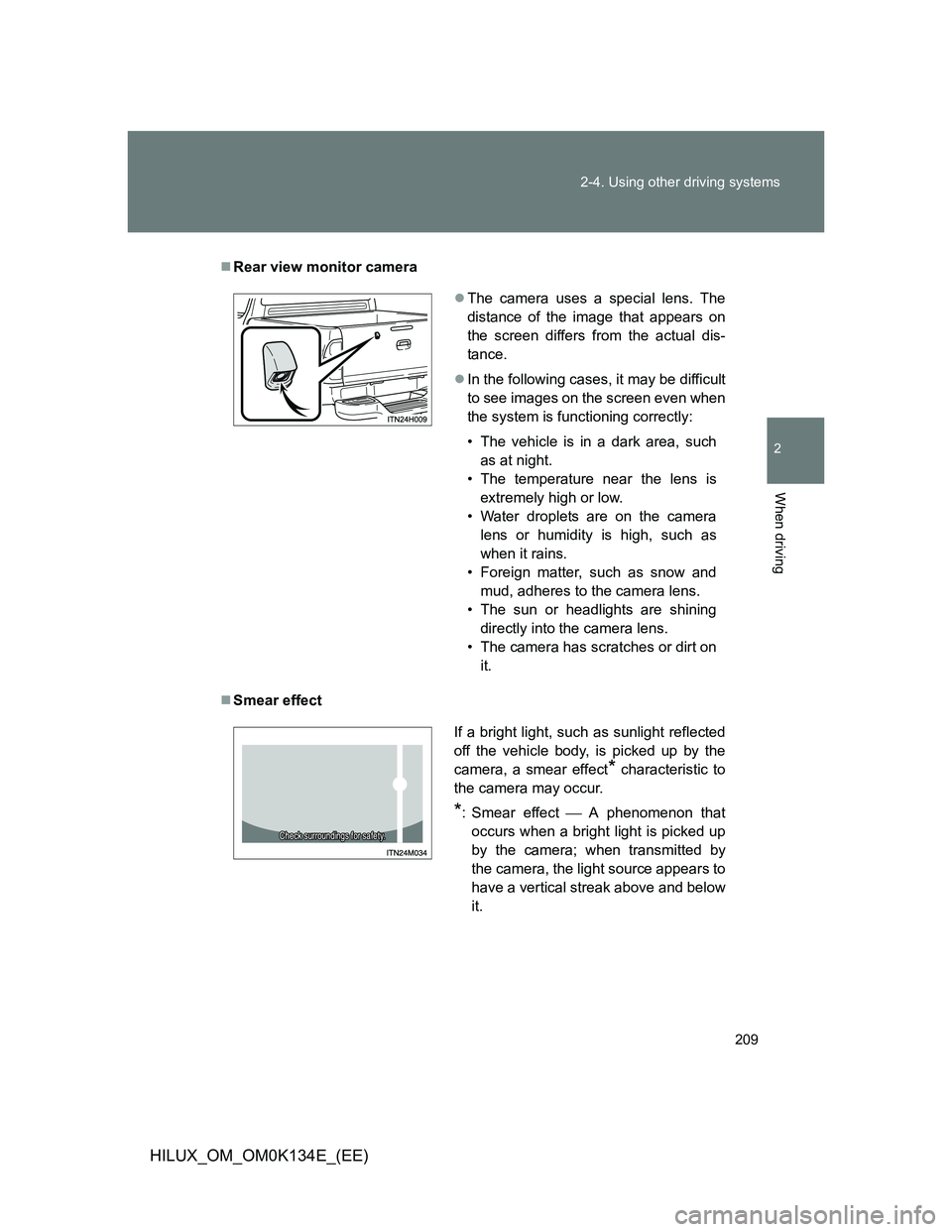

Rear view monitor camera
Smear effect
The camera uses a special lens. The
distance of the image that appears on
the screen differs from the actual dis-
tance.
In the following cases, it may be difficult
to see images on the screen even when
the system is functioning correctly:
• The vehicle is in a dark area, such
as at night.
• The temperature near the lens is
extremely high or low.
• Water droplets are on the camera
lens or humidity is high, such as
when it rains.
• Foreign matter, such as snow and
mud, adheres to the camera lens.
• The sun or headlights are shining
directly into the camera lens.
• The camera has scratches or dirt on
it.
If a bright light, such as sunlight reflected
off the vehicle body, is picked up by the
camera, a smear effect
* characteristic to
the camera may occur.
*: Smear effectA phenomenon that
occurs when a bright light is picked up
by the camera; when transmitted by
the camera, the light source appears to
have a vertical streak above and below
it.

210 2-4. Using other driving systems
HILUX_OM_OM0K134E_(EE)

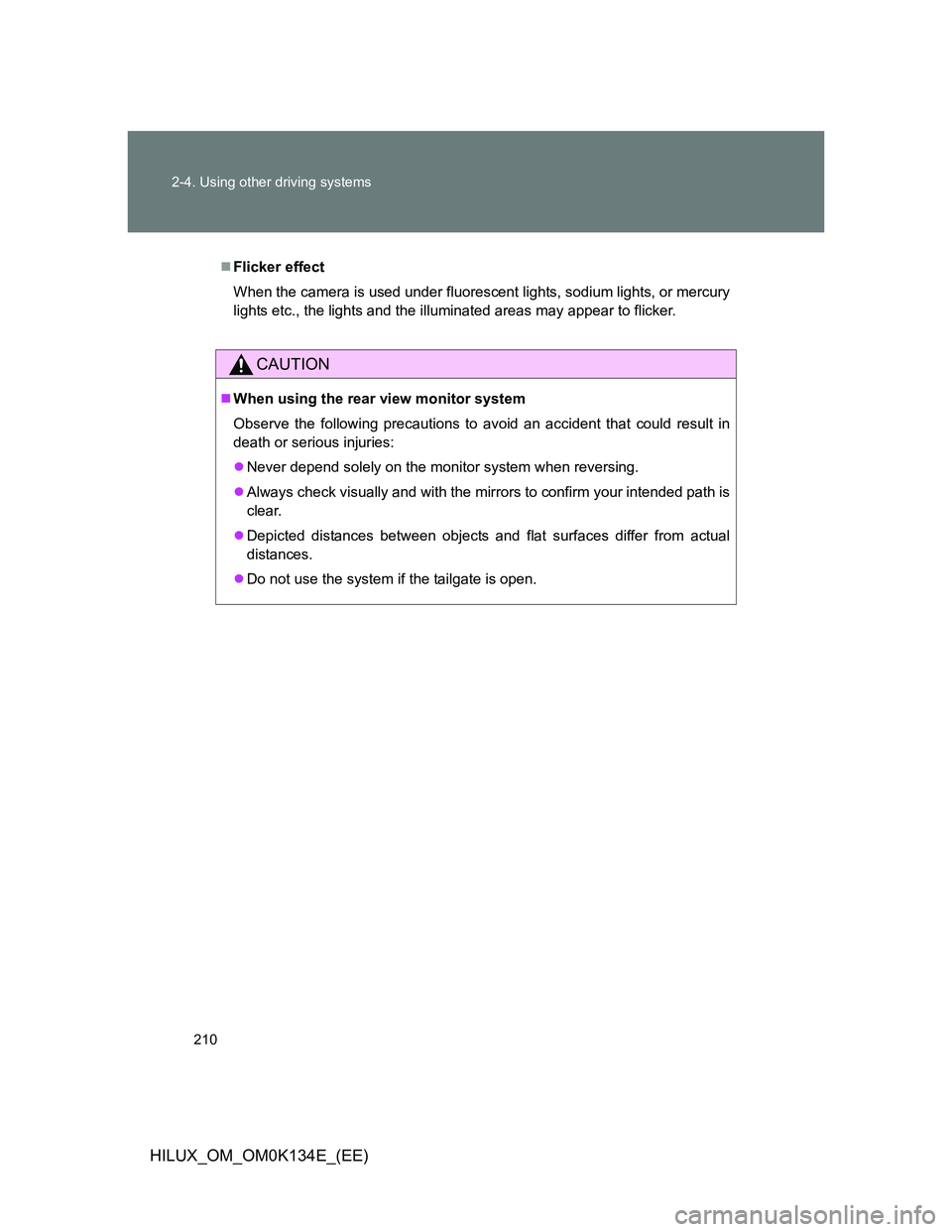

Flicker effect
When the camera is used under fluorescent lights, sodium lights, or mercury
lights etc., the lights and the illuminated areas may appear to flicker.
CAUTION
When using the rear view monitor system
Observe the following precautions to avoid an accident that could result in
death or serious injuries:
Never depend solely on the monitor system when reversing.
Always check visually and with the mirrors to confirm your intended path is
clear.
Depicted distances between objects and flat surfaces differ from actual
distances.
Do not use the system if the tailgate is open.

211 2-4. Using other driving systems
2
When driving
HILUX_OM_OM0K134E_(EE)
CAUTION
Conditions which may affect the rear view monitor system
If the back of the vehicle has been hit, the camera’s position and mounting
angle may have changed. Have the vehicle inspected by any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional.
Rapid temperature changes, such as when hot water is poured on the
vehicle in cold weather, may cause the system to function abnormally.
If the camera lens is extremely dirty, it cannot transmit a clear image.
Rinse with water and wipe with a soft cloth. If the camera lens is extremely
dirty, wash with a mild cleanser and rinse.
The displayed image may be darker and moving images may be slightly
distorted when the system is cold.
When washing the vehicle, do not apply intensive bursts of water to the
camera or camera area. Doing so may result in the camera malfunction-
ing.
Do not strongly rub the camera lens. If the camera lens is scratched, it
cannot transmit a clear image.
Do not allow organic solvent, car wax, window cleaner or glass coat to
adhere to the camera. If this happens, wipe it off as soon as possible.
As the camera has a water proof construction, do not detach, disassemble
or modify it. This may cause incorrect operation.
Do not subject the camera to a strong impact.

212
2-4. Using other driving systems
HILUX_OM_OM0K134E_(EE)

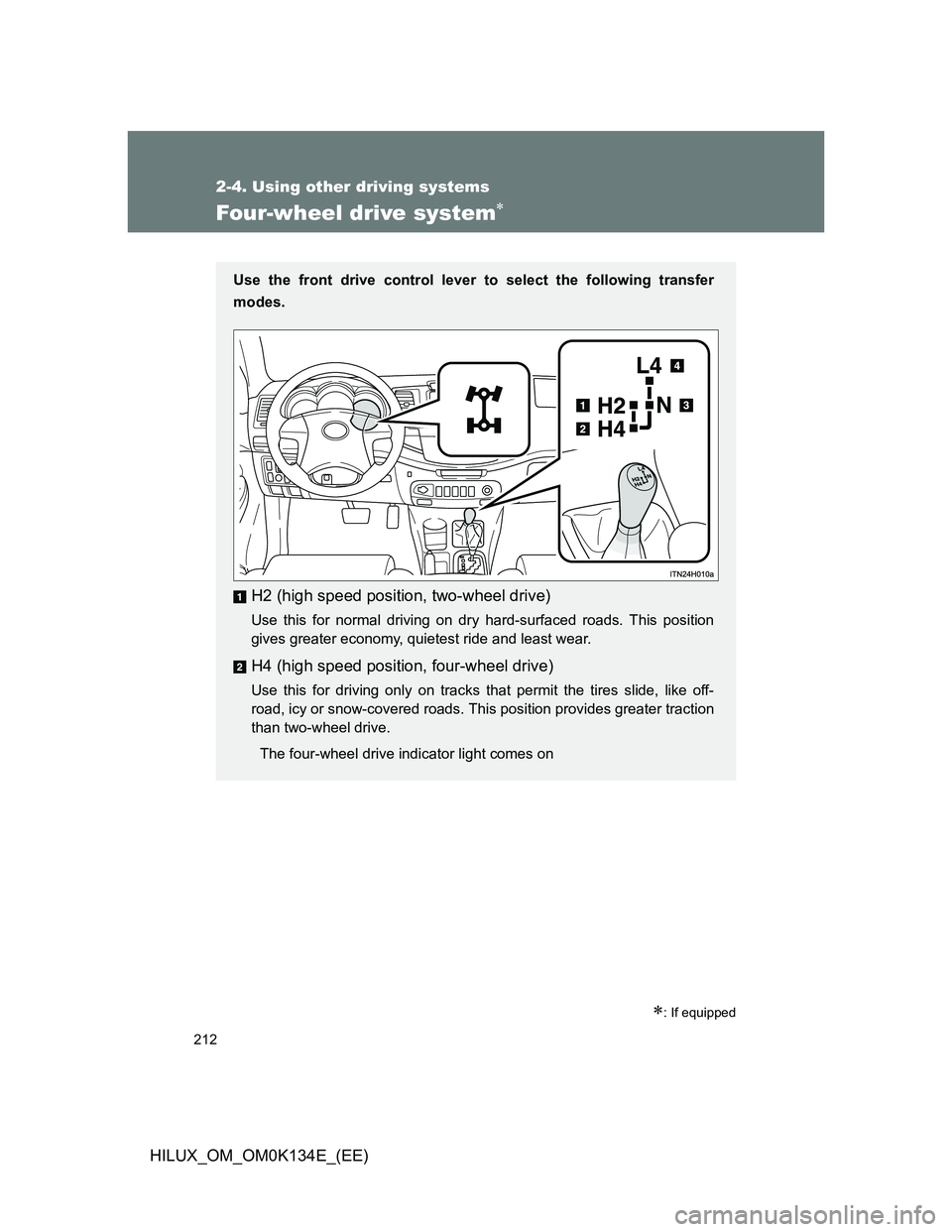

Four-wheel drive system
: If equipped
Use the front drive control lever to select the following transfer
modes.
H2 (high speed position, two-wheel drive)
Use this for normal driving on dry hard-surfaced roads. This position
gives greater economy, quietest ride and least wear.
H4 (high speed position, four-wheel drive)
Use this for driving only on tracks that permit the tires slide, like off-
road, icy or snow-covered roads. This position provides greater traction
than two-wheel drive.
The four-wheel drive indicator light comes on

213 2-4. Using other driving systems
2
When driving
HILUX_OM_OM0K134E_(EE)

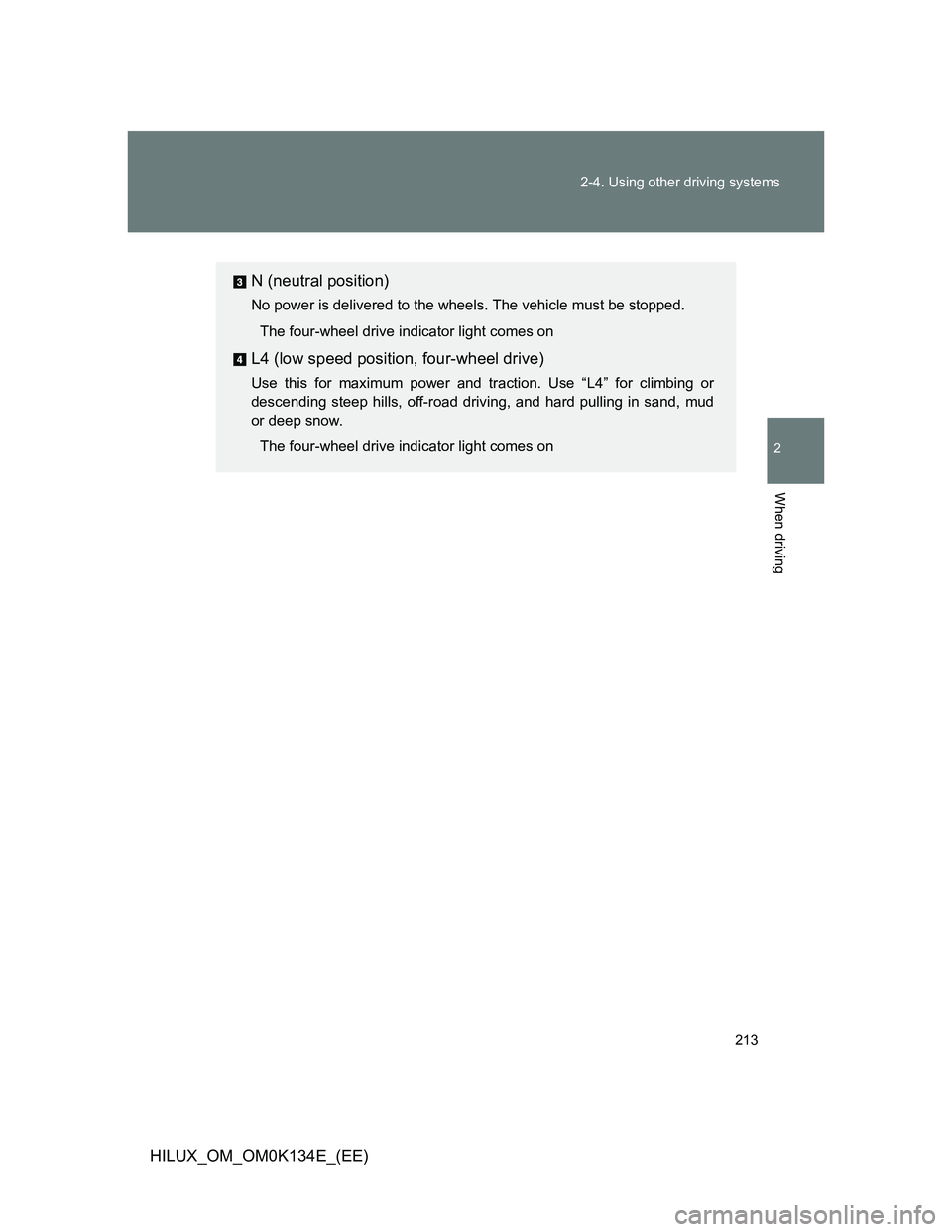

N (neutral position)
No power is delivered to the wheels. The vehicle must be stopped.
The four-wheel drive indicator light comes on
L4 (low speed position, four-wheel drive)
Use this for maximum power and traction. Use “L4” for climbing or
descending steep hills, off-road driving, and hard pulling in sand, mud
or deep snow.
The four-wheel drive indicator light comes on

214 2-4. Using other driving systems
HILUX_OM_OM0K134E_(EE)
A.D.D. (automatic disconnecting differential) (if equipped)
The A.D.D. can be engaged or disengaged by the shifting operations
described in the following shifting procedures.
Shifting between H2 and H4
Shifting from H2 to H4
Reduce your speed to less than 80 km/h (50 mph).
Move the front drive control lever.
Shifting from H4 to H2
Simply move the front drive control lever.
In both cases, you need not depress the clutch pedal. (manual transmission)
Shifting between H4 and L4 (automatic transmission)
Stop the vehicle.
Shift the shift lever to N.
Move the front drive control lever.
STEP1
STEP2
STEP1
STEP2
STEP3

215 2-4. Using other driving systems
2
When driving
HILUX_OM_OM0K134E_(EE)

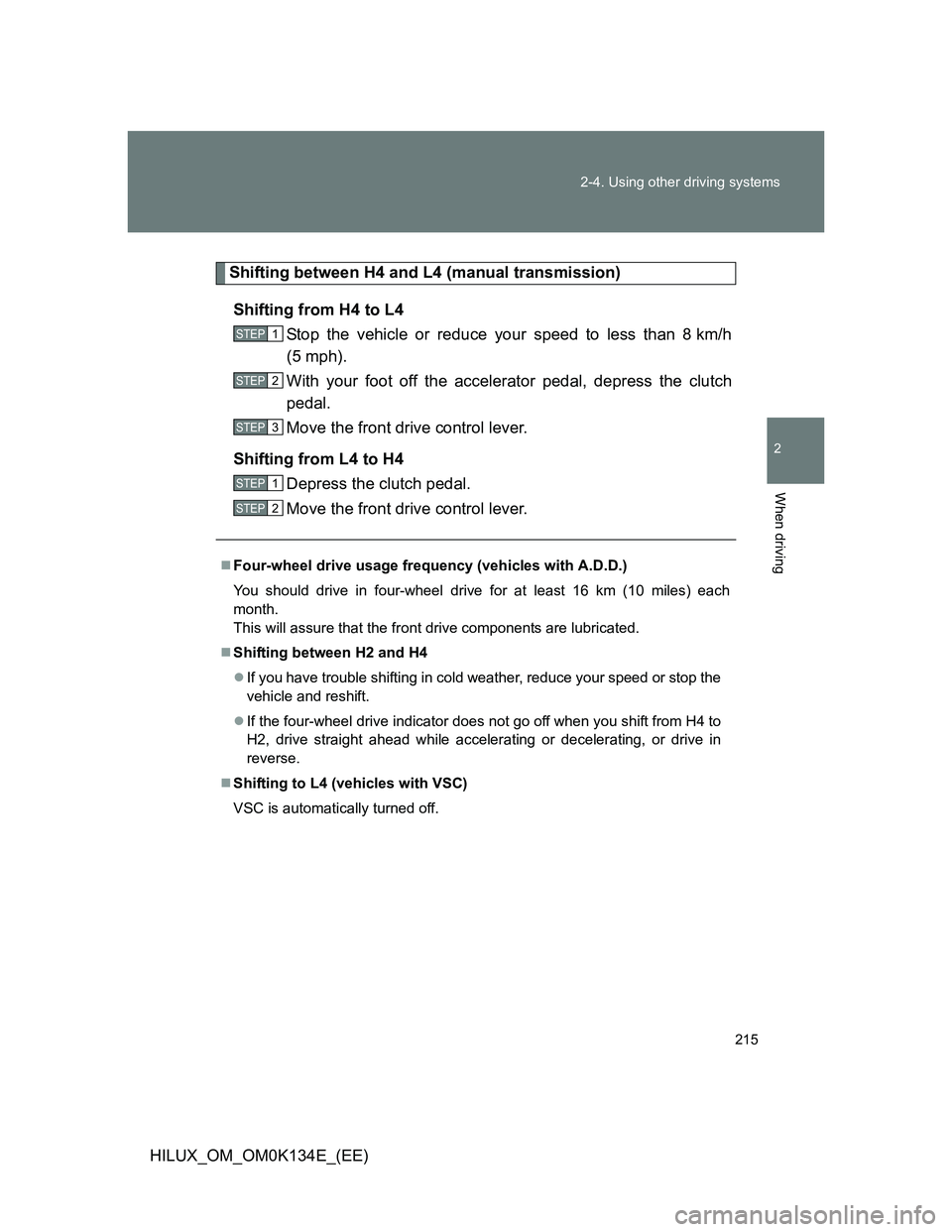

Shifting between H4 and L4 (manual transmission)
Shifting from H4 to L4
Stop the vehicle or reduce your speed to less than 8 km/h
(5 mph).
With your foot off the accelerator pedal, depress the clutch
pedal.
Move the front drive control lever.
Shifting from L4 to H4
Depress the clutch pedal.
Move the front drive control lever.
Four-wheel drive usage frequency (vehicles with A.D.D.)
You should drive in four-wheel drive for at least 16 km (10 miles) each
month.
This will assure that the front drive components are lubricated.
Shifting between H2 and H4
If you have trouble shifting in cold weather, reduce your speed or stop the
vehicle and reshift.
If the four-wheel drive indicator does not go off when you shift from H4 to
H2, drive straight ahead while accelerating or decelerating, or drive in
reverse.
Shifting to L4 (vehicles with VSC)
VSC is automatically turned off.
STEP1
STEP2
STEP3
STEP1
STEP2

216 2-4. Using other driving systems
HILUX_OM_OM0K134E_(EE)

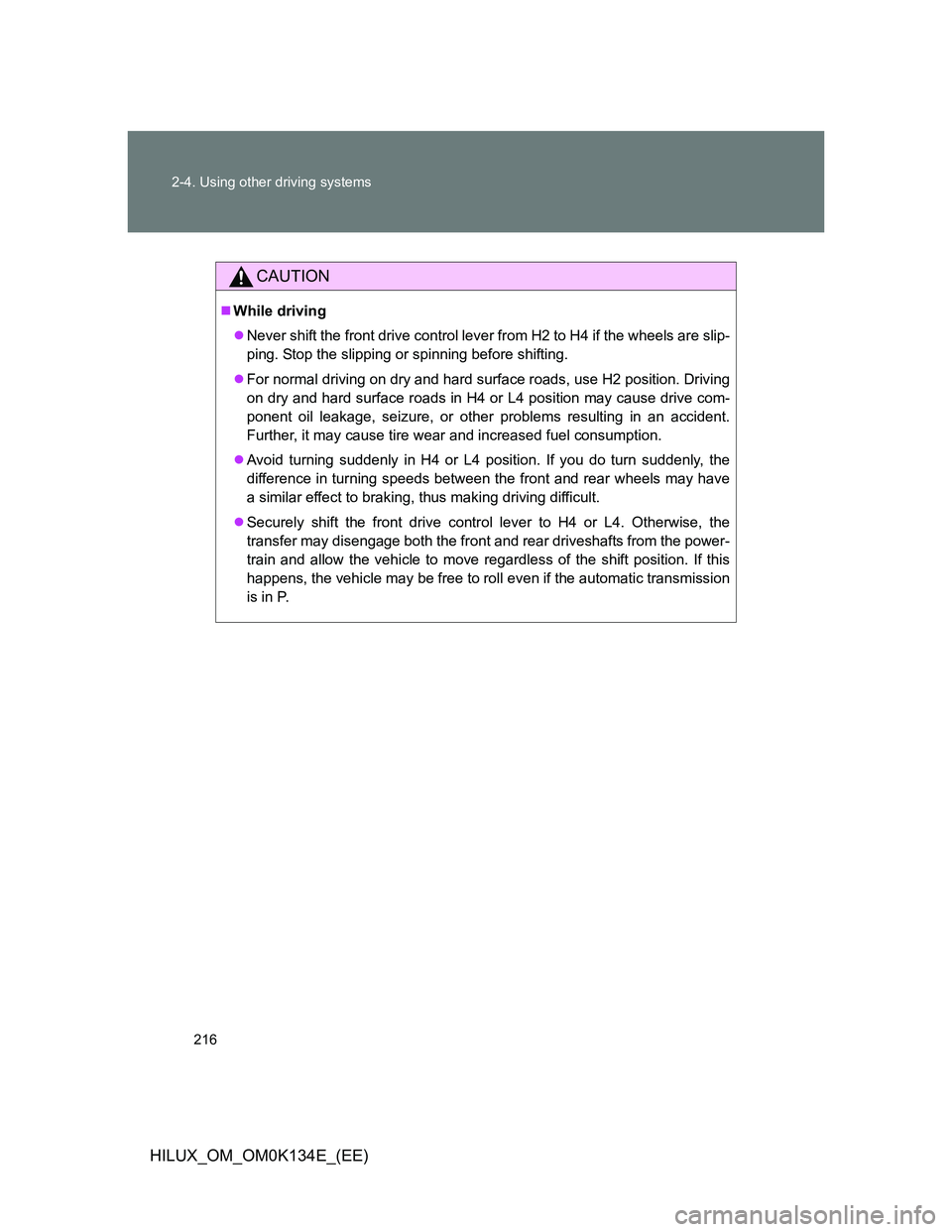

CAUTION
While driving
Never shift the front drive control lever from H2 to H4 if the wheels are slip-
ping. Stop the slipping or spinning before shifting.
For normal driving on dry and hard surface roads, use H2 position. Driving
on dry and hard surface roads in H4 or L4 position may cause drive com-
ponent oil leakage, seizure, or other problems resulting in an accident.
Further, it may cause tire wear and increased fuel consumption.
Avoid turning suddenly in H4 or L4 position. If you do turn suddenly, the
difference in turning speeds between the front and rear wheels may have
a similar effect to braking, thus making driving difficult.
Securely shift the front drive control lever to H4 or L4. Otherwise, the
transfer may disengage both the front and rear driveshafts from the power-
train and allow the vehicle to move regardless of the shift position. If this
happens, the vehicle may be free to roll even if the automatic transmission
is in P.
