2013 TOYOTA HILUX Owners Manual (in English)

337
3-3. Using the “touch screen”
3
Interior features
HILUX_OM_OM0K134E_(EE)

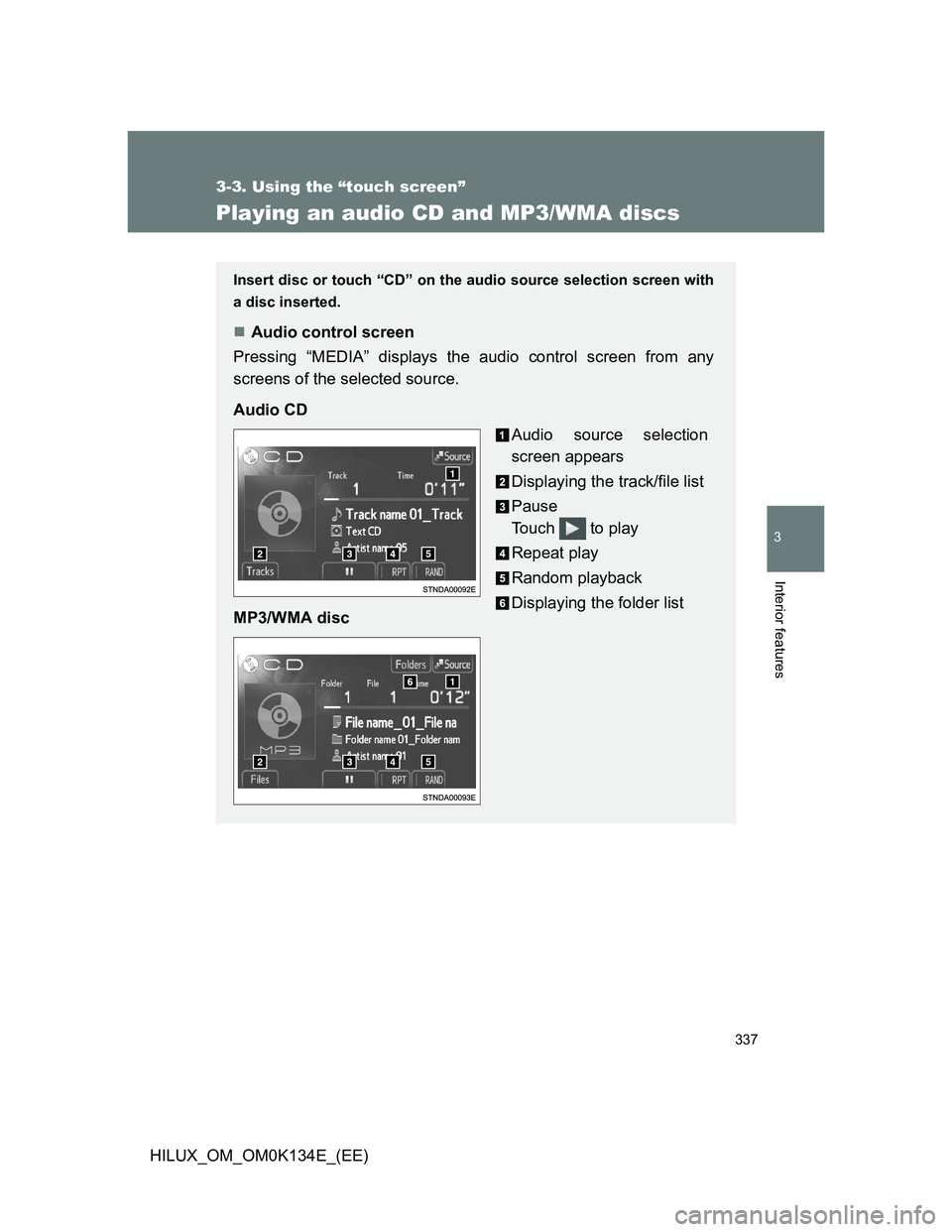

Playing an audio CD and MP3/WMA discs
Insert disc or touch “CD” on the audio source selection screen with
a disc inserted.
Audio control screen
Pressing “MEDIA” displays the audio control screen from any
screens of the selected source.
Audio CD
MP3/WMA discAudio source selection
screen appears
Displaying the track/file list
Pause
Touch to play
Repeat play
Random playback
Displaying the folder list

338 3-3. Using the “touch screen”
HILUX_OM_OM0K134E_(EE)

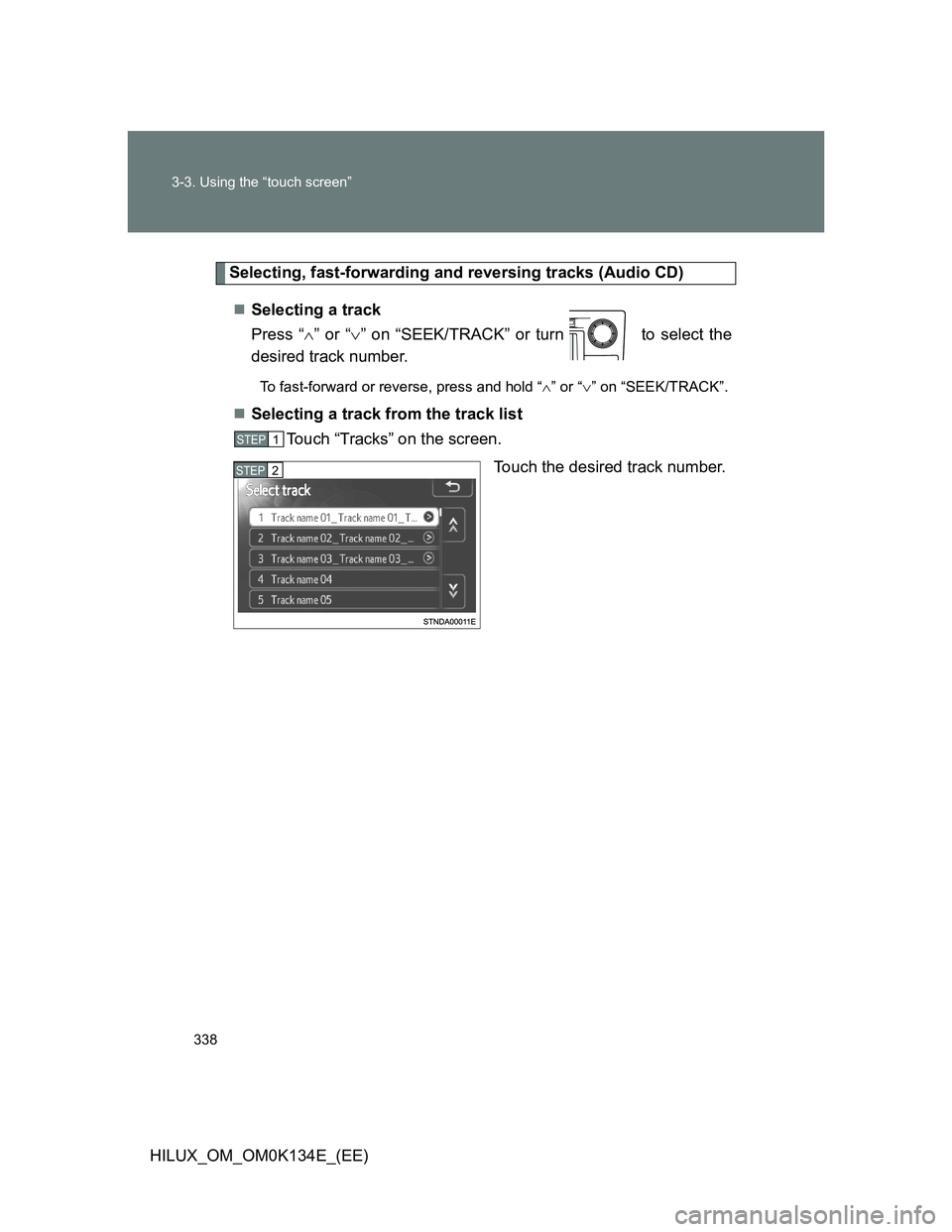

Selecting, fast-forwarding and reversing tracks (Audio CD)
Selecting a track
Press “” or “” on “SEEK/TRACK” or turn to select the
desired track number.
To fast-forward or reverse, press and hold “” or “” on “SEEK/TRACK”.
Selecting a track from the track list
Touch “Tracks” on the screen.
Touch the desired track number.
STEP1
STEP2

339 3-3. Using the “touch screen”
3
Interior features
HILUX_OM_OM0K134E_(EE)
Selecting, fast-forwarding and reversing files (MP3/WMA disc)
Selecting a file
Press “” or “” on “SEEK/TRACK” or turn to select the
desired file number.
To fast-forward or reverse, press and hold “” or “” on “SEEK/TRACK”
until you hear a beep.
Selecting a file from the file list
Touch “Files” on the screen.
Touch the desired file number.
STEP1
STEP2

340 3-3. Using the “touch screen”
HILUX_OM_OM0K134E_(EE)
Selecting a folder (MP3/WMA disc)
Touch “Folders” on the screen.
Touch the desired folder number.
Touch the desired file number.
STEP1
STEP2
STEP3

341 3-3. Using the “touch screen”
3
Interior features
HILUX_OM_OM0K134E_(EE)

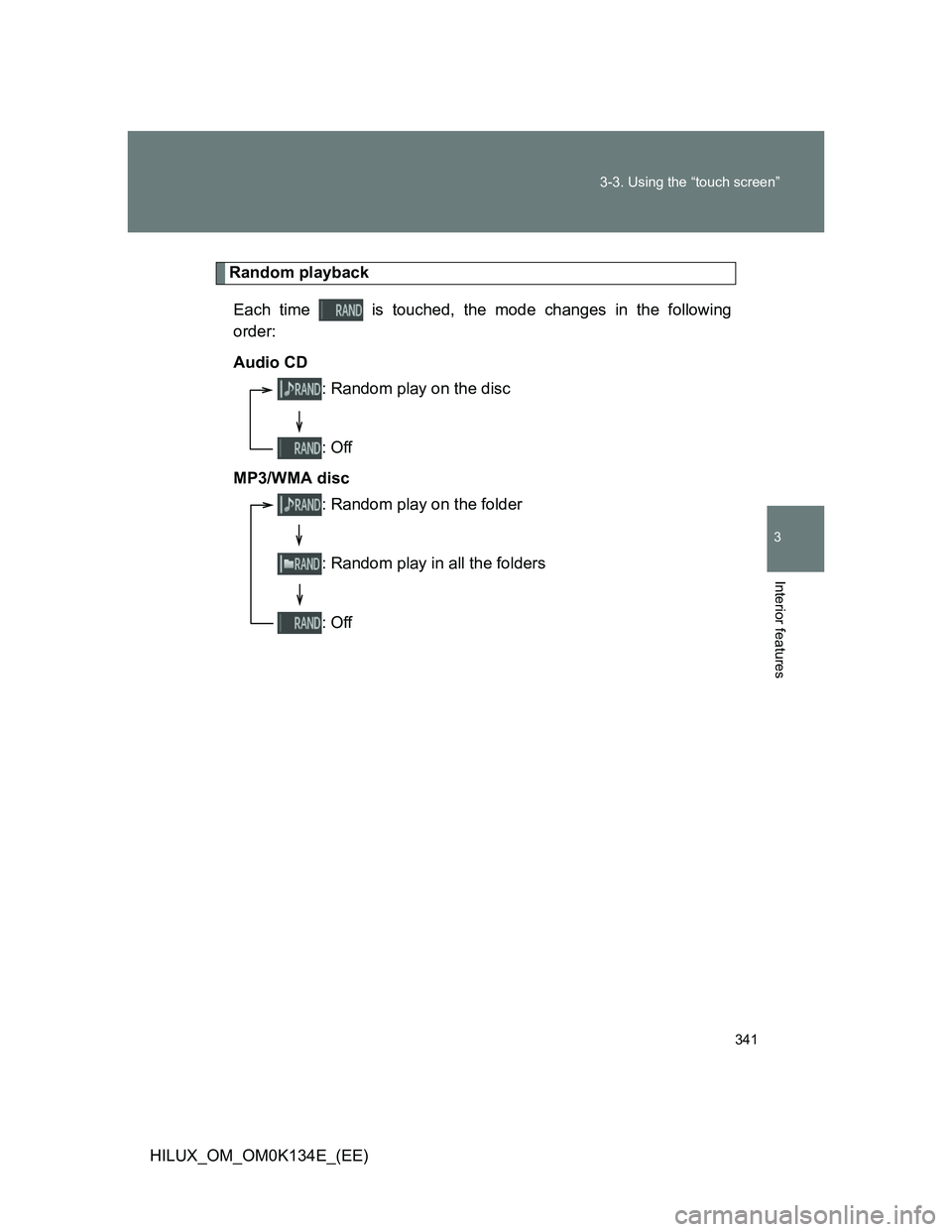

Random playback
Each time is touched, the mode changes in the following
order:
Audio CD
MP3/WMA disc
: Random play on the disc
: Off
: Random play on the folder
: Random play in all the folders
: Off

342 3-3. Using the “touch screen”
HILUX_OM_OM0K134E_(EE)

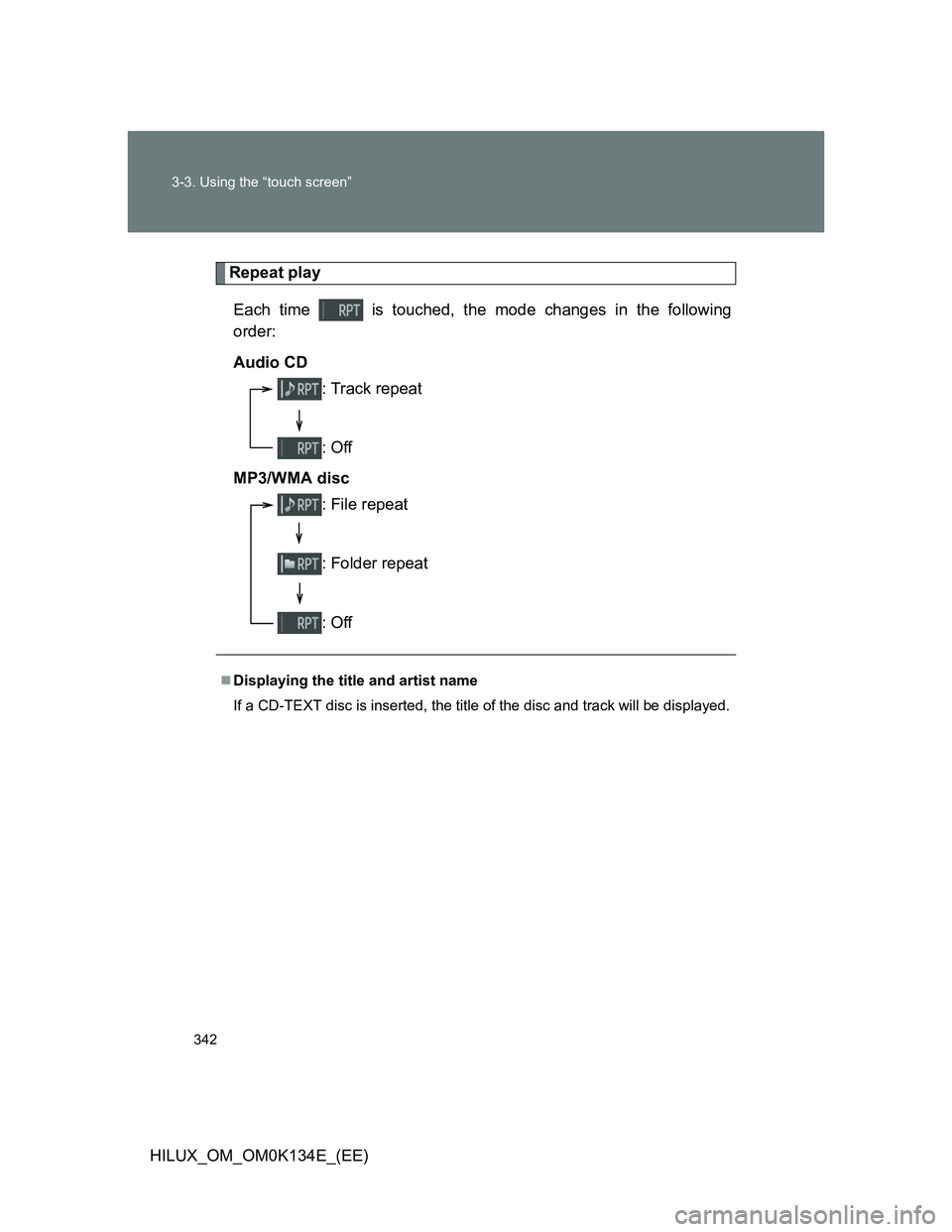

Repeat play
Each time is touched, the mode changes in the following
order:
Audio CD
MP3/WMA disc
Displaying the title and artist name
If a CD-TEXT disc is inserted, the title of the disc and track will be displayed.
: Track repeat
: Off
: File repeat
: Folder repeat
: Off

343 3-3. Using the “touch screen”
3
Interior features
HILUX_OM_OM0K134E_(EE)

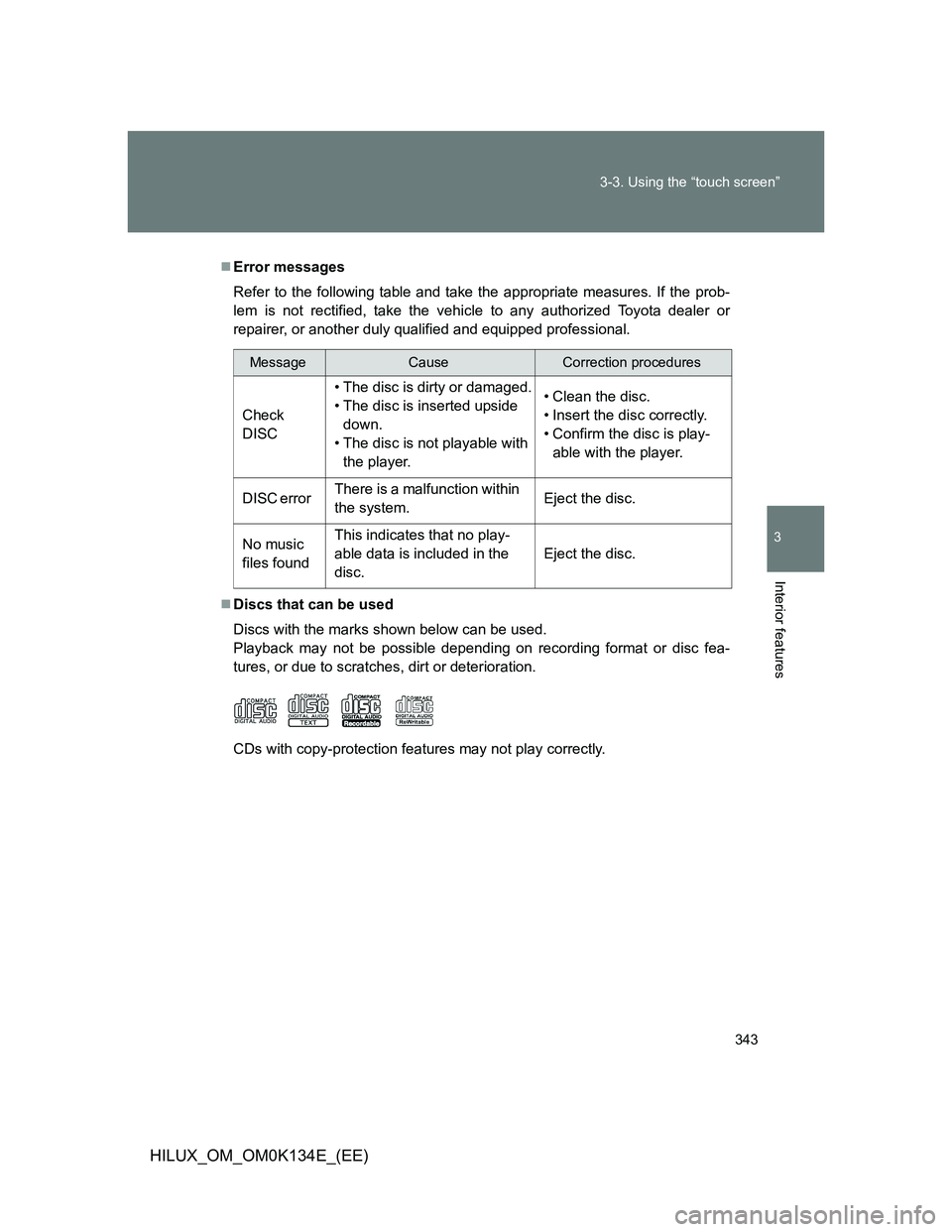

Error messages
Refer to the following table and take the appropriate measures. If the prob-
lem is not rectified, take the vehicle to any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
Discs that can be used
Discs with the marks shown below can be used.
Playback may not be possible depending on recording format or disc fea-
tures, or due to scratches, dirt or deterioration.
CDs with copy-protection features may not play correctly.
MessageCauseCorrection procedures
Check
DISC• The disc is dirty or damaged.
• The disc is inserted upside
down.
• The disc is not playable with
the player.• Clean the disc.
• Insert the disc correctly.
• Confirm the disc is play-
able with the player.
DISC error There is a malfunction within
the system.Eject the disc.
No music
files foundThis indicates that no play-
able data is included in the
disc.Eject the disc.

344 3-3. Using the “touch screen”
HILUX_OM_OM0K134E_(EE)
CD player protection feature
To protect the internal components, playback is automatically stopped when
a problem is detected.
If disc is left inside the CD player or in the ejected position for
extended periods
Disc may be damaged and may not play properly.
Lens cleaners
Do not use lens cleaners. Doing so may damage the CD player.
MP3 and WMA files
MP3 (MPEG Audio LAYER 3) is a standard audio compression format.
Files can be compressed to approximately 1/10 of their original size by using
MP3 compression.
WMA (Windows Media Audio) is a Microsoft audio compression format.
This format compresses audio data to a size smaller than that of the MP3
format.
There is a limit to the MP3 and WMA file standards that can be used and to
the media/formats on which the files are recorded.
MP3 file compatibility
• Compatible standards
MP3 (MPEG1 LAYER3, MPEG2 LSF LAYER3)
• Compatible sampling frequencies
MPEG1 LAYER3: 32, 44.1, 48 (kHz)
MPEG2 LSF LAYER3: 16, 22.05, 24 (kHz)
• Compatible bit rates (compatible with VBR)
MPEG1 LAYER3: 32—320 (kbps)
MPEG2 LSF LAYER3: 8—160 (kbps)
• Compatible channel modes: stereo, joint stereo, dual channel and mon-
aural
