2013 TOYOTA HILUX Owners Manual (in English)

73 1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
HILUX_OM_OM0K134E_(EE)
Double-cab models
Raising the bottom cushion
Remove the center head
restraint.
Pull the strap and raise the
bottom cushion.
The latch under the bottom
cushion will release allowing
the bottom cushion to be
raised.
Anchor the strap to the
bracket behind the rear seat.
STEP1
STEP2
STEP3

74 1-3. Adjustable components (seats, mirrors, steering wheel)
HILUX_OM_OM0K134E_(EE)
CAUTION
When removing the rear seat cushions (if equipped)
Observe the following precautions. Failure to do so may result in death or
serious injury.
Do not remove the rear seat cushions while driving.
Be careful not to hit the removed rear seat cushions against a person or
drop it on yourself.
When reinstalling, returning the rear seat cushions, bottom cushion to
their original position
Observe the following precautions. Failure to do so may result in death or
serious injury.
Be careful not to get your hands or feet pinched in the seat.
Make sure there are no obstacles under the seat which would prevent the
seat from properly locking into place.
Make sure the rear seat cushions, bottom cushion securely locked by
pushing it upward and downward.
Check that the seat belts are not twisted or caught in the seatback.
Replace the center head
restraint.STEP4

75
1
1-3. Adjustable components (seats, mirrors, steering wheel)
Before driving
HILUX_OM_OM0K134E_(EE)

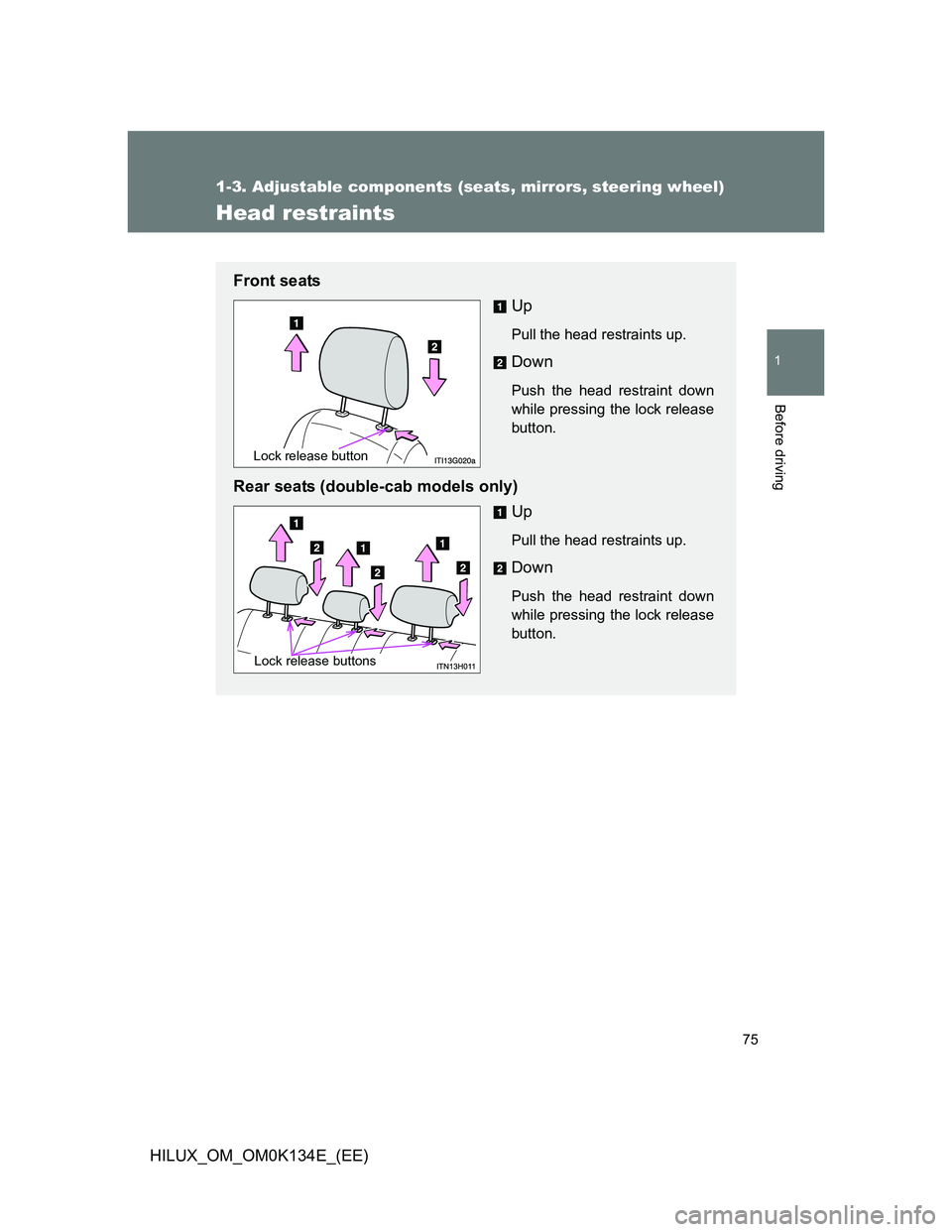

Head restraints
Front seats
Up
Pull the head restraints up.
Down
Push the head restraint down
while pressing the lock release
button.
Rear seats (double-cab models only)
Up
Pull the head restraints up.
Down
Push the head restraint down
while pressing the lock release
button.
Lock release button
Lock release buttons

76 1-3. Adjustable components (seats, mirrors, steering wheel)
HILUX_OM_OM0K134E_(EE)
Removing the head restraints
Installing the head restraints
Adjusting the height of the head restraints
Adjusting the rear seat head restraint (double-cab models only)
Always raise the head restraint one level from the stowed position when
using.
Pull the head restraint up while pressing
the lock release button.
Align the head restraint with the installa-
tion holes and push it down to the lock
position.
Press and hold the lock release button
when lowering the head restraint.
Make sure that the head restraints are
adjusted so that the center of the head
restraint is closest to the top of your ears.

77 1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
HILUX_OM_OM0K134E_(EE)
CAUTION
Head restraint precautions
Observe the following precautions regarding the head restraints. Failure to
do so may result in death or serious injury.
Use the head restraints designed for each respective seat.
Adjust the head restraints to the correct position at all times.
After adjusting the head restraints, push down on them and make sure
they are locked in position.
Do not drive with the head restraints removed.

78
1-3. Adjustable components (seats, mirrors, steering wheel)
HILUX_OM_OM0K134E_(EE)
Seat belts
Make sure that all occupants are wearing their seat belts before driv-
ing the vehicle.
Correct use of the seat belts
3-point type
Extend the shoulder belt so
that it comes fully over the
shoulder, but does not
come into contact with the
neck or slide off the shoul-
der.
Position the lap belt as low
as possible over the hips.
Adjust the position of the
seatback. Sit up straight
and well back in the seat.
Do not twist the seat belt

79 1-3. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
HILUX_OM_OM0K134E_(EE)
2-point type (if equipped)
Position the lap belt as low
as possible over the hips.
Adjust the position of the
seatback. Sit up straight
and well back in the seat.
Do not twist the seat belt.
Fastening and releasing the seat belt
To fasten the seat belt, push
the plate into the buckle
until a click sound is heard.
To release the seat belt,
press the release button.
Release button

80 1-3. Adjustable components (seats, mirrors, steering wheel)
HILUX_OM_OM0K134E_(EE)
Adjusting the seat belt shoulder anchor height (front seats)
(if equipped)
Push the seat belt shoulder
anchor down while pressing
the release button.
Push the seat belt shoulder
anchor up.
Move the height adjuster up
and down as needed until you
hear a click.
Adjusting the length of the belt (2-point type seat belt) (if
equipped)
Lengthen
Shorten
