225 2-4. Using other driving systems
2
When driving
HILUX_OM_OM0K134E_(EE)
CAUTION
The ABS does not operate effectively when
The limits of tire gripping performance have been exceeded (such as
excessively worn tires on a snow covered road).
The vehicle hydroplanes while driving at high speed on the wet or slick
road.
Stopping distance when the ABS is operating may exceed that of nor-
mal conditions
The ABS is not designed to shorten the vehicle’s stopping distance. Always
maintain a safe distance from the vehicle in front of you, especially in the fol-
lowing situations:
When driving on dirt, gravel or snow-covered roads
When driving with tire chains
When driving over bumps in the road
When driving over roads with potholes or uneven surfaces
TRC may not operate effectively when
Directional control and power may not be achievable while driving on slip-
pery road surfaces, even if the TRC system is operating.
Do not drive the vehicle in conditions where stability and power may be lost.
When the VSC is activated
The slip indicator light flashes. Always drive carefully.
Reckless driving may cause an accident. Exercise particular care when the
indicator light flashes.
When the TRC/VSC systems are turned off
Be especially careful and drive at a speed appropriate to the road condi-
tions. As these are the systems to ensure vehicle stability and driving force,
do not turn the TRC/VSC systems off unless necessary.

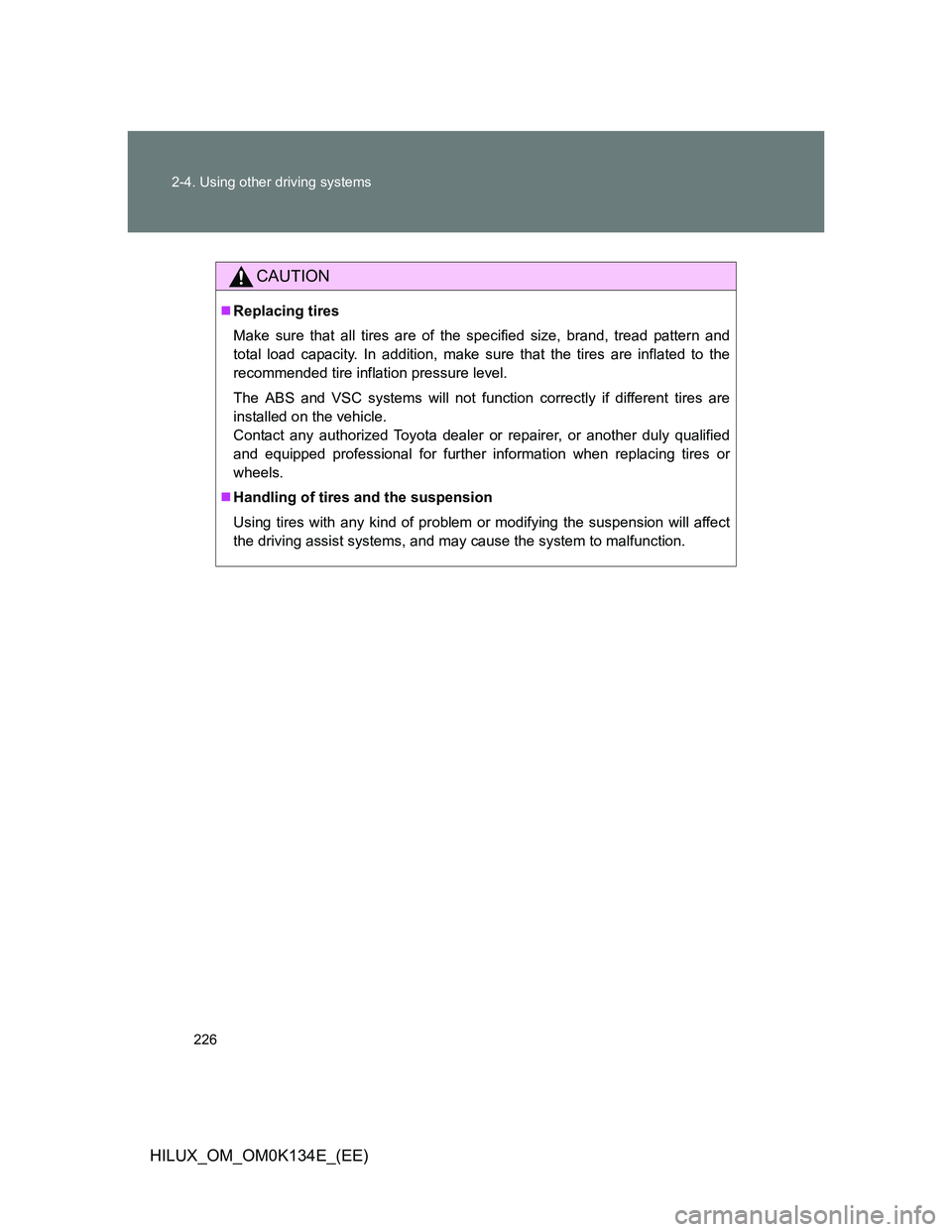

226 2-4. Using other driving systems
HILUX_OM_OM0K134E_(EE)
CAUTION
Replacing tires
Make sure that all tires are of the specified size, brand, tread pattern and
total load capacity. In addition, make sure that the tires are inflated to the
recommended tire inflation pressure level.
The ABS and VSC systems will not function correctly if different tires are
installed on the vehicle.
Contact any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional for further information when replacing tires or
wheels.
Handling of tires and the suspension
Using tires with any kind of problem or modifying the suspension will affect
the driving assist systems, and may cause the system to malfunction.

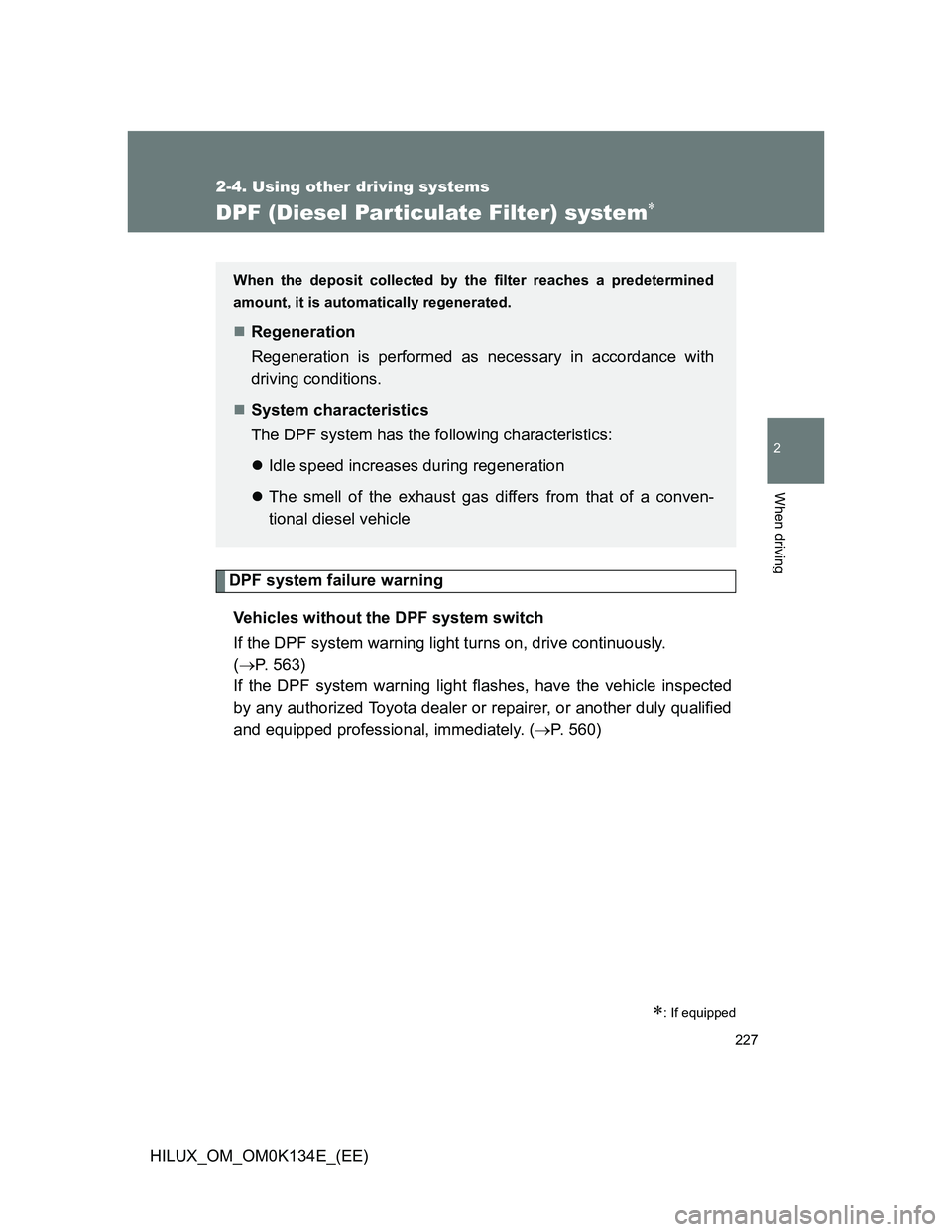

227
2-4. Using other driving systems
2
When driving
HILUX_OM_OM0K134E_(EE)
DPF (Diesel Particulate Filter) system
DPF system failure warning
Vehicles without the DPF system switch
If the DPF system warning light turns on, drive continuously.
(P. 563)
If the DPF system warning light flashes, have the vehicle inspected
by any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional, immediately. (P. 560)
: If equipped
When the deposit collected by the filter reaches a predetermined
amount, it is automatically regenerated.
Regeneration
Regeneration is performed as necessary in accordance with
driving conditions.
System characteristics
The DPF system has the following characteristics:
Idle speed increases during regeneration
The smell of the exhaust gas differs from that of a conven-
tional diesel vehicle

228 2-4. Using other driving systems
HILUX_OM_OM0K134E_(EE)Vehicles with the DPF system switch
If the DPF system warning light and the indicator light on DPF system
switch turn on or flash, follow the procedure below to regenerate.
Stop the vehicle in a safe place.
Firmly set the parking brake and shift the shift lever to P (auto-
matic transmission) or N (manual transmission). Release the
clutch pedal.
Do not stop the engine.
Also, make sure that there are no flammable materials near the
exhaust pipe. (P. 230)
Press the switch.
The DPF system warning light
and the indicator light on the
switch will change from solid or
rapid flashing to slow flashing,
and the idling engine speed will
increase.
Regeneration will take around 20
- 30
* minutes to complete.
When the DPF system warning
light goes out, the idling engine
speed will have finished returning
to normal.
*: Differs in accordance with the
outside temperature.
STEP1
STEP2
STEP3

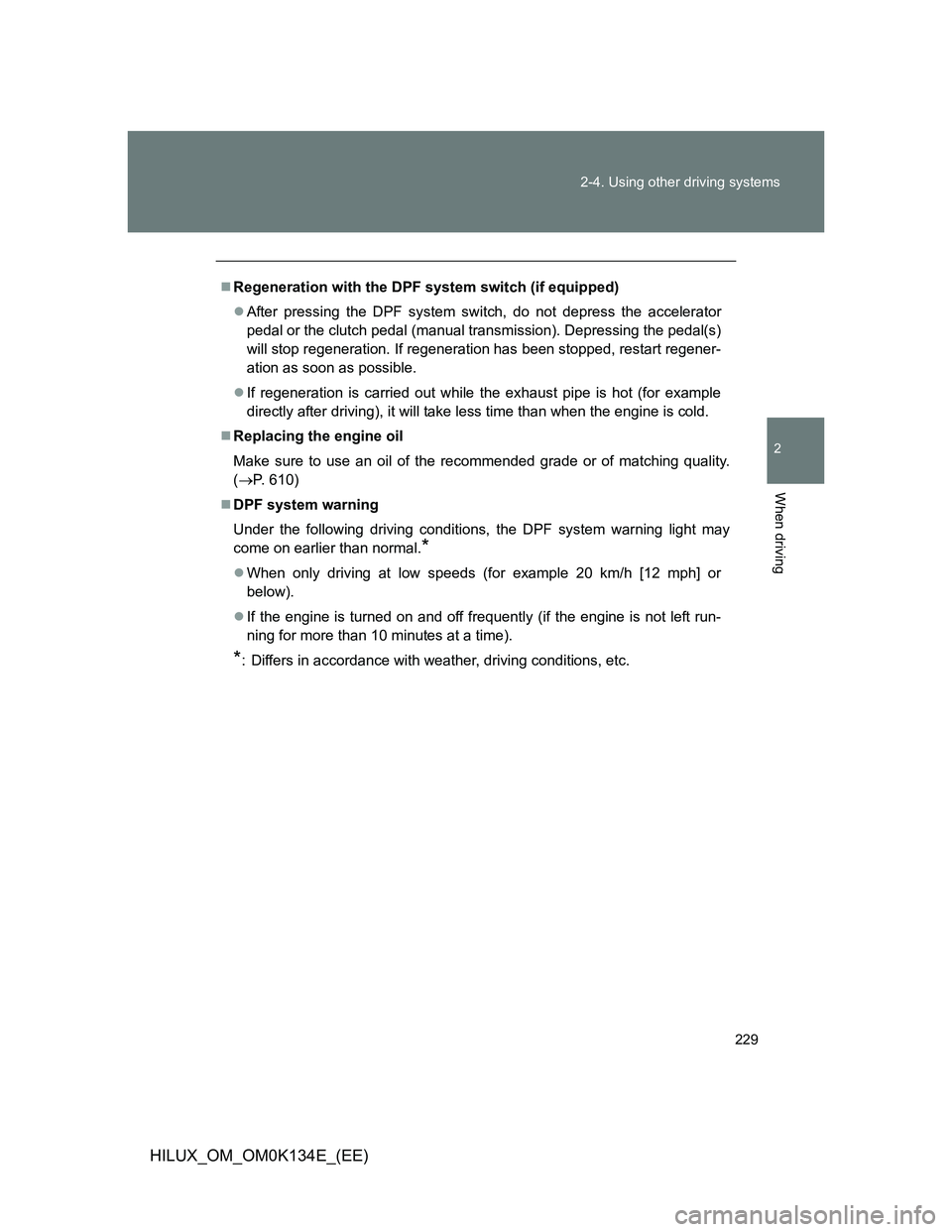

229 2-4. Using other driving systems
2
When driving
HILUX_OM_OM0K134E_(EE)
Regeneration with the DPF system switch (if equipped)
After pressing the DPF system switch, do not depress the accelerator
pedal or the clutch pedal (manual transmission). Depressing the pedal(s)
will stop regeneration. If regeneration has been stopped, restart regener-
ation as soon as possible.
If regeneration is carried out while the exhaust pipe is hot (for example
directly after driving), it will take less time than when the engine is cold.
Replacing the engine oil
Make sure to use an oil of the recommended grade or of matching quality.
(P. 610)
DPF system warning
Under the following driving conditions, the DPF system warning light may
come on earlier than normal.
*
When only driving at low speeds (for example 20 km/h [12 mph] or
below).
If the engine is turned on and off frequently (if the engine is not left run-
ning for more than 10 minutes at a time).
*: Differs in accordance with weather, driving conditions, etc.

230 2-4. Using other driving systems
HILUX_OM_OM0K134E_(EE)
CAUTION
During regeneration
Observe the following precautions.
Failure to do so may result in burning injuries caused by the hot exhaust
pipe and exhaust gases, or may cause a fire.
Vehicles with the DPF system switch: Do not carry out regeneration when
the vehicle is in an enclosed area, such as a garage.
Do not touch the exhaust pipe and exhaust gases during regeneration.
Do not place flammable materials near
the exhaust pipe.
Make sure that there are no people
near the exhaust pipe.

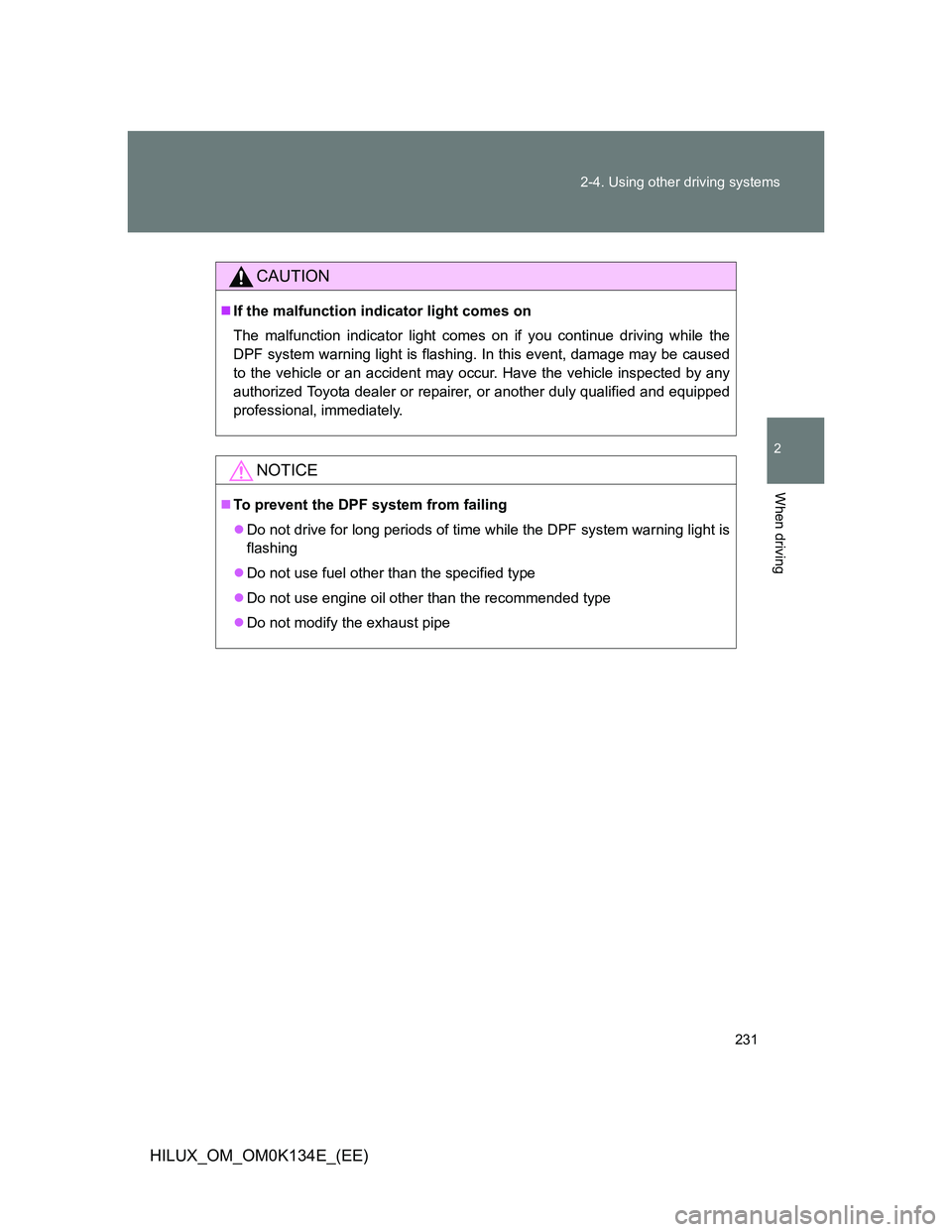

231 2-4. Using other driving systems
2
When driving
HILUX_OM_OM0K134E_(EE)
CAUTION
If the malfunction indicator light comes on
The malfunction indicator light comes on if you continue driving while the
DPF system warning light is flashing. In this event, damage may be caused
to the vehicle or an accident may occur. Have the vehicle inspected by any
authorized Toyota dealer or repairer, or another duly qualified and equipped
professional, immediately.
NOTICE
To prevent the DPF system from failing
Do not drive for long periods of time while the DPF system warning light is
flashing
Do not use fuel other than the specified type
Do not use engine oil other than the recommended type
Do not modify the exhaust pipe

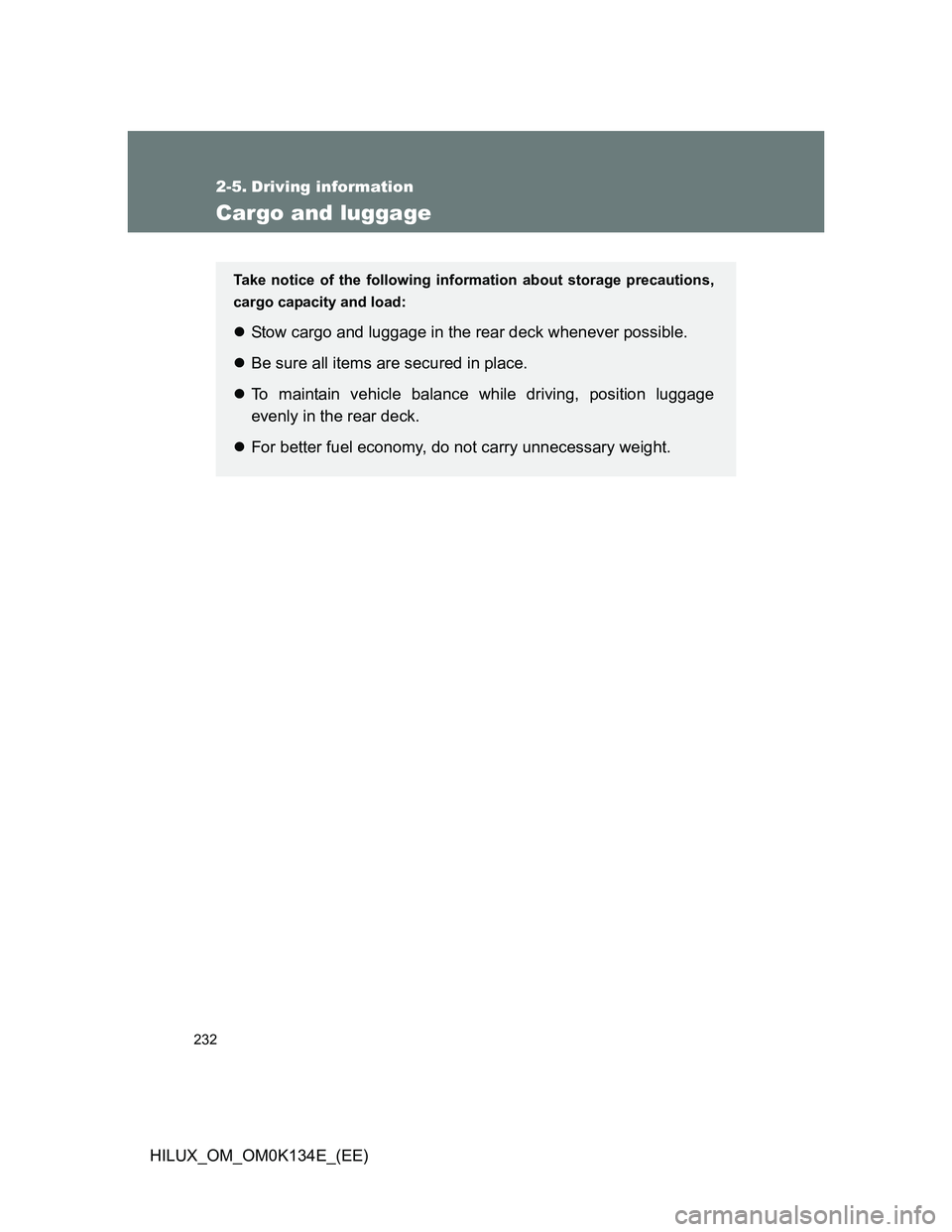

232
HILUX_OM_OM0K134E_(EE)
2-5. Driving information
Cargo and luggage
Take notice of the following information about storage precautions,
cargo capacity and load:
Stow cargo and luggage in the rear deck whenever possible.
Be sure all items are secured in place.
To maintain vehicle balance while driving, position luggage
evenly in the rear deck.
For better fuel economy, do not carry unnecessary weight.
