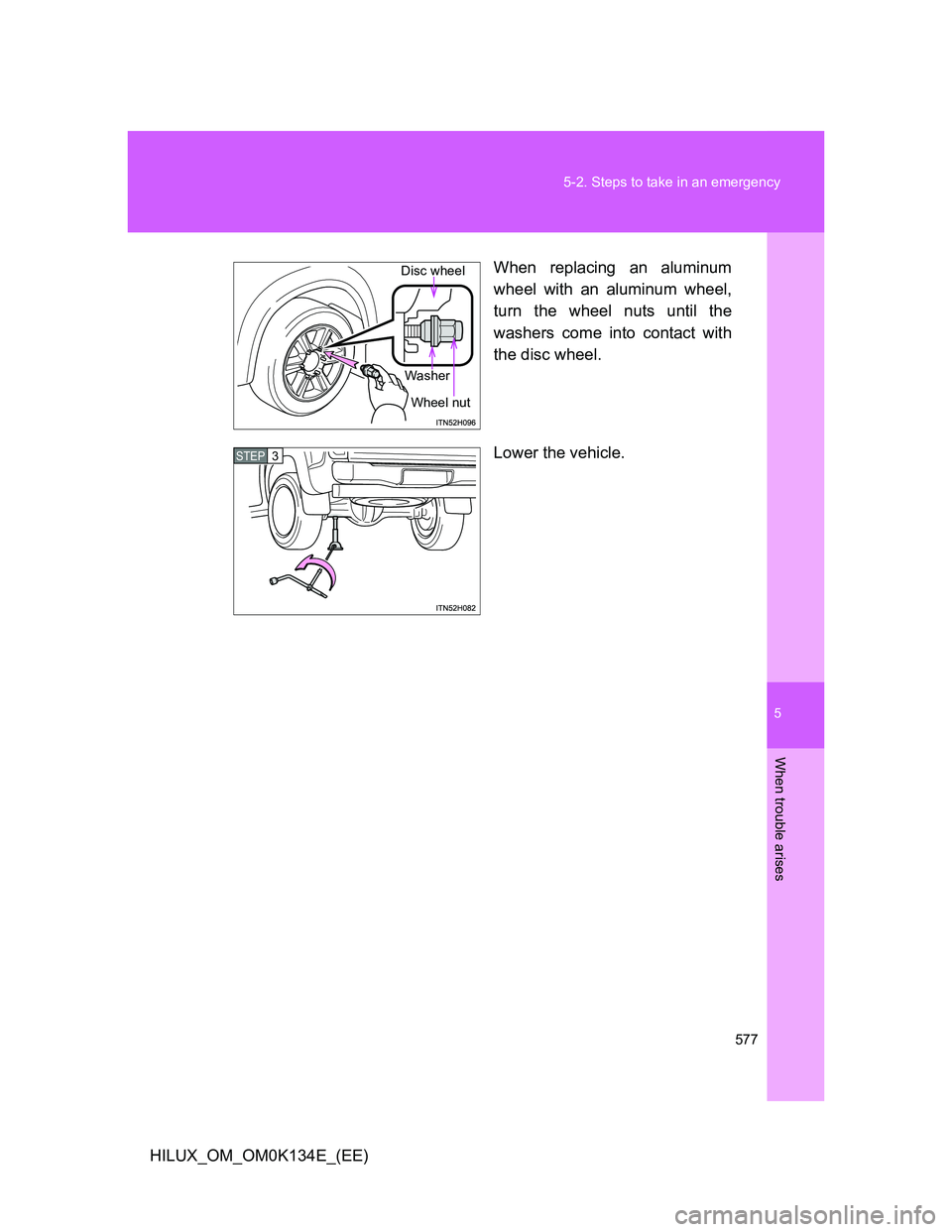

577 5-2. Steps to take in an emergency
When trouble arises
HILUX_OM_OM0K134E_(EE)When replacing an aluminum
wheel with an aluminum wheel,
turn the wheel nuts until the
washers come into contact with
the disc wheel.
Lower the vehicle.
Disc wheel
Washer
Wheel nut
STEP3

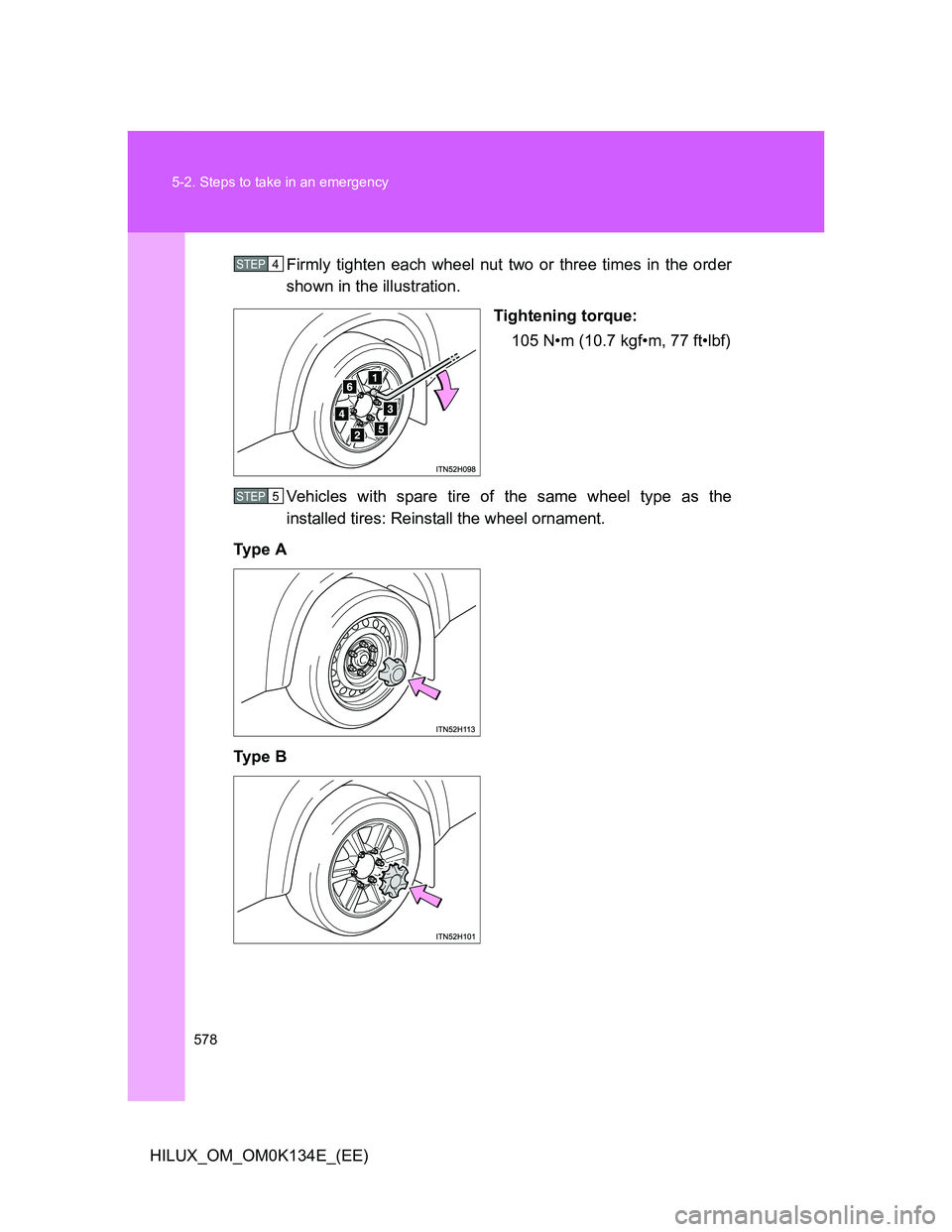

578 5-2. Steps to take in an emergency
HILUX_OM_OM0K134E_(EE)Firmly tighten each wheel nut two or three times in the order
shown in the illustration.
Tightening torque:
105 N•m (10.7 kgf•m, 77 ft•lbf)
Vehicles with spare tire of the same wheel type as the
installed tires: Reinstall the wheel ornament.
Ty p e A
Ty p e B
STEP4
STEP5

5

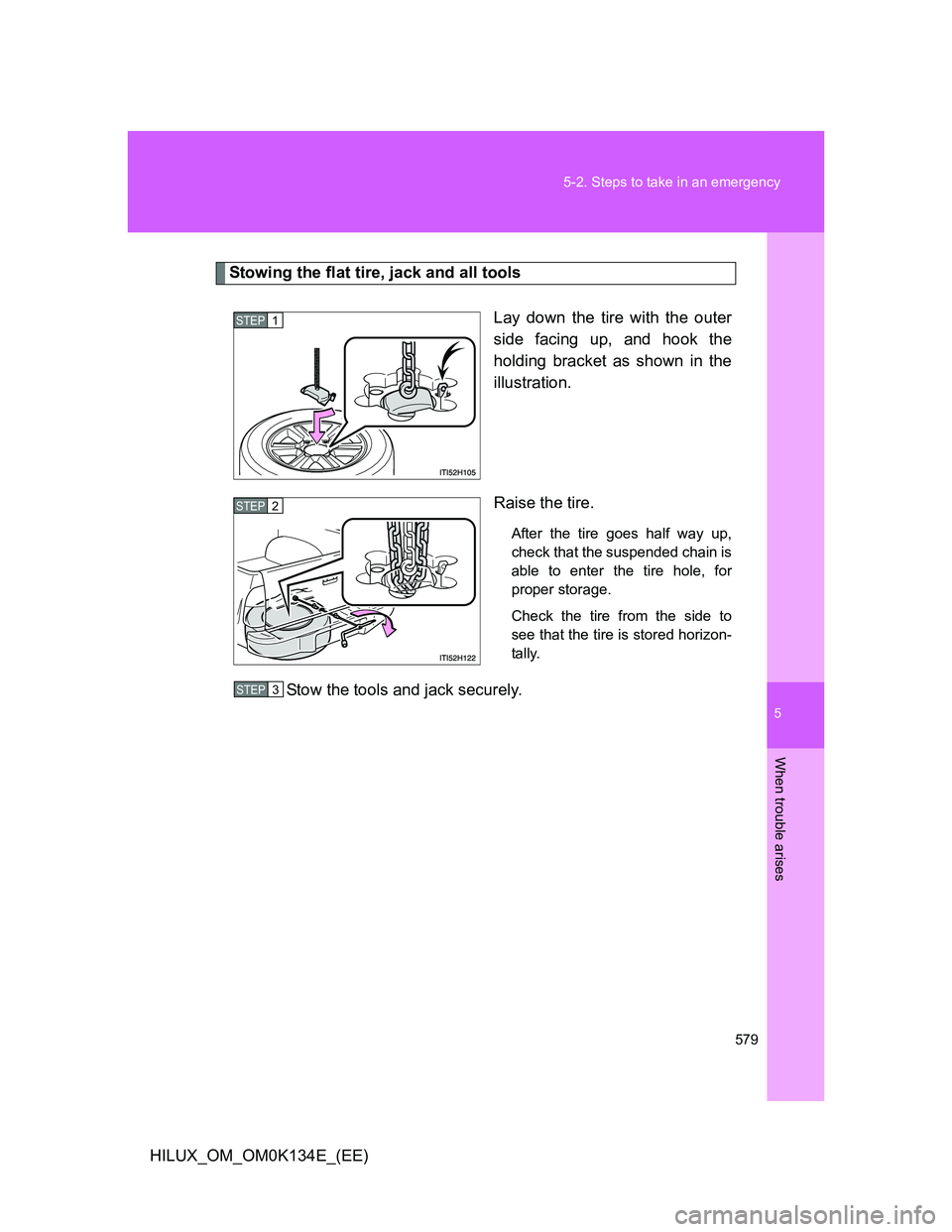

579 5-2. Steps to take in an emergency
When trouble arises
HILUX_OM_OM0K134E_(EE)
Stowing the flat tire, jack and all tools
Lay down the tire with the outer
side facing up, and hook the
holding bracket as shown in the
illustration.
Raise the tire.
After the tire goes half way up,
check that the suspended chain is
able to enter the tire hole, for
proper storage.
Check the tire from the side to
see that the tire is stored horizon-
tally.
Stow the tools and jack securely.
STEP1
STEP2
STEP3

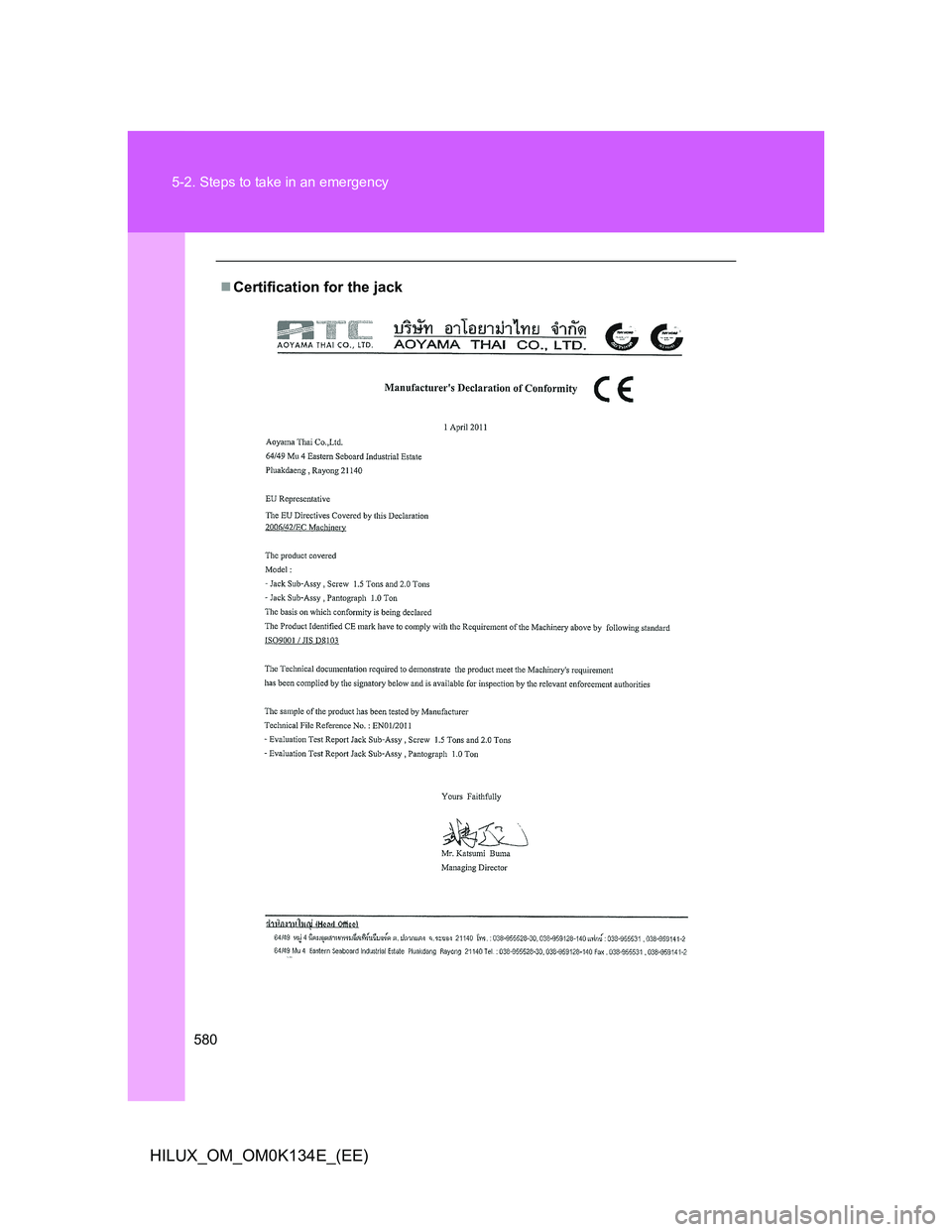

580 5-2. Steps to take in an emergency
HILUX_OM_OM0K134E_(EE)
Certification for the jack

5
581 5-2. Steps to take in an emergency
When trouble arises
HILUX_OM_OM0K134E_(EE)
CAUTION
Using the tire jack
Improper use of the tire jack may cause the vehicle to suddenly fall off the
jack, leading to death or serious injury.
Do not use the tire jack for any purpose other than replacing tires or install-
ing and removing tire chains.
Only use the tire jack that comes with this vehicle for replacing a flat tire.
Do not use it on other vehicles, and do not use other tire jacks for replac-
ing tires on this vehicle.
Always check that the tire jack is securely set to the correct jack up point.
Do not put any part of your body under the vehicle while it is supported by
the jack.
Do not start or run the engine while your vehicle is supported by the jack.
Do not raise the vehicle while someone is inside.
When raising the vehicle, do not put an object on or under the jack.
Do not raise the vehicle to a height greater than that required to replace
the tire.
Use a jack stand if it is necessary to get under the vehicle.
Take particular care when lowering the vehicle to ensure that no one working
on or near the vehicle may be injured.
Do not continue jacking up once the
yellow caution line has appeared.
Ye l l o w
caution line

582 5-2. Steps to take in an emergency
HILUX_OM_OM0K134E_(EE)
CAUTION
Using the jack handle
Tighten all the jack handle bolts securely using a Phillips-head screwdriver
or your hand, to prevent the extension parts from coming apart unexpect-
edly.
Replacing a flat tire
Observe the following precautions to reduce the risk of death or serious
injury:
Do not touch the disc wheels or the area around the brakes immediately
after the vehicle has been driven.
After the vehicle has been driven the disc wheels and the area around the
brakes will be extremely hot. Touching these areas with hands, feet or
other body parts while changing a tire, etc. may result in burns.
Lower the spare tire completely to the ground before removing it from
under the vehicle.
Do not try to remove the wheel ornament by hand. Take due care in han-
dling the ornament to avoid unexpected personal injury.
Have the wheel nuts tightened with a torque wrench to 105 N•m
(10.7 kgf•m, 77 ft•lbf) as soon as possible after changing wheels.
Do not attach a heavily damaged wheel ornament, as it may fly off the
wheel while the vehicle is moving.
When installing a tire, only use wheel nuts that have been specifically
designed for that wheel.
If there are any cracks or deformations in the bolt screws, nut threads or
bolt holes of the wheel, have the vehicle inspected by any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional.
Failure to follow these precautions could cause the wheel nuts to loosen and
the tire to fall off, resulting in death or serious injury.

5

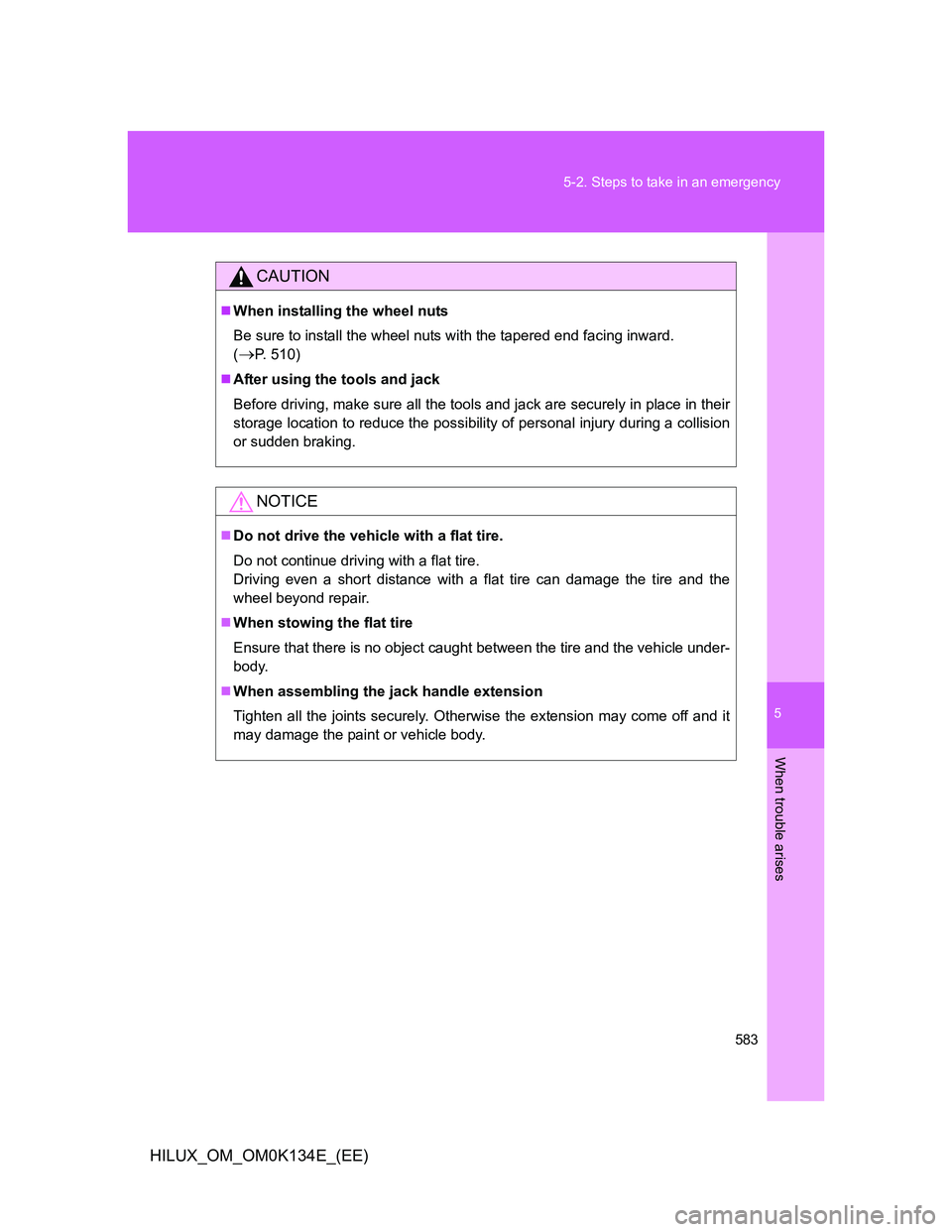

583 5-2. Steps to take in an emergency
When trouble arises
HILUX_OM_OM0K134E_(EE)
CAUTION
When installing the wheel nuts
Be sure to install the wheel nuts with the tapered end facing inward.
(
P. 510)
After using the tools and jack
Before driving, make sure all the tools and jack are securely in place in their
storage location to reduce the possibility of personal injury during a collision
or sudden braking.
NOTICE
Do not drive the vehicle with a flat tire.
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the
wheel beyond repair.
When stowing the flat tire
Ensure that there is no object caught between the tire and the vehicle under-
body.
When assembling the jack handle extension
Tighten all the joints securely. Otherwise the extension may come off and it
may damage the paint or vehicle body.

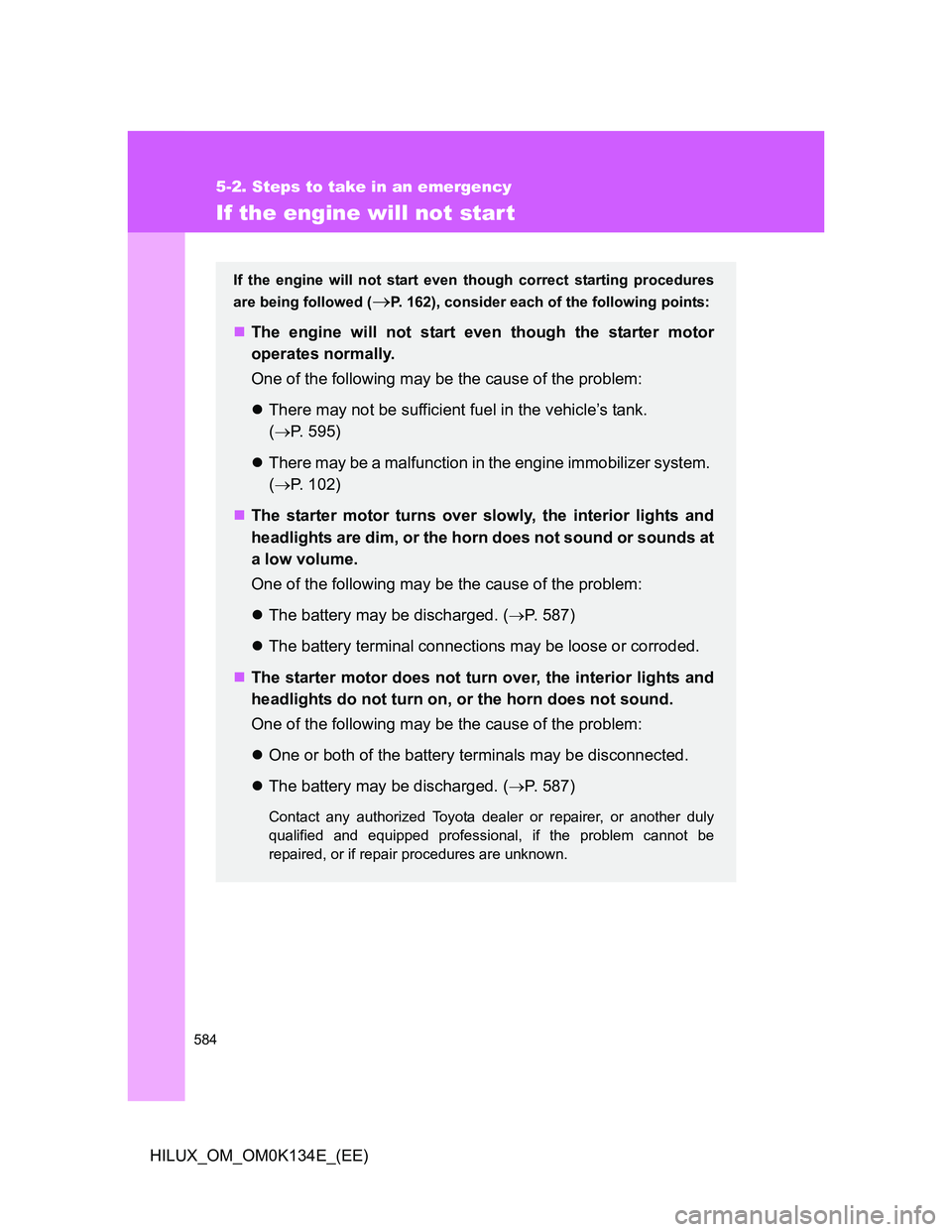

584
5-2. Steps to take in an emergency
HILUX_OM_OM0K134E_(EE)
If the engine will not start
If the engine will not start even though correct starting procedures
are being followed (
P. 162), consider each of the following points:
The engine will not start even though the starter motor
operates normally.
One of the following may be the cause of the problem:
There may not be sufficient fuel in the vehicle’s tank.
(P. 595)
There may be a malfunction in the engine immobilizer system.
(P. 102)
The starter motor turns over slowly, the interior lights and
headlights are dim, or the horn does not sound or sounds at
a low volume.
One of the following may be the cause of the problem:
The battery may be discharged. (P. 587)
The battery terminal connections may be loose or corroded.
The starter motor does not turn over, the interior lights and
headlights do not turn on, or the horn does not sound.
One of the following may be the cause of the problem:
One or both of the battery terminals may be disconnected.
The battery may be discharged. (P. 587)
Contact any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional, if the problem cannot be
repaired, or if repair procedures are unknown.
