2013 TOYOTA HILUX Owners Manual (in English)

177 2-2. Instrument cluster
2
When driving
HILUX_OM_OM0K134E_(EE)
Speedometer
Displays the vehicle speed.
Engine coolant temperature gauge
Displays the engine coolant temperature.
Fuel gauge
Displays the quantity of fuel remaining in the tank.
Odometer/trip meter display change button
P. 178
Odometer and trip meter display
Odometer: Displays the total distance the vehicle has been driven.
Trip meter: Displays the distance the vehicle has been driven since the
meter was last reset. Trip meters A and B can be used to
record and display different distances independently.
Tachometer
Displays the engine speed in revolutions per minute.

178 2-2. Instrument cluster
HILUX_OM_OM0K134E_(EE)
Changing the display
Switches between odometer and
trip meter displays. When the trip
meter is displayed, pressing and
holding the button will reset the
trip meter.
The units may differ depending
on the target region.
Instrument panel light control (if equipped)
The brightness of the instrument panel lights can be adjusted by turn-
ing the knob.
Darker
Brighter

179 2-2. Instrument cluster
2
When driving
HILUX_OM_OM0K134E_(EE)
The meters illuminate when
Vehicles without optitron type meter
The front position lights is turned on.
Vehicles with optitron type meter
The engine switch is in the “ON” position.
The odometer and trip meter display illuminate when
The engine switch is in the “ON” position.
The brightness of the instrument panel lights
When the headlight switch is turned to on, the brightness will be reduced
slightly unless the control dial is turned fully clockwise.
When disconnecting and reconnecting battery terminals
The trip meter data will be reset.
NOTICE
To prevent damage to the engine and its components
Do not let the indicator needle of the tachometer enter the red zone, which
indicates the maximum engine speed.
The engine may be overheating if the engine coolant temperature gauge is
in the red zone (H). In this case, immediately stop the vehicle in a safe
place, and check the engine after it has cooled completely. (P. 592)

180
2-2. Instrument cluster
HILUX_OM_OM0K134E_(EE)

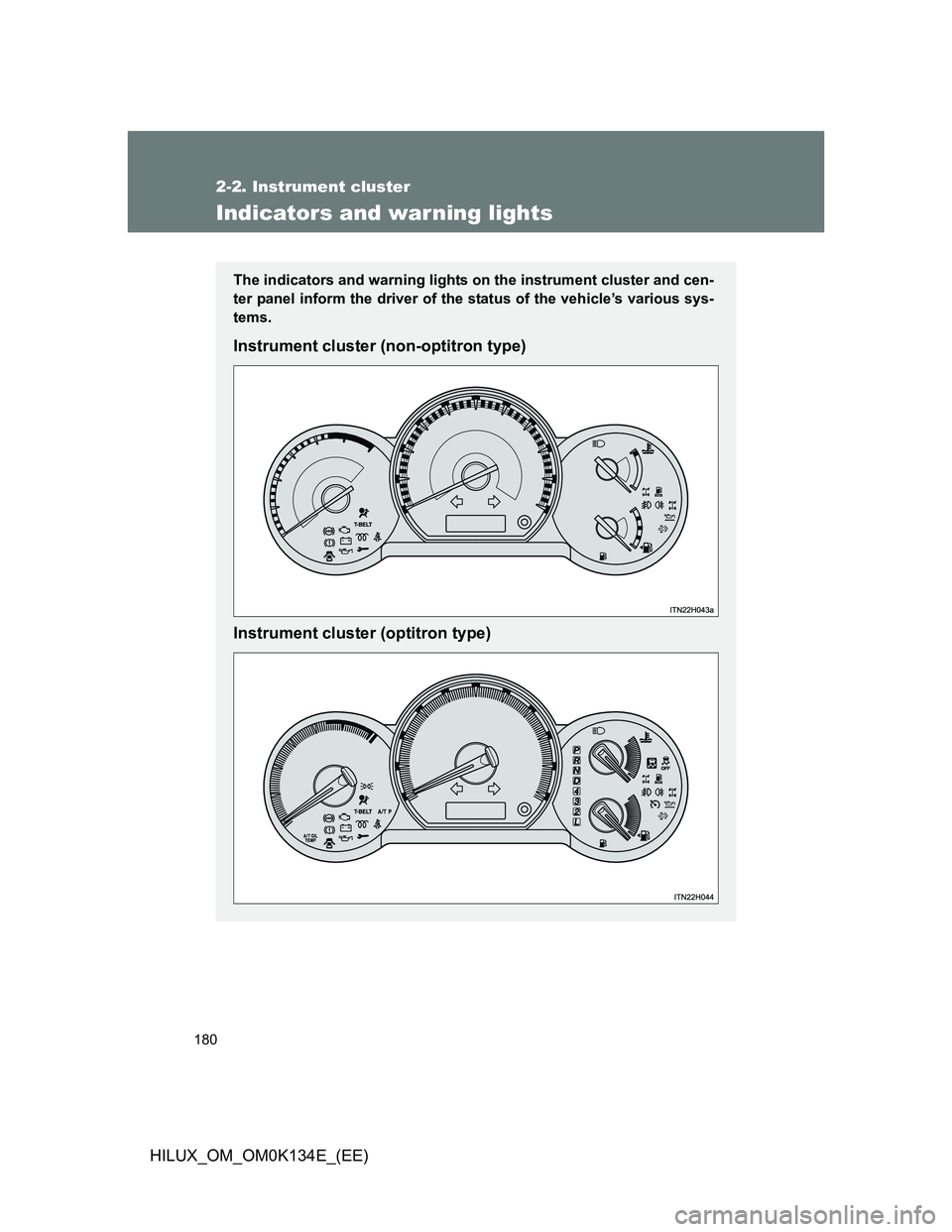

Indicators and warning lights
The indicators and warning lights on the instrument cluster and cen-
ter panel inform the driver of the status of the vehicle’s various sys-
tems.
Instrument cluster (non-optitron type)
Instrument cluster (optitron type)

181 2-2. Instrument cluster
2
When driving
HILUX_OM_OM0K134E_(EE)

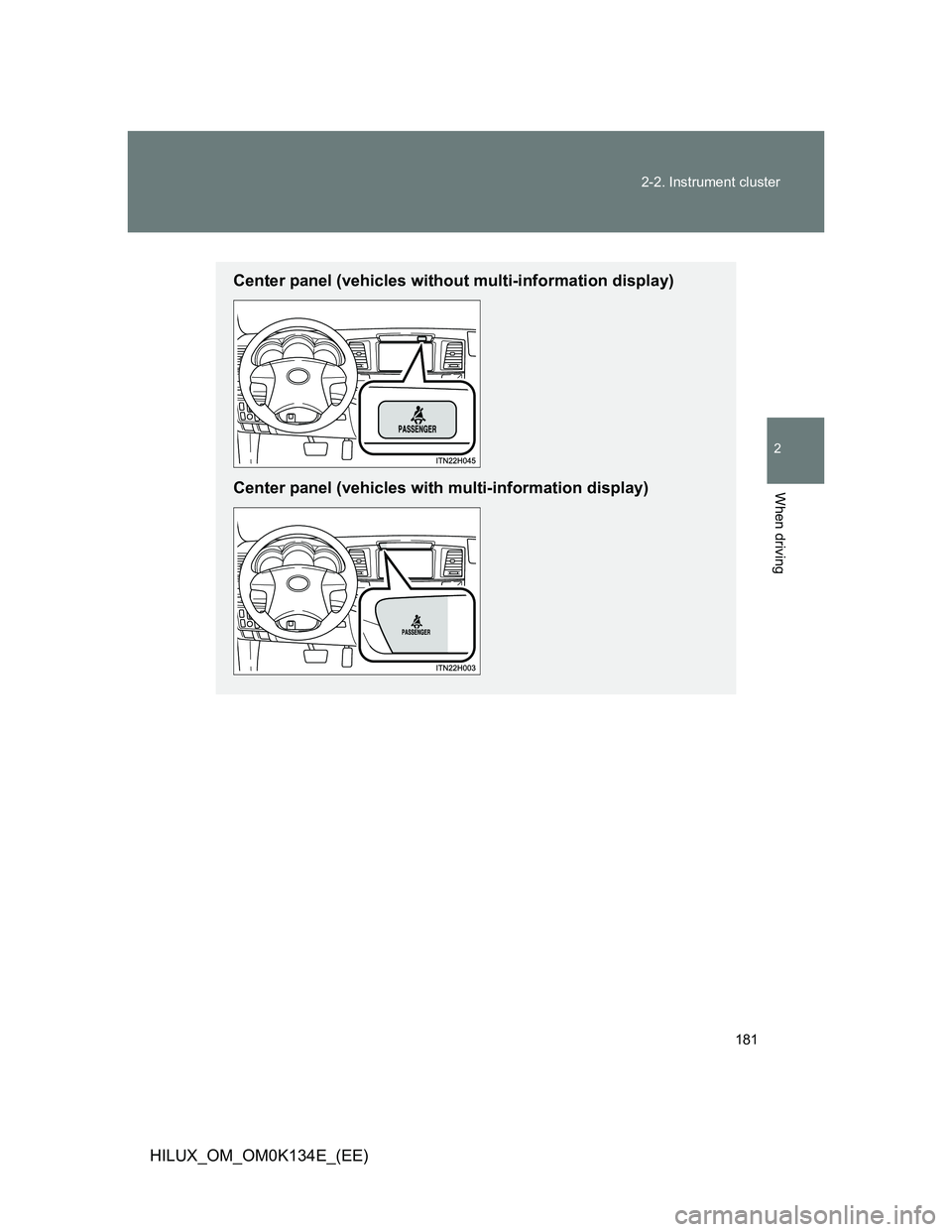

Center panel (vehicles without multi-information display)
Center panel (vehicles with multi-information display)

182 2-2. Instrument cluster
HILUX_OM_OM0K134E_(EE)
Indicators
The indicators inform the driver of the operating state of the
vehicle’s various systems.
Turn signal indicator
(P. 173)
(if equipped)
Slip indicator
(P. 222)
Headlight high beam
indicator (P. 191)
(if equipped)
VSC OFF indicator
(P. 222)
(optitron type
meters)
Tail light indicator
(P. 191)
(4WD models)
Four-wheel drive
indicator(P. 212)
(if equipped)
Front fog light indicator
(P. 195)
(if equipped)
Rear differential lock
indicator (P. 217)
Rear fog light indicator
(P. 196)
(automatic
transmission)
Shift position indicators
(P. 166)Engine preheating
indicator (P. 162)
(if equipped)
Cruise control indicator
(P. 202)
*1, 2
*1
*1

183 2-2. Instrument cluster
2
When driving
HILUX_OM_OM0K134E_(EE)
Warning lights
Warning lights inform the driver of malfunctions in any of the
vehicle’s systems. (P. 557)
*1: These lights turn on when the engine switch is turned to the “ON” posi-
tion to indicate that a system check is being performed. They will turn
off after the engine is started, or after a few seconds. There may be a
malfunction in a system if a light does not come on, or if the lights do
not turn off. Have the vehicle inspected by any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional.
*2: The light flashes to indicate that the system is operating.
*3: The light flashes to indicate a malfunction.
*4: The light turns to yellow (except for Russia and Ukraine) or flashes (for
Russia and Ukraine) to indicate a malfunction.
(for driver)(for front
passenger)(if equipped)(if equipped)(if equipped)
(if equipped)(if equipped)(if equipped)(4WD models)
*1*1*1*1*1*1*1
*1*1*1*1
*1, 3*1*4*1*3

184 2-2. Instrument cluster
HILUX_OM_OM0K134E_(EE)
CAUTION
If a safety system warning light does not come on
Should a safety system light such as ABS and the SRS warning light not
come on when you start the engine, this could mean that these systems are
not available to help protect you in an accident, which could result in death
or serious injury. Have the vehicle inspected by any authorized Toyota dealer
or repairer, or another duly qualified and equipped professional immediately
if this occurs.
