2013 TOYOTA HILUX Owners Manual (in English)

137 1-7. Safety information
1
Before driving

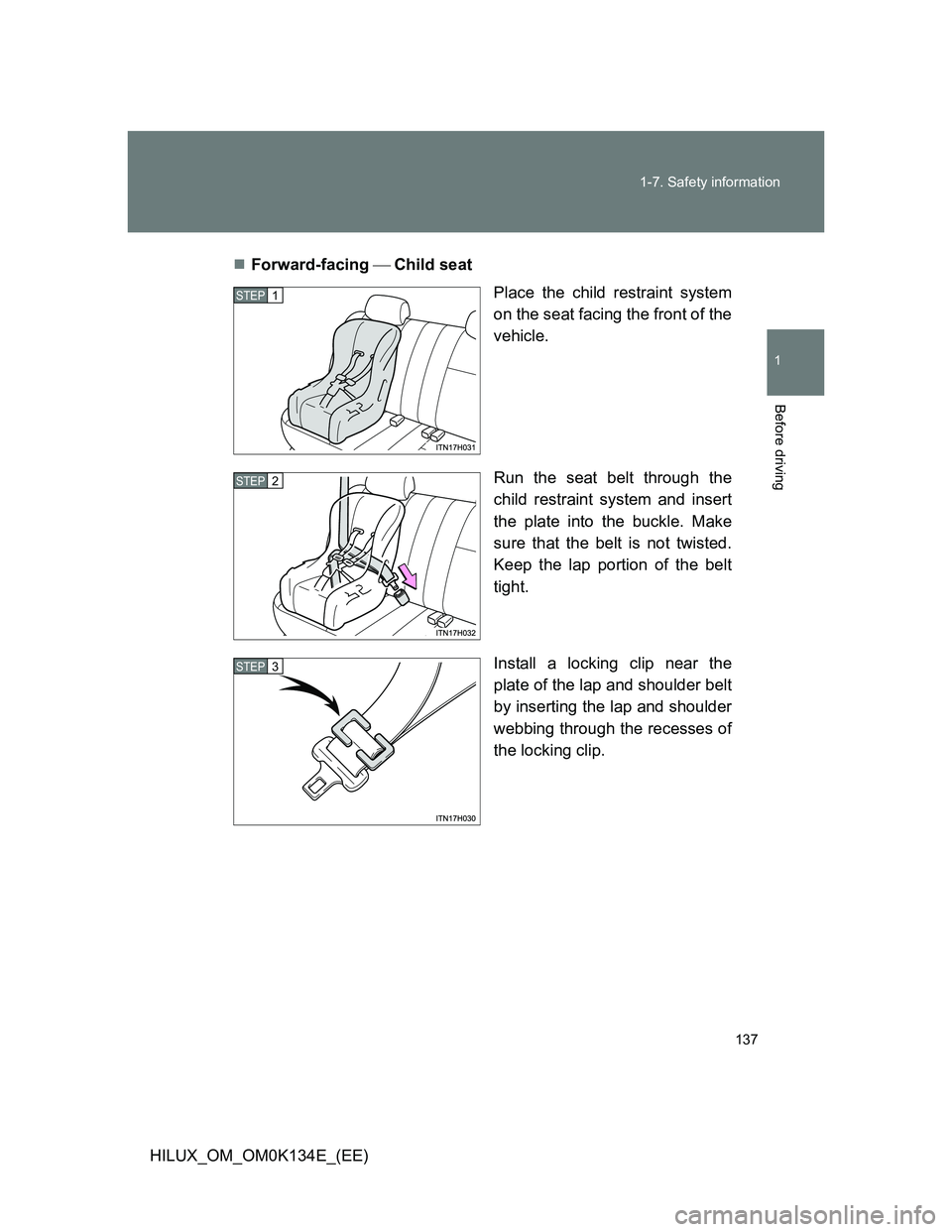

HILUX_OM_OM0K134E_(EE)Forward-facing Child seat
Place the child restraint system
on the seat facing the front of the
vehicle.
Run the seat belt through the
child restraint system and insert
the plate into the buckle. Make
sure that the belt is not twisted.
Keep the lap portion of the belt
tight.
Install a locking clip near the
plate of the lap and shoulder belt
by inserting the lap and shoulder
webbing through the recesses of
the locking clip.
STEP1
STEP2
STEP3

138 1-7. Safety information

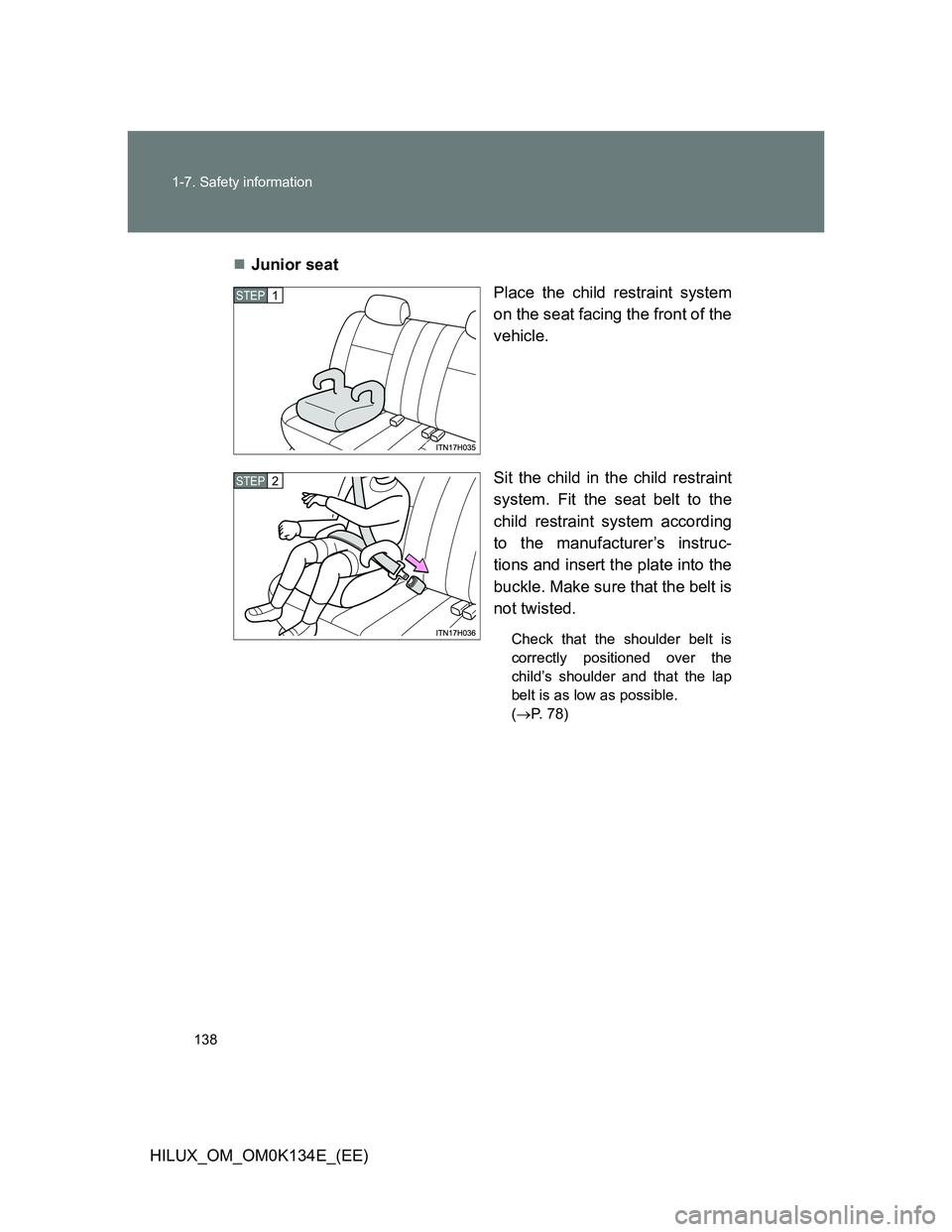

HILUX_OM_OM0K134E_(EE)Junior seat
Place the child restraint system
on the seat facing the front of the
vehicle.
Sit the child in the child restraint
system. Fit the seat belt to the
child restraint system according
to the manufacturer’s instruc-
tions and insert the plate into the
buckle. Make sure that the belt is
not twisted.
Check that the shoulder belt is
correctly positioned over the
child’s shoulder and that the lap
belt is as low as possible.
(P. 78)
STEP1
STEP2

139 1-7. Safety information
1
Before driving
HILUX_OM_OM0K134E_(EE)

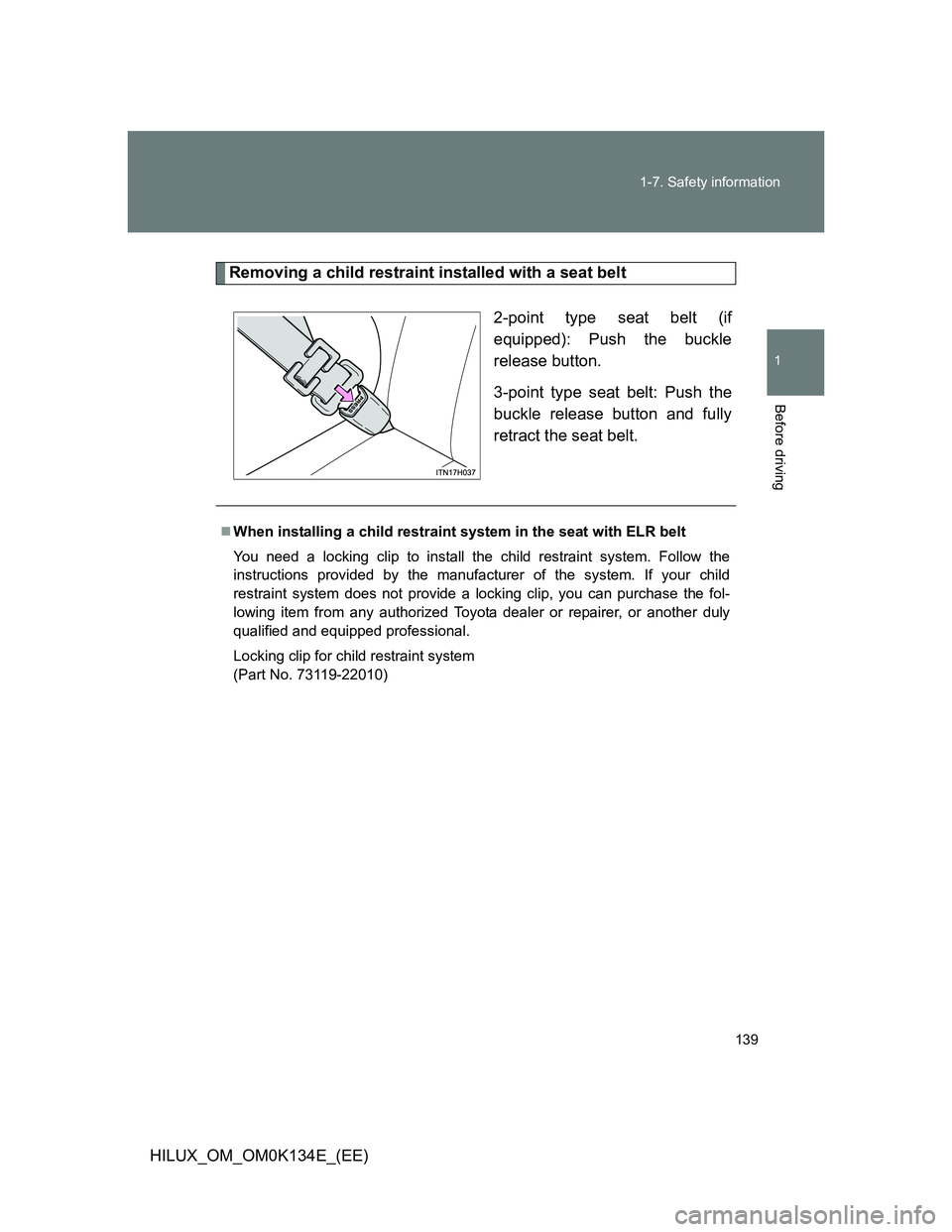

Removing a child restraint installed with a seat belt
2-point type seat belt (if
equipped): Push the buckle
release button.
3-point type seat belt: Push the
buckle release button and fully
retract the seat belt.
When installing a child restraint system in the seat with ELR belt
You need a locking clip to install the child restraint system. Follow the
instructions provided by the manufacturer of the system. If your child
restraint system does not provide a locking clip, you can purchase the fol-
lowing item from any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional.
Locking clip for child restraint system
(Part No. 73119-22010)

140 1-7. Safety information
HILUX_OM_OM0K134E_(EE)

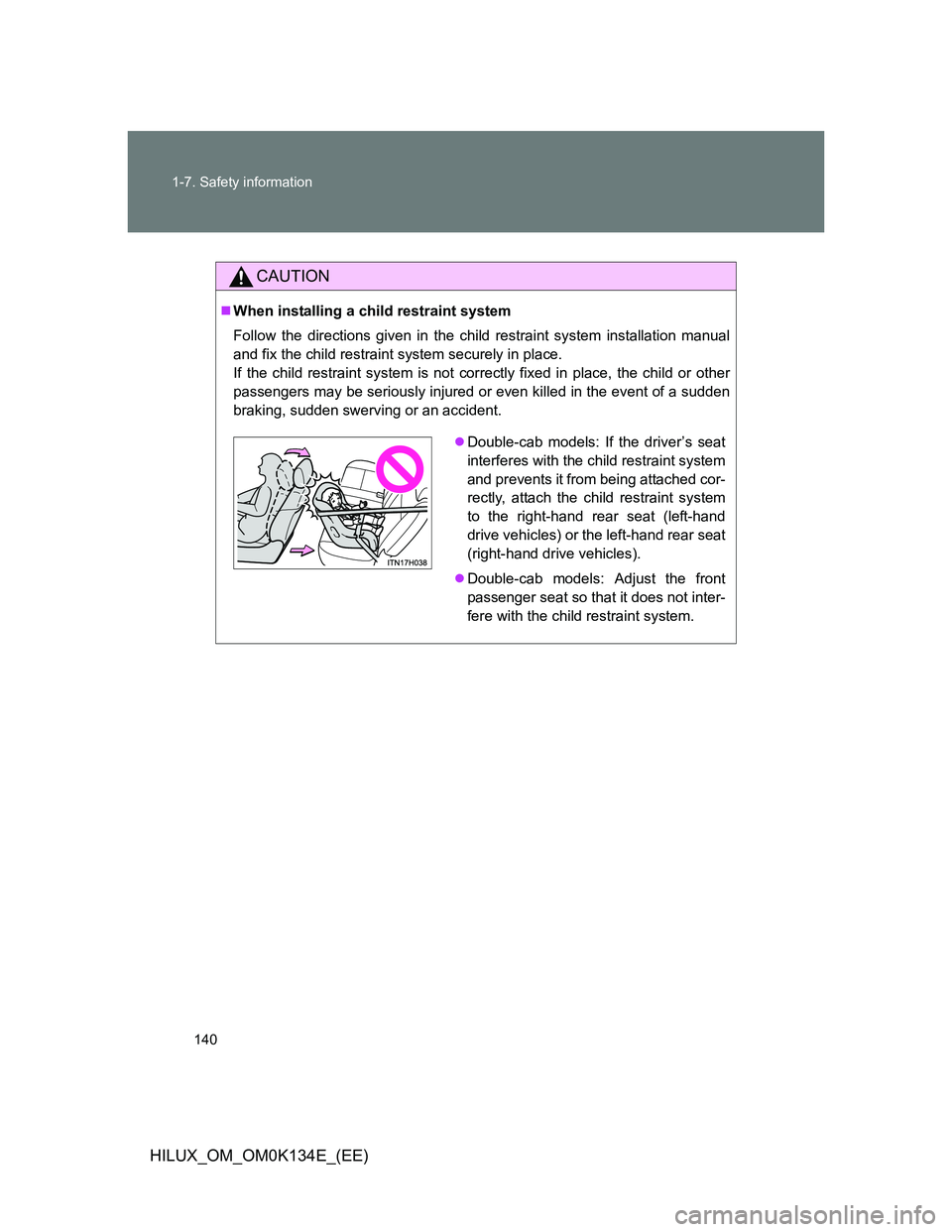

CAUTION
When installing a child restraint system
Follow the directions given in the child restraint system installation manual
and fix the child restraint system securely in place.
If the child restraint system is not correctly fixed in place, the child or other
passengers may be seriously injured or even killed in the event of a sudden
braking, sudden swerving or an accident.
Double-cab models: If the driver’s seat
interferes with the child restraint system
and prevents it from being attached cor-
rectly, attach the child restraint system
to the right-hand rear seat (left-hand
drive vehicles) or the left-hand rear seat
(right-hand drive vehicles).
Double-cab models: Adjust the front
passenger seat so that it does not inter-
fere with the child restraint system.

141 1-7. Safety information
1
Before driving
HILUX_OM_OM0K134E_(EE)

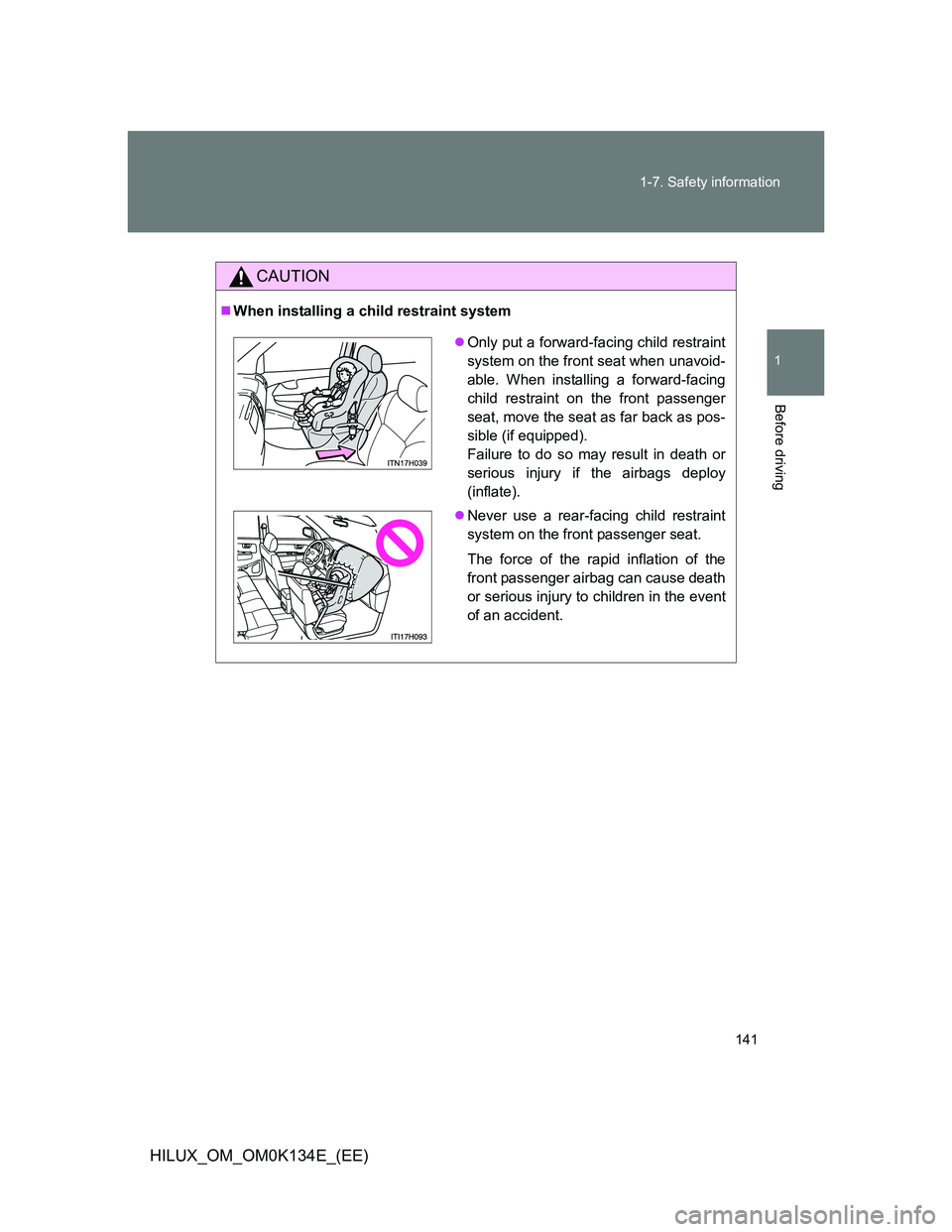

CAUTION
When installing a child restraint system
Only put a forward-facing child restraint
system on the front seat when unavoid-
able. When installing a forward-facing
child restraint on the front passenger
seat, move the seat as far back as pos-
sible (if equipped).
Failure to do so may result in death or
serious injury if the airbags deploy
(inflate).
Never use a rear-facing child restraint
system on the front passenger seat.
The force of the rapid inflation of the
front passenger airbag can cause death
or serious injury to children in the event
of an accident.

142 1-7. Safety information
HILUX_OM_OM0K134E_(EE)

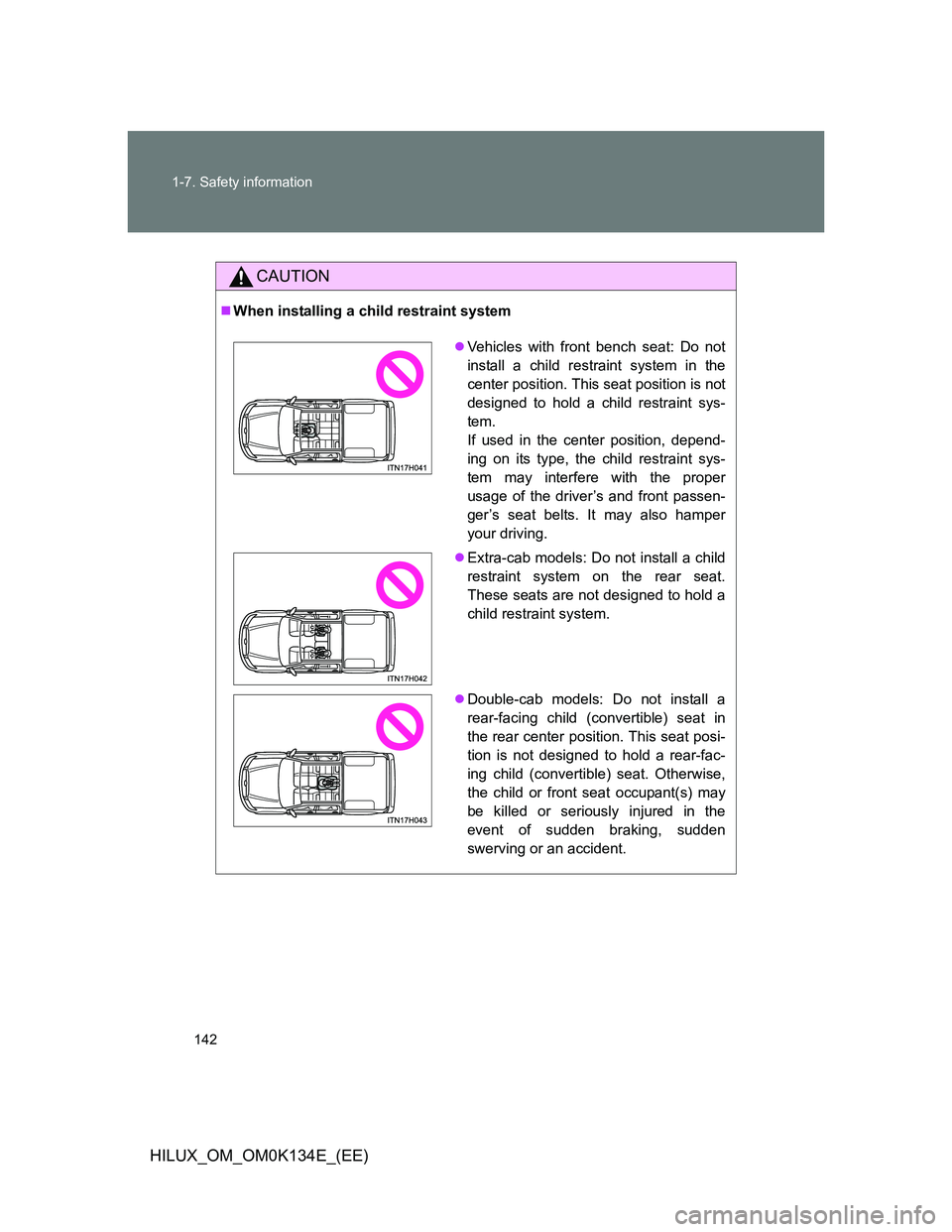

CAUTION
When installing a child restraint system
Vehicles with front bench seat: Do not
install a child restraint system in the
center position. This seat position is not
designed to hold a child restraint sys-
tem.
If used in the center position, depend-
ing on its type, the child restraint sys-
tem may interfere with the proper
usage of the driver’s and front passen-
ger’s seat belts. It may also hamper
your driving.
Extra-cab models: Do not install a child
restraint system on the rear seat.
These seats are not designed to hold a
child restraint system.
Double-cab models: Do not install a
rear-facing child (convertible) seat in
the rear center position. This seat posi-
tion is not designed to hold a rear-fac-
ing child (convertible) seat. Otherwise,
the child or front seat occupant(s) may
be killed or seriously injured in the
event of sudden braking, sudden
swerving or an accident.

143 1-7. Safety information
1
Before driving
HILUX_OM_OM0K134E_(EE)
CAUTION
When installing a child restraint system
If child restraint system regulations exist in the country where you reside,
please contact any authorized Toyota dealer or repairer, or another duly
qualified and equipped professional for the child restraint system installa-
tion.
When a junior seat is installed, always ensure that the shoulder belt is
positioned across the center of the child’s shoulder. The belt should be
kept away from the child’s neck, but not so that it could fall off the child’s
shoulder. Failing to do so may result in death or serious injury in the event
of a sudden braking, sudden swerving or an accident.
Ensure that the belt and plate are securely locked and the seat belt is not
twisted.
Push and pull the child restraint system from side to side and forward to be
sure it is secure.
After securing a child restraint system, never adjust the seat.
Follow all installation instructions provided by the child restraint system
manufacturer.

144 1-7. Safety information
HILUX_OM_OM0K134E_(EE)
