2013 TOYOTA HILUX Owners Manual (in English)

41
HILUX_OM_OM0K134E_(EE)

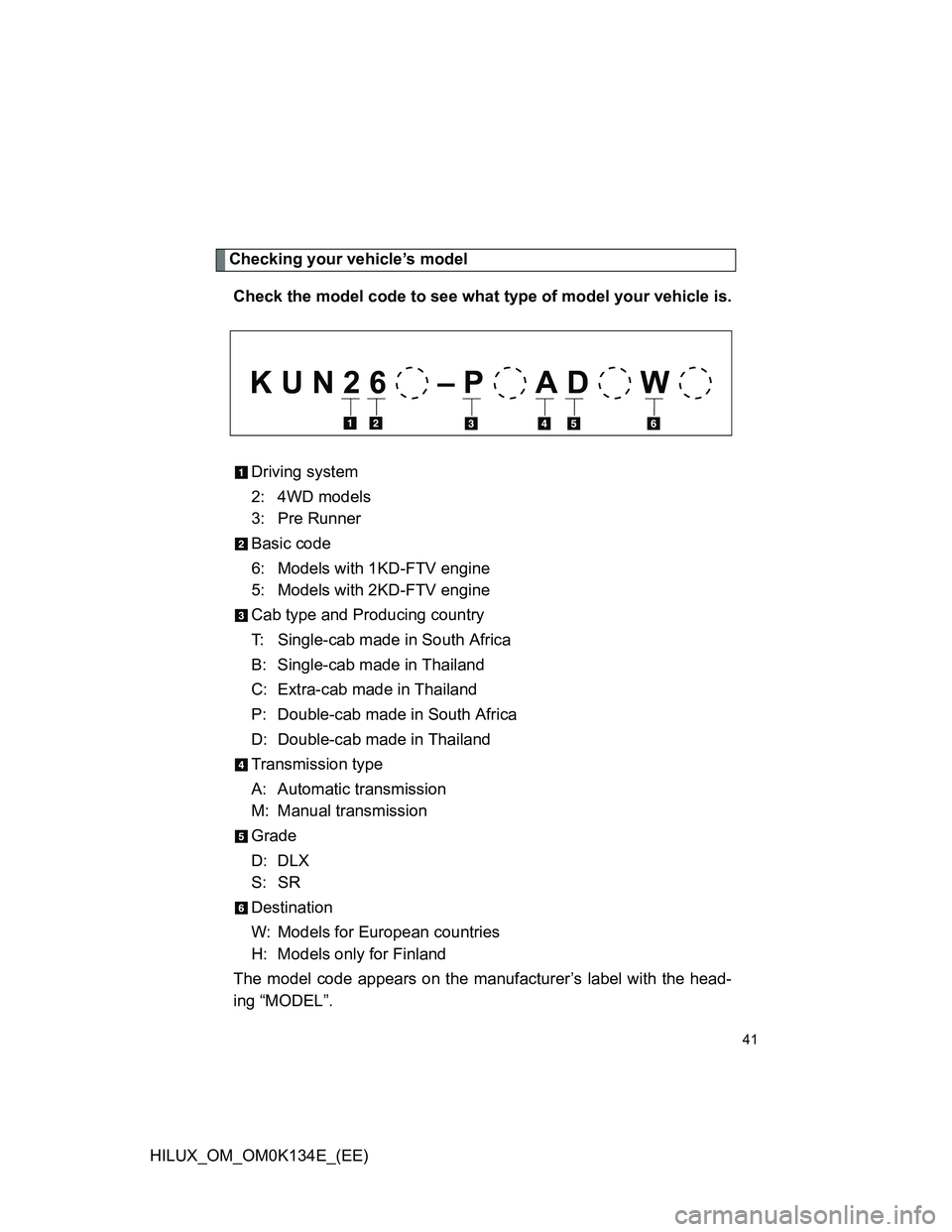

Checking your vehicle’s model
Check the model code to see what type of model your vehicle is.
Driving system
2: 4WD models
3: Pre Runner
Basic code
6: Models with 1KD-FTV engine
5: Models with 2KD-FTV engine
Cab type and Producing country
T: Single-cab made in South Africa
B: Single-cab made in Thailand
C: Extra-cab made in Thailand
P: Double-cab made in South Africa
D: Double-cab made in Thailand
Transmission type
A: Automatic transmission
M: Manual transmission
Grade
D: DLX
S: SR
Destination
W: Models for European countries
H: Models only for Finland
The model code appears on the manufacturer’s label with the head-
ing “MODEL”.
K U N 2 6 – P A D W

42

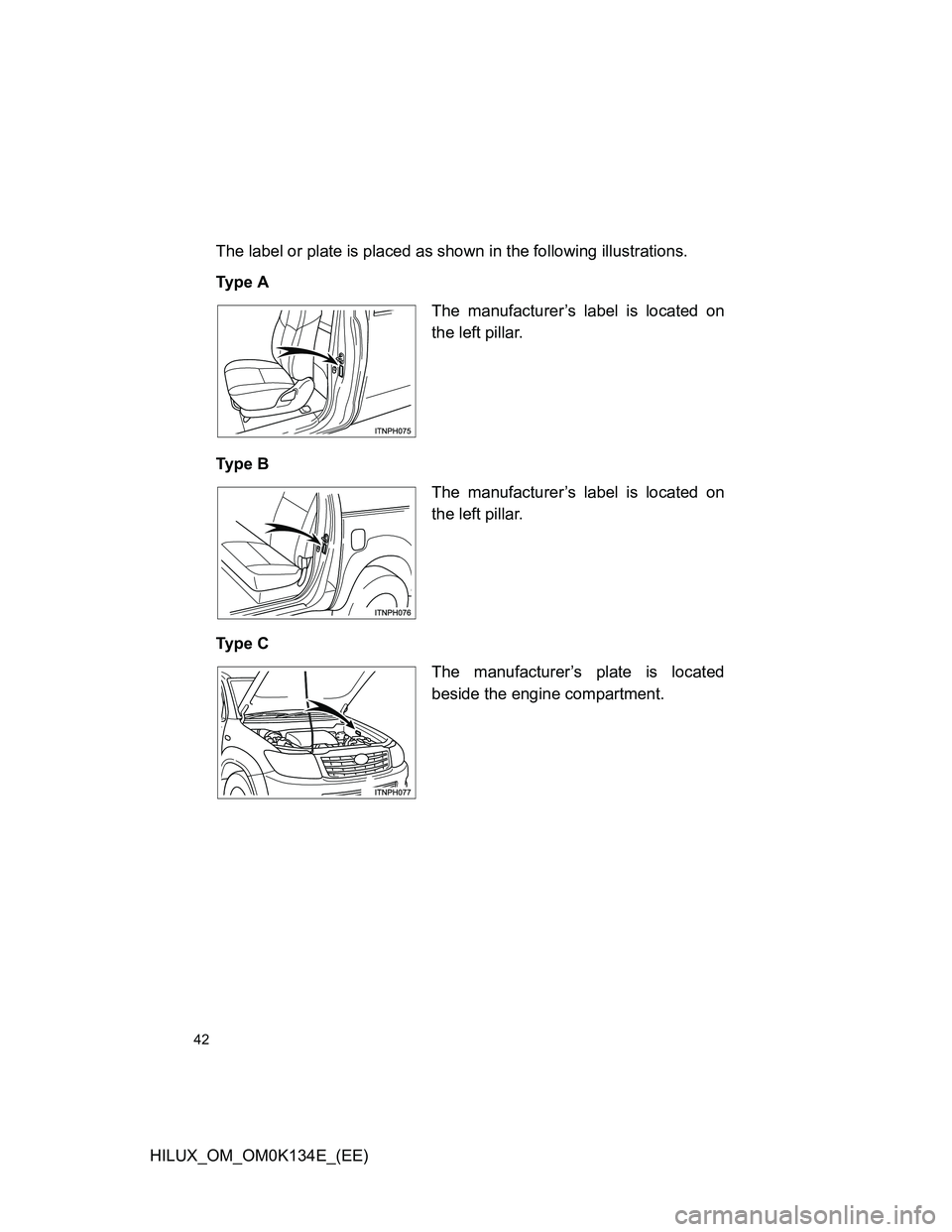

HILUX_OM_OM0K134E_(EE)The label or plate is placed as shown in the following illustrations.
Ty p e A
Ty p e B
Ty p e C
The manufacturer’s label is located on
the left pillar.
The manufacturer’s label is located on
the left pillar.
The manufacturer’s plate is located
beside the engine compartment.

43
HILUX_OM_OM0K134E_(EE)

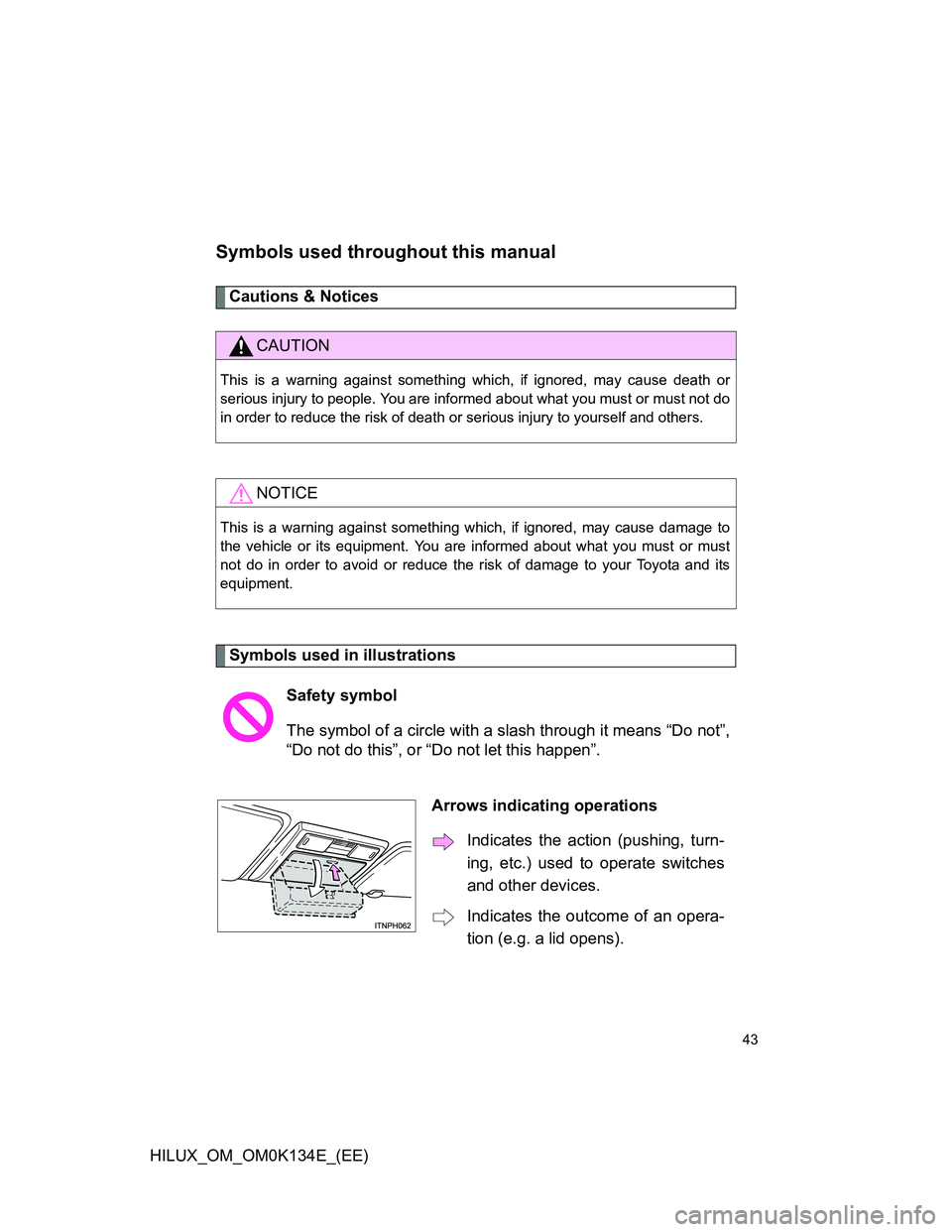

Symbols used throughout this manual
Cautions & Notices
Symbols used in illustrations
CAUTION
This is a warning against something which, if ignored, may cause death or
serious injury to people. You are informed about what you must or must not do
in order to reduce the risk of death or serious injury to yourself and others.
NOTICE
This is a warning against something which, if ignored, may cause damage to
the vehicle or its equipment. You are informed about what you must or must
not do in order to avoid or reduce the risk of damage to your Toyota and its
equipment.
Safety symbol
The symbol of a circle with a slash through it means “Do not”,
“Do not do this”, or “Do not let this happen”.
Arrows indicating operations
Indicates the action (pushing, turn-
ing, etc.) used to operate switches
and other devices.
Indicates the outcome of an opera-
tion (e.g. a lid opens).

44
HILUX_OM_OM0K134E_(EE)

1Before driving
45
HILUX_OM_OM0K134E_(EE)
1-1. Key information
Keys.................................... 46
1-2. Opening, closing and locking
the doors
Wireless remote control ...... 48
Side doors .......................... 59
Tailgate ............................... 63
1-3. Adjustable components
(seats, mirrors, steering
wheel)
Front seats.......................... 67
Rear seats .......................... 72
Head restraints ................... 75
Seat belts............................ 78
Steering wheel .................... 85
Inside rear view mirror ........ 86
Outside rear view
mirrors .............................. 881-4. Opening and closing
the windows
Power windows ................... 91
Quarter windows
(extra-cab models)............ 94
Back window (vehicles
with sliding type) ............... 95
1-5. Refueling
Opening the fuel tank
cap .................................... 96
1-6. Theft deterrent system
Engine immobilizer
system ............................ 102
1-7. Safety information
Correct driving posture ..... 107
SRS airbags...................... 109
Child restraint systems ..... 122
Installing child restraints ... 134

46
HILUX_OM_OM0K134E_(EE)
1-1. Key information
Keys
The following keys are provided with the vehicle.
Ty p e A
Master keys
Va l e t k e y
Key number plate
Ty p e B
Master keys (with wireless
remote control function)
Operating the wireless remote
control function (P. 48)
Va l e t k e y
Key number plate

47 1-1. Key information
1
Before driving
HILUX_OM_OM0K134E_(EE)
When required to leave the vehicle’s key with a parking attendant
Lock the glove box as circumstances demand. (P. 442)
Carry the master key for your own use and provide the attendant with the
valet key.
Key number plate
Keep the plate in a safe place such as your wallet, not in the vehicle. In the
event that a key is lost, a new key can be made by any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional, using
the key number plate. (P. 586)
When riding in an aircraft (type B)
When bringing a key with wireless remote control function onto an aircraft,
make sure you do not press any buttons on the key while inside the aircraft
cabin. If you are carrying the key in your bag etc., ensure that the buttons
are not likely to be pressed accidentally. Pressing a button may cause the
key to emit radio waves that could interfere with the operation of the aircraft.
NOTICE
To prevent key damage
Observe the following:
Do not subject the keys to strong shocks, expose them to high tempera-
tures by placing them in direct sunlight, or get them wet.
Do not expose the keys to electromagnetic materials or attach any mate-
rial that blocks electromagnetic waves to the key surface.
Do not disassemble the keys.

48
HILUX_OM_OM0K134E_(EE)
1-2. Opening, closing and locking the doors

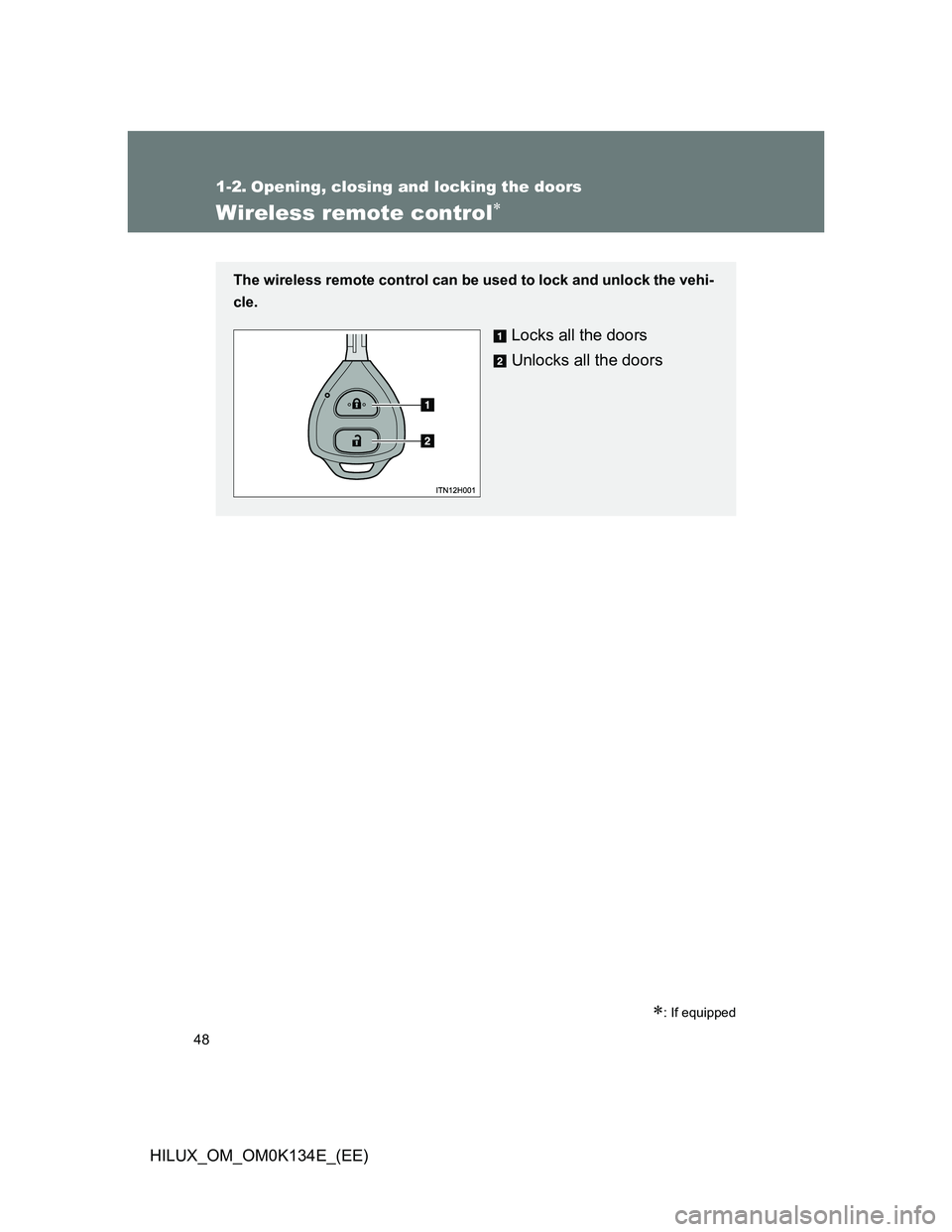

Wireless remote control
: If equipped
The wireless remote control can be used to lock and unlock the vehi-
cle.
Locks all the doors
Unlocks all the doors
