545 4-3. Do-it-yourself maintenance
4
Maintenance and care
HILUX_OM_OM0K134E_(EE)

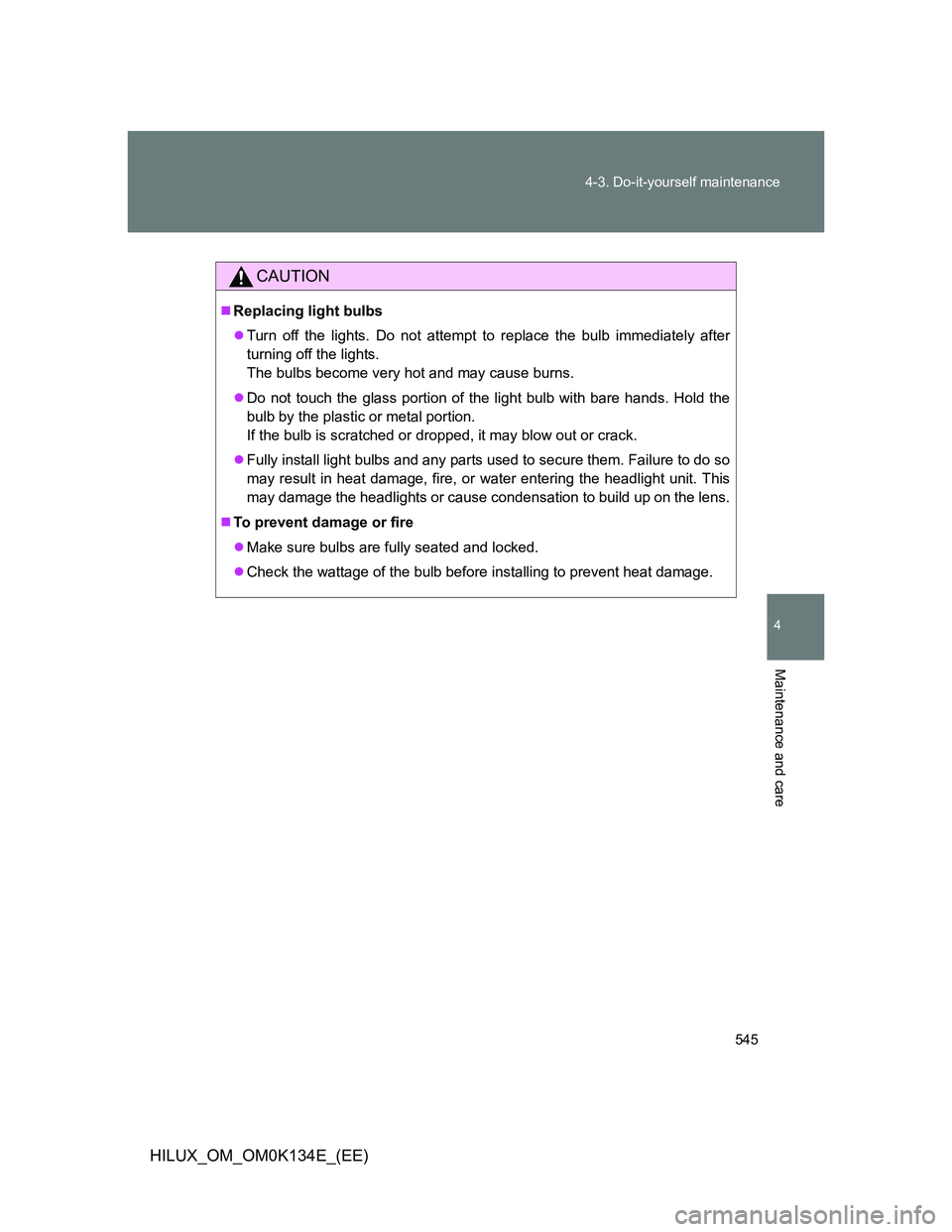

CAUTION
Replacing light bulbs
Turn off the lights. Do not attempt to replace the bulb immediately after
turning off the lights.
The bulbs become very hot and may cause burns.
Do not touch the glass portion of the light bulb with bare hands. Hold the
bulb by the plastic or metal portion.
If the bulb is scratched or dropped, it may blow out or crack.
Fully install light bulbs and any parts used to secure them. Failure to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
To prevent damage or fire
Make sure bulbs are fully seated and locked.
Check the wattage of the bulb before installing to prevent heat damage.

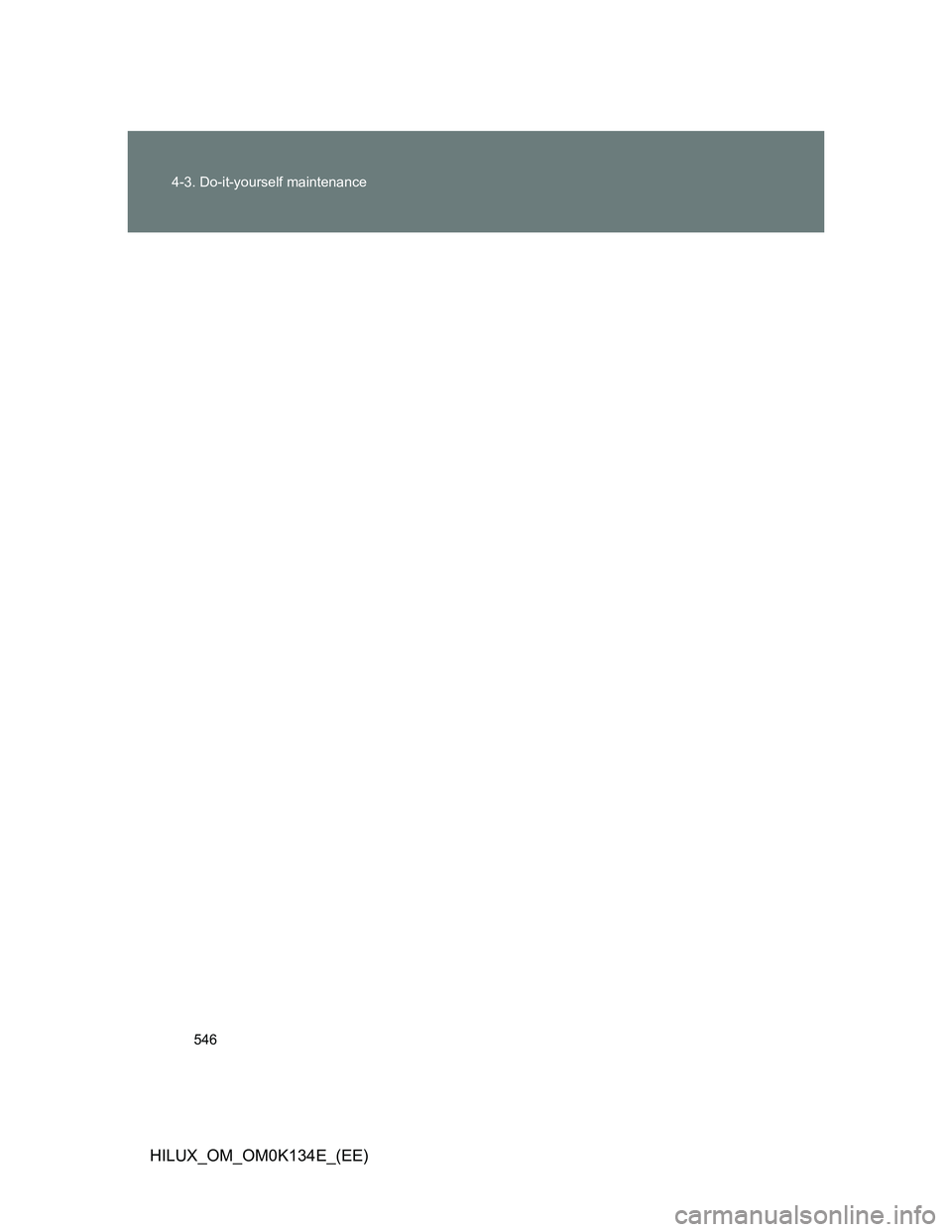

Page 546 of 644
546 4-3. Do-it-yourself maintenance
HILUX_OM_OM0K134E_(EE)

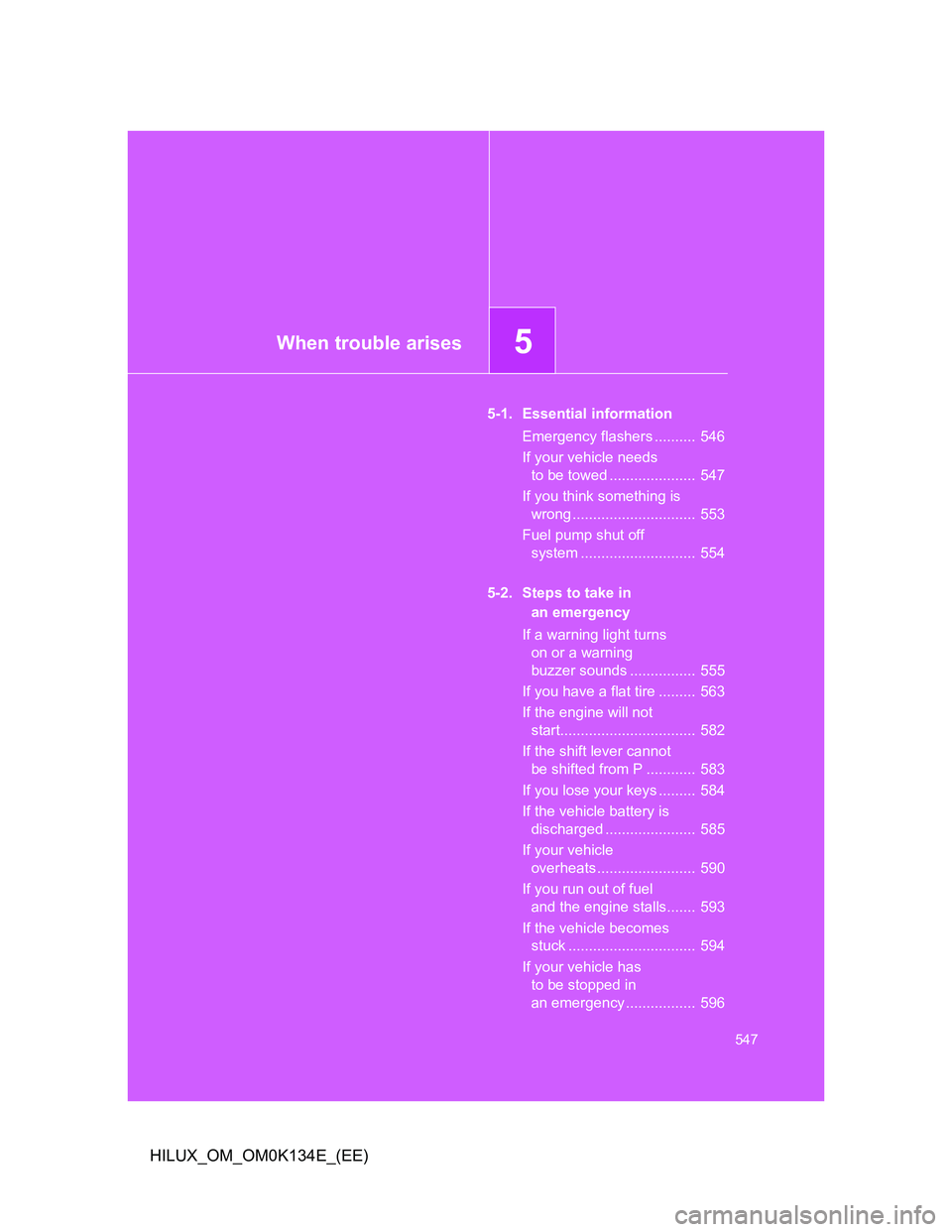

Page 547 of 644
5When trouble arises
547
HILUX_OM_OM0K134E_(EE)
5-1. Essential information
Emergency flashers .......... 546
If your vehicle needs
to be towed ..................... 547
If you think something is
wrong .............................. 553
Fuel pump shut off
system ............................ 554
5-2. Steps to take in
an emergency
If a warning light turns
on or a warning
buzzer sounds ................ 555
If you have a flat tire ......... 563
If the engine will not
start................................. 582
If the shift lever cannot
be shifted from P ............ 583
If you lose your keys ......... 584
If the vehicle battery is
discharged ...................... 585
If your vehicle
overheats ........................ 590
If you run out of fuel
and the engine stalls....... 593
If the vehicle becomes
stuck ............................... 594
If your vehicle has
to be stopped in
an emergency ................. 596
Page 548 of 644
548
HILUX_OM_OM0K134E_(EE)
5-1. Essential information

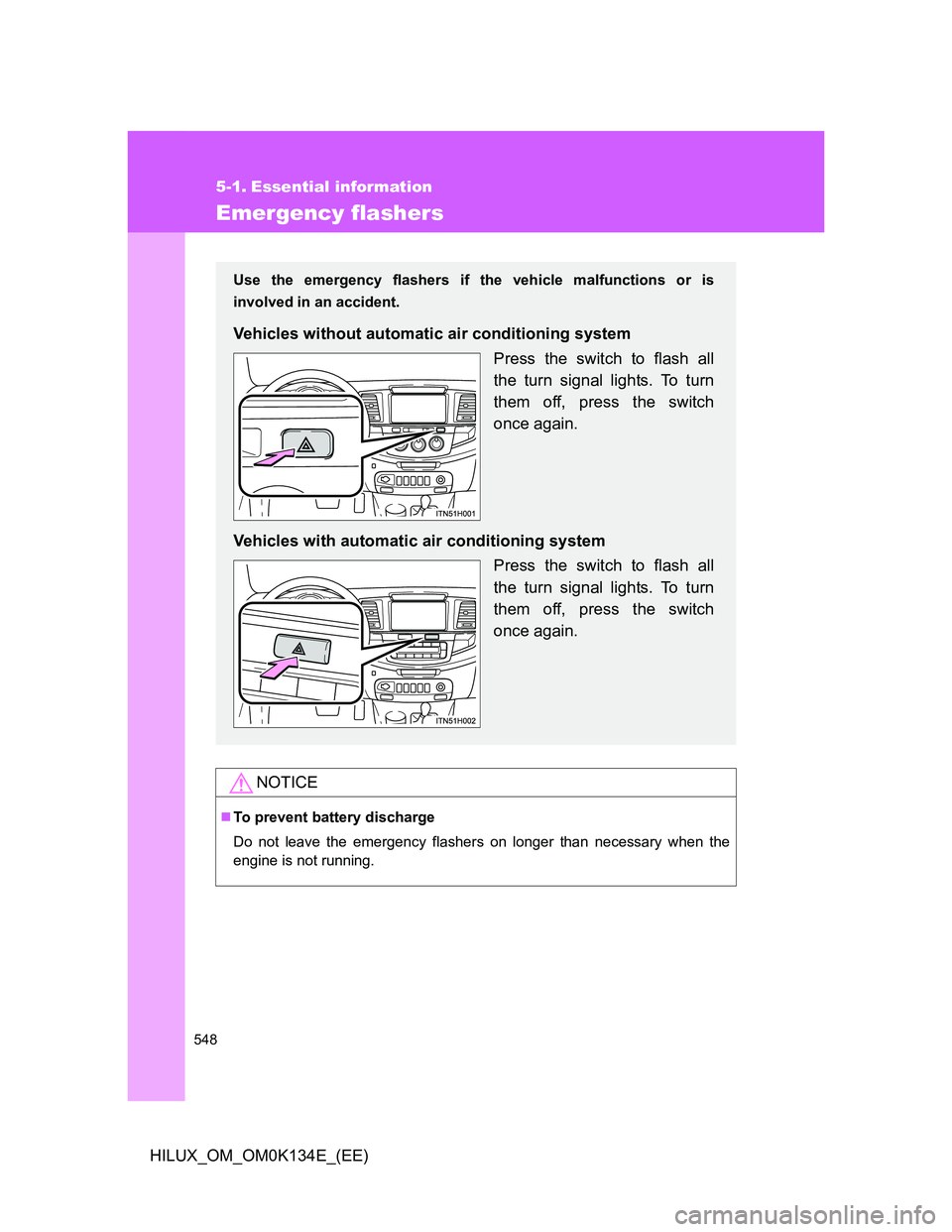

Emergency flashers
NOTICE
To prevent battery discharge
Do not leave the emergency flashers on longer than necessary when the
engine is not running.
Use the emergency flashers if the vehicle malfunctions or is
involved in an accident.
Vehicles without automatic air conditioning system
Press the switch to flash all
the turn signal lights. To turn
them off, press the switch
once again.
Vehicles with automatic air conditioning system
Press the switch to flash all
the turn signal lights. To turn
them off, press the switch
once again.
Page 549 of 644
5
549
5-1. Essential information
When trouble arises
HILUX_OM_OM0K134E_(EE)

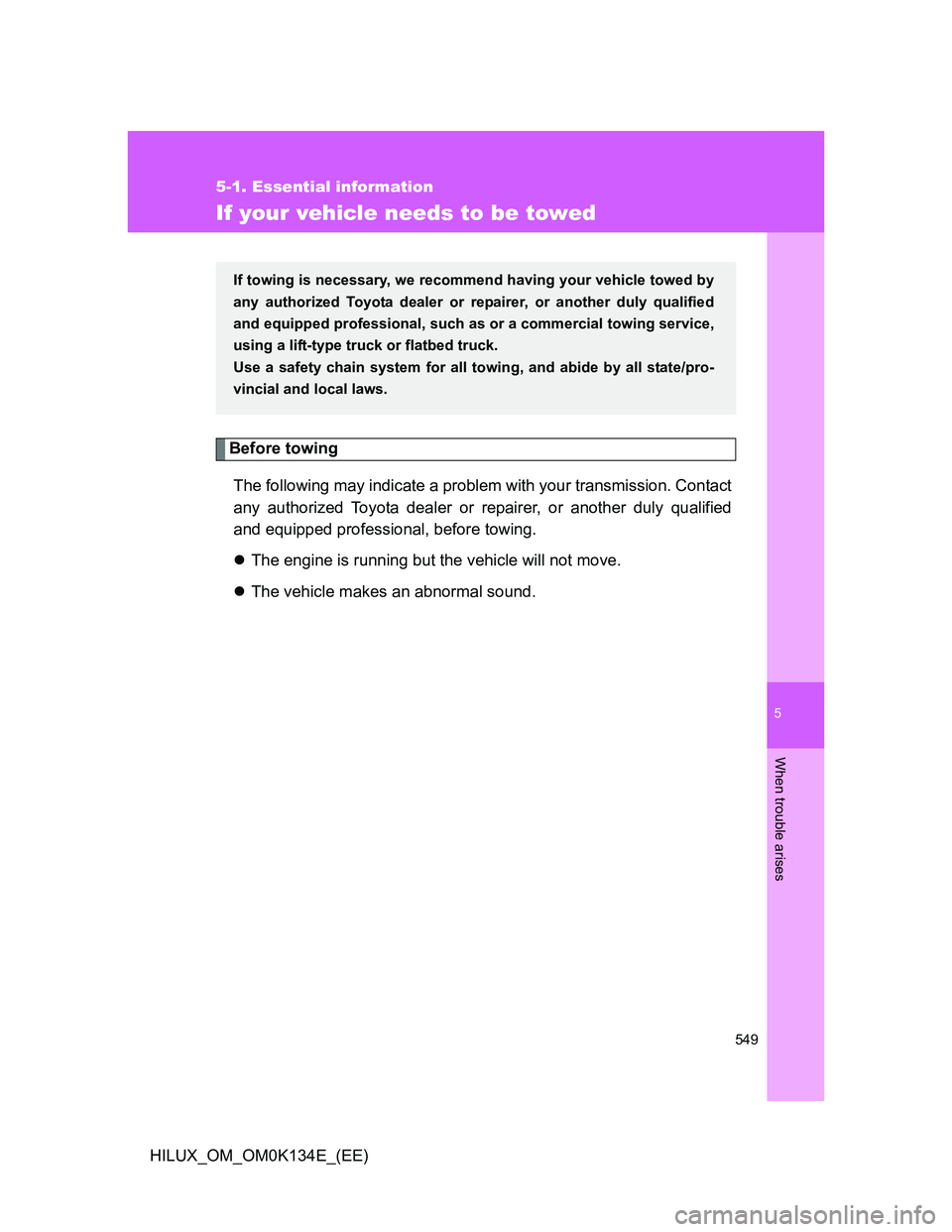

If your vehicle needs to be towed
Before towing
The following may indicate a problem with your transmission. Contact
any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional, before towing.
The engine is running but the vehicle will not move.
The vehicle makes an abnormal sound.
If towing is necessary, we recommend having your vehicle towed by
any authorized Toyota dealer or repairer, or another duly qualified
and equipped professional, such as or a commercial towing service,
using a lift-type truck or flatbed truck.
Use a safety chain system for all towing, and abide by all state/pro-
vincial and local laws.
Page 550 of 644
550 5-1. Essential information
HILUX_OM_OM0K134E_(EE)

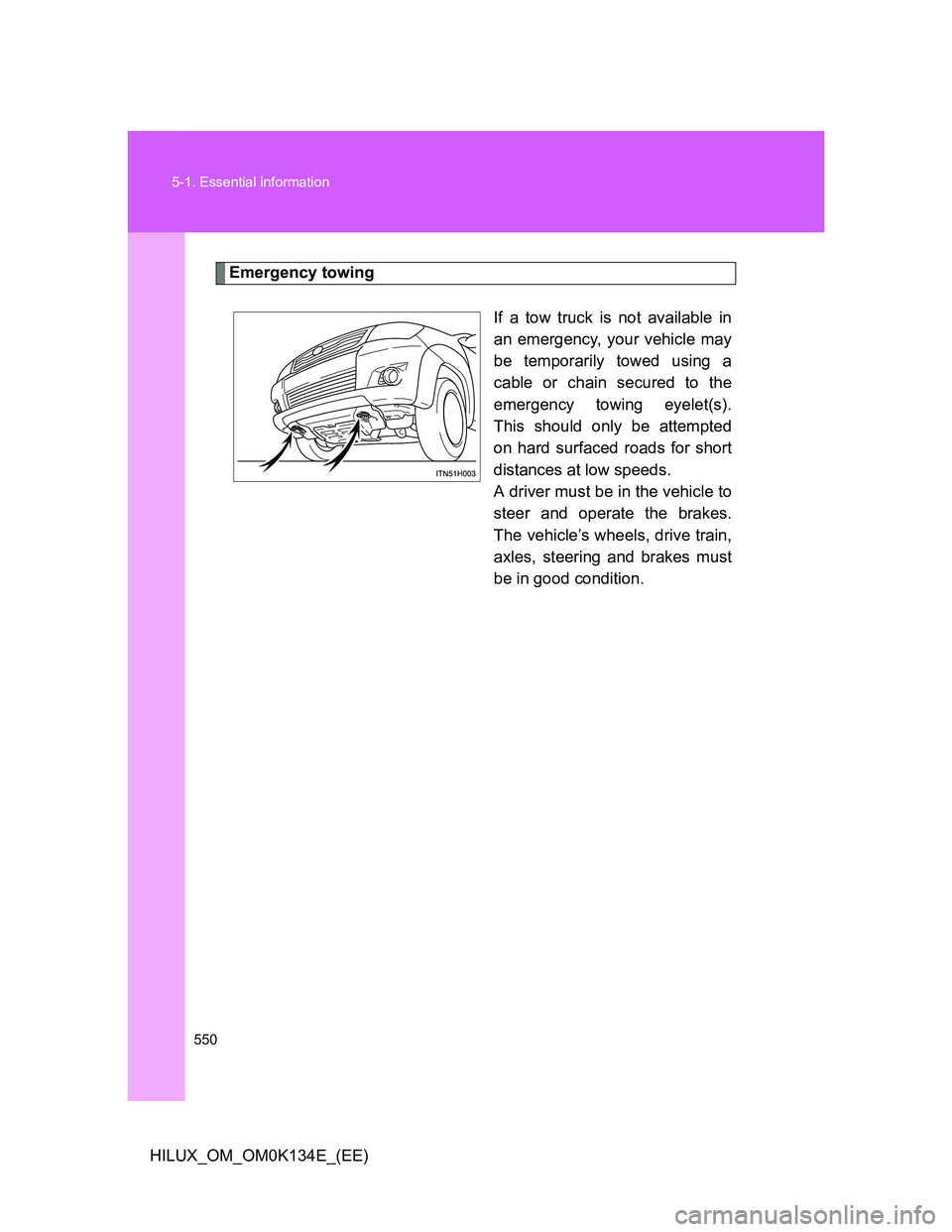

Emergency towing
If a tow truck is not available in
an emergency, your vehicle may
be temporarily towed using a
cable or chain secured to the
emergency towing eyelet(s).
This should only be attempted
on hard surfaced roads for short
distances at low speeds.
A driver must be in the vehicle to
steer and operate the brakes.
The vehicle’s wheels, drive train,
axles, steering and brakes must
be in good condition.
Page 551 of 644
5
551 5-1. Essential information
When trouble arises
HILUX_OM_OM0K134E_(EE)
Towing with a sling-type truck
Do not tow with a sling-type truck
to prevent body damage.
Page 552 of 644
552 5-1. Essential information
HILUX_OM_OM0K134E_(EE)
Towing with a wheel-lift type truck
From the front
Vehicles with automatic trans-
mission: Use a towing dolly
under the rear wheels.
Vehicles with manual transmis-
sion: We recommend using a
towing dolly under the rear
wheels.
When not using a towing dolly,
release the parking brake and
shift the shift lever to N.
From the rear (Pre Runner)
Turn the engine switch to the
“ACC” position so that the steer-
ing wheel is unlocked.
From the rear (4WD models)
Use a towing dolly under the
front wheels.
