2013 TOYOTA HILUX Owners Manual (in English)

265
3-1. Using the air conditioning system and defogger
3
Interior features
HILUX_OM_OM0K134E_(EE)
Power heater
: If equipped
Power heater can be operated when
The engine is running.
This feature is used to keep the cabin warm in cold conditions.
Turns the power heater on/off
If you do not turn the switch to
off, the engine speed is
increased whenever the
engine is started.

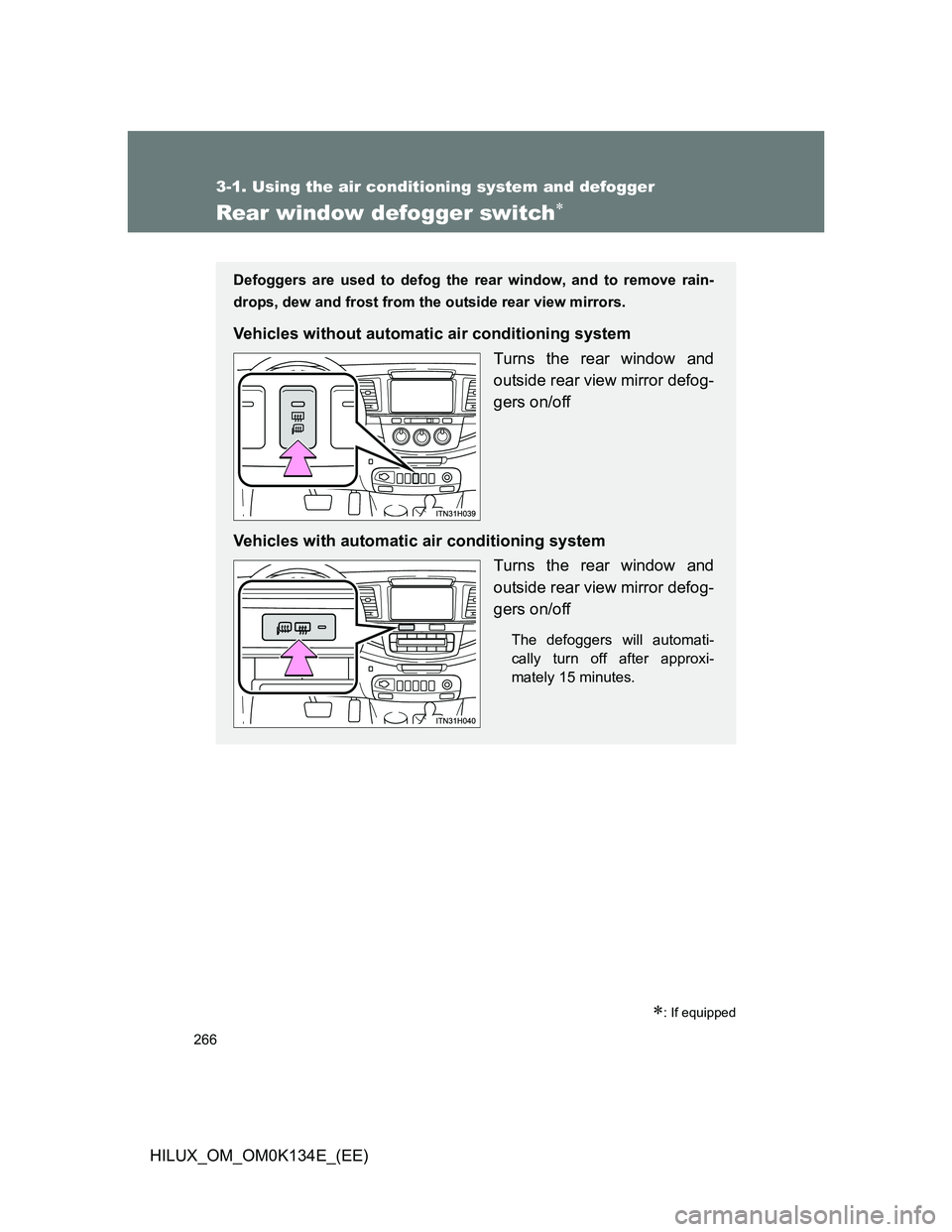

266
3-1. Using the air conditioning system and defogger
HILUX_OM_OM0K134E_(EE)
Rear window defogger switch
: If equipped
Defoggers are used to defog the rear window, and to remove rain-
drops, dew and frost from the outside rear view mirrors.
Vehicles without automatic air conditioning system
Turns the rear window and
outside rear view mirror defog-
gers on/off
Vehicles with automatic air conditioning system
Turns the rear window and
outside rear view mirror defog-
gers on/off
The defoggers will automati-
cally turn off after approxi-
mately 15 minutes.

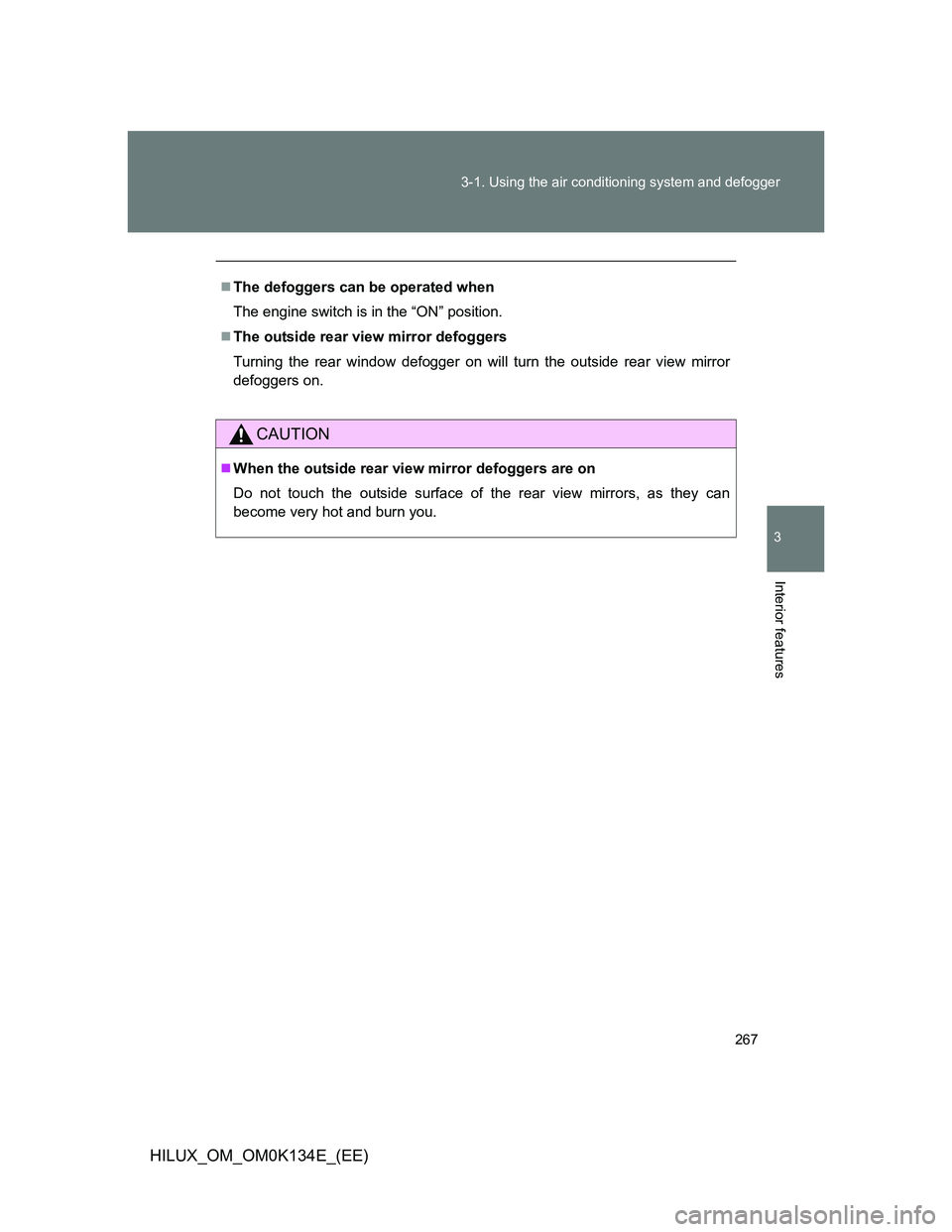

267 3-1. Using the air conditioning system and defogger
3
Interior features
HILUX_OM_OM0K134E_(EE)
The defoggers can be operated when
The engine switch is in the “ON” position.
The outside rear view mirror defoggers
Turning the rear window defogger on will turn the outside rear view mirror
defoggers on.
CAUTION
When the outside rear view mirror defoggers are on
Do not touch the outside surface of the rear view mirrors, as they can
become very hot and burn you.

268
HILUX_OM_OM0K134E_(EE)
3-2. Using the audio system
Audio system types
: If equipped
CD player with AM/FM radio
TitlePage
Using the radioP. 270
Using the CD playerP. 275
Playing MP3 and WMA discsP. 282
Operating an iPodP. 290
Operating a USB memoryP. 300
Optimal use of the audio systemP. 309
Using the AUX portP. 313
Using the steering wheel audio switchesP. 314

269 3-2. Using the audio system
3
Interior features
HILUX_OM_OM0K134E_(EE)
Using cellular phones
Interference may be heard through the audio system’s speakers if a cellular
phone is being used inside or close to the vehicle while the audio system is
operating.
CAUTION
Certification for the disc player
This product is a class 1 laser product.
A laser beam leak may result in hazardous radiation exposure.
Do not open the cover of the player or attempt to repair the unit yourself.
Refer servicing to qualified personnel.
NOTICE
To prevent battery discharge
Do not leave the audio system on longer than necessary with the engine off.
To avoid damaging the audio system
Take care not to spill drinks or other fluids over the audio system.

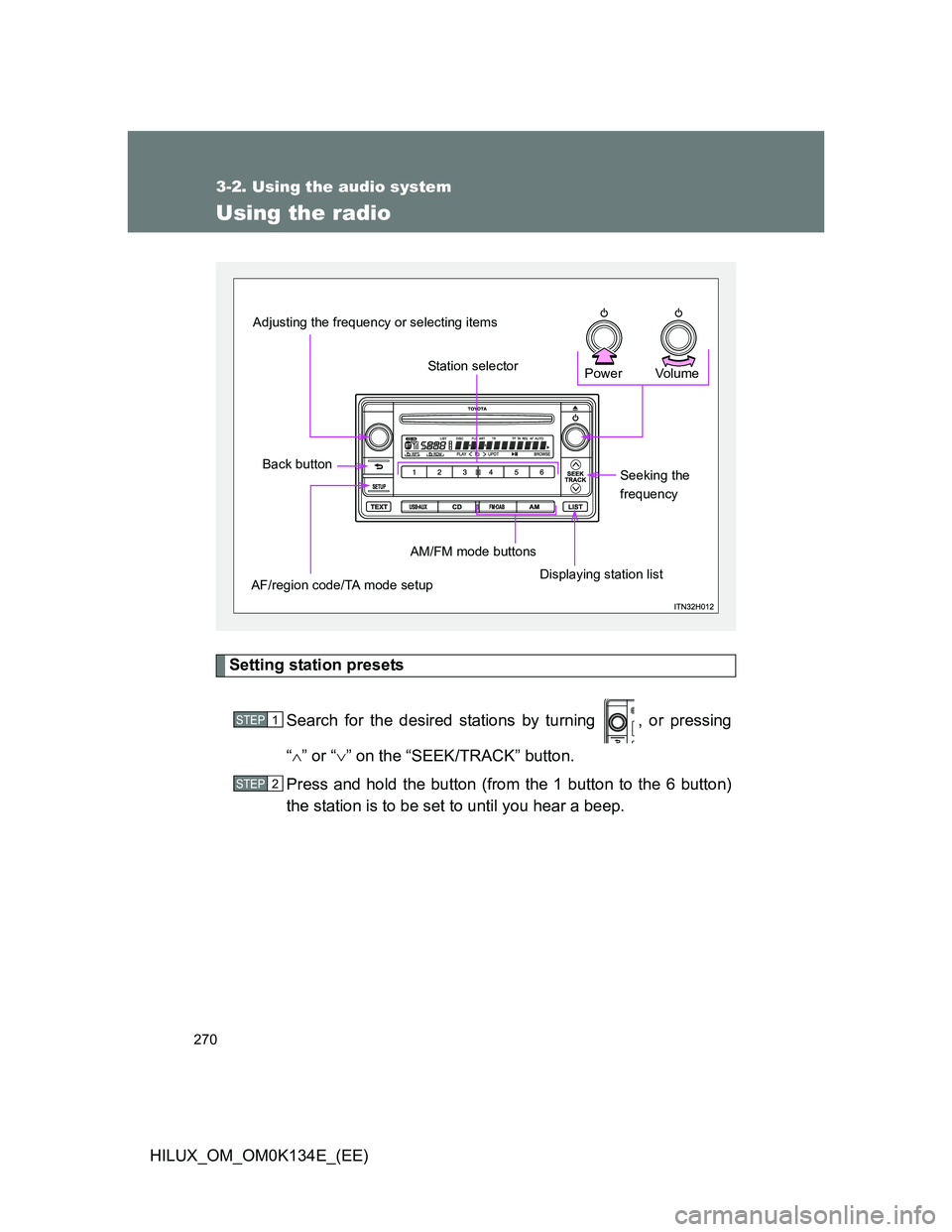

270
3-2. Using the audio system
HILUX_OM_OM0K134E_(EE)
Using the radio
Setting station presets
Search for the desired stations by turning , or pressing
“” or “” on the “SEEK/TRACK” button.
Press and hold the button (from the 1 button to the 6 button)
the station is to be set to until you hear a beep.
Vo lu m e Power
Seeking the
frequency
Displaying station list AM/FM mode buttons
Station selector
Adjusting the frequency or selecting items
Back button
AF/region code/TA mode setup
STEP1
STEP2

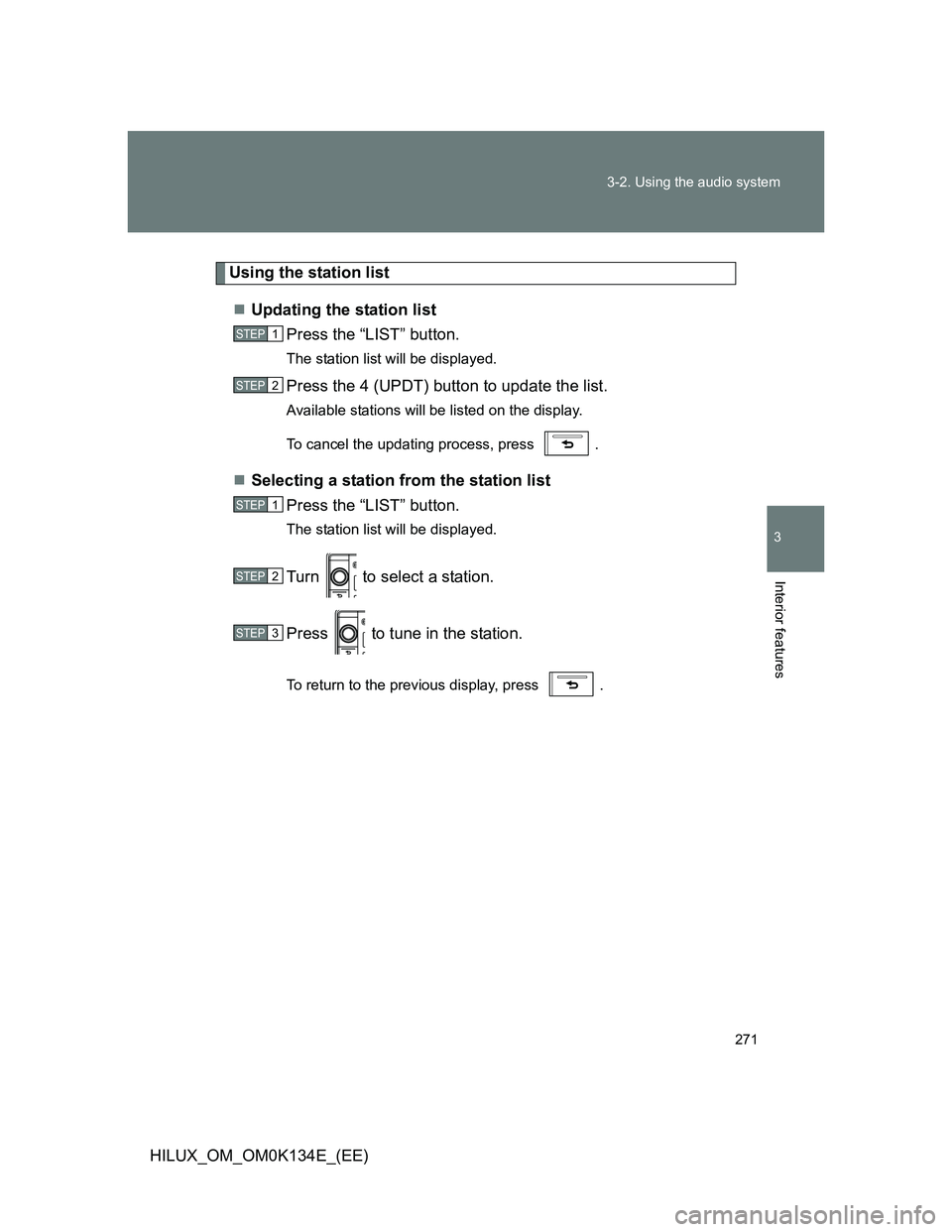

271 3-2. Using the audio system
3
Interior features
HILUX_OM_OM0K134E_(EE)
Using the station list
Updating the station list
Press the “LIST” button.
The station list will be displayed.
Press the 4 (UPDT) button to update the list.
Available stations will be listed on the display.
To cancel the updating process, press .
Selecting a station from the station list
Press the “LIST” button.
The station list will be displayed.
Turn to select a station.
Press to tune in the station.
To return to the previous display, press .
STEP1
STEP2
STEP1
STEP2
STEP3

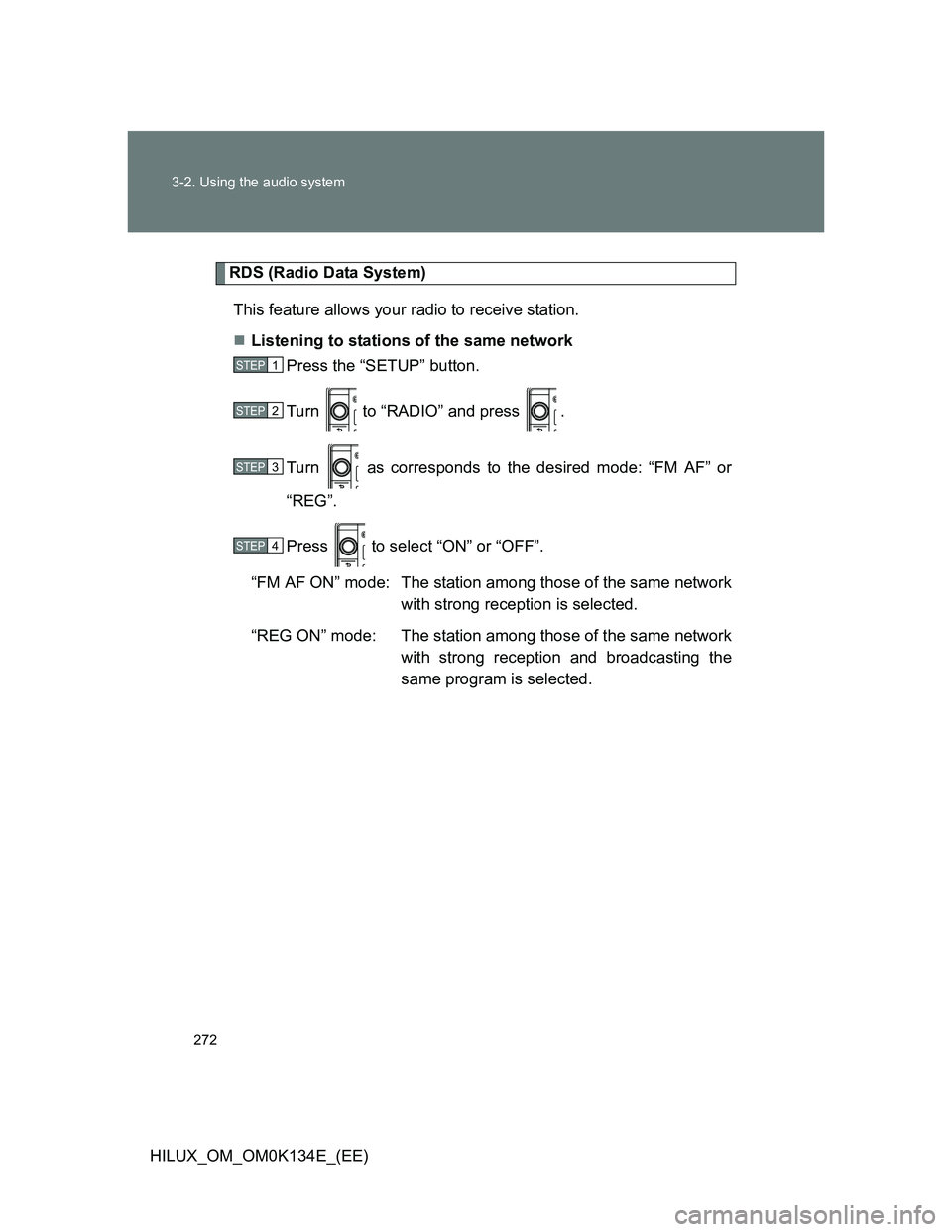

272 3-2. Using the audio system
HILUX_OM_OM0K134E_(EE)
RDS (Radio Data System)
This feature allows your radio to receive station.
Listening to stations of the same network
Press the “SETUP” button.
Turn to “RADIO” and press .
Turn as corresponds to the desired mode: “FM AF” or
“REG”.
Press to select “ON” or “OFF”.
“FM AF ON” mode: The station among those of the same network
with strong reception is selected.
“REG ON” mode: The station among those of the same network
with strong reception and broadcasting the
same program is selected.
STEP1
STEP2
STEP3
STEP4
