385 3-3. Using the “touch screen”
3
Interior features
HILUX_OM_OM0K134E_(EE)

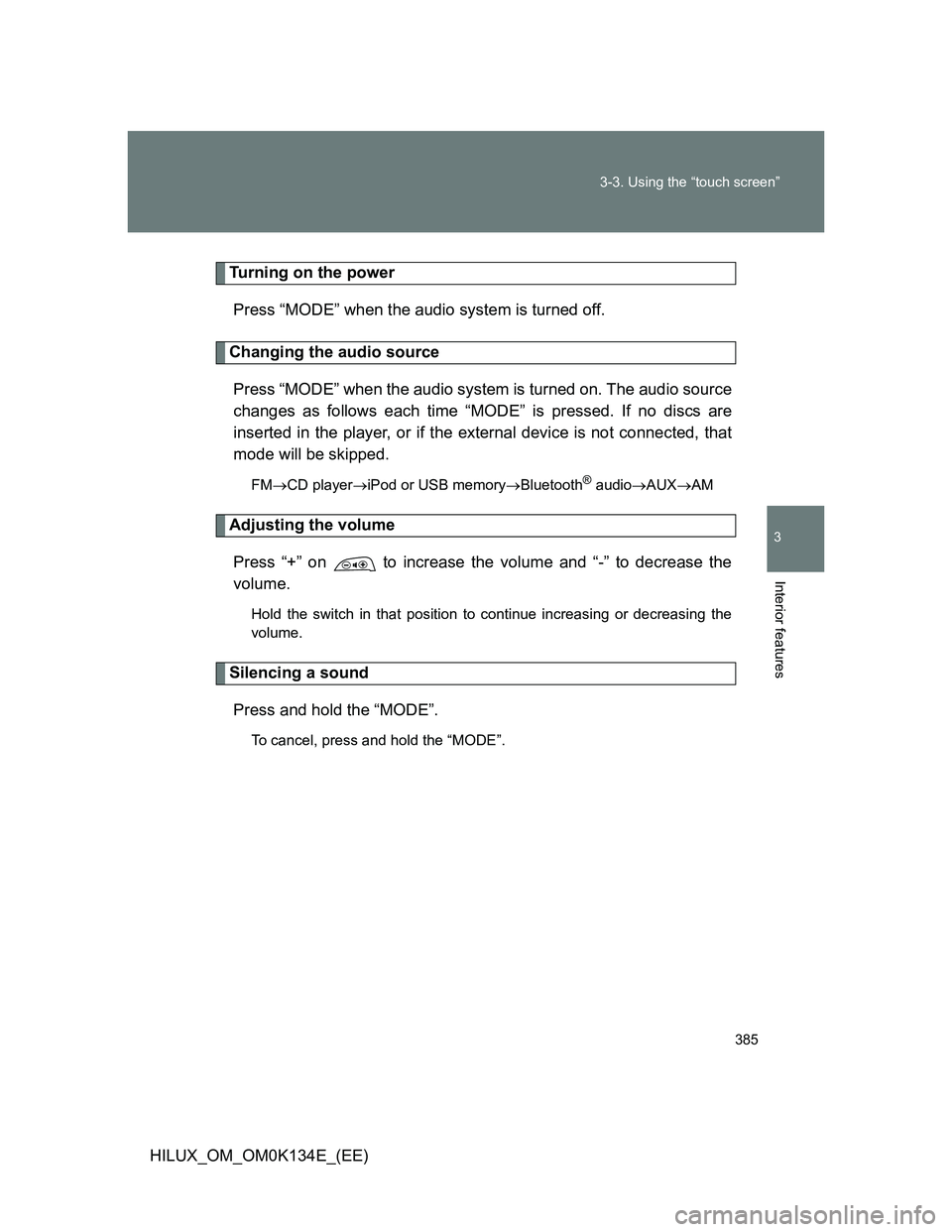

Turning on the power
Press “MODE” when the audio system is turned off.
Changing the audio source
Press “MODE” when the audio system is turned on. The audio source
changes as follows each time “MODE” is pressed. If no discs are
inserted in the player, or if the external device is not connected, that
mode will be skipped.
FMCD playeriPod or USB memoryBluetooth® audioAUXAM
Adjusting the volume
Press “+” on to increase the volume and “-” to decrease the
volume.
Hold the switch in that position to continue increasing or decreasing the
volume.
Silencing a sound
Press and hold the “MODE”.
To cancel, press and hold the “MODE”.

386 3-3. Using the “touch screen”
HILUX_OM_OM0K134E_(EE)

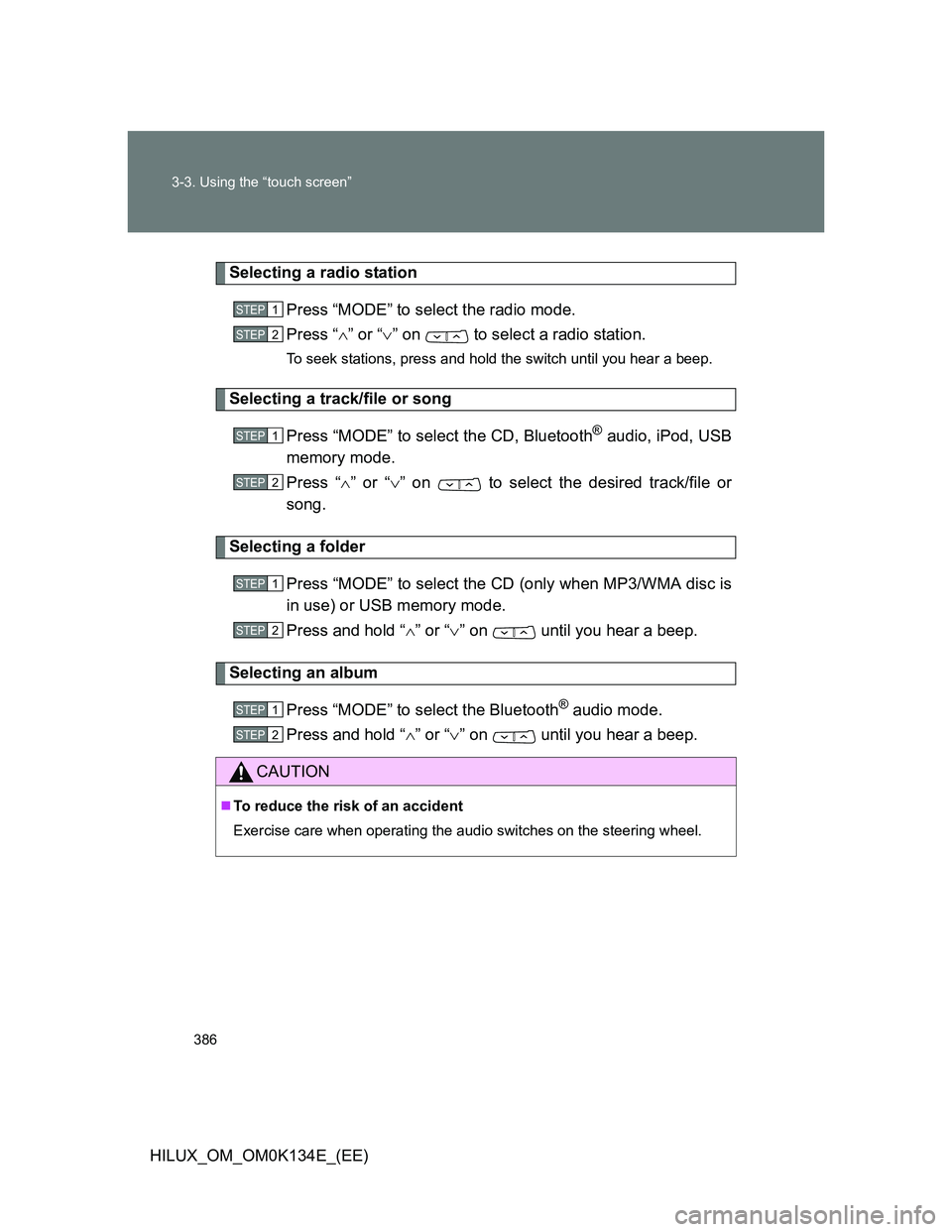

Selecting a radio station
Press “MODE” to select the radio mode.
Press “” or “” on to select a radio station.
To seek stations, press and hold the switch until you hear a beep.
Selecting a track/file or song
Press “MODE” to select the CD, Bluetooth
® audio, iPod, USB
memory mode.
Press “” or “” on to select the desired track/file or
song.
Selecting a folder
Press “MODE” to select the CD (only when MP3/WMA disc is
in use) or USB memory mode.
Press and hold “” or “” on until you hear a beep.
Selecting an album
Press “MODE” to select the Bluetooth
® audio mode.
Press and hold “” or “” on until you hear a beep.
CAUTION
To reduce the risk of an accident
Exercise care when operating the audio switches on the steering wheel.
STEP1
STEP2
STEP1
STEP2
STEP1
STEP2
STEP1
STEP2

387
3-3. Using the “touch screen”
3
Interior features
HILUX_OM_OM0K134E_(EE)

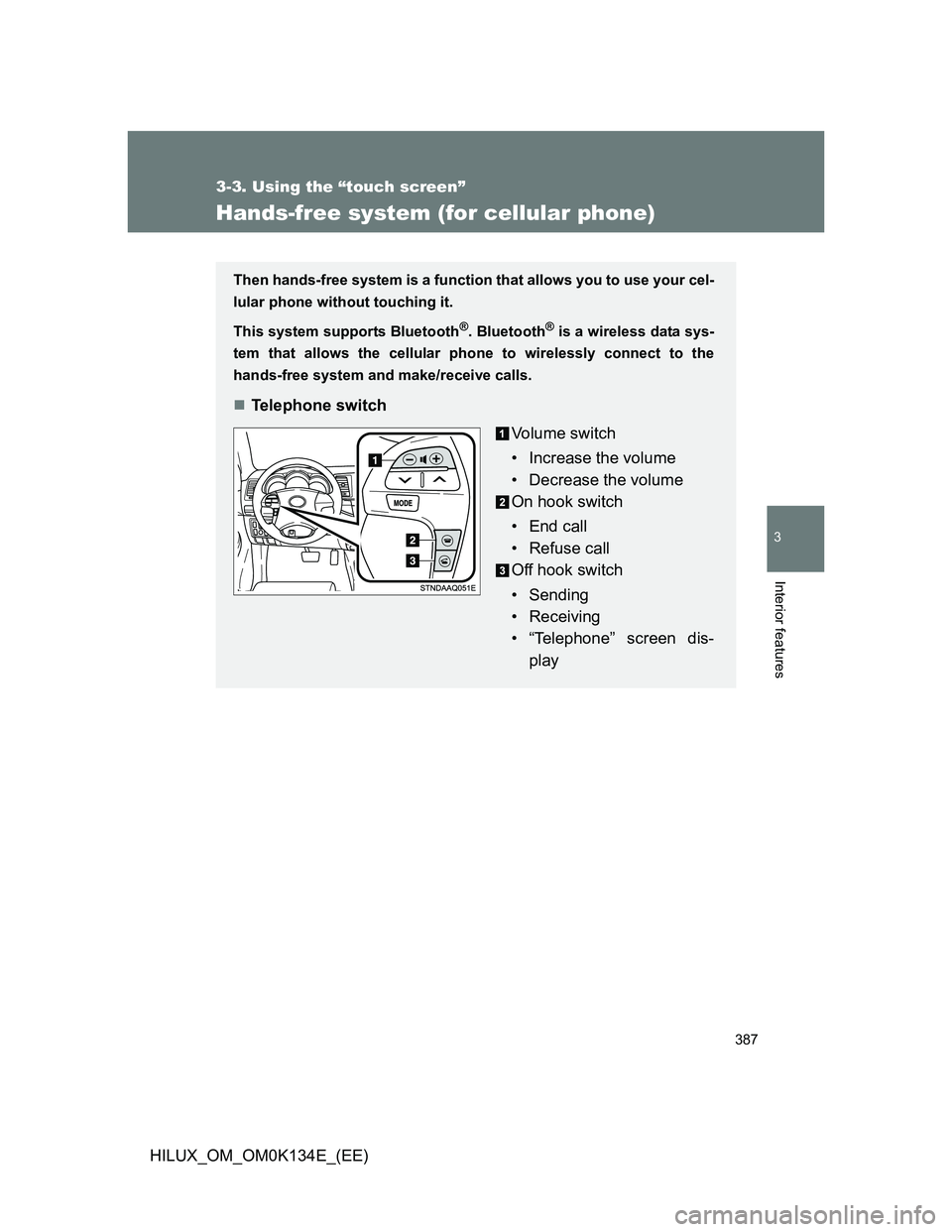

Hands-free system (for cellular phone)
Then hands-free system is a function that allows you to use your cel-
lular phone without touching it.
This system supports Bluetooth
®. Bluetooth® is a wireless data sys-
tem that allows the cellular phone to wirelessly connect to the
hands-free system and make/receive calls.
Telephone switch
Vo l u m e s w i t c h
• Increase the volume
• Decrease the volume
On hook switch
• End call
• Refuse call
Off hook switch
• Sending
• Receiving
• “Telephone” screen dis-
play

388 3-3. Using the “touch screen”
HILUX_OM_OM0K134E_(EE)
Microphone
You can use the microphone
when talking on the phone.
The person you are speaking
to can be heard from the front
speakers.
To use the hands-free system, you must register your Bluetooth
®
phone in the system. (P. 396)

389 3-3. Using the “touch screen”
3
Interior features
HILUX_OM_OM0K134E_(EE)

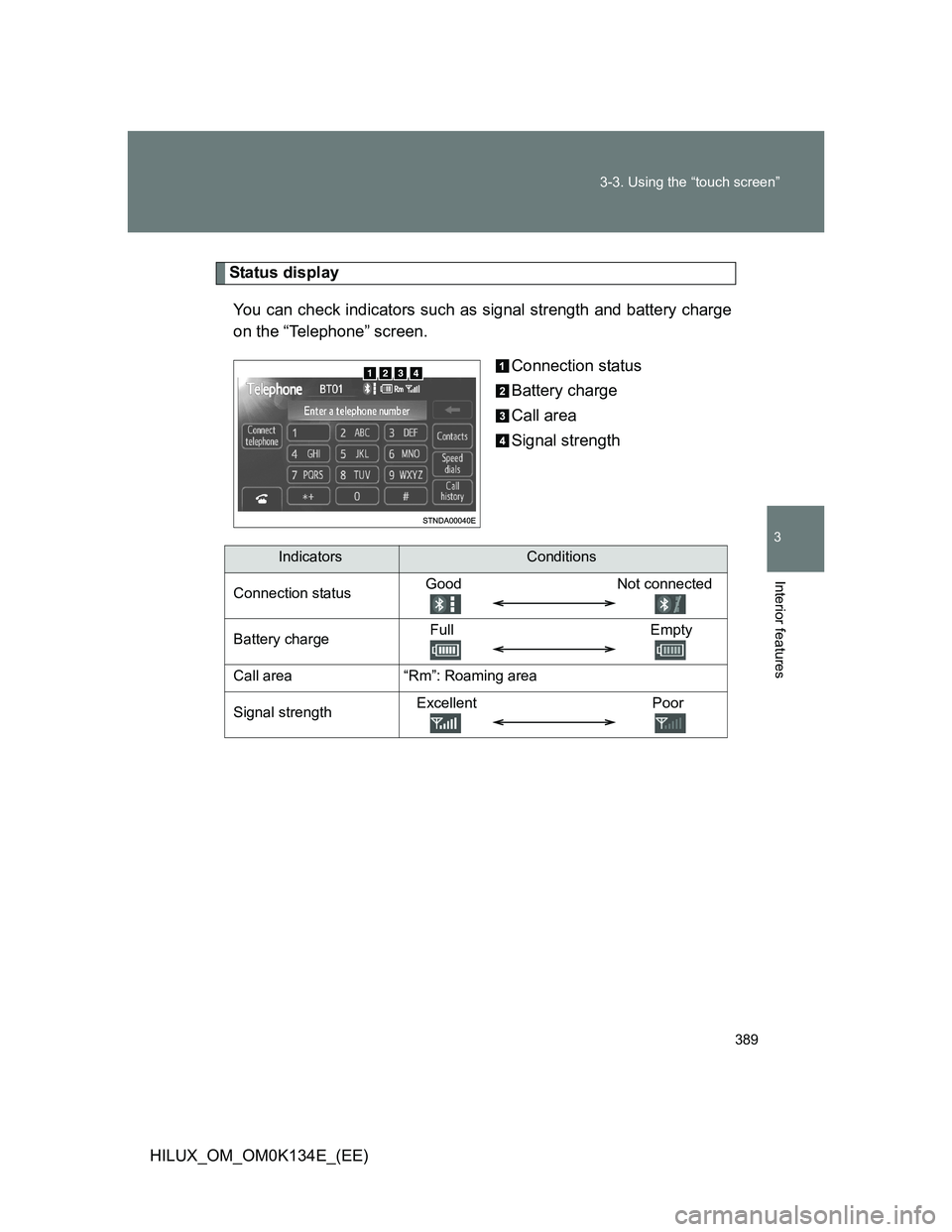

Status display
You can check indicators such as signal strength and battery charge
on the “Telephone” screen.
Connection status
Battery charge
Call area
Signal strength
IndicatorsConditions
Connection statusGood Not connected
Battery chargeFull Empty
Call area“Rm”: Roaming area
Signal strengthExcellent Poor

390 3-3. Using the “touch screen”
HILUX_OM_OM0K134E_(EE)

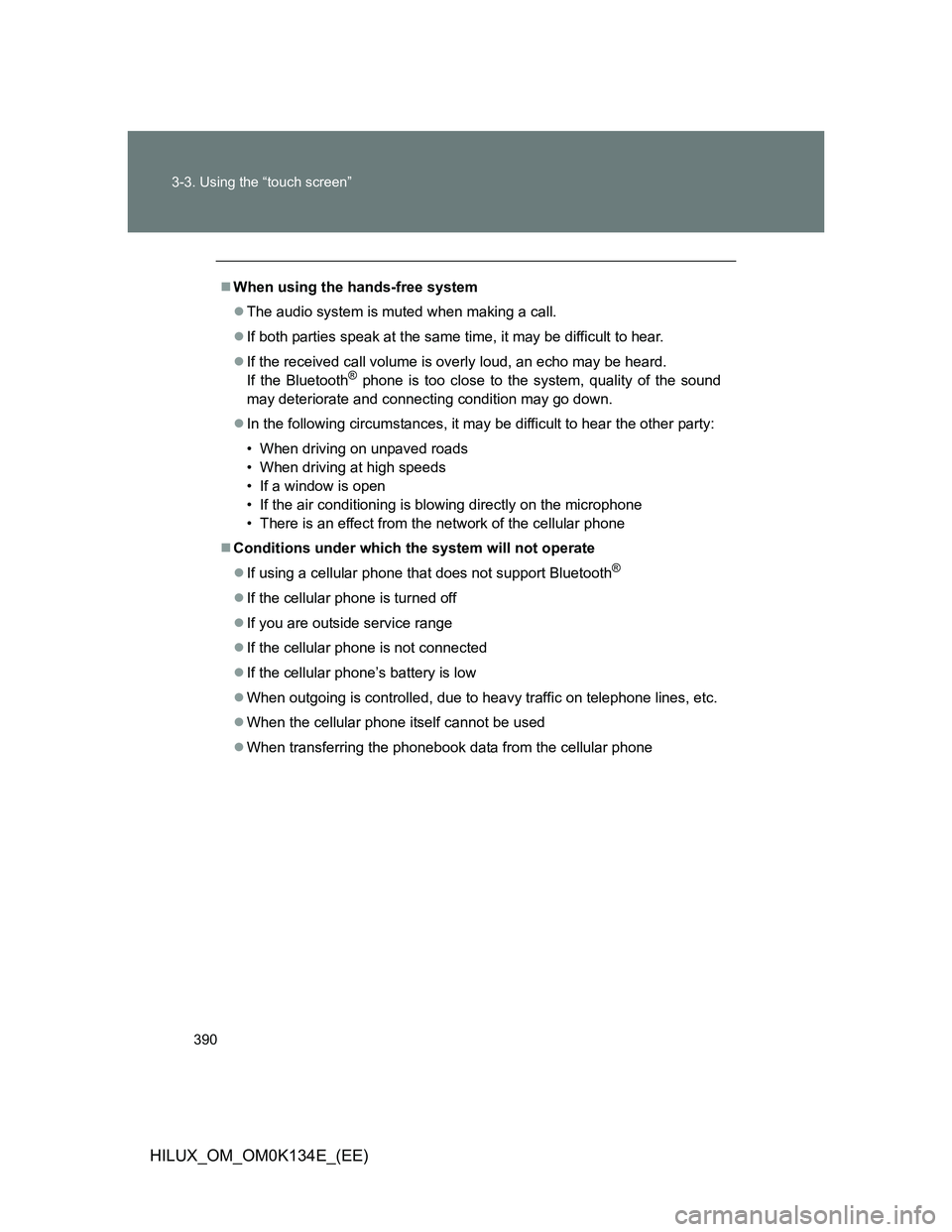

When using the hands-free system
The audio system is muted when making a call.
If both parties speak at the same time, it may be difficult to hear.
If the received call volume is overly loud, an echo may be heard.
If the Bluetooth
® phone is too close to the system, quality of the sound
may deteriorate and connecting condition may go down.
In the following circumstances, it may be difficult to hear the other party:
• When driving on unpaved roads
• When driving at high speeds
• If a window is open
• If the air conditioning is blowing directly on the microphone
• There is an effect from the network of the cellular phone
Conditions under which the system will not operate
If using a cellular phone that does not support Bluetooth
®
If the cellular phone is turned off
If you are outside service range
If the cellular phone is not connected
If the cellular phone’s battery is low
When outgoing is controlled, due to heavy traffic on telephone lines, etc.
When the cellular phone itself cannot be used
When transferring the phonebook data from the cellular phone

391 3-3. Using the “touch screen”
3
Interior features
HILUX_OM_OM0K134E_(EE)

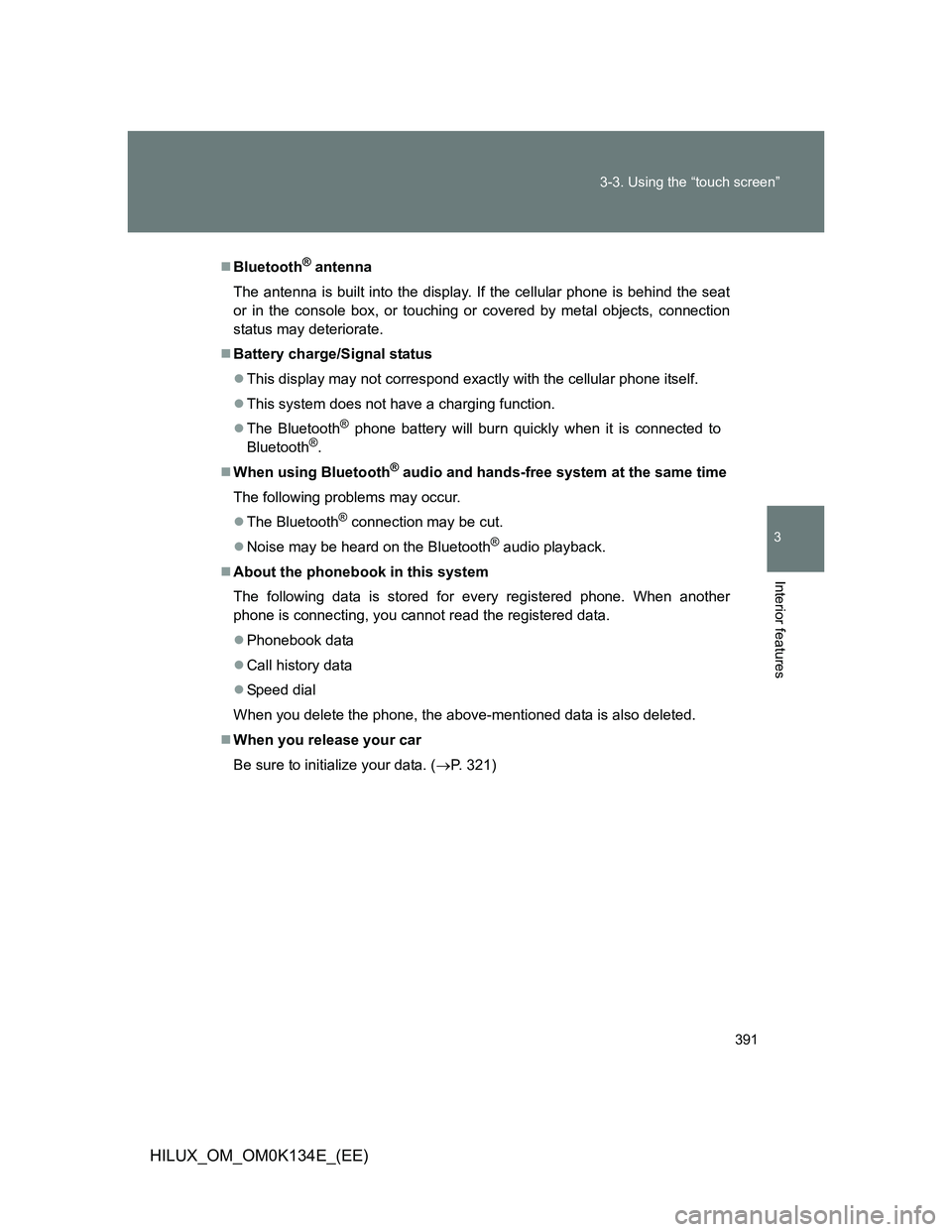

Bluetooth® antenna
The antenna is built into the display. If the cellular phone is behind the seat
or in the console box, or touching or covered by metal objects, connection
status may deteriorate.
Battery charge/Signal status
This display may not correspond exactly with the cellular phone itself.
This system does not have a charging function.
The Bluetooth
® phone battery will burn quickly when it is connected to
Bluetooth®.
When using Bluetooth
® audio and hands-free system at the same time
The following problems may occur.
The Bluetooth
® connection may be cut.
Noise may be heard on the Bluetooth
® audio playback.
About the phonebook in this system
The following data is stored for every registered phone. When another
phone is connecting, you cannot read the registered data.
Phonebook data
Call history data
Speed dial
When you delete the phone, the above-mentioned data is also deleted.
When you release your car
Be sure to initialize your data. (P. 321)

392 3-3. Using the “touch screen”
HILUX_OM_OM0K134E_(EE)
About Bluetooth®
Compatible models
This system supports the following service.
Bluetooth
® Specification:
Ver. 1.1 or higher (Recommended: Ver. 2.1+EDR or higher)
Profiles:
• HFP (Hands Free Profile) Ver. 1.0 or higher (Recommended: Ver. 1.5 or
higher)
This is a profile to allow hands-free phone calls using the cellular phone
or head sets. It has an outgoing and incoming call function.
• OPP (Object Push Profile) Ver. 1.1 or higher
This is a profile to exchange phonebook data. When the Bluetooth
®
phone has PBAP and OPP, OPP cannot be used.
• PBAP (Phone Book Access Profile) Ver. 1.0 or higher
This is a profile to transfer phonebook data.
If your cellular phone does not support HFP, you cannot enter the Bluetooth
®
phone. You need to take OPP or PBAP service individually.
Bluetooth is a registered trademark of
Bluetooth SIG. Inc.
The Bluetooth word mark and logos are
owned by the Bluetooth SIG, Inc. and any
use of such marks by Panasonic Corpo-
ration is under license. Other trademarks
and trade names are those of their
respective owners.
