161 2-1. Driving procedures
2
When driving
HILUX_OM_OM0K134E_(EE)
NOTICE
When encountering flooded roads
Do not drive on a road that has flooded after heavy rain etc. Doing so may
cause the following serious damage to the vehicle:
Engine stalling
Short in electrical components
Engine damage caused by water immersion
In the event that you drive on a flooded road and the vehicle is flooded, be
sure to have any authorized Toyota dealer or repairer, or another duly quali-
fied and equipped professional check the following:
Brake function
Changes in quantity and quality of oil and fluid used for the engine, trans-
mission, transfer (4WD models), differential, etc.
Lubricant condition for the propeller shaft, bearings and suspension joints
(where possible), and the function of all joints, bearings, etc.

162
2-1. Driving procedures
HILUX_OM_OM0K134E_(EE)
Engine (ignition) switch
Starting the engine
Automatic transmission
Check that the parking brake is set.
Check that the shift lever is set in P.
Firmly depress the brake pedal.
Turn the engine switch to the “ON” position.
The indicator turns on.
After the indicator light goes out, turn the engine
switch to the “START” position to start the engine.
Manual transmission
Check that the parking brake is set.
Check that the shift lever is set in N.
Firmly depress the clutch pedal.
Turn the engine switch to the “ON” position.
The indicator turns on.
After the indicator light goes out, turn the engine
switch to the “START” position to start the engine.
STEP1
STEP2
STEP3
STEP4
STEP5
STEP1
STEP2
STEP3
STEP4
STEP5

163 2-1. Driving procedures
2
When driving
HILUX_OM_OM0K134E_(EE)

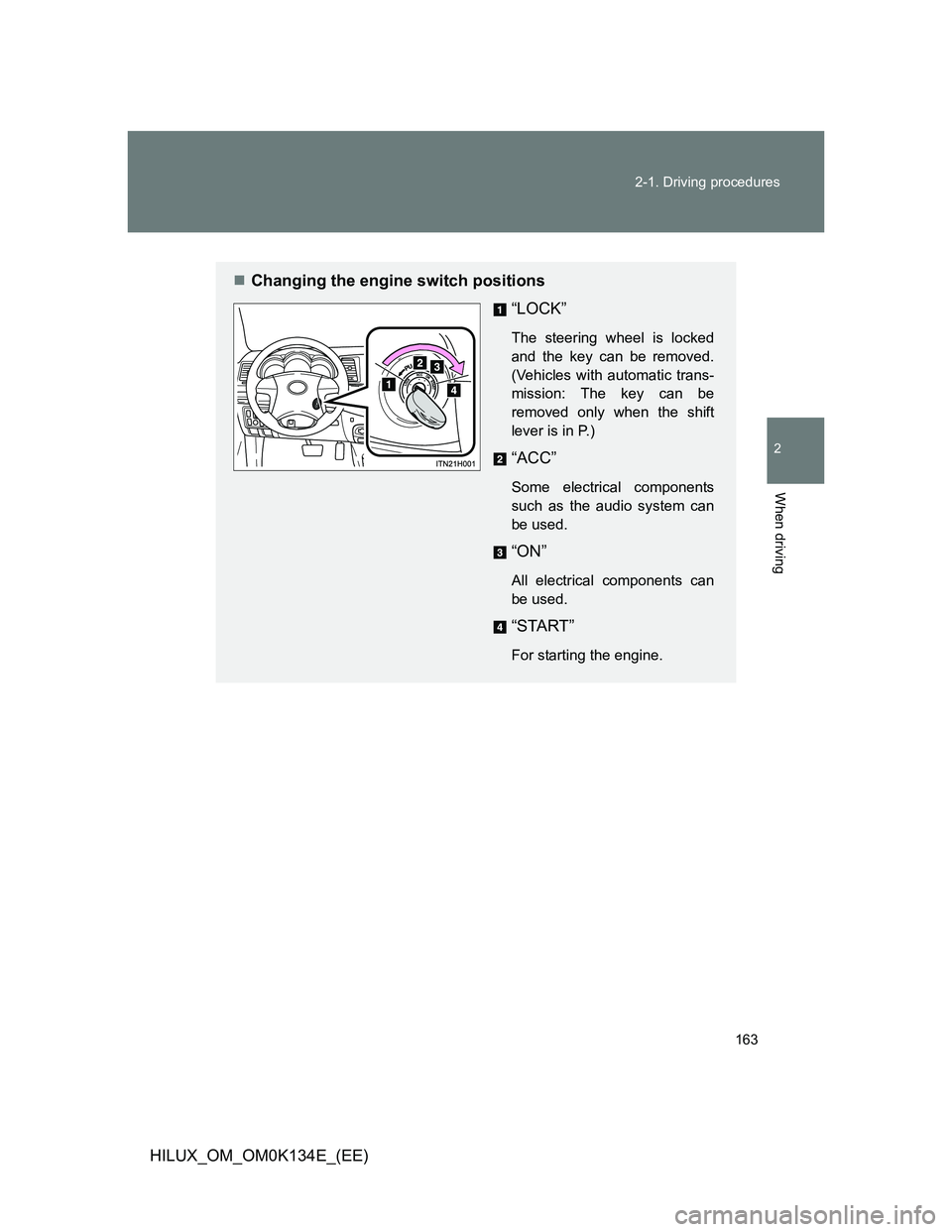

Changing the engine switch positions
“LOCK”
The steering wheel is locked
and the key can be removed.
(Vehicles with automatic trans-
mission: The key can be
removed only when the shift
lever is in P.)
“ACC”
Some electrical components
such as the audio system can
be used.
“ON”
All electrical components can
be used.
“START”
For starting the engine.

164 2-1. Driving procedures
HILUX_OM_OM0K134E_(EE)

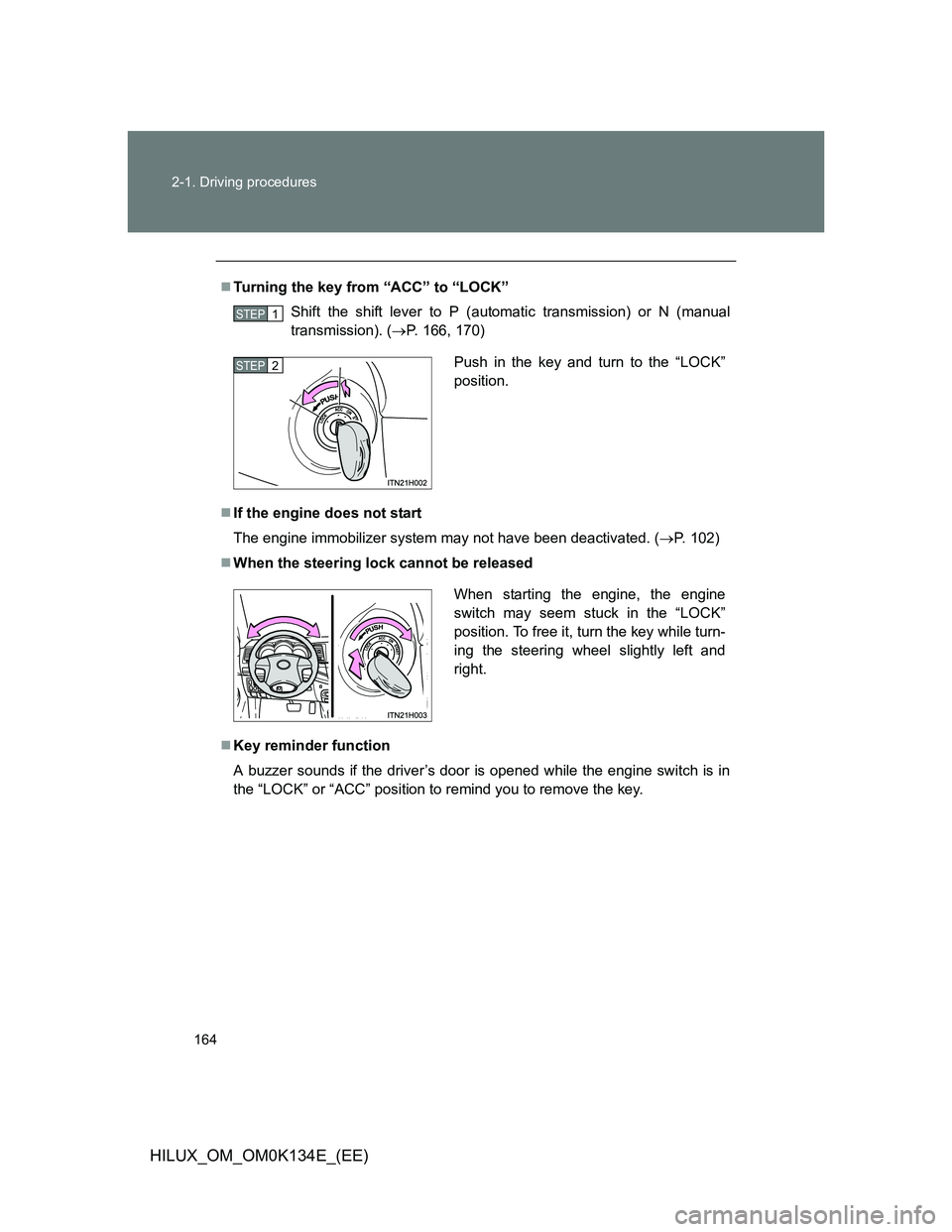

Turning the key from “ACC” to “LOCK”
Shift the shift lever to P (automatic transmission) or N (manual
transmission). (P. 166, 170)
If the engine does not start
The engine immobilizer system may not have been deactivated. (P. 102)
When the steering lock cannot be released
Key reminder function
A buzzer sounds if the driver’s door is opened while the engine switch is in
the “LOCK” or “ACC” position to remind you to remove the key.
STEP1
Push in the key and turn to the “LOCK”
position.STEP2
When starting the engine, the engine
switch may seem stuck in the “LOCK”
position. To free it, turn the key while turn-
ing the steering wheel slightly left and
right.

165 2-1. Driving procedures
2
When driving
HILUX_OM_OM0K134E_(EE)
CAUTION
When starting the engine
Always start the engine while sitting in the driver’s seat. Do not depress the
accelerator pedal while starting the engine under any circumstances.
Doing so may cause an accident resulting in death or serious injury.
Caution when driving
Do not turn the engine switch to the “LOCK” position while driving.
If in an emergency, you must turn the engine off while the vehicle is moving,
turn the engine switch only to the “ACC” position to stop the engine. An acci-
dent may result if the engine is stopped while driving.
NOTICE
To prevent battery discharge
Do not leave the engine switch in the “ACC” or “ON” position for long periods
of time without the engine running.
When starting the engine
Do not crank the engine for more than 30 seconds at a time. This may
overheat the starter and wiring system.
Do not race a cold engine.
If the engine becomes difficult to start or stalls frequently, have the engine
checked immediately.

166
2-1. Driving procedures
HILUX_OM_OM0K134E_(EE)

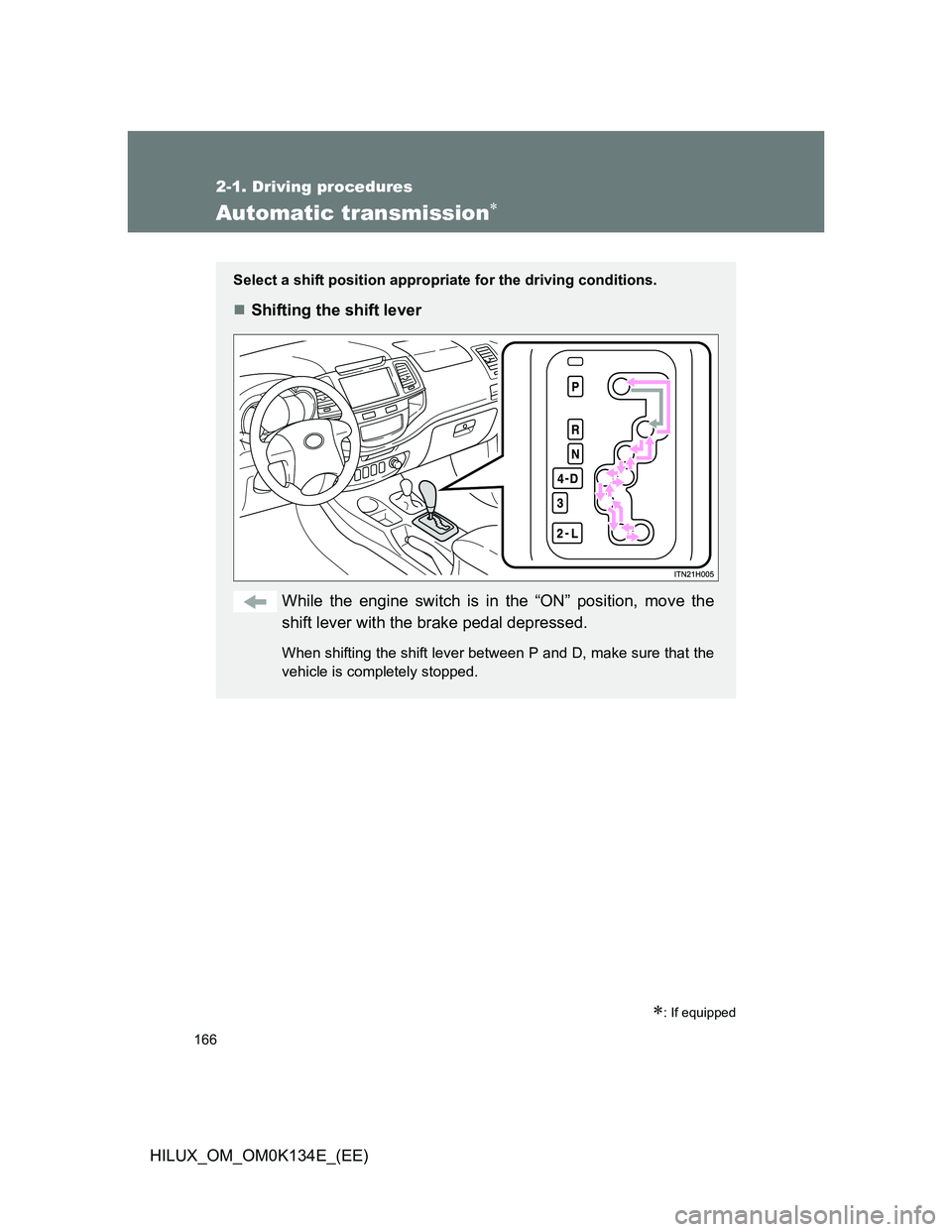

Automatic transmission
: If equipped
Select a shift position appropriate for the driving conditions.
Shifting the shift lever
While the engine switch is in the “ON” position, move the
shift lever with the brake pedal depressed.
When shifting the shift lever between P and D, make sure that the
vehicle is completely stopped.

167 2-1. Driving procedures
2
When driving
HILUX_OM_OM0K134E_(EE)

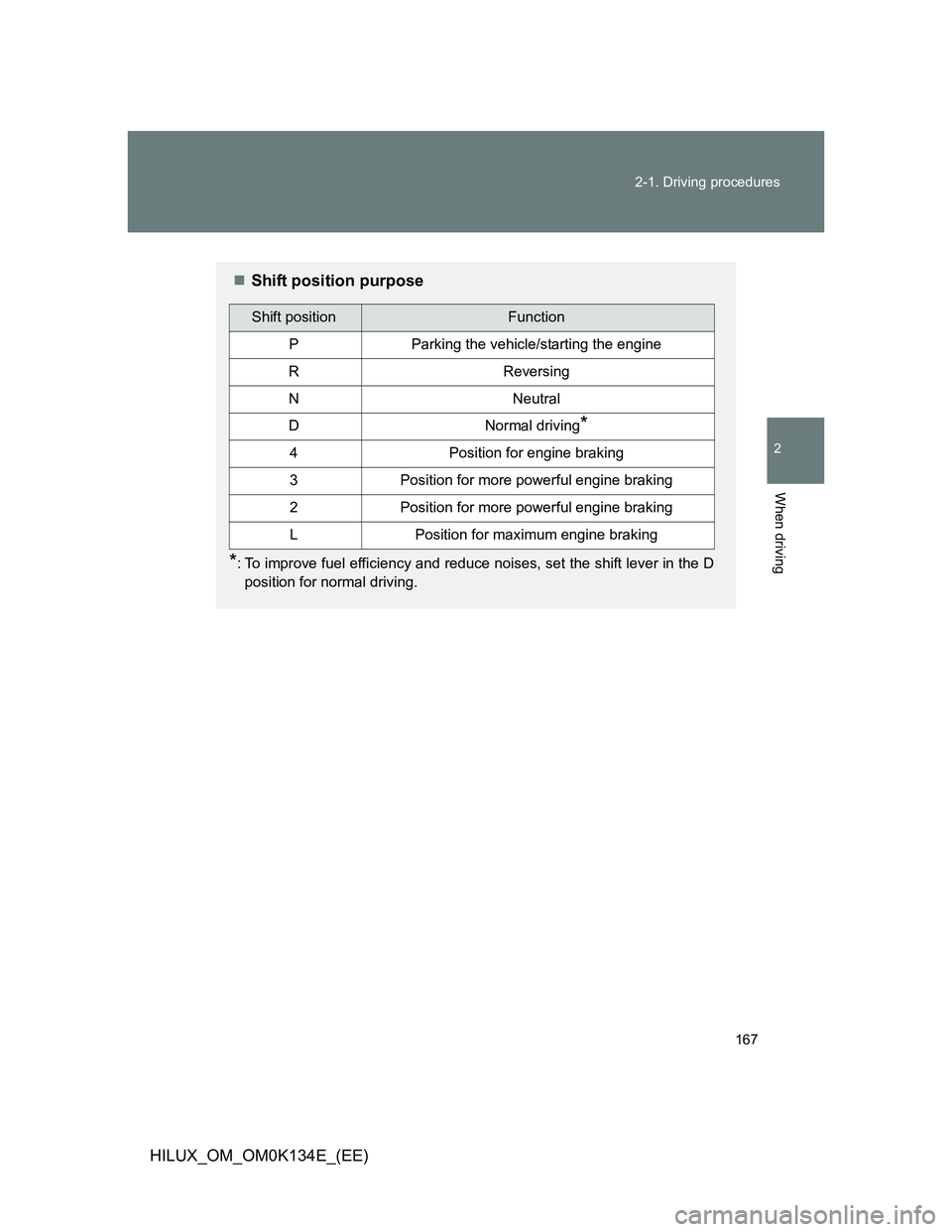

Shift position purpose
*: To improve fuel efficiency and reduce noises, set the shift lever in the D
position for normal driving.
Shift positionFunction
PParking the vehicle/starting the engine
RReversing
NNeutral
DNormal driving*
4Position for engine braking
3Position for more powerful engine braking
2Position for more powerful engine braking
LPosition for maximum engine braking

168 2-1. Driving procedures
HILUX_OM_OM0K134E_(EE)
Downshift restriction
The maximum allowable speeds are as follows.
*: See “Checking your vehicle’s model” if you are not sure of which model
your vehicle is. (P. 41)
AI-SHIFT
AI-SHIFT automatically selects the optimal gear according to driver perfor-
mance and driving conditions.
AI-SHIFT automatically operates when the shift lever is in the D position.
The engine speed may remain high after releasing the accelerator pedal.
This does not indicate a malfunction.
When driving with the cruise control system (If equipped)
Engine braking will not occur when downshifting from D to 4. (P. 202)
If the shift lever cannot be shifted from P
P. 585
Downshifting
Maximum speed
km/h (mph)
SR grade*DLX grade*
Front drive
control lever
in H2 or H4Front drive
control lever
in L4Front drive
control lever
in H2 or H4Front drive
control lever
in L4
D  4 140 (87)- 145 (90)-
4  3 100 (62) 35 (22) 105 (65) 40 (25)
3  2 65 (40) 25 (16) 70 (43) 25 (16)
2  L 20 (12) 5 (3) 20 (12) 5 (3)
