2013 TOYOTA HILUX Owners Manual (in English)

129 1-7. Safety information
1
Before driving

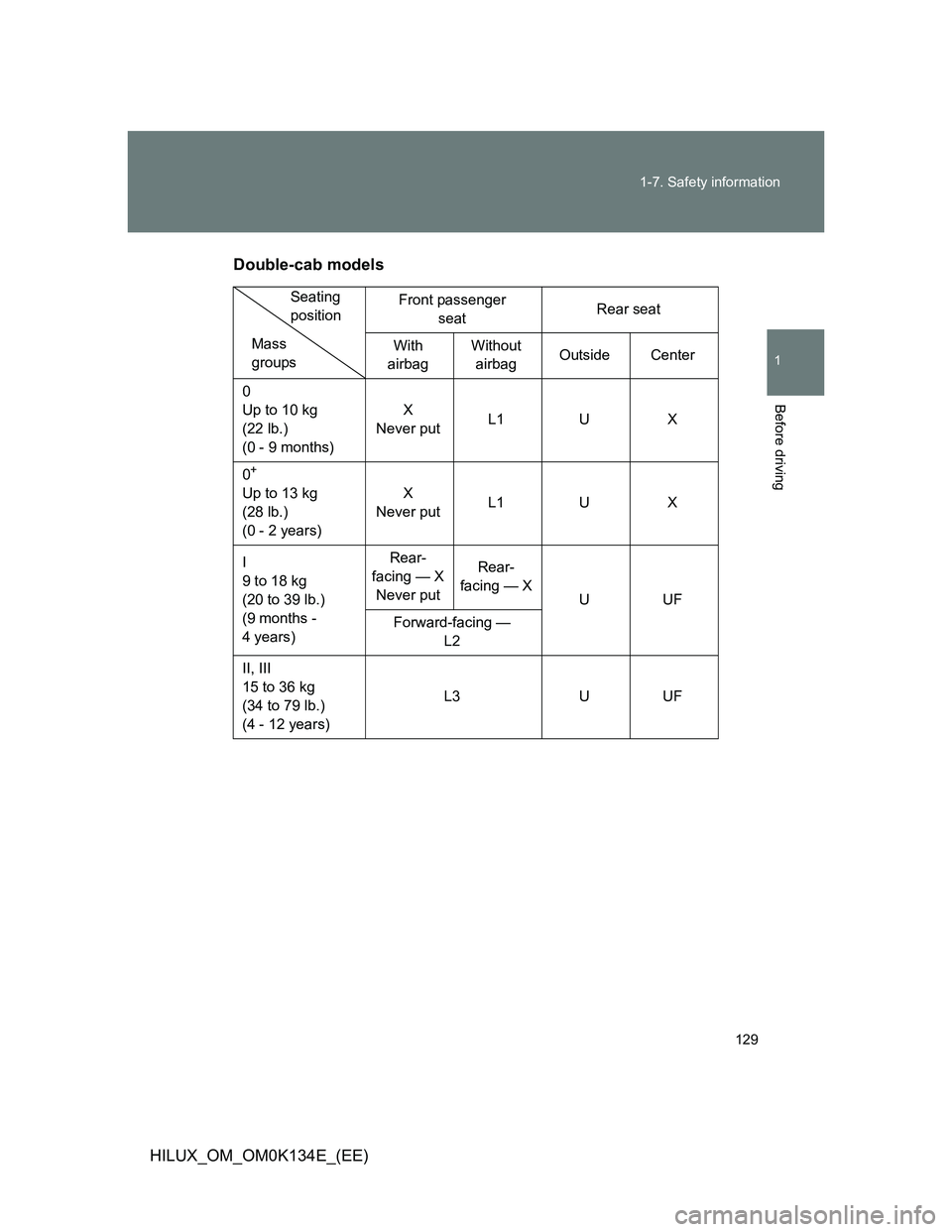

HILUX_OM_OM0K134E_(EE)Double-cab models
Front passenger
seatRear seat
With
airbagWithout
airbagOutside Center
0
Up to 10 kg
(22 lb.)
(0 - 9 months)X
Never putL1 U X
0
+
Up to 13 kg
(28 lb.)
(0 - 2 years)X
Never putL1 U X
I
9 to 18 kg
(20 to 39 lb.)
(9 months -
4 years)Rear-
facing — X
Never putRear-
facing — X
UUF
Forward-facing —
L2
II, III
15 to 36 kg
(34 to 79 lb.)
(4 - 12 years)L3 U UF
Mass
groupsSeating
position

130 1-7. Safety information
HILUX_OM_OM0K134E_(EE)Key of letters inserted in the above table:
U: Suitable for “universal” category child restraint system approved
for the use in this mass group.
UF: Suitable for forward-facing “universal” category child restraint
system approved for the use in this mass group.
L1: Suitable for “TOYOTA BABY SAFE (up to 13 kg [28 lb.])”
approved for the use in this mass group.
L2: Suitable for “TOYOTA DUO
+ (9 to 18 kg [20 to 39 lb.])” approved
for the use in this mass group.
L3: Suitable for “TOYOTA KID (15 to 36 kg [34 to 79 lb.])” approved
for the use in this mass group.
X: Not suitable seat position for children in this mass group.
The child restraint system mentioned in the table may not be avail-
able outside of the EU area.
Other child restraint system which is different from the system men-
tioned in the table can be used, but the suitability of the systems must
be carefully checked with the child restraint system manufacturer
concerned and the seller of those seats.

131 1-7. Safety information
1
Before driving
HILUX_OM_OM0K134E_(EE)
When installing a child restraint system on the front passenger seat
Selecting an appropriate child restraint system
Use a child restraint system appropriate for the child until the child
becomes large enough to properly wear the vehicle’s seat belt.
If the child is too large for a child restraint system, sit the child on a rear
seat and use the vehicle’s seat belt. (P. 78)
When you have to use a child restraint
system on the front passenger seat,
adjust the following:
The seatback to the most upright
position
The seat cushion to the fully rear-
ward position (if equipped)

132 1-7. Safety information
HILUX_OM_OM0K134E_(EE)
CAUTION
Using a child restraint system
The use of a child restraint system not suitable for the vehicle may not prop-
erly secure the infant or child. It may result in death or serious injury (in the
event of sudden braking or an accident).
Child restraint precautions
For effective protection in automobile accidents and sudden stops, a child
must be properly restrained, using a seat belt or child restraint system
depending on the age and size of the child. Holding a child in your arms is
not a substitute for a child restraint system. In an accident, the child can be
crushed against the windshield, or between you and the vehicle’s interior.
Toyota strongly urges the use of a proper child restraint system that con-
forms to the size of the child, installed on the rear seat. According to acci-
dent statistics, the child is safer when properly restrained in the rear seat
than in the front seat.
Never install a rear-facing child restraint system on the front passenger
seat.
In the event of an accident, the force of the rapid inflation of the front pas-
senger airbag can cause death or serious injury to the child if the rear-fac-
ing child restraint system is installed on the front passenger seat.
A forward-facing child restraint system may be installed on the front pas-
senger seat only when it is unavoidable. Adjust the seatback as upright as
possible and always move the seat as far back as possible because the
front passenger airbag could inflate with considerable speed and force.
Otherwise, the child may be killed or seriously injured.

133 1-7. Safety information
1
Before driving
HILUX_OM_OM0K134E_(EE)

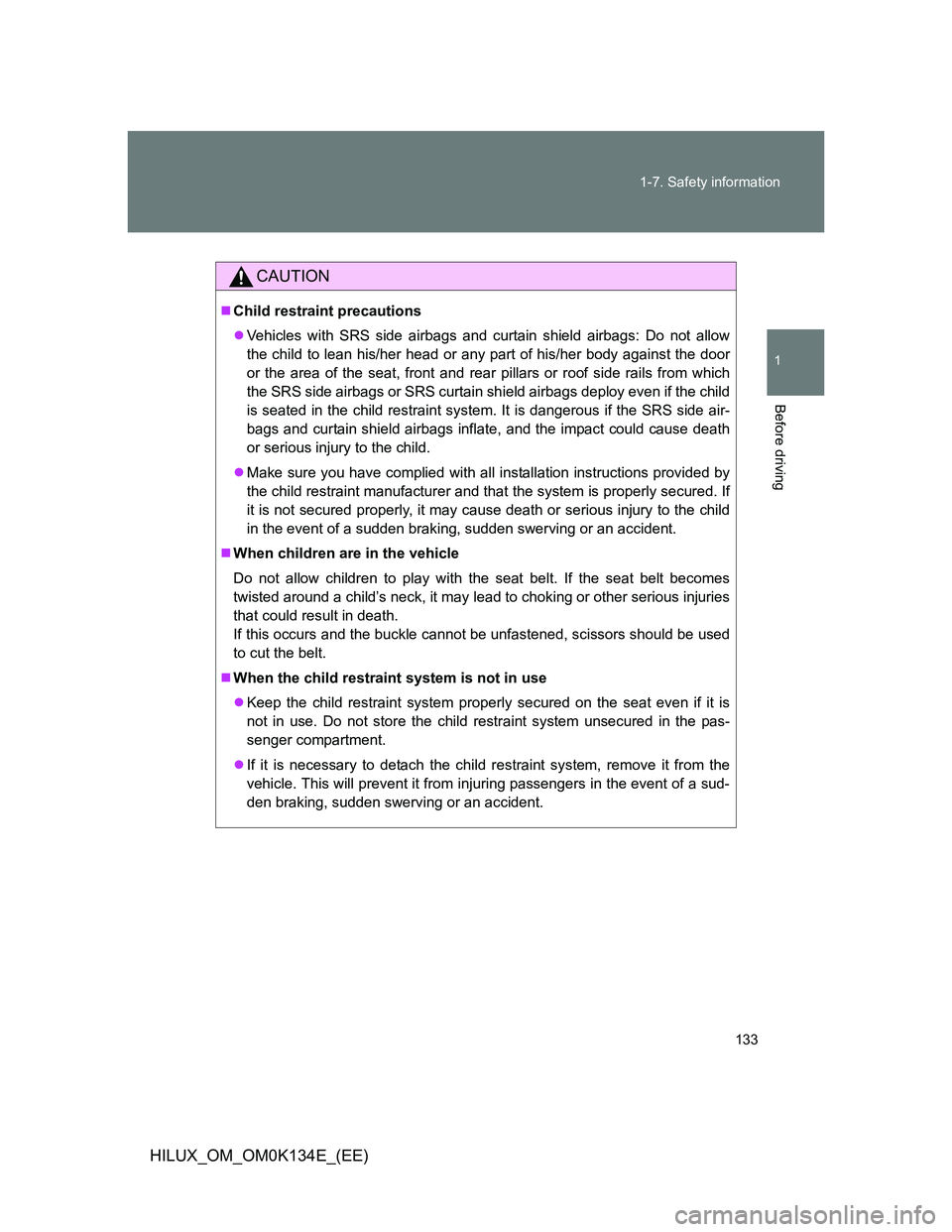

CAUTION
Child restraint precautions
Vehicles with SRS side airbags and curtain shield airbags: Do not allow
the child to lean his/her head or any part of his/her body against the door
or the area of the seat, front and rear pillars or roof side rails from which
the SRS side airbags or SRS curtain shield airbags deploy even if the child
is seated in the child restraint system. It is dangerous if the SRS side air-
bags and curtain shield airbags inflate, and the impact could cause death
or serious injury to the child.
Make sure you have complied with all installation instructions provided by
the child restraint manufacturer and that the system is properly secured. If
it is not secured properly, it may cause death or serious injury to the child
in the event of a sudden braking, sudden swerving or an accident.
When children are in the vehicle
Do not allow children to play with the seat belt. If the seat belt becomes
twisted around a child’s neck, it may lead to choking or other serious injuries
that could result in death.
If this occurs and the buckle cannot be unfastened, scissors should be used
to cut the belt.
When the child restraint system is not in use
Keep the child restraint system properly secured on the seat even if it is
not in use. Do not store the child restraint system unsecured in the pas-
senger compartment.
If it is necessary to detach the child restraint system, remove it from the
vehicle. This will prevent it from injuring passengers in the event of a sud-
den braking, sudden swerving or an accident.

134
1-7. Safety information
HILUX_OM_OM0K134E_(EE)
Installing child restraints
Follow the child restraint system manufacturer’s instructions. Firmly
secure child restraints to the seats using a seat belt.
2-point type seat belt (if
equipped)
3-point type seat belts (An
ELR belt requires a locking
clip)

135 1-7. Safety information
1
Before driving
HILUX_OM_OM0K134E_(EE)
Installing child restraints using a seat belt (2-point type seat belt)
(if equipped)
Forward-facing  Child seat
Place the child restraint system
on the rear seat facing the front
of the vehicle.
Run the seat belt through the
child restraint system and insert
the plate into the buckle. Make
sure that the belt is not twisted.
While pushing the child restraint
system down into the seat, allow
the belt to tighten by pulling its
free end until the child restraint
system is securely in place.
STEP1
STEP2
STEP3

136 1-7. Safety information
HILUX_OM_OM0K134E_(EE)

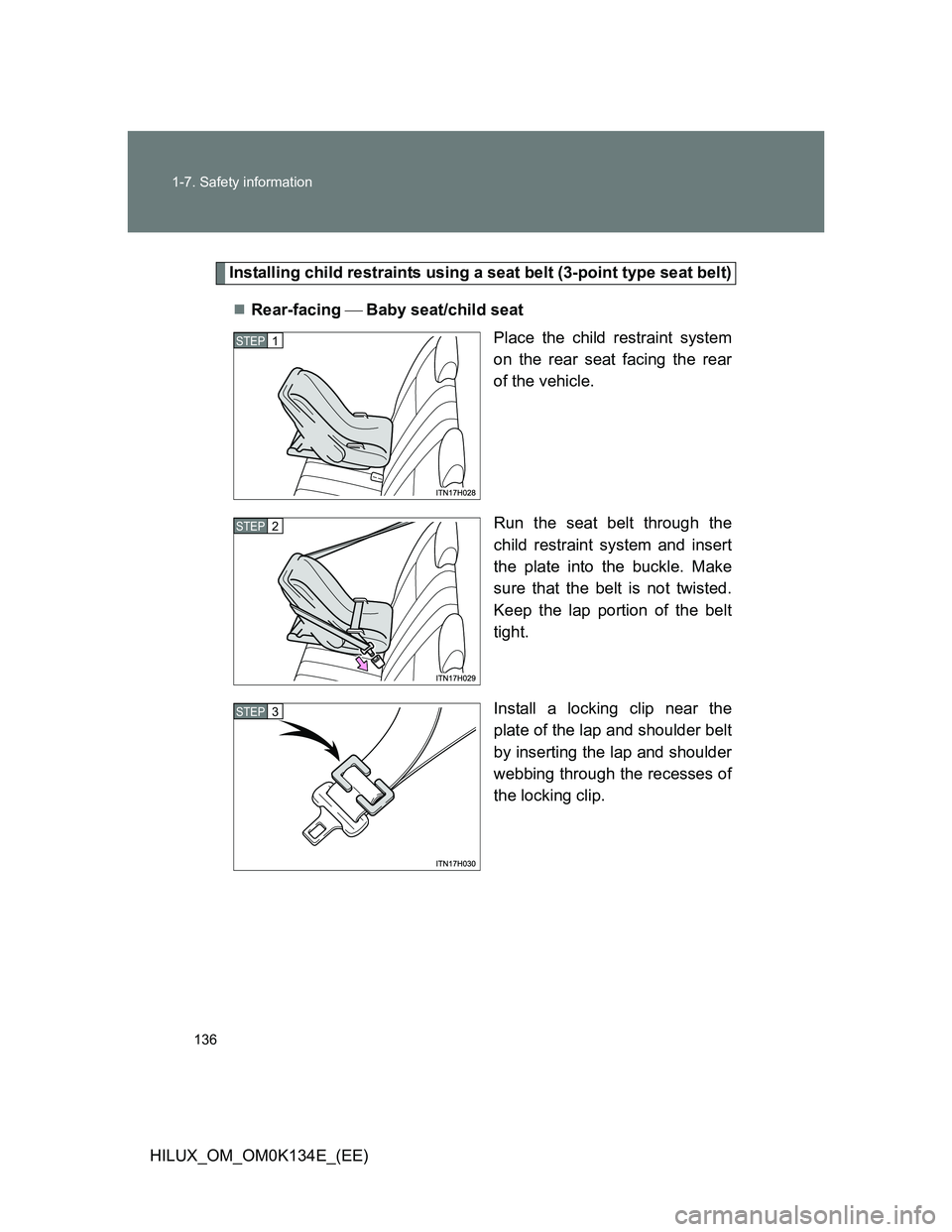

Installing child restraints using a seat belt (3-point type seat belt)
Rear-facing  Baby seat/child seat
Place the child restraint system
on the rear seat facing the rear
of the vehicle.
Run the seat belt through the
child restraint system and insert
the plate into the buckle. Make
sure that the belt is not twisted.
Keep the lap portion of the belt
tight.
Install a locking clip near the
plate of the lap and shoulder belt
by inserting the lap and shoulder
webbing through the recesses of
the locking clip.
STEP1
STEP2
STEP3
