Page 529 of 644

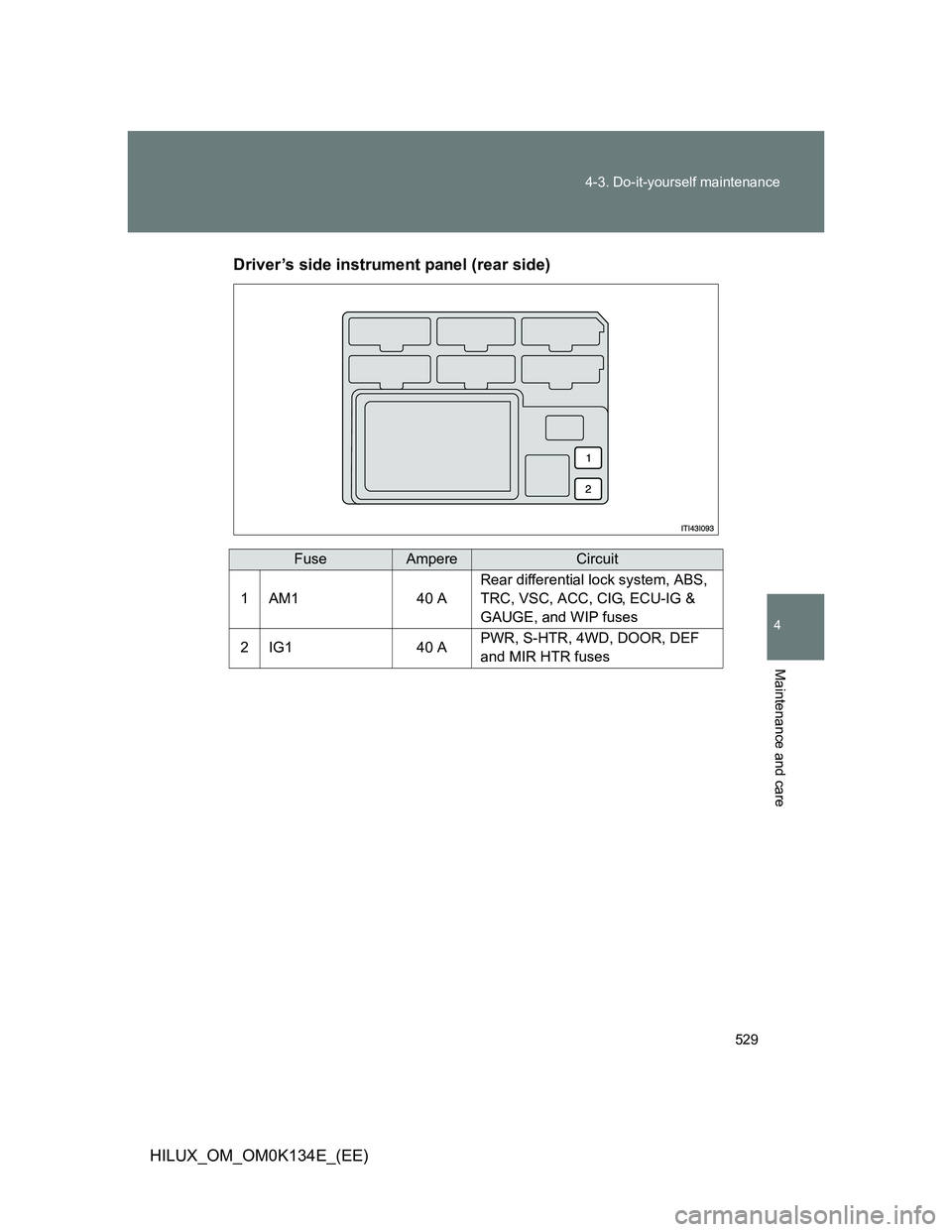

529 4-3. Do-it-yourself maintenance
4
Maintenance and care
HILUX_OM_OM0K134E_(EE)Driver’s side instrument panel (rear side)
FuseAmpereCircuit
1AM140 A
Rear differential lock system, ABS,
TRC, VSC, ACC, CIG, ECU-IG &
GAUGE, and WIP fuses
2IG140 APWR, S-HTR, 4WD, DOOR, DEF
and MIR HTR fuses
Page 530 of 644

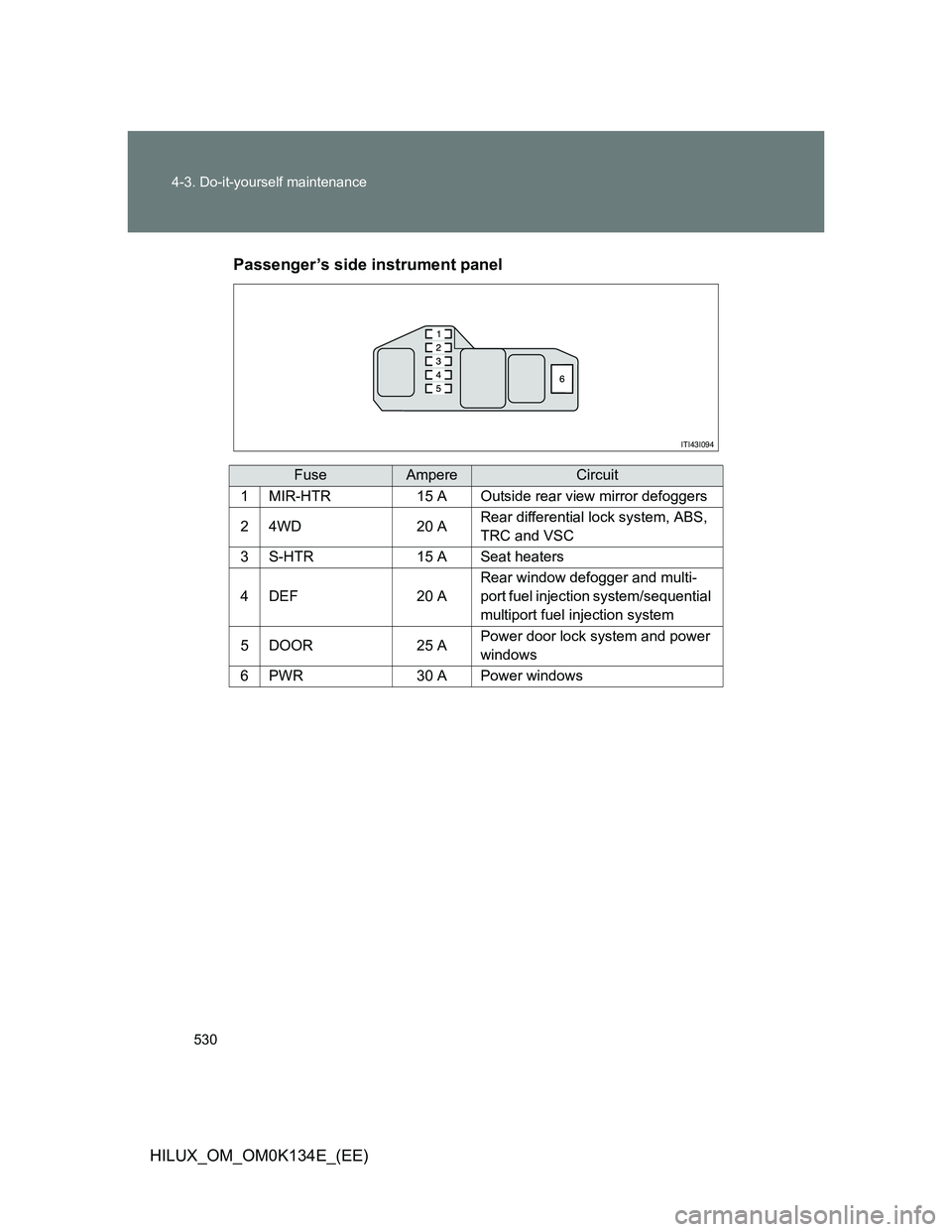

530 4-3. Do-it-yourself maintenance
HILUX_OM_OM0K134E_(EE)Passenger’s side instrument panel
FuseAmpereCircuit
1MIR-HTR15 AOutside rear view mirror defoggers
24WD20 ARear differential lock system, ABS,
TRC and VSC
3S-HTR15 ASeat heaters
4DEF20 A
Rear window defogger and multi-
port fuel injection system/sequential
multiport fuel injection system
5DOOR25 APower door lock system and power
windows
6PWR30 APower windows
ITI43I094
Page 531 of 644

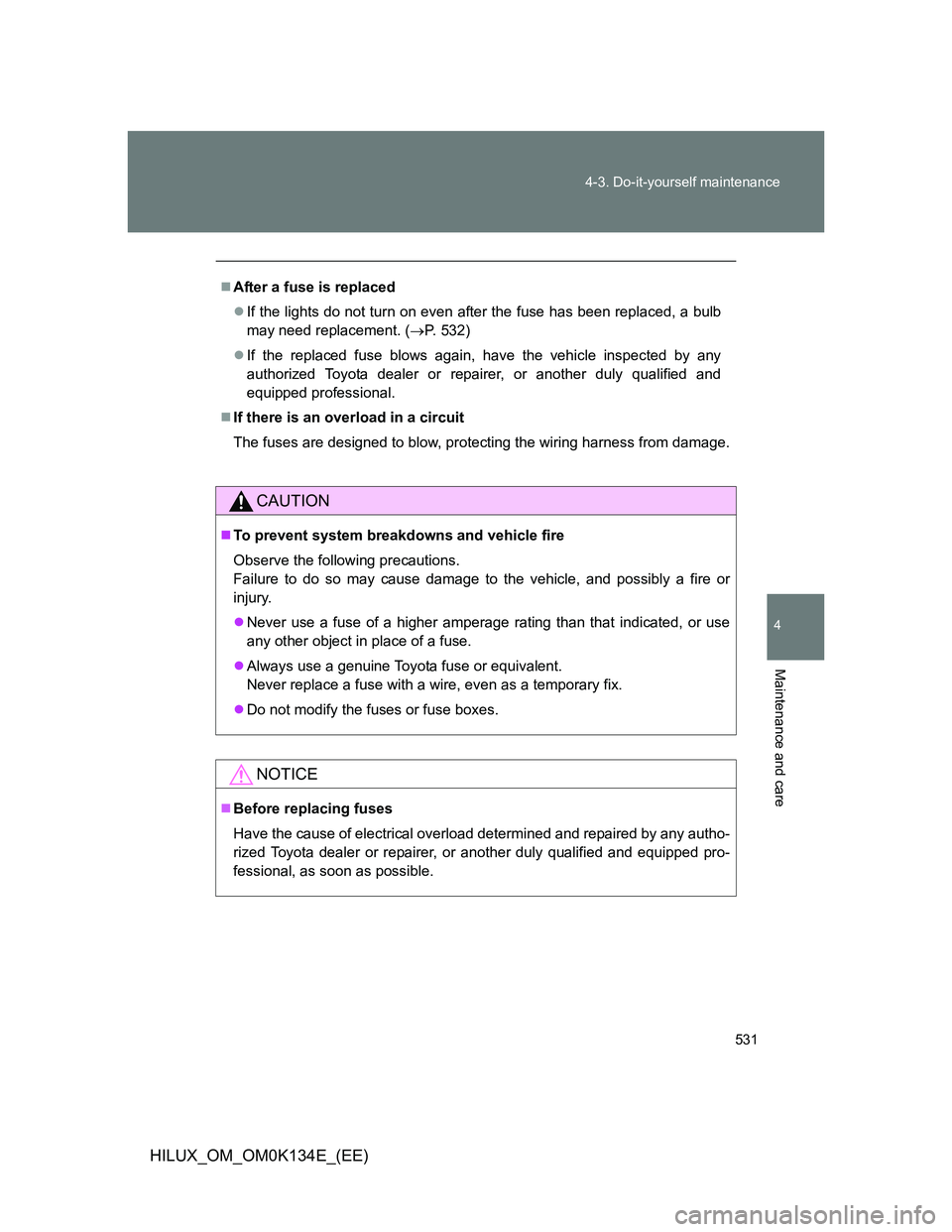

531 4-3. Do-it-yourself maintenance
4
Maintenance and care
HILUX_OM_OM0K134E_(EE)
After a fuse is replaced
If the lights do not turn on even after the fuse has been replaced, a bulb
may need replacement. (P. 532)
If the replaced fuse blows again, have the vehicle inspected by any
authorized Toyota dealer or repairer, or another duly qualified and
equipped professional.
If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.
CAUTION
To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or
injury.
Never use a fuse of a higher amperage rating than that indicated, or use
any other object in place of a fuse.
Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
Do not modify the fuses or fuse boxes.
NOTICE
Before replacing fuses
Have the cause of electrical overload determined and repaired by any autho-
rized Toyota dealer or repairer, or another duly qualified and equipped pro-
fessional, as soon as possible.
Page 532 of 644

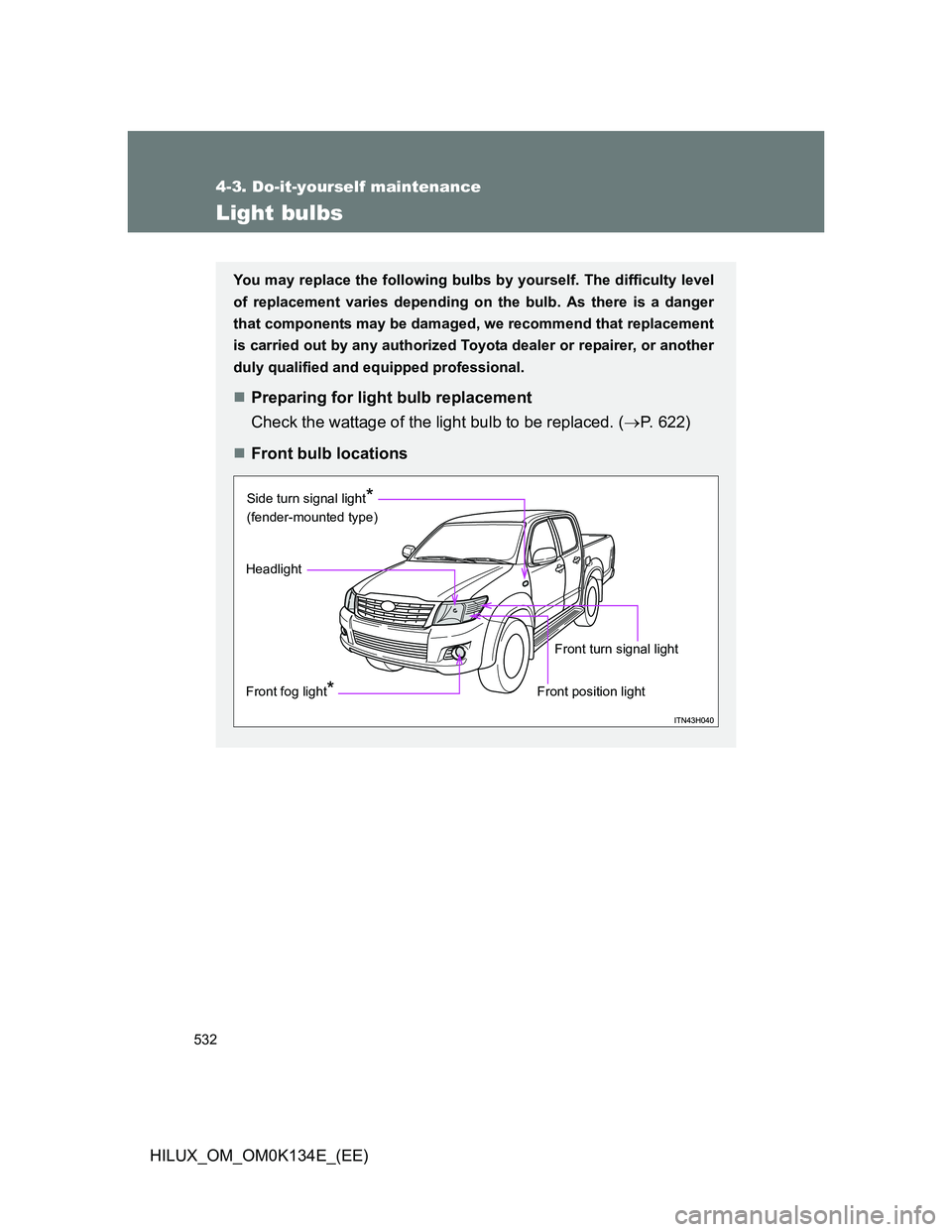

532
4-3. Do-it-yourself maintenance
HILUX_OM_OM0K134E_(EE)
Light bulbs
You may replace the following bulbs by yourself. The difficulty level
of replacement varies depending on the bulb. As there is a danger
that components may be damaged, we recommend that replacement
is carried out by any authorized Toyota dealer or repairer, or another
duly qualified and equipped professional.
Preparing for light bulb replacement
Check the wattage of the light bulb to be replaced. (P. 622)
Front bulb locations
Front fog light*Front position light Side turn signal light
*
(fender-mounted type)
Headlight
Front turn signal light
Page 533 of 644

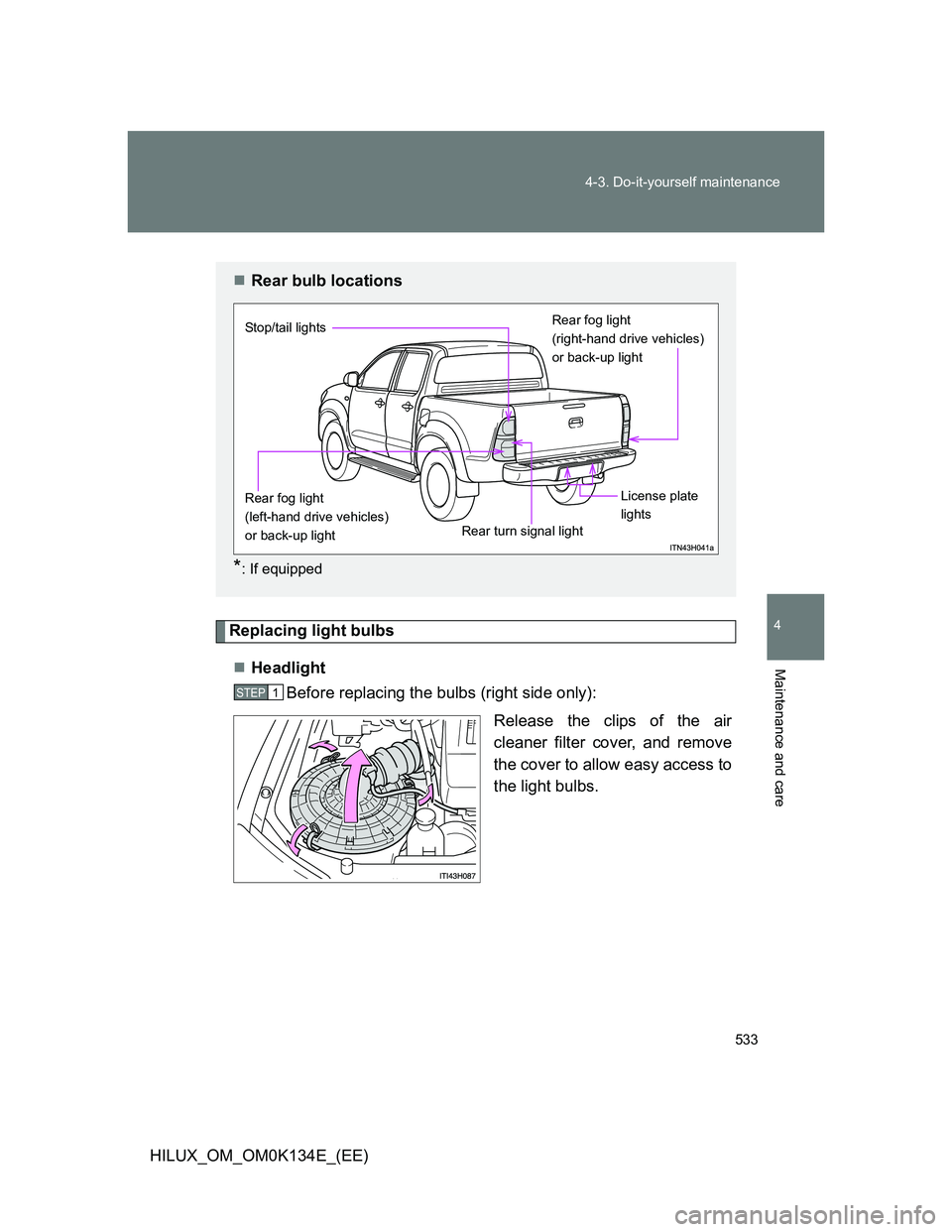

533 4-3. Do-it-yourself maintenance
4
Maintenance and care
HILUX_OM_OM0K134E_(EE)
Replacing light bulbs
Headlight
Before replacing the bulbs (right side only):
Release the clips of the air
cleaner filter cover, and remove
the cover to allow easy access to
the light bulbs.
Rear bulb locations
*: If equipped
Rear fog light
(right-hand drive vehicles)
or back-up light Stop/tail lights
Rear turn signal lightLicense plate
lights
Rear fog light
(left-hand drive vehicles)
or back-up light
STEP1
Page 534 of 644
534 4-3. Do-it-yourself maintenance
HILUX_OM_OM0K134E_(EE)Unplug the connector and
remove the rubber cover.
Release the bulb retaining
spring.
Remove the bulb.
To install a new bulb, align the
tabs of the bulb with the cutouts
of the mounting hole.
STEP2
STEP3
STEP4
Page 535 of 644

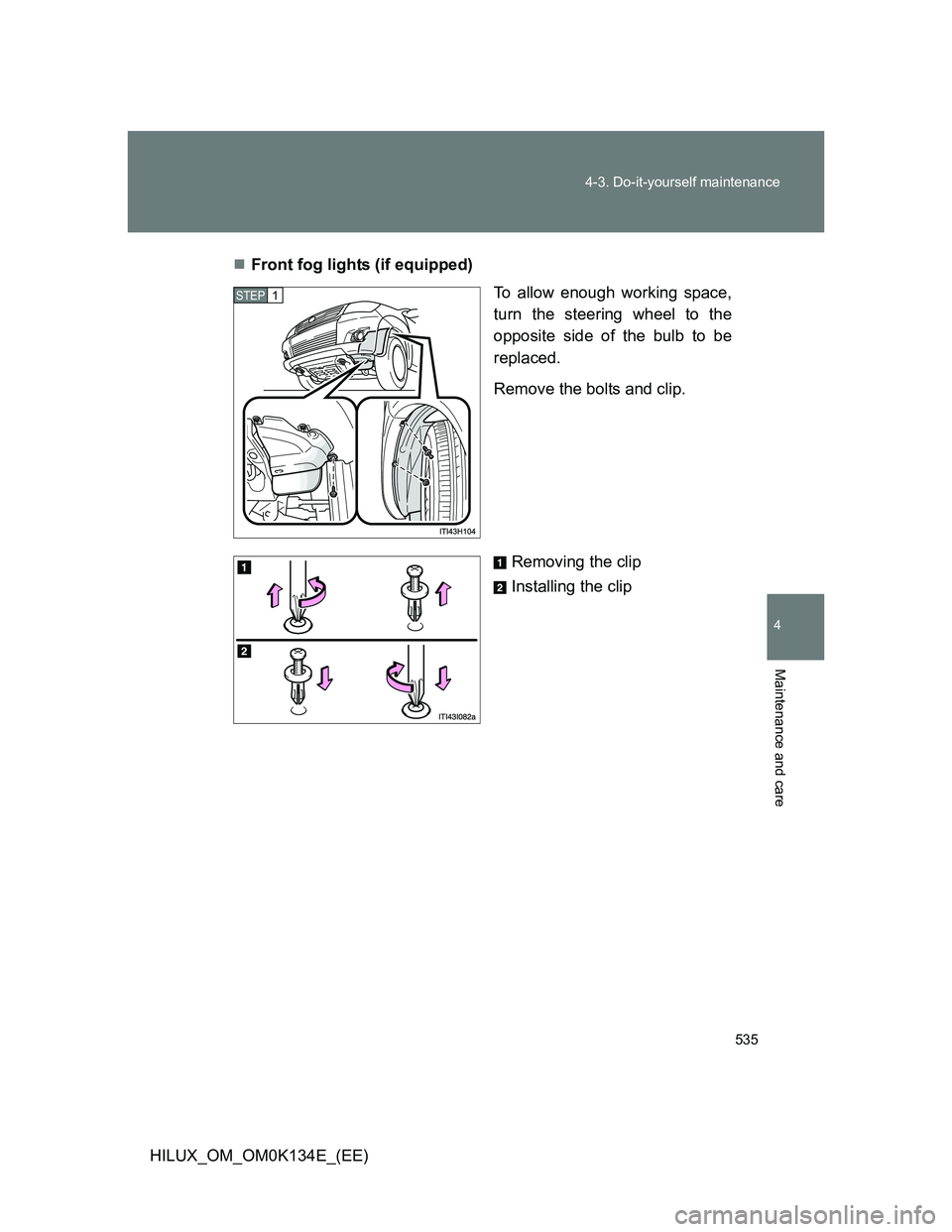

535 4-3. Do-it-yourself maintenance
4
Maintenance and care
HILUX_OM_OM0K134E_(EE)Front fog lights (if equipped)
To allow enough working space,
turn the steering wheel to the
opposite side of the bulb to be
replaced.
Remove the bolts and clip.
Removing the clip
Installing the clip
STEP1
Page 536 of 644
536 4-3. Do-it-yourself maintenance
HILUX_OM_OM0K134E_(EE)Partly remove the fender liner
and unplug the connector while
pressing the lock release.
Turn the bulb base counterclock-
wise.
STEP2
Bumper
Fender
liner
STEP3
