481 4-3. Do-it-yourself maintenance
4
Maintenance and care
HILUX_OM_OM0K134E_(EE)
ItemsParts and tools
Fuses (P. 516)• Fuse with same amperage rating
as original
Light bulbs (P. 532)
• Bulb with same number and watt-
age rating as original
• Phillips-head screwdriver
• Wrench
Radiator, condenser and
intercooler
(P. 495)
Tire inflation pressure (P. 507)• Tire pressure gauge
• Compressed air source
Washer fluid (P. 500)
• Water or washer fluid containing
antifreeze (for winter use)
• Funnel (used only for adding
water or washer fluid)

482 4-3. Do-it-yourself maintenance
HILUX_OM_OM0K134E_(EE)
CAUTION
The engine compartment contains many mechanisms and fluids that may
move suddenly, become hot, or become electrically energized. To avoid death
or serious injury, observe the following precautions.
When working on the engine compartment
Keep hands, clothing and tools away from the moving fan and engine
drive belt.
Be careful not to touch the engine, radiator, exhaust manifold, etc. right
after driving as they may be hot. Oil and other fluids may also be hot.
Do not leave anything that may burn easily, such as paper and rags, in the
engine compartment.
Do not smoke, cause sparks or expose an open flame to fuel or the bat-
tery. Fuel and battery fumes are flammable.
Be extremely cautious when working on the battery. It contains poisonous
and corrosive sulfuric acid.
Take care because brake fluid can harm your hands or eyes and damage
painted surfaces. If fluid gets on your hands or in your eyes, flush the
affected area with clean water immediately.
If you still experience discomfort, consult a doctor.
Safety glasses
Wear safety glasses to prevent flying or falling material, fluid spray, etc. from
getting in your eyes.

483 4-3. Do-it-yourself maintenance
4
Maintenance and care
HILUX_OM_OM0K134E_(EE)
NOTICE
If you remove the air cleaner filter
Driving with the air cleaner filter removed may cause excessive engine wear
due to dirt in the air.
If the fluid level is low or high
It is normal for the brake fluid level to go down slightly as the brake pads
wear or when the fluid level in the accumulator is high.
If the reservoir needs frequent refilling, it may indicate a serious problem.

484
4-3. Do-it-yourself maintenance
HILUX_OM_OM0K134E_(EE)

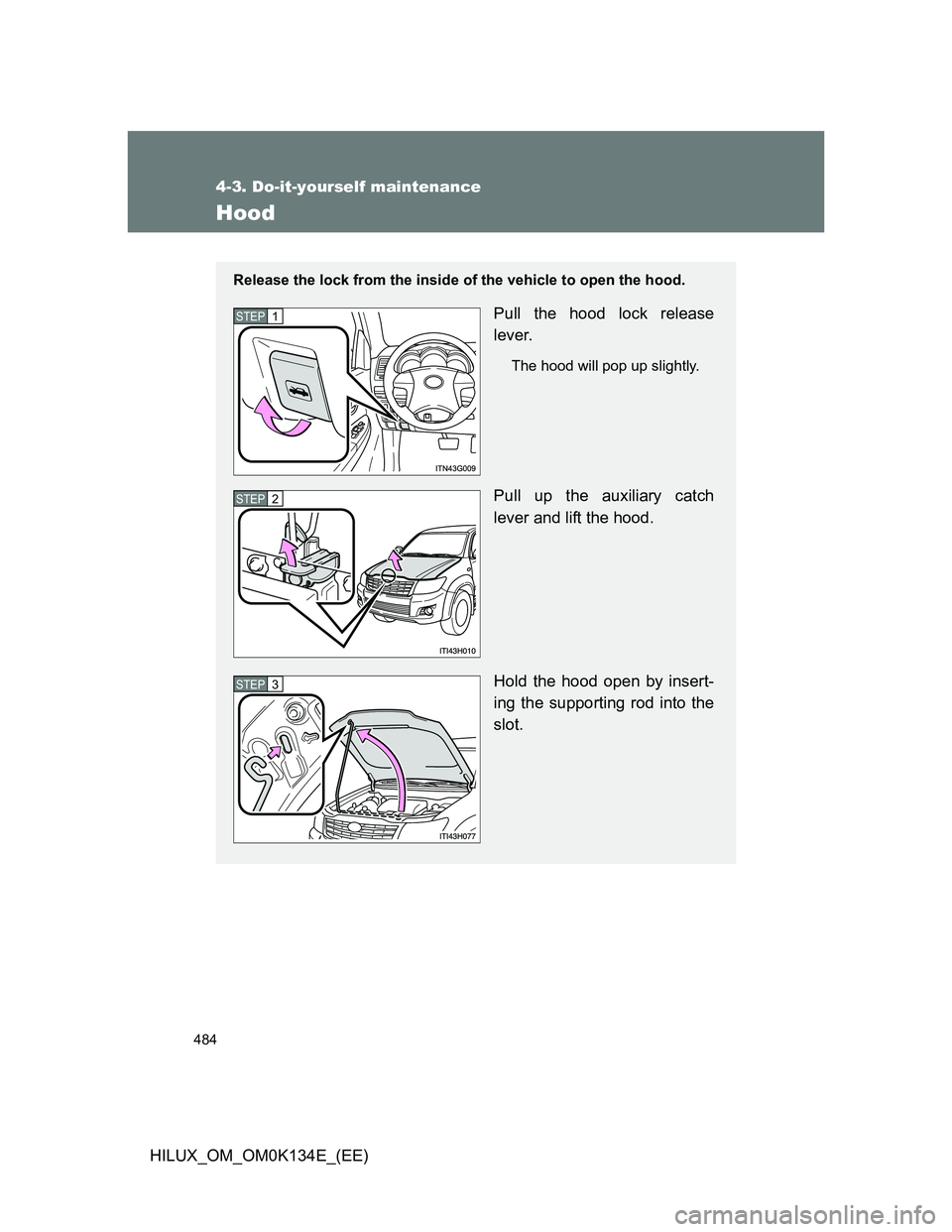

Hood
Release the lock from the inside of the vehicle to open the hood.
Pull the hood lock release
lever.
The hood will pop up slightly.
Pull up the auxiliary catch
lever and lift the hood.
Hold the hood open by insert-
ing the supporting rod into the
slot.
STEP1
STEP2
STEP3

485 4-3. Do-it-yourself maintenance
4
Maintenance and care
HILUX_OM_OM0K134E_(EE)
CAUTION
Pre-driving check
Check that the hood is fully closed and locked.
If the hood is not locked properly, it may open while the vehicle is in motion
and cause an accident, which may result in death or serious injury.
After installing the support rod into the slot
Make sure the rod supports the hood securely from falling down on to your
head or body.
NOTICE
When closing the hood
Be sure to return the support rod to its clip before closing the hood. Closing
the hood with the support rod up could cause the hood to bend.

486
4-3. Do-it-yourself maintenance
HILUX_OM_OM0K134E_(EE)
Engine compartment
Left-hand drive vehicles
Battery (if equipped)
(P. 496)
Engine coolant reservoir
(P. 493)
Intercooler (P. 495)
Engine oil filler cap
(P. 490)Engine oil level dipstick
(P. 488)
Fuel filter (P. 502, 595)
Fuse box (P. 516)
Battery (P. 496)
Washer fluid tank (P. 500)
Condenser (P. 495)
Radiator (P. 495)

487 4-3. Do-it-yourself maintenance
4
Maintenance and care
HILUX_OM_OM0K134E_(EE)
Right-hand drive vehicles
Engine coolant reservoir
(P. 493)
Intercooler (P. 495)
Engine oil filler cap
(P. 490)
Engine oil level dipstick
(P. 488)
Fuel filter (P. 502, 595)Battery (if equipped)
(P. 496)
Fuse box (P. 516)
Battery (P. 496)
Washer fluid tank (P. 500)
Condenser (P. 495)
Radiator (P. 495)

488 4-3. Do-it-yourself maintenance
HILUX_OM_OM0K134E_(EE)

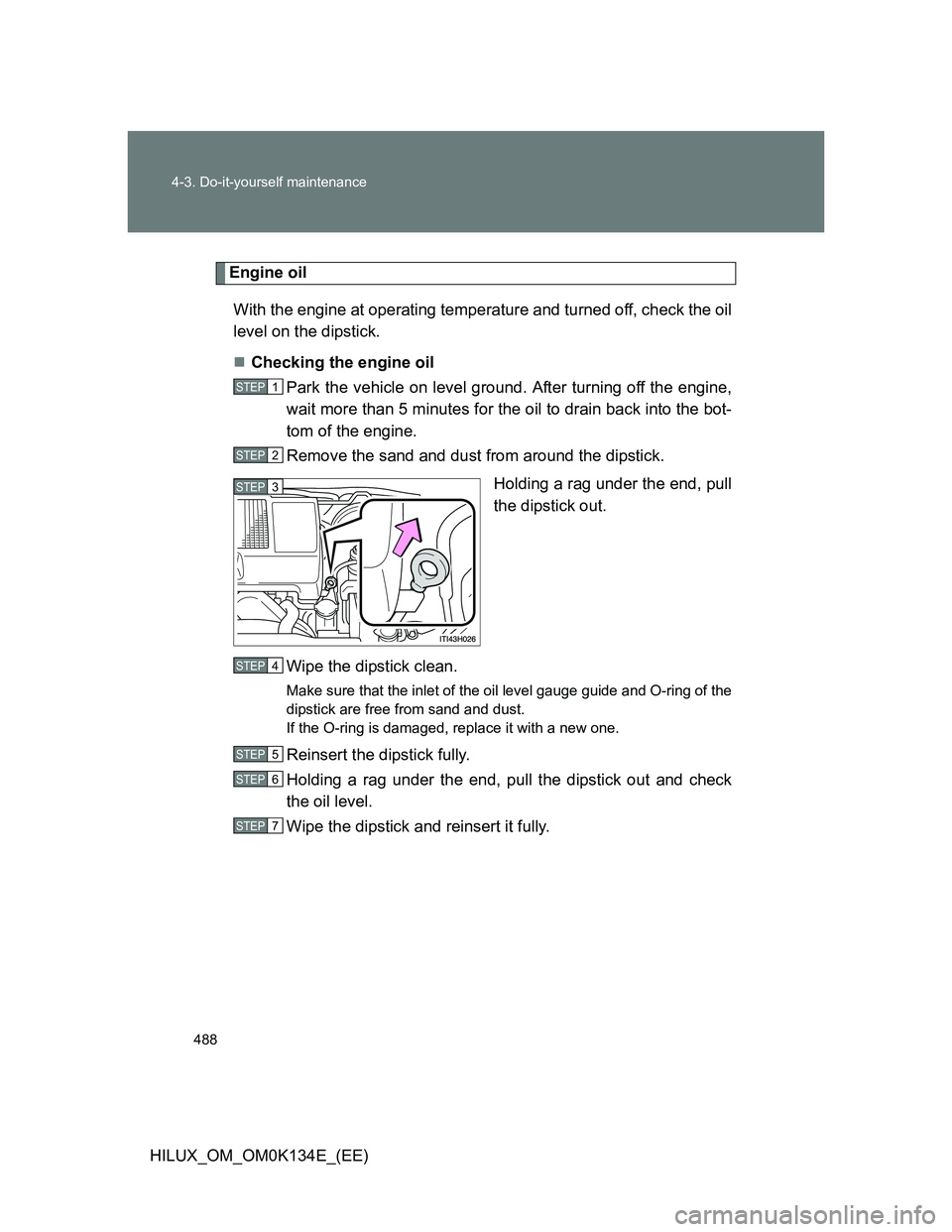

Engine oil
With the engine at operating temperature and turned off, check the oil
level on the dipstick.
Checking the engine oil
Park the vehicle on level ground. After turning off the engine,
wait more than 5 minutes for the oil to drain back into the bot-
tom of the engine.
Remove the sand and dust from around the dipstick.
Holding a rag under the end, pull
the dipstick out.
Wipe the dipstick clean.
Make sure that the inlet of the oil level gauge guide and O-ring of the
dipstick are free from sand and dust.
If the O-ring is damaged, replace it with a new one.
Reinsert the dipstick fully.
Holding a rag under the end, pull the dipstick out and check
the oil level.
Wipe the dipstick and reinsert it fully.
STEP1
STEP2
STEP3
STEP4
STEP5
STEP6
STEP7
