2013 TOYOTA HILUX Owners Manual (in English)

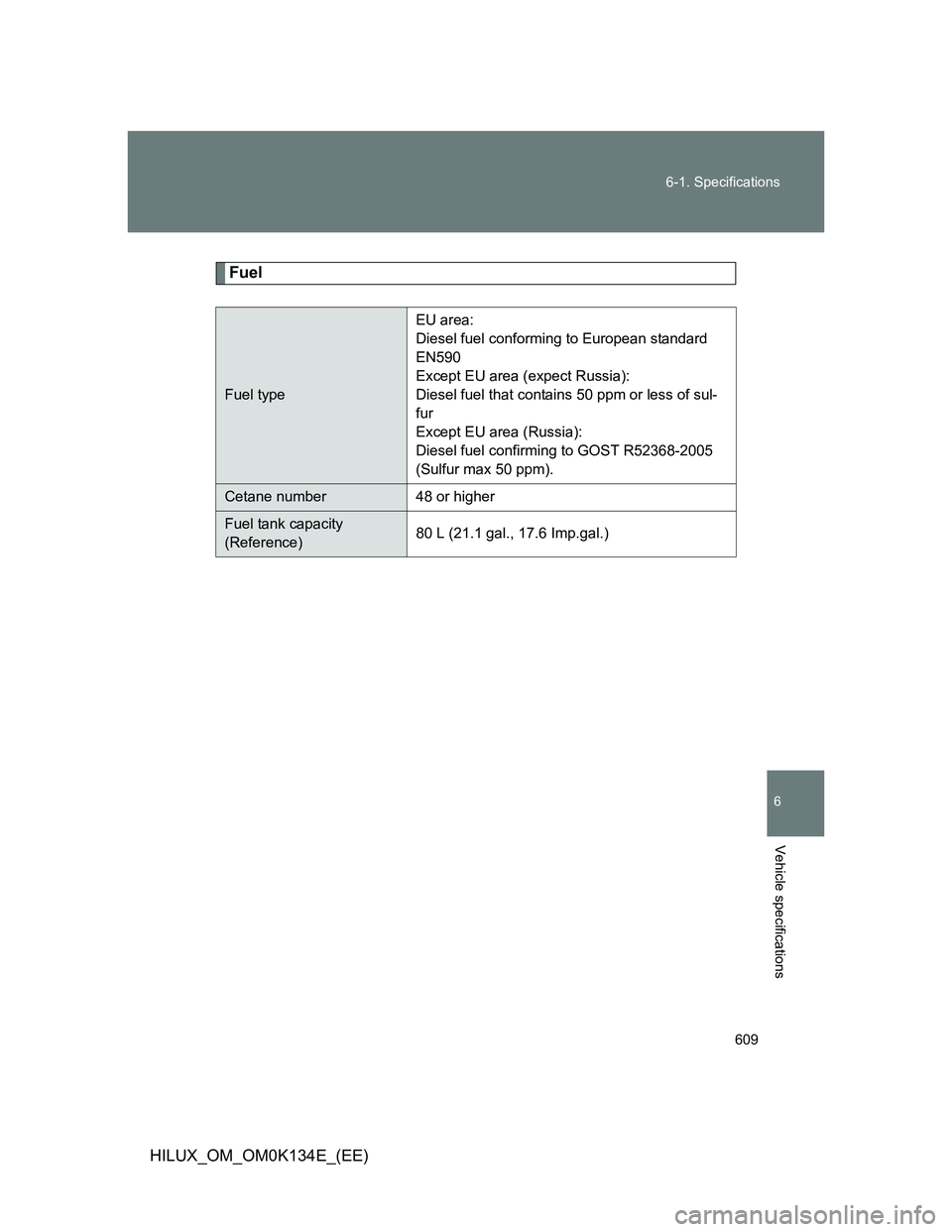

609 6-1. Specifications
6
Vehicle specifications
HILUX_OM_OM0K134E_(EE)
Fuel
Fuel typeEU area:
Diesel fuel conforming to European standard
EN590
Except EU area (expect Russia):
Diesel fuel that contains 50 ppm or less of sul-
fur
Except EU area (Russia):
Diesel fuel confirming to GOST R52368-2005
(Sulfur max 50 ppm).
Cetane number 48 or higher
Fuel tank capacity
(Reference)80 L (21.1 gal., 17.6 Imp.gal.)

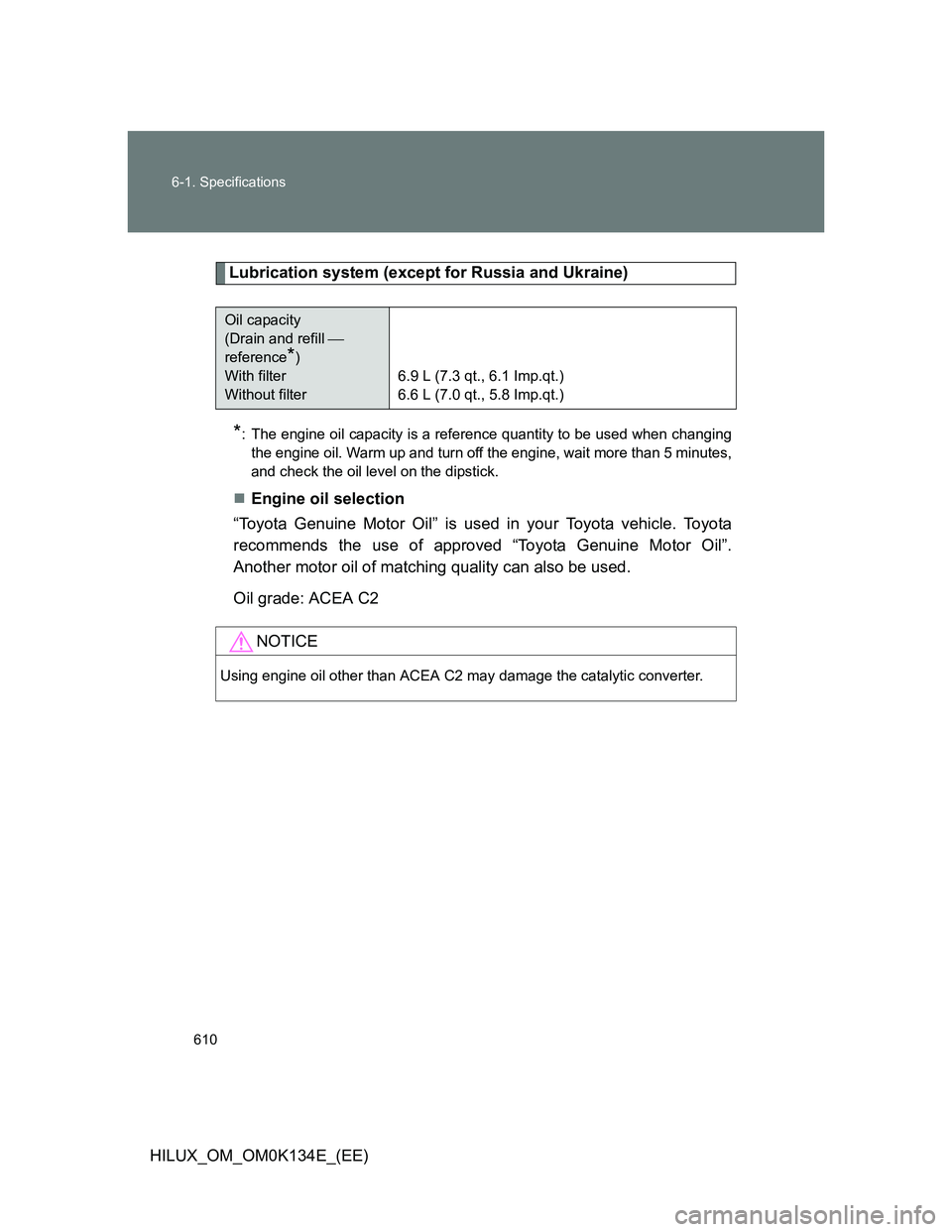

610 6-1. Specifications
HILUX_OM_OM0K134E_(EE)
Lubrication system (except for Russia and Ukraine)
*: The engine oil capacity is a reference quantity to be used when changing
the engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on the dipstick.
Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Toyota
recommends the use of approved “Toyota Genuine Motor Oil”.
Another motor oil of matching quality can also be used.
Oil grade: ACEA C2
Oil capacity
(Drain and refill
reference
*)
With filter
Without filter6.9 L (7.3 qt., 6.1 Imp.qt.)
6.6 L (7.0 qt., 5.8 Imp.qt.)
NOTICE
Using engine oil other than ACEA C2 may damage the catalytic converter.

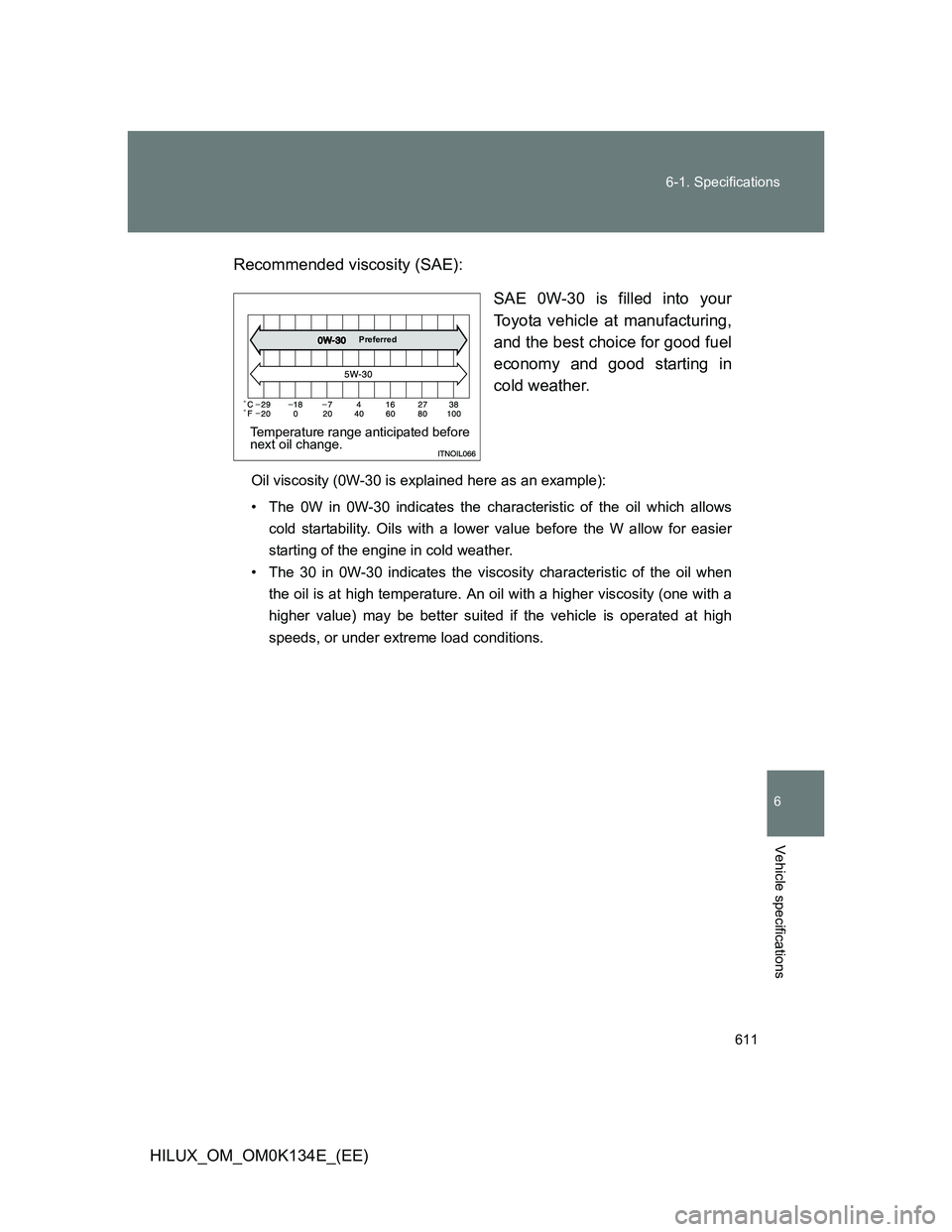

611 6-1. Specifications
6
Vehicle specifications
HILUX_OM_OM0K134E_(EE)Recommended viscosity (SAE):
SAE 0W-30 is filled into your
Toyota vehicle at manufacturing,
and the best choice for good fuel
economy and good starting in
cold weather.
Oil viscosity (0W-30 is explained here as an example):
• The 0W in 0W-30 indicates the characteristic of the oil which allows
cold startability. Oils with a lower value before the W allow for easier
starting of the engine in cold weather.
• The 30 in 0W-30 indicates the viscosity characteristic of the oil when
the oil is at high temperature. An oil with a higher viscosity (one with a
higher value) may be better suited if the vehicle is operated at high
speeds, or under extreme load conditions.
Temperature range anticipated before
next oil change.
Preferred

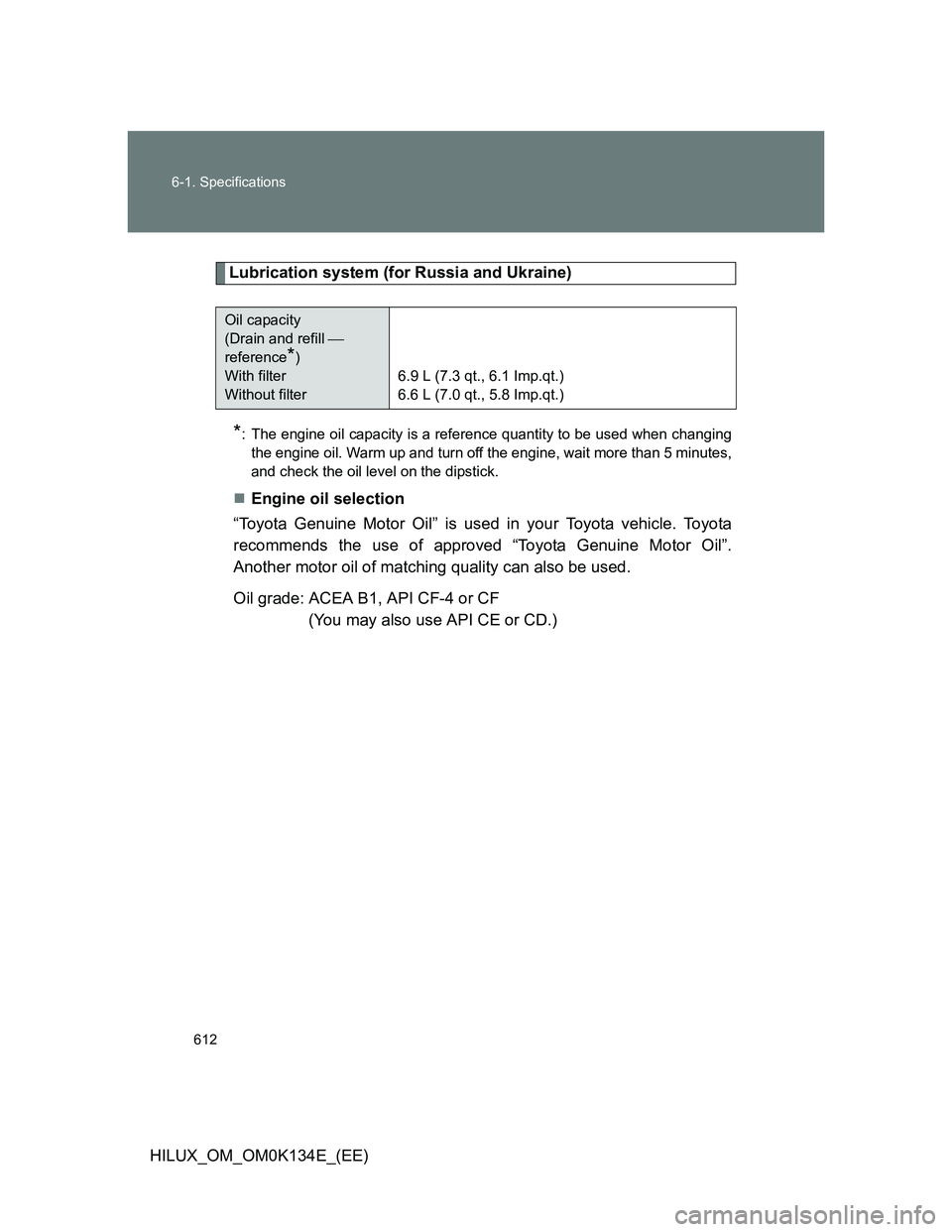

612 6-1. Specifications
HILUX_OM_OM0K134E_(EE)
Lubrication system (for Russia and Ukraine)
*: The engine oil capacity is a reference quantity to be used when changing
the engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on the dipstick.
Engine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Toyota
recommends the use of approved “Toyota Genuine Motor Oil”.
Another motor oil of matching quality can also be used.
Oil grade: ACEA B1, API CF-4 or CF
(You may also use API CE or CD.)
Oil capacity
(Drain and refill
reference
*)
With filter
Without filter6.9 L (7.3 qt., 6.1 Imp.qt.)
6.6 L (7.0 qt., 5.8 Imp.qt.)

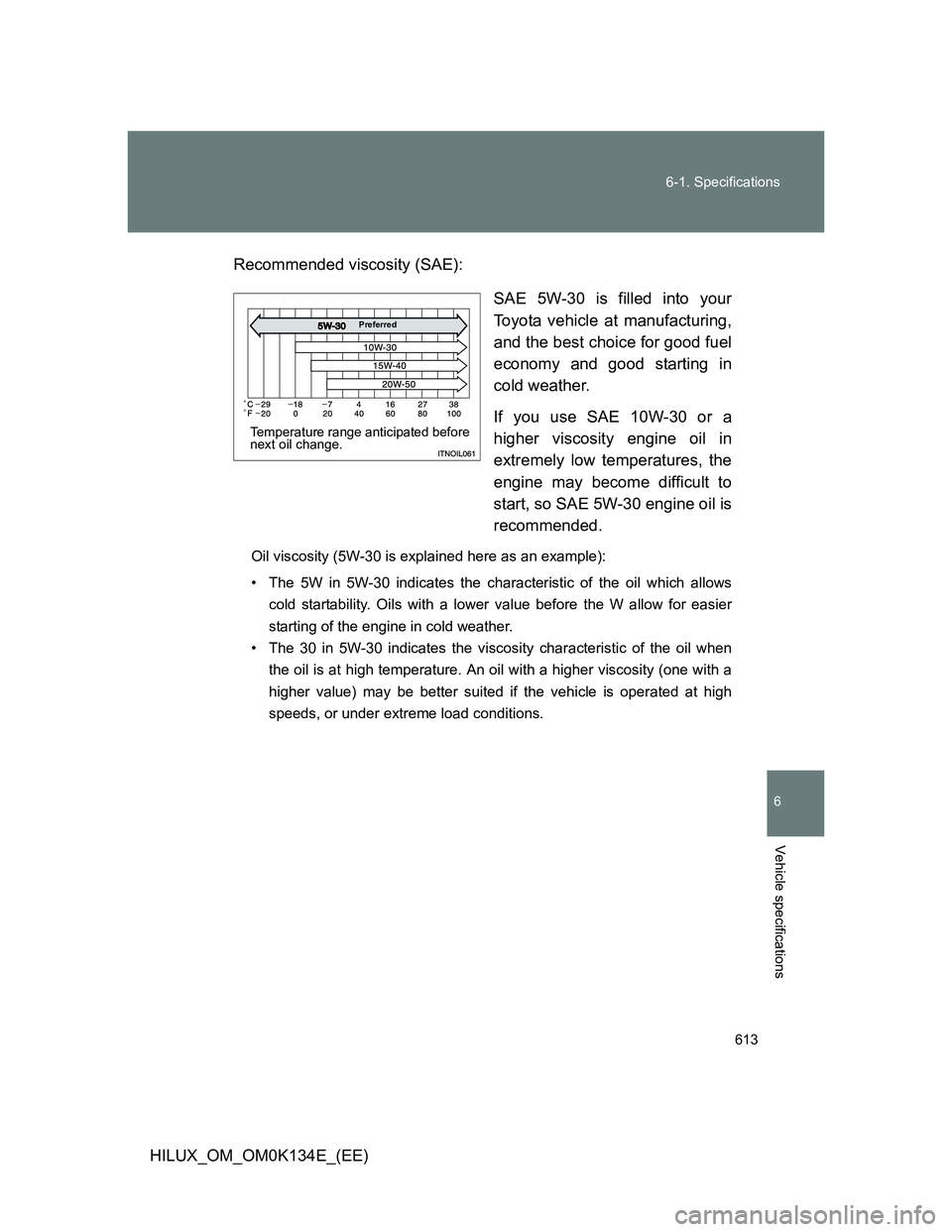

613 6-1. Specifications
6
Vehicle specifications
HILUX_OM_OM0K134E_(EE)Recommended viscosity (SAE):
SAE 5W-30 is filled into your
Toyota vehicle at manufacturing,
and the best choice for good fuel
economy and good starting in
cold weather.
If you use SAE 10W-30 or a
higher viscosity engine oil in
extremely low temperatures, the
engine may become difficult to
start, so SAE 5W-30 engine oil is
recommended.
Oil viscosity (5W-30 is explained here as an example):
• The 5W in 5W-30 indicates the characteristic of the oil which allows
cold startability. Oils with a lower value before the W allow for easier
starting of the engine in cold weather.
• The 30 in 5W-30 indicates the viscosity characteristic of the oil when
the oil is at high temperature. An oil with a higher viscosity (one with a
higher value) may be better suited if the vehicle is operated at high
speeds, or under extreme load conditions.
Temperature range anticipated before
next oil change.
Preferred

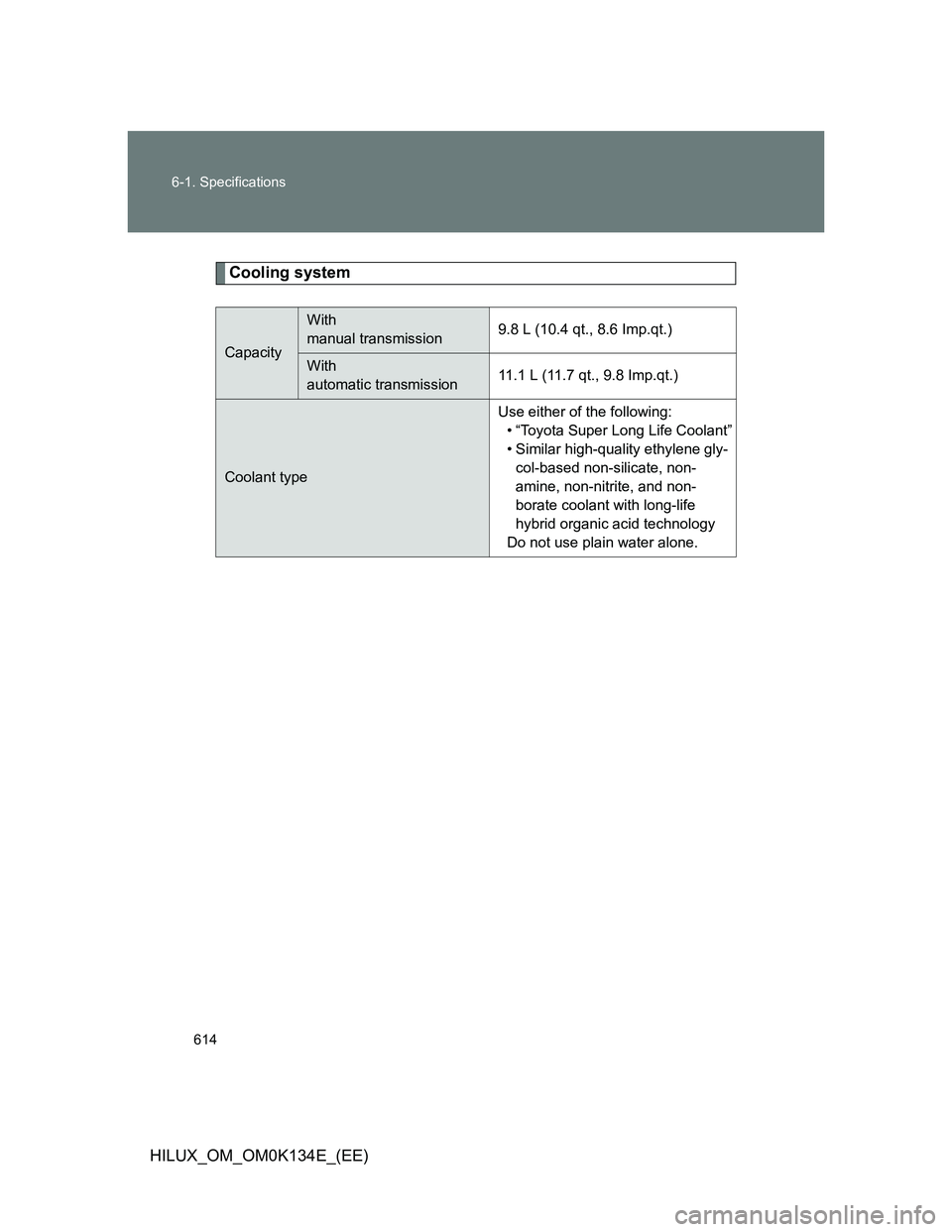

614 6-1. Specifications
HILUX_OM_OM0K134E_(EE)
Cooling system
Capacity
With
manual transmission9.8 L (10.4 qt., 8.6 Imp.qt.)
With
automatic transmission11.1 L (11.7 qt., 9.8 Imp.qt.)
Coolant typeUse either of the following:
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene gly-
col-based non-silicate, non-
amine, non-nitrite, and non-
borate coolant with long-life
hybrid organic acid technology
Do not use plain water alone.

615 6-1. Specifications
6
Vehicle specifications
HILUX_OM_OM0K134E_(EE)
Electrical system
Automatic transmission
*: The fluid capacity is the quantity of reference.
If replacement is necessary, contact any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional.
Battery
Specific gravity reading
at 20C (68F):1.250  1.290 Fully charged
1.160  1.200 Half charged
1.060  1.100 Discharged
Charging rates
Quick charge
Slow charge15 A max.
5 A max.
Fluid capacity*10.6 L (11.2 qt., 9.3 Imp.qt.)
Fluid type Toyota Genuine ATF WS
NOTICE
Automatic transmission fluid type
Using transmission fluid other than “Toyota Genuine ATF WS” may cause
deterioration in shift quality, locking up of your transmission accompanied by
vibration, and ultimately damage the transmission of your vehicle.

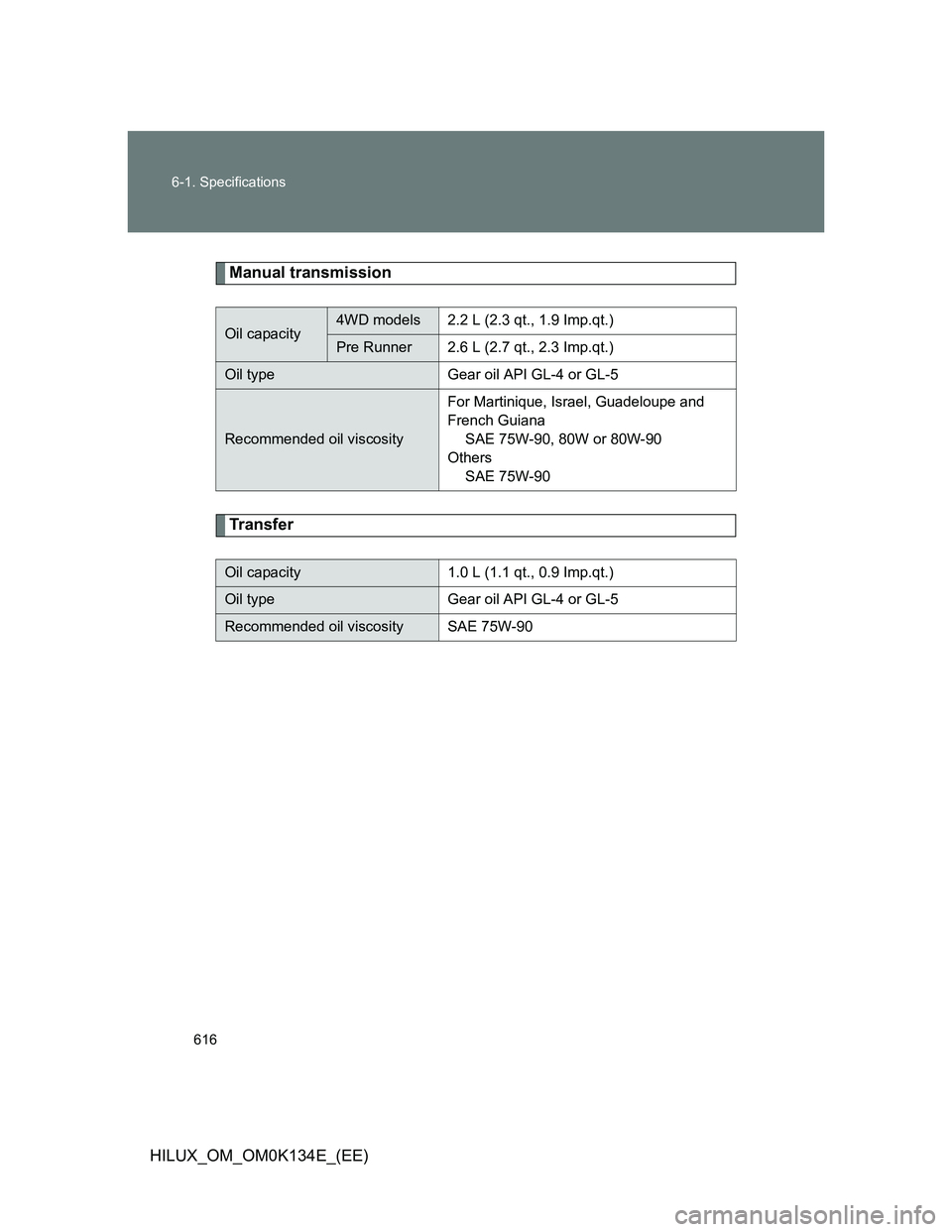

616 6-1. Specifications
HILUX_OM_OM0K134E_(EE)
Manual transmission
Transfer
Oil capacity4WD models 2.2 L (2.3 qt., 1.9 Imp.qt.)
Pre Runner 2.6 L (2.7 qt., 2.3 Imp.qt.)
Oil type Gear oil API GL-4 or GL-5
Recommended oil viscosityFor Martinique, Israel, Guadeloupe and
French Guiana
SAE 75W-90, 80W or 80W-90
Others
SAE 75W-90
Oil capacity1.0 L (1.1 qt., 0.9 Imp.qt.)
Oil typeGear oil API GL-4 or GL-5
Recommended oil viscositySAE 75W-90
