321 3-3. Using the “touch screen”
3
Interior features

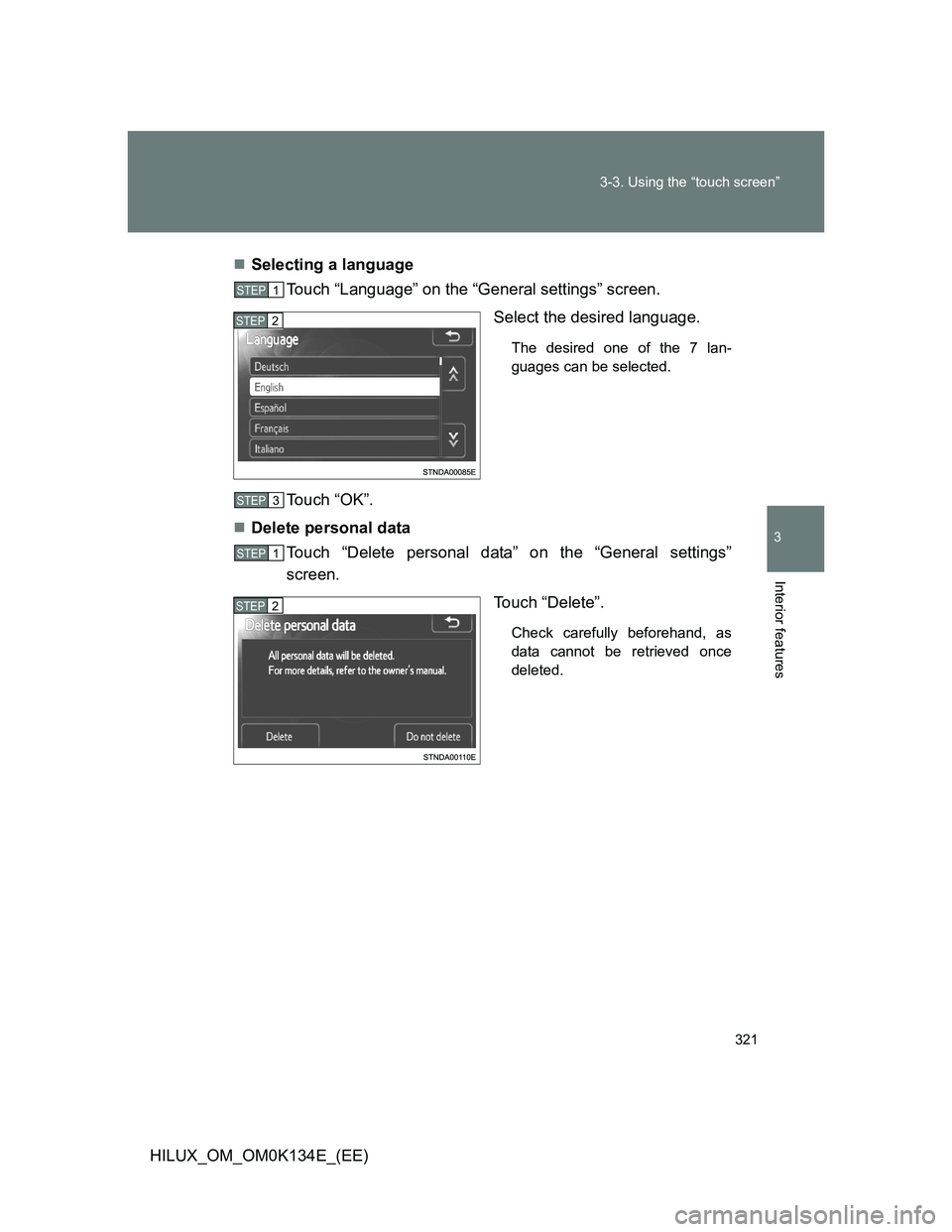

HILUX_OM_OM0K134E_(EE)Selecting a language
Touch “Language” on the “General settings” screen.
Select the desired language.
The desired one of the 7 lan-
guages can be selected.
Touch “OK”.
Delete personal data
Touch “Delete personal data” on the “General settings”
screen.
Touch “Delete”.
Check carefully beforehand, as
data cannot be retrieved once
deleted.
STEP1
STEP2
STEP3
STEP1
STEP2

322 3-3. Using the “touch screen”

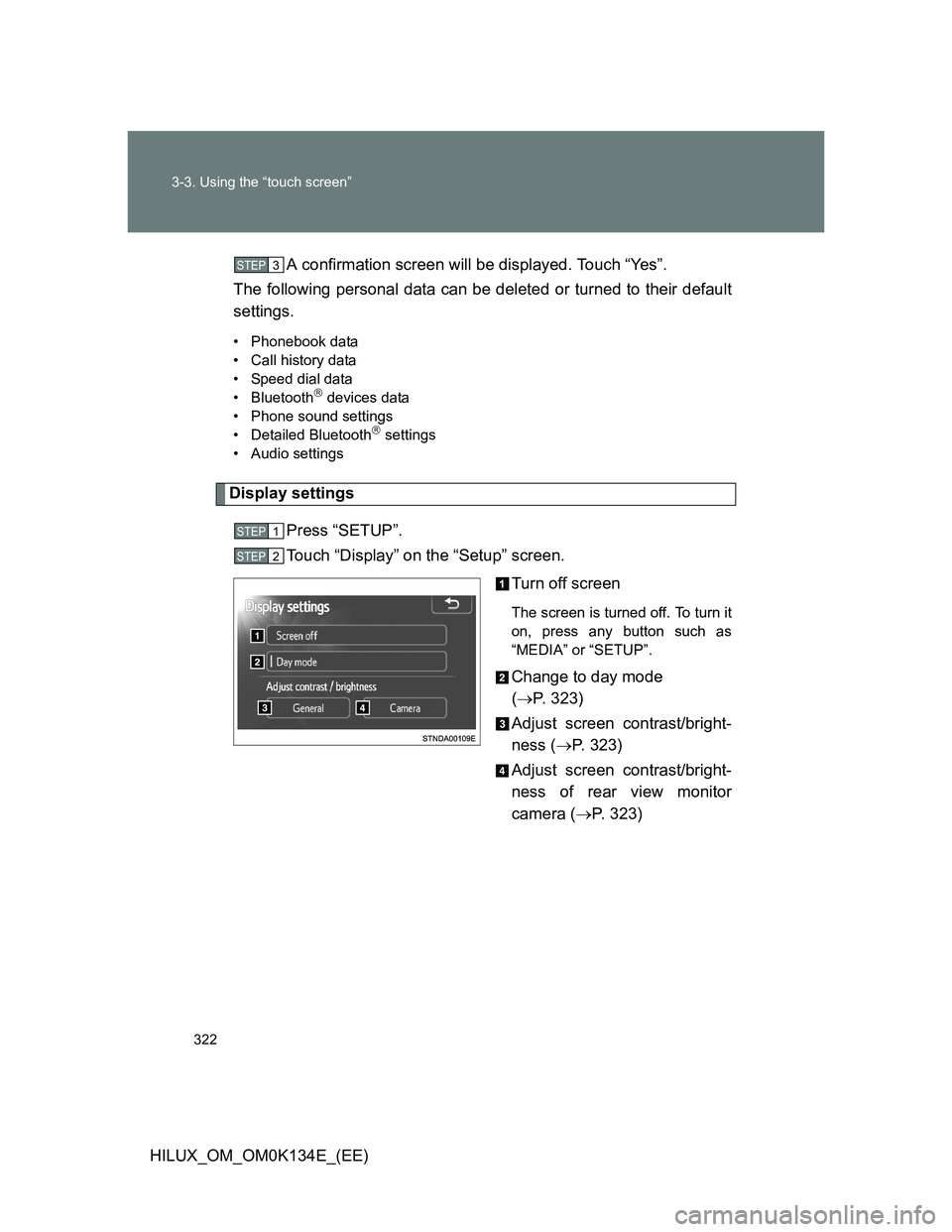

HILUX_OM_OM0K134E_(EE)A confirmation screen will be displayed. Touch “Yes”.
The following personal data can be deleted or turned to their default
settings.
• Phonebook data
• Call history data
• Speed dial data
• Bluetooth
 devices data
• Phone sound settings
• Detailed Bluetooth
 settings
• Audio settings
Display settings
Press “SETUP”.
Touch “Display” on the “Setup” screen.
Turn off screen
The screen is turned off. To turn it
on, press any button such as
“MEDIA” or “SETUP”.
Change to day mode
(P. 323)
Adjust screen contrast/bright-
ness (P. 323)
Adjust screen contrast/bright-
ness of rear view monitor
camera (P. 323)
STEP3
STEP1
STEP2

323 3-3. Using the “touch screen”
3
Interior features
HILUX_OM_OM0K134E_(EE)Changing between day mode and night mode
When the headlights are turned on, the screen dims.
However, the screen can be switched to day mode by touching
“Day mode”.
The screen will stay in day mode when the headlights are turned on until
“Day mode” is touched again.
Adjusting the screen contrast/brightness
Touch “General” or “Camera” on the “Display settings” screen.
Adjust the display as desired
using “+” or “-”.
Select “Contrast” or “Brightness”
using the “<<” or “>>”.
Touch “OK”.
STEP1
STEP2
“-”“+”
“Contrast”WeakerStronger
“Brightness”DarkerBrighter
STEP3

324 3-3. Using the “touch screen”
HILUX_OM_OM0K134E_(EE)
Audio settings
Press “SETUP”.
Touch “Audio” on the “Setup” screen.
Adjust sound settings
(P. 324)
Radio settings (P. 326)
Adjust sound settings
Touch “Sound settings” on the “Audio settings” screen.
“Sound” tab
Touch “-” or “+” to adjust
the treble, mid or bass to
a level between -5 to 5.
Touch “Front” or “Rear” to
adjust the front/rear audio
balance to a level between
Front 7 and Rear 7.
Touch “L” or “R” to adjust
the left/right audio balance
to a level between L7 and
R7.
STEP1
STEP2
STEP1

325 3-3. Using the “touch screen”
3
Interior features

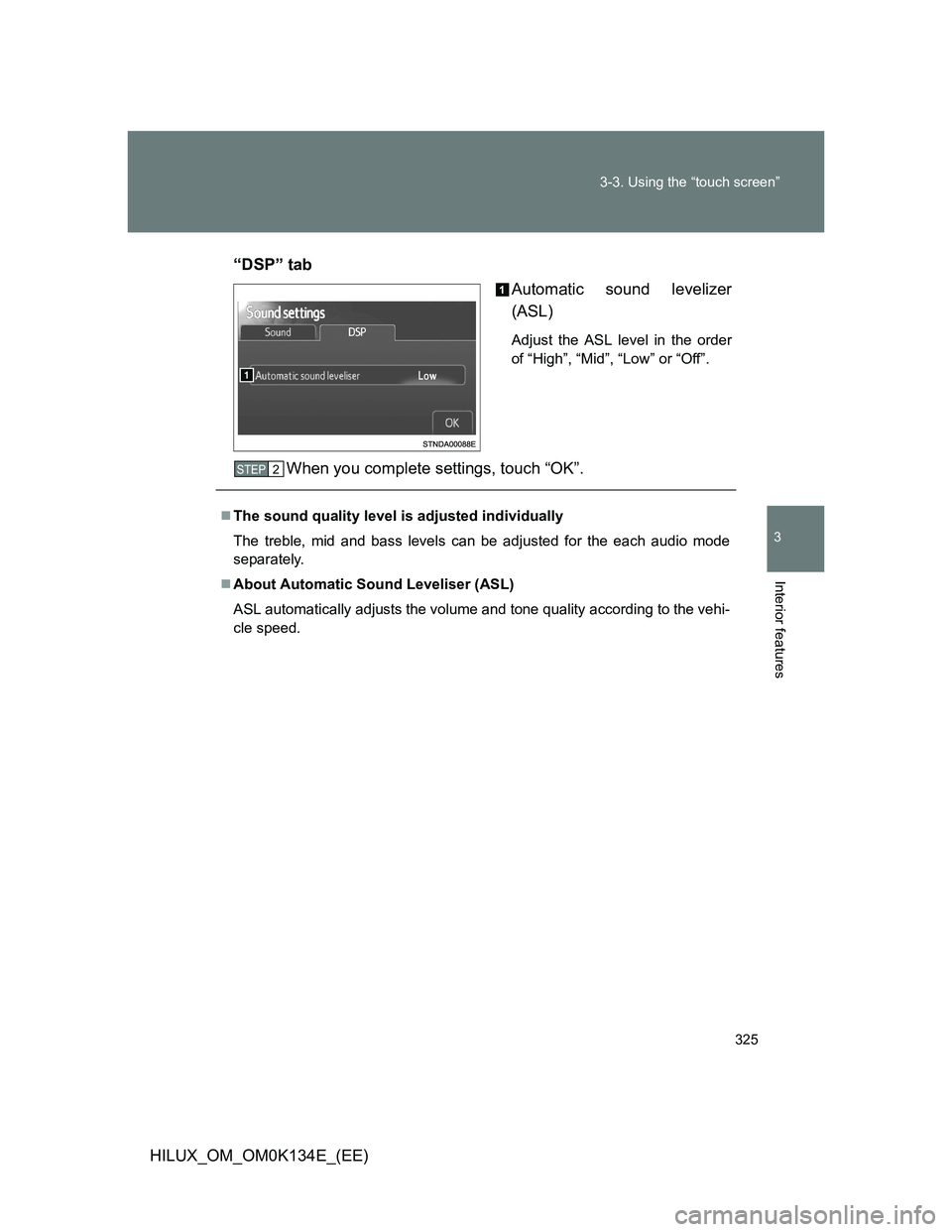

HILUX_OM_OM0K134E_(EE)“DSP” tab
Automatic sound levelizer
(ASL)
Adjust the ASL level in the order
of “High”, “Mid”, “Low” or “Off”.
When you complete settings, touch “OK”.
The sound quality level is adjusted individually
The treble, mid and bass levels can be adjusted for the each audio mode
separately.
About Automatic Sound Leveliser (ASL)
ASL automatically adjusts the volume and tone quality according to the vehi-
cle speed.
STEP2

326 3-3. Using the “touch screen”

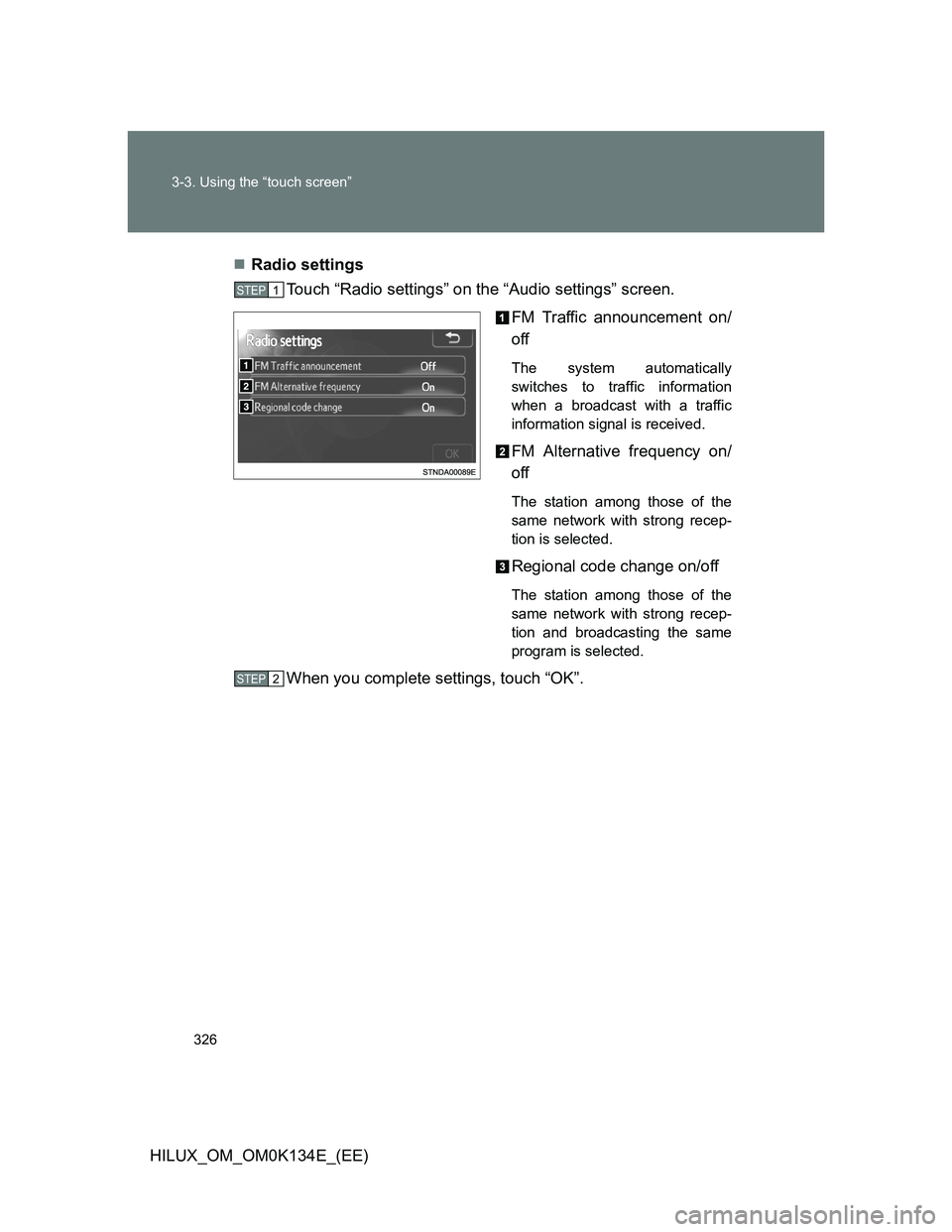

HILUX_OM_OM0K134E_(EE)Radio settings
Touch “Radio settings” on the “Audio settings” screen.
FM Traffic announcement on/
off
The system automatically
switches to traffic information
when a broadcast with a traffic
information signal is received.
FM Alternative frequency on/
off
The station among those of the
same network with strong recep-
tion is selected.
Regional code change on/off
The station among those of the
same network with strong recep-
tion and broadcasting the same
program is selected.
When you complete settings, touch “OK”.
STEP1
STEP2

327
3-3. Using the “touch screen”
3
Interior features
HILUX_OM_OM0K134E_(EE)
Audio system
Press “MEDIA” to display the audio control screen.
TitlePage
Using the radioP. 331
Using the CD playerP. 336
Playing an audio CD and MP3/WMA discsP. 337
Listening to an iPodP. 350
Listening to a USB memoryP. 360
Using the AUX portP. 369
Listening to Bluetooth® audioP. 370
Using the steering wheel audio switchesP. 384

328 3-3. Using the “touch screen”
HILUX_OM_OM0K134E_(EE)

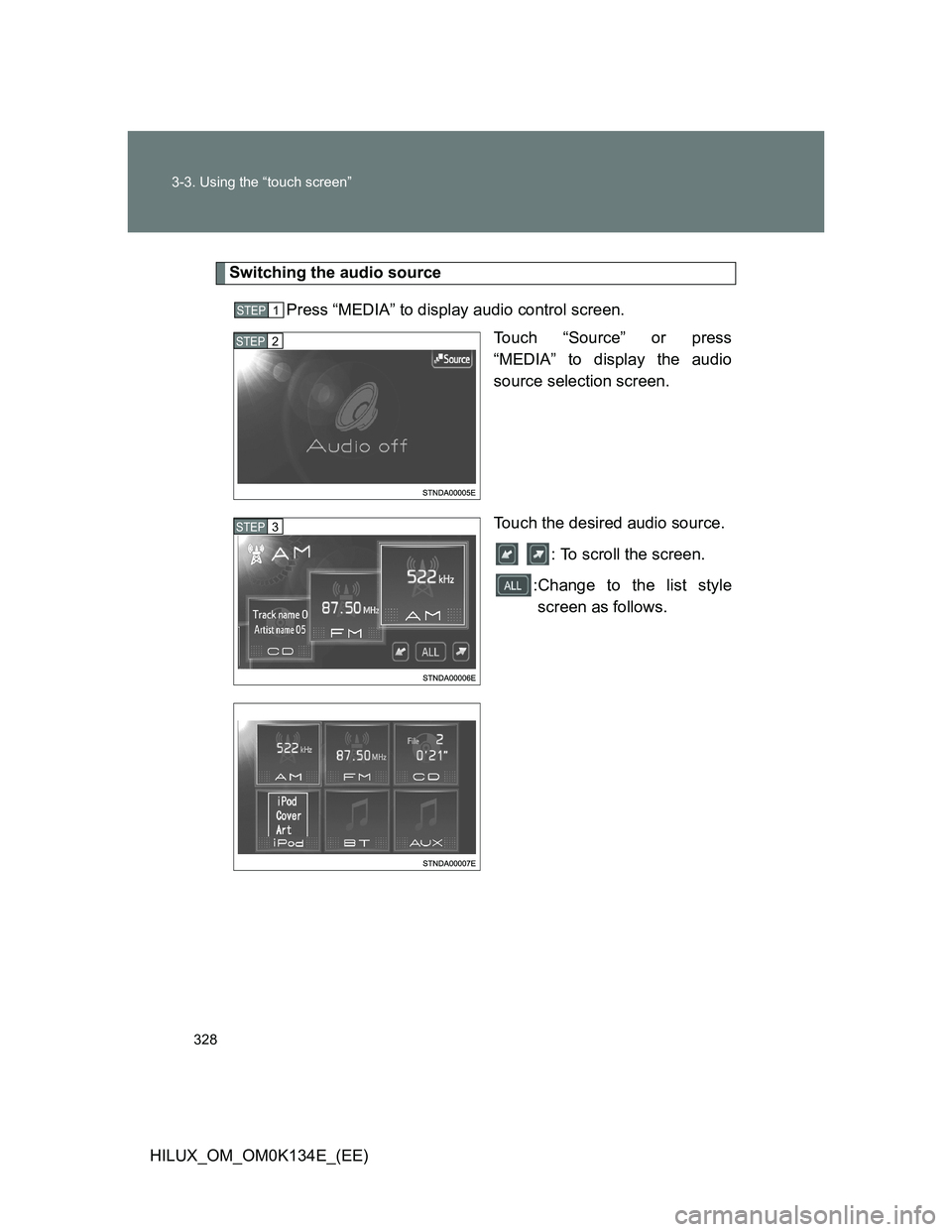

Switching the audio source
Press “MEDIA” to display audio control screen.
Touch “Source” or press
“MEDIA” to display the audio
source selection screen.
Touch the desired audio source.
: To scroll the screen.
:Change to the list style
screen as follows.
STEP1
STEP2
STEP3
