57 1-2. Opening, closing and locking the doors
1
Before driving
HILUX_OM_OM0K134E_(EE)

58 1-2. Opening, closing and locking the doors
HILUX_OM_OM0K134E_(EE)

59
1
1-2. Opening, closing and locking the doors
Before driving
HILUX_OM_OM0K134E_(EE)
Side doors
The vehicle can be locked and unlocked using the wireless remote
control, key or door lock switch.
Wireless remote control (if equipped)
P. 4 8
Key
Turning the key operates the doors as follows:
Locks all the doors
Unlocks all the doors

60 1-2. Opening, closing and locking the doors
HILUX_OM_OM0K134E_(EE)
Door lock switch (if equipped)
Locks all the doors
Unlocks all the doors
Inside lock buttons
Locks the door
Unlocks the door
The driver’s door can be
opened by pulling the inside
handle even if the lock button
is in the lock position.

61 1-2. Opening, closing and locking the doors
1
Before driving
HILUX_OM_OM0K134E_(EE)
Locking the front doors from the outside without a key
Move the inside lock button to the lock position.
Close the door while pulling the door handle.
Rear door child-protector lock (double-cab models only)
The door cannot be opened from
inside the vehicle when the lock
is set.
Unlock
Lock
These locks can be set to prevent
children from opening the rear
doors. Push down on each rear
door switch to lock both rear
doors.
STEP1
STEP2

62 1-2. Opening, closing and locking the doors
HILUX_OM_OM0K134E_(EE)
CAUTION
To prevent an accident
Observe the following precautions while driving the vehicle.
Failure to do so may result in a door opening and an occupant falling out,
resulting in death or serious injury.
Always use a seat belt.
Ensure that all doors are properly closed.
Do not pull the inside handle of the doors while driving.
The door may be opened and the passengers are thrown out of the vehicle
and it may result in serious injury or death.
Be especially careful for the driver’s door, as the door may be opened
even if the inside lock button is in locked position.
Set the rear door child-protector locks when children are seated in the rear
seats.

63
1
1-2. Opening, closing and locking the doors
Before driving
HILUX_OM_OM0K134E_(EE)
Tailgate
: If equipped
The tailgate can be locked/unlocked and opened by the following
procedures.
Locking and unlocking the tailgate
Key (vehicles with key hole)
Locks the tailgate
Unlocks the tailgate
Opening the tailgate
Ty p e A
Unlock the latches and open
the tailgate slowly.
The support cables will hold
the tailgate horizontal.
After closing the tailgate, try
pulling it toward you to make
sure it is securely locked.

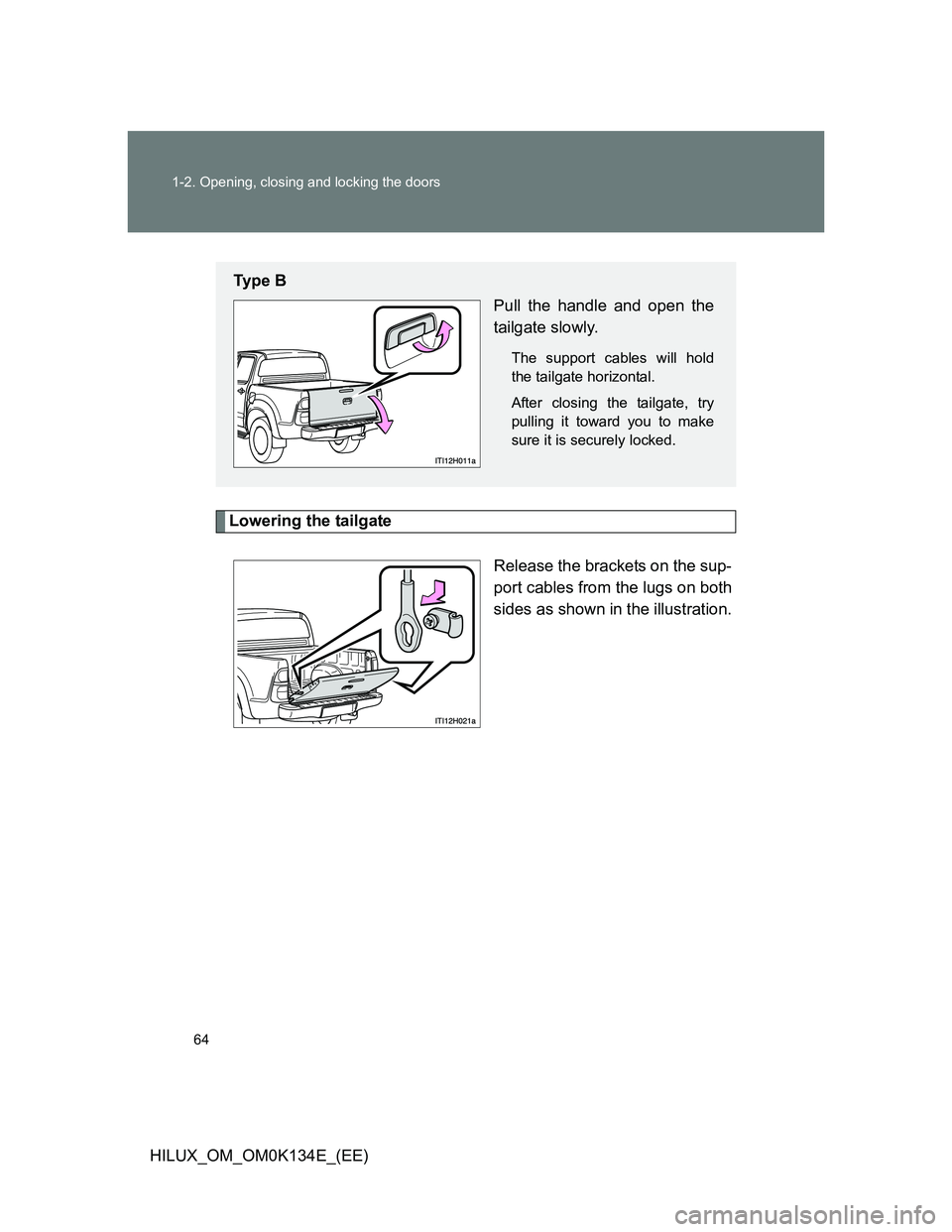

64 1-2. Opening, closing and locking the doors
HILUX_OM_OM0K134E_(EE)
Lowering the tailgate
Release the brackets on the sup-
port cables from the lugs on both
sides as shown in the illustration.
Ty p e B
Pull the handle and open the
tailgate slowly.
The support cables will hold
the tailgate horizontal.
After closing the tailgate, try
pulling it toward you to make
sure it is securely locked.
