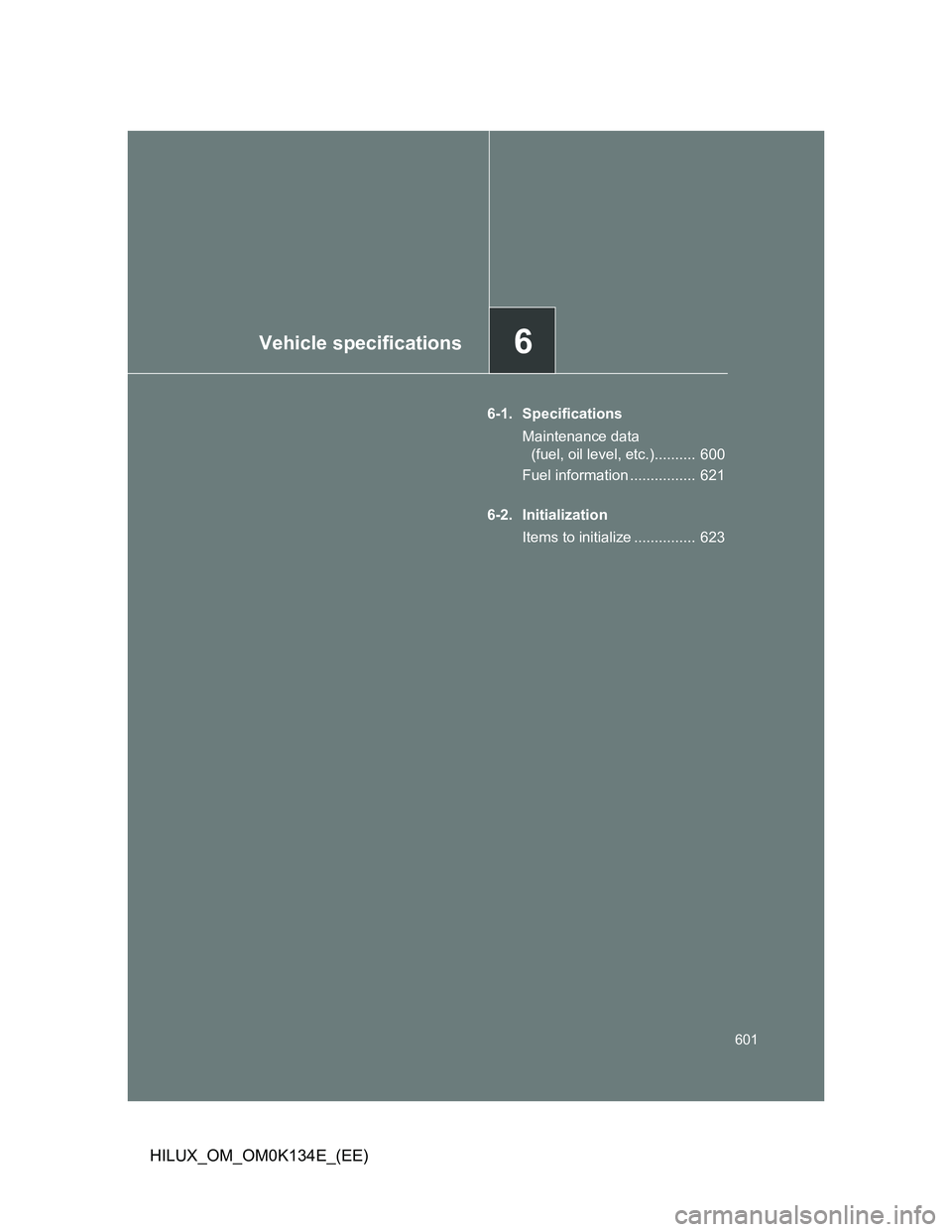

Page 601 of 644
6Vehicle specifications
601
HILUX_OM_OM0K134E_(EE)
6-1. Specifications
Maintenance data
(fuel, oil level, etc.).......... 600
Fuel information ................ 621
6-2. Initialization
Items to initialize ............... 623
Page 602 of 644
602
HILUX_OM_OM0K134E_(EE)
6-1. Specifications
Maintenance data (fuel, oil level, etc.)
Dimensions
*1: Unladen vehicle
*2: Without rear bumper
*3: With rear bumper
*4: Without over fender
*5: With over fender
*6: With 205R16C tires
*7: With 255/70R15C tires
*8: With 265/65R17 tires
Overall length5135 mm (202.1 in.)*2
5260 mm (207.0 in.)*3
Overall width1760 mm (69.3 in.)*4
1835 mm (72.2 in.)*5
Overall
height
*1
Single-cab models1795 mm (70.7 in.)*6, 7
1805 mm (71.0 in.)*8
Extra-cab models
1835 mm (72.2 in.)
Double-cab models1850 mm (72.8 in.)*6, 7
1860 mm (73.2 in.)*8
Wheelbase
3085 mm (121.5 in.)
Front and rear tread1510 mm (59.4 in.)*6
1540 mm (60.6 in.)*7, 8
Page 603 of 644
603 6-1. Specifications
6
Vehicle specifications
HILUX_OM_OM0K134E_(EE)
Weights
Single-cab models
Gross
vehicle mass4WD
models
Left-hand drive
vehicles2640 kg (5820 lb.)
Right-hand
drive vehicles2730 kg (6019 lb.)
Pre Runner
2640 kg (5820 lb.)
Maximum
permissible
axle capacityFront
1280 kg (2822 lb.)
Rear
1600 kg (3527 lb.)
Drawbar load
115 kg (254 lb.)
Towing
capacityWithout brake
750 kg (1654 lb.)
With brake
2800 kg (6173 lb.)
Page 604 of 644
604 6-1. Specifications

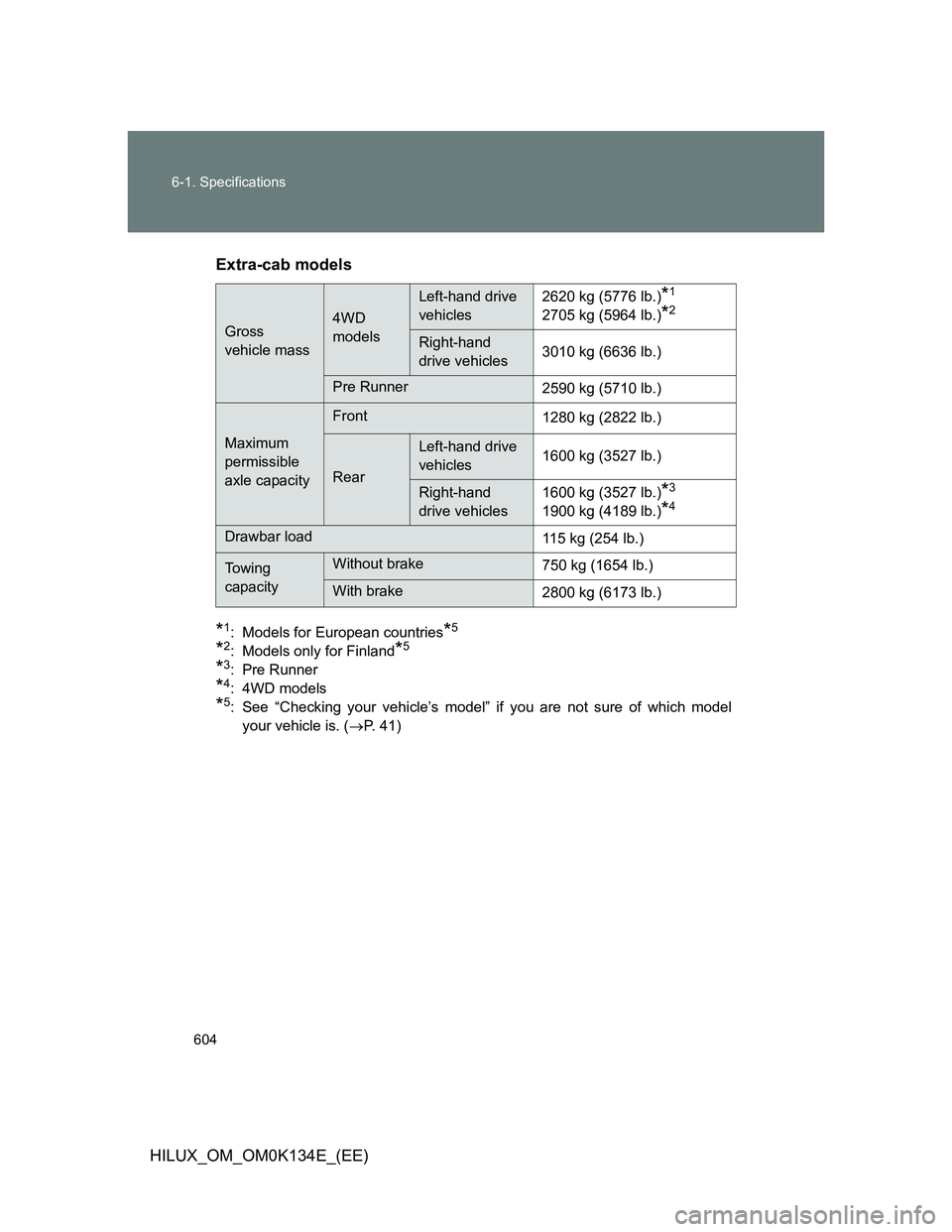

HILUX_OM_OM0K134E_(EE)Extra-cab models
*1: Models for European countries*5
*2: Models only for Finland*5
*3: Pre Runner
*4: 4WD models
*5: See “Checking your vehicle’s model” if you are not sure of which model
your vehicle is. (P. 41)
Gross
vehicle mass4WD
models
Left-hand drive
vehicles2620 kg (5776 lb.)*1
2705 kg (5964 lb.)*2
Right-hand
drive vehicles3010 kg (6636 lb.)
Pre Runner
2590 kg (5710 lb.)
Maximum
permissible
axle capacity
Front
1280 kg (2822 lb.)
Rear
Left-hand drive
vehicles1600 kg (3527 lb.)
Right-hand
drive vehicles1600 kg (3527 lb.)*3
1900 kg (4189 lb.)*4
Drawbar load
115 kg (254 lb.)
Towing
capacityWithout brake
750 kg (1654 lb.)
With brake
2800 kg (6173 lb.)
Page 605 of 644
605 6-1. Specifications
6
Vehicle specifications

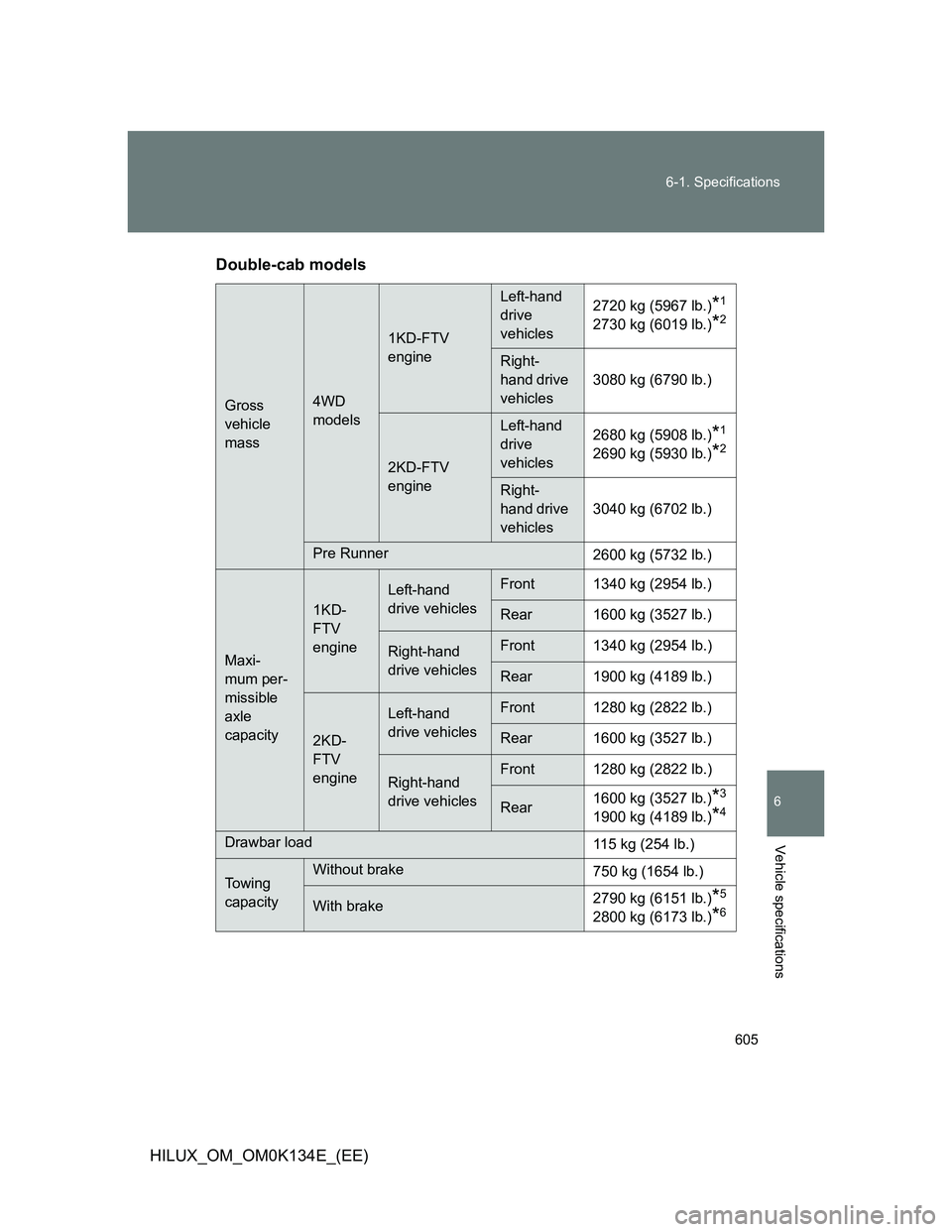

HILUX_OM_OM0K134E_(EE)Double-cab models
Gross
vehicle
mass4WD
models
1KD-FTV
engine
Left-hand
drive
vehicles2720 kg (5967 lb.)*1
2730 kg (6019 lb.)*2
Right-
hand drive
vehicles3080 kg (6790 lb.)
2KD-FTV
engine
Left-hand
drive
vehicles2680 kg (5908 lb.)*1
2690 kg (5930 lb.)*2
Right-
hand drive
vehicles3040 kg (6702 lb.)
Pre Runner
2600 kg (5732 lb.)
Maxi-
mum per-
missible
axle
capacity
1KD-
FTV
engine
Left-hand
drive vehiclesFront 1340 kg (2954 lb.)
Rear 1600 kg (3527 lb.)
Right-hand
drive vehiclesFront 1340 kg (2954 lb.)
Rear 1900 kg (4189 lb.)
2KD-
FTV
engine
Left-hand
drive vehiclesFront 1280 kg (2822 lb.)
Rear 1600 kg (3527 lb.)
Right-hand
drive vehiclesFront 1280 kg (2822 lb.)
Rear1600 kg (3527 lb.)*3
1900 kg (4189 lb.)*4
Drawbar load
115 kg (254 lb.)
Towing
capacityWithout brake
750 kg (1654 lb.)
With brake2790 kg (6151 lb.)*5
2800 kg (6173 lb.)*6
Page 606 of 644
606 6-1. Specifications
HILUX_OM_OM0K134E_(EE)
*1: For Norway
*2: Except for Norway
*3: Pre Runner
*4: 4WD models
*5: KUN26L-PRMDYW and KUN26L-PRADYW models*7
*6: Except KUN26L-PRMDYW and KUN26L-PRADYW models*7
*7: The model code is indicated on the manufacturer’s label or plate.
(P. 606)
Vehicle identification
Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for
your vehicle. This is the primary identification number for your
Toyota. It is used in registering the ownership of your vehicle.
This number is stamped on the
rear right frame.
This number is also on the man-
ufacture’s label or plate.
Page 607 of 644
607 6-1. Specifications
6
Vehicle specifications

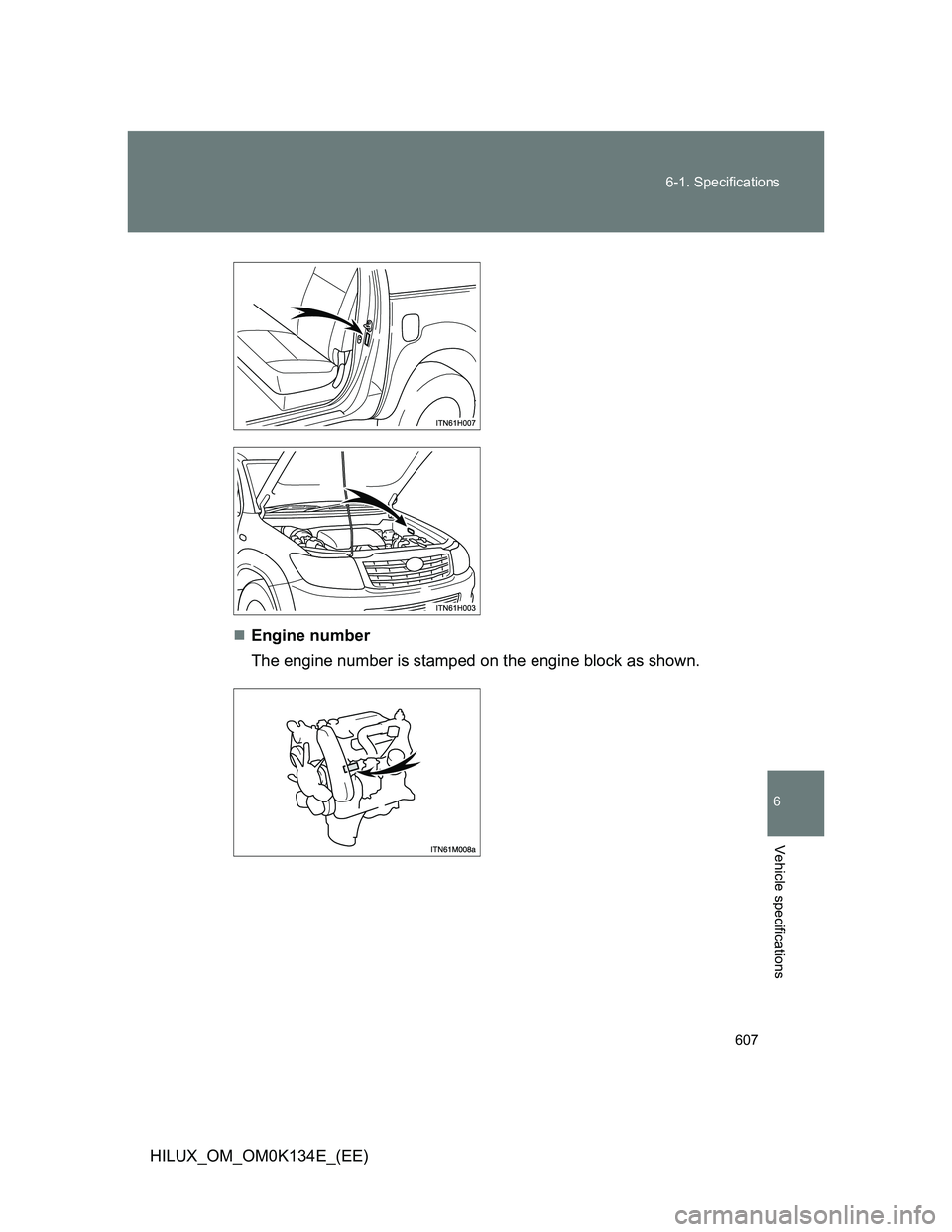

HILUX_OM_OM0K134E_(EE)Engine number
The engine number is stamped on the engine block as shown.
Page 608 of 644
608 6-1. Specifications
HILUX_OM_OM0K134E_(EE)

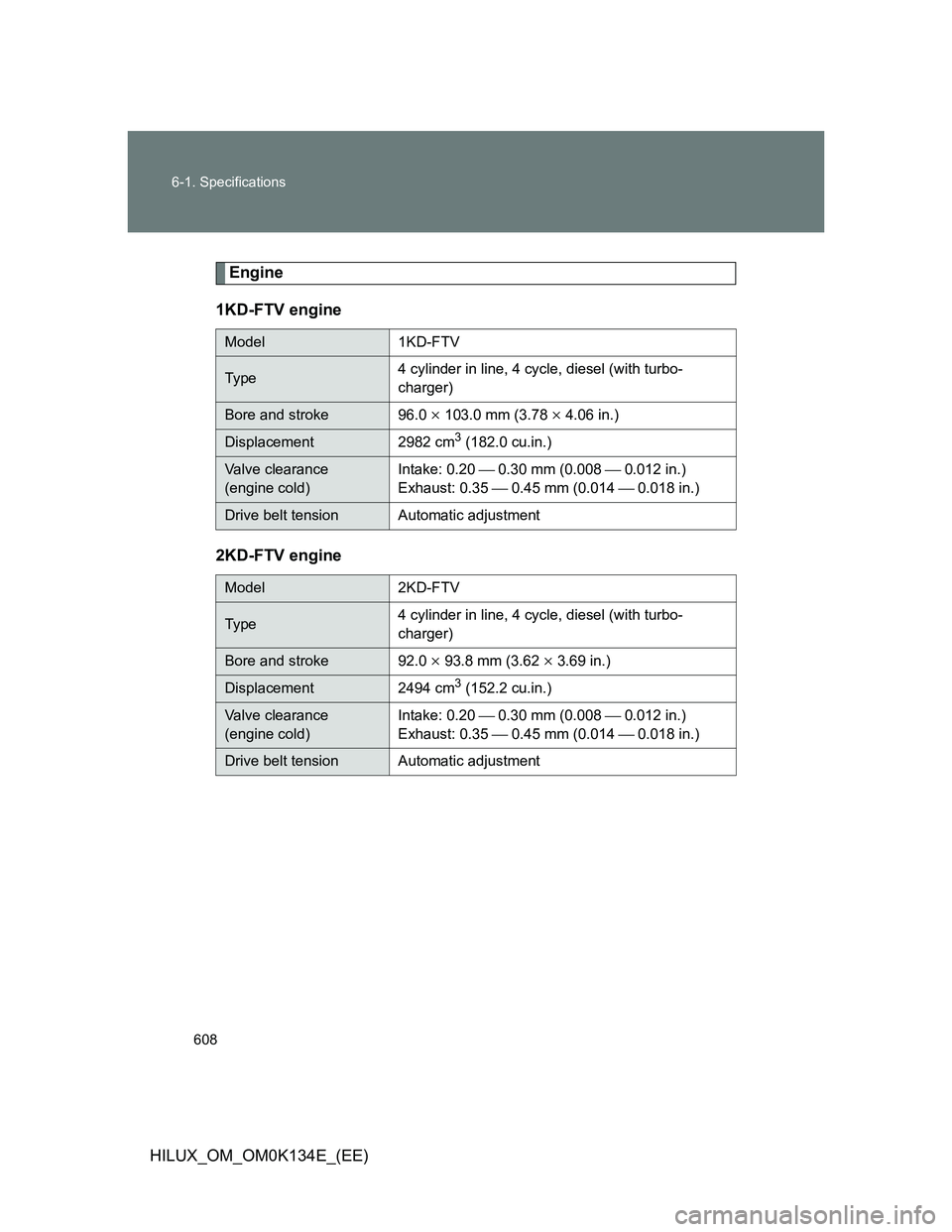

Engine
1KD-FTV engine
2KD-FTV engine
Model1KD-FTV
Ty p e4 cylinder in line, 4 cycle, diesel (with turbo-
charger)
Bore and stroke 96.0 103.0 mm (3.78 4.06 in.)
Displacement 2982 cm3 (182.0 cu.in.)
Valve clearance
(engine cold)Intake: 0.20 0.30 mm (0.008 0.012 in.)
Exhaust: 0.35 0.45 mm (0.014 0.018 in.)
Drive belt tensionAutomatic adjustment
Model2KD-FTV
Ty p e4 cylinder in line, 4 cycle, diesel (with turbo-
charger)
Bore and stroke 92.0 93.8 mm (3.62 3.69 in.)
Displacement 2494 cm3 (152.2 cu.in.)
Valve clearance
(engine cold)Intake: 0.20 0.30 mm (0.008 0.012 in.)
Exhaust: 0.35 0.45 mm (0.014 0.018 in.)
Drive belt tensionAutomatic adjustment
