2013 TOYOTA HILUX Owners Manual (in English)

465
3-6. Other interior features
3
Interior features
HILUX_OM_OM0K134E_(EE)

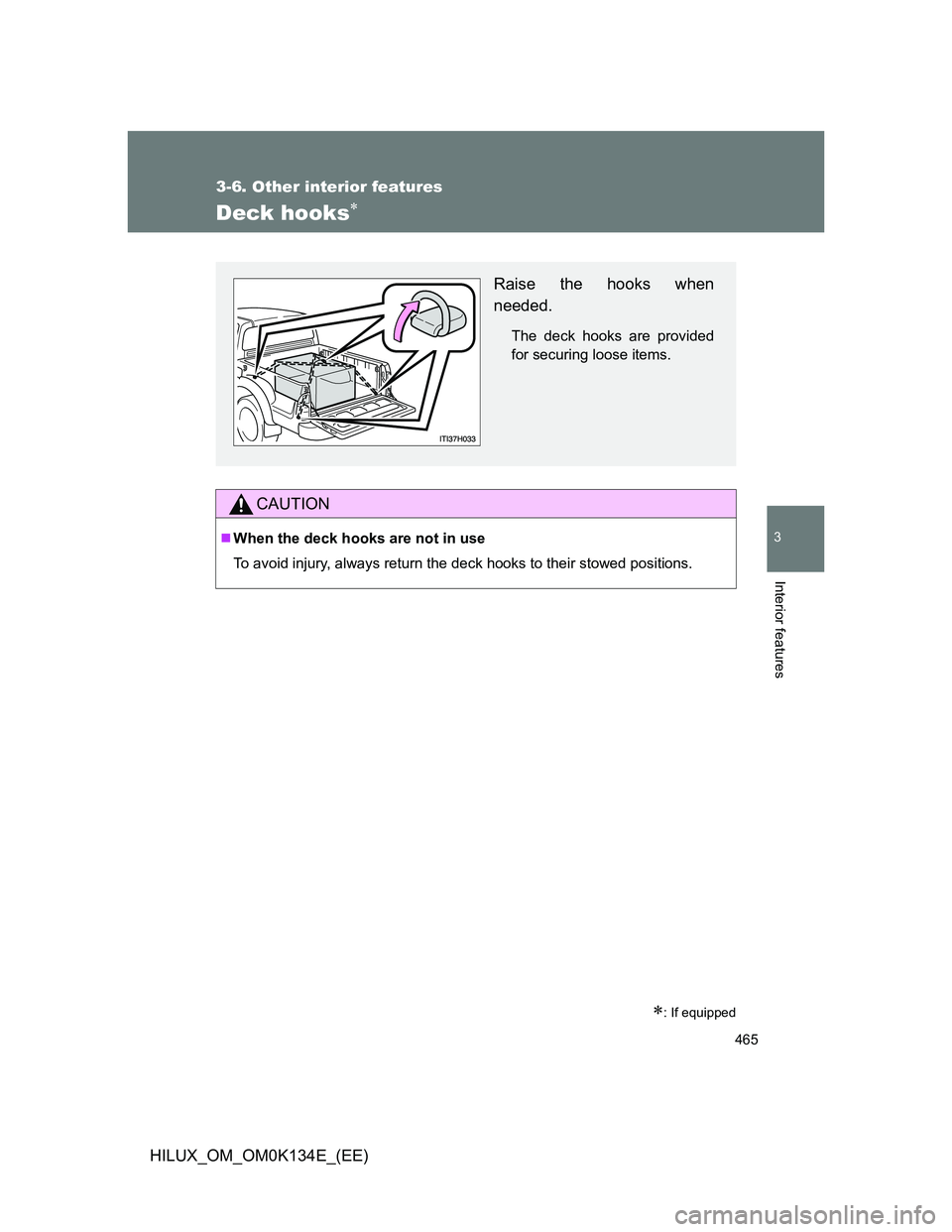

Deck hooks
: If equipped
CAUTION
When the deck hooks are not in use
To avoid injury, always return the deck hooks to their stowed positions.
Raise the hooks when
needed.
The deck hooks are provided
for securing loose items.

466 3-6. Other interior features
HILUX_OM_OM0K134E_(EE)

4Maintenance and care
467
HILUX_OM_OM0K134E_(EE)
4-1. Maintenance and care
Cleaning and protecting
the vehicle exterior ......... 466
Cleaning and protecting
the vehicle interior .......... 470
4-2. Maintenance
Maintenance
requirements................... 474
4-3. Do-it-yourself maintenance
Do-it-yourself service
precautions ..................... 478
Hood ................................. 482
Engine compartment......... 484
Tires .................................. 501
Tire inflation pressure ....... 505
Wheels .............................. 507
Air conditioning filter ......... 509
Wireless remote control
battery............................. 511
Checking and replacing
fuses ............................... 514
Light bulbs ........................ 530

468
HILUX_OM_OM0K134E_(EE)
4-1. Maintenance and care
Cleaning and protecting the vehicle exterior
Automatic car washes
Fold the mirrors and remove (vehicles with short pole type antenna) or
retract (vehicles with pillar type antenna) the antenna before washing the
vehicle. Start washing from the front of the vehicle. Make sure to re-install
the antenna (vehicles with short pole type antenna) and extend the mir-
rors before driving.
Brushes used in automatic car washes may scratch the vehicle surface
and harm your vehicle’s paint.
Perform the following to protect the vehicle and maintain it in prime
condition:
Working from top to bottom, liberally apply water to the vehicle
body, wheel wells and underside of the vehicle to remove any
dirt and dust.
Wash the vehicle body using a sponge or soft cloth, such as a
chamois.
For hard-to-remove marks, use car wash soap and rinse thor-
oughly with water.
Wipe away any water.
Wax the vehicle when the waterproof coating deteriorates.
If water does not bead on a clean surface, apply wax when the vehicle
body is cool.

469 4-1. Maintenance and care
4
Maintenance and care
HILUX_OM_OM0K134E_(EE)

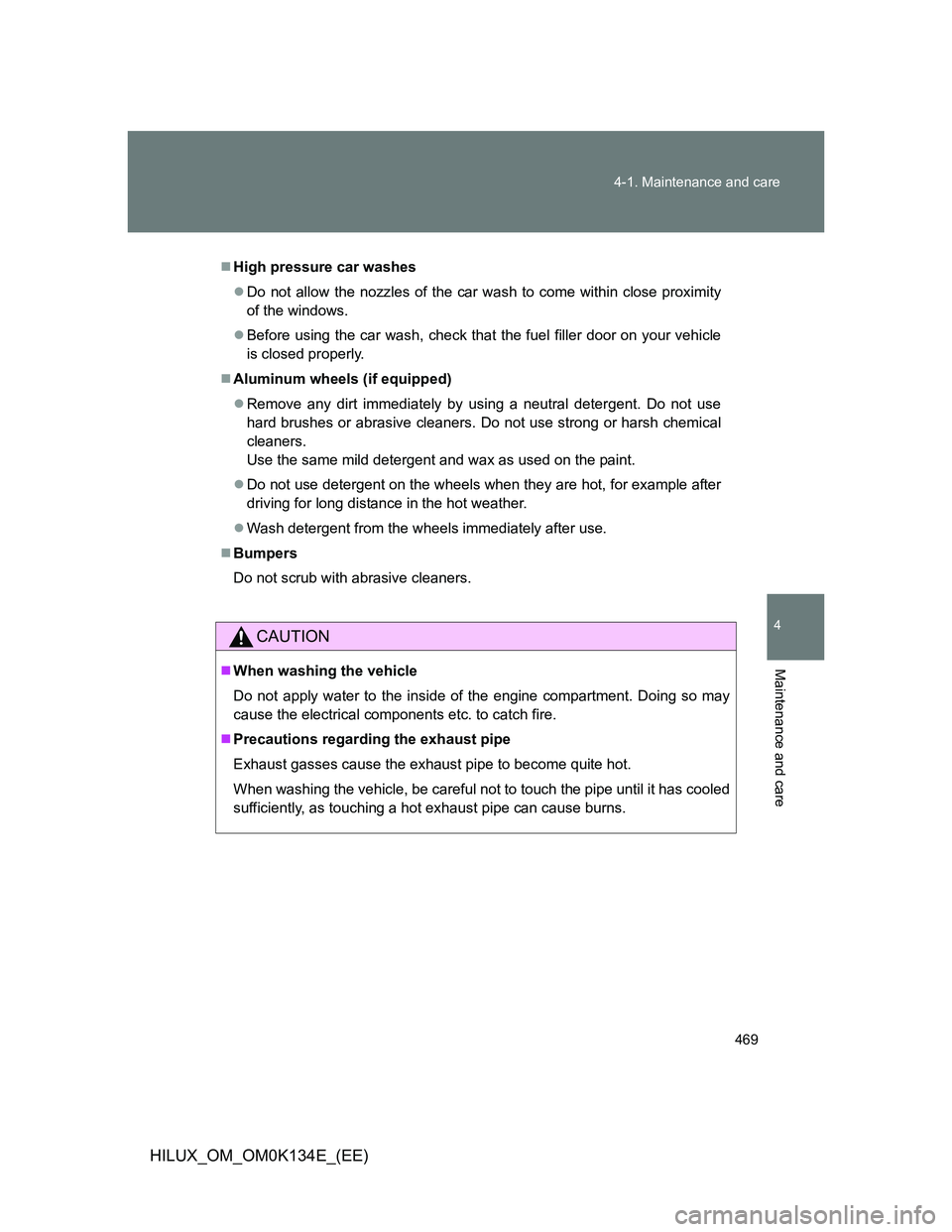

High pressure car washes
Do not allow the nozzles of the car wash to come within close proximity
of the windows.
Before using the car wash, check that the fuel filler door on your vehicle
is closed properly.
Aluminum wheels (if equipped)
Remove any dirt immediately by using a neutral detergent. Do not use
hard brushes or abrasive cleaners. Do not use strong or harsh chemical
cleaners.
Use the same mild detergent and wax as used on the paint.
Do not use detergent on the wheels when they are hot, for example after
driving for long distance in the hot weather.
Wash detergent from the wheels immediately after use.
Bumpers
Do not scrub with abrasive cleaners.
CAUTION
When washing the vehicle
Do not apply water to the inside of the engine compartment. Doing so may
cause the electrical components etc. to catch fire.
Precautions regarding the exhaust pipe
Exhaust gasses cause the exhaust pipe to become quite hot.
When washing the vehicle, be careful not to touch the pipe until it has cooled
sufficiently, as touching a hot exhaust pipe can cause burns.

470 4-1. Maintenance and care
HILUX_OM_OM0K134E_(EE)
NOTICE
To prevent paint deterioration and corrosion on the body and compo-
nents (aluminum wheels etc.)
Wash the vehicle immediately in the following cases:
• After driving near the sea coast
• After driving on salted roads
• If coal tar or tree sap is present on the paint surface
• If dead insects, insect droppings or bird droppings are present on the
paint surface
• After driving in an area contaminated with soot, oily smoke, mine dust,
iron powder or chemical substances
• If the vehicle becomes heavily soiled with dust or mud
• If liquids such as benzene and gasoline are spilled on the paint surface
If the paint is chipped or scratched, have it repaired immediately.
To prevent the wheels from corroding, remove any dirt and store in a place
with low humidity when storing the wheels.
Cleaning the exterior lights
Wash carefully. Do not use organic substances or scrub with a hard brush.
This may damage the surfaces of the lights.
Do not apply wax to the surfaces of the lights.
Wax may cause damage to the lenses.

471 4-1. Maintenance and care
4
Maintenance and care
HILUX_OM_OM0K134E_(EE)
NOTICE
Antenna installation and removal precautions (vehicles with short pole
type antenna)
Before driving, ensure that the antenna is installed.
When the antenna is removed, such as before entering an automatic car
wash, make sure to store it in a suitable place so as not to lose it. Also,
before driving, make sure to reinstall the antenna in its original position.

472
4-1. Maintenance and care
HILUX_OM_OM0K134E_(EE)

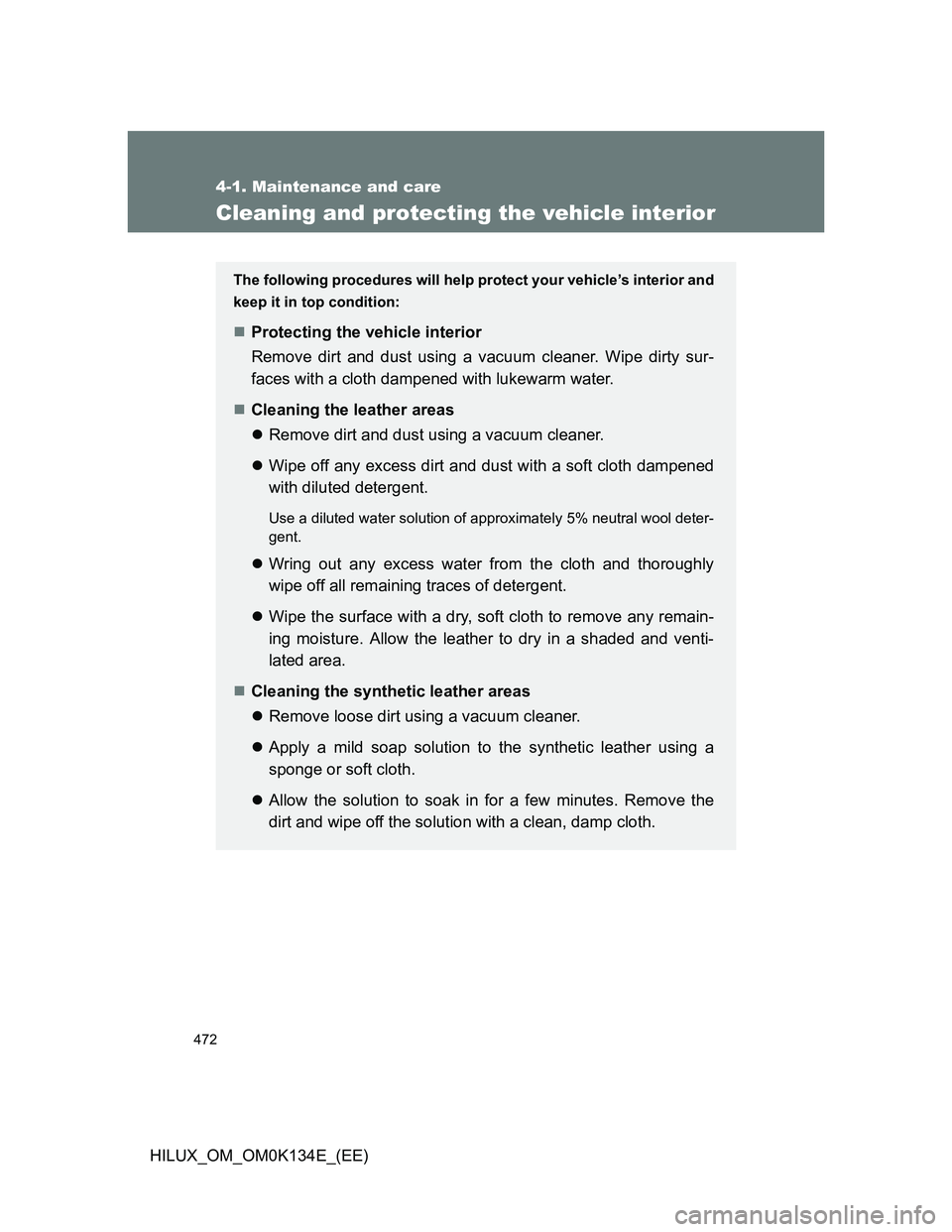

Cleaning and protecting the vehicle interior
The following procedures will help protect your vehicle’s interior and
keep it in top condition:
Protecting the vehicle interior
Remove dirt and dust using a vacuum cleaner. Wipe dirty sur-
faces with a cloth dampened with lukewarm water.
Cleaning the leather areas
Remove dirt and dust using a vacuum cleaner.
Wipe off any excess dirt and dust with a soft cloth dampened
with diluted detergent.
Use a diluted water solution of approximately 5% neutral wool deter-
gent.
Wring out any excess water from the cloth and thoroughly
wipe off all remaining traces of detergent.
Wipe the surface with a dry, soft cloth to remove any remain-
ing moisture. Allow the leather to dry in a shaded and venti-
lated area.
Cleaning the synthetic leather areas
Remove loose dirt using a vacuum cleaner.
Apply a mild soap solution to the synthetic leather using a
sponge or soft cloth.
Allow the solution to soak in for a few minutes. Remove the
dirt and wipe off the solution with a clean, damp cloth.
