2013 TOYOTA HILUX Owners Manual (in English)

5
561 5-2. Steps to take in an emergency
When trouble arises
HILUX_OM_OM0K134E_(EE)

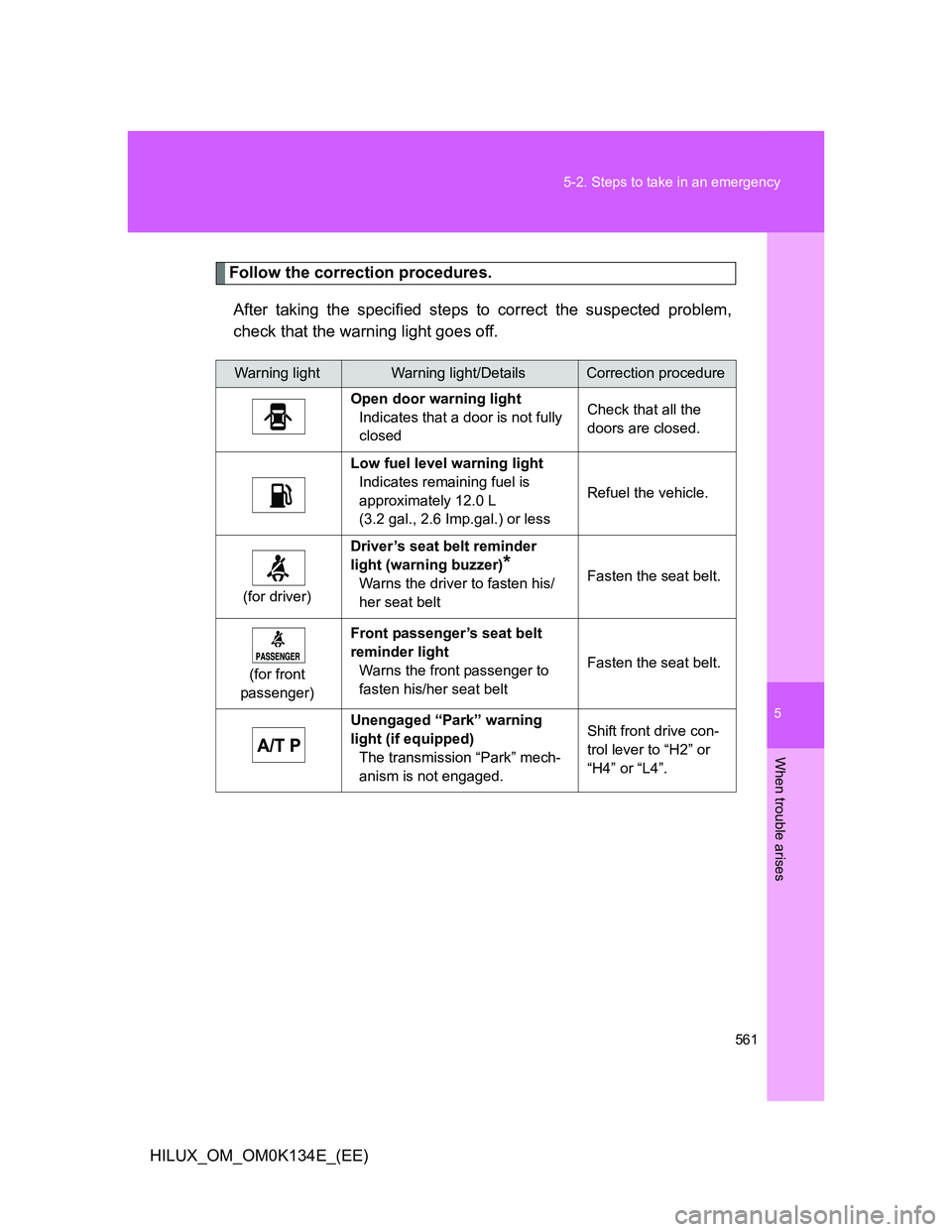

Follow the correction procedures.
After taking the specified steps to correct the suspected problem,
check that the warning light goes off.
Warning lightWarning light/DetailsCorrection procedure
Open door warning light
Indicates that a door is not fully
closedCheck that all the
doors are closed.
Low fuel level warning light
Indicates remaining fuel is
approximately 12.0 L
(3.2 gal., 2.6 Imp.gal.) or less
Refuel the vehicle.
(for driver)
Driver’s seat belt reminder
light (warning buzzer)
*
Warns the driver to fasten his/
her seat beltFasten the seat belt.
(for front
passenger)
Front passenger’s seat belt
reminder light
Warns the front passenger to
fasten his/her seat belt
Fasten the seat belt.
Unengaged “Park” warning
light (if equipped)
The transmission “Park” mech-
anism is not engaged.Shift front drive con-
trol lever to “H2” or
“H4” or “L4”.

562 5-2. Steps to take in an emergency
HILUX_OM_OM0K134E_(EE)

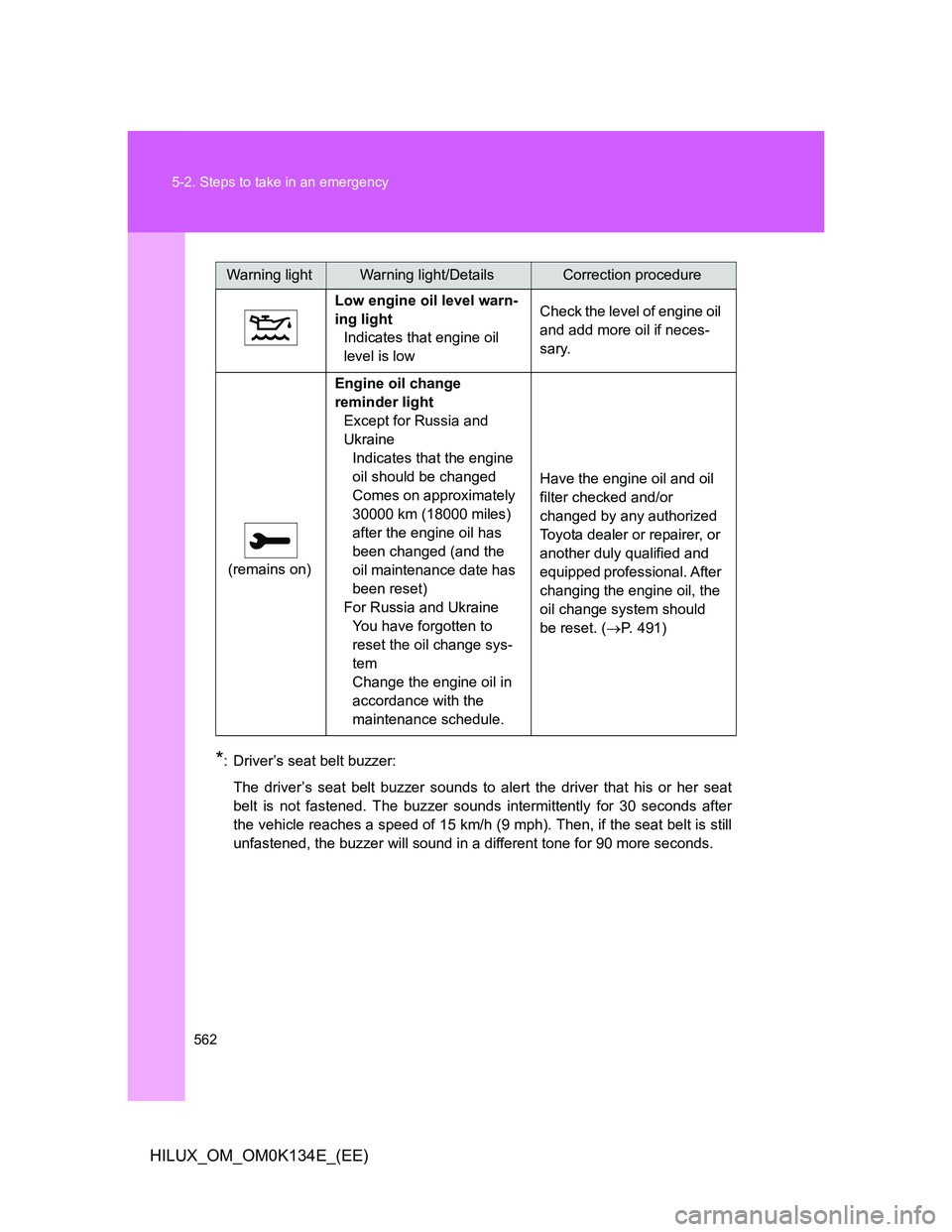

*: Driver’s seat belt buzzer:
The driver’s seat belt buzzer sounds to alert the driver that his or her seat
belt is not fastened. The buzzer sounds intermittently for 30 seconds after
the vehicle reaches a speed of 15 km/h (9 mph). Then, if the seat belt is still
unfastened, the buzzer will sound in a different tone for 90 more seconds.
Warning lightWarning light/DetailsCorrection procedure
Low engine oil level warn-
ing light
Indicates that engine oil
level is lowCheck the level of engine oil
and add more oil if neces-
sary.
(remains on)Engine oil change
reminder light
Except for Russia and
Ukraine
Indicates that the engine
oil should be changed
Comes on approximately
30000 km (18000 miles)
after the engine oil has
been changed (and the
oil maintenance date has
been reset)
For Russia and Ukraine
You have forgotten to
reset the oil change sys-
tem
Change the engine oil in
accordance with the
maintenance schedule.Have the engine oil and oil
filter checked and/or
changed by any authorized
Toyota dealer or repairer, or
another duly qualified and
equipped professional. After
changing the engine oil, the
oil change system should
be reset. (P. 491)

5
563 5-2. Steps to take in an emergency
When trouble arises
HILUX_OM_OM0K134E_(EE)

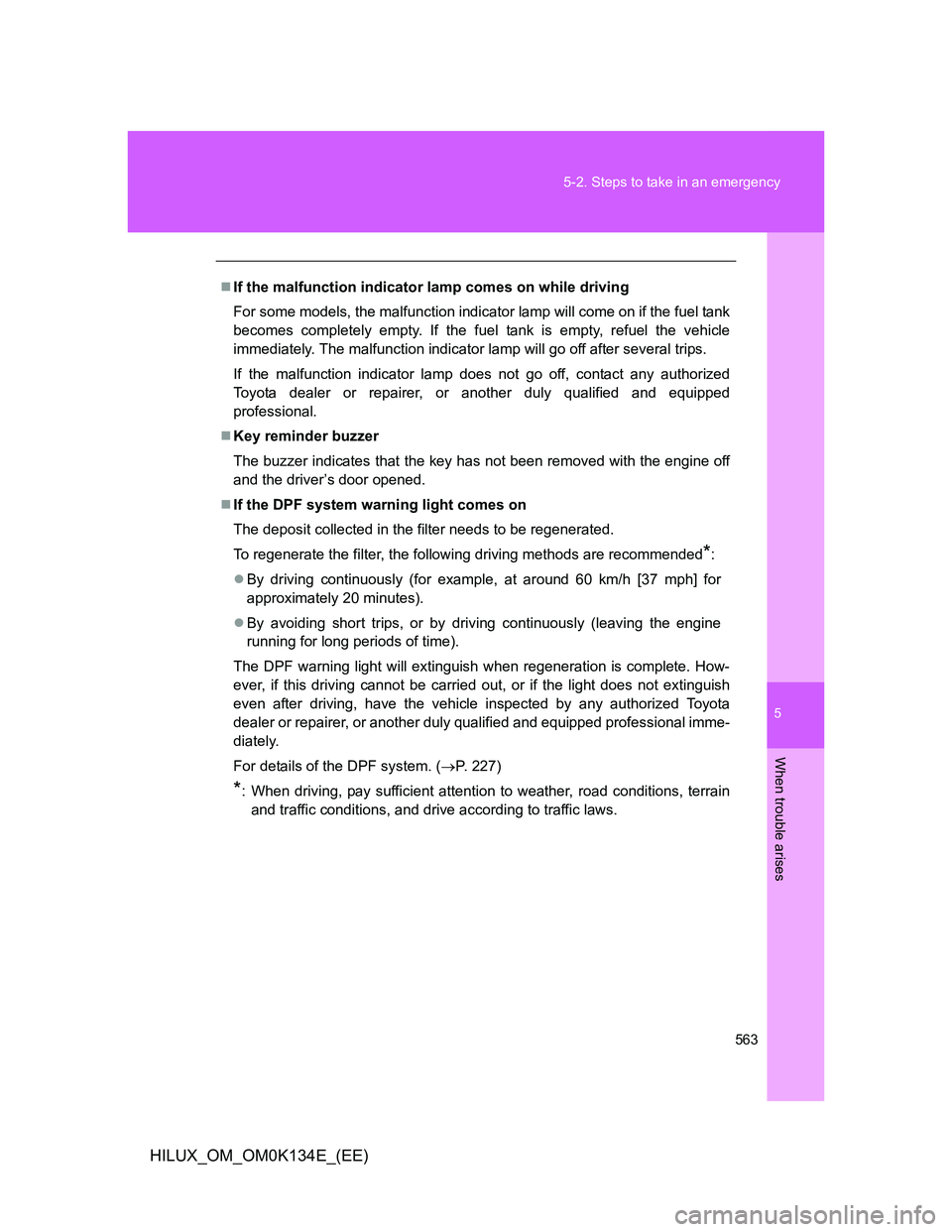

If the malfunction indicator lamp comes on while driving
For some models, the malfunction indicator lamp will come on if the fuel tank
becomes completely empty. If the fuel tank is empty, refuel the vehicle
immediately. The malfunction indicator lamp will go off after several trips.
If the malfunction indicator lamp does not go off, contact any authorized
Toyota dealer or repairer, or another duly qualified and equipped
professional.
Key reminder buzzer
The buzzer indicates that the key has not been removed with the engine off
and the driver’s door opened.
If the DPF system warning light comes on
The deposit collected in the filter needs to be regenerated.
To regenerate the filter, the following driving methods are recommended
*:
By driving continuously (for example, at around 60 km/h [37 mph] for
approximately 20 minutes).
By avoiding short trips, or by driving continuously (leaving the engine
running for long periods of time).
The DPF warning light will extinguish when regeneration is complete. How-
ever, if this driving cannot be carried out, or if the light does not extinguish
even after driving, have the vehicle inspected by any authorized Toyota
dealer or repairer, or another duly qualified and equipped professional imme-
diately.
For details of the DPF system. (P. 227)
*: When driving, pay sufficient attention to weather, road conditions, terrain
and traffic conditions, and drive according to traffic laws.

564 5-2. Steps to take in an emergency
HILUX_OM_OM0K134E_(EE)

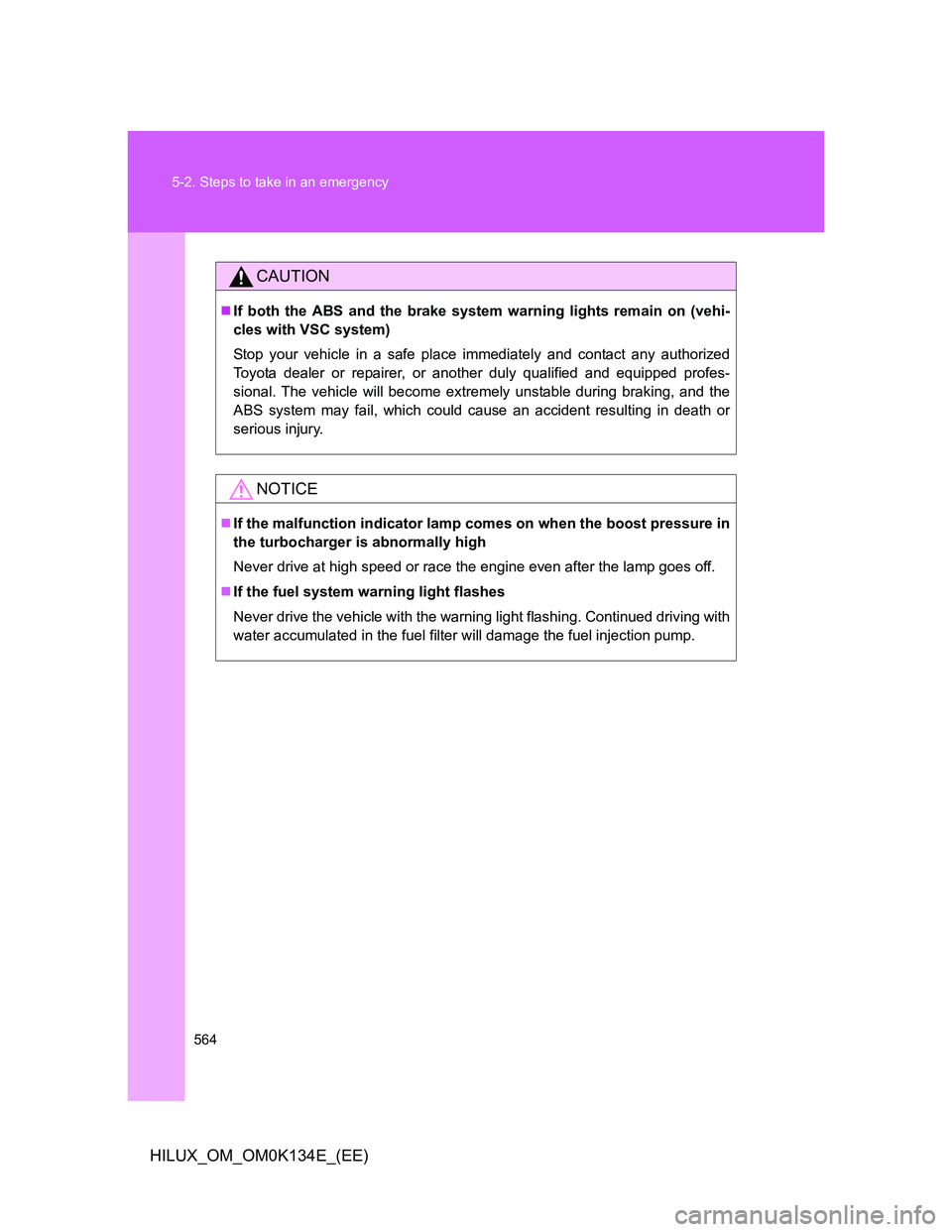

CAUTION
If both the ABS and the brake system warning lights remain on (vehi-
cles with VSC system)
Stop your vehicle in a safe place immediately and contact any authorized
Toyota dealer or repairer, or another duly qualified and equipped profes-
sional. The vehicle will become extremely unstable during braking, and the
ABS system may fail, which could cause an accident resulting in death or
serious injury.
NOTICE
If the malfunction indicator lamp comes on when the boost pressure in
the turbocharger is abnormally high
Never drive at high speed or race the engine even after the lamp goes off.
If the fuel system warning light flashes
Never drive the vehicle with the warning light flashing. Continued driving with
water accumulated in the fuel filter will damage the fuel injection pump.

5
565
5-2. Steps to take in an emergency
When trouble arises
HILUX_OM_OM0K134E_(EE)

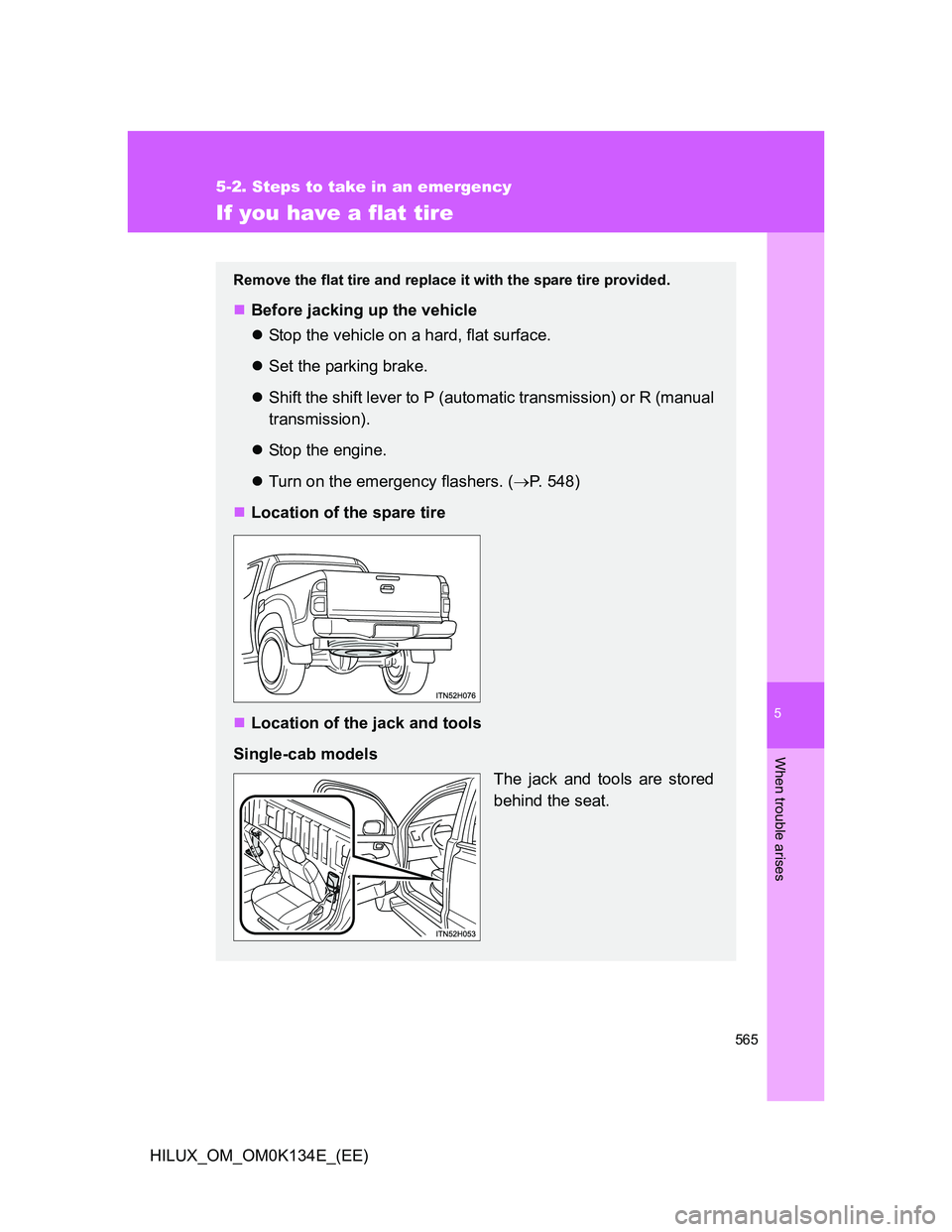

If you have a flat tire
Remove the flat tire and replace it with the spare tire provided.
Before jacking up the vehicle
Stop the vehicle on a hard, flat surface.
Set the parking brake.
Shift the shift lever to P (automatic transmission) or R (manual
transmission).
Stop the engine.
Turn on the emergency flashers. (P. 548)
Location of the spare tire
Location of the jack and tools
Single-cab models
The jack and tools are stored
behind the seat.

566 5-2. Steps to take in an emergency
HILUX_OM_OM0K134E_(EE)

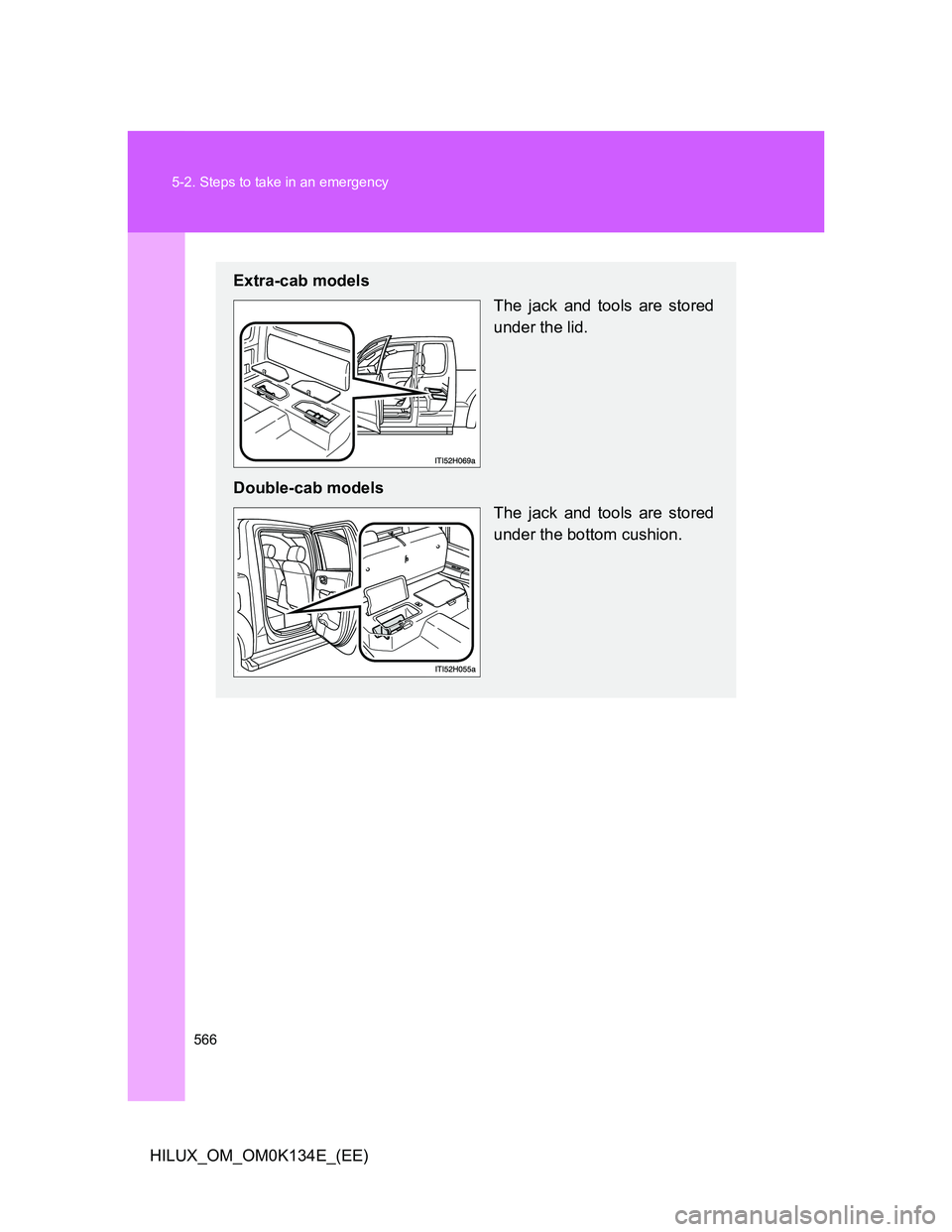

Extra-cab models
The jack and tools are stored
under the lid.
Double-cab models
The jack and tools are stored
under the bottom cushion.

5
567 5-2. Steps to take in an emergency
When trouble arises
HILUX_OM_OM0K134E_(EE)

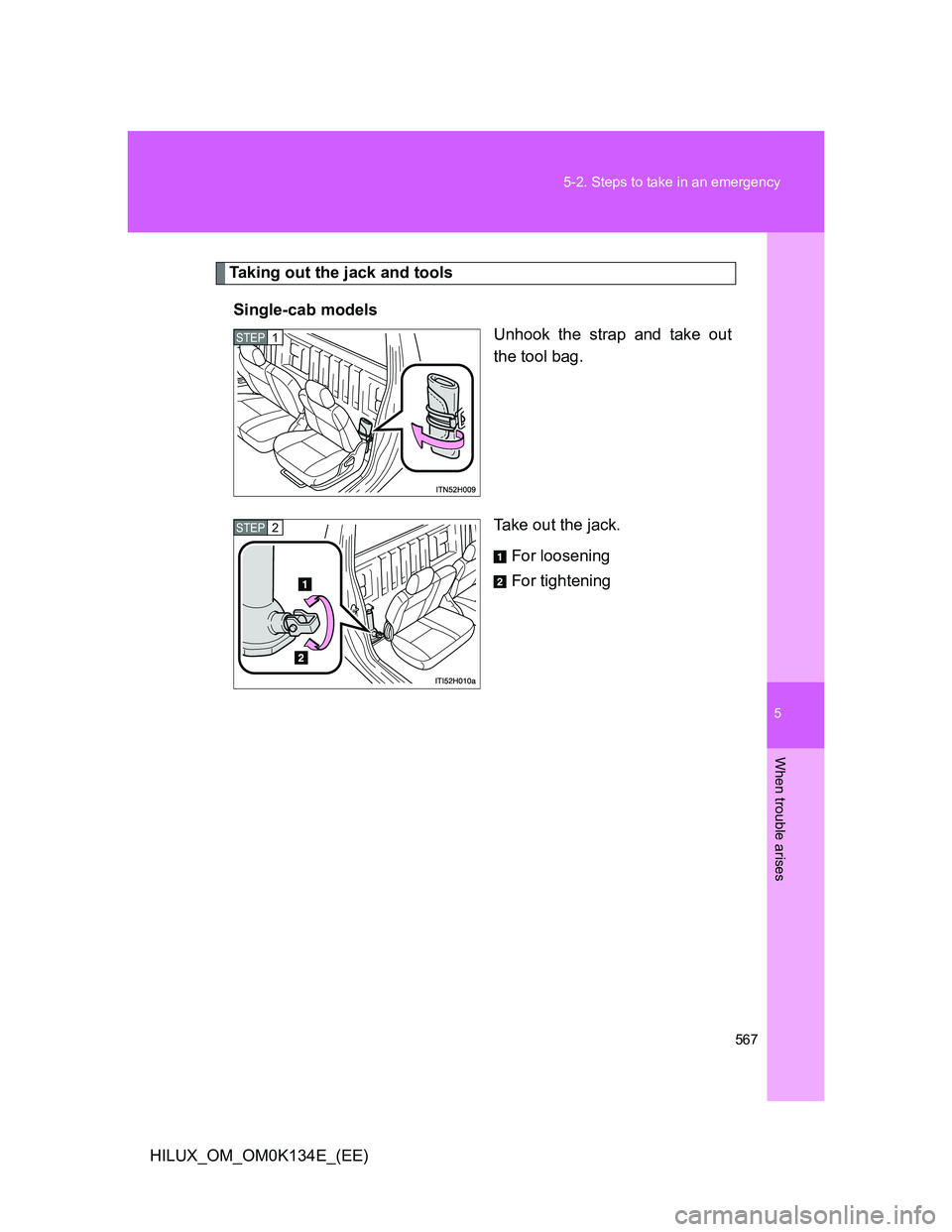

Taking out the jack and tools
Single-cab models
Unhook the strap and take out
the tool bag.
Take out the jack.
For loosening
For tightening
STEP1
STEP2

568 5-2. Steps to take in an emergency

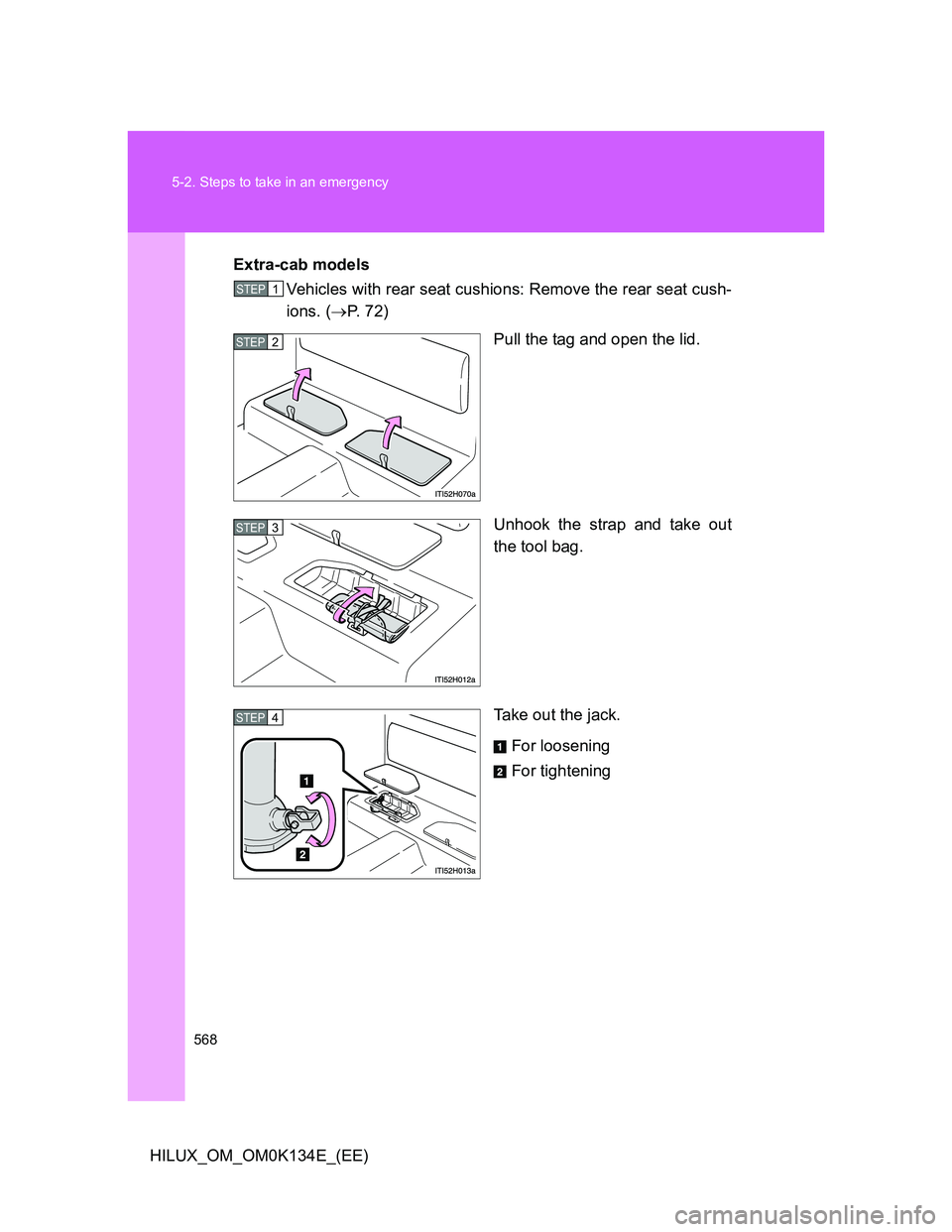

HILUX_OM_OM0K134E_(EE)Extra-cab models
Vehicles with rear seat cushions: Remove the rear seat cush-
ions. (P. 7 2 )
Pull the tag and open the lid.
Unhook the strap and take out
the tool bag.
Take out the jack.
For loosening
For tightening
STEP1
STEP2
STEP3
STEP4
