2013 TOYOTA HILUX Owners Manual (in English)

369
3-3. Using the “touch screen”
3
Interior features
HILUX_OM_OM0K134E_(EE)

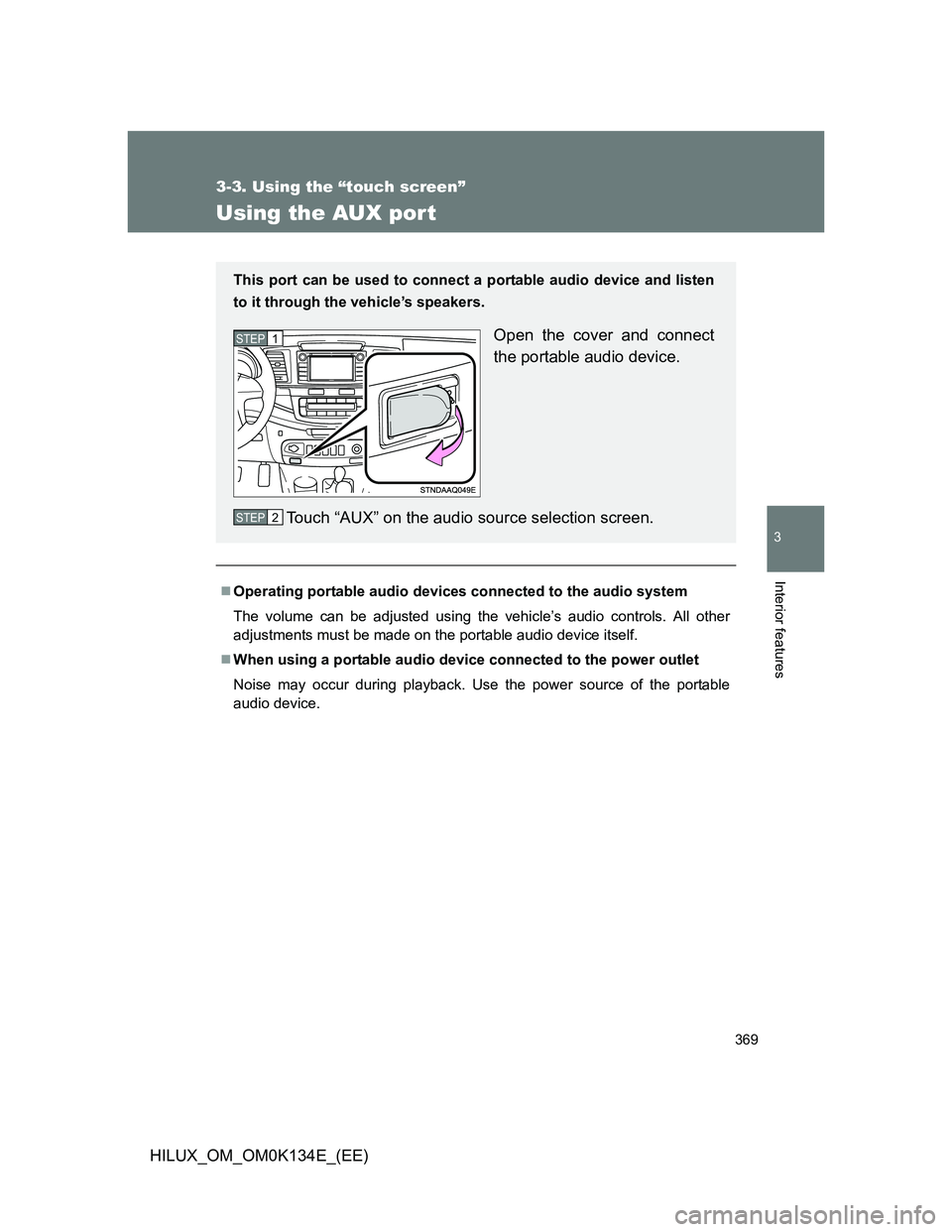

Using the AUX por t
Operating portable audio devices connected to the audio system
The volume can be adjusted using the vehicle’s audio controls. All other
adjustments must be made on the portable audio device itself.
When using a portable audio device connected to the power outlet
Noise may occur during playback. Use the power source of the portable
audio device.
This port can be used to connect a portable audio device and listen
to it through the vehicle’s speakers.
Open the cover and connect
the portable audio device.
Touch “AUX” on the audio source selection screen.STEP1
STEP2

370
3-3. Using the “touch screen”
HILUX_OM_OM0K134E_(EE)
Listening to Bluetooth® audio
The Bluetooth® audio system enables users to enjoy music played
on a portable player from the vehicle speaker via wireless communi-
cation. This audio system supports Bluetooth
®, a wireless data sys-
tem capable of playing portable audio music without cables. If your
portable player does not support Bluetooth
®, the Bluetooth® audio
system will not function.
Touch “BT” on the audio source selection screen.
Vo lu m e Power
Selecting a track/fast-forwarding
and reversingDisplaying the source selection
or audio control screen
Selecting a track

371 3-3. Using the “touch screen”
3
Interior features
HILUX_OM_OM0K134E_(EE)
Audio control screen
Pressing “MEDIA” displays the audio control screen from any
screens of the selected source.
Audio source selection
screen appears
Displaying the album list
Displaying the track list
Connecting a Bluetooth
®
audio player
Playback
Pause
Repeat play
Random playback

372 3-3. Using the “touch screen”
HILUX_OM_OM0K134E_(EE)

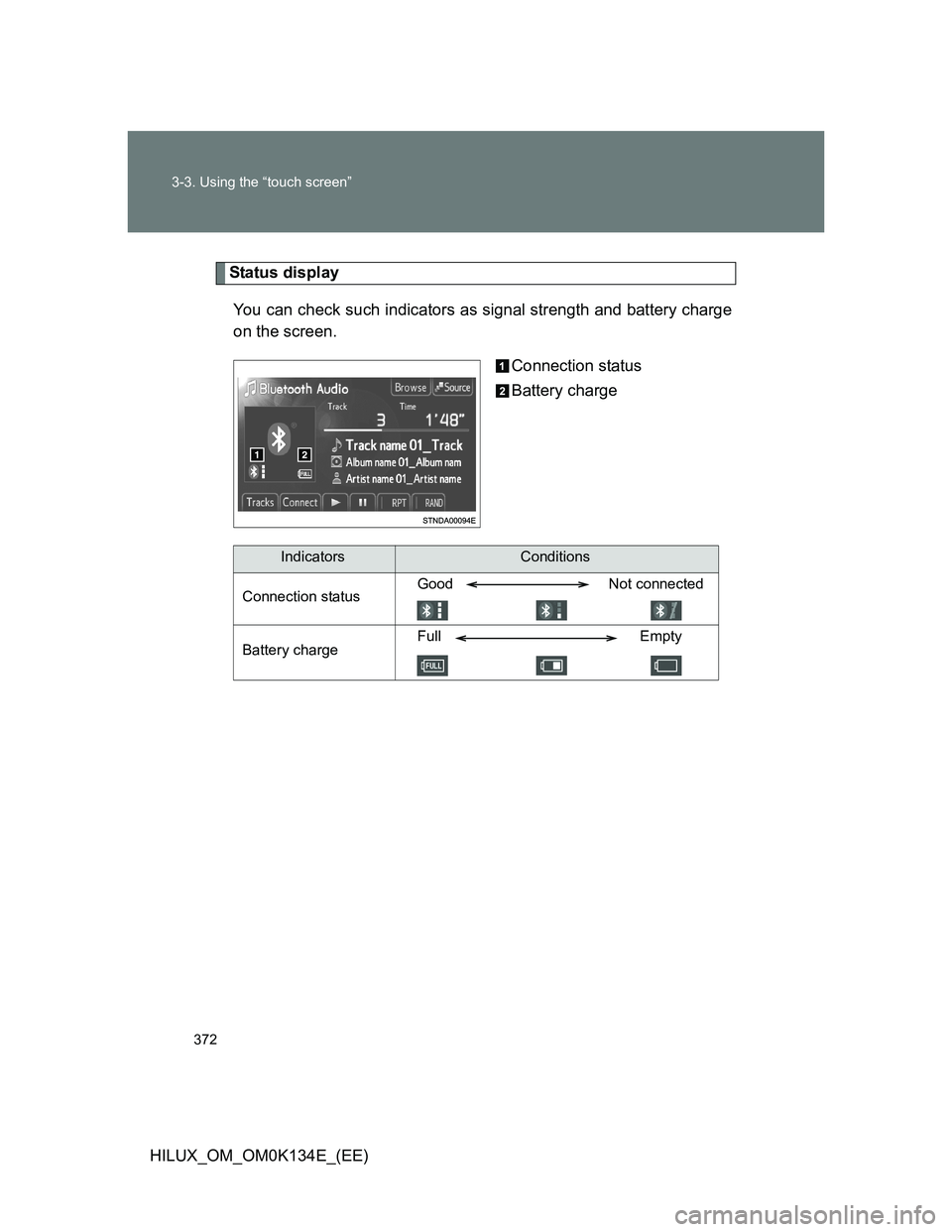

Status display
You can check such indicators as signal strength and battery charge
on the screen.
Connection status
Battery charge
IndicatorsConditions
Connection statusGood Not connected
Battery chargeFull Empty

373 3-3. Using the “touch screen”
3
Interior features
HILUX_OM_OM0K134E_(EE)

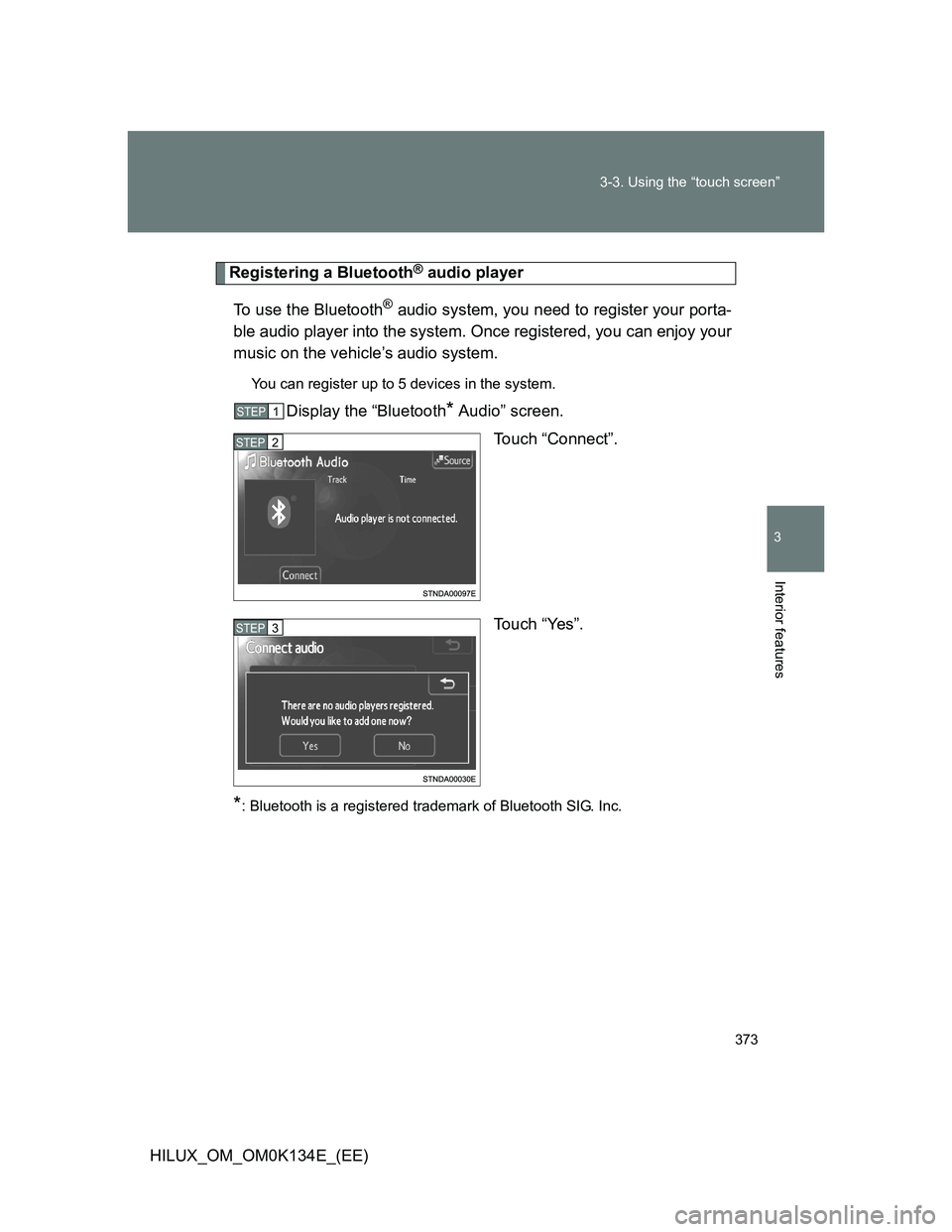

Registering a Bluetooth® audio player
To use the Bluetooth
® audio system, you need to register your porta-
ble audio player into the system. Once registered, you can enjoy your
music on the vehicle’s audio system.
You can register up to 5 devices in the system.
Display the “Bluetooth* Audio” screen.
Touch “Connect”.
Touch “Yes”.
*: Bluetooth is a registered trademark of Bluetooth SIG. Inc.
STEP1
STEP2
STEP3

374 3-3. Using the “touch screen”

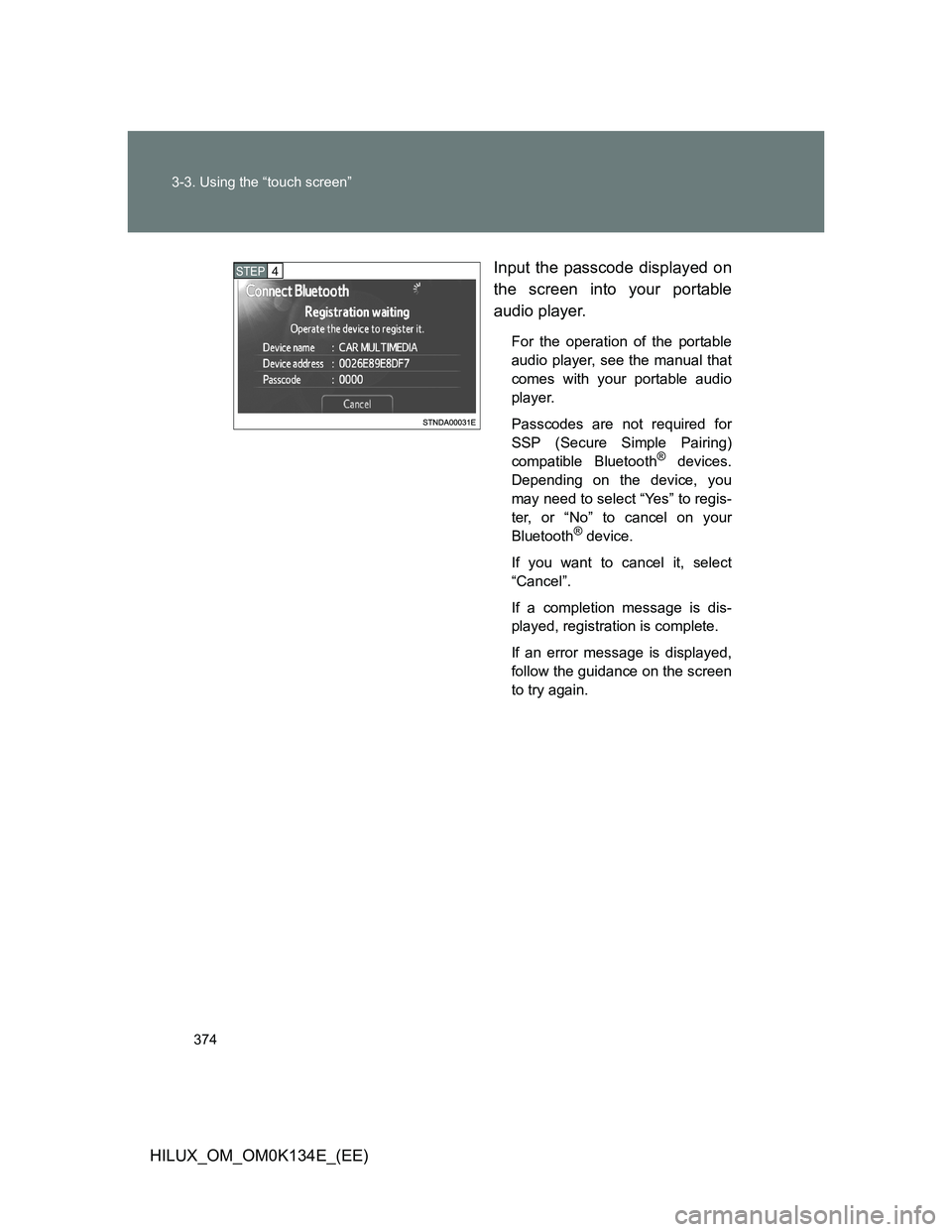

HILUX_OM_OM0K134E_(EE)Input the passcode displayed on
the screen into your portable
audio player.
For the operation of the portable
audio player, see the manual that
comes with your portable audio
player.
Passcodes are not required for
SSP (Secure Simple Pairing)
compatible Bluetooth
® devices.
Depending on the device, you
may need to select “Yes” to regis-
ter, or “No” to cancel on your
Bluetooth
® device.
If you want to cancel it, select
“Cancel”.
If a completion message is dis-
played, registration is complete.
If an error message is displayed,
follow the guidance on the screen
to try again.
STEP4

375 3-3. Using the “touch screen”
3
Interior features
HILUX_OM_OM0K134E_(EE)

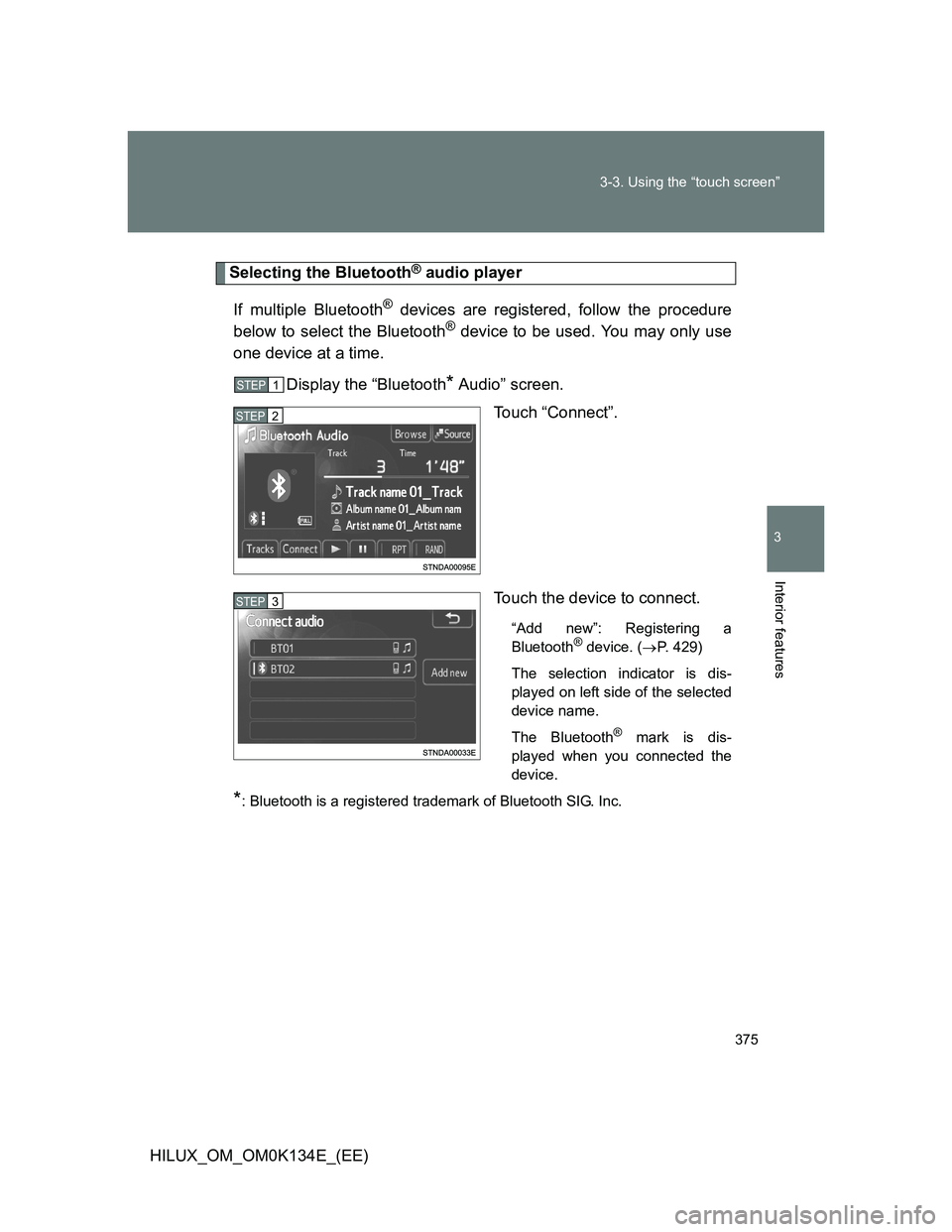

Selecting the Bluetooth® audio player
If multiple Bluetooth
® devices are registered, follow the procedure
below to select the Bluetooth® device to be used. You may only use
one device at a time.
Display the “Bluetooth
* Audio” screen.
Touch “Connect”.
Touch the device to connect.
“Add new”: Registering a
Bluetooth® device. (P. 429)
The selection indicator is dis-
played on left side of the selected
device name.
The Bluetooth
® mark is dis-
played when you connected the
device.
*: Bluetooth is a registered trademark of Bluetooth SIG. Inc.
STEP1
STEP2
STEP3

376 3-3. Using the “touch screen”
HILUX_OM_OM0K134E_(EE)
Connecting the Bluetooth® audio player
There are two connection methods available.
When the connection method is set to “From vehicle”
When the portable audio player is on standby for the connection, it
will be automatically connected whenever the engine switch is in
either the “ACC” or “ON” position.
When the connection method is set to “From audio player”
Operate the portable player and connect it to the Bluetooth
® audio
system.
Display the “Bluetooth
* Audio” screen.
Touch “Connect”.
Touch the device to connect.
A message is shown if connection
has been successful.
If connection fails, a message will
be displayed and connection will
be re-attempted.
*: Bluetooth is a registered trademark of Bluetooth SIG. Inc.
STEP1
STEP2
STEP3
