169 2-1. Driving procedures
2
When driving
HILUX_OM_OM0K134E_(EE)

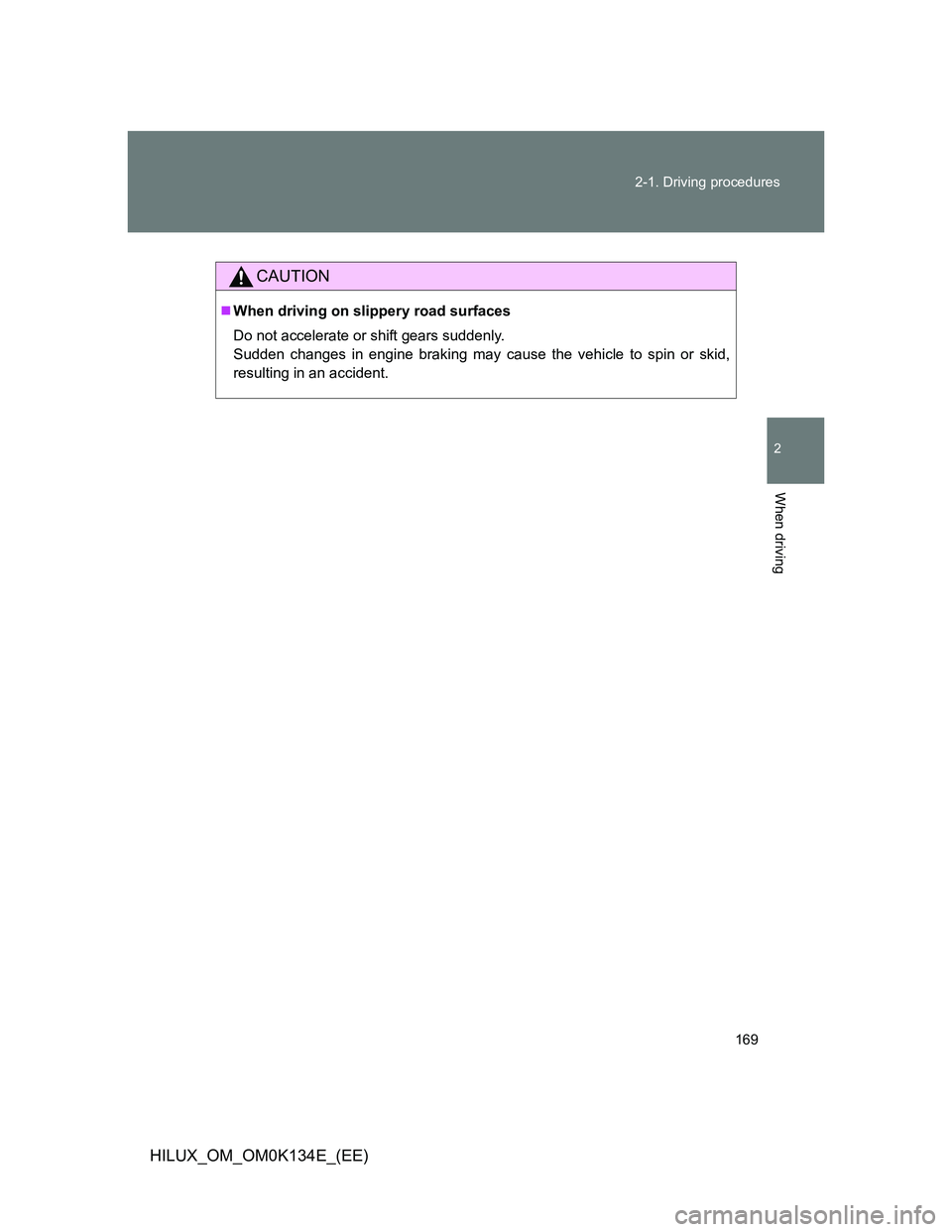

CAUTION
When driving on slippery road surfaces
Do not accelerate or shift gears suddenly.
Sudden changes in engine braking may cause the vehicle to spin or skid,
resulting in an accident.

170
2-1. Driving procedures
HILUX_OM_OM0K134E_(EE)

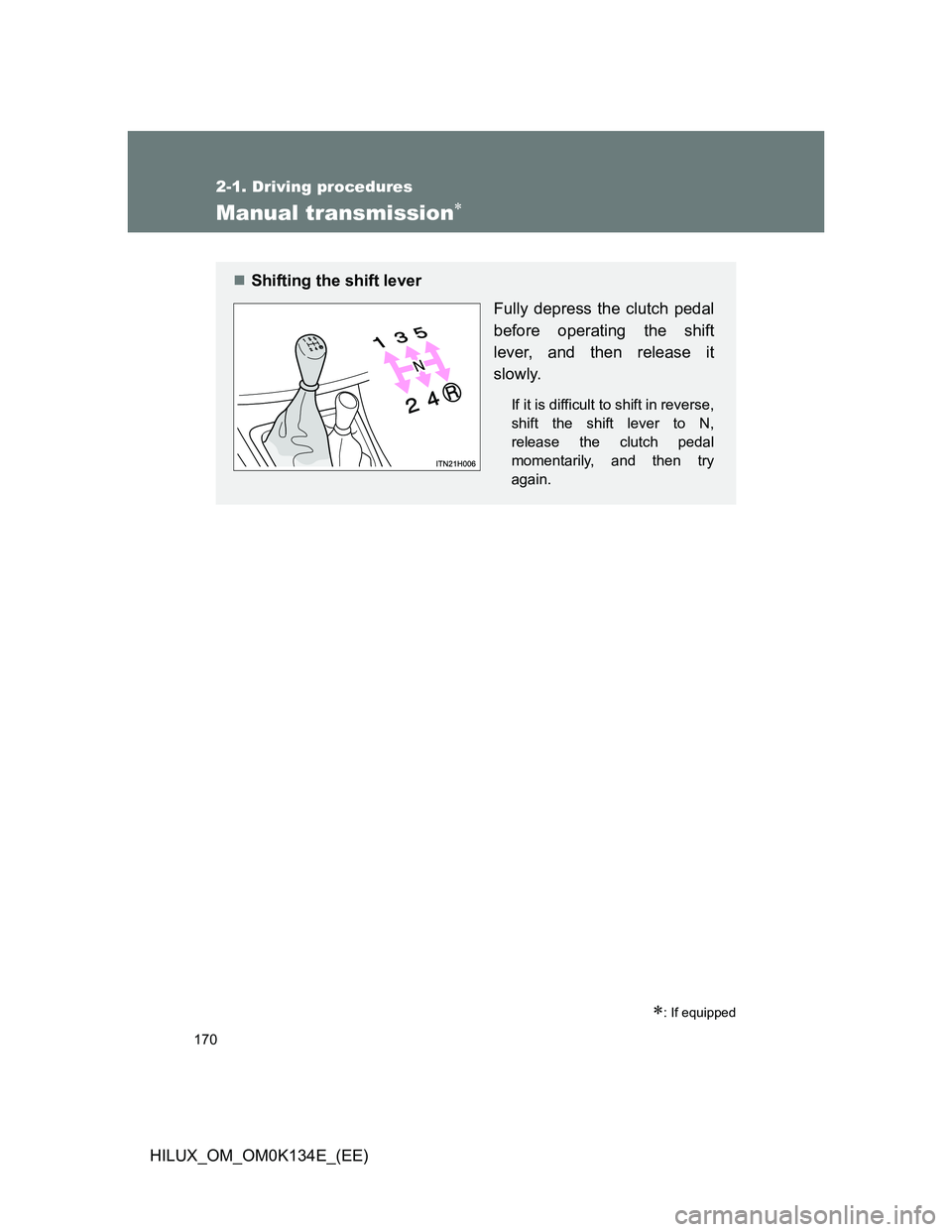

Manual transmission
: If equipped
Shifting the shift lever
Fully depress the clutch pedal
before operating the shift
lever, and then release it
slowly.
If it is difficult to shift in reverse,
shift the shift lever to N,
release the clutch pedal
momentarily, and then try
again.

171 2-1. Driving procedures
2
When driving
HILUX_OM_OM0K134E_(EE)
Maximum downshifting speeds
Observe the downshifting speeds in the following table to prevent over-rev-
ving the engine.
4WD models
*1: With 265/65R17 tires
*2: With 255/70R15C tires
*3: With 205R16C tires
Shift
positionFront drive
control
lever
Maximum speed
km/h (mph)
1KD-FTV
engine
2KD-FTV engine
For Russia and
UkraineExcept for
Russia and
Ukraine
1H2, H439 (24)
*1
38 (24)*236 (22)*1
35 (22)*2, 338 (24)*1
37 (23)*2, 3
L4 15 (9) 14 (9)15 (9)*1
14 (9)*2, 3
2H2, H473 (45)
*1
71 (44)*267 (42)*1
65 (40)*2, 370 (43)*1
68 (42)*2, 3
L429 (18)*1
28 (17)*226 (16)*1
25 (16)*2, 327 (17)*1, 2
26 (16)*3
3H2, H4119 (74)
*1
115 (71)*2109 (68)*1
105 (65)*2, 3114 (71)*1
110 (68)*2, 3
L446 (29)*1
45 (28)*242 (26)*1
41 (25)*2, 345 (28)*1
43 (27)*2, 3
4H2, H4170 (106)
*1
165 (103)*2156 (97)*1
151 (94)*2, 3164 (102)*1
158 (98)*2, 3
L467 (42)*1
64 (40)*261 (38)*1
59 (37)*2, 364 (40)*1
62 (39)*2, 3

172 2-1. Driving procedures
HILUX_OM_OM0K134E_(EE)

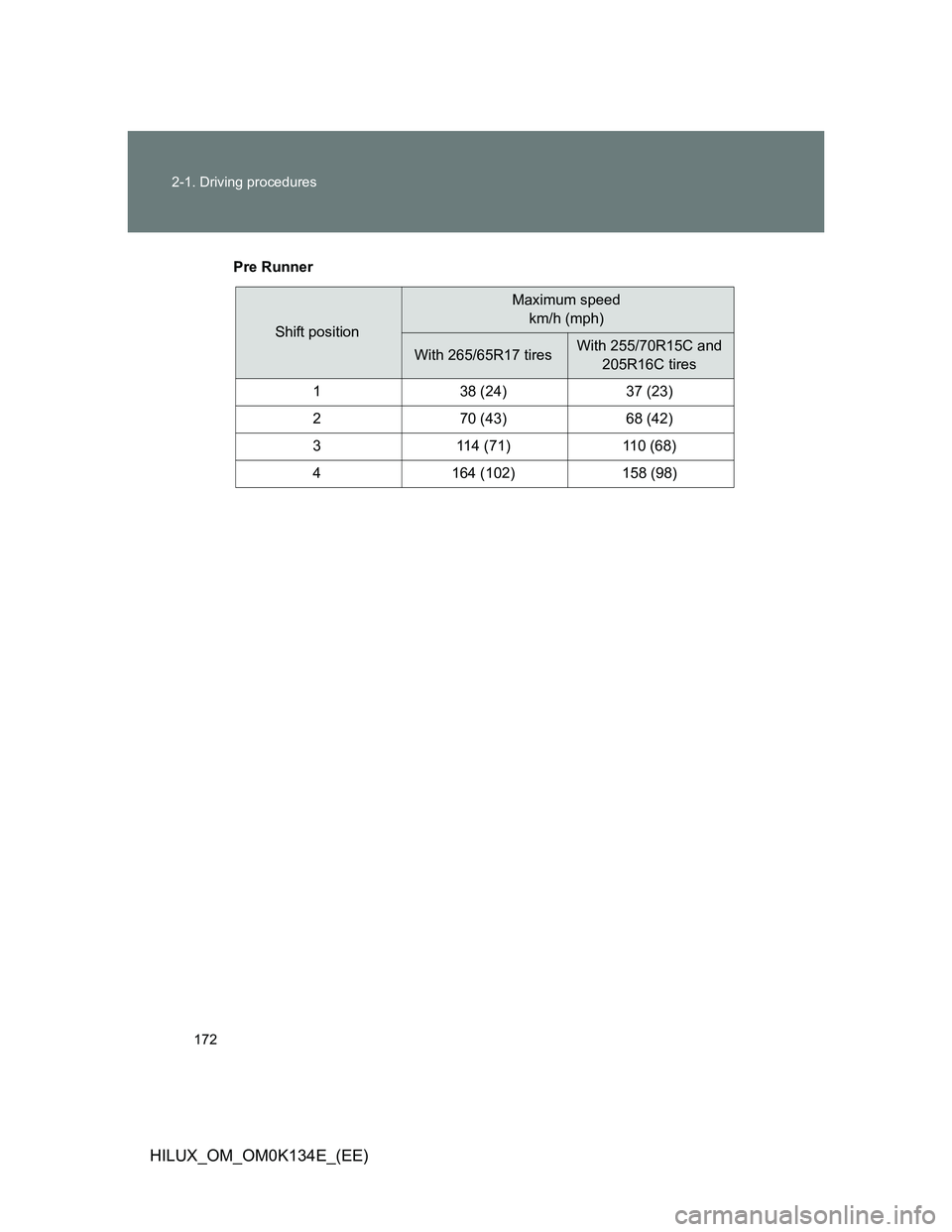

Pre Runner
Shift position
Maximum speed
km/h (mph)
With 265/65R17 tiresWith 255/70R15C and
205R16C tires
1 38 (24) 37 (23)
2 70 (43) 68 (42)
3 114 (71) 110 (68)
4 164 (102) 158 (98)

173
2-1. Driving procedures
2
When driving
HILUX_OM_OM0K134E_(EE)
Turn signal lever
Turn signals can be operated when
The engine switch is in the “ON” position.
If the indicator flashes faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned
out.
The turn signal lever can be used to show the following intentions
of the driver:
Right turn
Left turn
Lane change to the right
(push and hold the lever
partway)
The right hand signals will
flash until you release the
lever.
Lane change to the left
(push and hold the lever
partway)
The left hand signals will flash
until you release the lever.

174
2-1. Driving procedures
HILUX_OM_OM0K134E_(EE)

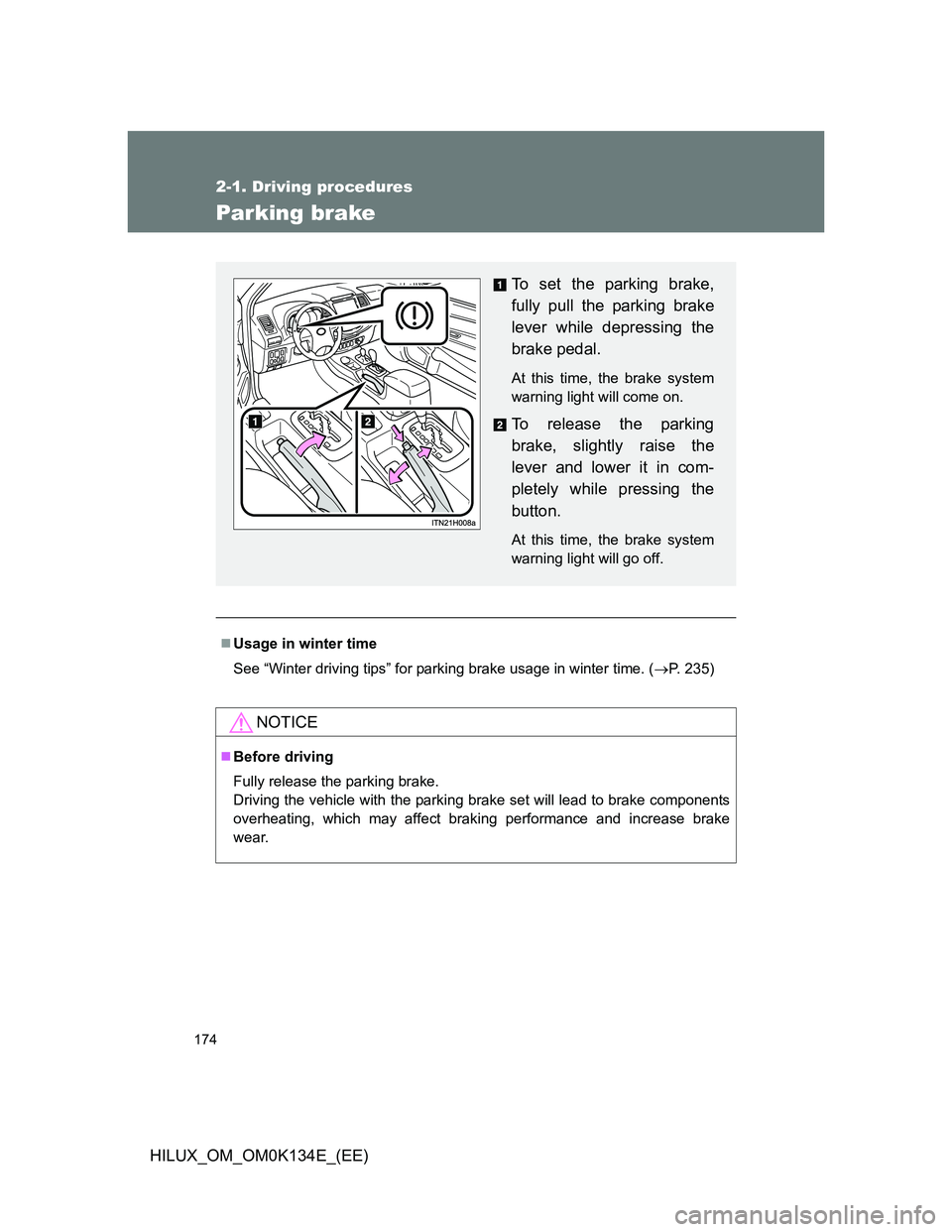

Parking brake
Usage in winter time
See “Winter driving tips” for parking brake usage in winter time. (P. 235)
NOTICE
Before driving
Fully release the parking brake.
Driving the vehicle with the parking brake set will lead to brake components
overheating, which may affect braking performance and increase brake
wear.
To set the parking brake,
fully pull the parking brake
lever while depressing the
brake pedal.
At this time, the brake system
warning light will come on.
To release the parking
brake, slightly raise the
lever and lower it in com-
pletely while pressing the
button.
At this time, the brake system
warning light will go off.

175
2-1. Driving procedures
2
When driving
HILUX_OM_OM0K134E_(EE)
Horn
After adjusting the steering wheel
Make sure that the steering wheel is securely locked.
The horn may not sound if the steering wheel is not securely locked.
(P. 85)
To sound the horn, press on or
close to the mark.

176
HILUX_OM_OM0K134E_(EE)
2-2. Instrument cluster

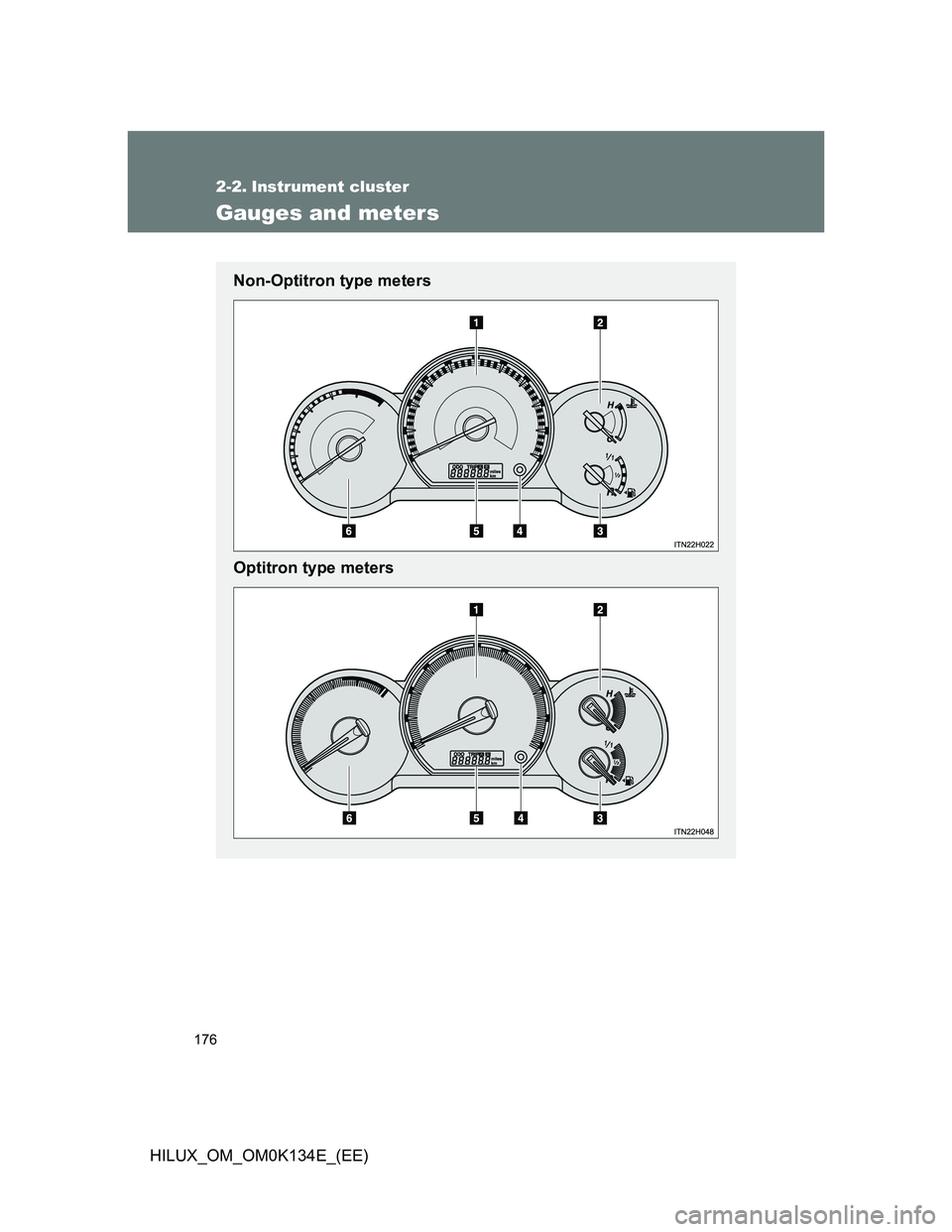

Gauges and meters
Non-Optitron type meters
Optitron type meters
