2023 HYUNDAI PALISADE Owners Manual

07

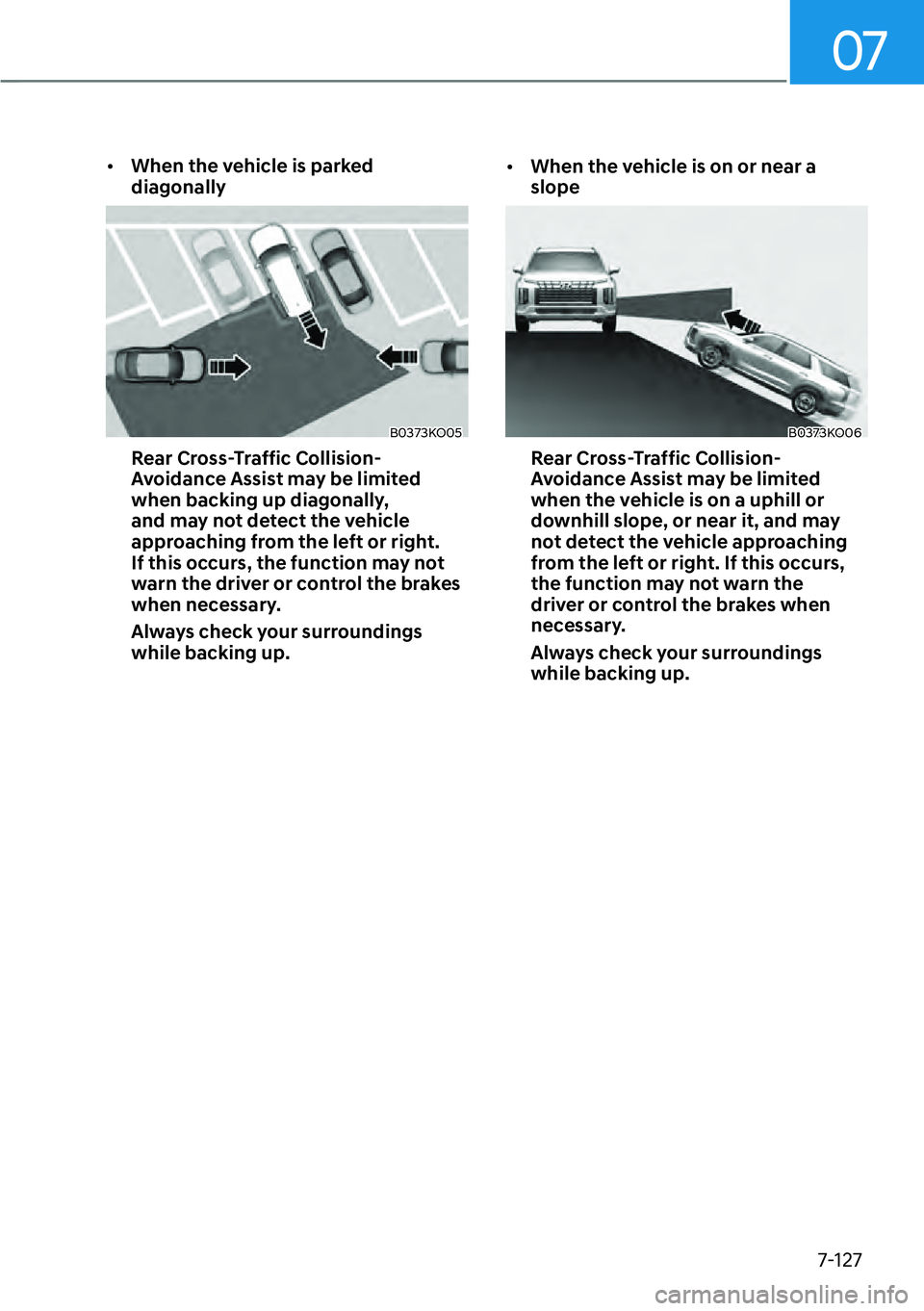

7-127

[When the vehicle is parked
diagonally
B0373KO05
Rear Cross-Traffic Collision-
Avoidance Assist may be limited
when backing up diagonally,
and may not detect the vehicle
approaching from the left or right.
If this occurs, the function may not
warn the driver or control the brakes
when necessary.
Always check your surroundings
while backing up.
[
When the vehicle is on or near a
slope
B0373KO06
Rear Cross-Traffic Collision-
Avoidance Assist may be limited
when the vehicle is on a uphill or
downhill slope, or near it, and may
not detect the vehicle approaching
from the left or right. If this occurs,
the function may not warn the
driver or control the brakes when
necessary.
Always check your surroundings
while backing up.

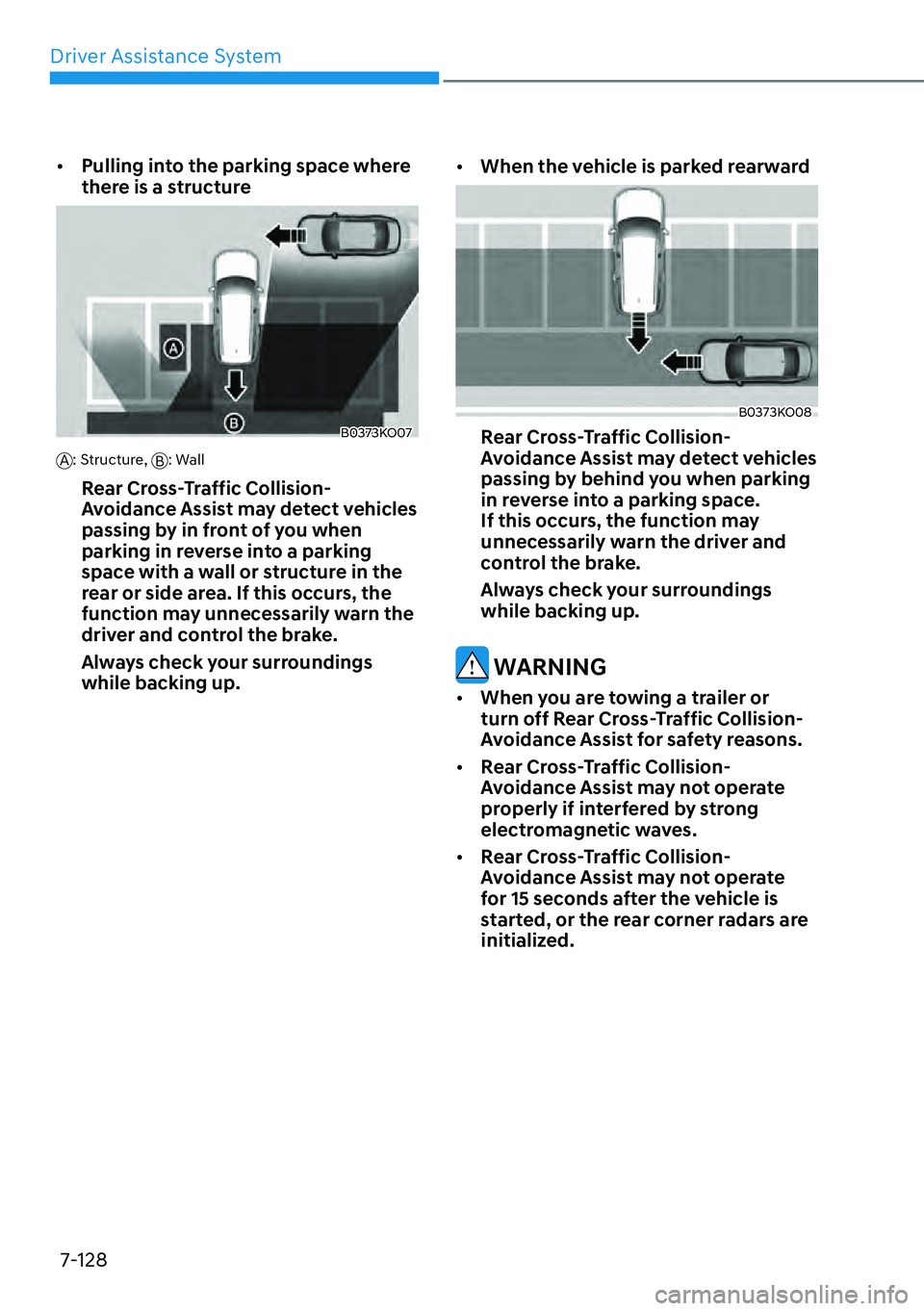

Driver Assistance System7-128

[ Pulling into the parking space where
there is a structure
B0373KO07
A: Structure,
B: Wall
Rear Cross-Traffic Collision-
Avoidance Assist may detect vehicles
passing by in front of you when
parking in reverse into a parking
space with a wall or structure in the
rear or side area. If this occurs, the
function may unnecessarily warn the
driver and control the brake.
Always check your surroundings
while backing up.
[
When the vehicle is parked rearward
B0373KO08
Rear Cross-Traffic Collision-
Avoidance Assist may detect vehicles
passing by behind you when parking
in reverse into a parking space.
If this occurs, the function may
unnecessarily warn the driver and
control the brake.
Always check your surroundings
while backing up.
WARNING

[When you are towing a trailer or
turn off Rear Cross-Traffic Collision-
Avoidance Assist for safety reasons.

[ Rear Cross-Traffic Collision-
Avoidance Assist may not operate
properly if interfered by strong
electromagnetic waves.

[ Rear Cross-Traffic Collision-
Avoidance Assist may not operate
for 15 seconds after the vehicle is
started, or the rear corner radars are
initialized.

07

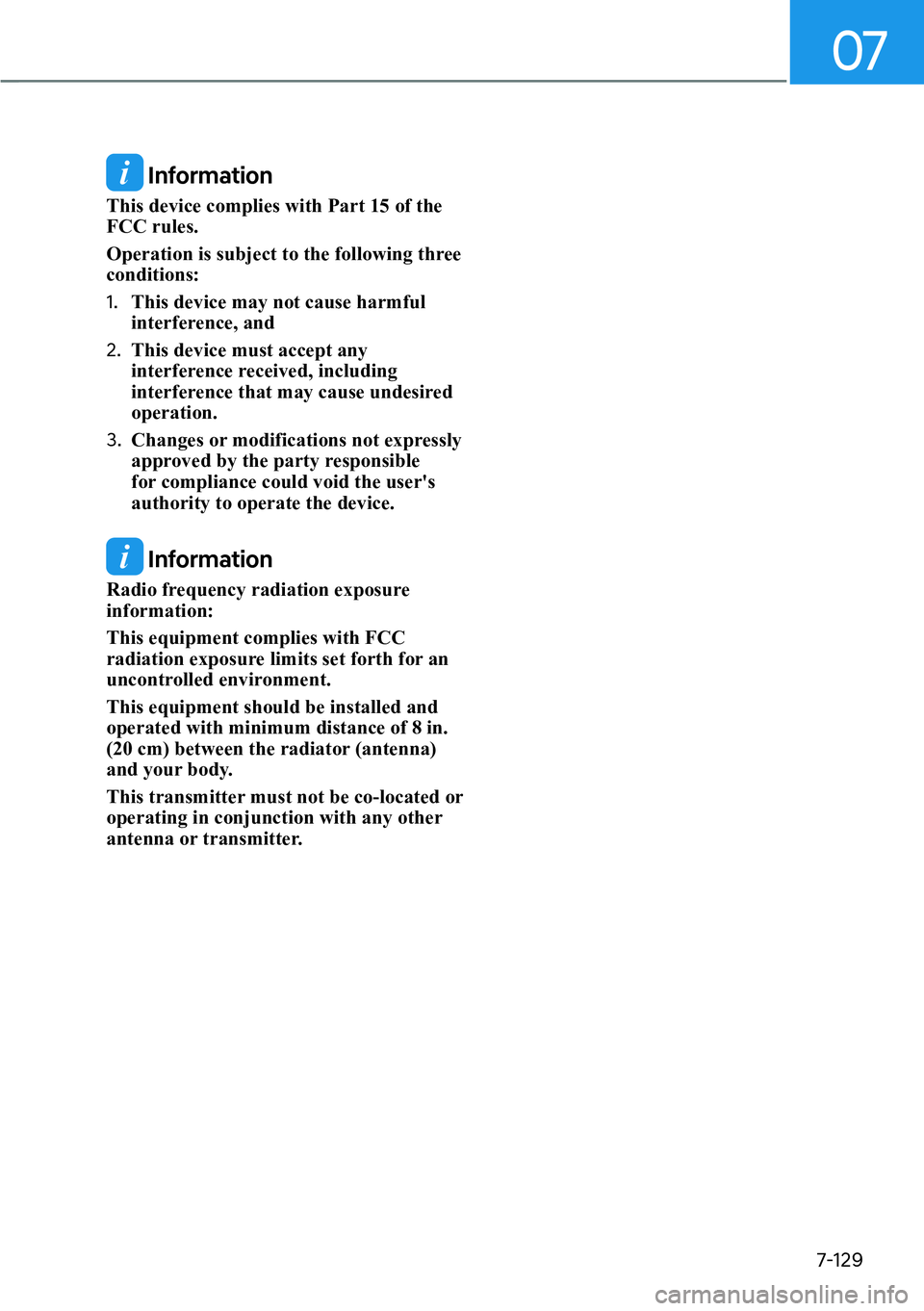

7-129
Information
This device complies with Part 15 of the
FCC rules.
Operation is subject to the following three
conditions:
1. This device may not cause harmful
interference, and
2. This device must accept any
interference received, including
interference that may cause undesired
operation.
3. Changes or modifications not expressly
approved by the party responsible
for compliance could void the user's
authority to operate the device.
Information
Radio frequency radiation exposure
information:
This equipment complies with FCC
radiation exposure limits set forth for an
uncontrolled environment.
This equipment should be installed and
operated with minimum distance of 8 in.
(20 cm) between the radiator (antenna)
and your body.
This transmitter must not be co-located or
operating in conjunction with any other
antenna or transmitter.

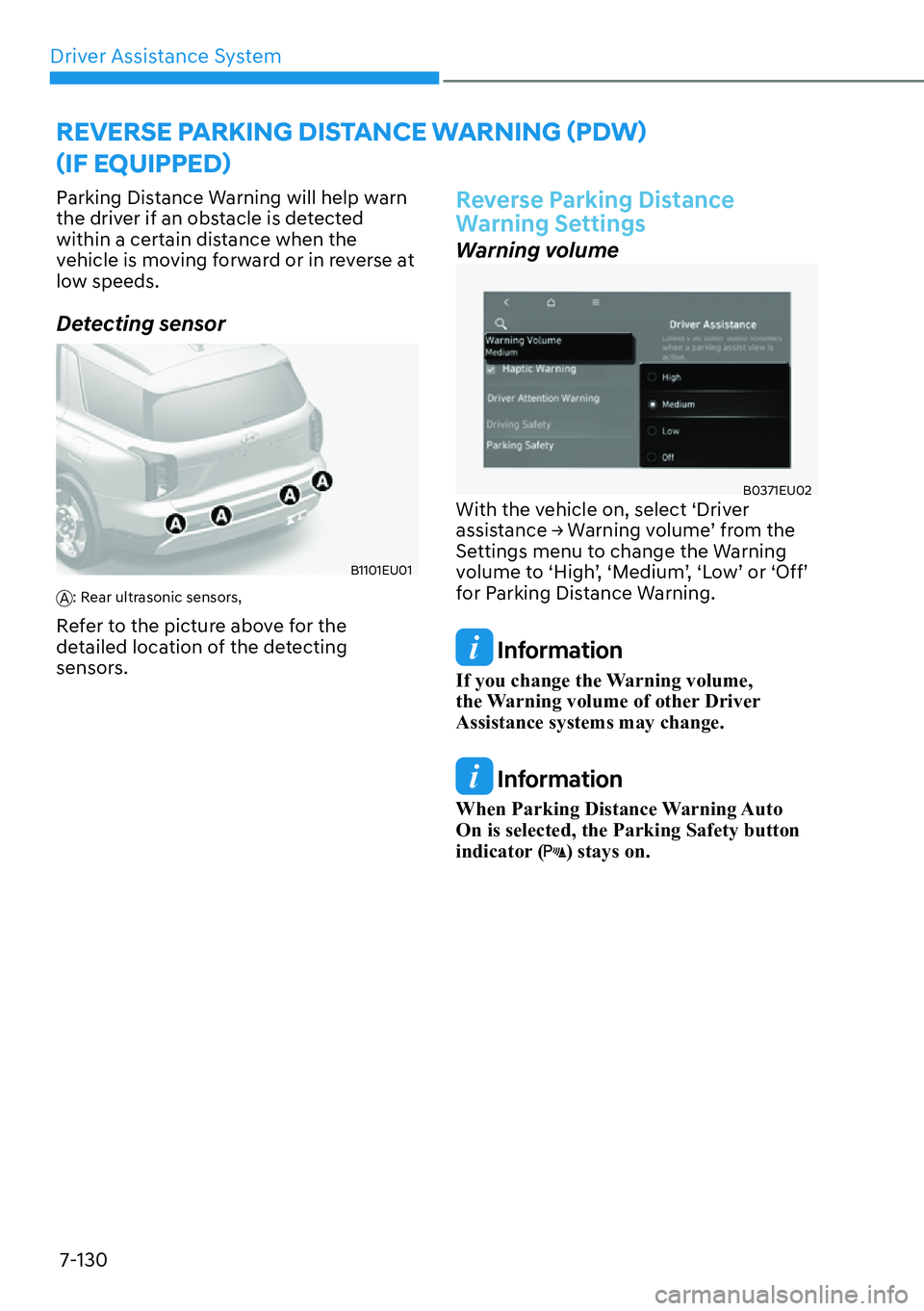

Driver Assistance System7-130
5(9(56(3$5.,1*',67$1&(:$51,1*

07
7-131
Parking Distance Warning
Operation
Parking Safety button
B0376KO01

[Press the Parking Safety () button
to turn on Forward/Reverse Parking
Distance Warning. Press the button
again to turn off the function.

[ When the gear is shift to R (Reverse),
Parking Distance Warning will
automatically turn on (Parking Safety
button indicator on).

[ When the gear is in R (Reverse),
Parking Distance Warning does not
turn off even if the Parking Safety
button (
) is pressed.
Reverse Parking Distance Warning
Reverse Parking Distance Warning will
operate under the following conditions.

[The gear is shifted to R (Reverse).

[ Vehicle speed is below 6 mph (10
km/h).
Distance
from object Warning
indicator when
driving
backward Warning
sound
24~48 in.
(

60~120cm)Buzzer beeps
intermittently
12~24 in.
(30~60cm)
Beeps more frequently
within 12 in. (30 cm)
Beeps
continuously

[ The corresponding indicator will
illuminate whenever each ultrasonic
sensor detects a person, animal or
object in its sensing range. Also an
audible warning will sound.

[ When more than two objects are
detected at the same time, the closest
one will be warned with an audible
warning.

[ The shape of the indicator in the
illustration may differ from the actual
vehicle.

Driver Assistance System7-132
Reverse Parking Distance
Warning Malfunction and
Limitations
Parking Distance Warning
malfunction
After starting the vehicle, a beep will
sound when the gear is shifted to R
(Reverse) to indicate Parking Distance
Warning is operating properly.
However, if one or more of the following
occurs, first check whether the ultrasonic
sensor is damaged or blocked with
foreign material. If it still does not work
properly, have the vehicle inspected by
an authorized HYUNDAI dealer.

[ The audible warning does not sound.

[ The buzzer sounds intermittently.

[ The ‘Ultrasonic sensor error or
blockage’ warning message appears
on the cluster.
B0377EU01
B1103EU01
Parking Distance Warning disabled
B0377EU03If this occurs the ‘Parking Distance
Warning system limited. Ultrasonic
sensor blocked’ warning message
appears on the instrument cluster.
Parking Distance Warning will operate
properly when snow, rain or foreign
material is removed. If Parking Distance
Warning does not operate properly
after obstruction (snow, rain, or foreign
material) is removed (including trailer,
carrier, etc., from the rear bumper), have
the vehicle inspected by an authorized
HYUNDAI dealer.

07
7-133
Limitations of Parking Distance
Warning

[Parking Distance Warning may not
operate properly when:
- Moisture is frozen to the sensor
- Sensor is covered with foreign substance, such as snow or water
(Parking Distance Warning will
operate properly when such
substance is removed.)

- The weather is extremely hot or cold
- The sensor or sensor assembly is disassembled
- The surface of the sensor is pressed hard or hit with a hard object
- The surface of the sensor is scratched with a sharp object
- The sensors or its surrounding area is directly sprayed with high
pressure washer

[ Parking Distance Warning may
malfunction when:

- Heavy rain or water spray is present
- Water flows on the surface of the sensor
- Affected by another vehicle’s sensors
- The sensor is covered with snow or ice
- Driving on uneven road, gravel roads or bushes
- Objects that generates ultrasonic waves are near the sensor
- License plate is installed in a different spot from the original
location
- The vehicle bumper height or ultrasonic sensor installation has
been modified
- Attaching equipment or accessories next to the ultrasonic sensors
[
The following objects may not be
detected:

- Sharp or slim objects, such as ropes,
chains or small poles.
- Narrow objects, such as corners of a square column
- Objects, which tend to absorb sensor frequency, such as clothes,
spongy material or snow.
- Objects smaller than 40 in. (100 cm) in length and narrower than 6 in. (14
cm) in diameter.
- Pedestrians, animals or objects that are very close to the ultrasonic
sensors

Driver Assistance System7-134
WARNING

[ Parking Distance Warning is
a supplemental function. The
operation of Parking Distance
Warning can be affected by several
factors (including environmental
conditions). It is the responsibility of
the driver to always check the front
and rear views before and whilst
parking.

[ Your new vehicle warranty does not
cover any accidents or damage to
the vehicle due to the malfunction of
Parking Distance Warning.

[ Pay close attention when driving
near objects, pedestrians, and
especially children. Some objects
may not be detected by the
ultrasonic sensors, due to the objects
distance, size or material, all of
which can limit the effectiveness of
the sensor.

[ Parking Distance Warning does not
warn you in the order of detection.
It varies depending on the speed of
the vehicle or the shape of a person,
animal, or object.

[ If the Parking Distance Warning
does not operate properly, have the
vehicle inspected by an authorized
HYUNDAI dealer.
