2023 HYUNDAI PALISADE Owners Manual

07
7-31
Lane Keeping Assist Malfunction
and Limitations
Lane Keeping Assist malfunction
B0317EU02
When Lane Keeping Assist is not working
properly, the ‘Check Lane Safety system’
warning message will appear and the
yellow
indicator light will illuminate
on the cluster. If this occurs, have the
vehicle inspected by an authorized
HYUNDAI dealer.
Limitations of Lane Keeping Assist
Lane Keeping Assist may not operate
properly or may operate unexpectedly
under the following circumstances:

[ The lane is contaminated or difficult
to detect because:
- The lane markings (or road edge) are covered with rain, snow, dirt,
oil, etc.
- The color of the lane marking (or road edge) is not distinguishable
from the road
- There are markings (or road edges) on the road near the lane
or the markings (or road edges) on
the road look similar to the lane
markings (or road edge)
- The lane marking (or road edge) is indistinct or damaged
- The shadow is on the lane marking (or road edge) by a median strip,
trees, guardrail, noise barriers, etc.
[
The lane number increases or
decreases, or the lane markings (or
road edges) are crossing

[ There are more than two lane
markings (or road edges) on the road

[ The lane markings (or road edges) are
complicated or a structure substitutes
for the lines, such as a construction
area

[ There are road markings, such as
zigzag lanes, crosswalk markings and
road signs

[ The lane suddenly disappears, such as
at the intersection

[ The lane (or road width) is very wide
or narrow

[ There is a road edge without a lane

[ There is a boundary structure in the
roadway, such as a tollgate, sidewalk,
curb, etc.

[ The distance to the front vehicle is
extremely short or the vehicle in front
is covering the lane marking (or road
edge)
Information
For more details on the limitations of the
front view camera, refer to “Forward
Collision-Avoidance Assist (FCA)” section
in this chapter.

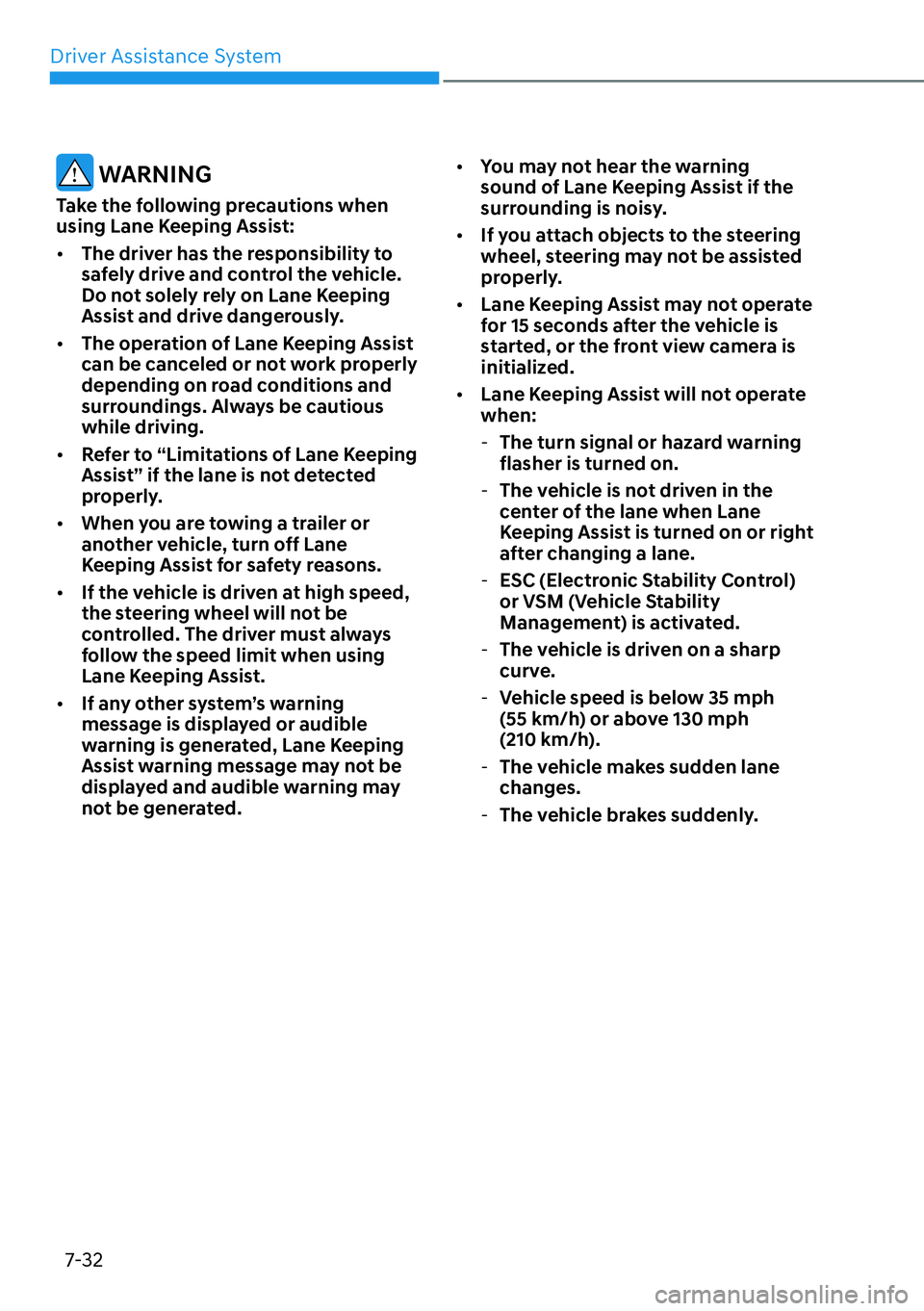

Driver Assistance System7-32
WARNING
Take the following precautions when
using Lane Keeping Assist:

[ The driver has the responsibility to
safely drive and control the vehicle.
Do not solely rely on Lane Keeping
Assist and drive dangerously.

[ The operation of Lane Keeping Assist
can be canceled or not work properly
depending on road conditions and
surroundings. Always be cautious
while driving.

[ Refer to “Limitations of Lane Keeping
Assist” if the lane is not detected
properly.

[ When you are towing a trailer or
another vehicle, turn off Lane
Keeping Assist for safety reasons.

[ If the vehicle is driven at high speed,
the steering wheel will not be
controlled. The driver must always
follow the speed limit when using
Lane Keeping Assist.

[ If any other system’s warning
message is displayed or audible
warning is generated, Lane Keeping
Assist warning message may not be
displayed and audible warning may
not be generated.
[
You may not hear the warning
sound of Lane Keeping Assist if the
surrounding is noisy.

[ If you attach objects to the steering
wheel, steering may not be assisted
properly.

[ Lane Keeping Assist may not operate
for 15 seconds after the vehicle is
started, or the front view camera is
initialized.

[ Lane Keeping Assist will not operate
when:
- The turn signal or hazard warning
flasher is turned on.
- The vehicle is not driven in the
center of the lane when Lane
Keeping Assist is turned on or right
after changing a lane.
- ESC (Electronic Stability Control)
or VSM (Vehicle Stability
Management) is activated.
- The vehicle is driven on a sharp
curve.
- Vehicle speed is below 35 mph
(55 km/h) or above 130 mph
(210 km/h).
- The vehicle makes sudden lane
changes.
- The vehicle brakes suddenly.

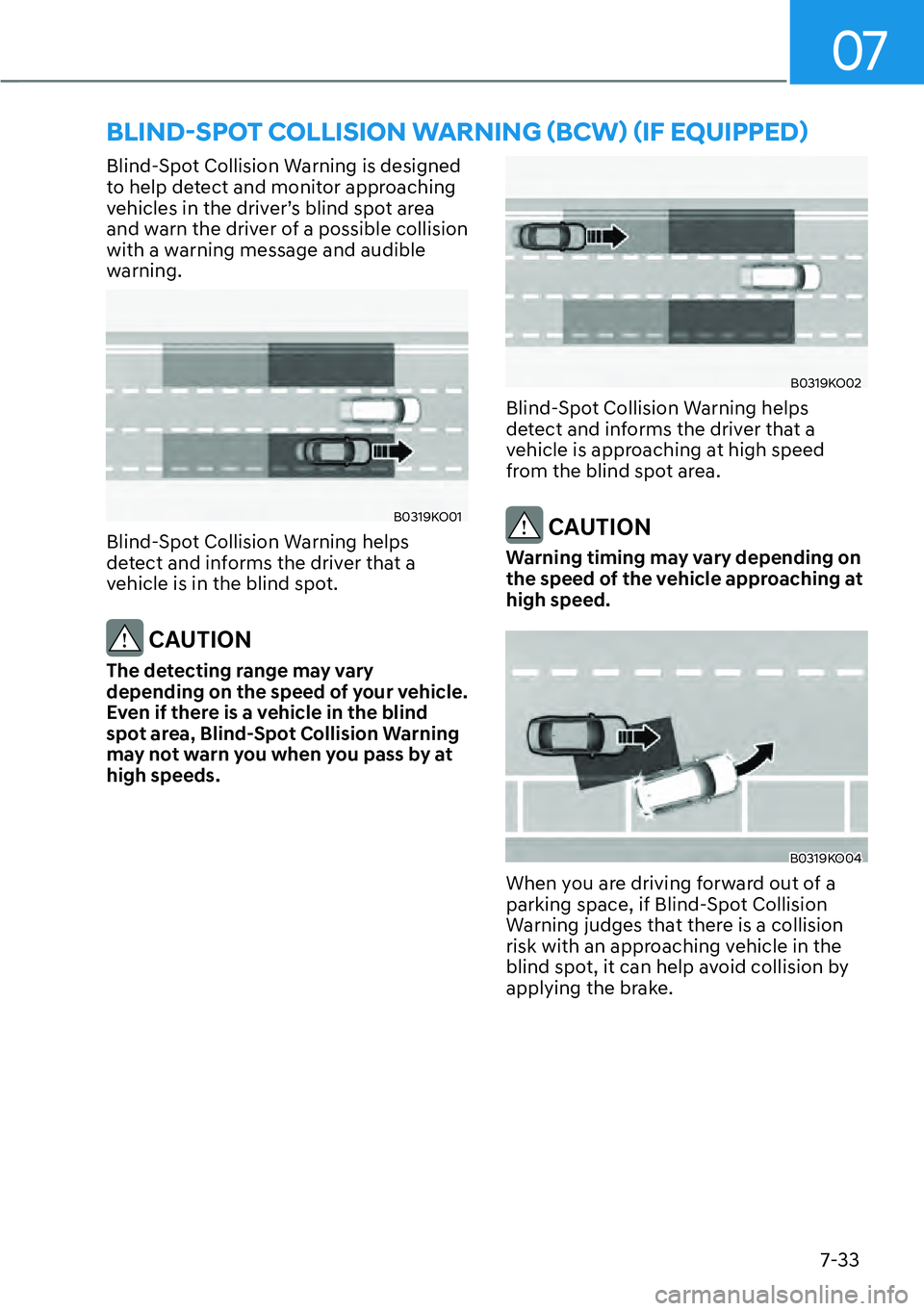

07
7-33
%/,1'

Driver Assistance System7-34
Detecting sensor
B0323KO03
A: Rear corner radar
Refer to the picture above for the
detailed location of the detecting
sensors.
CAUTION
Take the following precautions to
maintain optimal performance of the
detecting sensor:

[ Never disassemble the rear corner
radar or radar assembly, or cause any
damage to it.

[ If the rear corner radar or near the
radar has been damaged or impacted
in any way, even though the warning
message does not appear on the
cluster, Blind-Spot Collision Warning
may not operate properly. Have the
vehicle inspected by an authorized
HYUNDAI dealer.
[
If the rear corner radars have been
replaced or repaired, have the
vehicle inspected by an authorized
HYUNDAI dealer.

[ Use only genuine HYUNDAI parts to
repair the rear bumper where the
rear corner radar is located.

[ Rear bumper genuine parts with
rear corner radars have proven their
performance. Replacing or painting
the rear bumper may result in poor
performance of Blind-Spot Collision
Warning. When the parts need to be
replaced or modified, make sure to
use qualified products.

[ Do not apply license plate frame or
objects, such as a bumper sticker,
film or a bumper guard near the rear
corner radar.

[ Blind-Spot Collision Warning may
not work properly if the bumper has
been replaced, or the surroundings
of the rear corner radar have been
damaged or paint has been applied.

[ If a trailer, carrier, etc., is installed,
it may adversely affect the
performance of the rear corner radar
or Blind-Spot Collision Warning may
not operate.

07
7-35
Blind-Spot Collision Warning
Settings
Blind-Spot Safety
B0320EU01
With the engine on, select or deselect

S'ULYHU$VVLVWDQFH

Driver Assistance System7-36
Warning Volume
B0312EU05
With the engine on, select ‘Driver
$VVLVWDQFH

07
7-37
WARNING

[The detecting range of the rear
corner radar is determined by a
standard road width, therefore, on
a narrow road, Blind-Spot Collision
Warning may detect other vehicles
two lanes over and warn you. In
contrast, on a wide road, Blind-Spot
Collision Warning may not be able to
detect a vehicle driving in the next
lane and may not warn you.

[ When the hazard warning flasher is
on, the collision warning by the turn
signal will not operate.
Information
The images and colors in the instrument
cluster may differ depending on the cluster
type or theme selected from the settings
menu.
Collision-avoidance assist (while
parallel parking exit)
B0321EU01

[To warn the driver of a collision, the
warning light on the side view mirror
will blink and a warning message
will appear on the cluster. At the
same time, an audible warning will
sound, warning light on the head-up
display (if equipped) will blink and the
steering wheel will vibrate.

[ Emergency braking will be assisted to
help prevent collision with the vehicle
in the blind spot area.

[ Blind-Spot Collision Warning will
operate when your vehicle speed is
below 2 mph (3 km/h) and the speed
of the vehicle in the blind spot area is
above 3 mph (5 km/h).

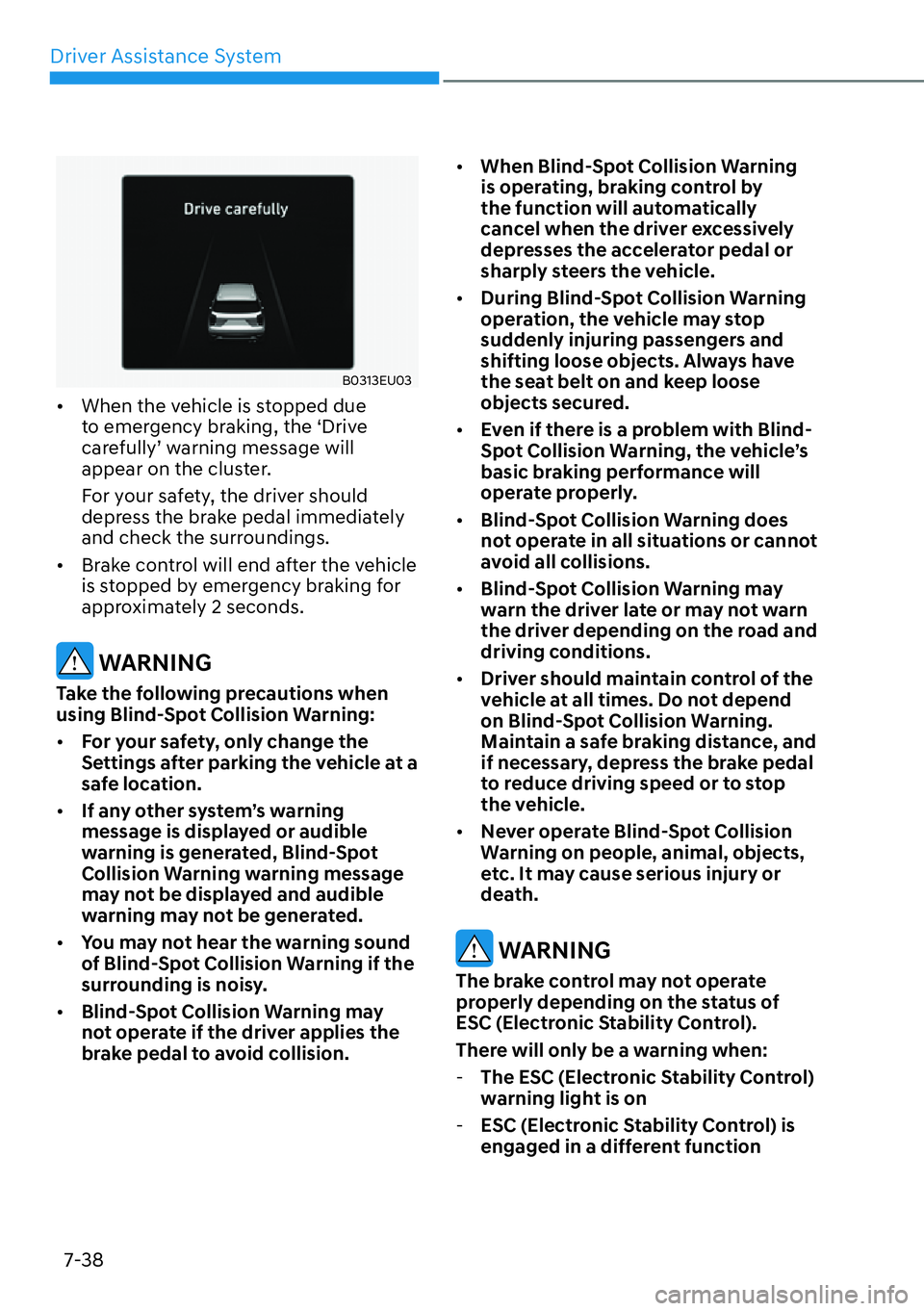

Driver Assistance System7-38
B0313EU03

[ When the vehicle is stopped due
to emergency braking, the ‘Drive
carefully’ warning message will
appear on the cluster.
For your safety, the driver should
depress the brake pedal immediately
and check the surroundings.

[ Brake control will end after the vehicle
is stopped by emergency braking for
approximately 2 seconds.
WARNING
Take the following precautions when
using Blind-Spot Collision Warning:

[For your safety, only change the
Settings after parking the vehicle at a
safe location.

[ If any other system’s warning
message is displayed or audible
warning is generated, Blind-Spot
Collision Warning warning message
may not be displayed and audible
warning may not be generated.

[ You may not hear the warning sound
of Blind-Spot Collision Warning if the
surrounding is noisy.

[ Blind-Spot Collision Warning may
not operate if the driver applies the
brake pedal to avoid collision.
[
When Blind-Spot Collision Warning
is operating, braking control by
the function will automatically
cancel when the driver excessively
depresses the accelerator pedal or
sharply steers the vehicle.

[ During Blind-Spot Collision Warning
operation, the vehicle may stop
suddenly injuring passengers and
shifting loose objects. Always have
the seat belt on and keep loose
objects secured.

[ Even if there is a problem with Blind-
Spot Collision Warning, the vehicle’s
basic braking performance will
operate properly.

[ Blind-Spot Collision Warning does
not operate in all situations or cannot
avoid all collisions.

[ Blind-Spot Collision Warning may
warn the driver late or may not warn
the driver depending on the road and
driving conditions.

[ Driver should maintain control of the
vehicle at all times. Do not depend
on Blind-Spot Collision Warning.
Maintain a safe braking distance, and
if necessary, depress the brake pedal
to reduce driving speed or to stop
the vehicle.

[ Never operate Blind-Spot Collision
Warning on people, animal, objects,
etc. It may cause serious injury or
death.
WARNING
The brake control may not operate
properly depending on the status of
ESC (Electronic Stability Control).
There will only be a warning when:
- The ESC (Electronic Stability Control)
warning light is on
- ESC (Electronic Stability Control) is
engaged in a different function
