2023 HYUNDAI PALISADE Owners Manual

07
7-23
WARNING

[Driving on a curved road
B0349KO07
B0314KO07
Forward Collision-Avoidance Assist
may not detect other vehicles,
pedestrians or cyclists in front of
you when driving on curved roads
adversely affecting the performance
of the sensors. This may result in no
warning, braking assist or steering
assist when necessary.
When driving on a curve, you must
maintain a safe braking distance,
and if necessary, steer the vehicle
and depress the brake pedal to
reduce your driving speed in order to
maintain a safe distance.
B0349KO08
B0314KO09
Forward Collision-Avoidance Assist
may detect a vehicle, pedestrian or
cyclist in the next lane or outside the
lane when driving on a curved road.
If this occurs, Forward Collision-
Avoidance Assist may unnecessarily
warn the driver and control the brake
or steering wheel. Always check the
traffic conditions around the vehicle.

Driver Assistance System7-24

[ Driving on an inclined road
B0314KO11
B0314KO12
B0314KO13
Forward Collision-Avoidance Assist
may not detect other vehicles,
pedestrians or cyclists in front of
you while driving uphill or downhill,
adversely affecting the performance
of the sensors.
This may result in unnecessary
warning, braking assist or steering
assist or no warning, braking assist
or steering assist (if equipped) when
necessary.
Also, vehicle speed may rapidly
decrease when a vehicle, pedestrian
or cyclist ahead is suddenly
detected.
Always have your eyes on the road
while driving uphill or downhill and
if necessary, steer your vehicle and
depress the brake pedal to reduce
your driving speed in order to
maintain a safe distance.

07
7-25

[Changing lanes
B0314KO14A: Your vehicle,
B: Lane changing vehicle
When a vehicle moves into your lane
from an adjacent lane, it cannot
be detected by the sensor until it
is in the sensor's detection range.
Forward Collision-Avoidance Assist
may not immediately detect the
vehicle when the vehicle changes
lanes abruptly. In this case, you must
maintain a safe braking distance,
and if necessary, steer your vehicle
and depress the brake pedal to
reduce your driving speed in order to
maintain a safe distance.
B0314KO15A: Your vehicle,
B: Lane changing vehicle,
C: Same lane vehicle
When a vehicle in front of you
merges out of the lane, Forward
Collision-Avoidance Assist may not
immediately detect the vehicle that
is now in front of you. In this case,
you must maintain a safe braking
distance, and if necessary, steer your
vehicle and depress the brake pedal
to reduce your driving speed in order
to maintain a safe distance.

Driver Assistance System7-26

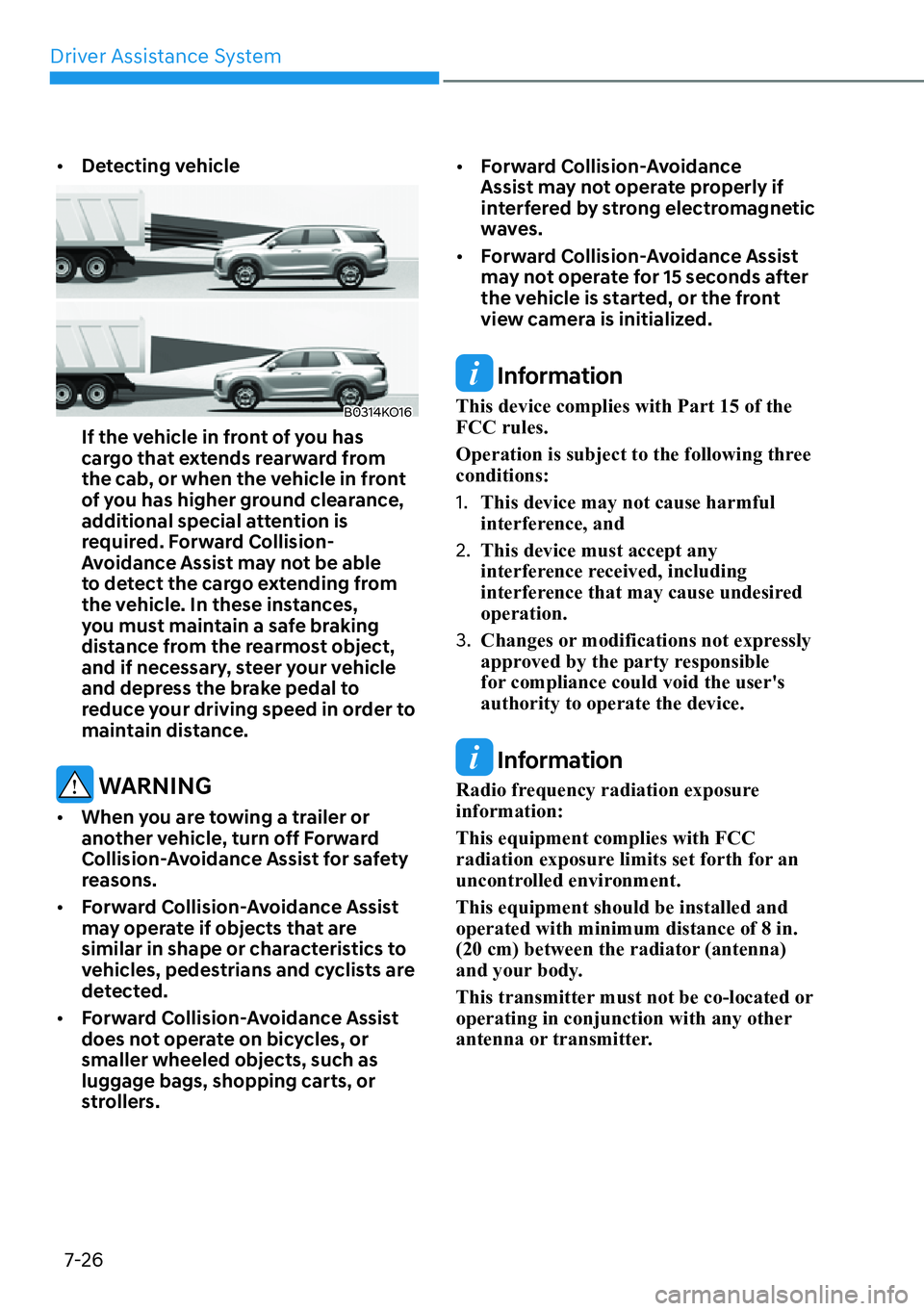

[ Detecting vehicle
B0314KO16
If the vehicle in front of you has
cargo that extends rearward from
the cab, or when the vehicle in front
of you has higher ground clearance,
additional special attention is
required. Forward Collision-
Avoidance Assist may not be able
to detect the cargo extending from
the vehicle. In these instances,
you must maintain a safe braking
distance from the rearmost object,
and if necessary, steer your vehicle
and depress the brake pedal to
reduce your driving speed in order to
maintain distance.
WARNING

[When you are towing a trailer or
another vehicle, turn off Forward
Collision-Avoidance Assist for safety
reasons.

[ Forward Collision-Avoidance Assist
may operate if objects that are
similar in shape or characteristics to
vehicles, pedestrians and cyclists are
detected.

[ Forward Collision-Avoidance Assist
does not operate on bicycles, or
smaller wheeled objects, such as
luggage bags, shopping carts, or
strollers.
[
Forward Collision-Avoidance
Assist may not operate properly if
interfered by strong electromagnetic
waves.

[ Forward Collision-Avoidance Assist
may not operate for 15 seconds after
the vehicle is started, or the front
view camera is initialized.
Information
This device complies with Part 15 of the
FCC rules.
Operation is subject to the following three
conditions:
1. This device may not cause harmful
interference, and
2. This device must accept any
interference received, including
interference that may cause undesired
operation.
3. Changes or modifications not expressly
approved by the party responsible
for compliance could void the user's
authority to operate the device.
Information
Radio frequency radiation exposure
information:
This equipment complies with FCC
radiation exposure limits set forth for an
uncontrolled environment.
This equipment should be installed and
operated with minimum distance of 8 in.
(20 cm) between the radiator (antenna)
and your body.
This transmitter must not be co-located or
operating in conjunction with any other
antenna or transmitter.

07
7-27
/$1(.((3,1*$66,67

Driver Assistance System7-28
Warning Volume
B0312EU05
With the engine on, select ‘Driver
$VVLVWDQFH

07
7-29

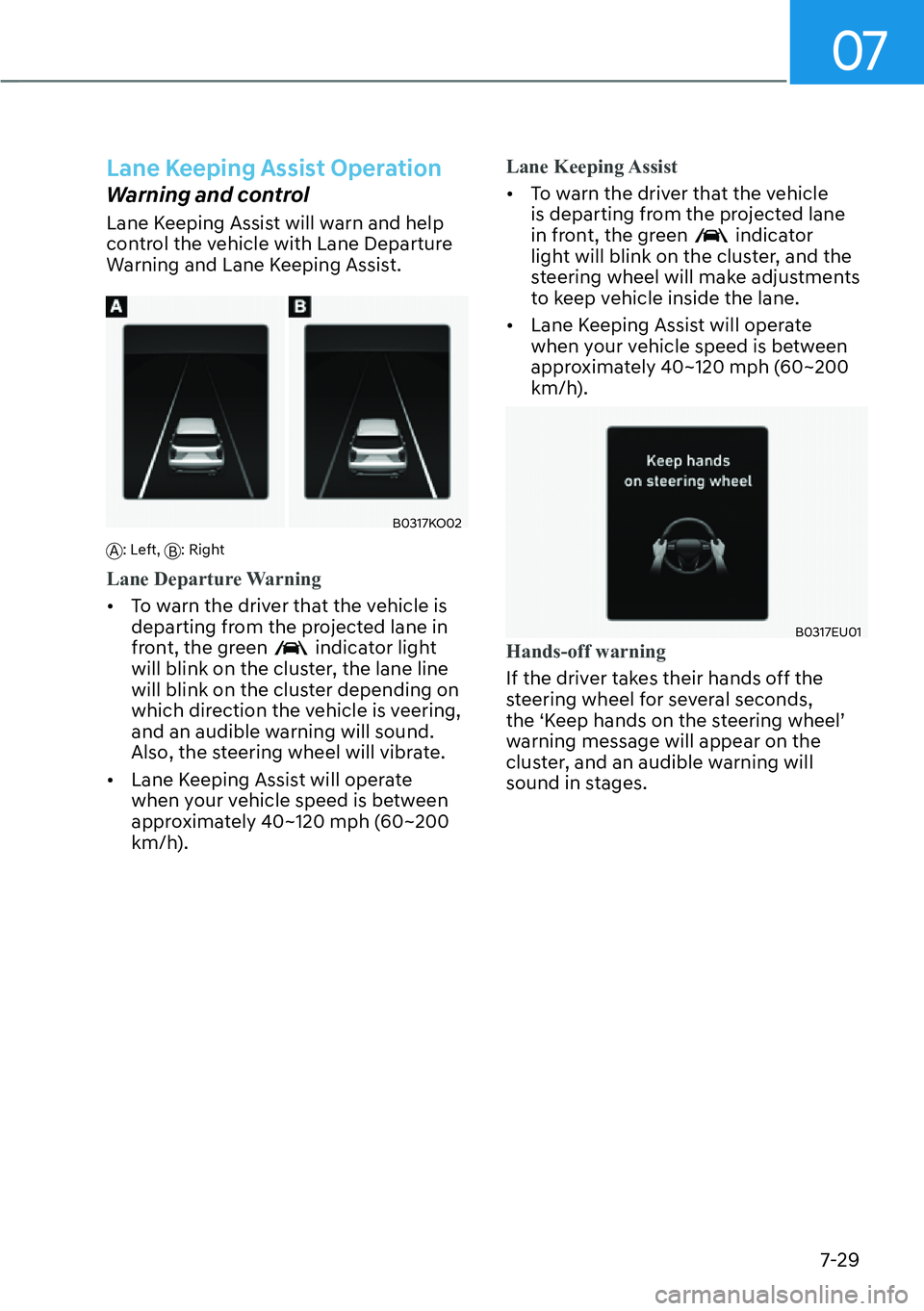

Lane Keeping Assist Operation
Warning and control
Lane Keeping Assist will warn and help
control the vehicle with Lane Departure
Warning and Lane Keeping Assist.
B0317KO02
A: Left, B: Right
Lane Departure Warning

[T
o warn the driver that the vehicle is
departing from the projected lane in
front, the green
indicator light
will blink on the cluster, the lane line
will blink on the cluster depending on
which direction the vehicle is veering,
and an audible warning will sound.
Also, the steering wheel will vibrate.

[ Lane Keeping Assist will operate
when your vehicle speed is between
approximately 40~120 mph (60~200
km/h). Lane Keeping Assist

[
T
o warn the driver that the vehicle
is departing from the projected lane
in front, the green
indicator
light will blink on the cluster, and the
steering wheel will make adjustments
to keep vehicle inside the lane.

[ Lane Keeping Assist will operate
when your vehicle speed is between
approximately 40~120 mph (60~200
km/h).
B0317EU01Hands-off warning
If the driver takes their hands off the
s

teering wheel for several seconds,
the ‘Keep hands on the steering wheel’
warning message will appear on the
cluster, and an audible warning will
sound in stages.

Driver Assistance System7-30
WARNING

[ The steering wheel may not be
assisted if the steering wheel is held
very tight or the steering wheel is
steered over a certain degree.

[ Lane Keeping Assist does not operate
at all times. It is the responsibility of
the driver to safely steer the vehicle
and to maintain the vehicle in its
lane.

[ The hands–off warning message
may appear late depending on road
conditions. Always have your hands
on the steering wheel while driving.

[ If the steering wheel is held very
lightly, the hands–off warning
message may appear because Lane
Keeping Assist may not recognize
that the driver has their hands on the
steering wheel.

[ If you attach objects to the steering
wheel, the hands-off warning may
not work properly.
Information

[For more details on instrument cluster
settings, refer to “LCD display control”
section in chapter 4.

[ When lane markings (or road edges)
are detected, the lane lines on the
cluster will change from grey to white
and the green
indicator light will
illuminate.

[ When the lane markings (or road
edges) are detected and Highway Lane
Change Assist is on, the lane lines on
the cluster may change to green.
B0317KO04
A: Lane undetected,
B: Lane detected

[The images and colors in the cluster
may differ depending on the cluster
type or theme selected from the cluster.

[ Even though the steering is assisted by
Lane Keeping Assist, the driver may
control the steering wheel.

[ The steering wheel may feel heavier
or lighter when the steering wheel is
assisted by Lane Keeping Assist than
when it is not.
