6. Draw out the retainer guide M through
the center hole of the spare tire.
To store the spare tire:
1. Lay the tire on the ground with the valve stem facing up.
2. Place the wheel under the vehicle and install the retainer guide and chain
through the wheel center.
3. Turn the wrench clockwise until it clicks.
CAUTION
Ensure the spare tire retainer guide is
properly aligned with the center of the
spare tire to prevent the spare tire from
“rattling”.
Otherwise, it may cause the spare tire
to fall off the carrier and lead to an
accident.
Changing Tires
WARNING
A vehicle can slip or roll off of a jack
causing serious injury or death to you or
those nearby. Take the following safety
precautions:

[Never place any portion of your body
under a vehicle that is supported by
a jack.

[ NEVER attempt to change a tire in
the lane of traffic. ALWAYS move the
vehicle completely off the road on
level, firm ground away from traffic
before trying to change a tire. If you
cannot find a level, firm place off
the road, call a towing service for
assistance.

[ Be sure to use the jack provided with
the vehicle.

[ ALWAYS place the jack on the
designated jacking positions on the
vehicle and NEVER on the bumpers
or any other part of the vehicle for
jacking support.

[ Do not start or run the engine while
the vehicle is on the jack.

[ Do not allow anyone to remain in the
vehicle while it is on the jack.

[ Keep children away from the road
and the vehicle.

Emergency Situations8-16
Follow these steps to change your
vehicle’s tire:
1. Park on a level, firm surface.
2. Move the shift button into P (Park), apply the parking brake, and place the
ignition switch or press Engine Start/
Stop button in the LOCK/OFF position.
3. Press the hazard warning flasher button.
4. Remove the wheel lug nut wrench, jack, jack handle and spare tire from
the vehicle.
5. Block both the front and rear of the tire diagonally opposite of the tire you
are changing.
B0413EU11
6. Loosen the wheel lug nuts counterclockwise one turn each in
the order shown above, but do not
remove any lug nuts until the tire has
been raised off of the ground.
B0413EU12
A: Rear, B: Front
7. Place the jack at the designated
jacking position under the frame
closest to the tire you are changing.
The jacking positions are plates
welded to the frame with two
notches. Never jack at any other
position or part of the vehicle. Doing
so may damage the side seal molding
or other parts of the vehicle.

08
8-17
B0413EU13
8. Insert the jack handle into the jack and turn it clockwise, raising the
vehicle until the tire clears the ground.
Make sure the vehicle is stable on the
jack.
9. Loosen the lug nuts with the wheel lug nut wrench and remove them with
your fingers. Remove the wheel from
the studs and lay it flat on the ground
out of the way. Remove any dirt or
debris from the studs, mounting
surfaces, and wheel.
10. Install the spare tire onto the studs of the hub.
11. Tighten the lug nuts with your fingers onto the studs with the smaller end of
the lug nuts closest to the wheel.
12. Lower the vehicle to the ground by turning the jack handle
counterclockwise.
B0413EU10
13. Use the wheel lug nut wrench to tighten the lug nuts in the order
shown. Double-check each lug nut
until they are tight. After changing
tires, have an authorized HYUNDAI
dealer tighten the lug nuts to their
proper torque as soon as possible. The
wheel lug nut should be tightened to
11~13 kgf·m (79~94 lbf·ft).
If you have a tire gauge, check the
tire pressure (see “Tires and Wheels”
section in chapter 2 for tire pressure
instructions.). If the pressure is lower or
higher than recommended, drive slowly
to the nearest service station and adjust
it to the recommended pressure. Always
reinstall the valve cap after checking
or adjusting tire pressure. If the cap
is not replaced, air may leak from the
tire. If you lose a valve cap, buy another
and install it as soon as possible. After
changing tires, secure the flat tire and
return the jack and tools to their proper
storage locations.

Emergency Situations8-18
NOTICE

[ Check the tire pressure as soon
as possible after installing a spare
tire. Adjust it to the recommended
pressure.

[ Check and tighten the wheel lug nuts
after driving over 50 km (30 mile) if
tires are replaced. Recheck the tire
wheel lug nuts after driving over
1,000 km (600 mile).
CAUTION
Your vehicle has metric threads on the
studs and wheel bolts. Make certain
during tire changing that the same bolts
that were removed are reinstalled. If
you have to replace your wheel bolts
make sure they have metric threads to
avoid damaging the studs and ensure
the wheel is properly secured to the
hub. Consult an authorized HYUNDAI
dealer for assistance.
If any of the equipment such as the jack,
wheel nuts, studs, or other equipment
is damaged or in poor condition, do not
attempt to change the tire and call for
assistance.
Use of compact spare tires
Compact spare tires are designed for
emergency use only. Drive carefully on
the compact spare tire and always follow
the safety precautions.
WARNING
To prevent compact spare tire failure
and loss of control possibly resulting in
an accident:

[Use the compact spare tire only in an
emergency.

[ NEVER operate your vehicle over 50
mph (80 km/h).

[ Do not exceed the vehicle’s
maximum load rating or the load
carrying capacity shown on the
sidewall of the compact spare tire.

[ Do not use the compact spare tire
continuously. Repair or replace the
original tire as soon as possible to
avoid failure of the compact spare
tire.

08
8-19
When driving with the compact spare tire
mounted to your vehicle:

[Check the tire pressure after installing
the compact spare tire. The compact
spare tire should be inflated to 60 psi
(420 kPa).

[ Do not take this vehicle through
an automatic car wash while the
compact spare tire is installed.

[ Do not use the compact spare tire on
any other vehicle because this tire
has been designed especially for your
vehicle.

[ The compact spare tire’s tread life is
shorter than a regular tire. Inspect
your compact spare tire regularly and
replace worn compact spare tires with
the same size and design, mounted on
the same wheel.

[ Do not use more than one compact
spare tire at a time.

[ Do not tow a trailer while the compact
spare tire is installed.NOTICE
When the original tire and wheel are
repaired and reinstalled on the vehicle,
the lug nut torque must be set correctly.
The correct lug nut tightening torque is
79~94 lbf·ft (11~13 kgf·m).
NOTICE
To prevent damaging the compact
spare tire and your vehicle:

[Drive slowly enough for the road
conditions to avoid all hazards, such
as a potholes or debris.

[ Avoid driving over obstacles. The
compact spare tire diameter is
smaller than the diameter of a
conventional tire and reduces the
ground clearance approximately 1
inch (25 mm).

[ Do not use tire chains on the
compact spare tire. Because of the
smaller size, a tire chain will not fit
properly.

[ Do not use the compact spare tire
on any other wheels, nor should
standard tires, snow tires, wheel
covers or trim rings be used with the
compact spare wheel.

[ Do not suddenly accelerate or
decelerate (0 - 25 mph (0 - 40 km/h))
in any driving mode. It may cause
leakage of transfer oil.

Emergency Situations8-20
Jack Label
OOS067043
The actual Jack label in the vehicle may differ from the illustration.
For more detailed specifications, refer to the label attached to the jack.
M Model Name
N Maximum allowable load
O When using the jack, set your parking brake.
P When using the jack, stop the engine.
Q Do not get under a vehicle that is supported by a jack.
R The designated locations under the frame
S When supporting the vehicle, the base plate of jack must be vertical under the lifting point.
T Shift into Reverse gear on vehicles with manual transmission or shift the gear to the P position on vehicles with automatic transmission.
U The jack should be used on firm level ground.
V Jack manufacture
11 Production date
12 Representative company and address

08
8-21

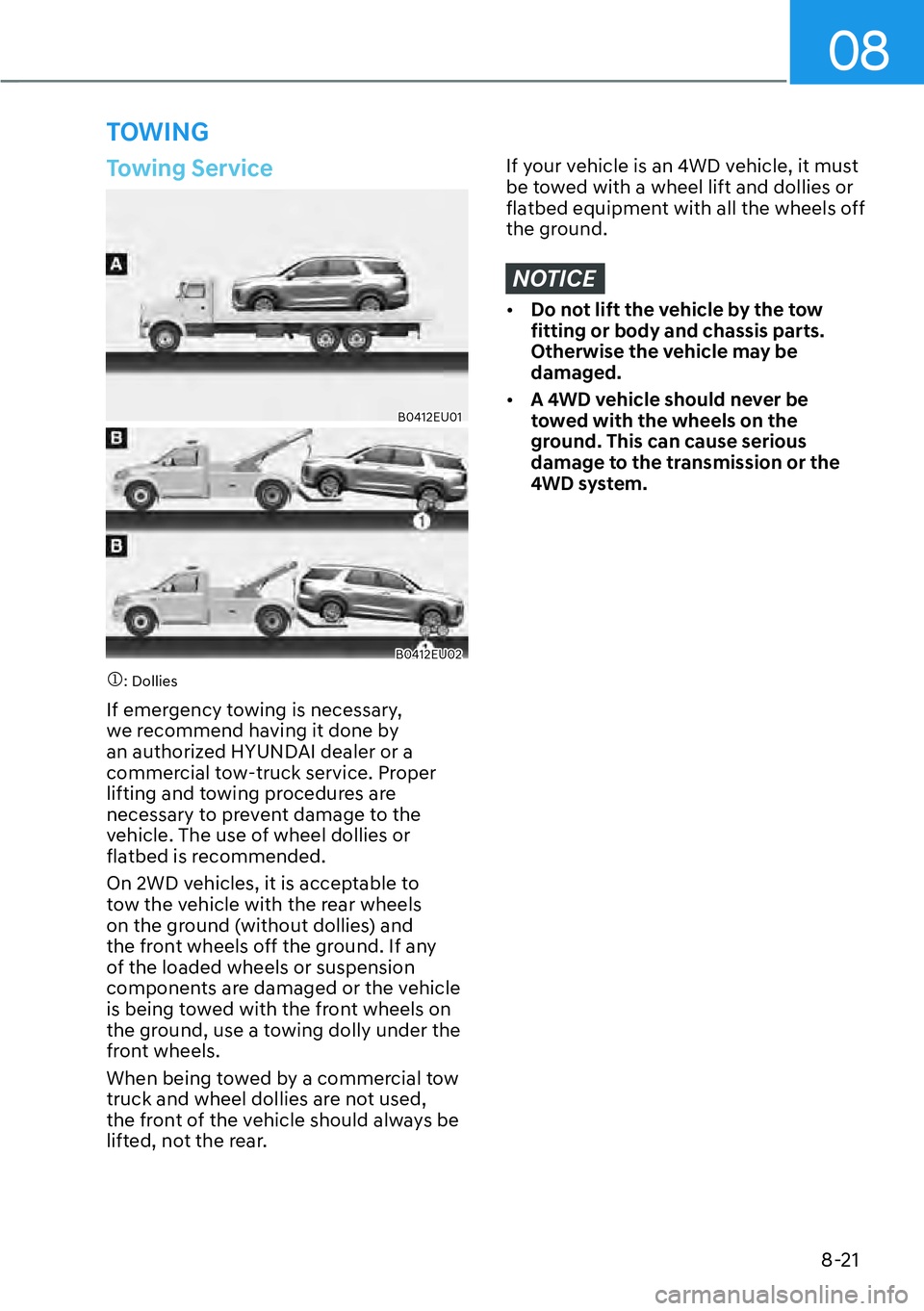

Towing Service
B0412EU01
B0412EU02
M: Dollies
If emergency towing is necessary,
we recommend having it done by
an authorized HYUNDAI dealer or a
commercial tow-truck service. Proper
lifting and towing procedures are
necessary to prevent damage to the
vehicle. The use of wheel dollies or
flatbed is recommended.
On 2WD vehicles, it is acceptable to
tow the vehicle with the rear wheels
on the ground (without dollies) and
the front wheels off the ground. If any
of the loaded wheels or suspension
components are damaged or the vehicle
is being towed with the front wheels on
the ground, use a towing dolly under the
front wheels.
When being towed by a commercial tow
truck and wheel dollies are not used,
the front of the vehicle should always be
lifted, not the rear.
If your vehicle is an 4WD vehicle, it must
be towed with a wheel lift and dollies or
flatbed equipment with all the wheels off
the ground.
NOTICE

[Do not lift the vehicle by the tow
fitting or body and chassis parts.
Otherwise the vehicle may be
damaged.

[ A 4WD vehicle should never be
towed with the wheels on the
ground. This can cause serious
damage to the transmission or the
4WD system.
TOWING

Emergency Situations8-22
CAUTION

[ Do not tow the vehicle with the front
wheels on the ground as this may
cause damage to the vehicle.
B0412EU03

[Do not tow with sling-type
equipment. Use wheel lift or flatbed
equipment.
B0412EU04
WARNING
If your vehicle is equipped with a
rollover sensor, place the ignition
switch or press Engine Start/Stop
button in the LOCK/OFF or ACC position
when the vehicle is being towed.
The side impact and curtain air bag
may deploy if the sensor detects the
situation as a rollover.
When towing your vehicle in an
emergency without wheel dollies:
1. Release EPB before turning off the
engine.
2. Place the ignition switch or press the ignition switch to ON/OFF position.
3. Change the gear to N (Neutral) while pressing the brake pedal. For
more details, refer to “Automatic
Transmission” section in chapter 6.
4. Place the ignition switch to the ACC position.
CAUTION
Failure to shift the gear to N (Neutral)
may cause internal damage to the
transmission.
