2023 HYUNDAI PALISADE Owners Manual

2-4
Vehicle Information, Consumer Information and Reporting Safety Defects
The actual shape may differ from the illustration.
A0003EU01
1. Inside door handle .................................5-32
2. Side view mirror control switch ........... 5-58
3. Central door lock switch ...................... 5-33
4. Power window switches ...................... 5-66
5. Power window lock button/
Electronic child safety lock button ...... 5-69
6. Instrument panel illumination controlswitch .......................................... 4-5
7. Towing button .......................................6-60 8. ESC (Electronic Stability Control) OFF
button .................................................... 6-38
9. Power liftgate open/close button ....... 5-87
10. EPB (Electronic Parking Brake) switch . 6-28
11. Hood release lever ................................ 5-82
12. Steering wheel tilt/telescopic lever .... 5-45
13. Steering wheel ...................................... 5-46
14. Seat .......................................................... 3-3
15. Fuse box ................................................ 9-46
INTERIOR OVERVIEW

2-5
02
1. Instrument cluster .................................. 4-4
2. Horn ....................................................... 5-46
3. Ignition switch, Engine Start/ Stop button ..................................... 6-5, 6-8
4. Hazard warning flasher button .............. 8-2
5. Infotainment system ............................ 5-171
6. Climate control system ............. 5-114, 5-128
7. Shift button ............................................ 6-14
8. Auto Hold button .................................. 6-33
9. Integrated memory system .................. 5-41
10. DBC (Downhill Brake Control) butt on .. 6-43
11. Parking Safety button ........................... 7-131
12. ISG (Idle Stop and Go) button .............. 6-54
13. Parking/View button ............................ 7-112 14. Ventilate seat button ............................ 3-34
15. Warmer seat button ............................. 3-32
16. Steering wheel heater button .............. 5-46
17. Ventilation seat button (2
nd seat) ......... 3-34
18. Warmer seat button (2
nd seat) ............. 3-32
19. Rear climate control system .... 5-120, 5-137
20. Power outlet ......................................... 5-157
21. AC inverter .......................................... 5-159
22. Passenger air bag ................................. 3-62
23. Glove box ............................................. 5-153
24. Light switch ........................................... 5-98
25. Washer/Wiper switch .......................... 5-110
26. Wireless charging system ....................5-161
The actual shape may differ from the illustration.
A0004KO01
,167580(173$1(/29(59,(:

2-6
Vehicle Information, Consumer Information and Reporting Safety Defects

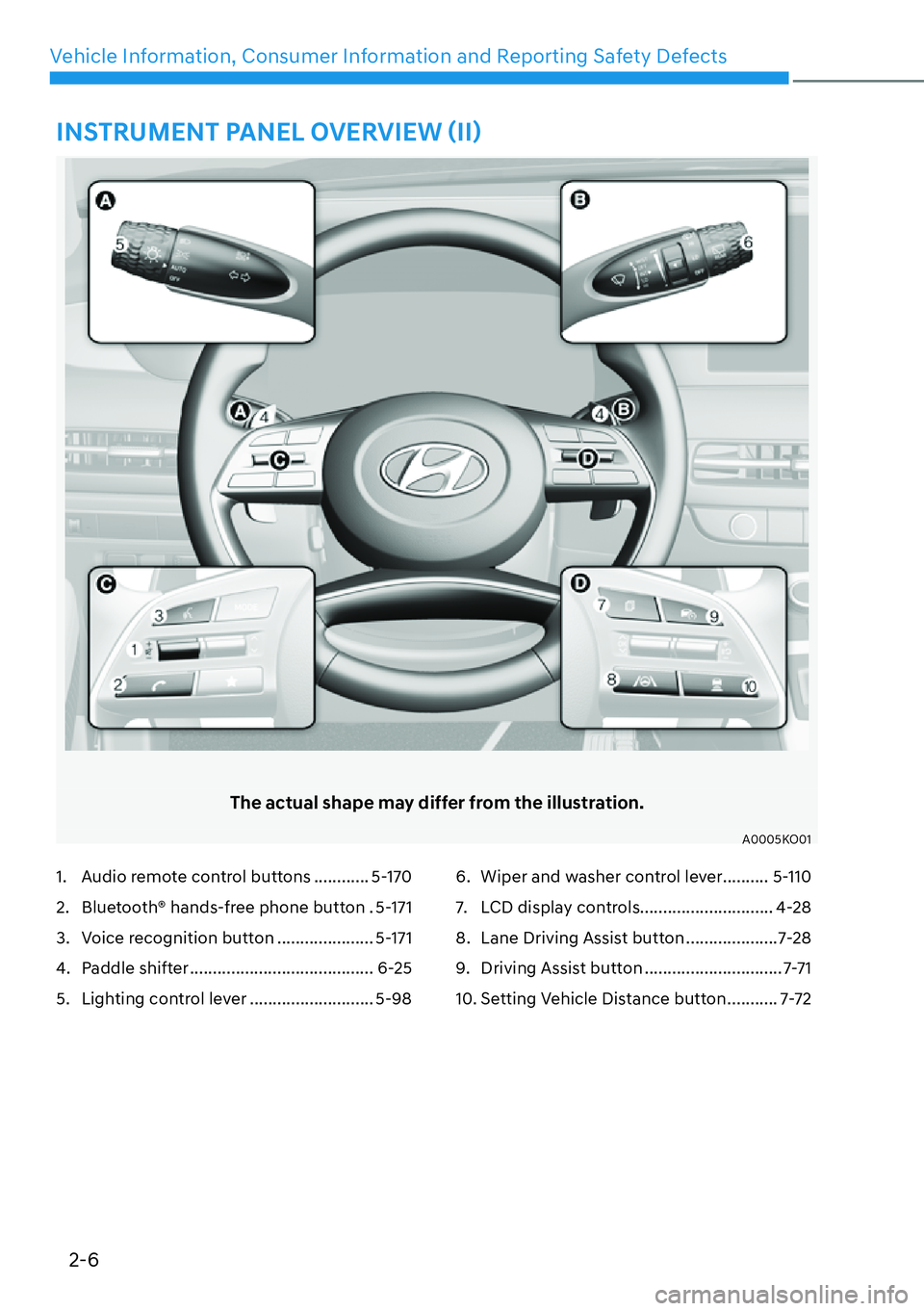

,167580(173$1(/29(59,(:

2-7
02
The actual engine compartment in the vehicle may differ from the illustration.
A0419KO02
1. Engine coolant reservoir ........................ 9-3
2. Radiator cap ...........................................9-18
3. Brake fluid reservoir .............................. 9-21
4. Air cleaner ............................................. 9-23
5. Engine oil filler cap ................................ 9-156. Engine oil dipstick ................................. 9-15
7. Windshield washer fluid reservoir ....... 9-22
8. Fuse/relay box ...................................... 9-46
9. Battery ................................................... 9-28
ENGINE COMPARTMENT

Vehicle Information, Consumer Information and Reporting Safety Defects2-8
Items in (mm)
Overall length 196.65 (4,995)
O
verall width 77.75 (1,975)
Overall height 68.89 (1,750)
Front tread 245/60 R18
67.24 (1,708)
245/50 R20 67.24 (1,708)
Rear tread 245/60 R18
67.56 (1,716)
245/50 R20 67.56 (1,716)
Wheelbase 114.17 (2,900)
ENGINE
EngineDisplacement
cu. in (cc) Bore x Stroke
in. (mm) No. of
cylinders Firing order
3.8 GDI 230.55 (3,778) 3.
78 x 3.43
(96 x 87) 6 1-2-3-4-5-6
DIMENSIONS

02
2-9
Light bulbBulb type Wattage
Front H
eadlight
Low
LED LED
High, Low beam assist LED LED
Daytime running light/Position lamp LED LED
Turn signal lamp LED LED
Side repeater lamp LED LED
Side marker lamp LED LED
Rear Tail lamp
Type A
P28/8W 28/8
Type B LED LED
Tail/Stop lamp Type AP28/8W 28/8
Stop lamp Type BLED LED
Turn signal lamp Type A
P28/8W 28/8
Type B LED LED
Side marker lamp LED LED
Revers lamp W16W 16
High mounted stop lamp LED LED
License plate lamp W5W 5
Interior Map lamp
Type A
W8W 8
Type B LED LED
Room lamp Type A
W8W 8
Type B LED LED
Luggage compartment lamp Type A
FESTOON 8
Type B LED LED
Vanity mirror lamp Type A
5W5
Type B LED LED
Glove box lamp LED LED
BULB WATTAGE

Vehicle Information, Consumer Information and Reporting Safety Defects2-10
Items Tire size Wheel size Inflation pressure kPa (psi)
Wheel nut
torque Kgf·ft (lbf·ft, N ·m)
Normal load
Maximum
load
Front Rear Front Rear
Full size tire
245/60 R18 7.5J X 18240 (35) 240 (35)11~13
(79~94,
107~127)245/50 R20 7.5J X 20
Compact
spare tireT155/90 R18 4.0B X 18420 (60)
NOTICE

[ Ambient temperature affects tire pressure (about 1 psi (7 kPa) for every 12°F (7°C)
change). If colder temperatures are anticipated, it is permissible to increase cold
tire inflation pressure by up to 3 psi (20 kPa) over the specification. If extreme
temperature changes are expected, be sure to check and adjust tire pressure
accordingly.

[ Tire inflation pressure decreases with higher elevation, and increases with lower
elevation (about 2.4 psi (10 kPa) for every mile (or kilometer) elevation change).
Be sure to check and adjust tire pressure accordingly when driving through
changing elevations.

[ Do not exceed the maximum inflation pressure, as found on the sidewall of the
tire(s).
CAUTION
When replacing tires, ALWAYS use the same size, type, brand, construction and
tread pattern supplied with the vehicle. If not, it can damage the related parts or
make it work irregularly.
TIRES AND WHEELS

02
2-11

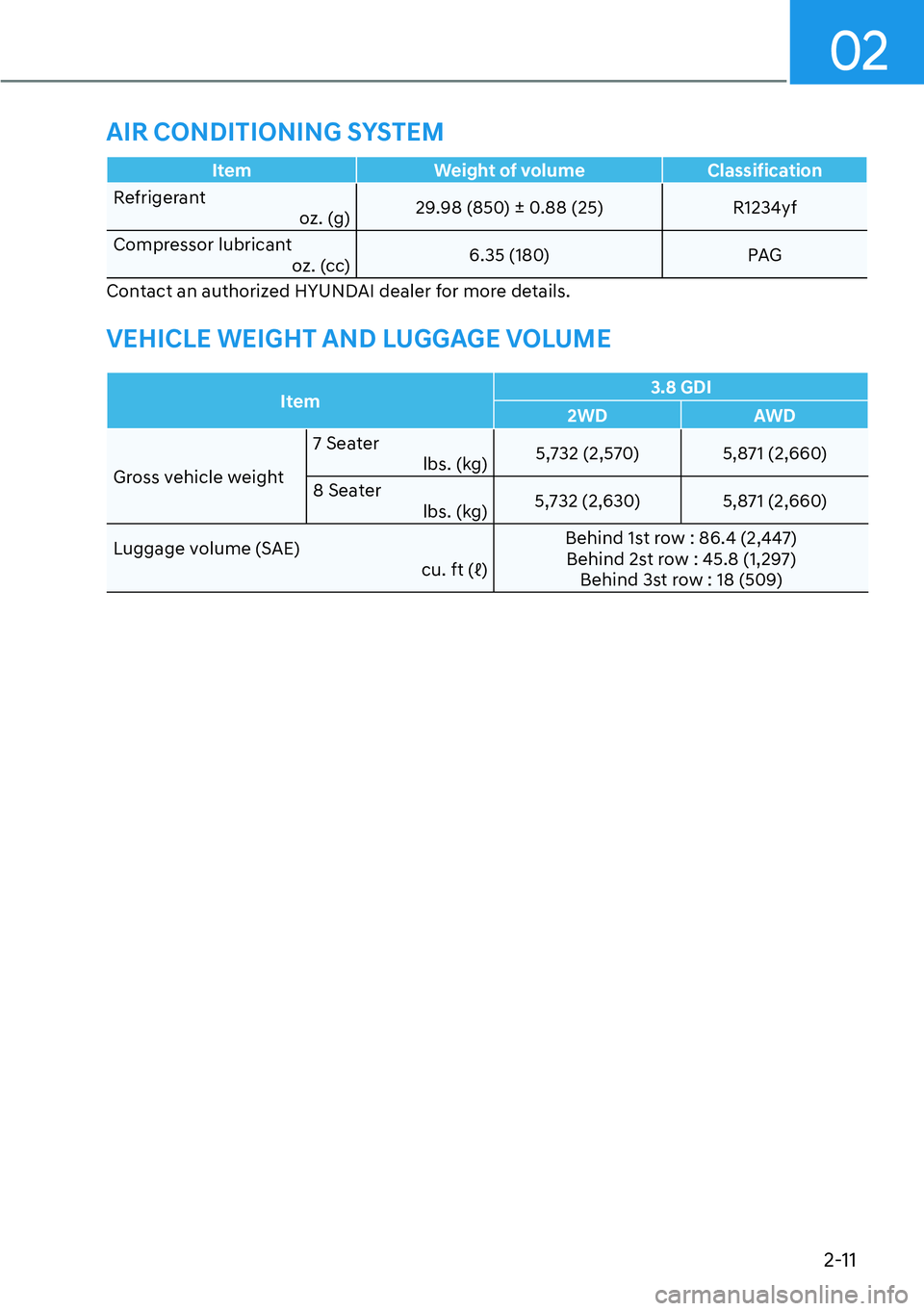

ItemWeight of volume Classification
Refrigerant o
z. (g)29.98 (850) ± 0.88 (25) R1234yf
Compressor lubricant oz. (cc) 6.35 (180) PAG
Contact an authorized HYUNDAI dealer for more details.
VEHICLE WEIGHT AND LUGGAGE VOLUME
Item 3.8 GDI
2WD AWD
Gross vehicle weight 7 Sea
ter
lbs. (kg) 5,732 (2,570) 5,871 (2,660)
8 Seater lbs. (kg) 5,732 (2,630) 5,871 (2,660)
Luggage volume (SAE) FXIW
bBehind 1st row : 86.4 (2,447)
Behind 2st row : 45.8 (1,297) Behind 3st row : 18 (509)
AIR CONDITIONING SYSTEM
