2023 HYUNDAI PALISADE Owners Manual

Convenience Features5-116
B9024EU01
Face-Level ( B, D)
Air flow is directed toward the upper
body and f
ace. Additionally, each outlet
can be controlled to direct the air
discharged from the outlet.
Bi-Level ( B, D)
Air flow is directed towards the face and
the floor
.
Floor-Level ( A,
C, D,
E)
Most of the air flow is directed to the
floor
, with a small amount of the air
being directed to the windshield and side
window defrosters.
Floor & Defrost ( A,
C, D,
E)
Most of the air flow is directed to the
floor and the windshield with a small
amount dir
ected to the side window
defrosters.
B9024EU08
Defrost-Level ( A,
D)
Most of the air flow is directed to
the
windshield with a small amount of air
directed to the side window defrosters.
B9024EU02
MAX A/C-Level ( B, D)
The MAX A/C mode is used to cool the
inside o
f the vehicle faster. Air flow is
directed toward the upper body and
face.
In this mode, the A/C button and the
Recirculation mode button will be
automatically selected. Turn the fan
speed mode to adjust.
After the interior cabin has cooled
sufficiently, move the temperature knob
away from the MAX A/C setting and
adjust the knob to the desired position.
If you wish to continue using A/C ON,
make sure the A/C button indicator is
illuminated.

05
5-117

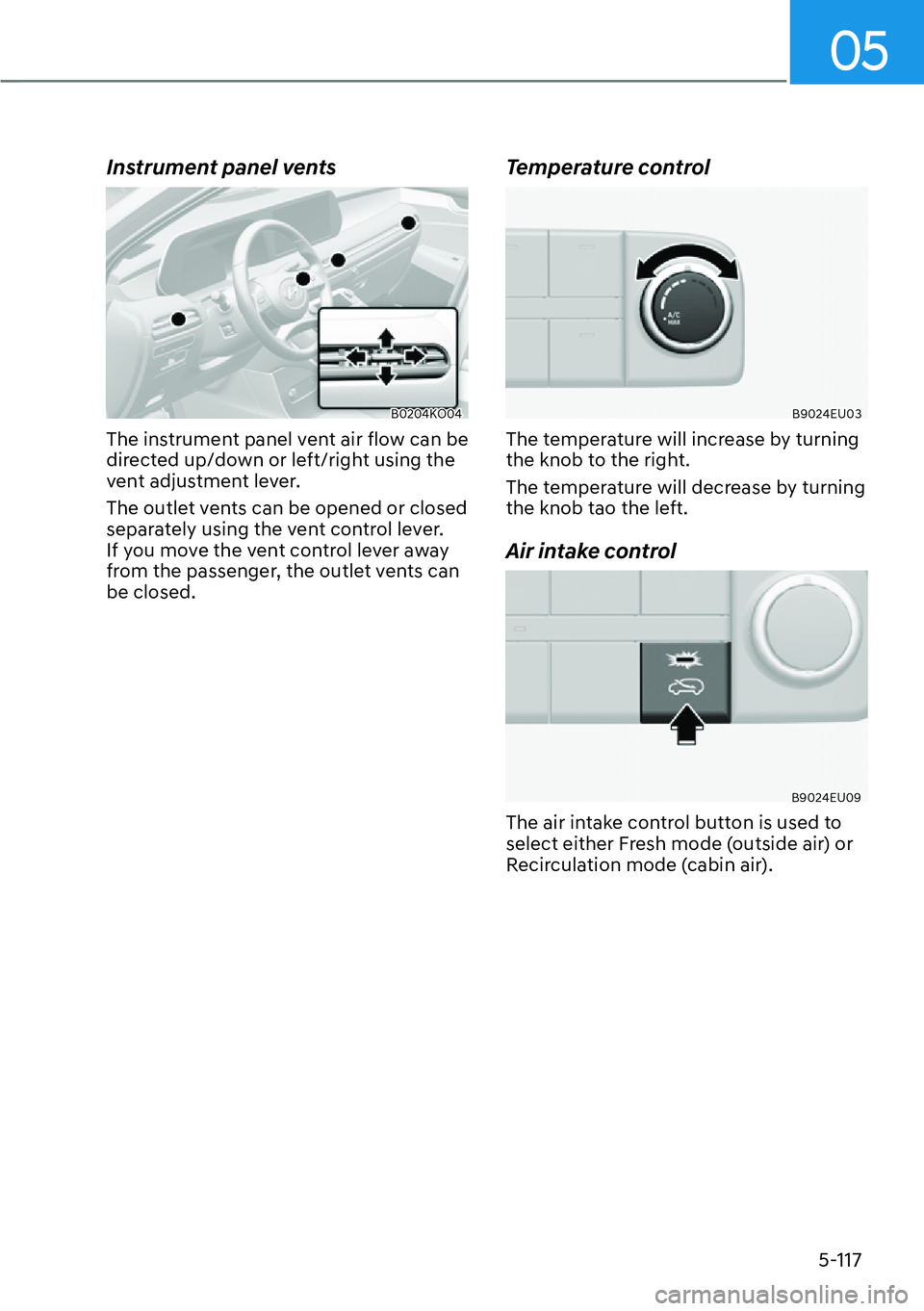

Instrument panel vents
B0204KO04
The instrument panel vent air flow can be
directed up/down or left/right using the
vent adjustment lever.
The outlet vents can be opened or closed
separately using the vent control lever.
If you move the vent control lever away
from the passenger, the outlet vents can
be closed.
Temperature control
B9024EU03
The temperature will increase by turning
the knob to the right.
The temperature will decrease by turning
the knob tao the left.
Air intake control
B9024EU09
The air intake control button is used to
select either Fresh mode (outside air) or
Recirculation mode (cabin air).

Convenience Features5-118
Recirculation mode
When Recirculation mode
is selected, air from the
passenger compartment will
be recirculated through the
system and heated or cooled
according to the function
selected.
Fresh mode
When Fresh mode is selected,
air enters the vehicle from
outside and is heated or
cooled according to the
function selected.
Information
Operating the system primarily in Fresh
mode is recommended. Use Recirculation
mode temporarily only when needed.
Prolonged operation of the heater in
Recirculation mode and without the A/C
ON can cause fogging of the windshield.
In addition, prolonged use of the A/C
ON in Recirculation mode may result in
excessively dry, dehumidified air in the
cabin and may promote formation of
musty vent odor due to stagnant air.
WARNING

[ Continued use of the climate control
system operation in Recirculation
mode for a prolonged period of
time may cause drowsiness to the
occupants in the cabin. This may lead
to loss of vehicle control which may
lead to an accident.

[ Continued use of the climate control
system operation in Recirculation
PRGHZLWKWKH$&2))PD\DOORZ
humidity to increase inside the
cabin. This may cause condensation
to accumulate on the windshield and
obscure visibility.

[ Do not sleep in your vehicle or
remain parked in your vehicle with
the windows up and either the
heater or the air conditioning ON for
prolonged periods of time. Doing so
may increase the levels of carbon
dioxide in the cabin which may lead
to serious injury or death.

05
5-119
Fan speed control
B9024EU04
Turn the knob to the right to increase
the fan speed and airflow. Turn the knob
to the left to decrease fan speed and
airflow.
Setting the fan speed control knob to the
“0” position turns off the fan.
NOTICE
Operating the fan speed when the
ignition switch is in the ON position
could cause the battery to discharge.
Operate the fan speed when the engine
is running.
Air conditioning
B9024EU05
Press the A/C button to turn the system
on (indicator light will illuminate) and off.
Rear climate control button
B9024EU06
If you press the rear climate control
button, rear passengers can control the
rear climate system.
B9024EU07
Press the rear fan speed control button
to increase or decrease the fan speed
and air flow.

Convenience Features5-120
Rear climate control
„2nd row air conditioning control
A0923EU01/A0923EU01/A0923EU03
M OFF button
N Mode selection button O Temperature control button
P Fan speed control button
If you press the rear climate control button of the front climate control system, rear
passengers can control the rear climate system by using the rear climate control
system.

05
5-121
Fan speed control
B9024EU06
1. Press the rear climate control button of the front climate control system.
B9025EU01
2. The fan speed can be set to the desired speed by pushing the fan
speed control button. The higher the
fan speed is, the more air is delivered.
Pressing the OFF button turns off the
fan.
Temperature control
1. Press the rear climate control button of the front climate control system.
B9025EU02
2. The temperature of delivered aircan be set to the desired temperature
by pushing the temperaturecontrol
button. Pressing the off button turns
offthe fan.

Convenience Features5-122
OFF mode
B9025EU03
B9025EU04
Press the OFF button to turn the rear
climate control system off.
Mode selection
B9025EU05
You can select the direction of the air
flow through the ventilation system.
You can adjust the front climate
control system for heating or cooling
to passengers on 2nd row seats. The air
flow is directed from the floor.
: Air flow is directed toward the upper body from the rear
headliner.
: Air flow is directed toward the upper body and the floor.
: Air flow is directed toward the floor.

05
5-123
Rear vents on the headliner
B0204KO17
The rear passengers can adjust the
direction of air flow from the rear vents
on the headliner.
If you operate the rear climate control
with rear vents closed, a noise may
sound. When operating the rear climate
control, open two or more rear vents.
NoDiffusion
lever ADirection
thumbwheel BDescription
1 Open
(
) Close The air is delivered widely toward the
surroundings of rear passengers.
However, the fan speed may be decreased.
2 Open
(
) Open
The air is delivered widely toward the rear
passengers and surrounding of rear passengers.
3 Close
(
) Open
The air is only delivered toward the rear
passengers.
