2023 HYUNDAI PALISADE Owners Manual

03
3-19

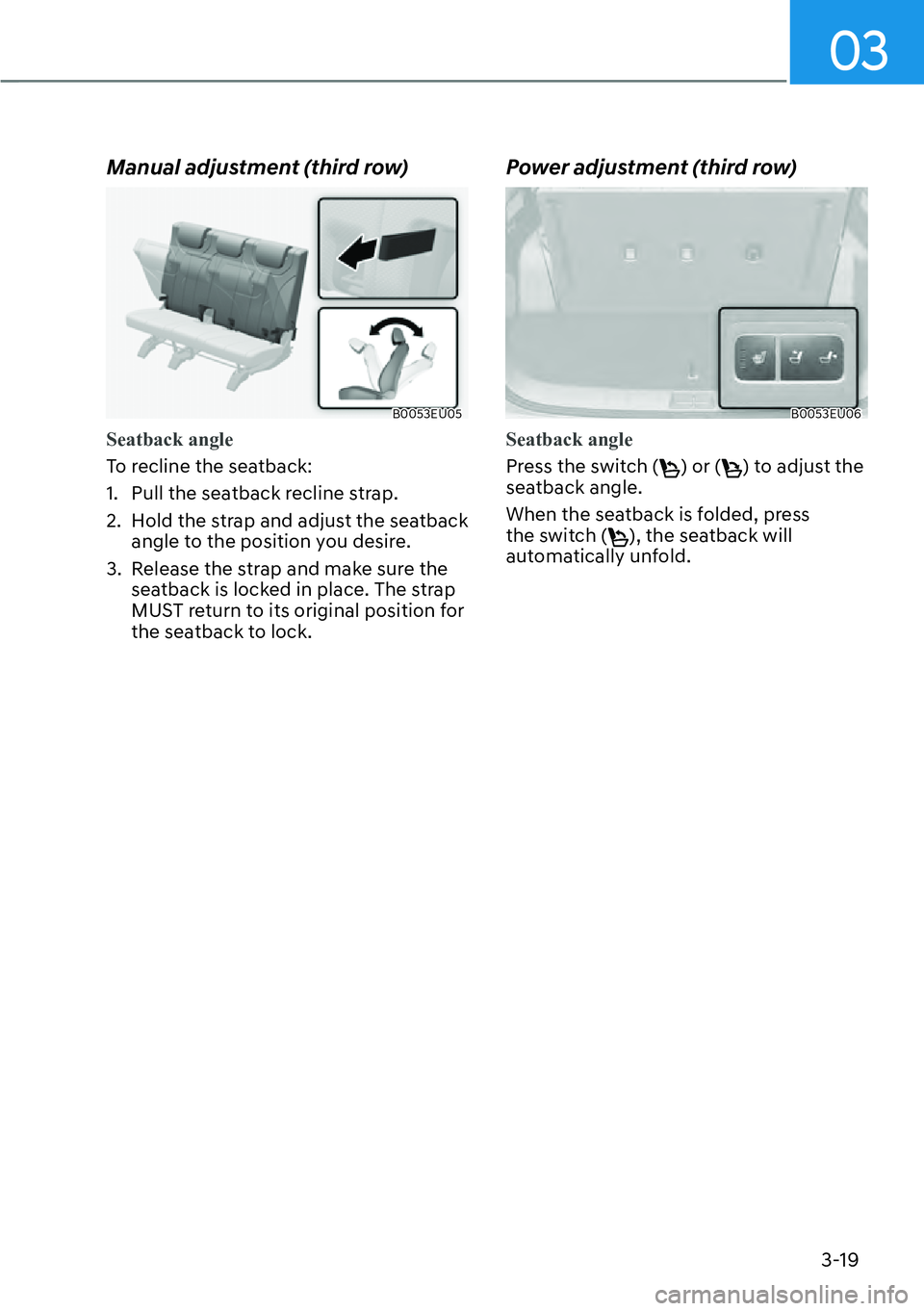

Manual adjustment (third row)
B0053EU05
Seatback angle
To recline the seatback:
1.
Pull the seatback recline strap.
2. Hold the strap and adjust the seatback angle to the position you desire.
3. Release the strap and make sure the seatback is locked in place. The strap
MUST return to its original position for
the seatback to lock.
Power adjustment (third row)
B0053EU06
Seatback angle
Press the switch (
) or () to adjust the
seatback angle.
When the seatback is folded, press
the switch (
), the seatback will
automatically unfold.

Seats & Safety System3-20

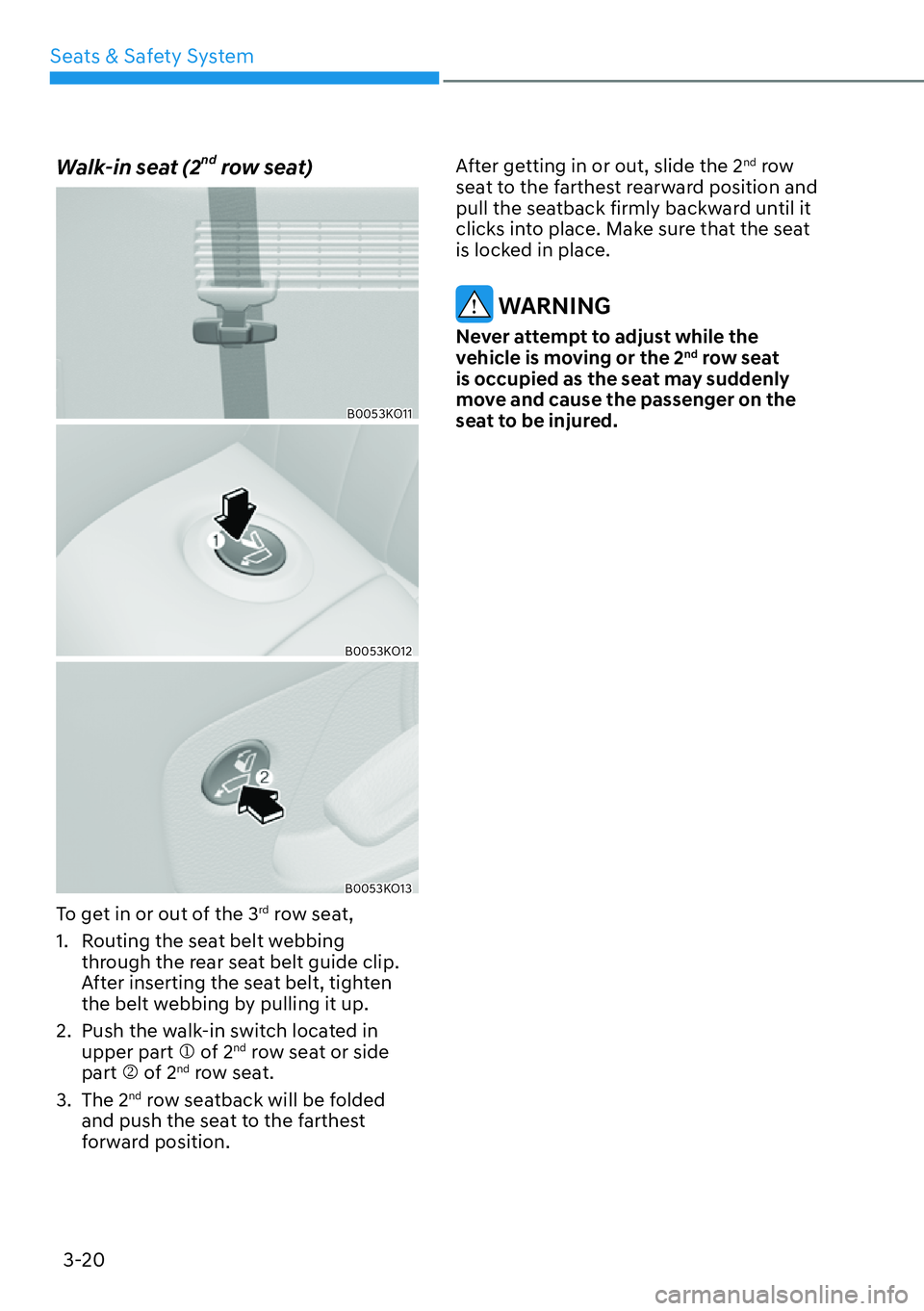

Walk-in seat (2nd row seat)
B0053KO11
B0053KO12
B0053KO13
To get in or out of the 3rd row seat,
1. Routing the seat belt webbing through the rear seat belt guide clip.
After inserting the seat belt, tighten
the belt webbing by pulling it up.
2. Push the walk-in switch located in upper part M of 2
nd row seat or side
part N of 2nd row seat.
3. The 2nd row seatback will be folded
and push the seat to the farthest
forward position. After getting in or out, slide the 2
nd row
seat to the farthest rearward position and
pull the seatback firmly backward until it
clicks into place. Make sure that the seat
is locked in place.
WARNING
Never attempt to adjust while the
vehicle is moving or the 2nd row seat
is occupied as the seat may suddenly
move and cause the passenger on the
seat to be injured.

03
3-21

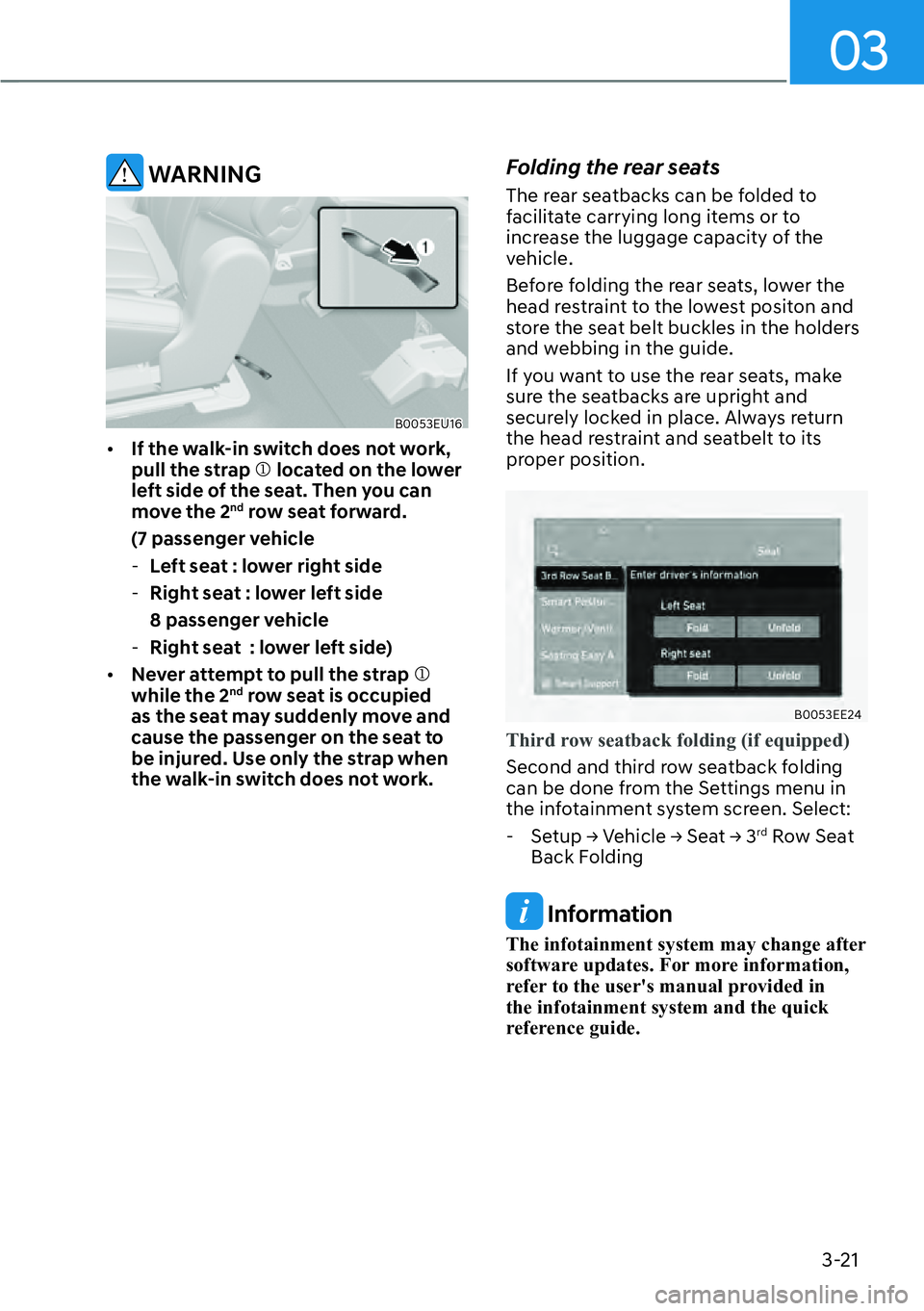

WARNING
B0053EU16

[If the walk-in switch does not work,
pull the strap M located on the lower
left side of the seat. Then you can
move the 2
nd row seat forward.
(7 passenger vehicle

- Left seat : lower right side

- Right seat : lower left side
8 passenger vehicle

- Right seat : lower left side)

[ Never attempt to pull the strap M
while the 2
nd row seat is occupied
as the seat may suddenly move and
cause the passenger on the seat to
be injured. Use only the strap when
the walk-in switch does not work.
Folding the rear seats
The rear seatbacks can be folded to
facilitate carrying long items or to
increase the luggage capacity of the
vehicle.
Before folding the rear seats, lower the
head restraint to the lowest positon and
store the seat belt buckles in the holders
and webbing in the guide.
If you want to use the rear seats, make
sure the seatbacks are upright and
securely locked in place. Always return
the head restraint and seatbelt to its
proper position.
B0053EE24
Third row seatback folding (if equipped)
Second and third row seatback folding
can be done fr
om the Settings menu in
the infotainment system screen. Select:

- 6HWXS

Seats & Safety System3-22

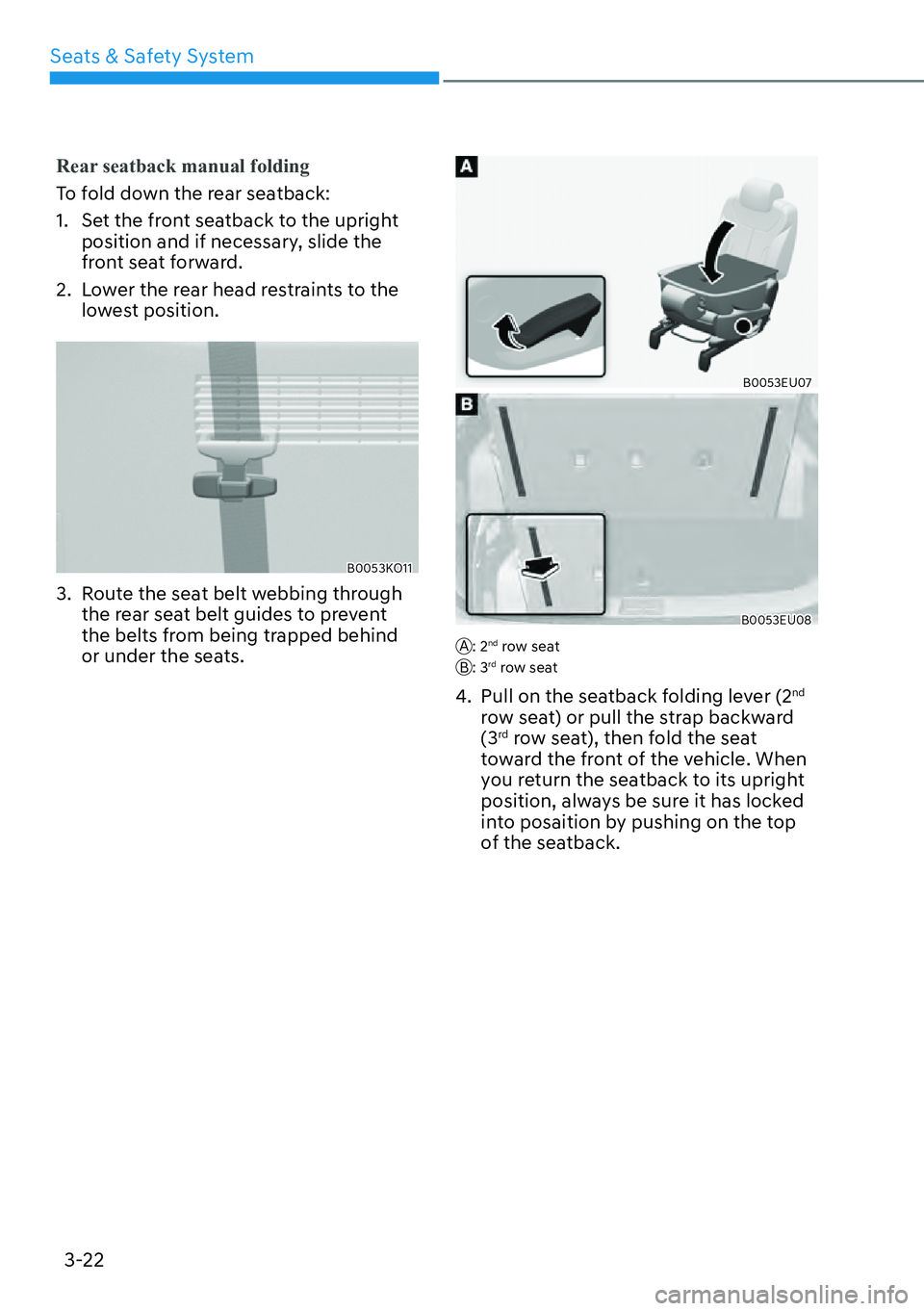

Rear seatback manual folding
To fold down the rear seatback:
1.
Set the front seatback to the upright
position and if necessary, slide the
front seat forward.
2. Lower the rear head restraints to the lowest position.
B0053KO11
3. Route the seat belt webbing through the rear seat belt guides to prevent
the belts from being trapped behind
or under the seats.
B0053EU07
B0053EU08
A: 2nd row seat
B: 3rd row seat
4. Pull on the seatback folding lever (2nd
row seat) or pull the strap backward
(3
rd row seat), then fold the seat
toward the front of the vehicle. When
you return the seatback to its upright
position, always be sure it has locked
into posaition by pushing on the top
of the seatback.

03
3-23
B0053EU09
B0053EU10
A: 2nd row seat
B: 3rd row seat
5. To use the rear seat, lift and unfold the seatback to the upright position
by pulling up the folding lever (2
nd row
seat) or pulling strap backward (3rd
row seat). Push the seatback firmly
until it clicks into place. Make sure the
seatback is locked in place.
6. Return the rear seat belt to the proper position.
WARNING
When returning the rear seatback from
a folded to an upright position, hold the
seatback and return it slowly. Ensure
that the seatback is completely locked
into its upright position by pushing on
the top of the seatback. In an accident
or sudden stop, the unlocked seatback
could allow cargo to move forward with
great force and enter the passenger
compartment, which could result in
serious injury or death.
WARNING
Do not place objects in the rear seats,
since they cannot be properly secured
and may hit vehicle occupants in a
collision causing serious injury or death.
WARNING
Make sure the engine is off, the shift
button is in P (Park), and the parking
brake is securely applied whenever
loading or unloading cargo. Failure
to take these steps may allow the
vehicle to move if the shift button
is inadvertently shifted to another
position.
CAUTION

[Be careful when loading cargo
through the rear passenger seats
to prevent damage to the vehicle
interior.

[ When cargo is loaded through the
rear passenger seats, ensure the
cargo is properly secured to prevent
it from moving while driving.

[ Unsecured cargo in the passenger
compartment can cause damage to
the vehicle or injury to it's occupants.

Seats & Safety System3-24
Switch type Seat adjustment
Type A
Press switch or switch, the
second row left or right seatback will
fold.
Type B
Press switch or switch, the
second row left or right seatback will
fold.
Press
switch or switch, the
third row left or right seatback will
fold. If the switch is pressed again,
the seatback will unfold.
The 3rd row seat that is remotely folded or unfolded, is controlled only when the shift
button is in “P” with Start ON, or the shift button is in “N” and the parking brake is in
“ON.”
However, the seat is controlled at any condition in Start OFF state. When the vehicle
moves or shifts while the seat is being controlled, the seat may stop operation.
When you press the switch once more while folding and unfolding the seat, operation
stops. When you press the switch again, the operation resumes.
With the seat folded, when you press the angle adjusting switch, the seat is unfolded.
Seatback remote folding/unfolding
(luggage compartment)
B0053EU11

[ The function operates when the gear
is in P (Park) with the door open.

[ While the seatback is folding or
unfolding, if the switch is pressed, the
seat will stop moving. If the switch is
pressed again, the seat will continue
the adjustment.

[ While the seatback is folding or
unfolding, if the engine is started, the
seat will stop moving momentarily.
If the engine starts, the seat will
continue the adjustment.

03
3-25
CAUTION
Without starting the engine, the 3rd row
seat can be folded or unfolded. When
this is attempted more than 10 times,
the battery may discharge prematurely.
Do not apply excessive force to the
3
rd row seat while in operation. It may
damage the seat.
When you operate the seat over 5 times
with no rest, the electric motor may
be overloaded. In this case, the seat
changes to overheat prevention mode.
Then you cannot operate the seat by
pressing the switch. Leave the seat for
over 1 minute for later operation.
Detection of object caught
While folding or unfolding the 3rd row
seat, when a consistent force is detected,
the seat returns to its original position or
stops operation.
However, this function may not work
when the detected resistance is below a
specific level or the seat is almost folded
or unfolded. When a strong impact is
applied to the seat, the object detection
function may be activated even if no
obstacle is present.
When any object caught is detected
multiple times while operating the seat
once, folding and unfolding are repeated
consecutively and then the operation
may stop. In this case, check that any
object is caught and then operate the
switch again to check for abnormality.
When the object detection is enabled,
the angle of the seat back may be
changed. When you operate the seat
once by pressing the folding button, the
angle of the seat back is reset.
WARNING
Do not place any part of your body
or anything in the operating area to
intentionally check the detection of any
object caught.
For safety, when folding or unfolding
the 3
rd row seat, make sure that there
is no part of body or object. To prevent
damage to the seatbelt, insert it into
its holder and store it in the retractor
inside a seat.
When the child restraint system (CRS) is
installed on the 3
rd row seat, remove the
CRS and then operate the seat.
When there is any object on the cushion
of the 3
rd row seat, remove it and then
operate the seat.
To avoid interference with a front seat,
keep the backrest of the front seat
straight and move it forward for smooth
operation.

Seats & Safety System3-26
Armrest (Second row seat)
B0053KO09
B0053KO10
A: 7-seater
B: 8-seater
The armrest is located in the center of
the rear seat. Pull the armrest down from
the seatback to use it.
To adjust the armrest at a convenient
angle, lower the armrest from the highest
position to the lowest position, and lift it
up to fixed on it.
Since it cannot be adjusted downward
after fixing, lift the armrest slightly more
than the highest position, then lower it
to the lowest position and adjust while
lift it up.
Head Restraint
The vehicle’s front and rear seats
have adjustable head restraints. The
head restraints provide comfort for
passengers, but more importantly they
are designed to help protect passengers
from whiplash and other neck and spinal
injuries during an accident, especially in
a rear impact collision.
WARNING
To help reduce the risk of serious
injury or death in an accident, take the
following precautions when adjusting
your head restraints:

[ Always properly adjust the head
restraints for all passengers BEFORE
starting the vehicle.

[ NEVER let anyone ride in a seat
with the head restraint removed or
reversed.

[
B0701EU01
Adjust the head restraints so the
middle of the head restraint is at the
same height as the height of the top
of the eyes.

[ NEVER adjust the head restraint
position of the driver’s seat when the
vehicle is in motion.

[ Adjust the head restraint as close to
the passenger’s head as possible. Do
not use a seat cushion that holds the
body away from the seatback.

[ Make sure the head restraint locks
into position after adjusting it.
