Convenience Features5-60
The Digital Center Mirror is a system
that uses the camera on the rear of the
vehicle and displays its image on the
screen of the Digital Center Mirror. The
Digital Center Mirror allows the driver to
see the rear view despite obstructions,
such as the headrest or luggage,
ensuring rear visibility.
WARNING

[ )DLOXUHWRIROORZWKHZDUQLQJVDQG
instructions for proper use of the
Digital Center Mirror could result in
serious accident.

- The Digital Center Mirror is a
convenience feature but it is not
a substitute for proper vehicle
operation. The system has areas
where objects cannot be viewed.
Check the blind spot of the Digital
Center Mirror before vehicle
operation. The driver is always
responsible for safe driving.

- Do not operate the Digital Center
Mirror while driving. Doing so
cannot be a distraction and it could
lose control of your vehicle and
cause an accident or serious injury.

- Do not disassemble or modify the
Digitaal Center Mirror, the camera
unit or wirings. If you do, it may
result in accidents or fire. In case
you notice smoke or smell coming
from the Digital Center Mirror, stop
using the system immediately.
Have you see an authorized
HYUNDAI dealer for servicing.
[
Be sure to adjust the Digital Center
Mirror before driving.

- Switch the system to the
conventional rearview mirror
mode and be properly seated on
the driver’s seat. Then adjust the
mirror so as to see the rear window
properly.

- Push the lever all the way to change
to digital mirror mode and adjust
the display settings. Driving without
adjusting the mirror may cause
difficulty in watching the display
at the Digital Mirror mode (camera
view mode) due to the reflection
from the surface of the mirror.

- As the range of the image display
by the Digital Center Mirror is
different from that of the optical
mirror, make sure to check this
difference before driving.

[ If the Digital Center Mirror
malfunction, immediately switch the
system to the conventional rearview
mirror mode.

[ When strong light (for example,
sunlight or high beams from
following vehicles) enters the
camera, a light beam or a glaring
light may appear on the monitor
screen of the Digital Center Mirror.
In that case, switch the system to the
conventional rearview mirror mode
appropriately.

[
B0362KO01
If the camera lens M is dirty, the
displayed image may not be clear.
In this case, clean it with a soft cloth
dampened with water or a swab.
',*,7$/&(17(50,5525

05
5-61

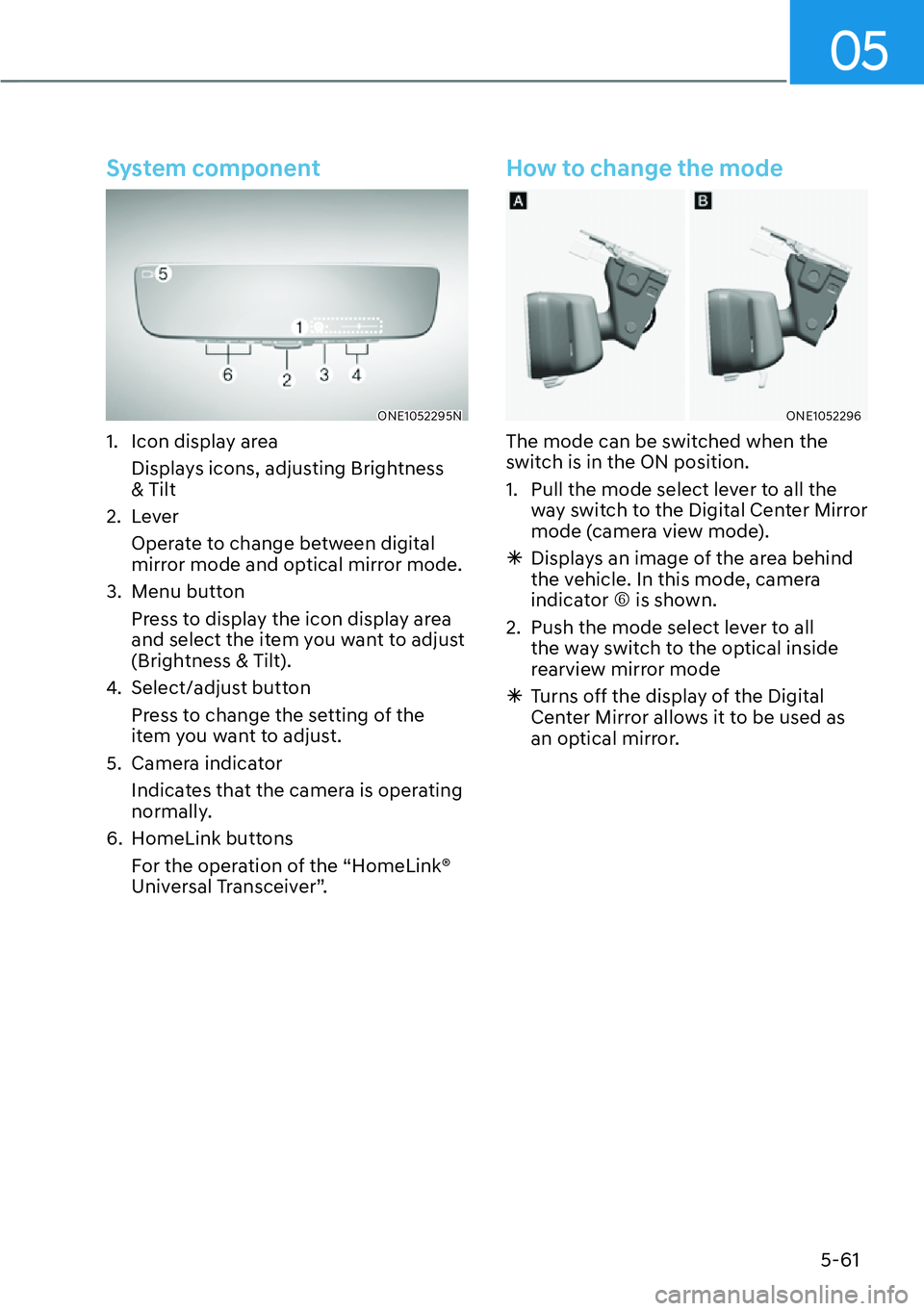

System component
ONE1052295N
1. Icon display areaDisplays icons, adjusting Brightness
& Tilt
2. Lever Operate to change between digital
mirror mode and optical mirror mode.
3. Menu button Press to display the icon display area
and select the item you want to adjust
(Brightness & Tilt).
4. Select/adjust button
Press to change the setting of the
item you want to adjust.
5. Camera indicator Indicates that the camera is operating
normally.
6. HomeLink buttons For the operation of the “HomeLink®
Universal Transceiver”.
How to change the mode
ONE1052296
The mode can be switched when the
switch is in the ON position.
1. Pull the mode select lever to all the way switch to the Digital Center Mirror
mode (camera view mode).

à Displays an image of the area behind
the vehicle. In this mode, camera
indicator R is shown.
2. Push the mode select lever to all the way switch to the optical inside
rearview mirror mode

à Turns off the display of the Digital
Center Mirror allows it to be used as
an optical mirror.

Convenience Features5-62

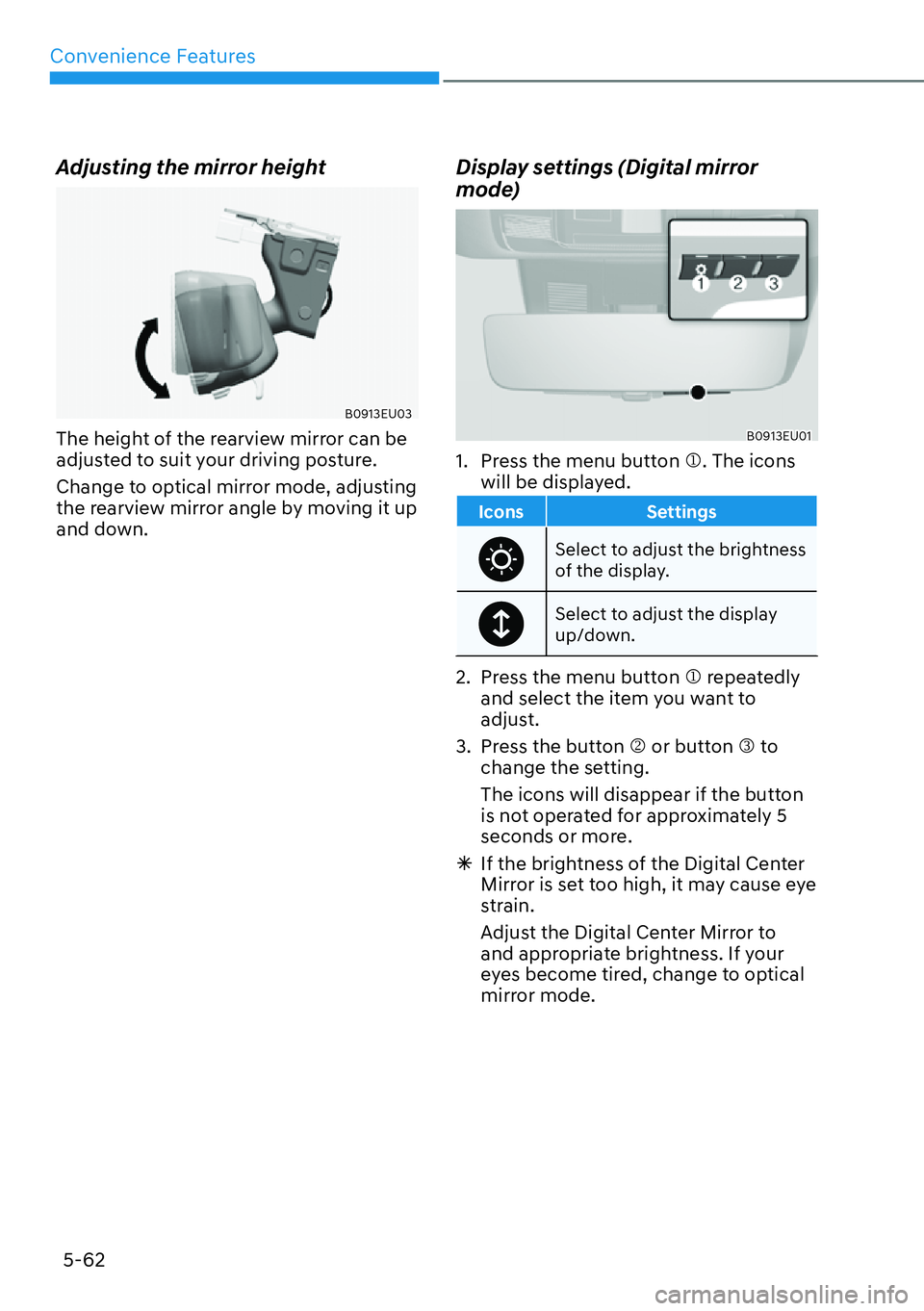

Adjusting the mirror height
B0913EU03
The height of the rearview mirror can be
adjusted to suit your driving posture.
Change to optical mirror mode, adjusting
the rearview mirror angle by moving it up
and down.
Display settings (Digital mirror
mode)
B0913EU01
1. Press the menu button M. The icons will be displayed.
Icons Settings
Select to adjust the brightness
of the display.
Select to adjust the display
up/down.
2. Press the menu button M repeatedly
and select the item you want to
adjust.
3. Press the button N or button O to change the setting.
The icons will disappear if the button
is not operated for approximately 5
seconds or more.

à If the brightness of the Digital Center
Mirror is set too high, it may cause eye
strain.
Adjust the Digital Center Mirror to
and appropriate brightness. If your
eyes become tired, change to optical
mirror mode.

05
5-63
B0913EU04
To prevent the light sensors from
malfunctioning
To prevent the light sensors from
malfunctioning, do no
t touch or cover
them.
Digital mirror mode operating
condition
The START/STOP button is in the ON
position.
When the START/STOP button is
changed ignition switch LOCK/OFF
or ACC position, the image will be
disappeared.
When using the Digital Center Mirror
in digital mirror mode

[ When the liftgate is open, the Digital
Center Mirror image may not display
properly. Before driving, make sure
the liftgate is closed.

[ If the display is difficult to see due to
reflected light, close the sunshade for
the sunroof (if equipped).

[ Any of the following conditions may
occur when driving in the dark, such
as at night. None of them indicates
that the malfunction has occurred.

- Colors of objects in the displayed
image may differ their actual color.

- Depending on your physical
condition or age, it may take longer
than usual to focus on the displayed
image. In this case, change to
optical mirror mode.

- Do not let passengers stare at the
displayed image when the vehicle is
being driven, as doing so may cause
motion sickness.

Convenience Features5-64
When the system malfunctions
B0913EU02
If the symbol shown in the illustration is
displayed when using the Digital Center
Mirror in digital mirror mode, the system
may be malfunctioning. The symbol will
disappear in a few seconds. Operate the
lever, change to optical mirror mode
and have the vehicle inspected by an
authorized HYUNDAI dealer.
CAUTION

[ To prevent the Digital Center Mirror
from malfunctioning

[ Do not use detergents, such as
thinner, benzene, and alcohol to
clean the mirror. They may dis color,
deteriorate or damage the mirror
surface.

[ Do not remove, disassemble or
modify the mirror and camera.

[ Do not allow an organic solvent,
vehicle wax, window cleaner or glass
coating to adhere to the camera. If
this happens, wipe it off as soon as
possible.

[ When cleaning the camera lens, wipe
the camera lens with a damp soft
cloth.

[ Do not strongly rub the camera lens,
as it may be scratched and will not be
able to transmit a clear image.
[
Do not subject the camera to a
strong impact as this could cause
a malfunction. If this happens,
we recommend that you have the
vehicle inspected by an authorized
HYUNDAI dealer as soon as possible.

[ Operating the system at the ON
position while the engine is not
running would cause discharging of
the battery.

[ Do not attach an antenna of wireless
device near the Digital Center Mirror.
Electric wave from wireless device
may cause disturbed image in Digital
Center Mirror.

[ Do not push buttons excessively
or operating the lever roughly may
cause a system failure or the Digital
Center Mirror itself to drop.

[ Never rotate the body of Digital
Center Mirror by 90° or more. It may
damage the Digital Center Mirror. Do
not apply strong shocks to the body
of Digital Center Mirror. It may cause
a system failure.

[ If it is difficult to see the Digital
Center Mirror display screen because
of a strong external light, switch the
mode to the conventional rearview
mirror mode for better use.

05
5-65

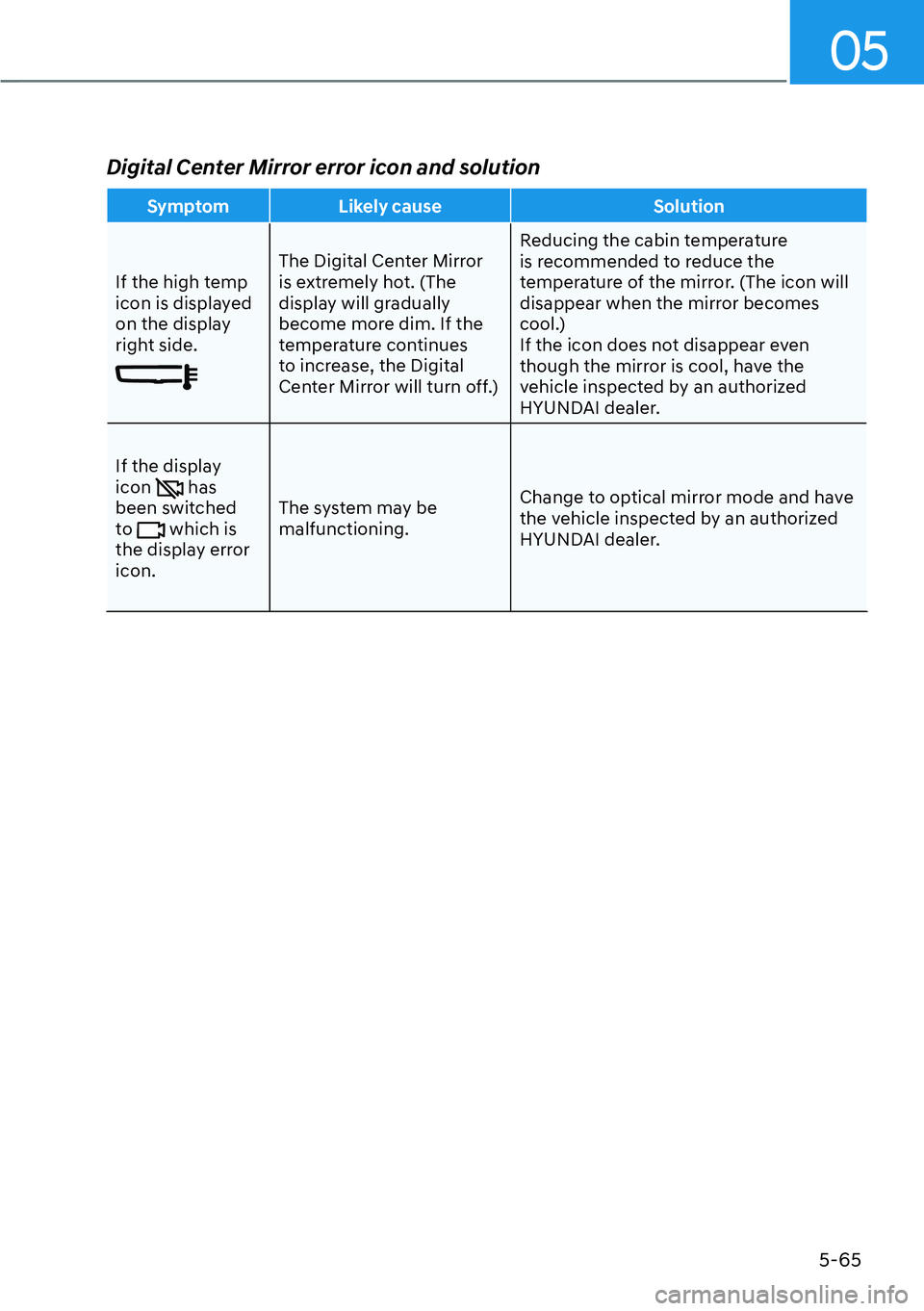

Digital Center Mirror error icon and solution
SymptomLikely cause Solution
If the high temp
icon is displa
yed
on the display
right side.The Digital Center Mirror
is extremely hot. (The
display will gradually
become more dim. If the
temperature continues
to increase, the Digital
Center Mirror will turn off.) Reducing the cabin temperature
is recommended to reduce the
temperature of the mirror. (The icon will
disappear when the mirror becomes
cool.)
If the icon does not disappear even
though the mirror is cool, have the
vehicle inspected by an authorized
HYUNDAI dealer.
If the display
icon
has
been switched
to
which is
the display error
icon. The system may be
malfunctioning.
Change to optical mirror mode and have
the vehicle inspected by an authorized
HYUNDAI dealer.

Convenience Features5-66
A0141EU01
WINDOWS
M Driver’s door power window switch
N Front passenger’s door power window switch
O Rear door (left) power window switch P Rear door (right) power window switch
Q Window opening and closing
R Automatic power window
S Power window lock switch/
Electronic child safety lock

05
5-67
Power Windows
The ignition switch or Engine Start/Stop
button must be in the ON position to
be able to raise or lower the windows.
Each door has a Power Window switch
to control that door’s window. The
driver has a Power Window Lock button
which can block the operation of rear
passenger windows. The power windows
will operate for approximately 3 minutes
after the ignition switch or Engine Start/
Stop button is in the ACC or LOCK/
OFF position, as long as the front doors
remain closed.
If the front doors are opened, battery
power is turned OFF and the Power
Windows will not operate.
Information

[In cold and wet climates, power
window may not work properly due to
freezing conditions.

[ While driving with the rear windows
down or with the sunroof (if equipped)
opened (or partially opened), your
vehicle may demonstrate a wind
buffeting or pulsation noise. This
noise is normal and can be reduced
or eliminated by taking the following
actions. If the noise occurs with one
or both of the rear windows down,
partially lower both front windows
approximately 1 inch (2.5 cm). If you
experience the noise with the sunroof
open, slightly close the sunroof.
Window opening and closing
B0142KO01
To open:
Press the window switch down to the
first detent position Q. Release the
switch when you want the window to
stop.
To close:
Pull the window switch up to the first
detent position Q. Release the window
switch when you want the window to
stop.
