2023 HYUNDAI PALISADE Owners Manual

Maintenance9-54
Fuse Name Fuse
Rating Protected Component
FUSE PT
C HEATER 2 30A PTC Heater Relay
PTC HEATER 3 30A PTC Heater Relay TRAILER 5 30A Trailer Lamp
FUEL PUMP 20A Fuel Pump Relay AWD 20A AWD ECM
HEATED NOZZLE 10A Heated Nozzle Unit B/ALARM HORN 15A Burglar Alarm Horn Relay
ACC 3 15A 2ND USB Charger
TCU 1 15A TCM
TRAILER 2 15A Trailer Lamp
TRAILER 3 15A Trailer Lamp ECU 6 15A ECM
AMS 10A Battery Sensor
A/C 2 10A Front A/C Control Module (Auto)
HEATED
MIRROR 10ADriver/Passenger Power Side view Mirror,
Front A/C Control Module
BLOWER (RR 2) 10A Rear A/C Control Module
E-SHIFTER 2 10A Electronic Transmission
WIPER (FRT) 2 10A IBU, ECM - 10A Not Used
PCB ACC 1
40A PCB Block (ACC1 Relay)
ACC 2 40A PCB Block (ACC2 Relay) ECU 5 30A ECM (Main Relay)
DCU 4 40A Doosing Control Unit (DCU Relay)
IG1 40A PCB Block (IG1 Relay)
WIPER 1 (FRT) 30A PCB Block (Wiper Main Relay) HORN 15A PCB Block (Horn Relay)
A/C 1 10A PCB Block (A/CON Relay)
ACC 4 10A USB Charger_luggage_LH/RH

09
9-55
Fuse NameFuse
Rating Protected Component
PCB POWER
OUTLET 2 20
A 2ND POWER OUTLET#2
POWER
OUTLET 1 20A 2ND POWER OUTLET#1
ICU 10A PCB Block (ACC FUSE - AMP, ETC)
SENSOR 1 10A Fuel Pump Relay
SENSOR 2 10A [L3.8 GDI] A/C Comp Relay, Variable Intake
Solenoid Valve #1/#2, Oil Pump Solenoid
Valve, Oxygen Sensor Down #1/#2, Oil
Control Valve #1/#2(Intake/Exhaust),
Electronic Thermostat Heater, Purge Control
Solenoid Valve
SENSOR 5 10A Oxygen Sensor Up #1/#2, CCV
DCU 1 20A Doosing Control Unit
DCU 2 20A Doosing Control Unit
DUC 3 15A Doosing Control Unit
TCU 2 10A TCM, Electronic Transmission
POWER
OUTLET 3 20A LUGGAGE POWER OUTLET
POWER
OUTLET 4 20A 1ST POWER OUTLET
SENSOR 4 15A [L3.8 GDI] Cooling Fan Controller ECU 1 20A ECM
PCB ECU 2 20A [L3.8 GDI] ECM
ECU 3 20A [L3.8 GDI] ECM
IGN COIL 20A [L3.8 GDI] Ignition Coil #1/#2/#3/#4/#5/#6 EPB 3 10A EPB Control Module
SENSOR 6 10A Electronic Oil Pump ECU 4 10A ECM

Maintenance9-56
Consult an authorized HYUNDAI dealer
to replace most vehicle light bulbs. It is
difficult to replace vehicle light bulbs
because other parts of the vehicle must
be removed before you can get to the
bulb. This is especially true for removing
the headlight assembly to get to the
bulb(s).
Removing/installing the headlight
assembly can result in damage to the
vehicle.
WARNING

[ Prior to working on a light, depress
the foot brake, shift to P (Park), apply
the parking brake, place the ignition
switch to the OFF position and take
the key with you when leaving the
vehicle to avoid sudden movement
of the vehicle and to prevent possible
electric shock.

[ Be aware the bulbs may be hot and
may burn your fingers.
NOTICE
Be sure to replace the burned-out bulb
with one of the same wattage rating.
Otherwise, it may cause damage to the
fuse or electrical wiring system.
NOTICE
To prevent damage, do not clean the
headlight lens with chemical solvents
or strong detergents.
Information - Headlight
desiccant (if equipped)
This vehicle is equipped with desiccant to
reduce fogging inside the headlight due
to moisture. The desiccant is consumable
and its performance may change based on
the used period or environment. If fogging
inside the headlight due to moisture
continues for a long time, consult an
authorized HYUNDAI dealer.
Information
The headlight and tail lamp lenses could
appear frosty if the vehicle is washed after
driving or the vehicle is driven at night in
wet weather. This condition is caused by
temperature difference between the lamp
inside and outside and, it does not indicate
a problem with your vehicle. When
moisture condenses in the lamp, it will be
removed after driving with the headlight
on. The removable level may differ
depending on lamp size, lamp position
and environmental condition. However, if
moisture is not removed, have your vehicle
inspected by an authorized HYUNDAI
dealer.
LIGHT BULBS

09
9-57
Information

[A normally functioning lamp may
flicker momentarily to stabilize the
vehicle’s electrical control system.
However, if the lamp goes out after
flickering momentarily, or continues to
flicker, have the system checked by an
authorized HYUNDAI dealer.

[ The position lamp may not turn on
when the position lamp switch is turned
on, but the position lamp and headlight
switch may turn on when the headlight
switch is turned on. This may be caused
by network failure or vehicle electrical
control system malfunction. If this
occurs, have the system checked by an
authorized HYUNDAI dealer.
Information
The headlight aiming should be adjusted
after an accident or after the headlight
assembly is reinstalled.

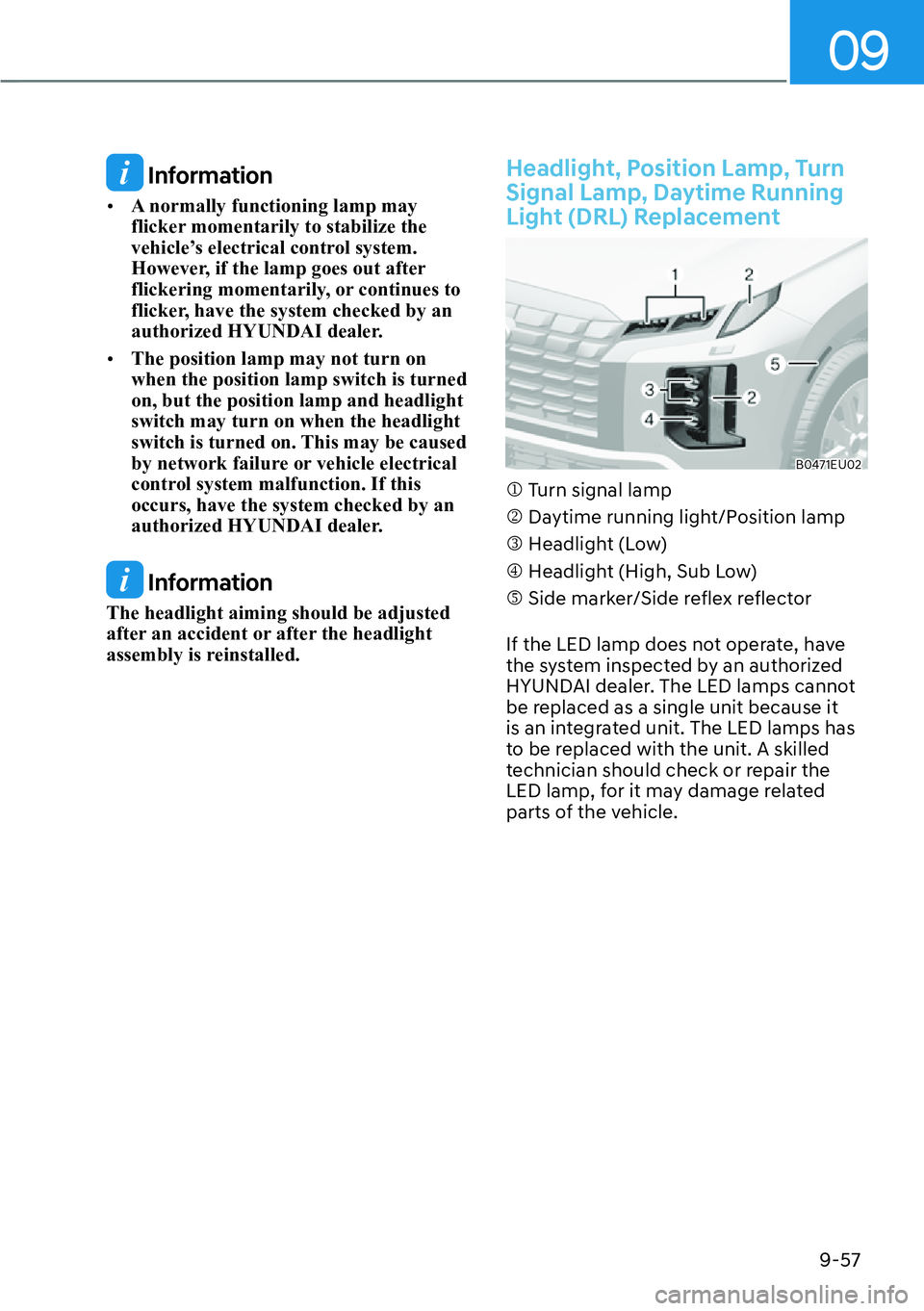

Headlight, Position Lamp, Turn
Signal Lamp, Daytime Running
Light (DRL) Replacement
B0471EU02
M Turn signal lamp
N Daytime running light/Position lamp
O Headlight (Low)
P Headlight (High, Sub Low)
Q Side marker/Side reflex reflector
If the LED lamp does not operate, have
the system inspected by an authorized
HYUNDAI dealer. The LED lamps cannot
be replaced as a single unit because it
is an integrated unit. The LED lamps has
to be replaced with the unit. A skilled
technician should check or repair the
LED lamp, for it may damage related
parts of the vehicle.

Maintenance9-58
Side Repeater Lamp
Replacement
B0473KO01
If the LED lamp M does not operate, have
the system inspected by an authorized
retailer of HYUNDAI dealer.
The LED lamps cannot be replaced as
a single unit because it is an integrated
unit. The LED lamps has to be replaced
with the unit.
A skilled technician should check or
repair the LED lamp, for it may damage
related parts of the vehicle.
Rear Combination Lamp
Replacement
„Type A
B0474KO01
M Tail lamp
N Tail/Stop lamp
O Turn signal lamp
P Side marker
Q Reverse lamp, Reflex reflector
„Type B
B0474EU03
M Tail lamp
N Stop lamp
O Turn signal lamp
P Side marker
Q Reverse lamp, Reflex reflector
R Garnish lamp

09
9-59
Tail/Stop lamp and turn signal lamp
(Type A)
B0474EU01
1. Turn off the engine.
2. Open the liftgate.
3. Loosen the lamp assembly retaining screws with a cross-tip screwdriver.
4. Remove the rear combination lamp assembly from the body of the
vehicle.
5. Remove the socket from the assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on the
assembly.
B0474EU02
6. Remove the bulb from the socket by pressing it in and rotating it
counterclockwise until the tabs on the
bulb align with the slots in the socket.
Pull the bulb out of the socket.
7. Insert a new bulb by inserting it into the socket and rotating it until it locks
into place. 8. Install the socket into the assembly by
aligning the tabs on the socket with
the slots in the assembly. Push the
socket into the assembly and turn the
socket clockwise.
9. Reinstall the lamp assembly to the body of the vehicle.
Tail lamp, stop lamp, turn signal
lamp and garnish lamp (Type B)
If the LED lamp does not operate, have
the system checked by an authorized
HYUNDAI dealer.
The LED lamps cannot replaced as a
single unit because it is an integrated
unit. The LED lamps has to be replaced
with the unit.
A skilled technician should check or
repair the LED lamp, for it may damage
related parts of the vehicle.
Side maker lamp
If the LED lamp does not operate, have
the system checked by an authorized
HYUNDAI dealer.
The LED lamps cannot replaced as a
single unit because it is an integrated
unit. The LED lamps has to be replaced
with the unit.
A skilled technician should check or
repair the LED lamp, for it may damage
related parts of the vehicle.
Reverse lamp
If the light bulb does not operate, have
the vehicle checked by an authorized
HYUNDI dealer.

Maintenance9-60
High Mounted Stop Lamp
Replacement
B0475KO01
If the LED lamp M does not operate, have
the system inspected by an authorized
HYUNDAI dealer.
The LED lamps cannot be replaced as
a single unit because it is an integrated
unit. The LED lamps has to be replaced
with the unit.
A skilled technician should check or
repair the LED lamp, for it may damage
related parts of the vehicle.
License Plate Lamp Replacement
B0476KO01
1. Loosen the lens retaining screws with a cross-tip screwdriver.
2. Using a flat-blade screwdriver, gently pry the lens cover from the lamp
housing.
3. Remove the socket by turning it counterclockwise.
4. Remove the bulb by pulling it straight out.
5. Install a new bulb.
6. Reinstall in the reverse order.

09
9-61

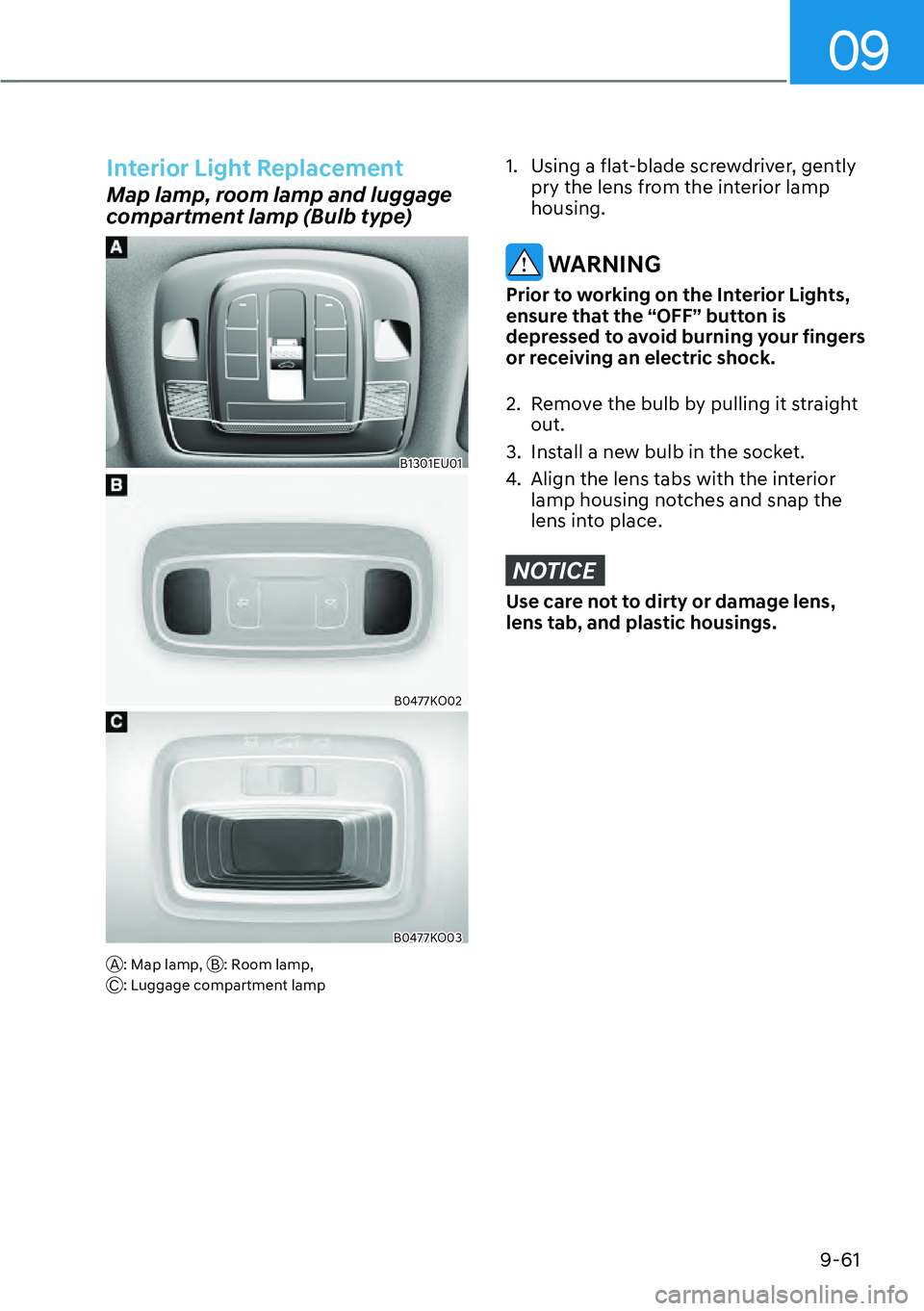

Interior Light Replacement
Map lamp, room lamp and luggage
compartment lamp (Bulb type)
B1301EU01
B0477KO02
B0477KO03
A: Map lamp, B: Room lamp,
C: Luggage compartment lamp
1. Using a flat-blade screwdriver, gently pry the lens from the interior lamp
housing.
WARNING
Prior to working on the Interior Lights,
ensure that the “OFF” button is
depressed to avoid burning your fingers
or receiving an electric shock.
2. Remove the bulb by pulling it straight out.
3. Install a new bulb in the socket.
4. Align the lens tabs with the interior lamp housing notches and snap the
lens into place.
NOTICE
Use care not to dirty or damage lens,
lens tab, and plastic housings.
