2023 HYUNDAI PALISADE Owners Manual

Convenience Features5-28
Used Vehicle/Digital Key
Maintenance
Purchasing used vehicle
If any of the digital key devices (smart
phone key, card key) are registered in
the vehicle, the ‘Digital key registered’
message appears once on the instrument
cluster when the ignition switch is in the
ON position after unlocking the doors.
When purchasing a used vehicle, be sure
to check the message and delete the
smart phone key and card key registered
by the previous user and inform the
purchase of a used vehicle through
Hyundai Customer Care Center.
If the card key comes with the vehicle,
check whether it operates properly.
Digital Key Maintenance
If you need to have your Digital Key
System repaired or replaced, the
registered smartphone key or card key.
Limitations of the System

[ Hyundai digital key may not operate if
any of the following occurs:

- The smart phone battery or the
vehicle battery is discharged

- NFC is turned off in the smart phone
settings

- A credit card is near your smart
phone, or a metal or thick smart
phone case is used

- The card key is near other cards, or
used in a wallet or card holder

- There is electronic interference by
other vehicles, objects, etc.

[ The vehicle may not be controlled
by the smart phone if any of the
following occurs:

- The basic necessary functions of the
smart phone are operating (general
call, urgent call, audio, etc.)

- Using a wireless earphone (general
call, urgent call, audio, etc.)

05

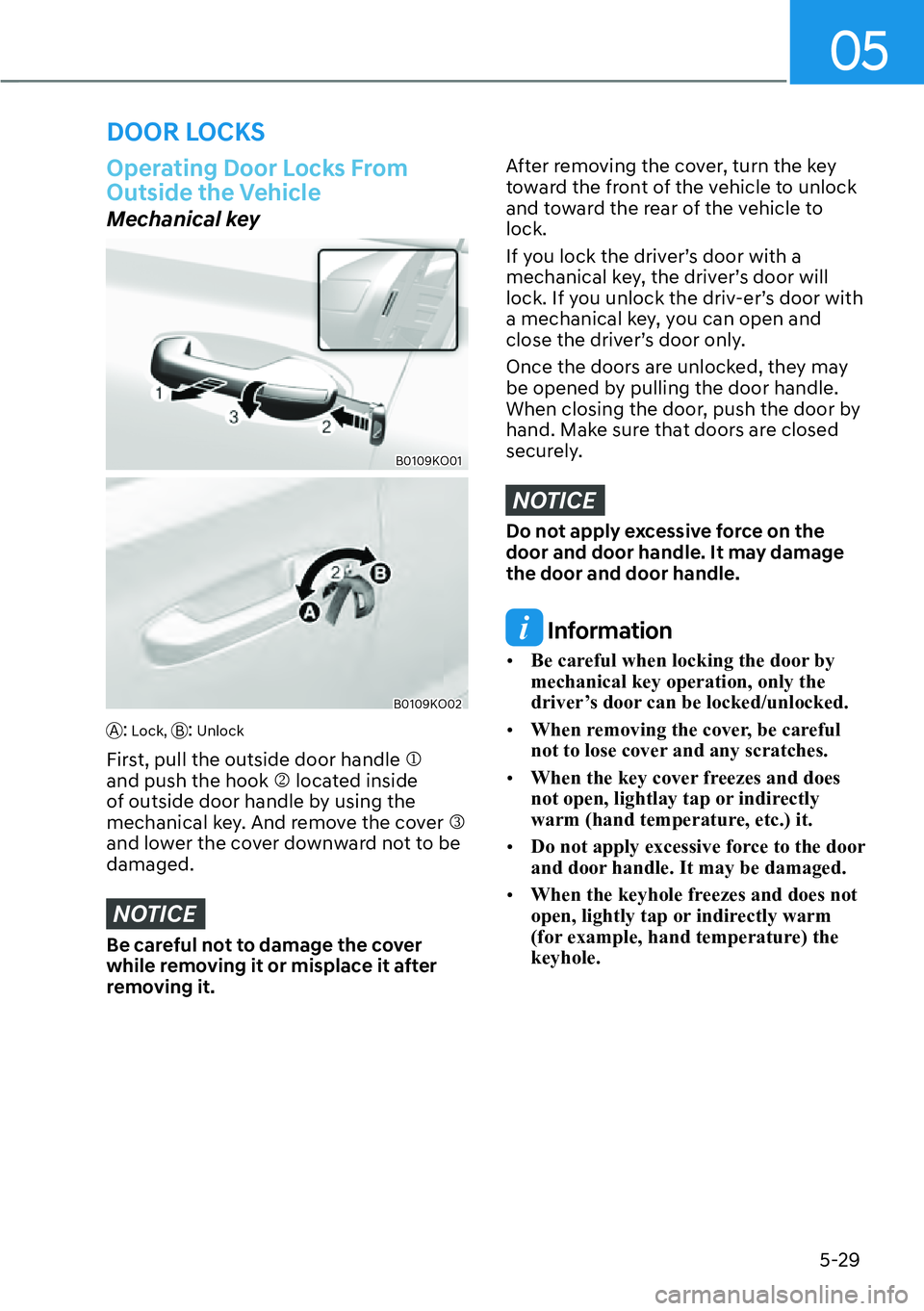

5-29
DOOR LOCKS
2SHUDWLQJ'RRU/RFNV)URP
Outside the Vehicle
Mechanical key
B0109KO01
B0109KO02
A: Lock, B: Unlock
First, pull the outside door handle M
and push the hook N located inside
of outside door handle by using the
mechanical key. And remove the cover O
and lower the cover downward not to be
damaged.
NOTICE
Be careful not to damage the cover
while removing it or misplace it after
removing it.
After removing the cover, turn the key
toward the front of the vehicle to unlock
and toward the rear of the vehicle to
lock.
If you lock the driver’s door with a
mechanical key, the driver’s door will
lock. If you unlock the driv-er’s door with
a mechanical key, you can open and
close the driver’s door only.
Once the doors are unlocked, they may
be opened by pulling the door handle.
When closing the door, push the door by
hand. Make sure that doors are closed
securely.
NOTICE
Do not apply excessive force on the
door and door handle. It may damage
the door and door handle.
Information

[ Be careful when locking the door by
mechanical key operation, only the
driver’s door can be locked/unlocked.

[ When removing the cover, be careful
not to lose cover and any scratches.

[ When the key cover freezes and does
not open, lightlay tap or indirectly
warm (hand temperature, etc.) it.

[ Do not apply excessive force to the door
and door handle. It may be damaged.

[ When the keyhole freezes and does not
open, lightly tap or indirectly warm
(for example, hand temperature) the
keyhole.

Convenience Features5-30
Remote key
B0115EU06
To lock the doors, press the Door Lock
button M on the remote key.
Press the Door Unlock button N on the
remote key, the driver's door will unlock.
If you press the Door Unlock button
on the remote key again within four
seconds, then all the doors will unlock.
When closing the door, push the door by
hand. Make sure that doors are closed
securely.
Smart key
Button type
B0097KO01
To lock the doors, press the button on
the outside door handle while carrying
the smart key with you or press the door
lock button on the smart key.
To unlock the doors, press the button on
the outside door handle while carrying
the smart key with you or press the door
unlock button on the smart key.
Once the doors are unlocked, they may
be opened by pulling the door handle.
When closing the door, push the door by
hand. Make sure that doors are closed
securely.

05
5-31
Touch type
B0097EU04
Lock
Touch the touch sensor on the front
outside door handle (the engraved part)
while carrying the Smart Key with you or
press the Door Lock button on the Smart
Key, all doors will lock.
B0097EU03
Unlock
Put your hand in the front outside door
handle while carrying the Smart Key with
you or press the Door Unlock button on
the Smart Key, all doors will unlock.
Once the doors are unlocked, they may
be opened by pulling the door handle.
When closing the door, push the door by
hand. Make sure that doors are closed
securely.
For more details, refer to “Smart Key” in
the previous pages.
Information

[During a car wash or rain, in order
to minimize unintentional operation
of the touch sensor, the touch sensor
may become insensitive. This is not a
malfunction.

[ In cold and wet climates, door lock
and door mechanisms may not work
properly due to freezing conditions.

[ If the door is locked/unlocked multiple
times in rapid succession with either
the vehicle key or door lock switch, the
system may stop operating temporarily
in order to protect the circuit and
prevent damage to system components.

Convenience Features5-32
2SHUDWLQJ'RRU/RFNV)URP
Inside the Vehicle
With the door handle
B0111KO01

[ To unlock a door, push the door lock
button M to the “Unlock” position.
The red mark N on the door lock
button will be visible.

[ To lock a door, push the door lock
button M to the “Lock” position. If the
door is locked properly, the red mark
N on the door lock button will not be
visible.

[ To open a door, pull the door handle
O outward.

[ If the inner door handle of either
the driver door or passenger door
is pulled when the door lock button
is in the lock position, the button is
unlocked and the door will open.

[ For Key Start Vehicles
(with Remote Key)
The front doors cannot be locked if
the remote key is in the ignition switch
and either of the front doors are open.

[ For Push Button Start Vehicles (with
Smart Key)
The doors cannot be locked if the
smart key is inside the vehicle and any
of the doors are open.
Information
If a power door lock ever fails to function
while you are in the vehicle try one or
more of the following techniques to exit:

[Operate the door unlock feature
repeatedly (both electronic and
manual) while simultaneously pulling
on the door handle.

[ Operate the other door locks and
handles, front and rear.

[ Lower a front window and use the
mechanical key to unlock the door from
outside.
Information
When the vehicle’s battery run out and
you leave the vehicle, make sure all the
doors are locked. You can lock the driver’s
door with a key and the rest of the doors
with the lock button above the door inside
handle.

05

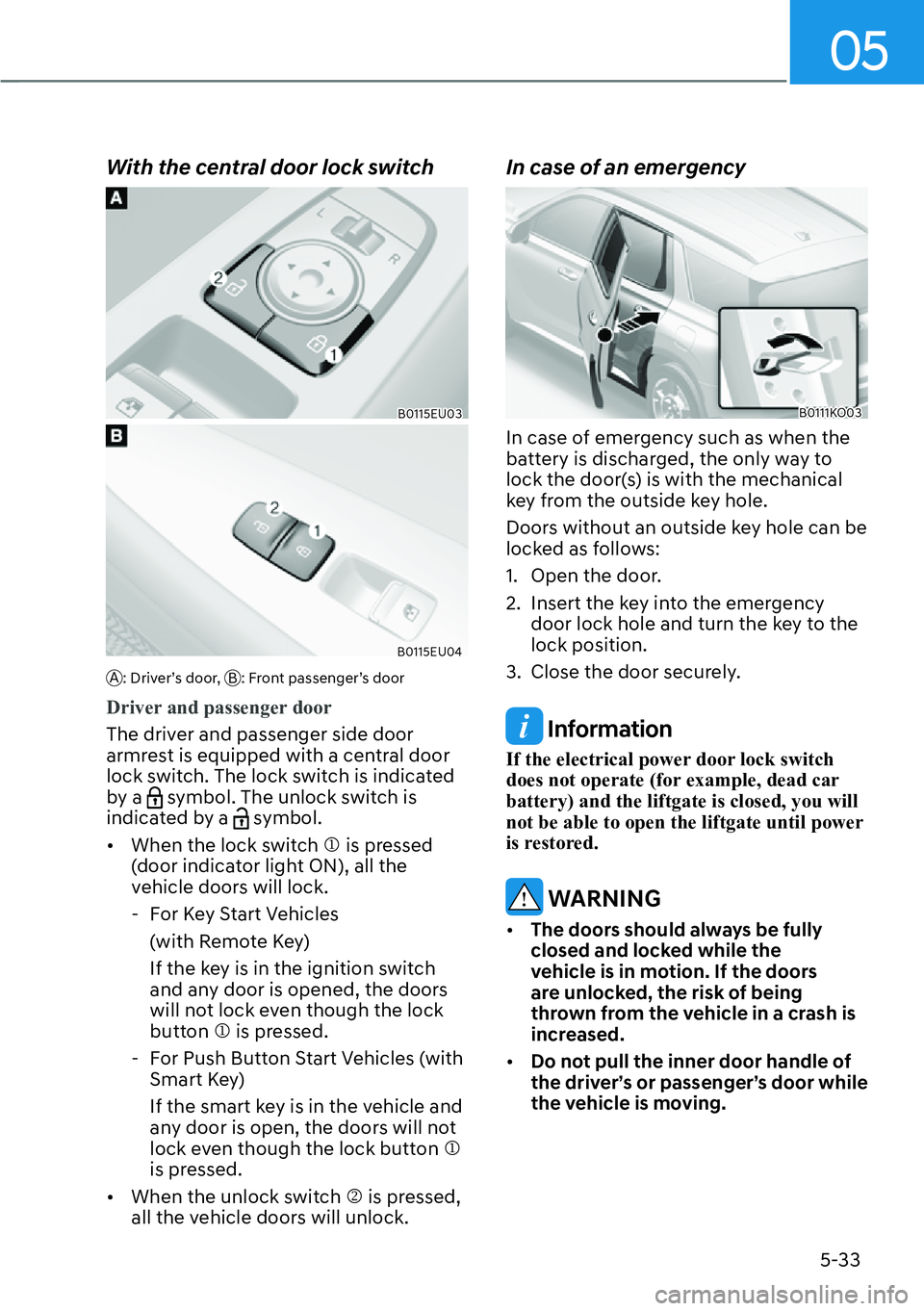

5-33
With the central door lock switch
B0115EU03
B0115EU04
A: Driver’s door, B: Front passenger’s door
Driver and passenger door
The driver and passenger side door
armr

est is equipped with a central door
lock switch. The lock switch is indicated
by a
symbol. The unlock switch is
indicated by a symbol.

[ When the lock switch M is pressed
(door indicator light ON), all the
vehicle doors will lock.

- For Key Start Vehicles
(with Remote Key)
If the key is in the ignition switch
and any door is opened, the doors
will not lock even though the lock
button M is pressed.

- For Push Button Start Vehicles (with
Smart Key)
If the smart key is in the vehicle and
any door is open, the doors will not
lock even though the lock button M
is pressed.

[ When the unlock switch N is pressed,
all the vehicle doors will unlock.
In case of an emergency
B0111KO03
In case of emergency such as when the
battery is discharged, the only way to
lock the door(s) is with the mechanical
key from the outside key hole.
Doors without an outside key hole can be
locked as follows:
1. Open the door.
2. Insert the key into the emergency
door lock hole and turn the key to the
lock position.
3. Close the door securely.
Information
If the electrical power door lock switch
does not operate (for example, dead car
battery) and the liftgate is closed, you will
not be able to open the liftgate until power
is restored.
WARNING

[ The doors should always be fully
closed and locked while the
vehicle is in motion. If the doors
are unlocked, the risk of being
thrown from the vehicle in a crash is
increased.

[ Do not pull the inner door handle of
the driver’s or passenger’s door while
the vehicle is moving.

Convenience Features5-34
WARNING
Do not leave children or animals
unattended in your vehicle. An enclosed
vehicle can become extremely hot,
causing death or serious injury to
unattended children or animals who
cannot escape the vehicle. Children
might operate features of the vehicle
that could injure them, or they could
encounter other harm, possibly from
someone gaining entry to the vehicle.
WARNING
Always secure your vehicle.
Leaving your vehicle unlocked increases
the potential risk to you or others from
someone hiding in your vehicle.
To secure your vehicle, while
depressing the brake, shift the gear
to the P (Park) position, engage the
parking brake, and press the Engine
6WDUW6WRSEXWWRQWRWKH2))SRVLWLRQ
close all windows, lock all doors, and
always take the key with you.
CAUTION
Opening a door when something is
approaching may cause damage or
injury. Be careful when opening doors
and watch for vehicles, motorcycles,
bicycles or pedestrians approaching the
vehicle in the path of the door.
WARNING
If you stay in the vehicle for a long time
while the weather is very hot or cold,
there are risks of injuries or danger to
life. Do not lock the vehicle from the
outside when someone is in the vehicle.
Automatic Door Lock and Unlock
)HDWXUHVLIHTXLSSHG
Your vehicle is equipped with features
that will automatically lock or unlock
your vehicle based on settings you select
in the infotainment system.
Auto LOCK Enable on speed
When this feature is set, all the doors will
be locked automatically when the vehicle
exceeds 9 mph (15 km/h).
Auto LOCK Enable on shift
When this feature is set, all the doors will
be locked automatically when the vehicle
is shifted out of P (Park) while the engine
is running.
Auto UNLOCK On Shift to P
When this feature is set, all the doors
will be unlocked automatically when the
vehicle is shifted back into P (Park) while
the engine is running.

05

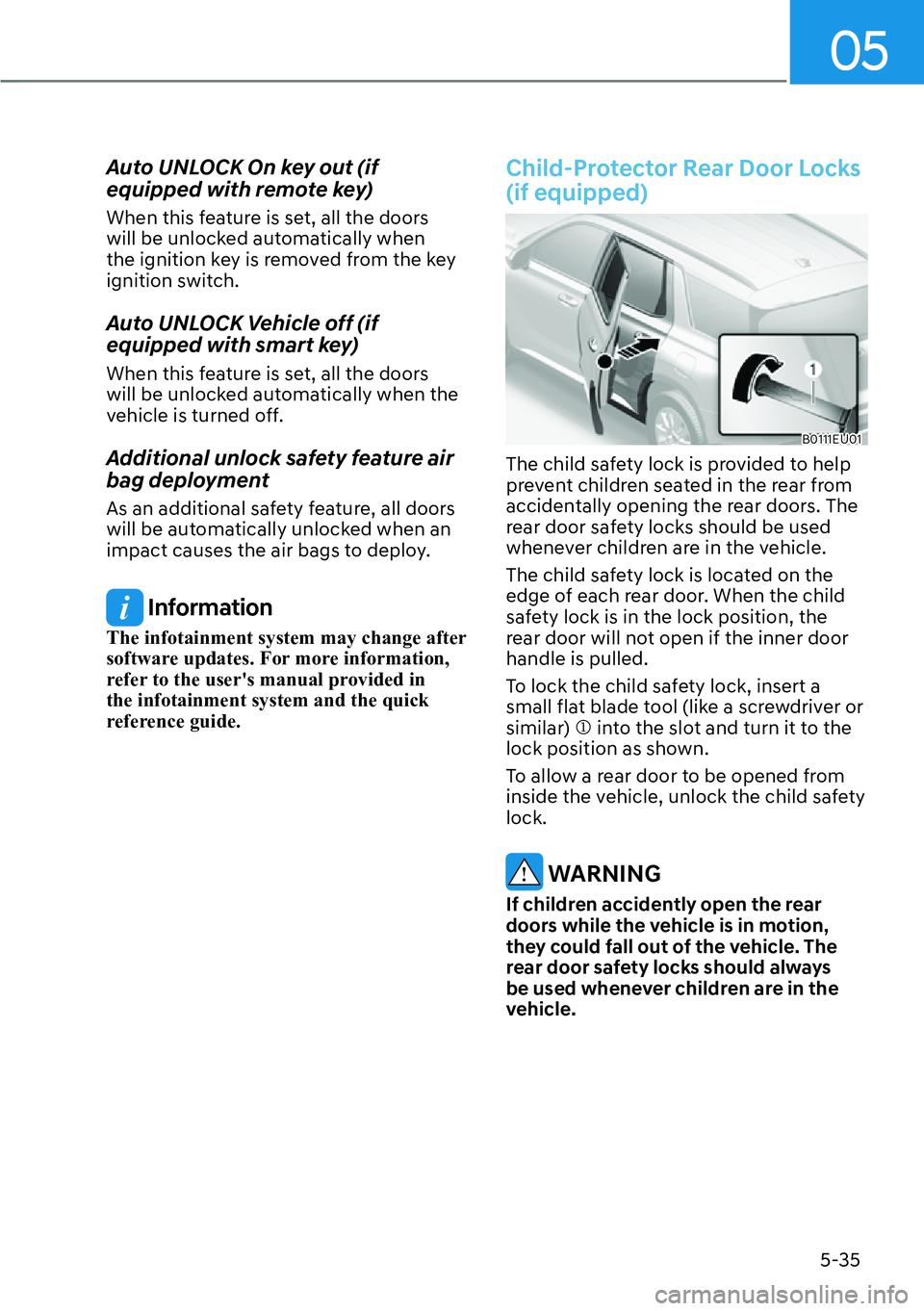

5-35
Auto UNLOCK On key out (if
equipped with remote key)
When this feature is set, all the doors
will be unlocked automatically when
the ignition key is removed from the key
ignition switch.
Auto UNLOCK Vehicle off (if
equipped with smart key)
When this feature is set, all the doors
will be unlocked automatically when the
vehicle is turned off.
Additional unlock safety feature air
bag deployment
As an additional safety feature, all doors
will be automatically unlocked when an
impact causes the air bags to deploy.
Information
The infotainment system may change after
software updates. For more information,
refer to the user's manual provided in
the infotainment system and the quick
reference guide.
Child-Protector Rear Door Locks
(if equipped)
B0111EU01
The child safety lock is provided to help
prevent children seated in the rear from
accidentally opening the rear doors. The
rear door safety locks should be used
whenever children are in the vehicle.
The child safety lock is located on the
edge of each rear door. When the child
safety lock is in the lock position, the
rear door will not open if the inner door
handle is pulled.
To lock the child safety lock, insert a
small flat blade tool (like a screwdriver or
similar) M into the slot and turn it to the
lock position as shown.
To allow a rear door to be opened from
inside the vehicle, unlock the child safety
lock.
WARNING
If children accidently open the rear
doors while the vehicle is in motion,
they could fall out of the vehicle. The
rear door safety locks should always
be used whenever children are in the
vehicle.
