2023 HYUNDAI PALISADE Owners Manual

Convenience Features5-108

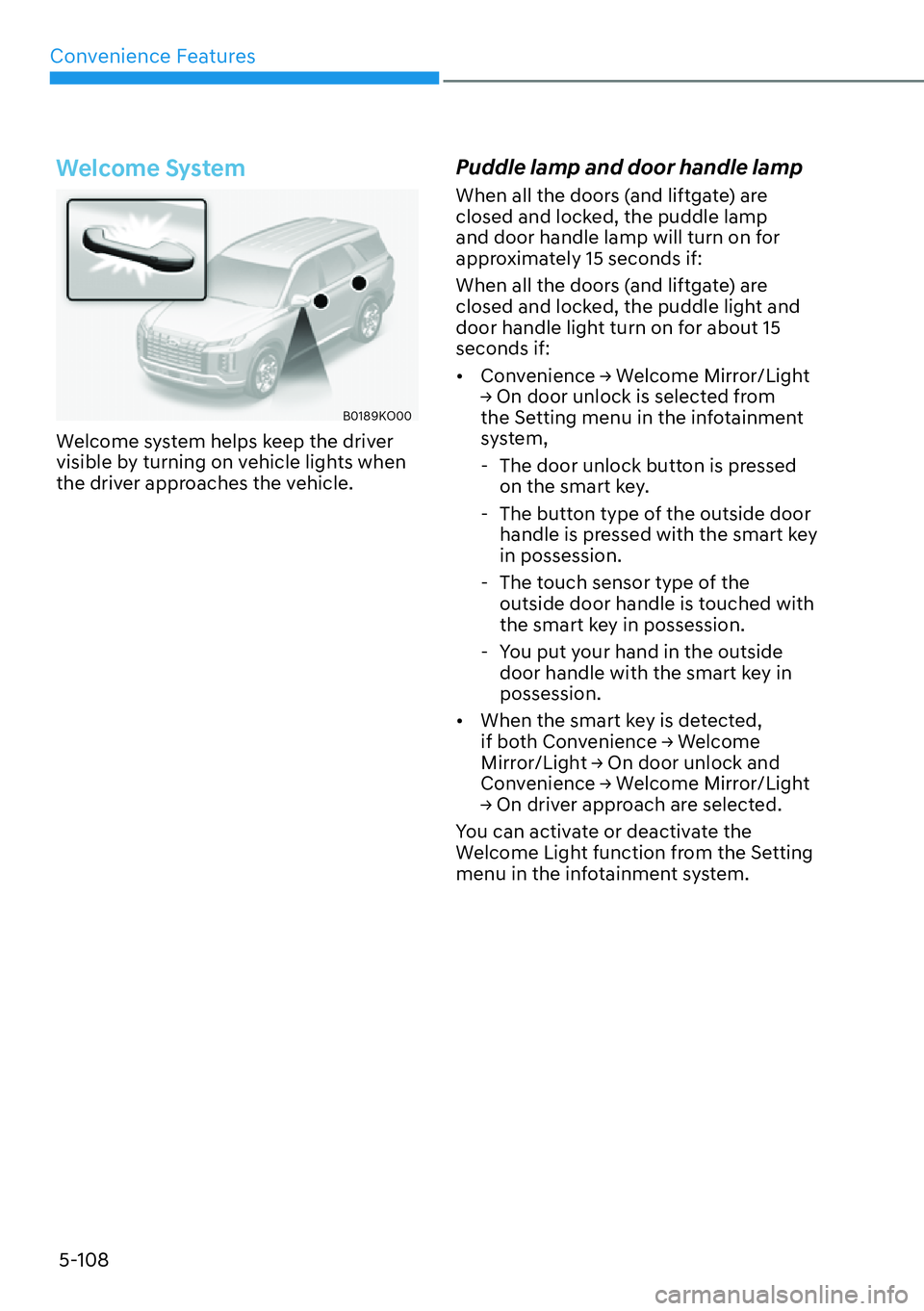

Welcome System
B0189KO00
Welcome system helps keep the driver
visible by turning on vehicle lights when
the driver approaches the vehicle.
Puddle lamp and door handle lamp
When all the doors (and liftgate) are
closed and locked, the puddle lamp
and door handle lamp will turn on for
approximately 15 seconds if:
When all the doors (and liftgate) are
closed and locked, the puddle light and
door handle light turn on for about 15
seconds if:

[ &RQYHQLHQFH

05
5-109

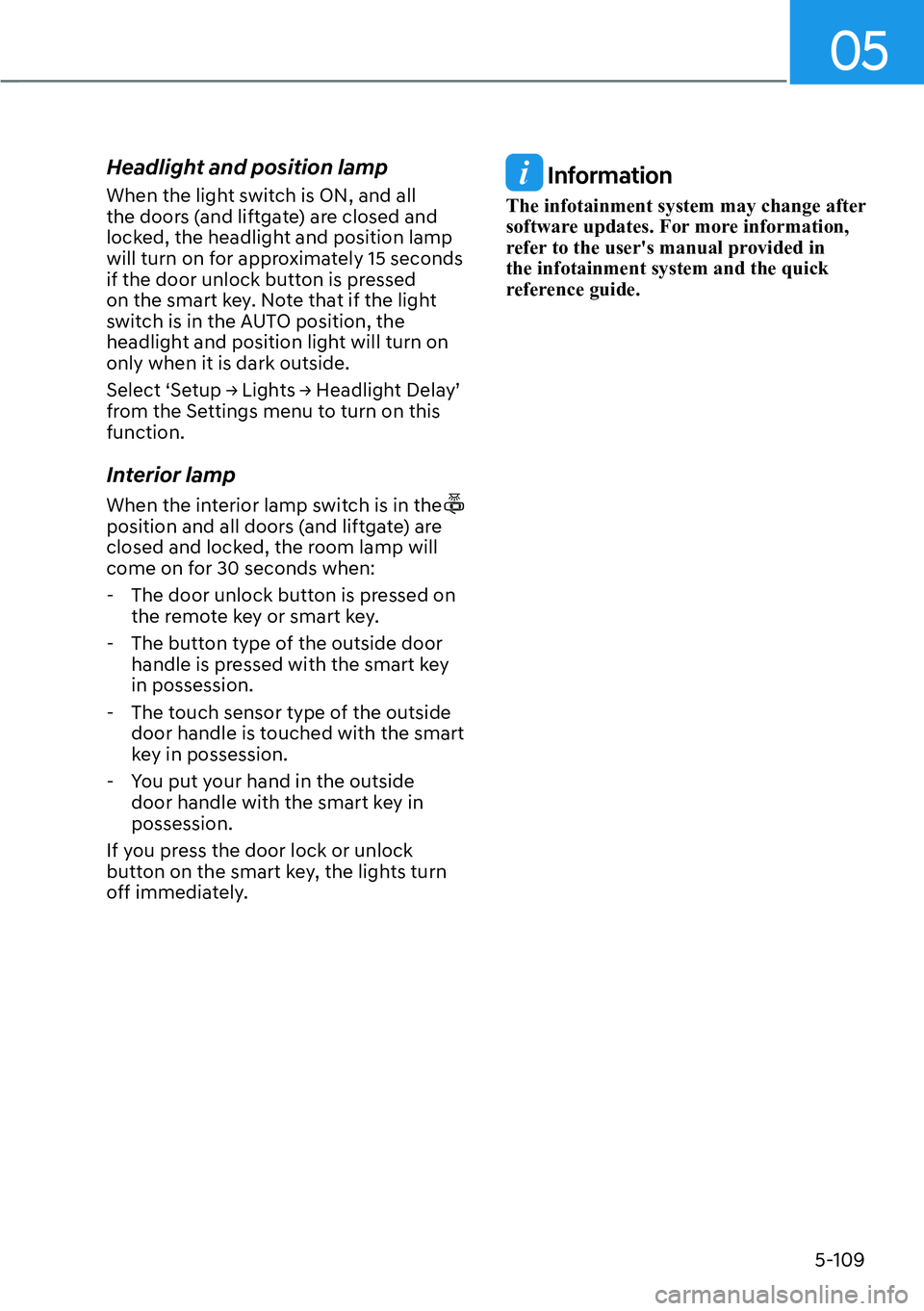

Headlight and position lamp
When the light switch is ON, and all
the doors (and liftgate) are closed and
locked, the headlight and position lamp
will turn on for approximately 15 seconds
if the door unlock button is pressed
on the smart key. Note that if the light
switch is in the AUTO position, the
headlight and position light will turn on
only when it is dark outside.
6HOHFW
S6HWXS

Convenience Features5-110
B0200KO01
)URQW:LQGVKLHOG:LSHUV
Operates as follows when the ignition
switch or Engine Start/Stop button is in
the ON position.
MIST: For a single wiping cycle, push the lever upward and release. The
wipers will operate continuously
if the lever is held in this position.
OFF: Wiper is not in operation.
AUTO
(if equipped): The rain sensor located
on the upper end of the
windshield glass senses
the amount of rainfall and
controls the wiping cycle
for the proper interval. The
more it rains, the faster
the wiper operates. When
the rain stops, the wiper
stops. To vary the speed
setting, turn the speed
control knob.
LO: The wiper runs at a lower speed.
HI: The wiper runs at a higher speed.
Information
If there is heavy accumulation of snow
or ice on the windshield, defrost the
windshield for about 10 minutes, or until
the snow and/or ice is removed before
using the windshield wipers to ensure
proper operation.
If you do not remove the snow and/or ice
before using the wiper and washer, it may
damage the wiper and washer system.
AUTO wiper control (if equipped)
B0200KO02
The rain sensor located on the upper
end of the windshield glass senses
the amount of rainfall and controls the
wiping cycle for the proper interval.
The wiper operation time will be
automatically controlled depends on
rainfall.
When the rain stops, the wiper stops.
To vary the sensitivity setting, turn the
sensitivity control knob.
If the wiper switch is set in AUTO mode
when the ignition switch is in the ON
position, the wiper will operate once to
perform a self-check of the system. Set
the wiper to the OFF position when the
wiper is not in use.
WIPERS AND WASHERS

05
5-111
WARNING
To avoid personal injury from the
windshield wipers, when the engine
is running and the windshield wiper
switch is placed in the AUTO mode:

[Do not touch the upper end of the
windshield glass facing the rain
sensor.

[ Do not wipe the upper end of the
windshield glass with a damp or wet
cloth.

[ Do not put pressure on the
windshield glass.
NOTICE

[When washing the vehicle, set the
ZLSHUVZLWFKLQWKH2))SRVLWLRQWR
stop the auto wiper operation. The
wiper may operate and be damaged
if the switch is set in the AUTO mode
while washing the vehicle.

[ Do not remove the sensor cover
located on the upper end of the
passenger side windshield glass.
Damage to system components
could occur and may not be covered
by your vehicle warranty.

[ Because of using a photo sensor,
temporary malfunction could occur
according to sudden ambient light
change made by stone and dust
while driving.
)URQW:LQGVKLHOG:DVKHUV
B0201KO01
In the OFF position, pull the lever gently
toward you to spray washer fluid on the
windshield and to run the wipers 1-3
cycles. The spray and wiper operation
will continue until you release the lever. If
the washer does not work, you may need
to add washer fluid to the washer fluid
reservoir.

Convenience Features5-112
Recirculating air when washer
fluidis used
When washer fluid is used, in order
to reduce any objectionable scent
of the washer fluid from entering
the cabin,recirculation mode and air
conditioningare automatically activated
dependingon the outside temperature.

[ When the air intake control button
ispressed while fresh mode is
selected,air intake control will switch
torecirculation mode.

[ When windshield lever is used
whilerecirculation mode is selected,
airintake control will switch to
freshmode

[ The function may not work in
someconditions such as cold weather
orengine off.
For more details, refer to “ClimateControl
Additional Features” section inthis
chapter.
WARNING
When the outside temperature is below
freezing, ALWAYS warm the windshield
using the defroster to help prevent
the washer fluid from freezing on the
windshield and obscuring your vision
which could result in an accident and
serious injury or death.
NOTICE

[ To prevent possible damage to the
washer pump, do not operate the
washer when the fluid reservoir is
empty.

[ To prevent possible damage to the
wipers or windshield, do not operate
the wipers when the windshield is
dry.

[ To prevent damage to the wiper
arms and other components, do
not attempt to move the wipers
manually.

[ To prevent possible damage to the
wipers and washer system, use anti-
freezing washer fluids in the winter
season or cold weather.

05
5-113
Rear Window Wiper and Washer
B0200KO03
The rear window wiper and washer
switch is located at the end of the wiper
and washer switch lever. Turn the switch
to the desired position to operate the
rear wiper and washer.
HI: High wiper speed
LO: Low wiper speed
OFF: Off
B0201KO02
Push the lever away from you to spray
rear washer fluid and to run the rear
wipers 1~3 cycles. The spray and wiper
operation will continue until you release
the lever.
Auto rear wiper
The rear wiper will operate while the
vehicle is in reverse with the front wiper
ON by selecting the function from the
Settings menu in the infotainment
system screen. Select:
- 6HWXS

Convenience Features5-114
0$18$/&/,0$7(&21752/6<67(0

05
5-115
Heating and Air Conditioning
1. Start the engine.
2. Set the mode to the desired position.To improve the effectiveness of
heating and cooling, select the mode
according to the following:

- Heating:

- Cooling:
3. Set the temperature control to the
desired position.
4. Set the air intake control to Fresh mode or Recirculation mode position.
5. Set the fan speed control to the desired speed. 6. If air conditioning is desired, turn the
air conditioning system on.
When starting the vehicle in cold
weather a more efficient way to heat
the passenger compartment is to do the
following.

- Turn off or lower the blower, right
after starting the engine.

- Engine temperature is still low and the
air flow from the heater is still cold.

- After a few minutes of engine warm
up, turn on or set the fan to a higher
level and adjust the temperature
setting to hot.
Mode selection
A0204KO02
The mode selection button controls the direction of the air flow through the ventilation
system. Air can be directed to the floor, dashboard outlets, or windshield. Five symbols
are used to represent Face, Bi-Level, Floor, Floor-Defrost and Defrost air position.
