2023 HYUNDAI PALISADE Owners Manual

07
7-135
Forward/Reverse Parking Distance
Warning can help warn the driver if an
obstacle is detected within a certain
distance when the vehicle is moving
forward or in reverse at low speeds.
Detecting sensor
B0374KO01
B0374KO02
A: Front ultrasonic sensors,
B: Rear ultrasonic sensors
Refer to the picture above for the
detailed location of the detecting
sensors.
Forward/Reverse Parking
Distance Warning Settings
Warning Volume
B0371EU02
6HOHFW
S'ULYHU$VVLVWDQFH

Driver Assistance System7-136
Forward/Reverse Parking
Distance Warning Operation
Parking Safety button
B0376KO01

[ Press the Parking Safety () button
to turn on Forward/Reverse Parking
Distance Warning. Press the button
again to turn off the function.

[ When Forward/Reverse Parking
Distance Warning is off (button
indicator light off), if you shift the
gear to R (Reverse), Forward/Reverse
Parking Distance Warning will
automatically turn on.

[ When Forward/Reverse Parking
Distance Warning turns on, the button
indicator light will turn on. If vehicle
speed is above 18 mph (30 km/h),
Forward/Reverse Parking Distance
Warning will turn off (button indicator
light off).
Forward Parking Distance Warning
Forward Parking Distance Warning will
operate when one of the condition is
satisfied.

[The gear is shifted from R (Reverse)
to D (Drive) with Reverse Parking
Distance Warning on

[ The gear is in D (Drive) and the
Parking Safety button indicator light
is on

[ ‘Parking Distance Warning Auto On’ is
selected from the Settings menu and
the gear is in D (Drive)
Information

[Forward Parking Distance Warning
does not operate when the vehicle’s
forward speed is above 10 km/h even
when the Parking Safety (
) button
indicator is on. Forward Parking
Distance Warning will operate again
when the vehicle's forward speed
decreases below 10 km/h while the
Parking Safety (
) button indicator
is on.

[ Forward Parking Distance Warning is
deactivated if the vehicle speed reaches
above 30 km/h. It will not reactivate
although the vehicle speed drops below
10km/h. (Only when Parking Warning
Auto On is not selected)

07
7-137

[When ‘Parking Distance Warning Auto
On’ is deselected, and the vehicle’s
forward speed is above 18 mph (30
km/h), the Parking Safety button
indicator will turn off. Although you
drive below 6 mph (10 km/h), Forward
Parking Distance Warning will not turn
on.
Distance
from object Warning
indicator when
driving
forward Warning
sound
24~40 in.
(

60~100 cm)Buzzer beeps
intermittently
12~24 in.
(30~60 cm)
Beeps more frequently
within 12 in. (30 cm)
Beeps
continuously

[ The corresponding indicator will
illuminate whenever each ultrasonic
sensor detects a person, animal or
object in its sensing range. Also an
audible warning will sound.

[ When more than two objects are
detected at the same time, the closest
one will be warned with an audible
warning.

[ The shape of the indicator in the
illustration may differ from the actual
vehicle.
Reverse Parking Distance Warning
Reverse Parking Distance Warning will
operate under the following conditions.

[The gear is shifted to R (Reverse).

[ Vehicle speed is below 6 mph (10
km/h).
Information
Parking Distance Warning detects and
warns the driver of both rear and front
corners, when the vehicle speed is below 6
mph (10 km/h).
Distance
from object Warning
indicator when
driving
backward Warning
sound
24~48 in.
(

60~120 cm)Buzzer beeps
intermittently
12~24 in.
(30~60 cm)
Beeps more frequently
within 12 in. (30 cm)
Beeps
continuously

[ The corresponding indicator will
illuminate whenever each ultrasonic
sensor detects a person, animal or
object in its sensing range. Also an
audible warning will sound.

[ When more than two objects are
detected at the same time, the closest
one will be warned with an audible
warning.

[ The shape of the indicator in the
illustration may differ from the actual
vehicle.

Driver Assistance System7-138
Forward/Reverse Parking
Distance Warning Malfunction
and Precautions
Parking Distance Warning
malfunction
After starting the engine, a beep will
sound when the gear is shifted to R
(Reverse) to indicate Parking Distance
Warning is operating properly.
However, if one or more of the following
occurs, first check whether the ultrasonic
sensor is damaged or blocked with
foreign material. If it still does not work
properly, have the vehicle inspected by
an authorized HYUNDAI dealer.

[ The audible warning does not sound.

[ The buzzer sounds intermittently.

[ The ‘Ultrasonic sensor error or
blockage’ warning message appears
on the cluster.
B0377EU01
B0377EU02
Parking Distance Warning disabled
B0377EU03
If this occurs the ‘Parking Distance
Warning system limited. Ultrasonic
sensor blocked’ warning message
appears on the cluster. Parking Distance
Warning will operate properly when
snow, rain or foreign material is removed.
If Parking Distance Warning does not
operate properly after obstruction (snow,
rain, or foreign material) is removed
(including trailer, carrier, etc., from the
rear bumper), have the vehicle inspected
by an authorized HYUNDAI dealer.

07
7-139
Limitations of Forward/Reverse
Parking Distance Warning

[Parking Distance Warning may not
operate properly when:
- Moisture is frozen to the sensor
- Sensor is covered with substance, such as snow or water (Forward/
Reverse Parking Distance Warning
will operate properly when such
substance is removed.)

- The weather is extremely hot or cold
- The sensor or sensor assembly is disassembled
- The surface of the sensor is pressed hard or hit with a hard object
- The surface of the sensor is scratched with a sharp object
- The sensors or its surrounding area is directly sprayed with high
pressure washer

[ Parking Distance Warning may
malfunction when:

- Heavy rain or water spray is present
- Water flows on the surface of the sensor
- Affected by another vehicle’s sensors
- The sensor is covered with snow or ice
- Driving on uneven road, gravel roads or bushes
- Objects that generates ultrasonic waves are near the sensor
- License plate is installed in a different spot from the original
location
- The vehicle bumper height or ultrasonic sensor installation has
been modified
- Attaching equipment or accessories next to the ultrasonic sensors
[
The following objects may not be
detected:

- Sharp or slim objects, such as ropes,
chains or small poles.
- Narrow objects, such as corners of a square column
- Objects, which tend to absorb sensor frequency, such as clothes,
spongy material or snow.
- Objects smaller than 40 in. (100 cm) in length and narrower than 6 in. (14
cm) in diameter.
- Pedestrians, animals or objects that are very close to the ultrasonic
sensors
WARNING

[ Parking Distance Warning is
a supplemental function. The
operation of Parking Distance
Warning can be affected by several
factors (including environmental
conditions). It is the responsibility of
the driver to always check the front
and rear views before and while
parking.

[ Your new vehicle warranty does not
cover any accidents or damage to
the vehicle due to the malfunction of
Parking Distance Warning.

[ Pay close attention when driving
near objects, pedestrians, and
especially children. Some objects
may not be detected by the
ultrasonic sensors, due to the objects
distance, size or material, all of
which can limit the effectiveness of
the sensor.

[ Parking Distance Warning does not
warn you in the order of detection.
It varies depending on the speed of
the vehicle or the shape of a person,
animal, or object.

[ If the Parking Distance Warning
does not operate properly, have the
vehicle inspected by an authorized
HYUNDAI dealer.

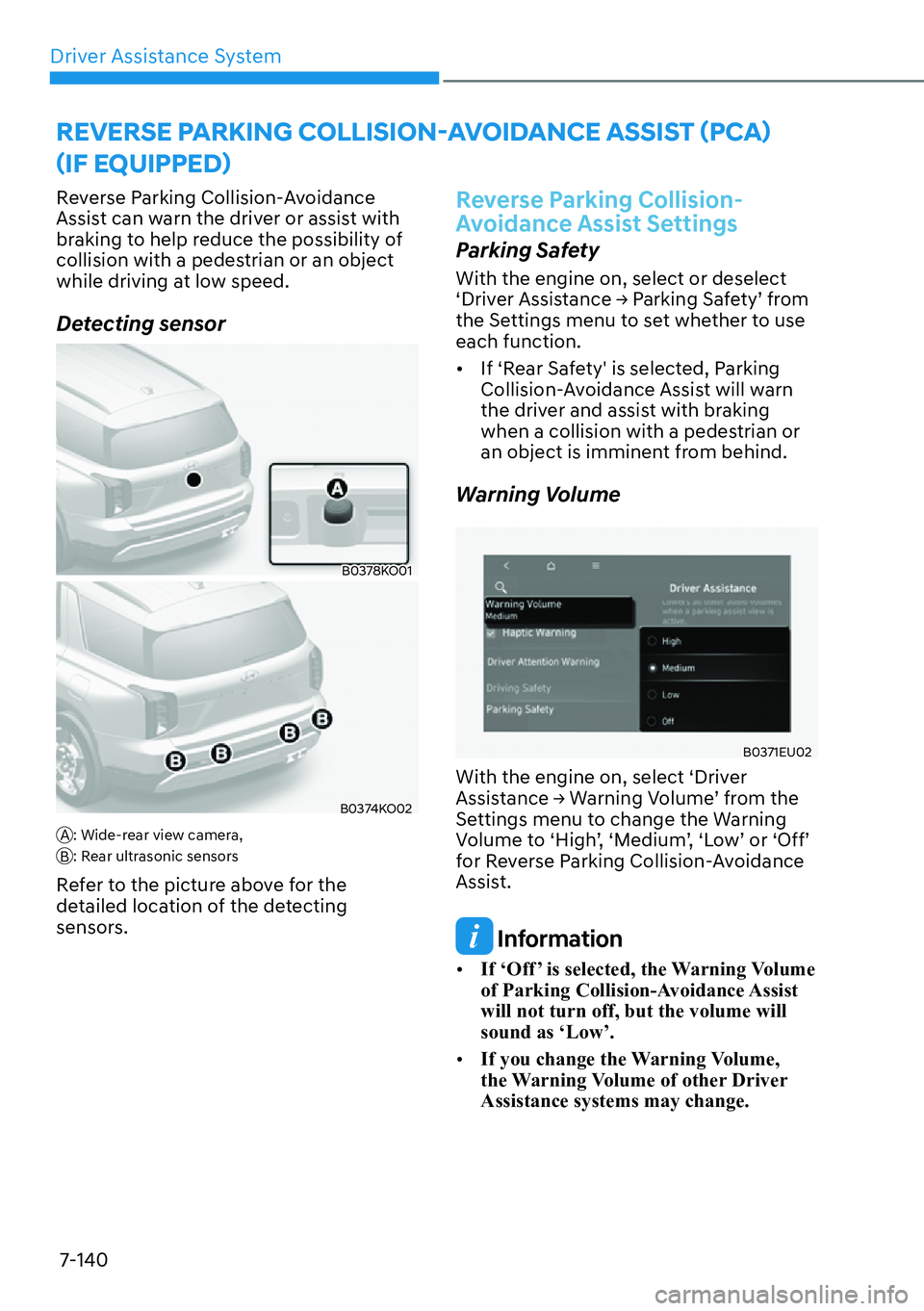

Driver Assistance System7-140
5(9(56(3$5.,1*&2//,6,21

07
7-141
Reverse Parking Collision-
Avoidance Assist Operation
B0376KO01
Turning Parking Collision Avoidance
Assist On/Off
Press and hold the Parking Safety (
)
button more than 2 seconds, ‘Rear Active
Assist’ or to turn the Parking Collision-
Avoidance Assist on or off.
Operating conditions
If Reverse Parking Collision-Avoidance
Assist detects a risk of collision behind
the vehicle with a pedestrian or an
object, Reverse Parking Collision-
Avoidance Assist will warn the driver
with an audible warning and warning
message on the cluster. If Surround
View Monitor is operating, a warning will
appear on the infotainment screen.
If collision is imminent, Reverse Parking
Collision-Avoidance Assist will assist you
with braking.
Select ‘Rear Safety’ from the ‘Parking
Safety’ menu of the infotainment system.
Parking Collision-Avoidance Assist is
enabled when the following conditions
are satisfied:

[ The liftgate and door are closed

[ The Electronic Parking Brake (EPB) is
released

[ A trailer is not connected

[ The gear is shifted to R (Reverse)

[ Vehicle speed is below 6 mph (10
km/h) (detecting pedestrians)

[ Vehicle speed is below 2.4 mph (4
km/h) (detecting objects)

[ Parking Collision-Avoidance Assist
components such as the rear view
camera and the rear ultrasonic
sensors are in normal conditions
When Reverse Parking Collision-
Avoidance Assist activates, a line
appears behind the vehicle image in the
instrument cluster.

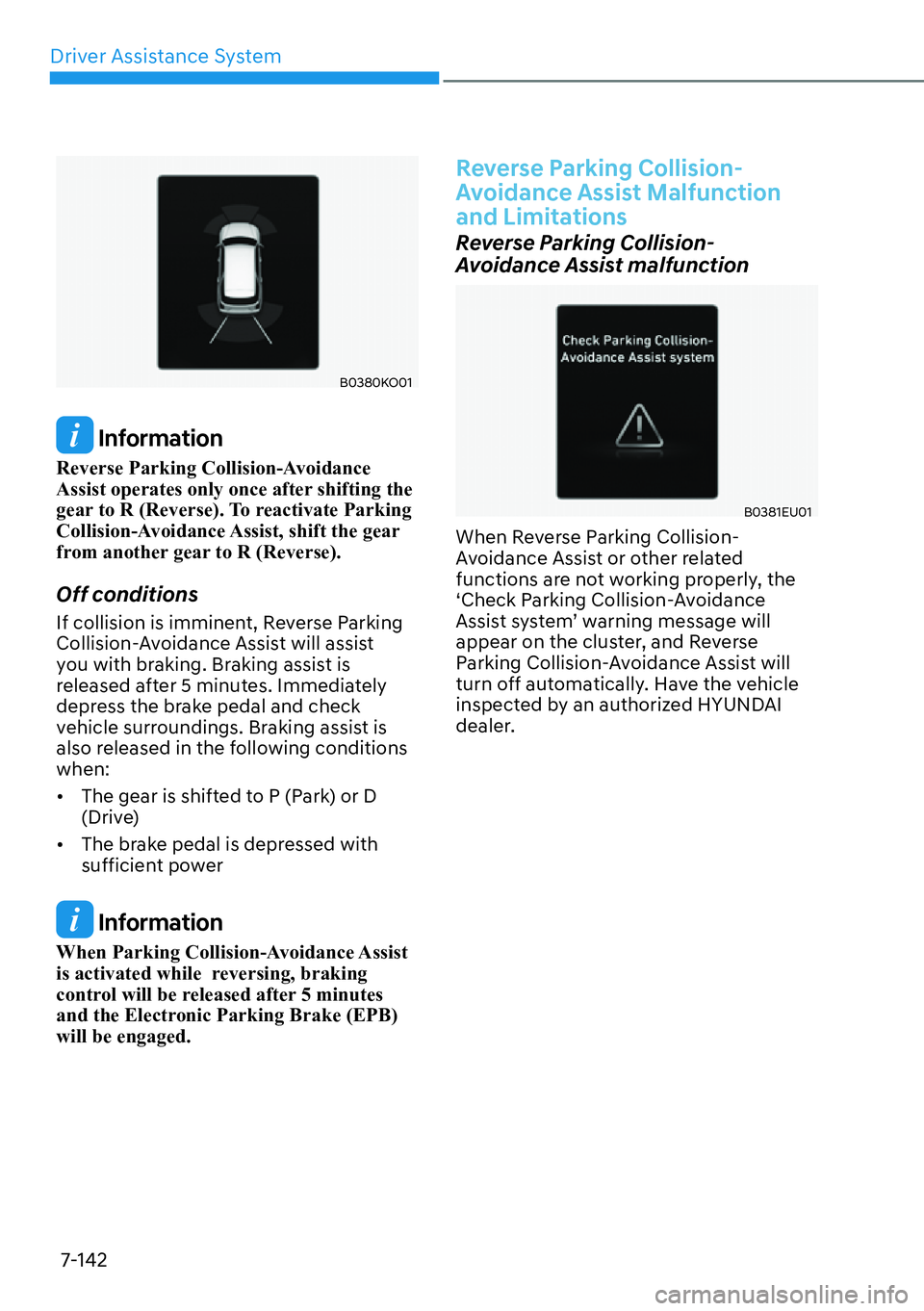

Driver Assistance System7-142
B0380KO01
Information
Reverse Parking Collision-Avoidance
Assist operates only once after shifting the
gear to R (Reverse). To reactivate Parking
Collision-Avoidance Assist, shift the gear
from another gear to R (Reverse).
Off conditions
If collision is imminent, Reverse Parking
Collision-Avoidance Assist will assist
you with braking. Braking assist is
released after 5 minutes. Immediately
depress the brake pedal and check
vehicle surroundings. Braking assist is
also released in the following conditions
when:

[ The gear is shifted to P (Park) or D
(Drive)

[ The brake pedal is depressed with
sufficient power
Information
When Parking Collision-Avoidance Assist
is activated while reversing, braking
control will be released after 5 minutes
and the Electronic Parking Brake (EPB)
will be engaged.
Reverse Parking Collision-
Avoidance Assist Malfunction
and Limitations
Reverse Parking Collision-
Avoidance Assist malfunction
B0381EU01
When Reverse Parking Collision-
Avoidance Assist or other related
functions are not working properly, the
‘Check Parking Collision-Avoidance
Assist system’ warning message will
appear on the cluster, and Reverse
Parking Collision-Avoidance Assist will
turn off automatically. Have the vehicle
inspected by an authorized HYUNDAI
dealer.
