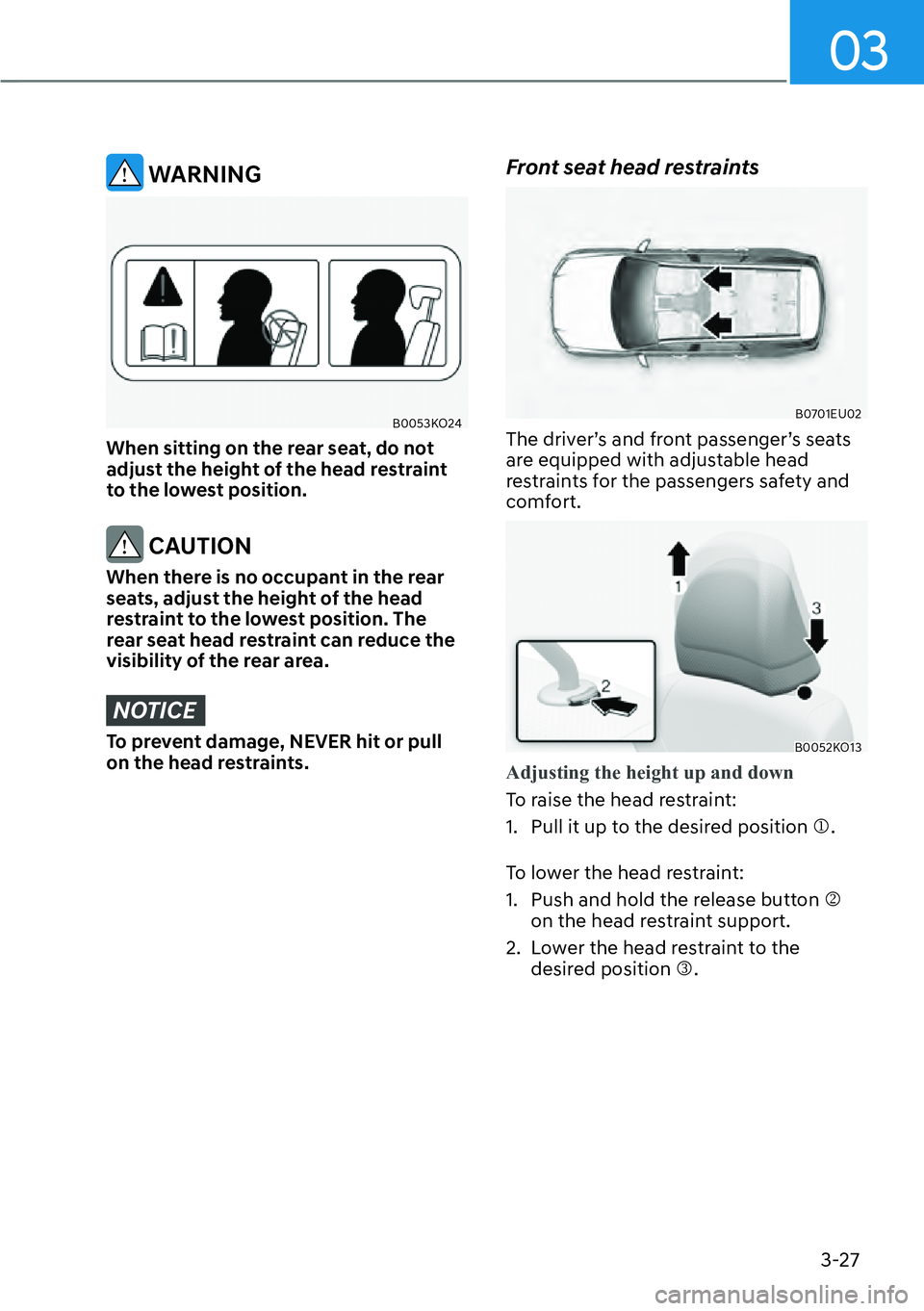

2023 HYUNDAI PALISADE Owners Manual

03
3-27
WARNING
B0053KO24
When sitting on the rear seat, do not
adjust the height of the head restraint
to the lowest position.
CAUTION
When there is no occupant in the rear
seats, adjust the height of the head
restraint to the lowest position. The
rear seat head restraint can reduce the
visibility of the rear area.
NOTICE
To prevent damage, NEVER hit or pull
on the head restraints.
Front seat head restraints
B0701EU02
The driver’s and front passenger’s seats
are equipped with adjustable head
restraints for the passengers safety and
comfort.
B0052KO13
Adjusting the height up and down
To raise the head restraint:
1.
Pull it up to the desired position M.
To lower the head restraint:
1. Push and hold the release button N on the head restraint support.
2. Lower the head restraint to the desired position O.

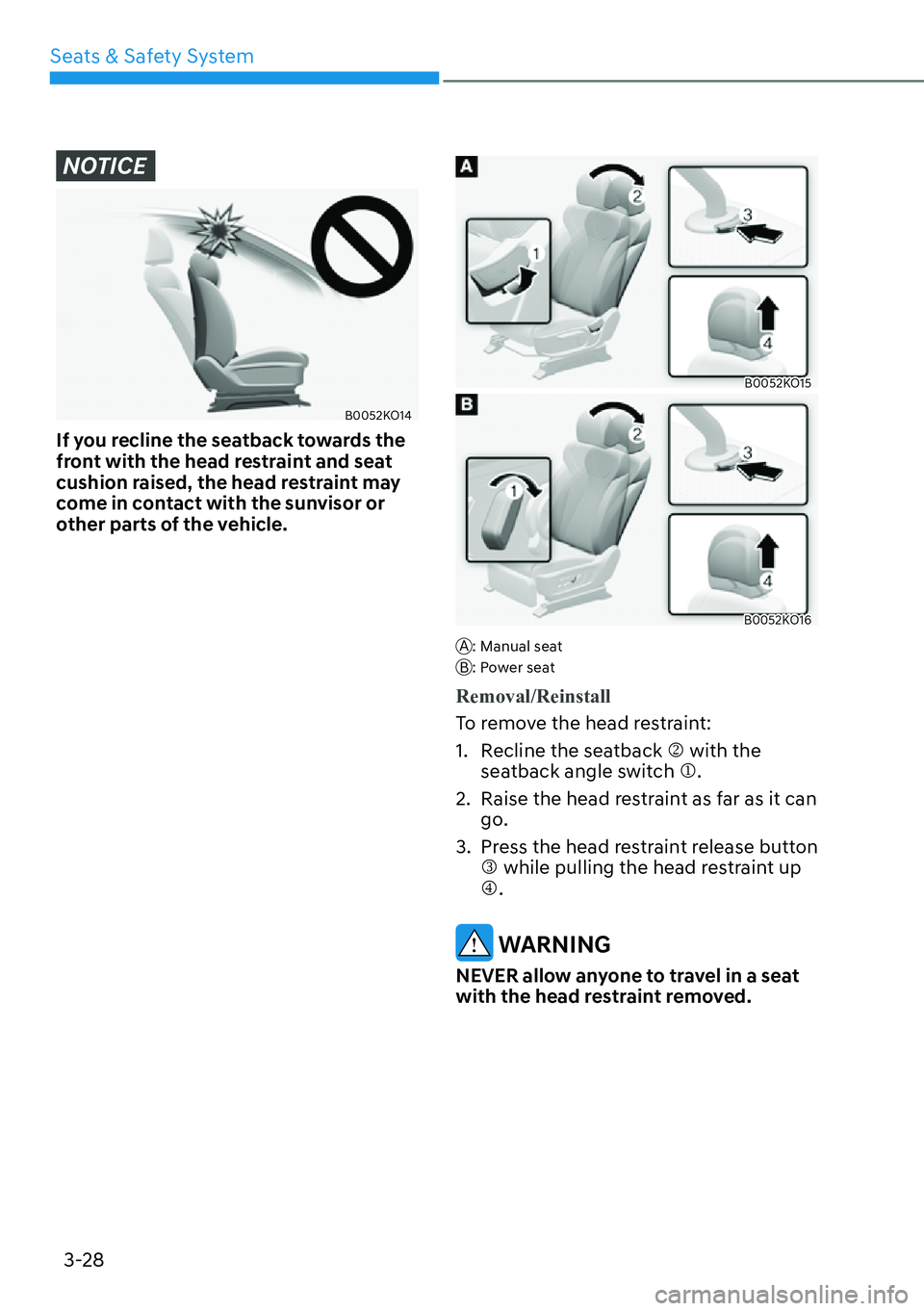

Seats & Safety System3-28
NOTICE
B0052KO14
If you recline the seatback towards the
front with the head restraint and seat
cushion raised, the head restraint may
come in contact with the sunvisor or
other parts of the vehicle.
B0052KO15
B0052KO16
A: Manual seat
B: Power seat
Removal/Reinstall
To remove the head restraint:
1.

Recline the seatback N with the
seatback angle switch M.
2. Raise the head restraint as far as it can go.
3. Press the head restraint release button O while pulling the head restraint up
P.
WARNING
NEVER allow anyone to travel in a seat
with the head restraint removed.

03

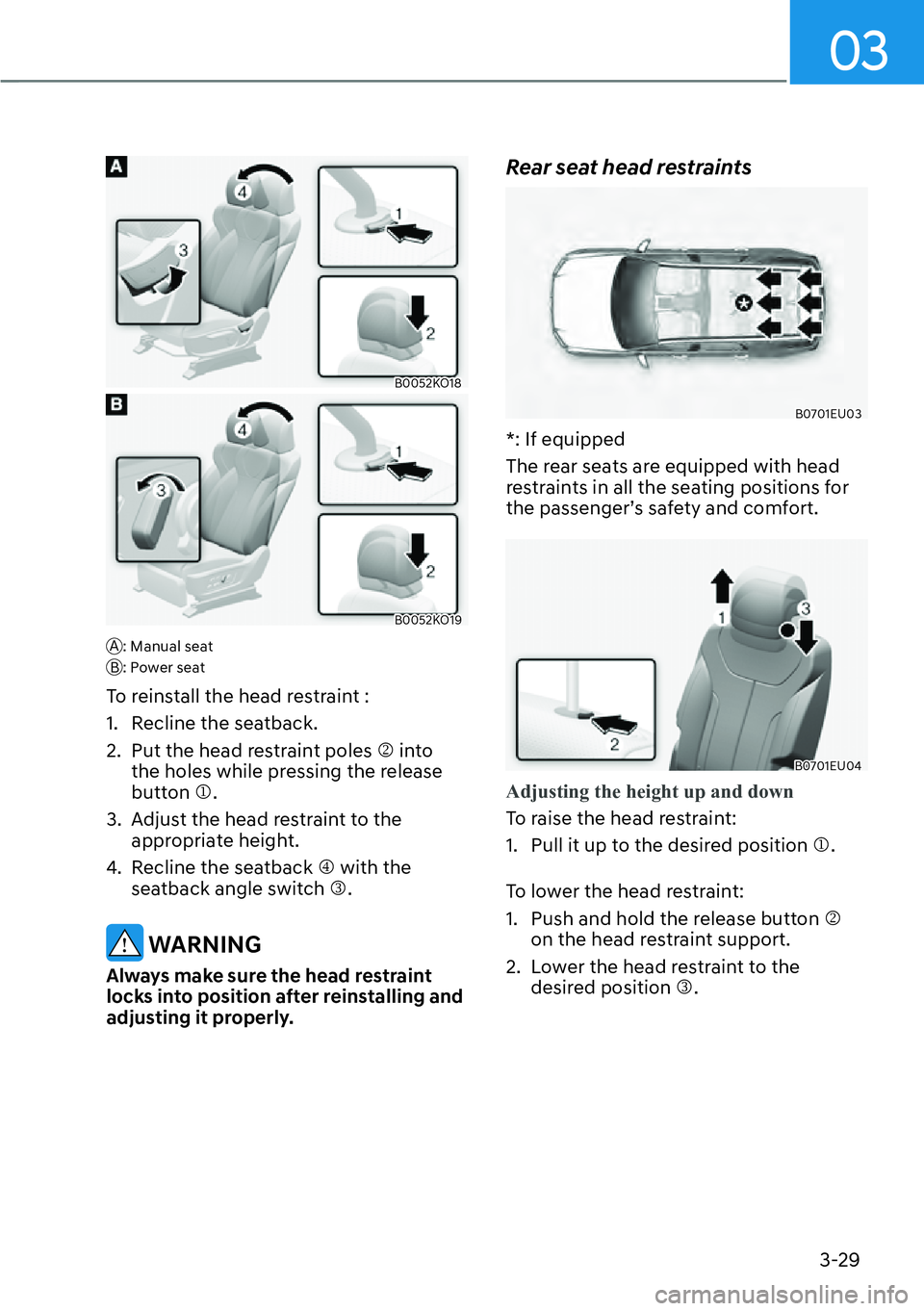

3-29
B0052KO18
B0052KO19
A: Manual seat
B: Power seat
To reinstall the head restraint :
1. Recline the seatback.
2. Put the head restraint poles N into
the holes while pressing the release
button M.
3. Adjust the head restraint to the appropriate height.
4. Recline the seatback P with the seatback angle switch O.
WARNING
Always make sure the head restraint
locks into position after reinstalling and
adjusting it properly.
Rear seat head restraints
B0701EU03
*: If equipped
The rear seats are equipped with head
restraints in all the seating positions for
the passenger’s safety and comfort.
B0701EU04
Adjusting the height up and down
To raise the head restraint:
1.

Pull it up to the desired position M.
To lower the head restraint:
1. Push and hold the release button N on the head restraint support.
2. Lower the head restraint to the desired position O.

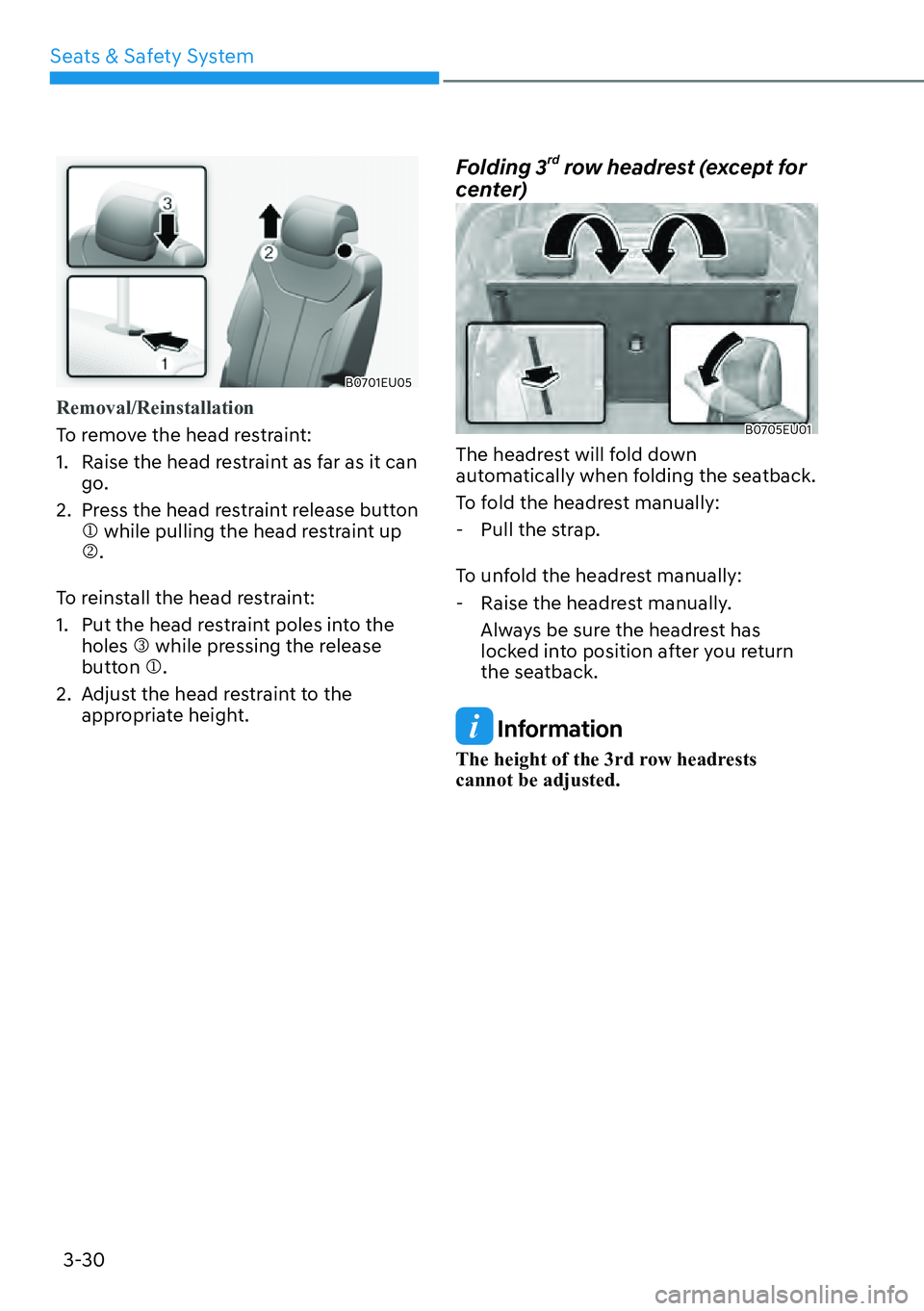

Seats & Safety System3-30
B0701EU05
Removal/Reinstallation
To remove the head restraint:
1.
Raise the head restraint as far as it can
go.
2. Press the head restraint release button M while pulling the head restraint up
N.
To reinstall the head restraint:
1. Put the head restraint poles into the holes O while pressing the release
button M.
2. Adjust the head restraint to the appropriate height.
Folding 3rd row headrest (except for
center)
B0705EU01
The headrest will fold down
automatically when folding the seatback.
To fold the headrest manually:

- Pull the strap.
To unfold the headrest manually:
- Raise the headrest manually.
Always be sure the headrest has
locked into position after you return
the seatback.
Information
The height of the 3rd row headrests
cannot be adjusted.

03
3-31
Wing-out headrest adjustment (if
equipped)
B0706EU01
While driving, the wing-out headrest
supports the passenger’s head from
shaking. Hold both ends of the wing-out
headrest with your hands, and pull out or
push in to adjust its position.
Information
When the wing-out headrest is not in use,
hold both ends of the headrest and pull out
to return it to its original position.
Seat Warmers
Seat warmers are provided to warm the
seats during cold weather.
During mild weather or under conditions
where the operation of the seat warmer
is not needed, keep the seat warmers
OFF.
WARNING
The seat warmers can cause a SERIOUS
BURN, even at low temperatures and
especially if used for long periods of
time.
Passengers must be able to feel if the
seat is becoming too warm so they can
turn it off, if needed.
People who cannot detect temperature
change or pain to the skin should
use extreme caution, especially the
following types of passengers:

[Infants, children, elderly or disabled
persons, or hospital outpatients.

[ People with sensitive skin or who
burn easily.

[ Fatigued individuals.

[ Intoxicated individuals.

[ People taking medication that can
cause drowsiness or sleepiness.

Seats & Safety System3-32
WARNING
NEVER place anything on the seat
that insulates against heat when the
seat warmer is in operation, such as a
blanket or seat cushion. This may cause
the seat warmer to overheat, causing a
burn or damage to the seat.
NOTICE
To prevent damage to the seat warmers
and seats:

[ Never use a solvent such as paint
thinner, benzene, alcohol or gasoline
to clean the seats.

[ Do not place heavy or sharp objects
on seats equipped with seat
warmers.

[ Do not change the seat cover. It may
damage the seat warmer.B0056KO01
B0056KO02
B0056KO07
A: Front seat,
B: 2nd row seat,
C: 3rd row seat (if equipped)
While the engine is running, push either
of the switches to warm the driver's seat
or front passenger's seat.
The seat warmer will operate and the
warming light will illuminate to indicate
that the function is in use.

03

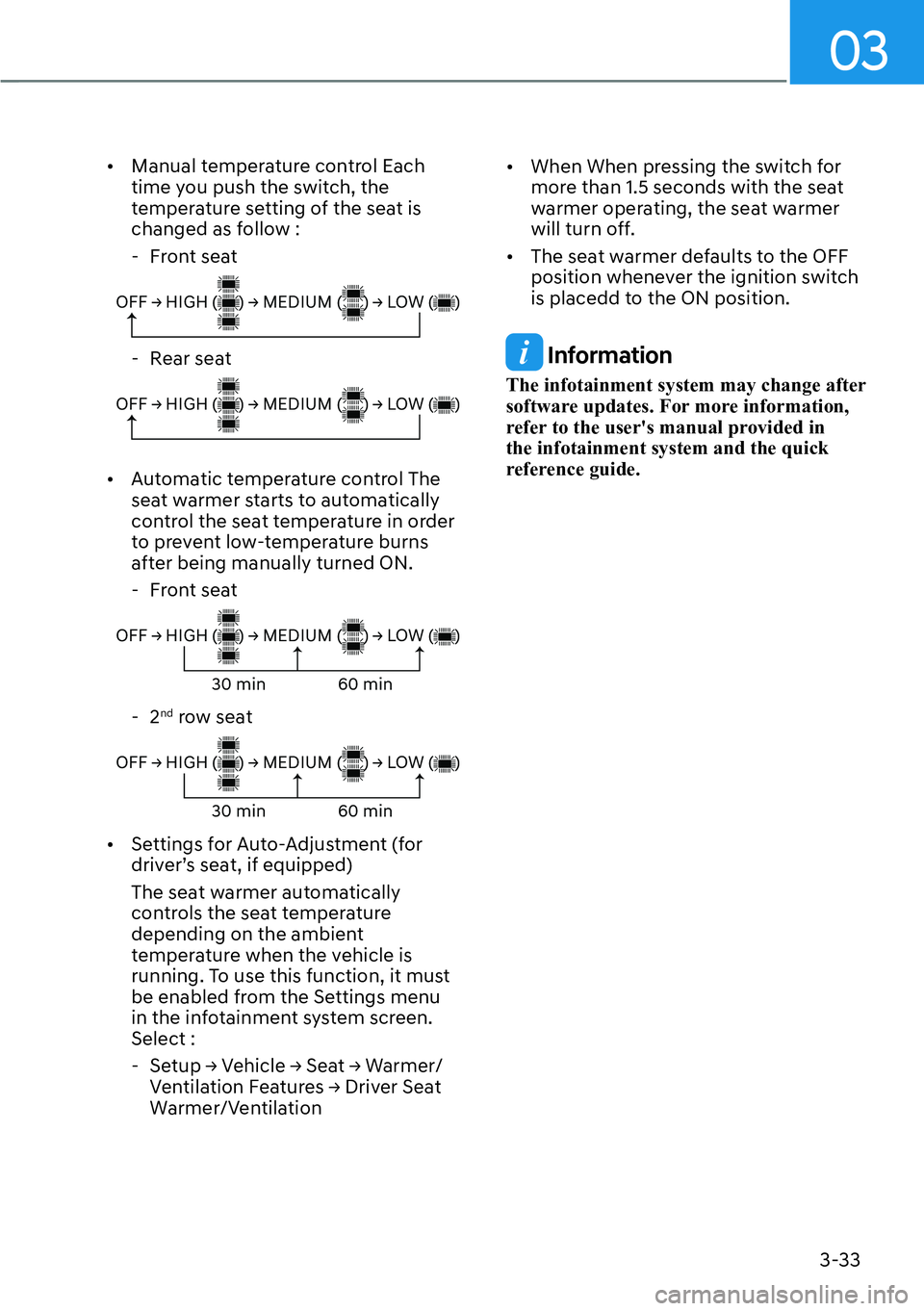

3-33

[Manual temperature control Each
time you push the switch, the
temperature setting of the seat is
changed as follow :

- Front seat
2))

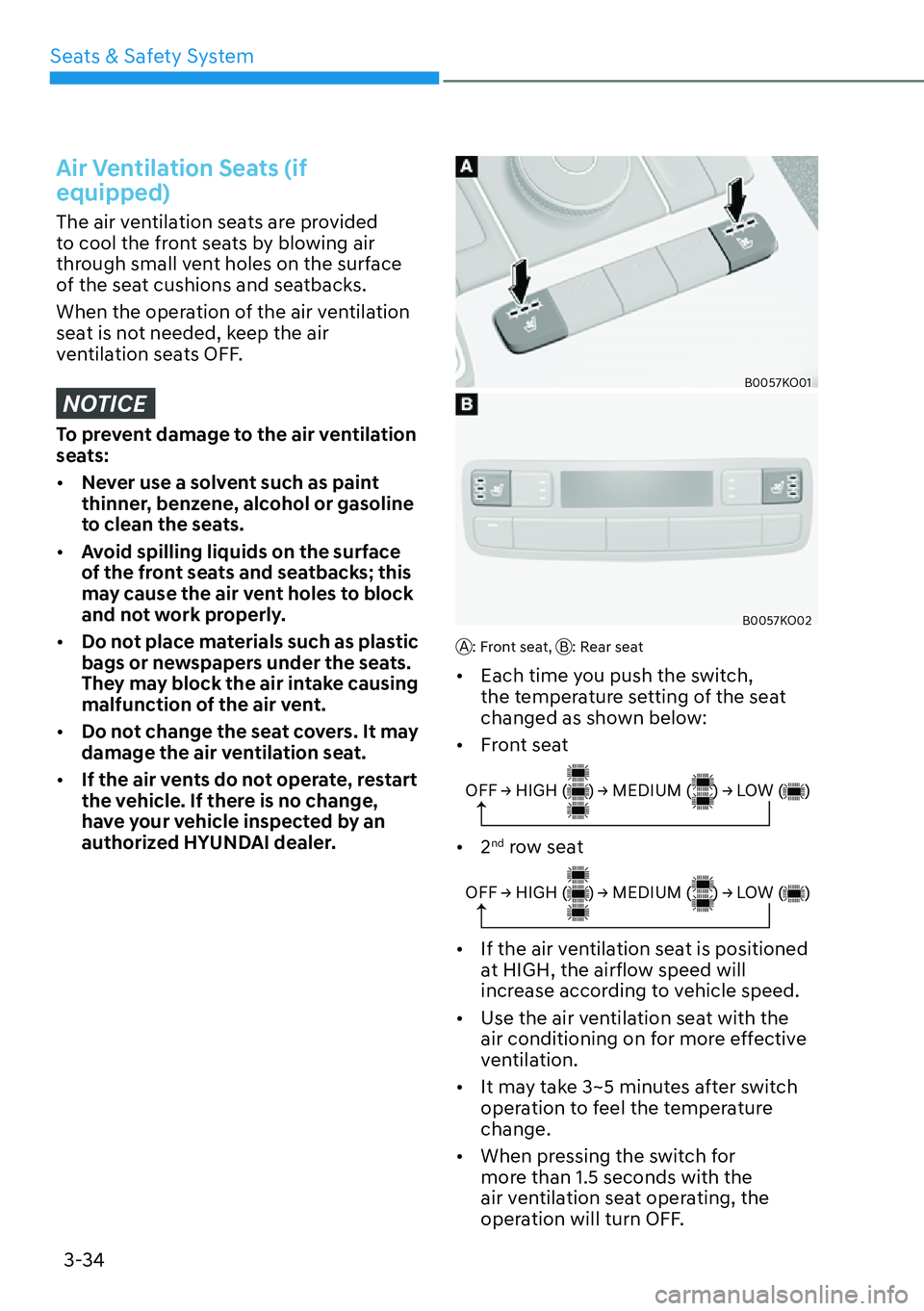

Seats & Safety System3-34
Air Ventilation Seats (if
equipped)
The air ventilation seats are provided
to cool the front seats by blowing air
through small vent holes on the surface
of the seat cushions and seatbacks.
When the operation of the air ventilation
seat is not needed, keep the air
ventilation seats OFF.
NOTICE
To prevent damage to the air ventilation
seats:

[ Never use a solvent such as paint
thinner, benzene, alcohol or gasoline
to clean the seats.

[ Avoid spilling liquids on the surface
of the front seats and seatbacks; this
may cause the air vent holes to block
and not work properly.

[ Do not place materials such as plastic
bags or newspapers under the seats.
They may block the air intake causing
malfunction of the air vent.

[ Do not change the seat covers. It may
damage the air ventilation seat.

[ If the air vents do not operate, restart
the vehicle. If there is no change,
have your vehicle inspected by an
authorized HYUNDAI dealer.
B0057KO01
B0057KO02
A: Front seat,
B: Rear seat

[Each time you push the switch,
the temperature setting of the seat
changed as shown below:

[ Front seat
2))
