2023 HYUNDAI PALISADE Owners Manual

Convenience Features5-156
Conversation mirror
B9023EU01
You can see widely the rear view through
the conversation mirror.
To open:
Press the cover and the holder will slowly
open.
To close:
Push back into position.
Sunvisor
B0226KO01
To use the sunvisor, pull it downward.
To use the sunvisor to block the sun from
the side window, pull it rearward, release
it from the bracket M and swing it to the
side N towards the window.
To use the vanity mirror, pull down the
sunvisor and slide the mirror cover O.
Adjust the sunvisor forward or backward
P as needed (if equipped). Use the ticket
holder Q to hold tickets.
Close the vanity mirror cover securely
and return the sunvisor to its original
position after use.
WARNING
)RU\RXUVDIHW\GRQRWEORFN\RXUYLHZ
when using the sunvisor.
NOTICE
The tab Q adjacent to the vanity mirror
on the sunvisor can be used for toll
road tickets or self parking tickets. Use
caution when inserting tickets into the
ticket holder to avoid damage. Refrain
from putting several tickets in the ticket
holder as this could also damage the
retaining tab.

05
5-157
Power Outlet
B0228KO01
B0228KO02
B0228KO03
A: Front, B: Rear (2nd row),
C: Luggage compartment
The power outlet is designed to provide
power for mobile telephones or other
devices designed to operate with vehicle
electrical systems.
The devices should draw less than 180 W
with the engine running.
WARNING
Avoid electrical shocks. Do not place
your fingers or foreign objects (pin, etc.)
into a power outlet or touch the power
outlet with a wet hand.
NOTICE
To prevent damage to the power
outlets:

[ Use the power outlet only when the
engine is running and remove the
accessory plug after use. Using the
accessory plug for prolonged periods
of time with the engine off could
cause the battery to discharge.

[ Only use 12 volts electric accessories
which are less than 180 watts in
electric capacity.

[ Adjust the air-conditioner or heater
to the lowest operating level when
using the power outlet.

[ Close the cover when not in use.

[ Some electronic devices can
cause electronic interference
when plugged into a vehicle’s
power outlet. These devices may
cause excessive audio static and
malfunctions in other electronic
systems or devices used in your
vehicle.

[ Push the plug in as far as it will go. If
good contact is not made, the plug
may overheat and the fuse may open.

[ Plug in battery equipped electrical/
electronic devices with reverse
current protection. The current
from the battery may flow into the
vehicle’s electrical/electronic system
and cause system malfunction.

Convenience Features5-158

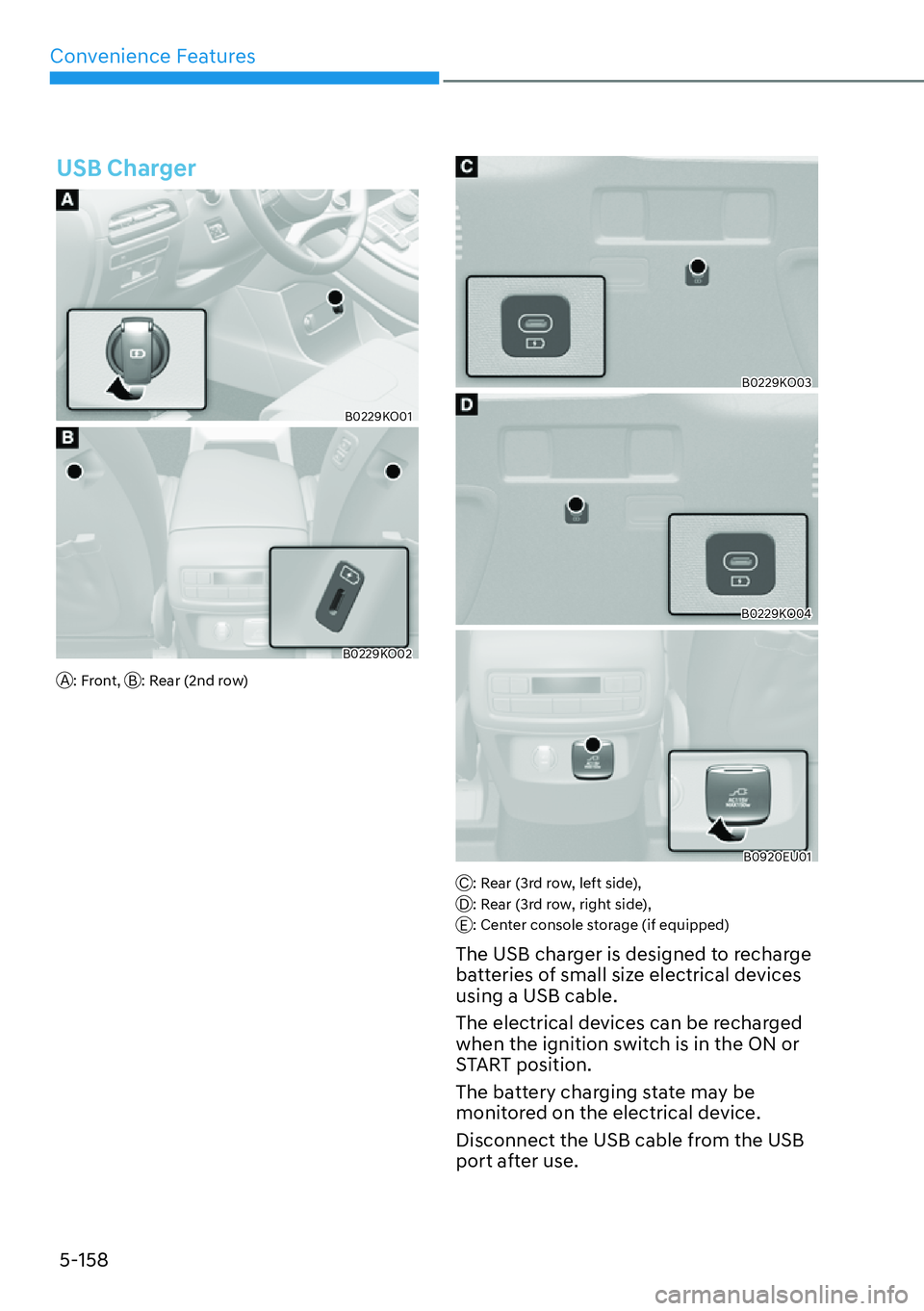

USB Charger
B0229KO01
B0229KO02
A: Front, B: Rear (2nd row)
B0229KO03
B0229KO04
B0920EU01
C: Rear (3rd row, left side),
D: Rear (3rd row, right side),
E: Center console storage (if equipped)
The USB charger is designed to recharge
batteries of small size electrical devices
using a USB cable.
The electrical devices can be recharged
when the ignition switch is in the ON or
START position.
The battery charging state may be
monitored on the electrical device.
Disconnect the USB cable from the USB
port after use.

05
5-159

[A smart phone or a tablet PC may
get warmer during the re-charging
process. It does not indicate any
malfunction with the charging system.

[ A smart phone or a tablet PC, which
adopts a different re-charging
method, may not be properly re-
charged. In this case, use an exclusive
charger of your device.

[ The charging terminal is only to
recharge a device. Do not use the
charging terminal either to turn ON
an audio or to play media In the
infotainment system.
Information
Charging may not be possible when
usinga Type-C converter sold by a mobile
phonemanufacturer or commercially
available.
NOTICE

[Use the USB charger when the
engine is running. Using the USB
charger for prolonged periods of
time with the engine off could cause
the battery to discharge.

[ To prevent damage to the USB
charger:

- Do not insert foreign objects or
spill liquid into the outlet. The
USB charging terminal may be
damaged.

- Do not use devices with current
consumption exceeding 2,100 mA
(2.1 A).
AC Inverter (if equipped)
B0920EU01
The AC inverter supplies 115 volts
(150 watts) electric power to operate
electric accessories or equipment.

Convenience Features5-160
Information
B0920EU02

[ Rated voltage : AC 115 volts

[ Maximum electric power : 150 watts

[ In order to avoid an electrical system
failure, electric shock, etc., be sure to
read owner’s manual before use.

[ Be sure to close the cover except the
time of use.
WARNING
To reduce a risk of serious or fatal
injuries:

[Do not use a heated electric device
such as a coffeepot, toaster, heater,
iron, etc.

[ Do not insert foreign objects into the
outlet and do not touch the outlet as
you may get shocked.

[ Do not let children touch the AC
inverter.
NOTICE

[To prevent the battery from being
discharged, do not use the AC
inverter while the engine is not
running.

[ When not using the AC inverter,
make sure to close the AC inverter
cover.

[ After using an electric accessory
or equipment, pull the plug out.
Leaving the accessory or equipment
plugged in for a long time may cause
battery discharge.

[ Do not use an electric accessory or
equipment the power consumption
of which is greater than 220
volts/200 watts.

[ Some electric accessories or
equipment can cause electronic
interference. It may cause excessive
audio noise and malfunctions in
other electric systems or devices in
the vehicle.

[ Do not use broken electric
accessories or equipment, which
may damage the AC inverter and
electrical systems of the vehicle.

[ Do not use two or more electric
accessories or equipment at the
same time. It may cause damage to
the electrical systems of the vehicle.

[ When the input voltage is lower,
outlet LED will blink and the AC
inverter will turn off automatically. If
the input voltage goes up to normal,
the AC inverter will turn on again.

05
5-161
Wireless Smart Phone Charging
System
B0230KO01
A: Indicator light, B: Charging pad
On certain models, the vehicle comes
equipped with a wireless smart phone
charger.
The system is available when all doors
are closed, and when the ignition switch
or Engine Start/Stop button is in the ON
or START position.
Charging smart phone
Visit your smart phone manufacturer’s
website to check whether your smart
phone supports the Qi technology.
The wireless charging process starts
when you put a Qi-enabled smart phone
on the wireless charging unit with the
screen facing up.
1. The wireless smart phone charger is
available when all doors are closed,
and when the ignition switch is in the
ON or START position. 2. Turn on the wireless charging function
from the Settings menu in the
infotainment system. Select:

- 6HWXS

Convenience Features5-162
NOTICE

[ The wireless smart phone charging
system may not support certain
smart phones, which are not verified
IRUWKH4LVSHFLILFDWLRQ(
).

[ When placing your smart phone on
the charging pad, position the phone
in the middle of the mat for optimal
charging performance. If your smart
phone is off to the side, the charging
rate may be less and in some cases
the smart phone may experience
higher heat conduction.

[ In some cases, the wireless charging
may stop temporarily when the
smart key is used, either when
starting the vehicle or locking/
unlocking the doors, etc.

[ When charging certain smart
phones, the charging indicator may
not change to blue when the smart
phone is fully charged.

[ The wireless charging process may
temporarily stop, when temperature
abnormally increases inside the
wireless smart phone charging
system. The wireless charging
process restarts, when temperature
falls to a certain level.

[ The wireless charging process may
temporarily stop when there is
any metallic item, such as a coin,
between the wireless smart phone
charging system and smart phone.

[ When charging some smart phones
with a self-protection feature,
the wireless charging speed may
decrease and the wireless charging
may stop.
[
If the smart phone has a thick cover,
the wireless charging may not be
possible.

[ If the smart phone is not completely
contacting the charging pad,
wireless charging may not operate
properly.

[ If the ignition switch or Engine Start/
6WRSEXWWRQLVLQWKH2))SRVLWLRQ
the charging also stops.

[ When any smart phone without
a wireless charging function or a
metallic object is placed on the
charging pad, a small noise may
sound. This small sound is due to the
vehicle discerning compatibility of
the object placed on the charging
pad. It does not affect your vehicle or
the smart phone in any way.

[ Some smart phones may not be able
to charge depending on the internal
structure of the smart phone. If
this occurs, try charging the mobile
phone by moving it to the left or right
side of the wireless charging pad.
However, for some foldable smart
phones that have magnets inside the
smart phone, try charging the smart
phone while holding it close to the
left side of the wireless charging pad.

05
5-163

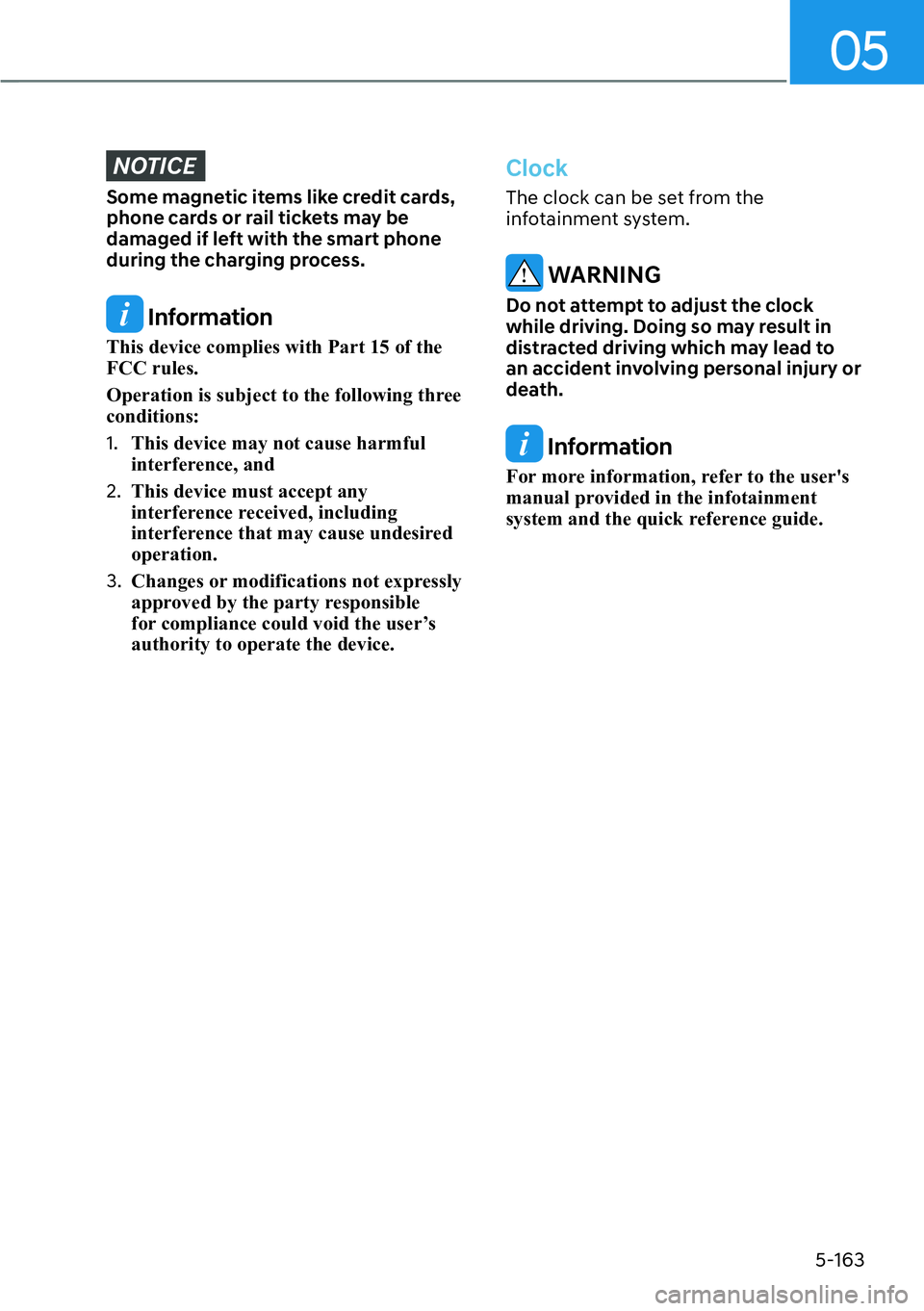

NOTICE
Some magnetic items like credit cards,
phone cards or rail tickets may be
damaged if left with the smart phone
during the charging process.
Information
This device complies with Part 15 of the
FCC rules.
Operation is subject to the following three
conditions:
1. This device may not cause harmful
interference, and
2. This device must accept any
interference received, including
interference that may cause undesired
operation.
3. Changes or modifications not expressly
approved by the party responsible
for compliance could void the user’s
authority to operate the device.
Clock
The clock can be set from the
infotainment system.
WARNING
Do not attempt to adjust the clock
while driving. Doing so may result in
distracted driving which may lead to
an accident involving personal injury or
death.
Information
For more information, refer to the user's
manual provided in the infotainment
system and the quick reference guide.
