2023 HYUNDAI PALISADE Owners Manual

03
3-11
B0052EU07
Seatback angle adjustment
To recline the seatback:
1.
Push the control switch forward or
rearward.
2. Release the switch once the seatback reaches the desired position.
Reclining seatback
Sitting in a reclined position when the
vehicle is in motion can be dangerous.
Even when buckled up, the protections
of your restraint system (seat belts and
air bags) is greatly reduced by reclining
your seatback.
WARNING
NEVER ride with a reclined seatback
when the vehicle is moving.
Riding with a reclined seatback
increases your chance of serious or fatal
injuries in the event of a collision or
sudden stop.
Driver and passengers should ALWAYS
sit well back in their seats, properly
belted, and with the seatbacks upright. Seat belts must be snug against your
hips and chest to work properly. When
the seatback is reclined, the shoulder
belt cannot do its job because it will not
be snug against your chest. Instead,
it will be in front of you. During an
accident, you could be thrown into the
seat belt, causing neck or other injuries.
The more the seatback is reclined,
the greater chance the passenger’s
hips will slide under the lap belt or the
passenger’s neck will strike the shoulder
belt.
B0052EE07
Seat cushion extension adjustment (for
driver’s seat, if equipped)
To move the front part of the cushion
f

orward or rearward:
1. Push the control switch forward or rearward.
2. Release the switch once the seat cushion reaches the desired length.

Seats & Safety System3-12
B0052EU08
Lumbar support (2way) (if equipped)
To adjust the lumbar support:
Pr
ess the front portion of the switch M
to increase support or the rear portion of
the switch N to decrease support.
Lumbar support (4way) (for driver’s seat)
(if equipped)
To adjust the lumbar support:
1.
Press the front portion of the switch M
to increase support or the rear portion
of the switch N to decrease support.
2. Press switch O or P to move the
support position up or down.
3. Release the switch once the lumbar support reaches the desired position.
B0052EU09
Seat bolster adjustment
(for driver's seat) (if equipped)
To adjust seat bolster:
1.

Push the adjustment lever clockwise,
the seatback bolster will be
adjusted inward. Push the switch
counterclockwise, the seatback
bolster will be adjusted outward.
2. Release the lever once the bolster reaches the desired position.

03
3-13
Leg support adjustment (if
equipped)
Place your leg on the leg support and
adjust its angle to relax.
B0052EU10

[Control switch
Slide the leg support switch diagonally
upward or downward to adjust the angle.
CAUTION
Do not sit or place heavy objects on the
calf support. It may damage the system.
WARNING

[ When lowering or raising the calf
support, be careful not to have your
hands or legs caught under the front
seats or other surrounding parts of
the calf support. Unexpected injuries
may occur.

[ Do not allow children to adjust the
switch. Unexpected injuries may
occur.
Ergo-motion seat (if equipped)
B0052EE29
6HOHFW
S6HWXS

Seats & Safety System3-14

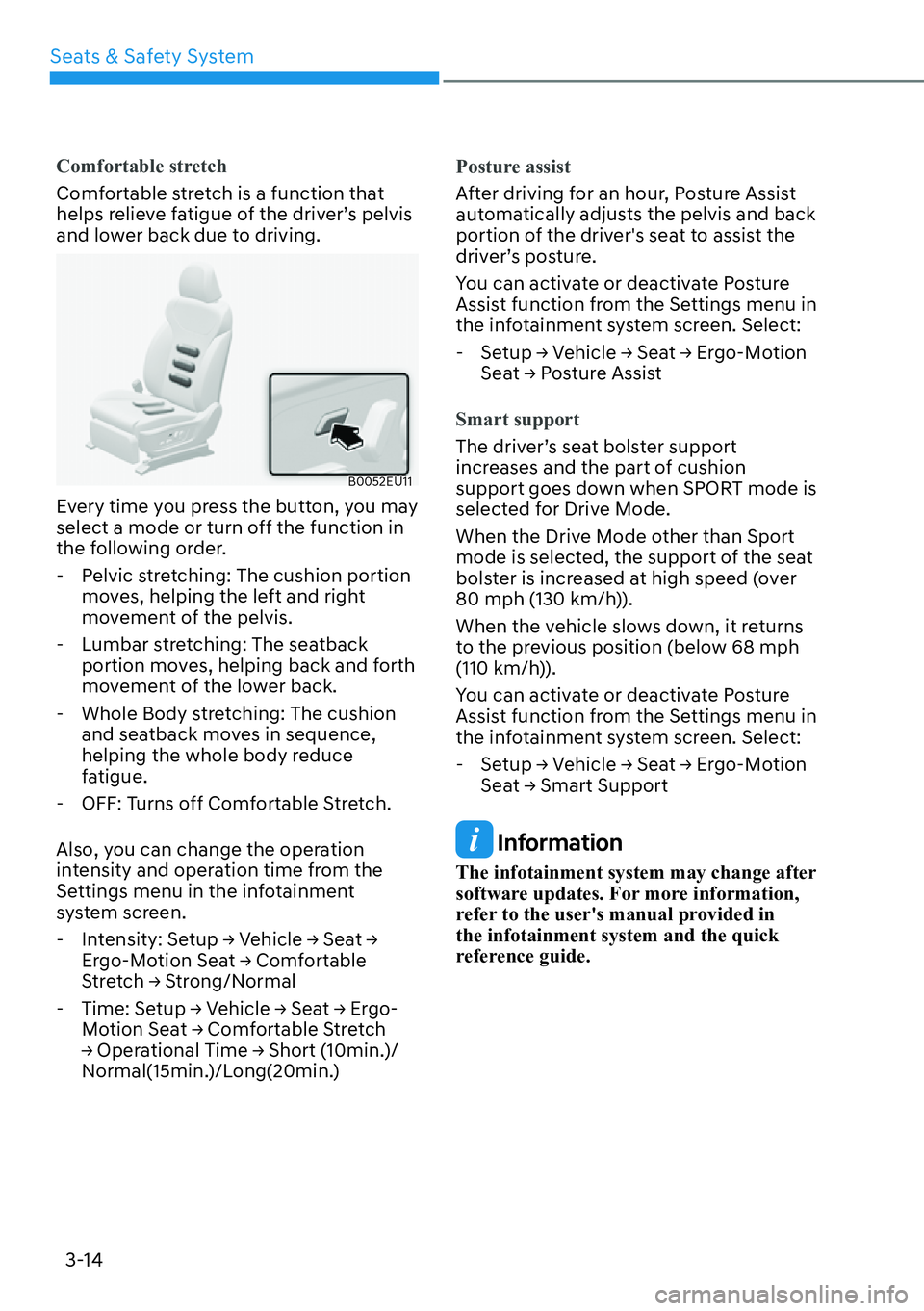

Comfortable stretch
Comfortable stretch is a function that
helps r
elieve fatigue of the driver’s pelvis
and lower back due to driving.
B0052EU11
Every time you press the button, you may
select a mode or turn off the function in
the following order.

- Pelvic stretching: The cushion portion
moves, helping the left and right
movement of the pelvis.

- Lumbar stretching: The seatback
portion moves, helping back and forth
movement of the lower back.

- Whole Body stretching: The cushion
and seatback moves in sequence,
helping the whole body reduce
fatigue.

- OFF: Turns off Comfortable Stretch.
Also, you can change the operation
intensity and operation time from the
Settings menu in the infotainment
system screen.
- ,QWHQVLW\6HWXS

03
3-15

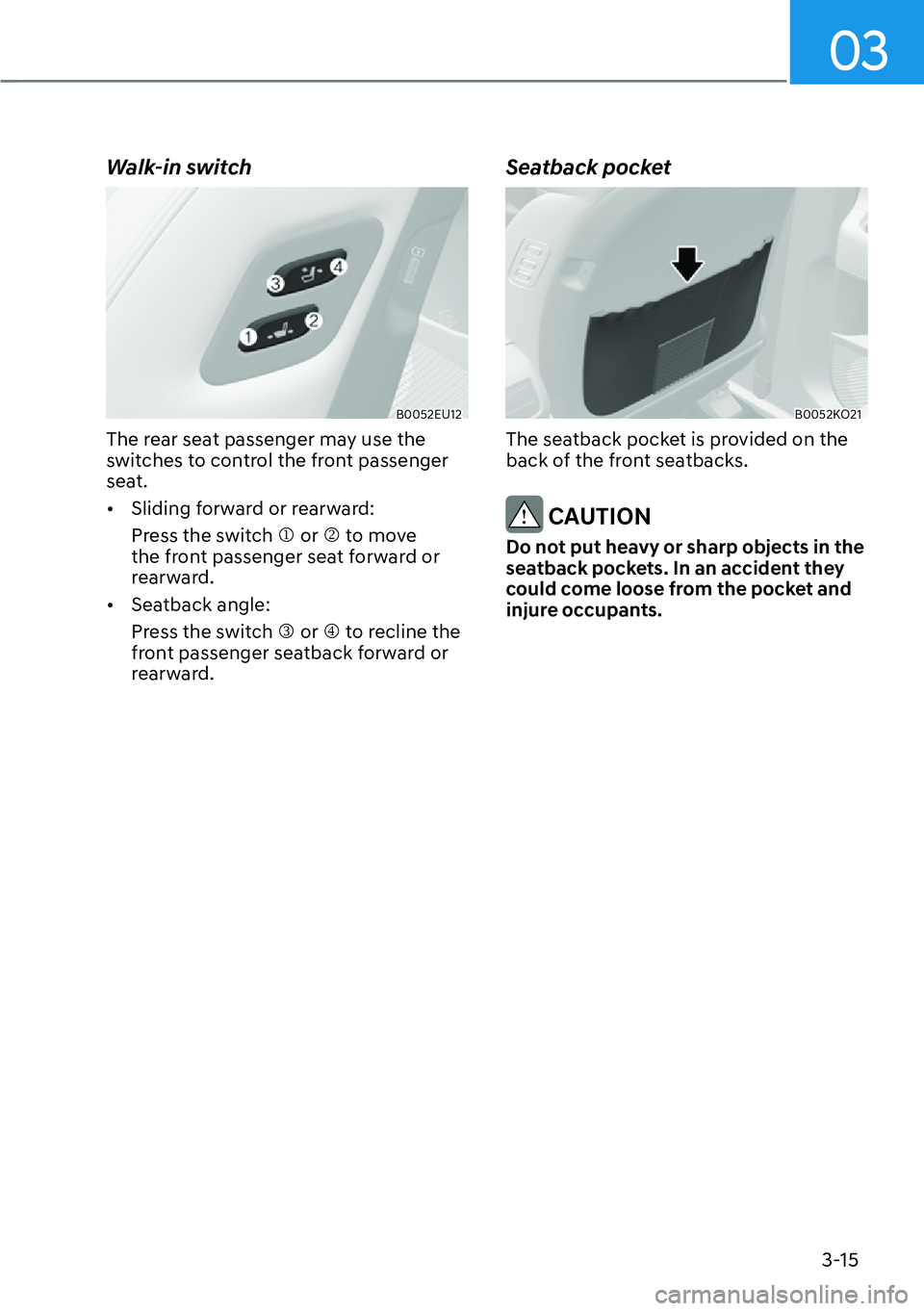

Walk-in switch
B0052EU12
The rear seat passenger may use the
switches to control the front passenger
seat.

[Sliding forward or rearward:
Press the switch M or N to move
the front passenger seat forward or
rearward.

[ Seatback angle:
Press the switch O or P to recline the
front passenger seatback forward or
rearward.
Seatback pocket
B0052KO21
The seatback pocket is provided on the
back of the front seatbacks.
CAUTION
Do not put heavy or sharp objects in the
seatback pockets. In an accident they
could come loose from the pocket and
injure occupants.

Seats & Safety System3-16
Rear Seats
WARNING
Take the following precautions:

[ Adjusting the seats

- NEVER attempt to adjust the seat
while the vehicle is moving. The
seat may suddenly move and may
injure the passenger.

- Make sure that the seat is locked in
place after the adjustment. If not,
the seat might move unexpectedly
resulting in an accident.

[ Folding the seats

- Do not fold the seatback when
the seat is occupied (for example,
passenger, pets or luggage). It
may injure the passenger or pet, or
damage the luggage.

- Never allow passengers to sit on
top of the folded down seatback
while the vehicle is moving. This is
not a proper seating position and
no seat belts are available for use.
This could result in serious injury
or death in case of an accident or
sudden stop.

- Objects carried on the folded
down seatback should not extend
higher than the top of the front
seatbacks. This could allow cargo
to slide forward and cause injury or
damage during sudden stops.

- When returning the rear seatback
from a folded to an upright
position, hold the seatback and
return it slowly. Ensure that the
seatback is completely locked into
its upright position by pushing
on the top of the seatback. In
an accident or sudden stop, the
unlocked seatback could allow
cargo to move forward with great
force and enter the passenger
compartment, which could result
in serious injury or death.

[ Loading cargo

- Make sure the engine is off, the
gear shifted to P (Park), and the
parking brake is securely applied
whenever loading or unloading
cargo. Failure to take these steps
may allow the vehicle to move
if the shift button or shift dial is
inadvertently pressed or rotated to
another position.

- When cargo is loaded through
the rear passenger seats, ensure
the cargo is properly secured
to prevent it from moving while
driving.

[ Do not place objects in the rear
seats, since they cannot be properly
secured and may hit vehicle
occupants in a collision causing
serious injury or death.
CAUTION
Do not allow your hands or fingers to
get caught in the seat mechanisms
while adjusting the seats.
NOTICE
To prevent damage to the vehicle:

[Rear seat belts
Before folding the seatback, insert
the seat belt buckle in the holder
between the seatback and cushion.
And insert the seat belt webbing in
the guide to prevent the seat belt
from being damaged.

[ Cargo
Be careful when loading cargo
through the rear passenger seats
to prevent damage to the vehicle
interior.

03
3-17
WARNING
B0053EU01
Be careful when closing the liftgate
with passenger’s seated on the third
row seat. If the passenger’s head is
not properly against an adjusted head
restraint or a tall person is seated, the
liftgate may hit the passenger’s head,
which could cause injury.
Manual adjustment (second row)
B0053EU02
B0053EU14
A: 7-seater
B: 8-seater
Forward and rearward
To move the seat forward or rearward:
1.

Pull the seat slide adjustment lever up
and hold it.
2. Slide the seat to the position you desire.
3. Release the lever and make sure the seat is locked in place.
If equipped with 7-seater or 8-seater,
the central seat moves together with the
drivers side second row seat.

Seats & Safety System3-18
B0053EU03
B0053EU15
A: 7-seater
B: 8-seater
Seatback angle
To recline the seatback:
1.

Pull up the seatback recline lever.
2. Hold the lever and adjust the seatback of the seat to the position you desire.
3. Release the lever and make sure the seatback is locked in place. The lever
MUST return to its original position for
the seatback to lock.
If equipped with 7-seater or 8-seater,
the central seat moves together with the
drivers side second row seat.
à The seatbacks can be folded with the
seatback recline lever.
B0053EU04
Seatback folding / Walk-in function

[The sea
tback will fold and the seat will
slightly move forward, if the switch is
pressed.

[ The function operates when the gear
is in P (Park) with the door open.

[ While the seatback folding or walk-in
function is operating, if the switch is
pressed, the seat will stop moving. If
the switch is pressed again, the seat
will continue the adjustment.

[ While the seatback folding or walk-in
function is operating, if the engine
is started, the seat will stop moving
momentarily. If the engine starts, the
seat will continue the adjustment.
If equipped with 7-seater or 8-seater,
the central seat moves together with the
drivers side second row seat.
