2023 HYUNDAI PALISADE trip computer

4
LCD Display ........................................................................\
............................. 4-28LCD Display Control ........................................................................\
...........................4-28
View Modes ........................................................................\
........................................4-29Trip computer mode ........................................................................\
....................... 4-30
Turn By Turn (TBT) mode ........................................................................\
................ 4-30
Driving Assist mode ........................................................................\
......................... 4-31
Trip Computer (Type A) ........................................................................\
...................... 4-32 Trip modes ........................................................................\
........................................ 4-32
Trip Computer (Type B) ........................................................................\
......................4-34 Trip modes ........................................................................\
........................................4-34
Vehicle Settings (infotainment system) ........................................................ 4-37Setting Your Vehicle ........................................................................\
........................... 4-37
4. Instrument Cluster

04
4-9

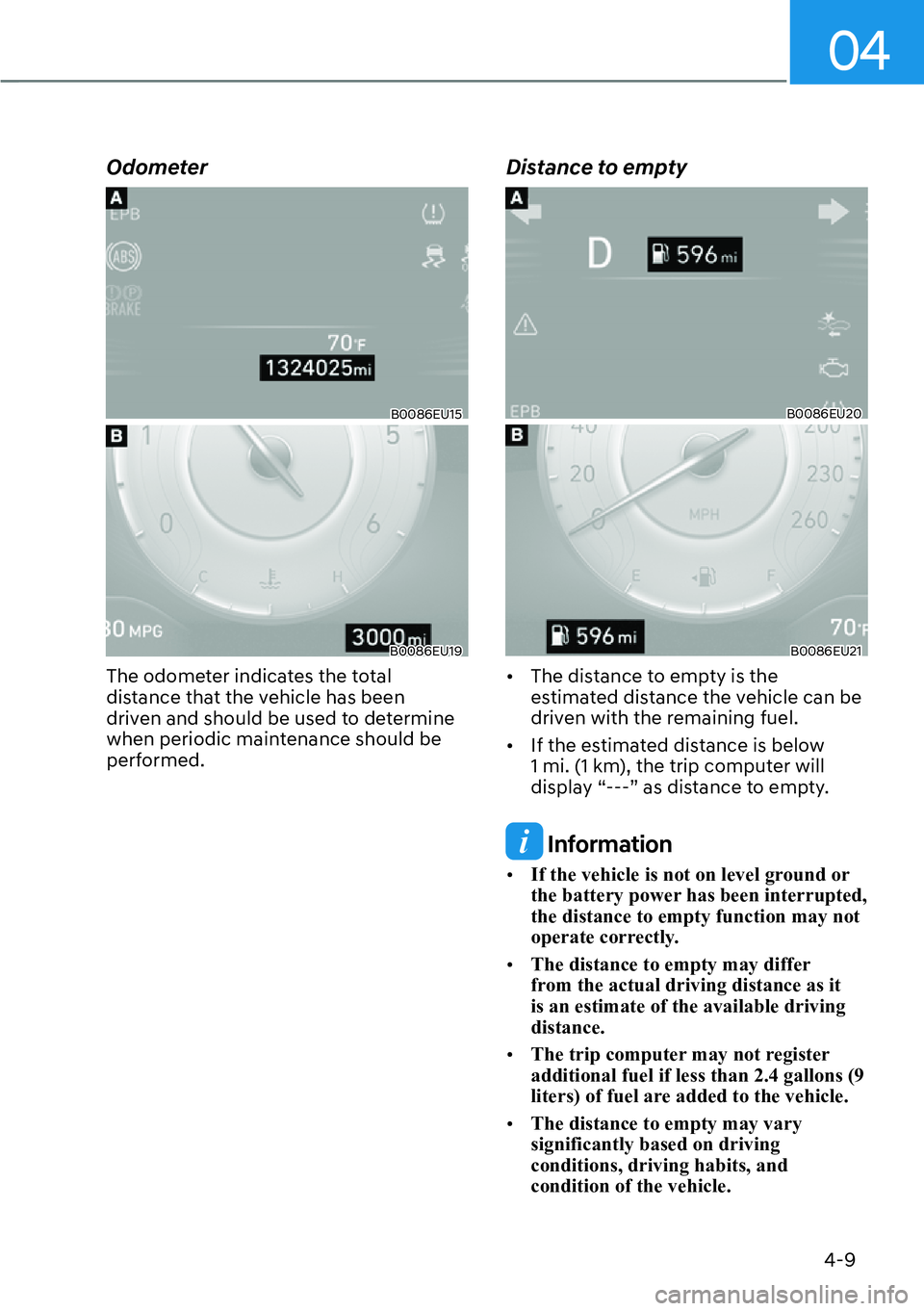

Odometer
B0086EU15
B0086EU19
The odometer indicates the total
distance that the vehicle has been
driven and should be used to determine
when periodic maintenance should be
performed.
Distance to empty
B0086EU20
B0086EU21

[The distance to empty is the
estimated distance the vehicle can be
driven with the remaining fuel.

[ If the estimated distance is below
1 mi. (1 km), the trip computer will
display “---” as distance to empty.
Information

[If the vehicle is not on level ground or
the battery power has been interrupted,
the distance to empty function may not
operate correctly.

[ The distance to empty may differ
from the actual driving distance as it
is an estimate of the available driving
distance.

[ The trip computer may not register
additional fuel if less than 2.4 gallons (9
liters) of fuel are added to the vehicle.

[ The distance to empty may vary
significantly based on driving
conditions, driving habits, and
condition of the vehicle.

04
4-29

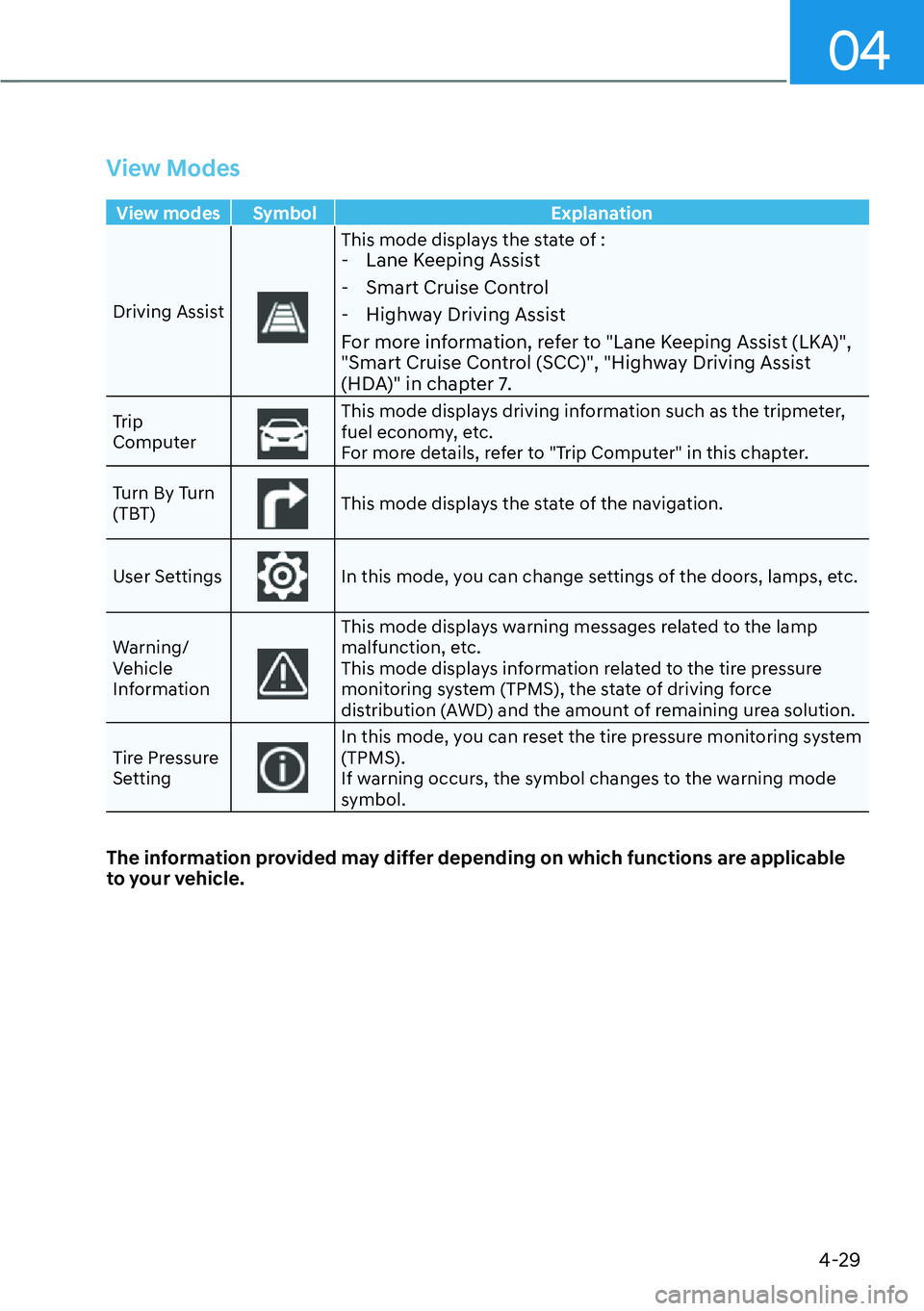

View Modes
View modes Symbol Explanation
Driving Assist
This mode displays the state of : - Lane Keeping Assist
- Smart Cruise Control

- Highway Driving Assist
For more information, refer to "Lane Keeping Assist (LKA)",
"Smart Cruise Control (SCC)", "Highway Driving Assist
(HDA)" in chapter 7.
Trip
ComputerThis mode displays driving information such as the tripmeter,
fuel economy, etc.
For more details, refer to "Trip Computer" in this chapter.
Turn By Turn
(TBT)
This mode displays the state of the navigation.
User Settings
In this mode, you can change settings of the doors, lamps, etc.
Warning/
Vehicle
Information
This mode displays warning messages related to the lamp
malfunction, etc.
This mode displays information related to the tire pressure
monitoring system (TPMS), the state of driving force
distribution (AWD) and the amount of remaining urea solution.
Tire Pressure
Setting
In this mode, you can reset the tire pressure monitoring system
(TPMS).
If warning occurs, the symbol changes to the warning mode
symbol.
The information provided may differ depending on which functions are applicable
to your vehicle.

Instrument Cluster4-30

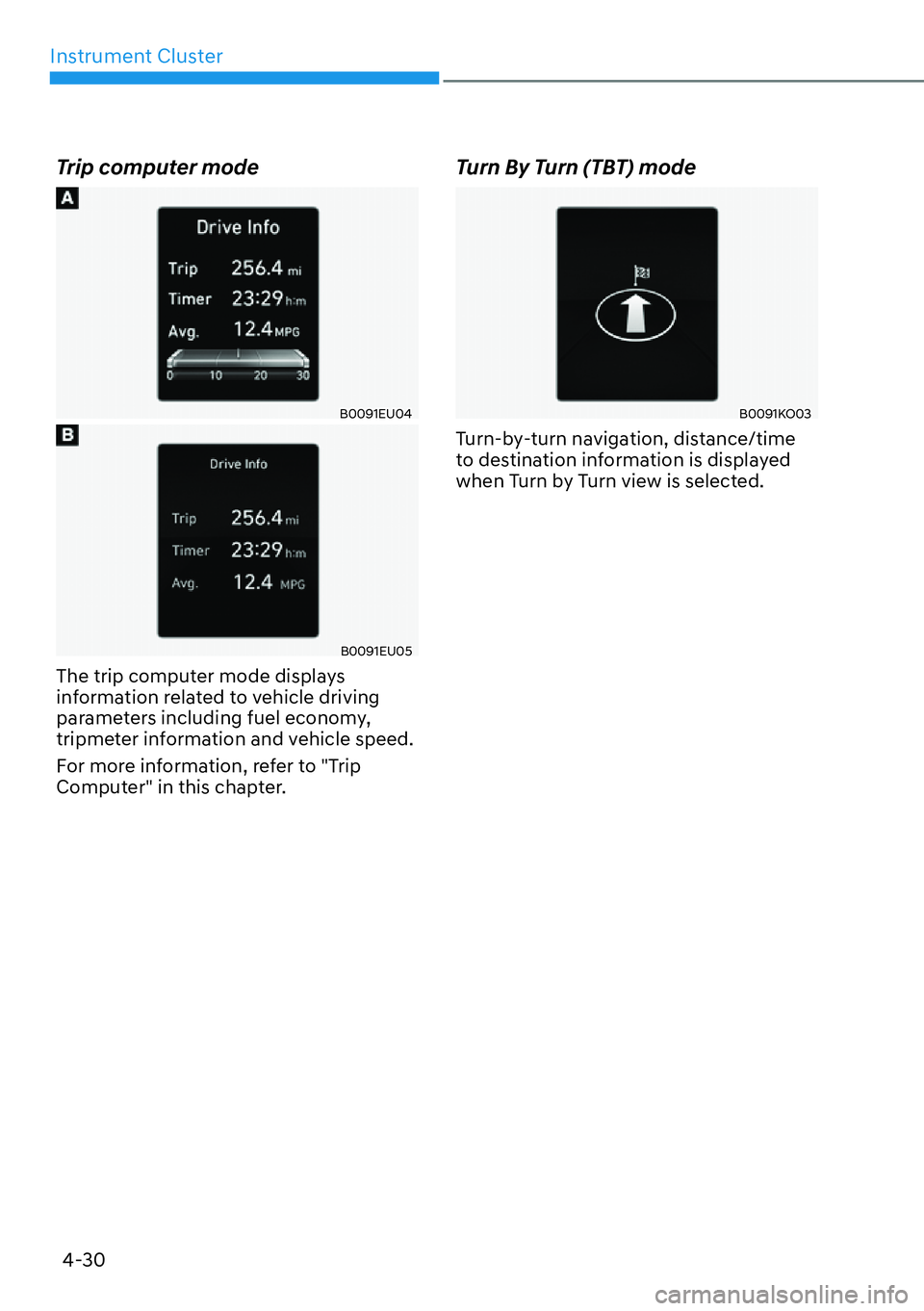

Trip computer mode
B0091EU04
B0091EU05
The trip computer mode displays
information related to vehicle driving
parameters including fuel economy,
tripmeter information and vehicle speed.
For more information, refer to "Trip
Computer" in this chapter.
Turn By Turn (TBT) mode
B0091KO03
Turn-by-turn navigation, distance/time
to destination information is displayed
when Turn by Turn view is selected.

Instrument Cluster4-32

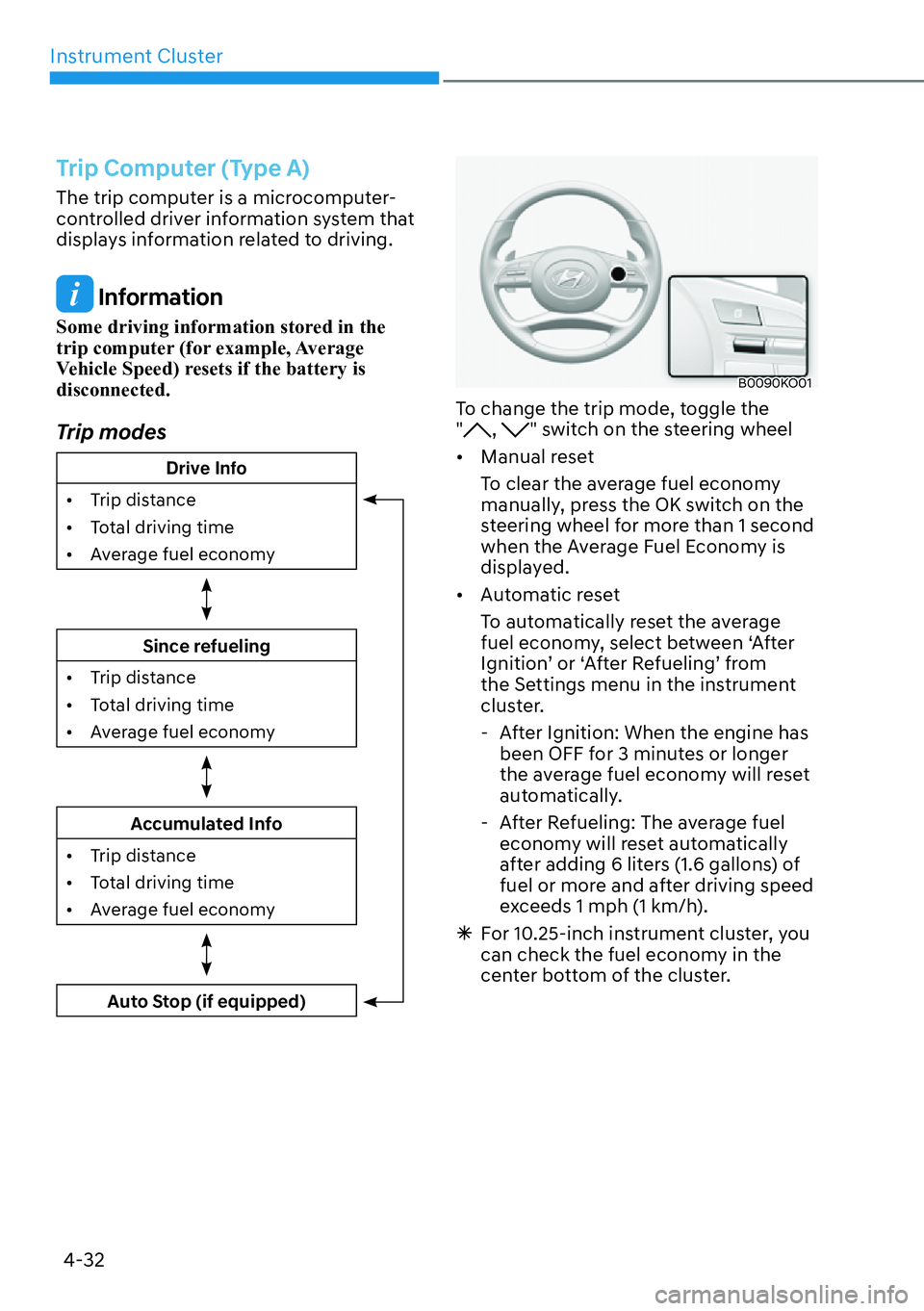

Trip Computer (Type A)
The trip computer is a microcomputer-
controlled driver information system that
displays information related to driving.
Information
Some driving information stored in the
trip computer (for example, Average
Vehicle Speed) resets if the battery is
disconnected.
Trip modes
Drive Info

[ Trip distance

[ Total driving time

[ Average fuel economy
Since refueling

[ Trip distance

[ Total driving time

[ Average fuel economy
Accumulated Info

[ Trip distance

[ Total driving time

[ Average fuel economy
Auto Stop (if equipped)
B0090KO01
To change the trip mode, toggle the
", " switch on the steering wheel

[ Manual reset
To clear the average fuel economy
manually, press the OK switch on the
steering wheel for more than 1 second
when the Average Fuel Economy is
displayed.

[ Automatic reset
To automatically reset the average
fuel economy, select between ‘After
Ignition’ or ‘After Refueling’ from
the Settings menu in the instrument
cluster.

- After Ignition: When the engine has
been OFF for 3 minutes or longer
the average fuel economy will reset
automatically.
- After Refueling: The average fuel economy will reset automatically
after adding 6 liters (1.6 gallons) of
fuel or more and after driving speed
exceeds 1 mph (1 km/h).

à For 10.25-inch instrument cluster, you
can check the fuel economy in the
center bottom of the cluster.

Instrument Cluster4-34

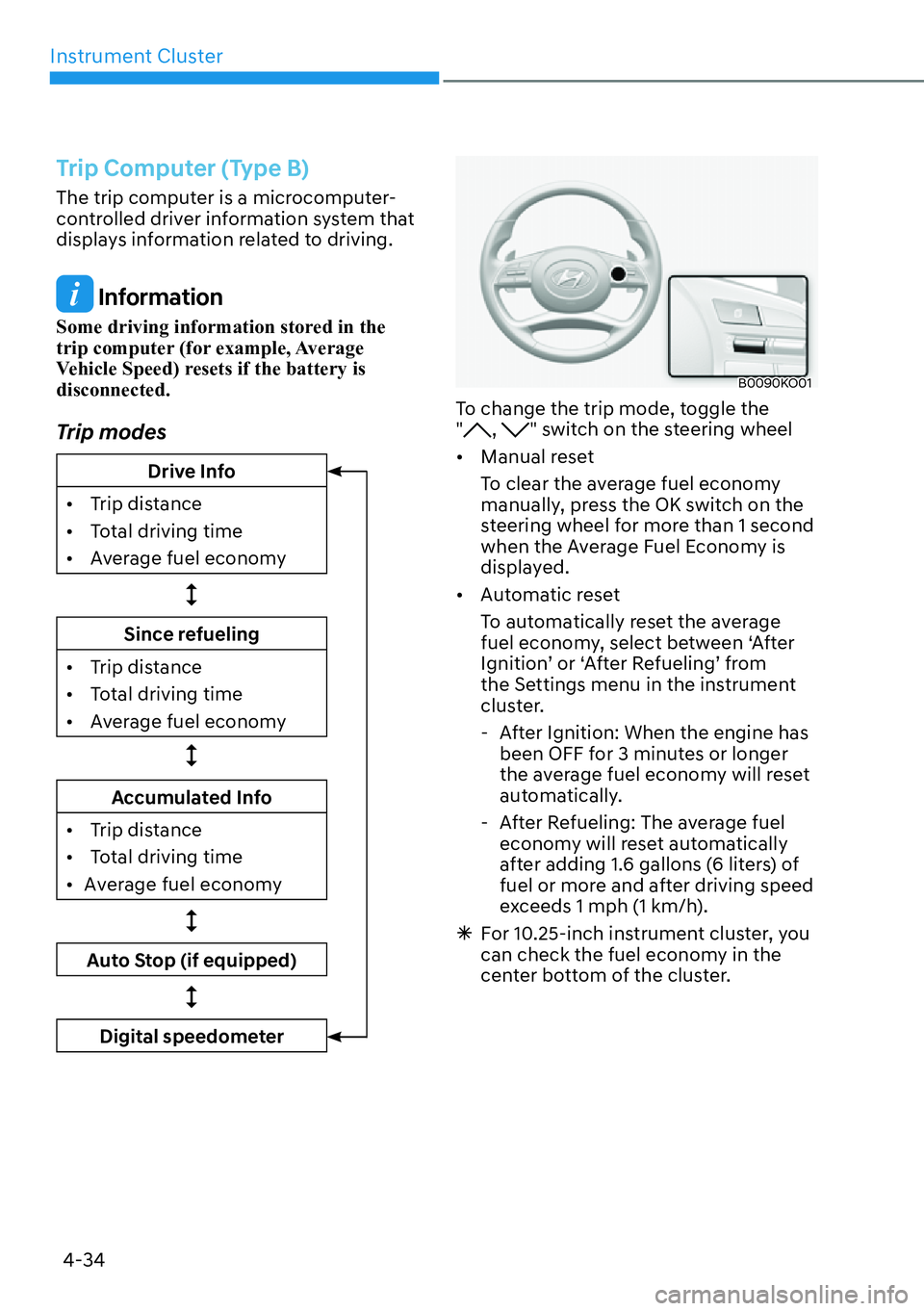

Trip Computer (Type B)
The trip computer is a microcomputer-
controlled driver information system that
displays information related to driving.
Information
Some driving information stored in the
trip computer (for example, Average
Vehicle Speed) resets if the battery is
disconnected.
Trip modes
Drive Info

[ Trip distance

[ Total driving time

[ Average fuel economy

Since refueling

[ Trip distance

[ Total driving time

[ Average fuel economy

Accumulated Info

[ Trip distance

[ Total driving time

[ Average fuel economy

Auto Stop (if equipped)

Digital speedometer
B0090KO01
To change the trip mode, toggle the
", " switch on the steering wheel

[ Manual reset
To clear the average fuel economy
manually, press the OK switch on the
steering wheel for more than 1 second
when the Average Fuel Economy is
displayed.

[ Automatic reset
To automatically reset the average
fuel economy, select between ‘After
Ignition’ or ‘After Refueling’ from
the Settings menu in the instrument
cluster.

- After Ignition: When the engine has
been OFF for 3 minutes or longer
the average fuel economy will reset
automatically.
- After Refueling: The average fuel economy will reset automatically
after adding 1.6 gallons (6 liters) of
fuel or more and after driving speed
exceeds 1 mph (1 km/h).

à For 10.25-inch instrument cluster, you
can check the fuel economy in the
center bottom of the cluster.
