2023 HYUNDAI PALISADE Owners Manual

Convenience Features5-20

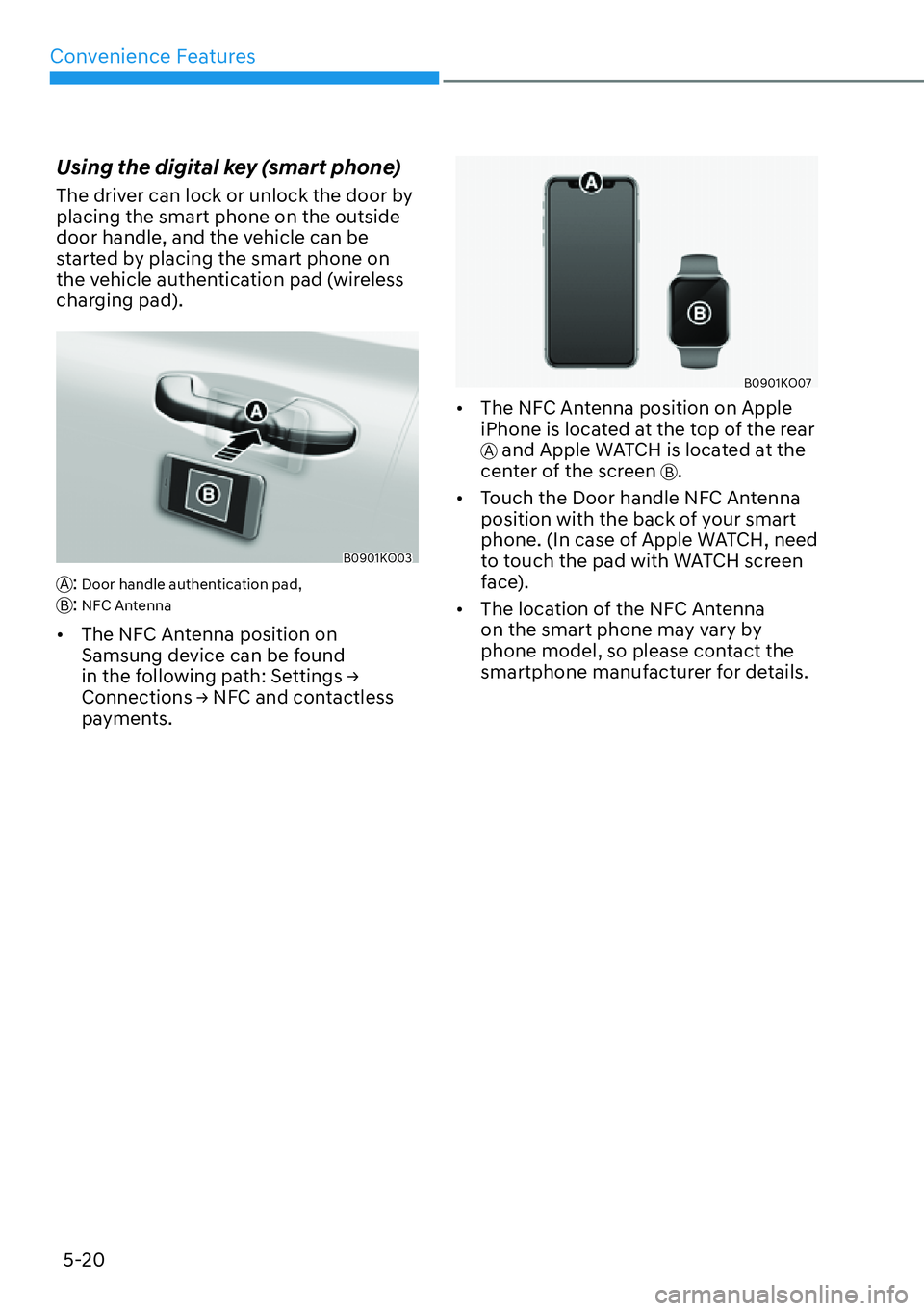

Using the digital key (smart phone)
The driver can lock or unlock the door by
placing the smart phone on the outside
door handle, and the vehicle can be
started by placing the smart phone on
the vehicle authentication pad (wireless
charging pad).
B0901KO03
A: Door handle authentication pad,
B: NFC Antenna

[ The NFC Antenna position on
Samsung device can be found
LQWKHIROORZLQJSDWK6HWWLQJV

05
5-21
Locking/Unlocking the doors
- If the driver places the digital key
(smart phone) NFC antenna to the
driver’s or passenger’s door handle
authentication pad
A for more than 2
seconds, the door will lock or unlock.

- If the Two Press Unlock feature is
set, only the driver’s door unlock
when the digital key (smart phone)
is placed on the driver’s door handle
authentication pad. Hold the digital
key (smart phone) near the driver’s
door handle authentication pad once
more within 4 seconds to unlock all
doors.

- After unlocking the doors, the doors
will automatically re-lock after 30
seconds unless a door is opened.

- If the smart phone digital key does
not operate, try again after moving
the smart phone away from the door
handle authentication pad (more than
4 in. (0.1 m)).
Information
You cannot lock your vehicle using the
digital key (smart phone) if any of the
following occurs:

- The smart key is in the vehicle.

- The Start/Stop button is in the ACC or
ON position.

- Any of the doors, hood, or liftegate are
open. Starting the vehicle
After placing your registered digital
key (smart phone) on the vehicle
authentication pad (wireless charging
pad), depress the brake pedal and press
the Start/ Stop button.
After starting the vehicle, the digital key
(smart phone ) may be removed from
the vehicle authentication pad (wireless
charging pad).
For more details on the basic way to
start the vehicle, refer to the “Start/Stop
Button” section in chapter 6.
Information
If a shared digital key (smart phone) is used
for the first time, the activating time may
take longer.

[
Place the shared digital key
(smart phone) on the door handle
authentication pad until the vehicle
door lock/unlock activates.

[ If a shared digital key (smart phone) is
first used on the vehicle authentication
pad (wireless charger pad), the initial
start of the vehicle may fail.

[ If the door lock/unlock is activated
once with the shared digital key (smart
phone) or the vehicle is started with
the digital key (smart phone) on the
vehicle authentication pad, the digital
key (smart phone) will be registered in
the vehicle.
WARNING
The vehicle can be started when the
registered smart phone is placed on the
vehicle authentication pad (wireless
charging pad). Therefore, do not leave
unsupervised children or people who
are not aware of the system since it
can result in serious injury or death. In
addition, always have the registered
smart phone with you to prevent
vehicle theft when leaving the vehicle.

Convenience Features5-22

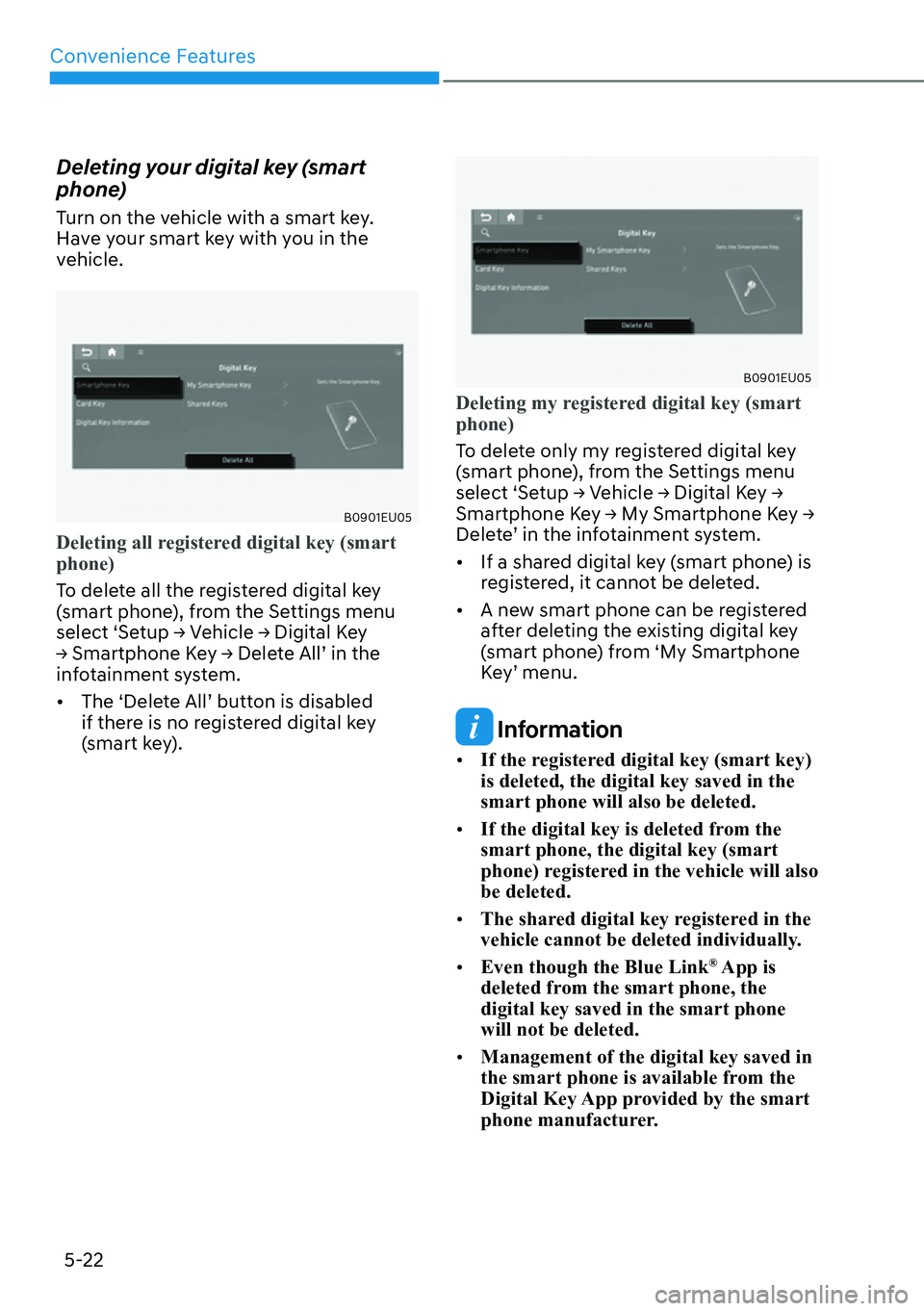

Deleting your digital key (smart
phone)
Turn on the vehicle with a smart key.
Have your smart key with you in the
vehicle.
B0901EU05
Deleting all registered digital key (smart
phone)
To delete all the registered digital key
(
smart phone), from the Settings menu
VHOHFW
S6HWXS

05
5-23

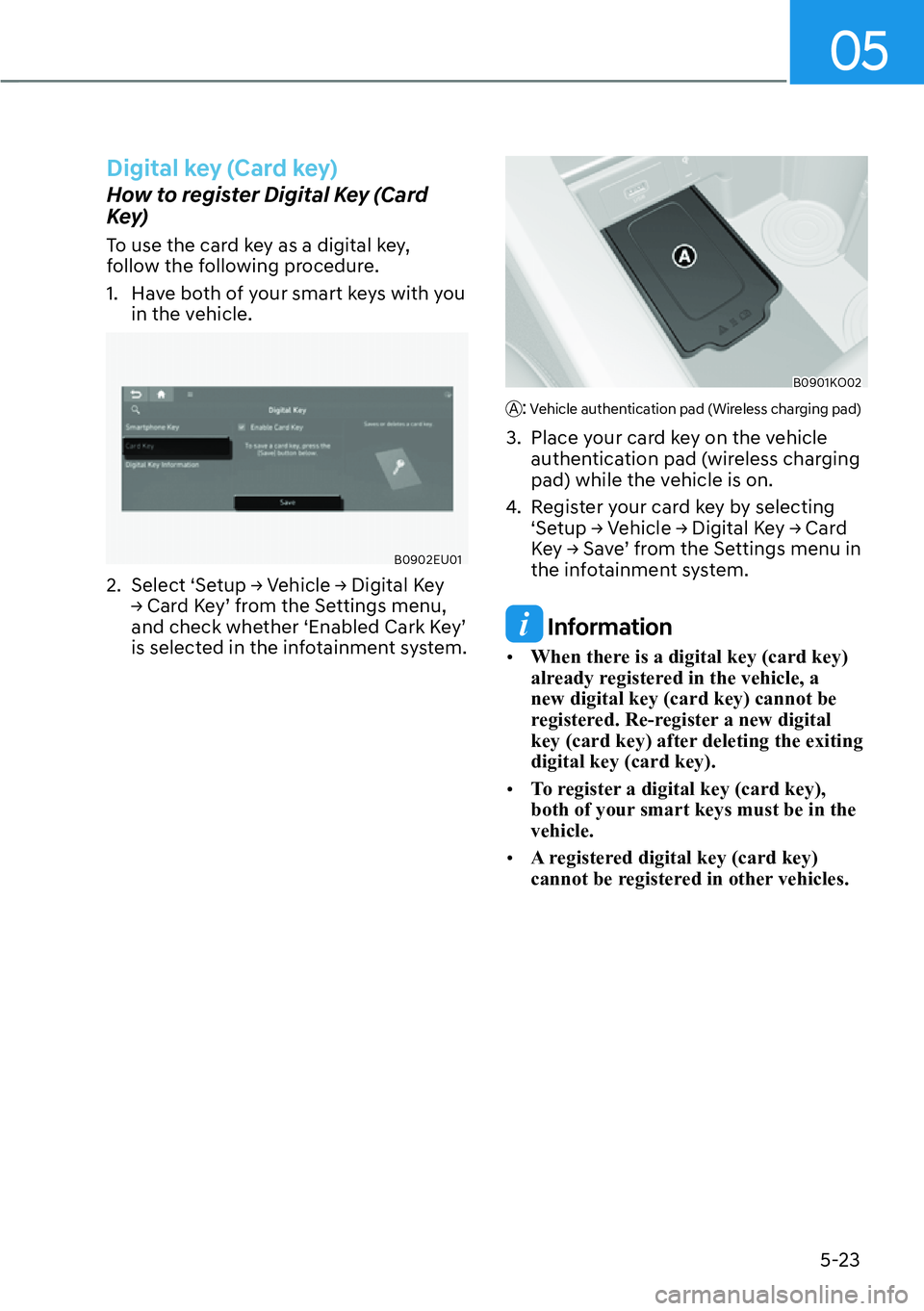

Digital key (Card key)
How to register Digital Key (Card
Key)
To use the card key as a digital key,
follow the following procedure.
1. Have both of your smart keys with you in the vehicle.
B0902EU01
2. 6HOHFW
S6HWXS

Convenience Features5-24
Using the digital key (card key)
The driver can lock or unlock the door by
placing the card key on the outside door
handle, and the vehicle can be started
by placing the card key on the vehicle
authentication pad (wireless charging
pad).
B0902KO02
A: Door handle authentication pad,
B: Card key NFC Antenna

[ Locking/Unlocking the doors

- If the driver places the digital
key (Card key) to the driver’s
or passenger’s door handle
authentication pad
A for more than
2 seconds, the door will lock or
unlock.

- If the Two Press Unlock feature is
set, only the driver’s door unlock
when the digital key (Card key) is
placed on the driver’s door handle
authentication pad. Hold the digital
key (Card key) near the driver’s door
handle authentication pad once
more within 4 seconds to unlock all
doors.

- After unlocking the doors, the doors
will automatically re-lock after 30
seconds unless a door is opened.
Information
You cannot lock your vehicle using
the digital key (Card key) if any of the
following occurs:

- The smart key is in the vehicle.

- The Start/Stop button is in the ACC or
ON position.

- Any of the doors, hood, or liftgate are
open.

[ Starting the vehicle
After placing your registered
digital key (card key) on the vehicle
authentication pad (wireless charging
pad), depress the brake pedal and
press the Engine Start/ Stop button.
For more details on the basic way
to start the vehicle, refer to “Ignition
Switch” or “Engine Start/Stop Button”
section in chapter 6.
WARNING
The vehicle can be started when the
registered card key is placed on the
vehicle authentication pad (wireless
charging pad). Therefore, do not leave
unsupervised children or people who
are not aware of the system since it
can result in serious injury or death. In
addition, always have the registered
card key with you to prevent vehicle
theft when leaving the vehicle.

05
5-25

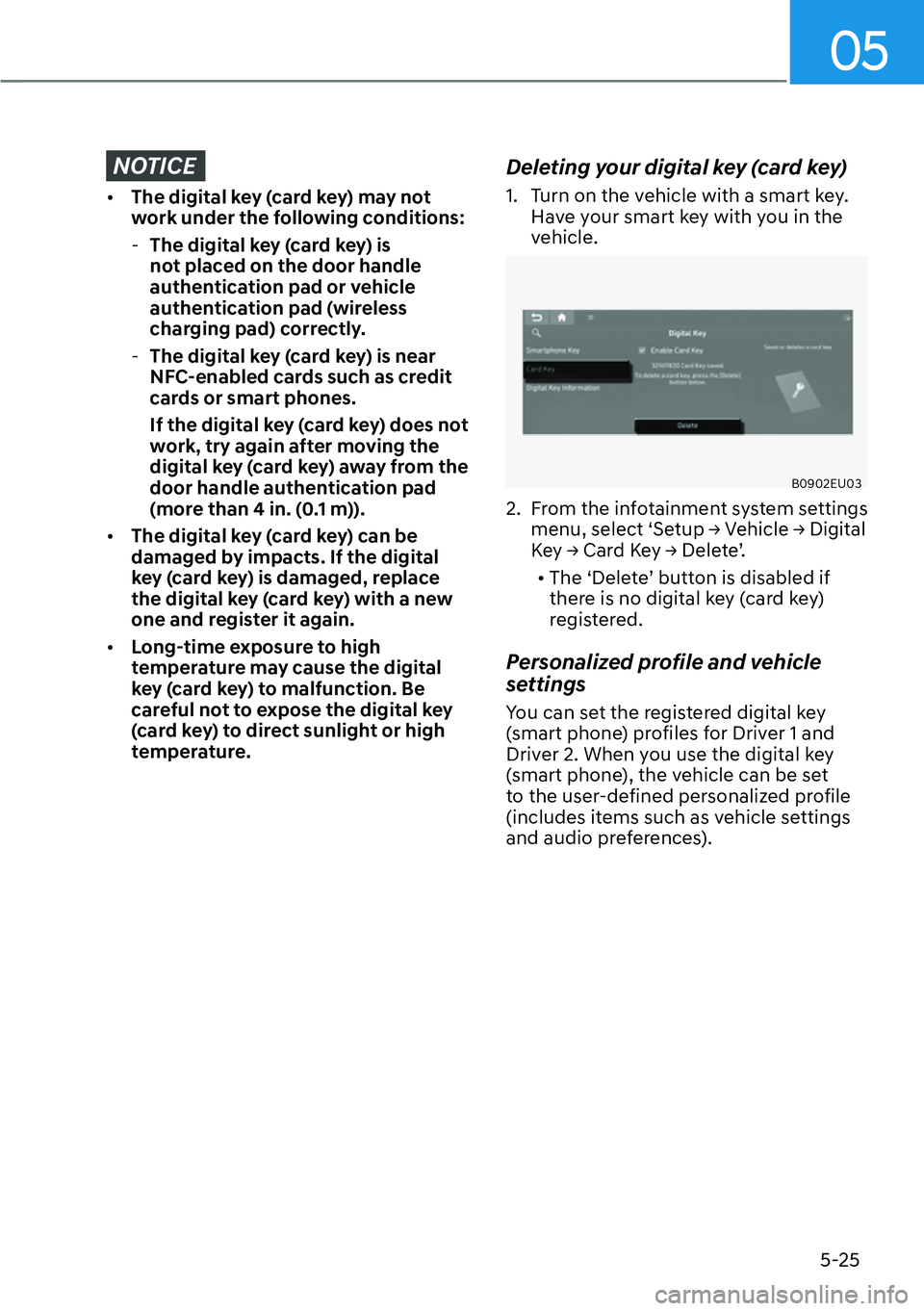

NOTICE

[The digital key (card key) may not
work under the following conditions:

- The digital key (card key) is
not placed on the door handle
authentication pad or vehicle
authentication pad (wireless
charging pad) correctly.

- The digital key (card key) is near
1)&HQDEOHGFDUGVVXFKDVFUHGLW
cards or smart phones.
If the digital key (card key) does not
work, try again after moving the
digital key (card key) away from the
door handle authentication pad
(more than 4 in. (0.1 m)).

[ The digital key (card key) can be
damaged by impacts. If the digital
key (card key) is damaged, replace
the digital key (card key) with a new
one and register it again.

[ Long-time exposure to high
temperature may cause the digital
key (card key) to malfunction. Be
careful not to expose the digital key
(card key) to direct sunlight or high
temperature.
Deleting your digital key (card key)
1. Turn on the vehicle with a smart key.
Have your smart key with you in the
vehicle.
B0902EU03
2. From the infotainment system settings PHQXVHOHFW
S6HWXS

Convenience Features5-26

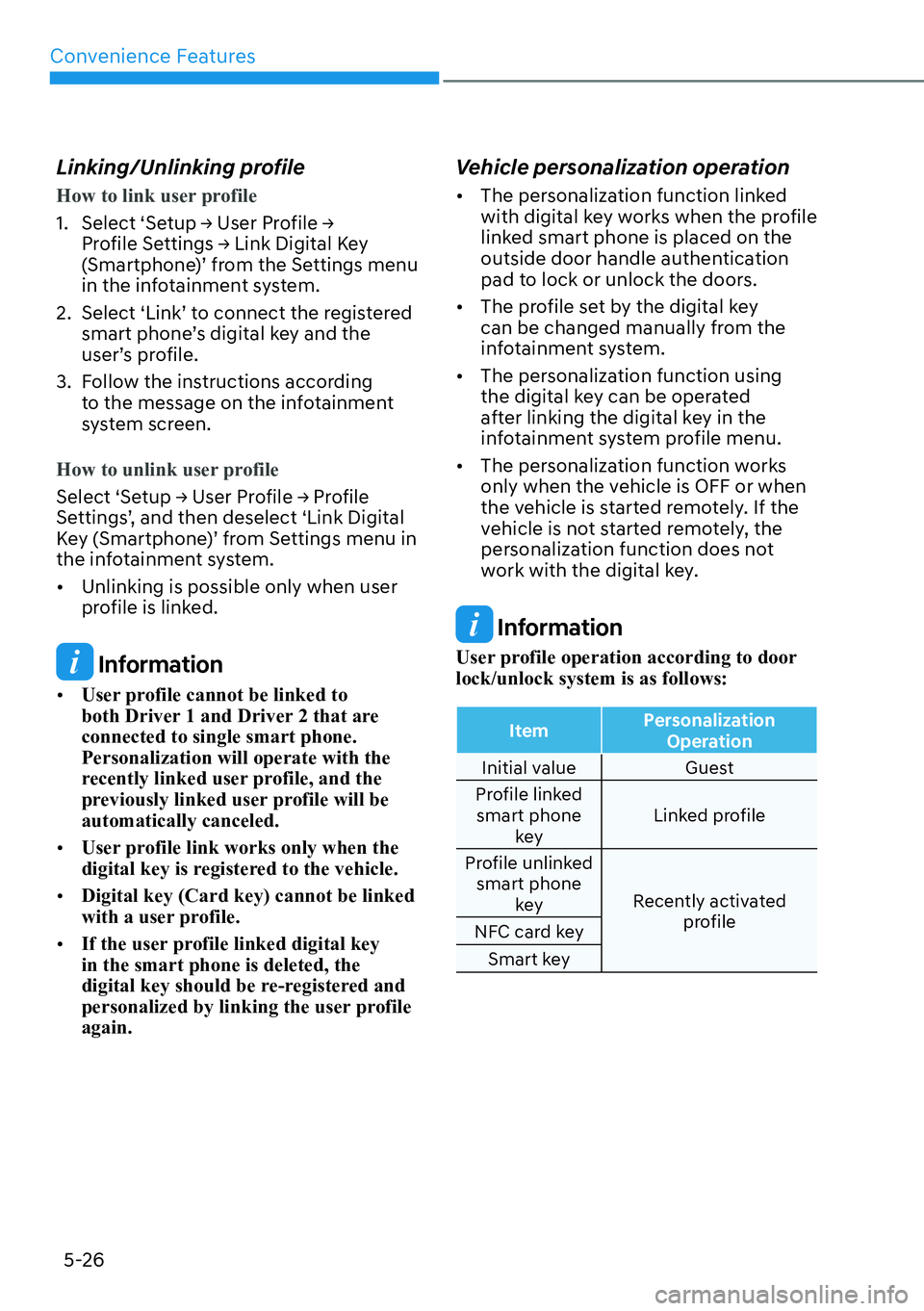

Linking/Unlinking profile
How to link user profile
1. 6HOHFW
S6H
WXS

05
5-27

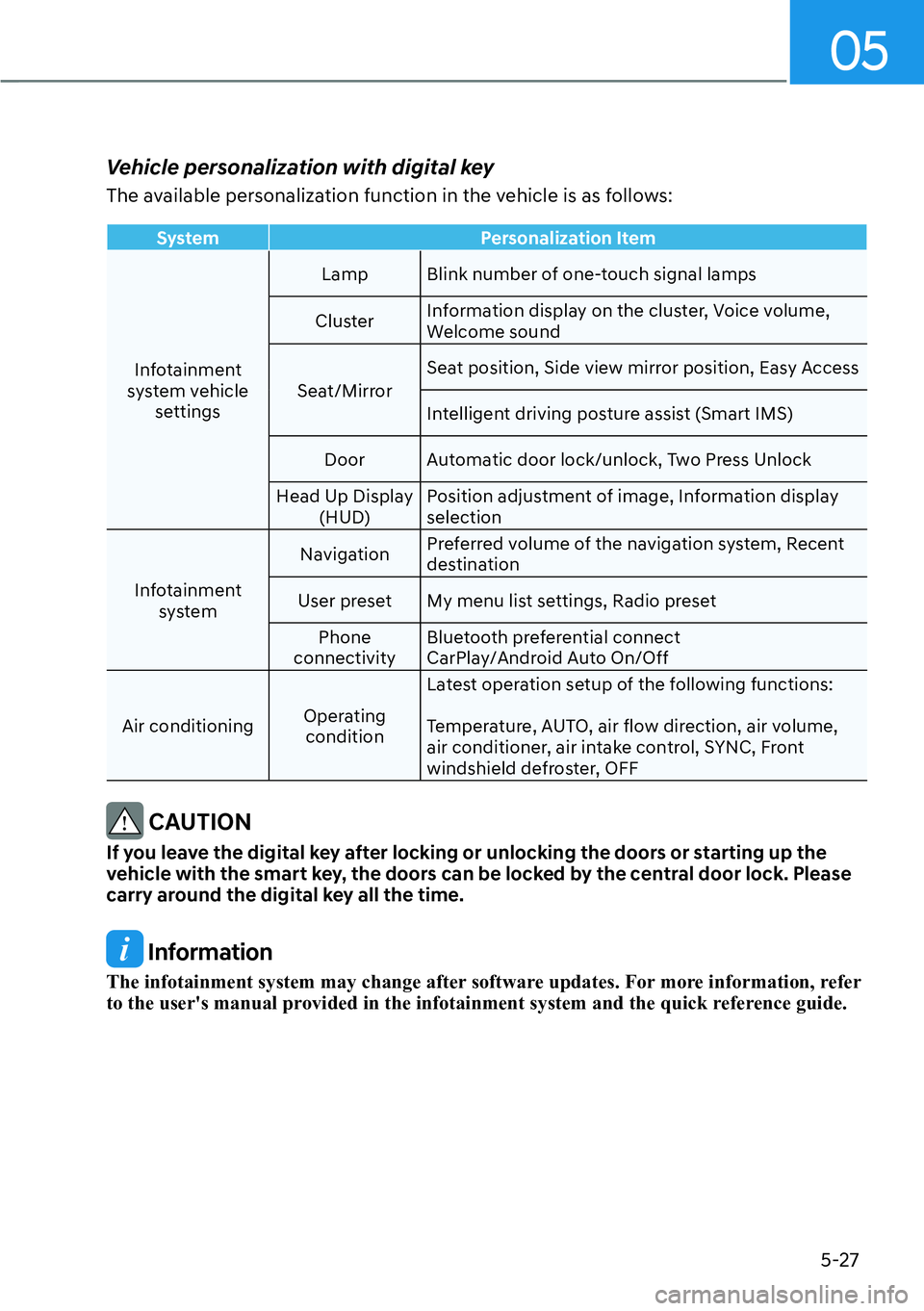

Vehicle personalization with digital key
The available personalization function in the vehicle is as follows:
SystemPersonalization Item
Infotainment
s
ystem vehicle settings Lamp Blink number of one-touch signal lamps
Cluster Information display on the cluster, Voice volume,
Welcome sound
Seat/Mirror Seat position, Side view mirror position, Easy Access
Intelligent driving posture assist (Smart IMS)
Door Automatic door lock/unlock, Two Press Unlock
Head Up Display (HUD) Position adjustment of image, Information display
selection
Infotainment system Navigation
Preferred volume of the navigation system, Recent
destination
User preset My menu list settings, Radio preset Phone
connectivity Bluetooth preferential connect
CarPlay/Android Auto On/Off
Air conditioning Operating
condition Latest operation setup of the following functions:
Temperature, AUTO, air flow direction, air volume,
air conditioner, air intake control, SYNC, Front
windshield defroster, OFF
CAUTION
If you leave the digital key after locking or unlocking the doors or starting up the
vehicle with the smart key, the doors can be locked by the central door lock. Please
carry around the digital key all the time.
Information
The infotainment system may change after software updates. For more information, refer
to the user's manual provided in the infotainment system and the quick reference guide.
