Rear vents on the headliner
B0204KO17
The rear passengers can adjust the
direction of air flow from the rear vents
on the headliner.
If you operate the rear climate control
with rear vents closed, a noise may
sound. When operating the rear climate
control, open two or more rear vents.
No Diffusion
lever ADirection
thumbwheel BDescription
1 Open
(
) Close The air is delivered widely toward the
surroundings of rear passengers.
However, the fan speed may be decreased.
2 Open
(
) Open
The air is delivered widely toward the rear
passengers and surrounding of rear passengers.
3 Close
(
) Open
The air is only delivered toward the rear
passengers.

05
5-141
System Operation
Cooling/Ventilation
1. Select the Face Level mode.
2. Set the air intake control to fresh mode.
3. Set the temperature control to the desired position.
4. Set the fan speed control to the desired speed.
Heating
1. Select the Floor Level mode.
2. Set the air intake control to fresh mode.
3. Set the temperature control to the desired position.
4. Set the fan speed control to the desired speed.
5. If desired, turn the air conditioning ON with the temperature control knob set
to heat in order to dehumidify the air
before it enters into the cabin.
If the windshield fogs up, select the Floor
& Defrost
mode or press the Front
Defrost mode.
Operation Tips

[ T
o keep dust or unpleasant fumes
from entering the car through the
ventilation system, temporarily set the
air intake control to the recirculation
mode. Return the control to the to
fresh mode when the unpleasant air
outside has diminished. This will help
keep the driver alert and comfortable.

[ To help prevent the inside of the
windshield from fogging, set the air
intake control to fresh mode and the
fan speed to the desired position, turn
on the air conditioning system, and
adjust the temperature control to the
desired temperature.
Air conditioning
Your HYUNDAI vehicle air conditioning
system is filled with R-1234yf refrigerant.
1. Start the engine.
2. Press the air conditioning button.
3. Select the Face Level
mode.
4. Set the air intake control to Recirculation mode temporarily to
allow the cabin to cool quickly. When
the desired temperature in the cabin
is reached, change the air intake
control back to Fresh mode.
5. Adjust the fan speed control and temperature control to maintain
maximum comfort.
When maximum cooling is desired, set
the temperature control to the MAX A/C
position, then set the fan speed control
to the highest setting.
NOTICE
When using the air conditioning system,
monitor the engine temperature gauge
closely while driving up hills or in heavy
traffic when outside temperatures.
Air conditioning system operation
when climbing a steep grade or in
high outside ambient temperatures
can cause engine overheating.
Continue to use the fan, but turn the air
conditioning system off if the engine
temperature gauge indicates engine
overheating.

Convenience Features5-142
Air conditioning system operation tips

[ If the v
ehicle has been parked in
direct sunlight during hot weather,
open the windows for a short time
to let the hot air inside the vehicle
escape.

[ After sufficient cooling has been
achieved, switch back from
recirculation mode to fresh mode.

[ To help reduce moisture inside of
the windows on rainy or humid
days, decrease the humidity inside
the vehicle by operating the air
conditioning system with the windows
and sunroof closed.

[ Use the air conditioning system
every month only for a few minutes
to ensure maximum system
performance.

[ If you operate air conditioner
excessively, the difference between
the temperature of the outside air and
that of the windshield could cause
the outer surface of the windshield
to fog up, causing loss of visibility. In
this case, set the mode selection knob
or button to the
position and fan
speed control to the lower speed.
System Maintenance
Cabin air filter
OIK047401L
A: Outside air, B: Recirculated air
C: Climate control air filter, D: Blower
E: Evaporator core, F: Heater core
The cabin air filter is installed behind
the glove box. It filters the dust or other
pollutants that enter the vehicle through
the heating and air conditioning system.
Have the cabin air filter replaced by an
authorized HYUNDAI dealer according to
the maintenance schedule. If the vehicle
is being driven in severe conditions
such as dusty or rough roads and/or if
transporting pets or occupants smoke
inside the vehicle, then more frequent
cabin air filter inspections and changes
are required.
If the air flow rate suddenly decreases,
the system should be checked at an
authorized HYUNDAI dealer.

05
5-143

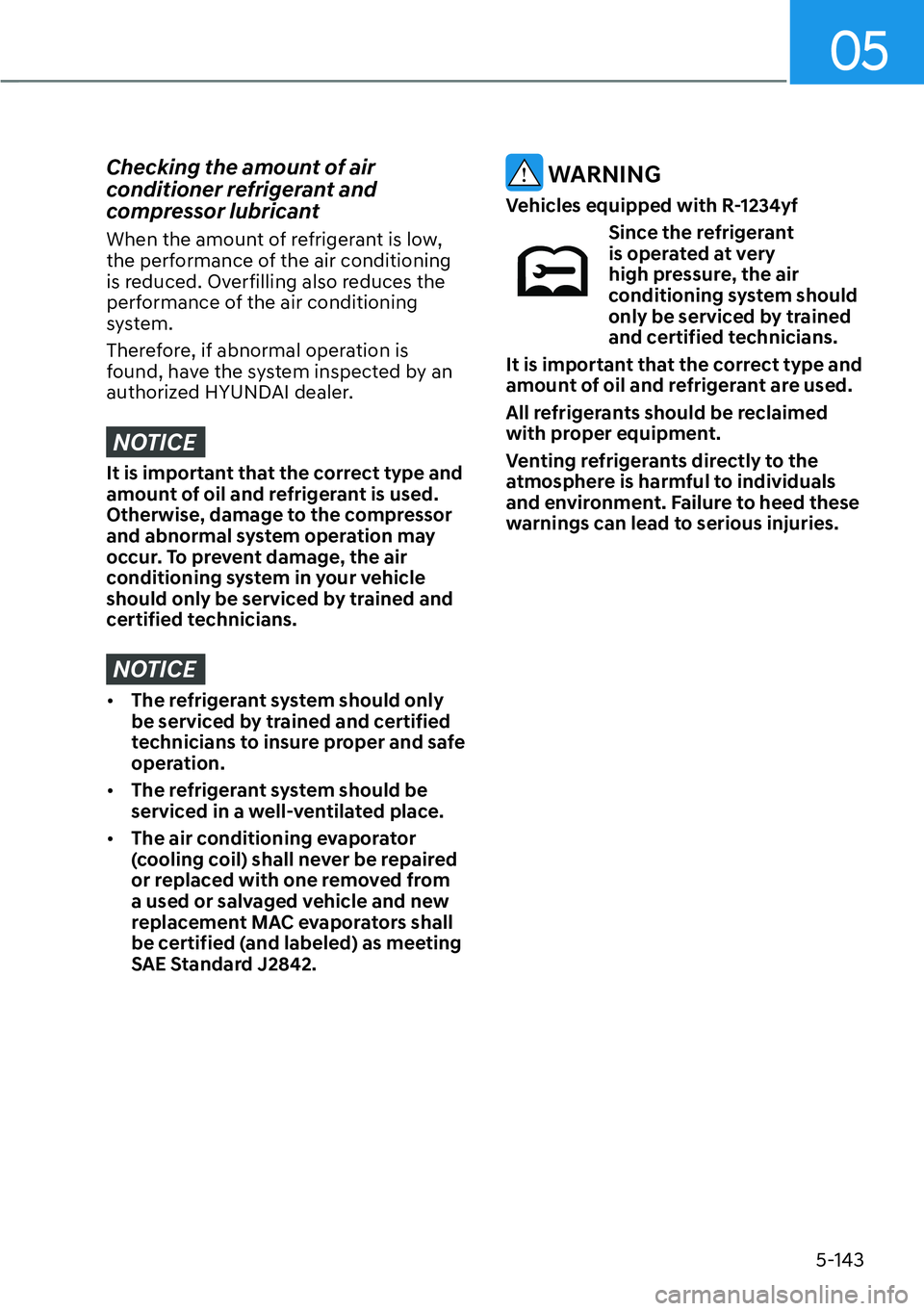

Checking the amount of air
conditioner refrigerant and
compressor lubricant
When the amount of refrigerant is low,
the performance of the air conditioning
is reduced. Overfilling also reduces the
performance of the air conditioning
system.
Therefore, if abnormal operation is
found, have the system inspected by an
authorized HYUNDAI dealer.
NOTICE
It is important that the correct type and
amount of oil and refrigerant is used.
Otherwise, damage to the compressor
and abnormal system operation may
occur. To prevent damage, the air
conditioning system in your vehicle
should only be serviced by trained and
certified technicians.
NOTICE

[The refrigerant system should only
be serviced by trained and certified
technicians to insure proper and safe
operation.

[ The refrigerant system should be
serviced in a well-ventilated place.

[ The air conditioning evaporator
(cooling coil) shall never be repaired
or replaced with one removed from
a used or salvaged vehicle and new
replacement MAC evaporators shall
be certified (and labeled) as meeting
SAE Standard J2842.
WARNING
Vehicles equipped with R-1234yf
Since the refrigerant
is operated at very
high pressure, the air
conditioning system should
only be serviced by trained
and certified technicians.
It is important that the correct type and
amount of oil and refrigerant are used.
All refrigerants should be reclaimed
with proper equipment.
Venting refrigerants directly to the
atmosphere is harmful to individuals
DQGHQYLURQPHQW)DLOXUHWRKHHGWKHVH
warnings can lead to serious injuries.

Convenience Features5-144
B0206KO01
Air Conditioning refrigerant label
You can find out which air conditioning
r
efrigerant is applied to your vehicle
on the label located in front of engine
compartment.
B0206KO02
Each symbol and specification on the
air conditioning refrigerant label is
represented as below:
M Classification of refrigerant
N Amount of refrigerant
O Classification of compressor lubricant
P Caution
Q Flammable refrigerant
R To require registered technician to service air conditioning system

05
5-145
WARNING
Windshield heating
Do not use the
or position during
cooling operation in extremely humid
weather. The difference between the
temperature of the outside air and that
of the windshield could cause the outer
surface of the windshield to fog up,
causing loss of visibility could cause
an accident resulting in serious injury
or death. In this case, set the mode
selection knob or button to the

position and fan speed control knob or
button to a lower speed.

[ For maximum defrost performance,
set the temperature control knob
to the highest temperature setting
(rotated all the way to the right) and
the fan speed control to the highest
setting.

[ If warm air to the floor is desired while
defrosting or defogging, set the mode
to the floor-defrost position.

[ Before driving, clear all snow and ice
from the windshield, rear window,
side view mirrors, and all side
windows.

[ Clear all snow and ice from the
hood and air inlet in the cowl grill
to improve heater and defroster
efficiency and to reduce the
probability of fogging up the inside of
the windshield.
NOTICE
If the engine temperature is still cold
after starting, then a brief engine warm
up period may be required for the
vented air flow to become warm or hot.
Manual Climate Control System
B9031EU01
To defog inside windshield
1. Select any fan speed except “0”
position.
2.

Select the desired temperature.
3. Select the
or position.
4. Fresh mode will be selected automatically. Additionally, the
air conditioning will automatically
operate if the mode is selected to the
position.
Check to make sure the A/C is ON. If
the A/C ON indicator is not illuminated,
press the A/C button once to turn the air
conditioner ON.
Check to make sure the air intake control
is in Fresh mode. If the air intake control
indicator is illuminated, press the button
once to enable Fresh mode (indicator
OFF).
:,1'6+,(/''()5267,1*$1''()2**,1*

Convenience Features5-146
B9031EU02

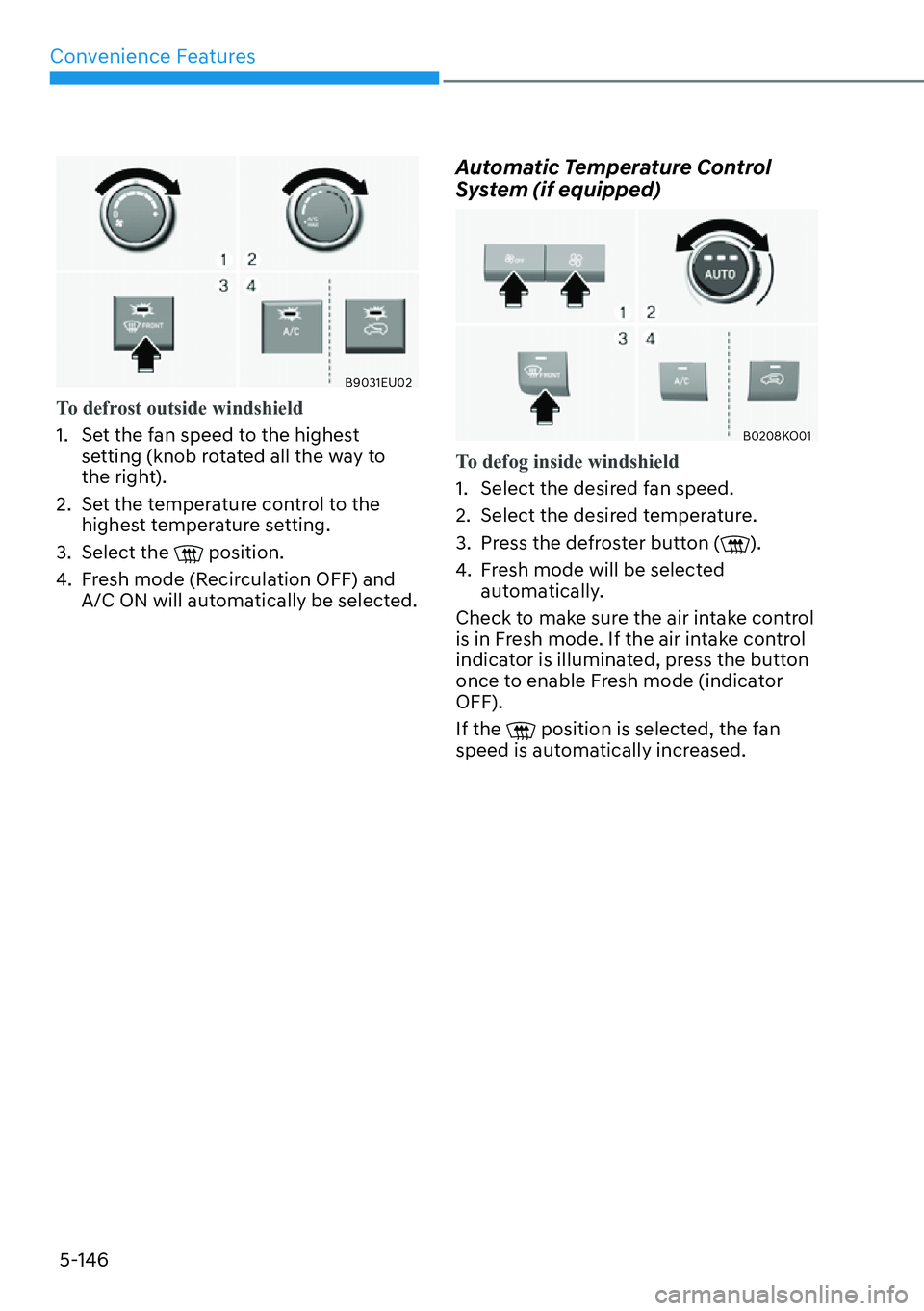

To defrost outside windshield
1. Set the fan speed to the highest se
tting (knob rotated all the way to
the right).
2. Set the temperature control to the highest temperature setting.
3. Select the
position.
4. Fresh mode (Recirculation OFF) and A/C ON will automatically be selected.
Automatic Temperature Control
System (if equipped)
B0208KO01
To defog inside windshield
1. Select the desired fan speed.
2.

Select the desired temperature.
3. Press the defroster button (
).
4. Fresh mode will be selected automatically.
Check to make sure the air intake control
is in Fresh mode. If the air intake control
indicator is illuminated, press the button
once to enable Fresh mode (indicator
OFF).
If the
position is selected, the fan
speed is automatically increased.

05
5-147
B0209KO01
To defrost outside windshield
1. Set the fan speed to the highest position.
2.

Set the temperature to the extreme
hot (HI) position.
3. Press the defroster button (
).
4. The outside (fresh) air position will be selected automatically.
If the
position is selected, lower fan
speed is adjusted to a higher fan speed.
Defogging logic
To reduce the probability of fogging
up the inside of the windshield, the air
intake or air conditioning are controlled
automatically according to certain
conditions such as
or positions.
To cancel or reset the defogging logic, do
the following.
Manual climate control system
1. Turn the ignition switch to the ON position.
2.

Press the defroster button (
).
3. Press the air intake control button at least 5 times within 3 seconds.
The indicator on the air intake button
will blink 3 times to indicate that the
defogging logic has been disabled.
Repeat the steps again to re-enable the
defogging logic.
If the battery has been discharged or
disconnected, it resets to the defog logic
status.
Automatic climate control system
1. Turn the ignition switch to the ON position.
2.

Press the defroster button (
).
3. While pressing the air conditioning button (A/C), press the air intake
control button at least 5 times within
3 seconds.
The Automatic Climate Control
information screen will blink 3 times to
indicate that the defogging logic has
been dis-abled.
Repeat the steps again to re-enable the
defogging logic.
If the battery has been discharged or
disconnected, it resets to the defog logic
status.
