2023 HYUNDAI PALISADE seat adjustment

03
3-7
Front Seats
WARNING
Take the following precautions when
adjusting your seat:

[NEVER attempt to adjust the seat
while the vehicle is moving. The seat
could respond with unexpected
movement and may cause loss
of vehicle control resulting in an
accident.

[ Do not place anything under the
front seats. Loose objects in the
driver’s foot area could interfere
with the operation of the foot pedals,
causing an accident.

[ Do not allow anything to interfere
with the normal position and proper
locking of the seatback.

[ Do not place a cigarette lighter on
the floor or seat. When you operate
the seat, gas may exit out of the
lighter causing a fire.

[ Use extreme caution when picking
up small objects trapped under the
seats or between the seat and the
center console. Your hands might be
cut or injured by the sharp edges of
the seat mechanism.

[ If there are occupants in the rear
seats, be careful while adjusting the
front seat position.

[ Make sure that the seat is locked in
place after the adjustment. If not,
the seat might move unexpectedly
resulting in an accident.
CAUTION
To prevent injury:

[Do not adjust your seat while
wearing your seat belt. Moving the
seat cushion forward may cause
strong pressure on your abdomen.

[ Do not allow your hands or fingers to
get caught in the seat mechanisms
while the seat is moving.
WARNING
NEVER allow children in the vehicle
unattended. The power seats are
operable when the vehicle is turned off.
NOTICE
To prevent damage to the seats:

[Always stop adjusting the seats when
the seat has been adjusted as far
forward or rearward as possible.

[ Do not adjust the seats longer than
necessary when the vehicle is turned
off. This may result in unnecessary
battery drain.

[ Do not operate two or more seats at
the same time. This may result in an
electrical malfunction.

Seats & Safety System3-8

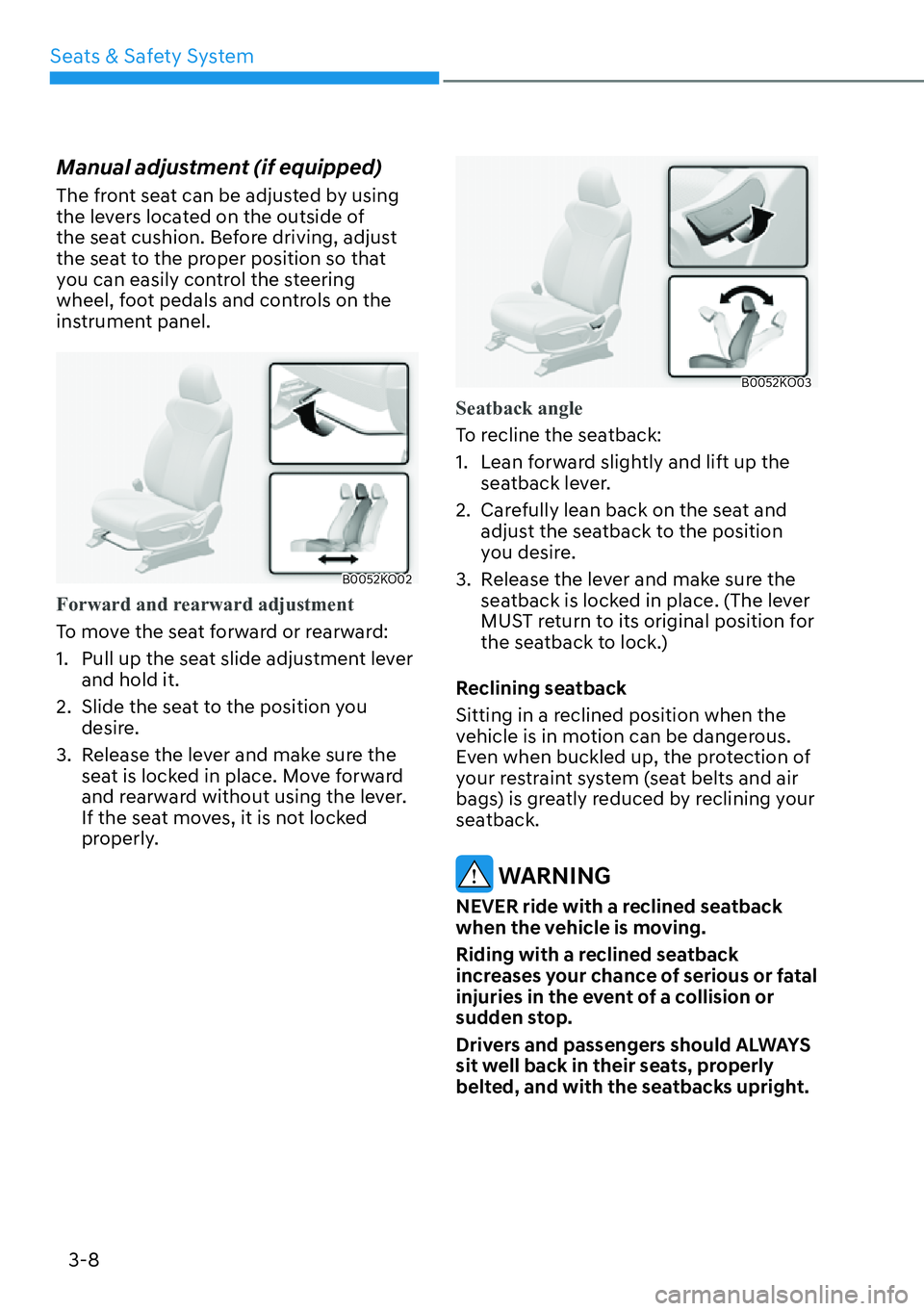

Manual adjustment (if equipped)
The front seat can be adjusted by using
the levers located on the outside of
the seat cushion. Before driving, adjust
the seat to the proper position so that
you can easily control the steering
wheel, foot pedals and controls on the
instrument panel.
B0052KO02
Forward and rearward adjustment
To move the seat forward or rearward:
1.
Pull up the seat slide adjustment lever
and hold it.
2. Slide the seat to the position you desire.
3. Release the lever and make sure the seat is locked in place. Move forward
and rearward without using the lever.
If the seat moves, it is not locked
properly.
B0052KO03
Seatback angle
To recline the seatback:
1.

Lean forward slightly and lift up the
seatback lever.
2. Carefully lean back on the seat and adjust the seatback to the position
you desire.
3. Release the lever and make sure the seatback is locked in place. (The lever
MUST return to its original position for
the seatback to lock.)
Reclining seatback
Sitting in a reclined position when the
vehicle is in motion can be dangerous.
Even when buckled up, the protection of
your restraint system (seat belts and air
bags) is greatly reduced by reclining your
seatback.
WARNING
NEVER ride with a reclined seatback
when the vehicle is moving.
Riding with a reclined seatback
increases your chance of serious or fatal
injuries in the event of a collision or
sudden stop.
Drivers and passengers should ALWAYS
sit well back in their seats, properly
belted, and with the seatbacks upright.

03
3-9
Seat belts must be snug against your
hips and chest to work properly. When
the seatback is reclined, the shoulder
belt cannot do its job because it will not
be snug against your chest. Instead,
it will be in front of you. During an
accident, you could be thrown into the
seat belt, causing neck or other injuries.
The more the seatback is reclined,
the greater chance the passenger's
hips will slide under the lap belt or the
passenger's neck will strike the shoulder
belt.
B0052KO04

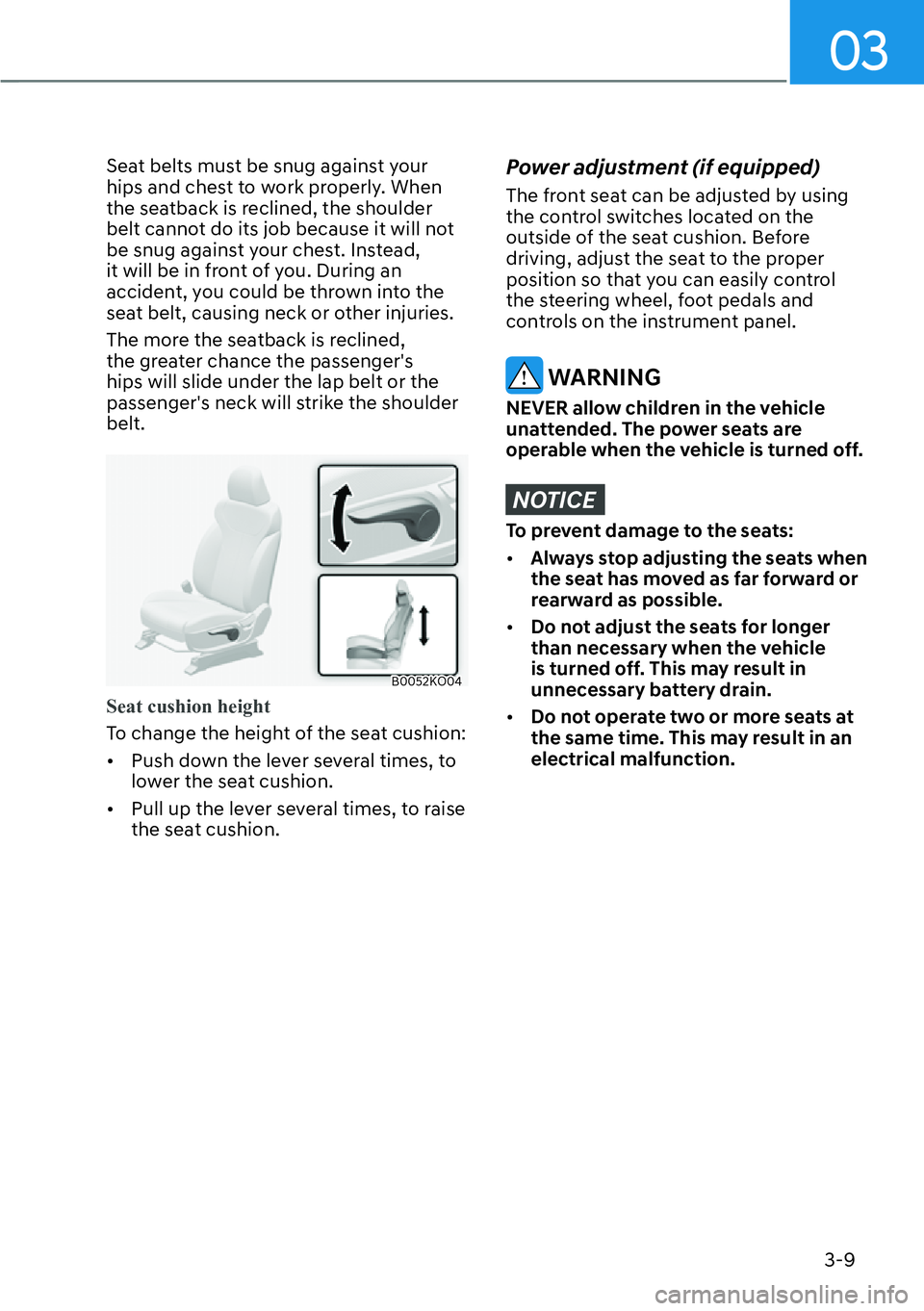

Seat cushion height
To change the height of the seat cushion:

[Push do

wn the lever several times, to
lower the seat cushion.

[ Pull up the lever several times, to raise
the seat cushion.
Power adjustment (if equipped)
The front seat can be adjusted by using
the control switches located on the
outside of the seat cushion. Before
driving, adjust the seat to the proper
position so that you can easily control
the steering wheel, foot pedals and
controls on the instrument panel.
WARNING
NEVER allow children in the vehicle
unattended. The power seats are
operable when the vehicle is turned off.
NOTICE
To prevent damage to the seats:

[Always stop adjusting the seats when
the seat has moved as far forward or
rearward as possible.

[ Do not adjust the seats for longer
than necessary when the vehicle
is turned off. This may result in
unnecessary battery drain.

[ Do not operate two or more seats at
the same time. This may result in an
electrical malfunction.

Seats & Safety System3-10
B0052EU05
Forward and rearward adjustment
To move the seat forward or rearward:
1.
Push the control switch forward or
rearward.
2. Release the switch once the seat reaches the desired position.
B0052EU06
Seat cushion tilt M
To change the angle of the front part of
the sea
t cushion:
Push the front portion of the control
switch up to raise or down to lower the
front part of the seat cushion.
Release the switch once the seat reaches
the desired position.
Seat cushion height N
To change the height of the seat cushion:
Push the r
ear portion of the control
switch up to raise or down to lower the
height of the seat cushion.
Release the switch once the seat reaches
the desired position.

03
3-11
B0052EU07
Seatback angle adjustment
To recline the seatback:
1.
Push the control switch forward or
rearward.
2. Release the switch once the seatback reaches the desired position.
Reclining seatback
Sitting in a reclined position when the
vehicle is in motion can be dangerous.
Even when buckled up, the protections
of your restraint system (seat belts and
air bags) is greatly reduced by reclining
your seatback.
WARNING
NEVER ride with a reclined seatback
when the vehicle is moving.
Riding with a reclined seatback
increases your chance of serious or fatal
injuries in the event of a collision or
sudden stop.
Driver and passengers should ALWAYS
sit well back in their seats, properly
belted, and with the seatbacks upright. Seat belts must be snug against your
hips and chest to work properly. When
the seatback is reclined, the shoulder
belt cannot do its job because it will not
be snug against your chest. Instead,
it will be in front of you. During an
accident, you could be thrown into the
seat belt, causing neck or other injuries.
The more the seatback is reclined,
the greater chance the passenger’s
hips will slide under the lap belt or the
passenger’s neck will strike the shoulder
belt.
B0052EE07
Seat cushion extension adjustment (for
driver’s seat, if equipped)
To move the front part of the cushion
f

orward or rearward:
1. Push the control switch forward or rearward.
2. Release the switch once the seat cushion reaches the desired length.

Seats & Safety System3-12
B0052EU08

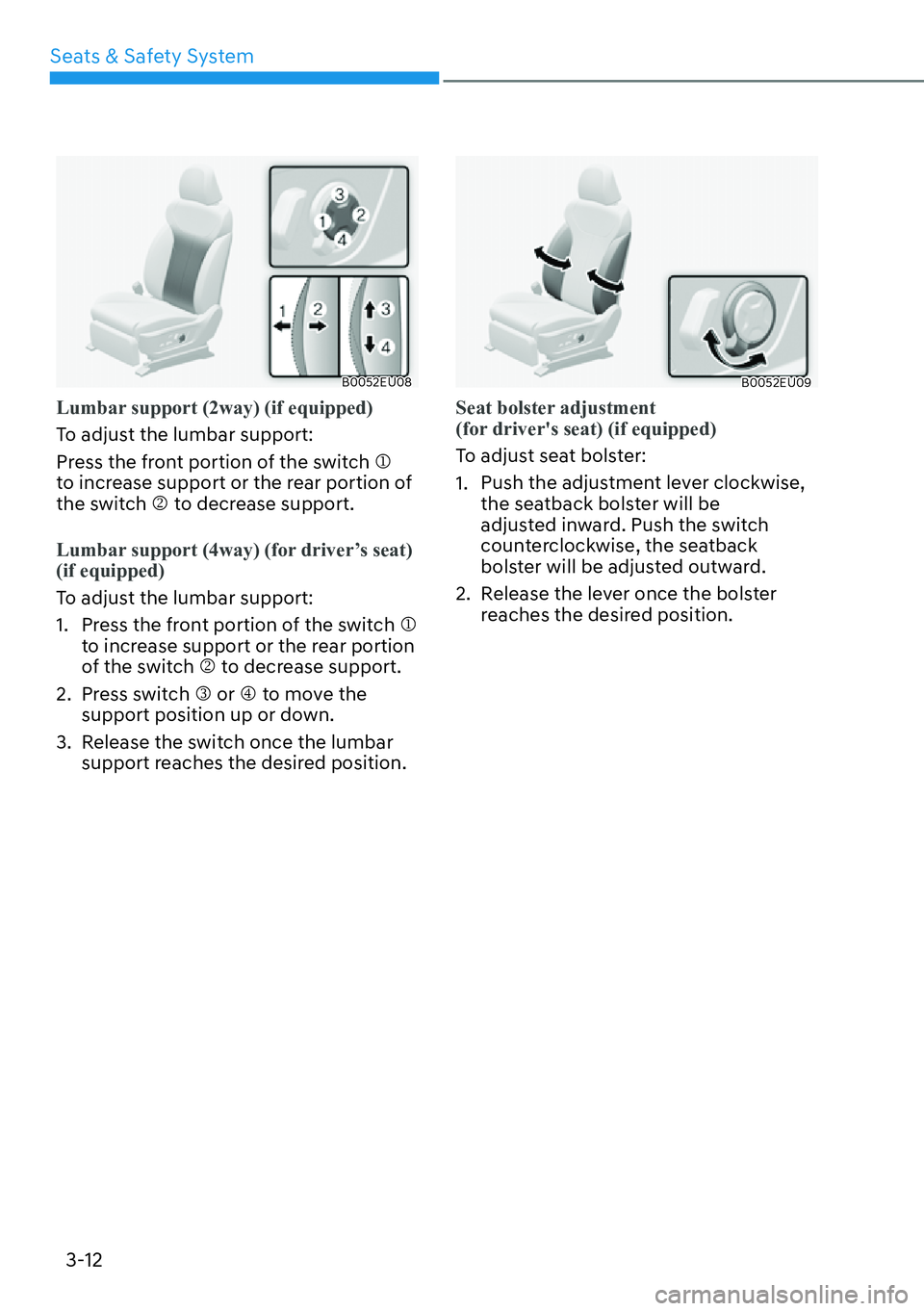

Lumbar support (2way) (if equipped)
To adjust the lumbar support:
Pr
ess the front portion of the switch M
to increase support or the rear portion of
the switch N to decrease support.
Lumbar support (4way) (for driver’s seat)
(if equipped)
To adjust the lumbar support:
1.
Press the front portion of the switch M
to increase support or the rear portion
of the switch N to decrease support.
2. Press switch O or P to move the
support position up or down.
3. Release the switch once the lumbar support reaches the desired position.
B0052EU09
Seat bolster adjustment
(for driver's seat) (if equipped)
To adjust seat bolster:
1.

Push the adjustment lever clockwise,
the seatback bolster will be
adjusted inward. Push the switch
counterclockwise, the seatback
bolster will be adjusted outward.
2. Release the lever once the bolster reaches the desired position.

03
3-13

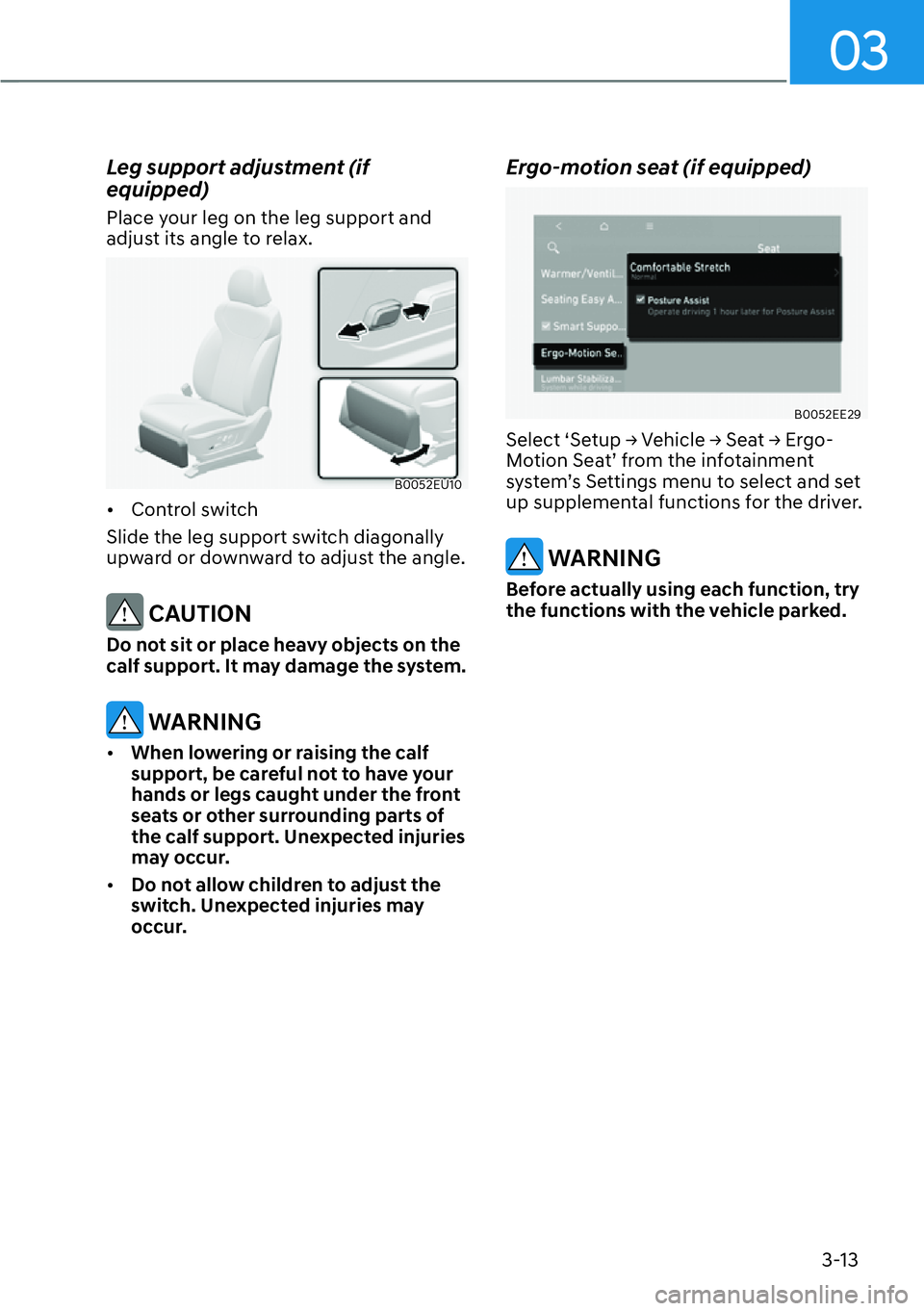

Leg support adjustment (if
equipped)
Place your leg on the leg support and
adjust its angle to relax.
B0052EU10

[Control switch
Slide the leg support switch diagonally
upward or downward to adjust the angle.
CAUTION
Do not sit or place heavy objects on the
calf support. It may damage the system.
WARNING

[ When lowering or raising the calf
support, be careful not to have your
hands or legs caught under the front
seats or other surrounding parts of
the calf support. Unexpected injuries
may occur.

[ Do not allow children to adjust the
switch. Unexpected injuries may
occur.
Ergo-motion seat (if equipped)
B0052EE29
6HOHFW
S6HWXS

Seats & Safety System3-16
Rear Seats
WARNING
Take the following precautions:

[ Adjusting the seats

- NEVER attempt to adjust the seat
while the vehicle is moving. The
seat may suddenly move and may
injure the passenger.

- Make sure that the seat is locked in
place after the adjustment. If not,
the seat might move unexpectedly
resulting in an accident.

[ Folding the seats

- Do not fold the seatback when
the seat is occupied (for example,
passenger, pets or luggage). It
may injure the passenger or pet, or
damage the luggage.

- Never allow passengers to sit on
top of the folded down seatback
while the vehicle is moving. This is
not a proper seating position and
no seat belts are available for use.
This could result in serious injury
or death in case of an accident or
sudden stop.

- Objects carried on the folded
down seatback should not extend
higher than the top of the front
seatbacks. This could allow cargo
to slide forward and cause injury or
damage during sudden stops.

- When returning the rear seatback
from a folded to an upright
position, hold the seatback and
return it slowly. Ensure that the
seatback is completely locked into
its upright position by pushing
on the top of the seatback. In
an accident or sudden stop, the
unlocked seatback could allow
cargo to move forward with great
force and enter the passenger
compartment, which could result
in serious injury or death.

[ Loading cargo

- Make sure the engine is off, the
gear shifted to P (Park), and the
parking brake is securely applied
whenever loading or unloading
cargo. Failure to take these steps
may allow the vehicle to move
if the shift button or shift dial is
inadvertently pressed or rotated to
another position.

- When cargo is loaded through
the rear passenger seats, ensure
the cargo is properly secured
to prevent it from moving while
driving.

[ Do not place objects in the rear
seats, since they cannot be properly
secured and may hit vehicle
occupants in a collision causing
serious injury or death.
CAUTION
Do not allow your hands or fingers to
get caught in the seat mechanisms
while adjusting the seats.
NOTICE
To prevent damage to the vehicle:

[Rear seat belts
Before folding the seatback, insert
the seat belt buckle in the holder
between the seatback and cushion.
And insert the seat belt webbing in
the guide to prevent the seat belt
from being damaged.

[ Cargo
Be careful when loading cargo
through the rear passenger seats
to prevent damage to the vehicle
interior.
