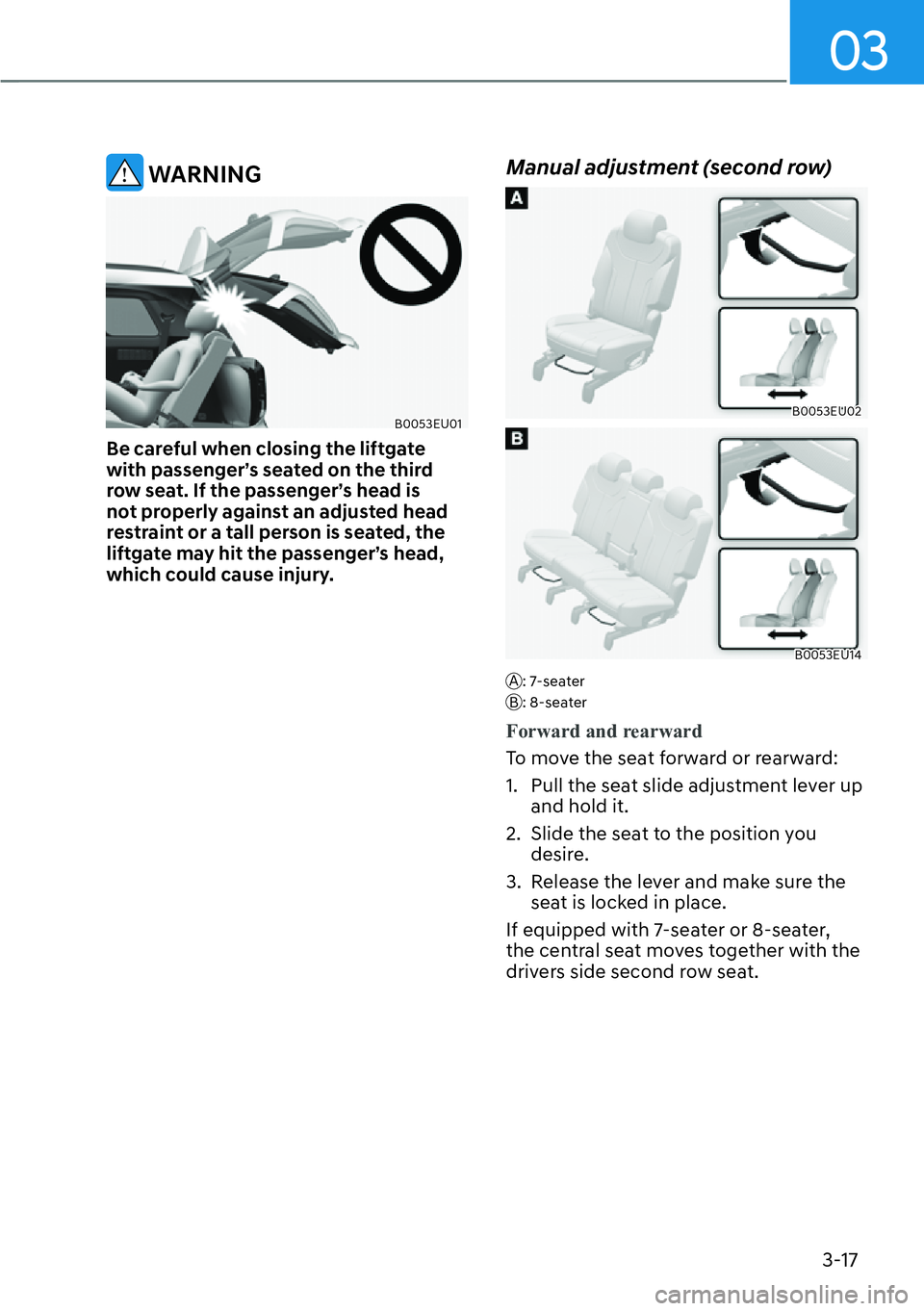

2023 HYUNDAI PALISADE seat adjustment

03
3-17
WARNING
B0053EU01
Be careful when closing the liftgate
with passenger’s seated on the third
row seat. If the passenger’s head is
not properly against an adjusted head
restraint or a tall person is seated, the
liftgate may hit the passenger’s head,
which could cause injury.
Manual adjustment (second row)
B0053EU02
B0053EU14
A: 7-seater
B: 8-seater
Forward and rearward
To move the seat forward or rearward:
1.

Pull the seat slide adjustment lever up
and hold it.
2. Slide the seat to the position you desire.
3. Release the lever and make sure the seat is locked in place.
If equipped with 7-seater or 8-seater,
the central seat moves together with the
drivers side second row seat.

Seats & Safety System3-18
B0053EU03
B0053EU15
A: 7-seater
B: 8-seater
Seatback angle
To recline the seatback:
1.

Pull up the seatback recline lever.
2. Hold the lever and adjust the seatback of the seat to the position you desire.
3. Release the lever and make sure the seatback is locked in place. The lever
MUST return to its original position for
the seatback to lock.
If equipped with 7-seater or 8-seater,
the central seat moves together with the
drivers side second row seat.
à The seatbacks can be folded with the
seatback recline lever.
B0053EU04
Seatback folding / Walk-in function

[The sea
tback will fold and the seat will
slightly move forward, if the switch is
pressed.

[ The function operates when the gear
is in P (Park) with the door open.

[ While the seatback folding or walk-in
function is operating, if the switch is
pressed, the seat will stop moving. If
the switch is pressed again, the seat
will continue the adjustment.

[ While the seatback folding or walk-in
function is operating, if the engine
is started, the seat will stop moving
momentarily. If the engine starts, the
seat will continue the adjustment.
If equipped with 7-seater or 8-seater,
the central seat moves together with the
drivers side second row seat.

03
3-19
Manual adjustment (third row)
B0053EU05
Seatback angle
To recline the seatback:
1.
Pull the seatback recline strap.
2. Hold the strap and adjust the seatback angle to the position you desire.
3. Release the strap and make sure the seatback is locked in place. The strap
MUST return to its original position for
the seatback to lock.
Power adjustment (third row)
B0053EU06
Seatback angle
Press the switch (
) or () to adjust the
seatback angle.
When the seatback is folded, press
the switch (
), the seatback will
automatically unfold.

Seats & Safety System3-24
Switch type Seat adjustment
Type A
Press switch or switch, the
second row left or right seatback will
fold.
Type B
Press switch or switch, the
second row left or right seatback will
fold.
Press
switch or switch, the
third row left or right seatback will
fold. If the switch is pressed again,
the seatback will unfold.
The 3rd row seat that is remotely folded or unfolded, is controlled only when the shift
button is in “P” with Start ON, or the shift button is in “N” and the parking brake is in
“ON.”
However, the seat is controlled at any condition in Start OFF state. When the vehicle
moves or shifts while the seat is being controlled, the seat may stop operation.
When you press the switch once more while folding and unfolding the seat, operation
stops. When you press the switch again, the operation resumes.
With the seat folded, when you press the angle adjusting switch, the seat is unfolded.
Seatback remote folding/unfolding
(luggage compartment)
B0053EU11

[ The function operates when the gear
is in P (Park) with the door open.

[ While the seatback is folding or
unfolding, if the switch is pressed, the
seat will stop moving. If the switch is
pressed again, the seat will continue
the adjustment.

[ While the seatback is folding or
unfolding, if the engine is started, the
seat will stop moving momentarily.
If the engine starts, the seat will
continue the adjustment.

03
3-31
Wing-out headrest adjustment (if
equipped)
B0706EU01
While driving, the wing-out headrest
supports the passenger’s head from
shaking. Hold both ends of the wing-out
headrest with your hands, and pull out or
push in to adjust its position.
Information
When the wing-out headrest is not in use,
hold both ends of the headrest and pull out
to return it to its original position.
Seat Warmers
Seat warmers are provided to warm the
seats during cold weather.
During mild weather or under conditions
where the operation of the seat warmer
is not needed, keep the seat warmers
OFF.
WARNING
The seat warmers can cause a SERIOUS
BURN, even at low temperatures and
especially if used for long periods of
time.
Passengers must be able to feel if the
seat is becoming too warm so they can
turn it off, if needed.
People who cannot detect temperature
change or pain to the skin should
use extreme caution, especially the
following types of passengers:

[Infants, children, elderly or disabled
persons, or hospital outpatients.

[ People with sensitive skin or who
burn easily.

[ Fatigued individuals.

[ Intoxicated individuals.

[ People taking medication that can
cause drowsiness or sleepiness.

03
3-35

[The air ventilation seats defaults
to the OFF position whenever the
ignition switch is placed to the ON
position.

[ Climate Settings for Auto-Adjustment
(for driver’s seat)
The air ventilation seat automatically
controls the seat temperature
depending on the ambient
temperature when the vehicle is
running. To use this function, it must
be enabled from the Settings menu
in the infotainment system screen.
Select :

- 6HWXS

Seats & Safety System3-40
Height adjustment
You can adjust the height of the shoulder
belt anchor t
o one of the four different
positions for maximum comfort and
safety.
The shoulder portion should be adjusted
so it lies across your chest and midway
over your shoulder nearest the door, not
over your neck.
„Front seat
B0059KO07
To adjust the height of the seat belt
anchor, lower or raise the height adjuster
into an appropriate position.
To raise the height adjuster, pull it up
M. To lower it, push it down O while
pressing the height adjuster button N.
Release the button to lock the anchor
into position. Try sliding the height
adjuster to make sure that it has locked
into position.
B0059KO11
To release your seat belt:
Press the release button M in the locking
buckle.
Once it is r

eleased, the belt should
automatically draw back into the
retractor. If this does not happen, check
the belt to be sure it is not twisted, then
try again.

05
5-27
Vehicle personalization with digital key
The available personalization function in the vehicle is as follows:
SystemPersonalization Item
Infotainment
s
ystem vehicle settings Lamp Blink number of one-touch signal lamps
Cluster Information display on the cluster, Voice volume,
Welcome sound
Seat/Mirror Seat position, Side view mirror position, Easy Access
Intelligent driving posture assist (Smart IMS)
Door Automatic door lock/unlock, Two Press Unlock
Head Up Display (HUD) Position adjustment of image, Information display
selection
Infotainment system Navigation
Preferred volume of the navigation system, Recent
destination
User preset My menu list settings, Radio preset Phone
connectivity Bluetooth preferential connect
CarPlay/Android Auto On/Off
Air conditioning Operating
condition Latest operation setup of the following functions:
Temperature, AUTO, air flow direction, air volume,
air conditioner, air intake control, SYNC, Front
windshield defroster, OFF
CAUTION
If you leave the digital key after locking or unlocking the doors or starting up the
vehicle with the smart key, the doors can be locked by the central door lock. Please
carry around the digital key all the time.
Information
The infotainment system may change after software updates. For more information, refer
to the user's manual provided in the infotainment system and the quick reference guide.
