2023 HYUNDAI PALISADE Owners Manual

5
Climate Control Additional Features ............................................................ 5-150Auto Defogging System ........................................................................\
................... 5-150
Auto Dehumidify ........................................................................\
............................... 5-151
Recirculating Air When Washer Fluid Is Used ......................................................... 5-151
Sunroof Inside Air Recirculation ........................................................................\
.......5-152
Scheduled Ventilation Control ........................................................................\
.........5-152
Storage Compartment ........................................................................\
........... 5-153Center Console Storage ........................................................................\
....................5-153
Glove Box ........................................................................\
...........................................5-153
Interior Features ........................................................................\
..................... 5-154Cup Holder ........................................................................\
........................................ 5-154
Conversation mirror ........................................................................\
......................... 5-156
Sunvisor ..................................................................\
.................................................. 5-156
Power Outlet ........................................................................\
...................................... 5-157
USB Charger ........................................................................\
..................................... 5-158
AC Inverter ........................................................................\
........................................ 5-159
Wireless Smart Phone Charging System ................................................................. 5-161
Clock ..................................................................\
....................................................... 5-163
Coat Hook ........................................................................\
......................................... 5-164
Floor Mat Anchor(s) ........................................................................\
.......................... 5-164
Rear Side Window Sunshades ........................................................................\
......... 5-165
Cargo Net Holder ........................................................................\
............................. 5-166
Cargo Security Screen ........................................................................\
.................... 5-166
Exterior Features ........................................................................\
....................5-169Roof Side Rails ........................................................................\
.................................. 5-169
Infotainment System ........................................................................\
............. 5-170USB Port ........................................................................\
............................................ 5-170
Antenna ...................................................................\
.................................................. 5- 170
Steering Wheel Remote Controls ........................................................................\
... 5-170
Infotainment System ........................................................................\
......................... 5-171
Voice Recognition ........................................................................\
............................. 5-171
Bluetooth® Wireless Technology ........................................................................\
...... 5-172

05
5-5
Using Remote Key (if equipped)
B0921EU01
B0921EU02
Your HYUNDAI uses a remote key, which
you can use to lock or unlock the driver
and passenger doors or the liftgate.
M Door Lock
N Door Unlocka
O Liftgate Unlock (if equipped)
P Panic
Locking
To lock :
M Close all doors, engine hood and liftgate.
N Press the Door Lock button M on the remote key.
O The doors will lock. The hazard warning lights will blink.
P Make sure the doors are locked by checking the indicator light on the
driver side door lock button.
WARNING
Do not leave the Remote key in
your vehicle with children that are
unattended or unsupervised.
Children could inadvertently press
the Engine Start/Stop button or could
operate the power windows or other
vehicle controls or even cause the
vehicle to move. This could result in
serious injury or death.
Unlocking your vehicle
To unlock your vehicle :
1. Press the Door Unlock button N on the remote key.
2. The driver’s door will unlock. The hazard warning lights will blink two
times.
Two Press Unlock Feature
The priority for unlocking the driver door
only, or unlocking all the doors with
one press may be adjusted in the User
Settings mode in the cluster LCD display.
The Two Press Unlock feature, when
enabled, will require the user to press
the door unlock button once for driver
door only and twice for unlocking all the
doors.
You can activate or deactivate the Two
Press Unlock feature from the Settings
menu in the infotainment system.
Select:
- 6HWXS

Convenience Features5-6
The Two Press Unlock feature can also be
enabled or disabled by pressing the door
lock and unlock buttons simultaneously
on the Key:
Press and hold both the Door Lock
button and the Door Unlock button
simultaneously until the hazard warning
lights blink.
This will enable or disable the Two Press
Unlock feature. Repeat this procedure to
enable/disable the mode again.
Information
After unlocking the doors, the doors will
automatically relock after 30 seconds
unless a door is opened.
Liftgate unlocking (if equipped)
To unlock the liftgate :
1. Press and hold the Liftgate Unlock button O on the remote key for more
than one second.
2. The hazard warning lights will blink two times and the liftgate will open.
3. Once the liftgate is opened and then closed, the liftgate will automatically
re-lock after 30 seconds.
Information
The word “HOLD” is written on the
button to inform you that you must press
and hold the button for more than one
second.
Panic alarm
The horn sounds and the hazard warning
lights blink for about 30 seconds if this
button P is pressed for more than 1
second. To stop the horn and lights,
press any button on the transmitter.
Start-up
For detailed information refer to “Ignition
switch” in chapter 6.
NOTICE
To prevent damaging the remote key:

[Keep the remote key away from
liquids or any type of extreme heat.
If water or liquid gets inside of the
remote or if the remote is subjected
to extreme heat, damage to the
internal circuit may result. This
would void the vehicle warranty.

[ Avoid dropping or throwing the
remote key.

[ Protect the remote key from extreme
temperatures.

05
5-7

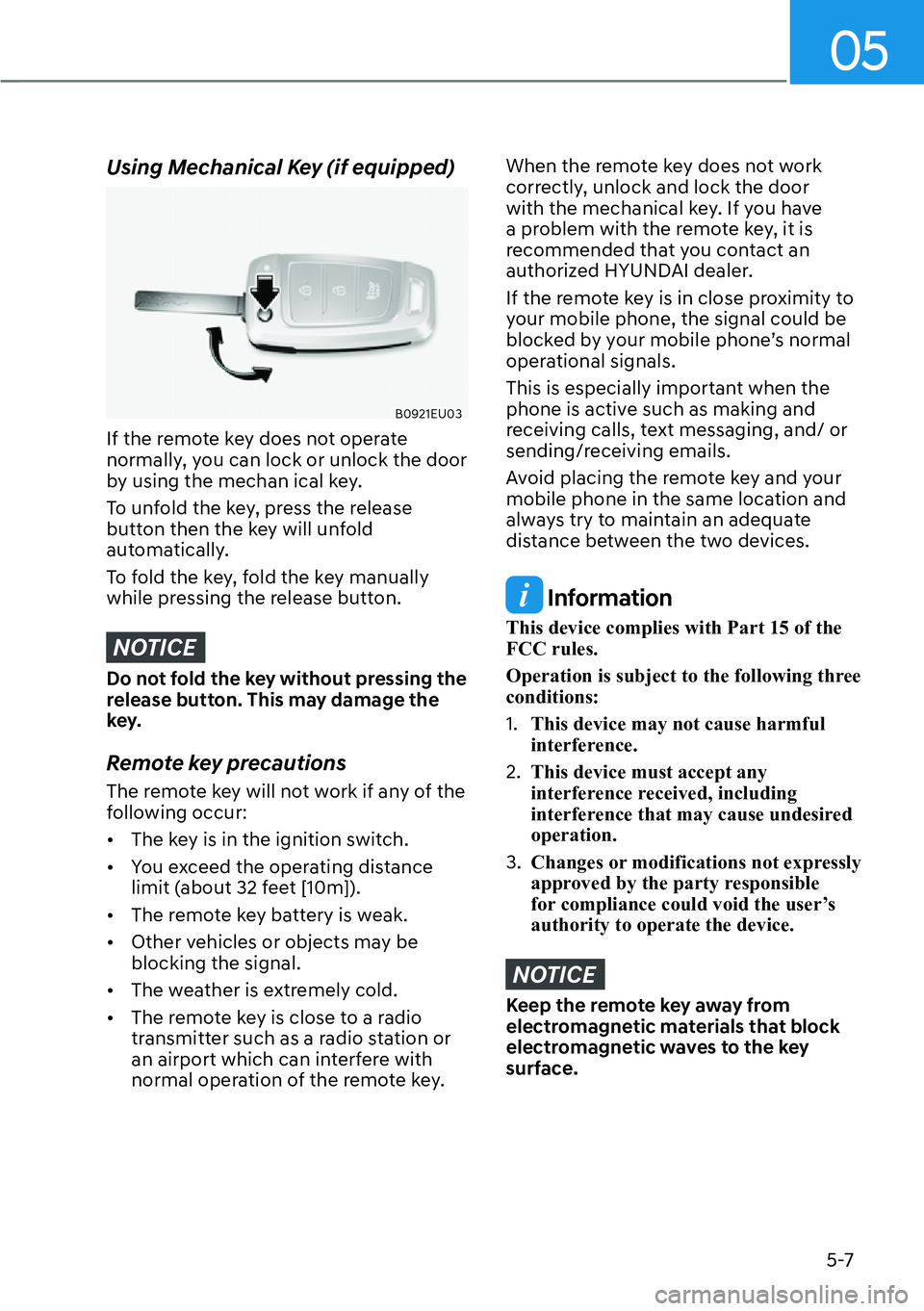

Using Mechanical Key (if equipped)
B0921EU03
If the remote key does not operate
normally, you can lock or unlock the door
by using the mechan ical key.
To unfold the key, press the release
button then the key will unfold
automatically.
To fold the key, fold the key manually
while pressing the release button.
NOTICE
Do not fold the key without pressing the
release button. This may damage the
key.
Remote key precautions
The remote key will not work if any of the
following occur:

[The key is in the ignition switch.

[ You exceed the operating distance
limit (about 32 feet [10m]).

[ The remote key battery is weak.

[ Other vehicles or objects may be
blocking the signal.

[ The weather is extremely cold.

[ The remote key is close to a radio
transmitter such as a radio station or
an airport which can interfere with
normal operation of the remote key.
When the remote key does not work
correctly, unlock and lock the door
with the mechanical key. If you have
a problem with the remote key, it is
recommended that you contact an
authorized HYUNDAI dealer.
If the remote key is in close proximity to
your mobile phone, the signal could be
blocked by your mobile phone’s normal
operational signals.
This is especially important when the
phone is active such as making and
receiving calls, text messaging, and/ or
sending/receiving emails.
Avoid placing the remote key and your
mobile phone in the same location and
always try to maintain an adequate
distance between the two devices.
Information
This device complies with Part 15 of the
FCC rules.
Operation is subject to the following three
conditions:
1. This device may not cause harmful
interference.
2. This device must accept any
interference received, including
interference that may cause undesired
operation.
3. Changes or modifications not expressly
approved by the party responsible
for compliance could void the user’s
authority to operate the device.
NOTICE
Keep the remote key away from
electromagnetic materials that block
electromagnetic waves to the key
surface.

Convenience Features5-8
Replacing Battery
B0921EU04
If the remote key is not working properly,
try replacing the battery with a new one.
Battery Type: CR2032
To replace the battery:
1. Insert a slim tool into the slot and gently pry open the cover.
2. Using a screw driver, remove the battery cover.
3. Remove the old battery and insert the new battery. Make sure the battery
position is correct.
4. Reinstall the battery cover and key cover in the reverse order of removal.
If you suspect your remote key might
have sustained some damage, or you feel
your remote key is not working correctly
contact an authorized HYUNDAI dealer.
WARNING
THIS PRODUCT CONTAINS A BUTTON
BATTERY.
If swallowed, a lithium button battery
can cause severe or fatal injuries within
2 hours. Keep batteries out of reach of
children.
If you think batteries may have been
swallowed or placed inside any part
of the body, seek immediate medical
attention.
Information
An inappropriately disposed
battery can be harmful to
the environment and human
health. Dispose of the battery
according to your local law(s)
and regulation.
Using Smart Key (if equipped)
B0096KO01
B0096EU02
Your HYUNDAI maybe equipped with a
smart key, which you can use to lock or
unlock the doors and liftgate, and start
the engine while just having the key in
your possession.
M Door lock
N Door unlock
O Liftgate Unlock (Manual liftgate) Liftgate Open/Close (Power liftgate)
P Panic
Q Remote start
R Remote Smart parking Assist (Forward/
Backward)

05
5-9
Locking your vehicle (Button type)
B0097KO01
To lock your vehicle using the door
handle button or the Smart Key:
1. Make sure all doors, the hood and the liftgate are closed.
2. Make sure you have the smart key in your possession.
3. Press either the button on the door handle or the Door Lock button M on
the smart key. The chime will sound
once and the hazard warning lights
will blink.
4. Make sure the doors are locked by checking the position of the door lock
button inside the vehicle.
Even though you press the outside
door handle button, the doors will not
lock and the chime will sound for three
seconds if any of the following occur:

[ The Smart Key is in the vehicle.

[ The ignition switch is in ACC or ON
position.

[ Any door except the liftgate is open.
Locking your vehicle (Touch sensor
type)
B0097EU02
1. Make sure that all doors are closed.
2. While having the Smart Key in your
possession, touch the outer part of
the door handle on or near the handle
detent for about 1 second or until you
hear the door locks actuate.
3. The doors will be locked. If the liftgate was open, then when the liftgate is
closed it will be locked also.
The chime will sound once and the
hazard warning lights will blink.

[ The door handle button will only
operate when the smart key is within
28~40 inches (0.7~1 m) from the
outside door handle.

[ Make sure the doors are locked by
pulling the door handle. If you locked
the door with the touch sensor on
the door handle, the doors cannot
be unlocked with the sensor within 3
seconds.

Convenience Features5-10
Note that if you press the outside door
handle to lock the doors using the touch
sensor, the doors will not lock under the
following circumstances:

[ The Smart Key is in the vehicle

[ The Engine Start/Stop button is in the
ACC or ON position

[ Any of the doors are open (except for
the liftgate)
If this occurs, then a chime will sound
for about 3 seconds. Check the vehicle
before attempting to lock the car again.
CAUTION
Before you leave your vehicle with the
Smart Key, verify that your vehicle is
locked. When using the touch sensor
on the front door handle, listen to hear
that the lock has actuated, and then
pull the handle within 3 seconds to
confirm the doors are locked.
(If it has been longer than 3 seconds,
verify the doors are locked by pressing
the lock button on the Smart Key. You
will hear a single beep.)
WARNING
Do not leave the Smart Key in
your vehicle with children that are
unattended or unsupervised.
Children could inadvertently press
the Engine Start/Stop button or could
operate the power windows or other
vehicle controls or even cause the
vehicle to move. This could result in
serious injury or death.
Unlocking your vehicle (Button type)
B0097KO01
1. Have the smart key with you.
2. Press the door handle button or press the Door Lock button N on the smart
key to unlock the doors. The chime
sounds and hazard warning lights
blink two times.
If you unlock the doors using the
passenger side door handle, all the
doors are unlocked. If you unlock
the doors using the driver side door
handle, either the driver's side door is
unlocked or all the doors are unlocked
depending on the setting for the Two
Press Unlock feature.
Information

[ Change the Driver Door unlock mode
by referring to "Setting the Two Press
Unlock feature".

[ The door handle button or touch sensor
only operates when the smart key is
within 28-40 inches (0.7-1 m) from the
outside door handle.

[ If you do not open the door after
unlocking within 30 seconds, it returns
to the lock mode.

05
5-11
Unlocking your vehicle (Touch
sensor type)
B0097EU03
1. Have the smart key with you.
2. Press the Door Unlock button N on the Smart Key or simply Grab the door
handle inside portion to activate the
unlock door touch sensor to unlock
the doors. The chime sounds and
hazard warning lights blink two times.
If you unlock the doors using the
passenger side door handle, all the
doors are unlocked. If you unlock
the doors using the driver side door
handle, either the driver's side door is
unlocked or all the doors are unlocked
depending on the setting for the Two
Press Unlock feature.
Information

[Change the Driver Door unlock mode
by referring to User Settings.

[ The door handle button or touch sensor
only operates when the smart key is
within 28-40 inches (0.7-1 m) from the
outside door handle.

[ If you do not open the door after
unlocking within 30 seconds, it returns
to the lock mode.

[ If you unlock the door with the door
handle, the doors cannot be locked with
the touch sensor within 2 seconds. To prevent unintentional door lock or
unlock:
Press the lock button on the smart key
and immedia

tely press the unlock button
along with the lock button for more than
4 seconds. The hazard warning lights will
blink four times. At this time, the doors
will not lock or unlock even though the
touch sensor is touched on the outside
door handle.
To deactivate the function, press the
door lock or unlock button on the smart
key.
Setting the Two Press Unlock feature
You can activate or deactivate the Two
Pr
ess Unlock feature from the Settings
menu in the infotainment system.
Select:

- 6HWXS
