2023 HYUNDAI PALISADE Owners Manual

07
7-111

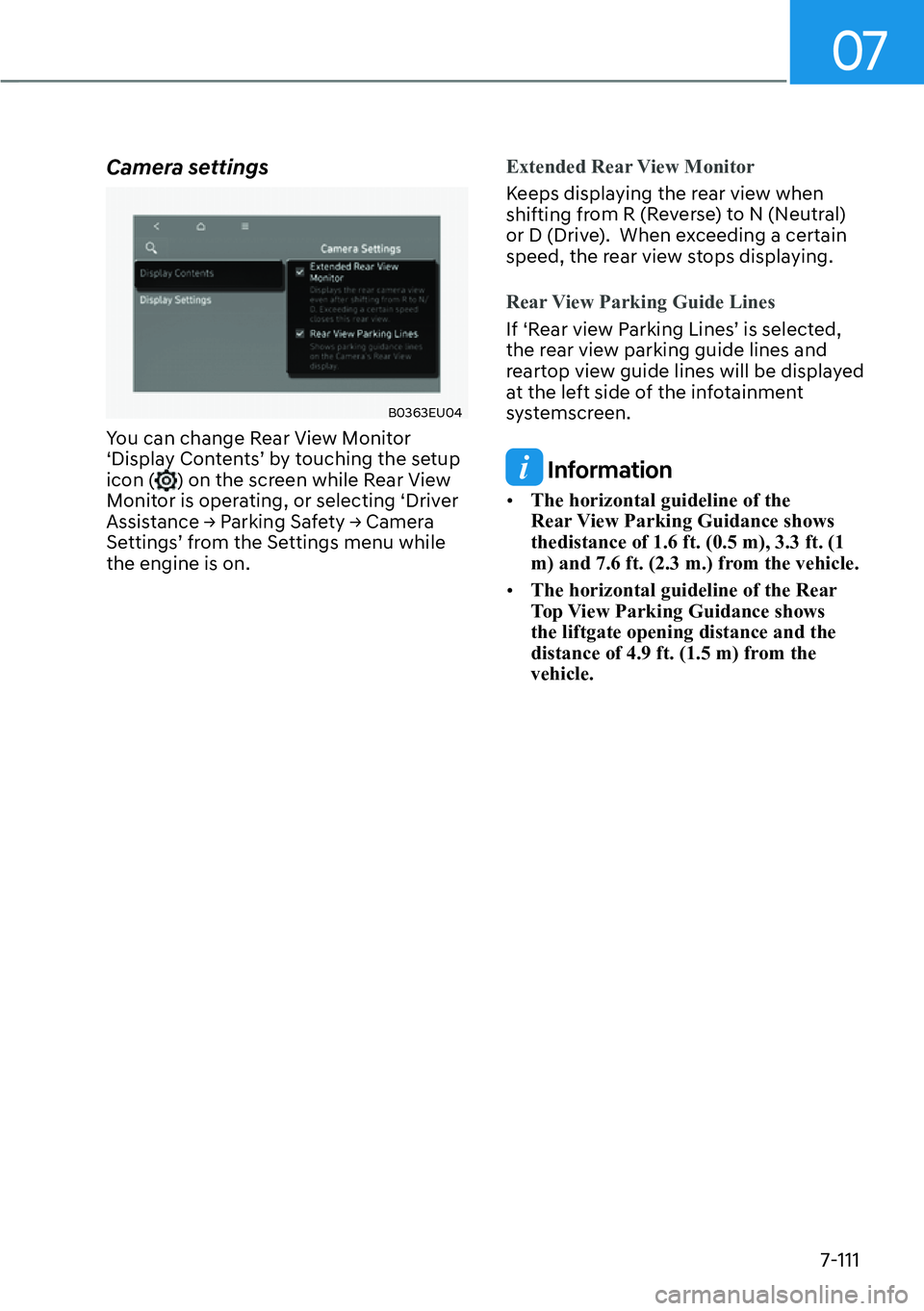

Camera settings
B0363EU04
You can change Rear View Monitor
‘Display Contents’ by touching the setup
icon (
) on the screen while Rear View
Monitor is operating, or selecting ‘Driver
$VVLVWDQFH

Driver Assistance System7-112
Rear View Monitor Operation
Parking/View button
B0364KO01
Press the Parking/View button M while
the gear is in P (Park) to turn on Rear
View Monitor.
Rear view
B0364EU01
Operating conditions

[ Shift the gear t
o R (Reverse), the rear
view will appear on the screen.

[ Press the Parking/View button (1)
while the gear is in P (Park), the rear
view will appear on the screen.

[ Touch the
, the rear view will appear
on the screen.
Off conditions

[ The r
ear view cannot be turned off
when the gear is in R (Reverse).

[ Press the Parking/View button (1)
again while the gear is in P (Park) with
the rear view on the screen, the rear
view will turn off.

[ Shift the gear from R (Reverse) to P
(Park), the rear view will turn off.
Information
When the gear is in P (Park), the rear view
does not turn off.

07
7-113

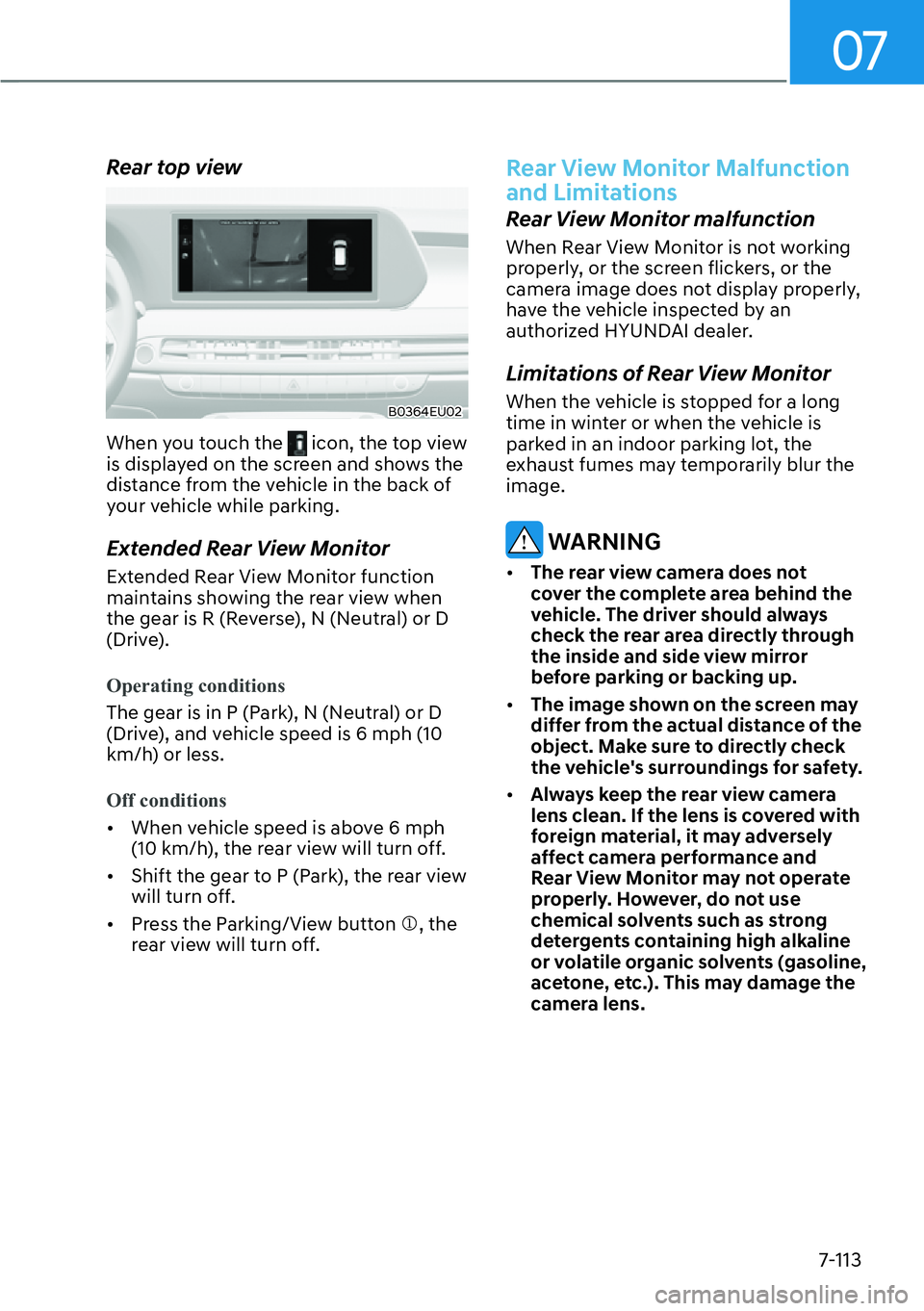

Rear top view
B0364EU02
When you touch the icon, the top view
is displayed on the screen and shows the
distance from the vehicle in the back of
your vehicle while parking.
Extended Rear View Monitor
Extended Rear View Monitor function
maintains showing the rear view when
the gear is R (Reverse), N (Neutral) or D
(Drive).
Operating conditions
The gear is in P (Park), N (Neutral) or D
(Driv
e), and vehicle speed is 6 mph (10
km/h) or less.
Off conditions

[ When v
ehicle speed is above 6 mph
(10 km/h), the rear view will turn off.

[ Shift the gear to P (Park), the rear view
will turn off.

[ Press the Parking/View button M, the
rear view will turn off.
Rear View Monitor Malfunction
and Limitations
Rear View Monitor malfunction
When Rear View Monitor is not working
properly, or the screen flickers, or the
camera image does not display properly,
have the vehicle inspected by an
authorized HYUNDAI dealer.
Limitations of Rear View Monitor
When the vehicle is stopped for a long
time in winter or when the vehicle is
parked in an indoor parking lot, the
exhaust fumes may temporarily blur the
image.
WARNING

[The rear view camera does not
cover the complete area behind the
vehicle. The driver should always
check the rear area directly through
the inside and side view mirror
before parking or backing up.

[ The image shown on the screen may
differ from the actual distance of the
object. Make sure to directly check
the vehicle's surroundings for safety.

[ Always keep the rear view camera
lens clean. If the lens is covered with
foreign material, it may adversely
affect camera performance and
Rear View Monitor may not operate
properly. However, do not use
chemical solvents such as strong
detergents containing high alkaline
or volatile organic solvents (gasoline,
acetone, etc.). This may damage the
camera lens.

Driver Assistance System7-114
6855281'9,(:021,725

07
7-115

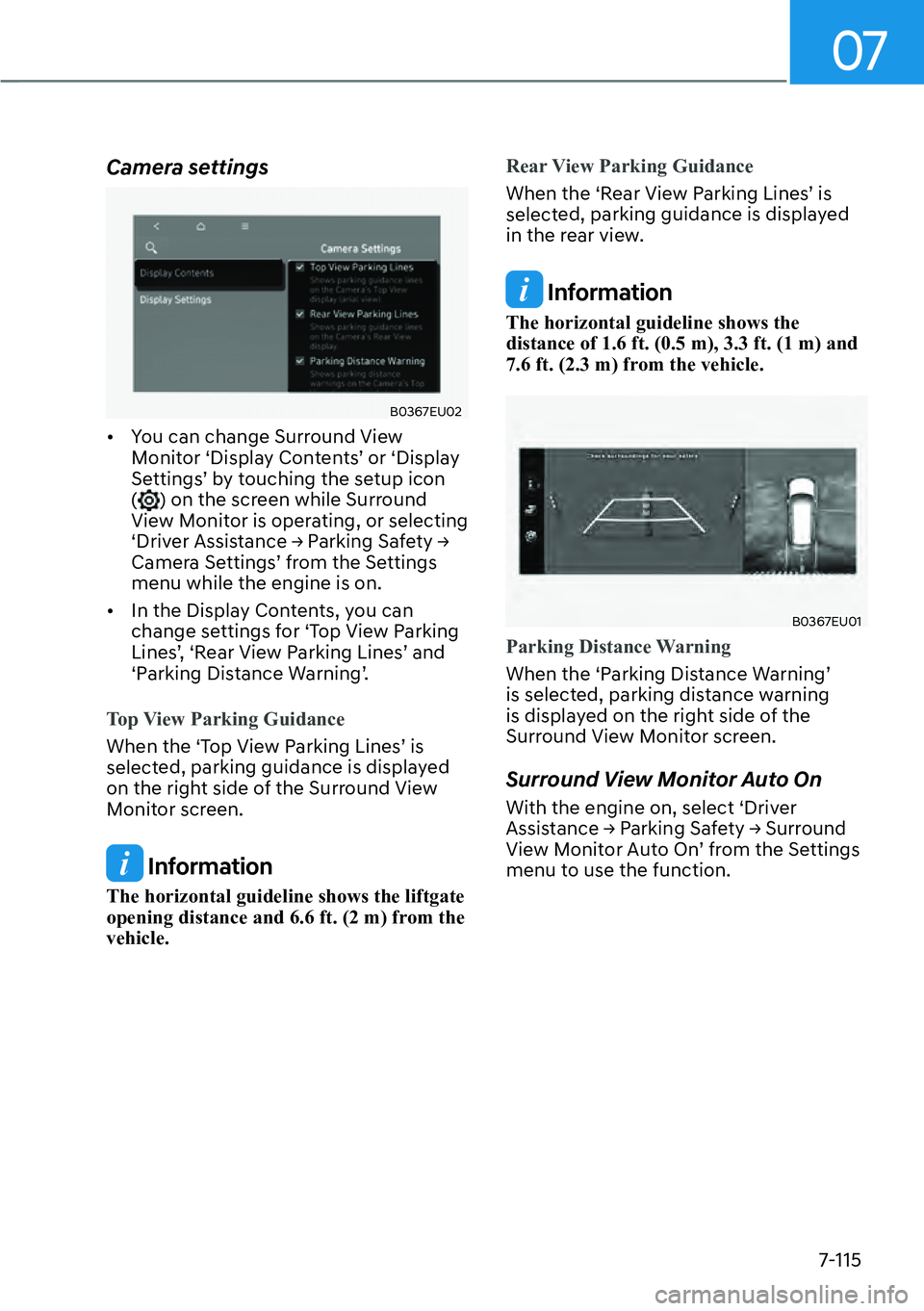

Camera settings
B0367EU02

[You can change Surround View
Monitor ‘Display Contents’ or ‘Display
Settings’ by touching the setup icon
(
) on the screen while Surround
View Monitor is operating, or selecting

S'ULYHU$VVLVWDQFH

Driver Assistance System7-116

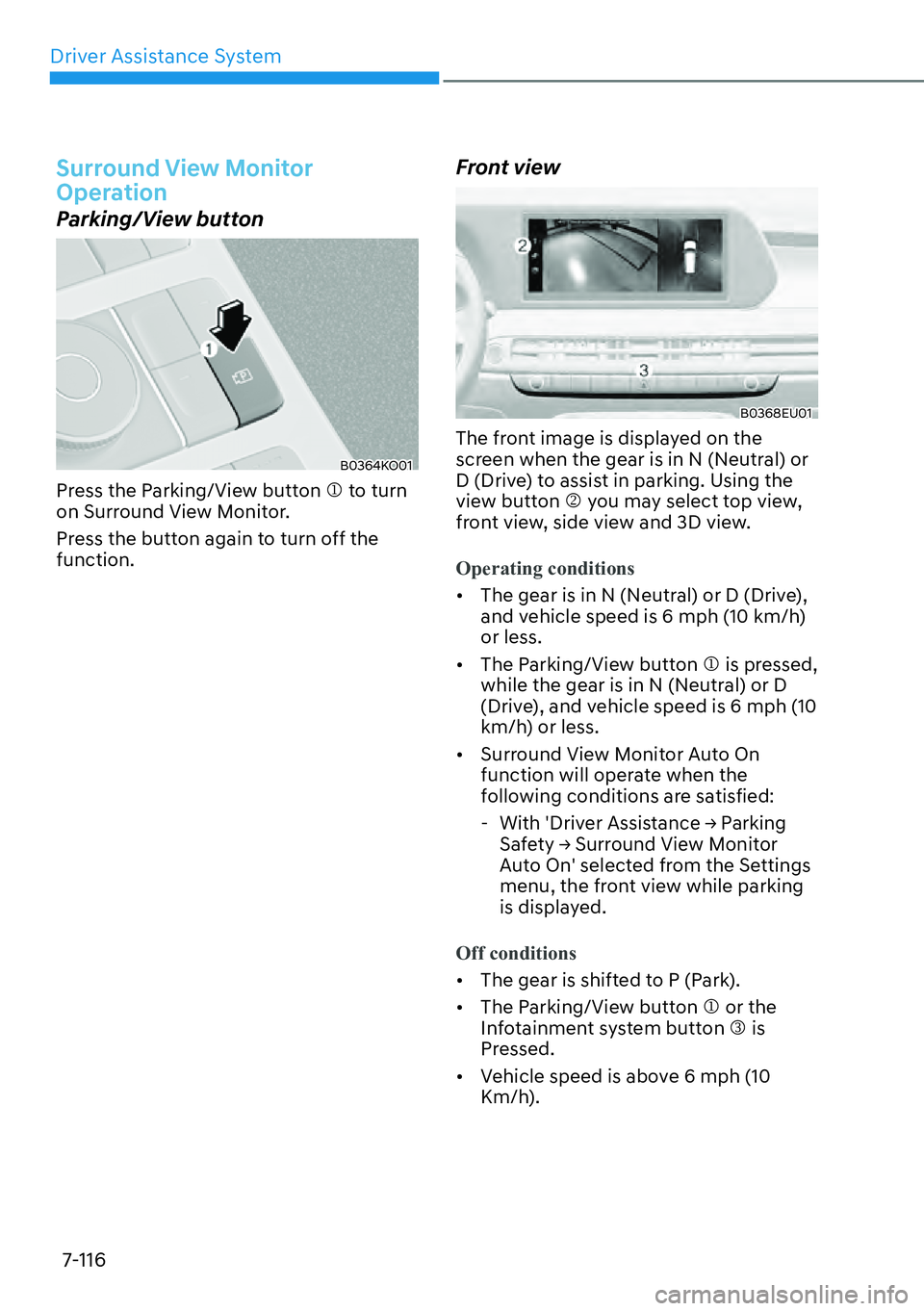

Surround View Monitor
Operation
Parking/View button
B0364KO01
Press the Parking/View button M to turn
on Surround View Monitor.
Press the button again to turn off the
function.
Front view
B0368EU01
The front image is displayed on the
screen when the gear is in N (Neutral) or
D (Drive) to assist in parking. Using the
view button N you may select top view,
front view, side view and 3D view.
Operating conditions

[ The gear is in N (N
eutral) or D (Drive),
and vehicle speed is 6 mph (10 km/h)
or less.

[ The Parking/View button M is pressed,
while the gear is in N (Neutral) or D
(Drive), and vehicle speed is 6 mph (10
km/h) or less.

[ Surround View Monitor Auto On
function will operate when the
following conditions are satisfied:
- :LWK
'ULYHU$VVLVWDQFH

07
7-117

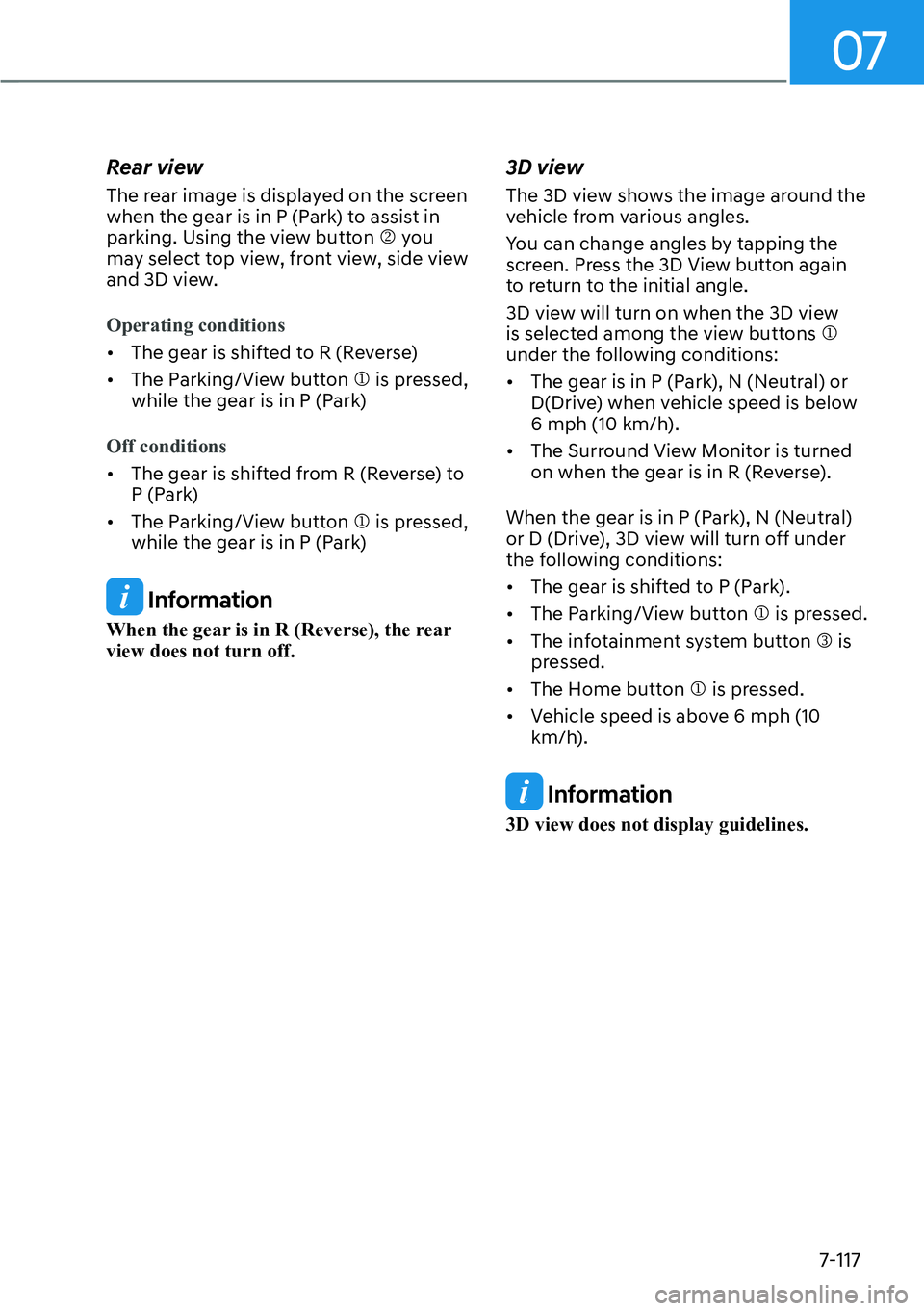

Rear view
The rear image is displayed on the screen
when the gear is in P (Park) to assist in
parking. Using the view button N you
may select top view, front view, side view
and 3D view.
Operating conditions

[ The gear is shift
ed to R (Reverse)

[ The Parking/View button M is pressed,
while the gear is in P (Park)
Off conditions

[ The gear is shift
ed from R (Reverse) to
P (Park)

[ The Parking/View button M is pressed,
while the gear is in P (Park)
Information
When the gear is in R (Reverse), the rear
view does not turn off.
3D view
The 3D view shows the image around the
vehicle from various angles.
You can change angles by tapping the
screen. Press the 3D View button again
to return to the initial angle.
3D view will turn on when the 3D view
is selected among the view buttons M
under the following conditions:

[ The gear is in P (Park), N (Neutral) or
D(Drive) when vehicle speed is below
6 mph (10 km/h).

[ The Surround View Monitor is turned
on when the gear is in R (Reverse).
When the gear is in P (Park), N (Neutral)
or D (Drive), 3D view will turn off under
the following conditions:

[ The gear is shifted to P (Park).

[ The Parking/View button M is pressed.

[ The infotainment system button O is
pressed.

[ The Home button M is pressed.

[ Vehicle speed is above 6 mph (10
km/h).
Information
3D view does not display guidelines.

Driver Assistance System7-118
Surround View Monitor
Malfunction and Limitations
Surround View Monitor malfunction
When Surround View Monitor is not
working properly, or the screen flickers,
or the camera image does not display
properly, have the vehicle inspected by
an authorized HYUNDAI dealer.
Limitations of Surround View
Monitor

[ When the vehicle is stopped for a long
time in winter or when the vehicle is
parked in an indoor parking lot, the
exhaust fumes may temporarily blur
the image.

[ The screen may be displayed
abnormally, and an icon will appear at
the top left side of the screen under
the following circumstances:
- The liftgate is opened

- The driver or front passenger door
is opened
- The side view mirror is folded
WARNING

[ ALWAYS look around your vehicle
to make sure there are no objects
or obstacles before moving the
vehicle. What you see on the screen
may differ from the actual vehicle’s
location.

[ The image shown on the screen may
differ from the actual distance of the
object. Make sure to directly check
the vehicle's surroundings for safety.

[ Surround View Monitor is designed
to be used on a flat surface.
Therefore, if used on roads with
different heights such as curbs
and speed bumps, the image in the
screen my not look correct.

[ Always keep the camera lens clean.
If the lens is covered with foreign
material, it may adversely affect
camera performance and Surround
View Monitor may not operate
properly. However, do not use
chemical solvents such as strong
detergents containing high alkaline
or volatile organic solvents (gasoline,
acetone, etc.). This may damage the
camera lens.
Information
Surround View Monitor uses the
cameras installed on the vehicle to show
images around the vehicle through the
infotainment system screen. The image
shown on the screen may look unnatural
depending on the surroundings.
