2023 HYUNDAI PALISADE Owners Manual

03
3-43
B0059KO10

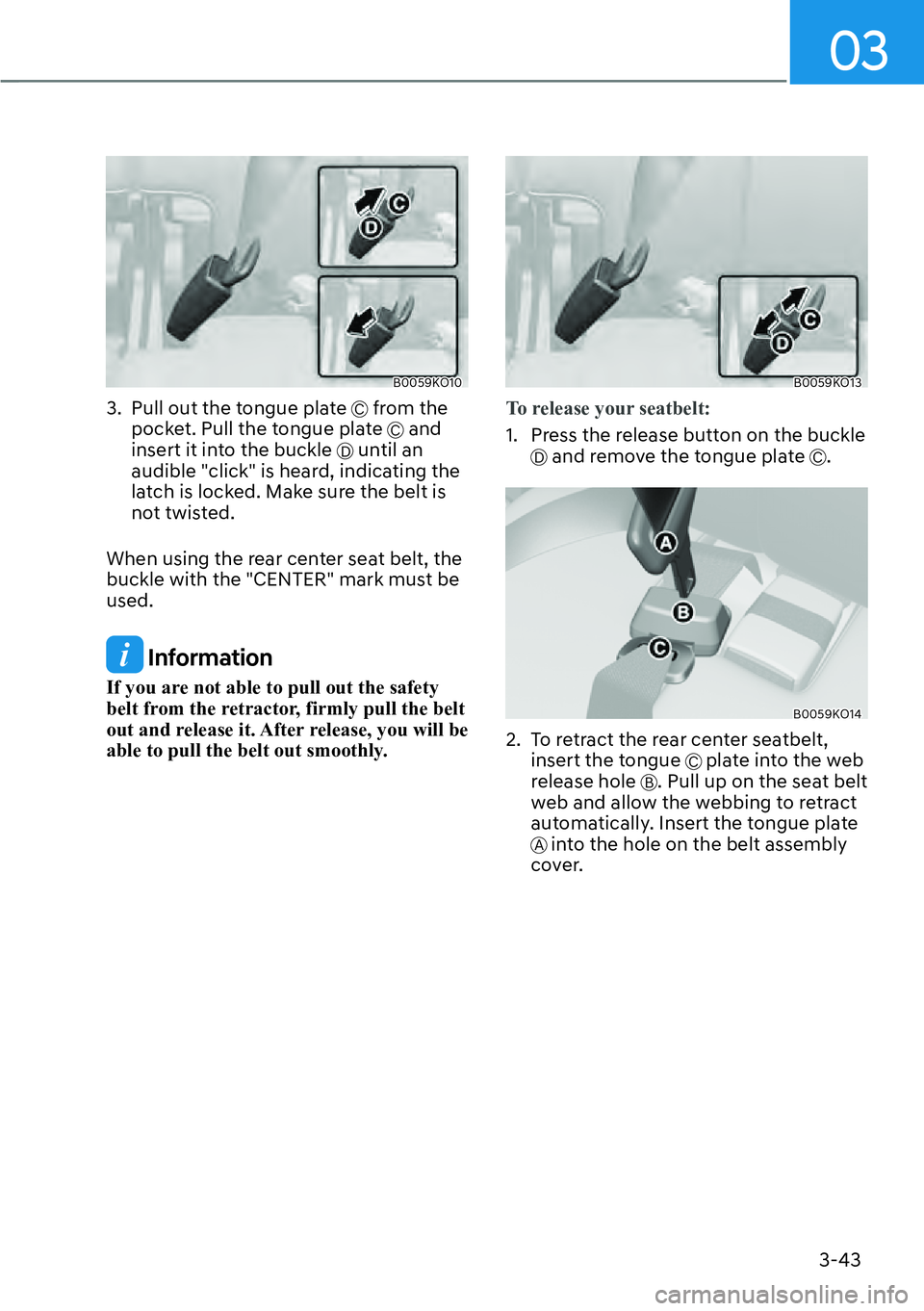

3. Pull out the tongue plate C from the
pocket. Pull the tongue plate C and
insert it into the buckle D until an
audible "click" is heard, indicating the
latch is locked. Make sure the belt is
not twisted.
When using the rear center seat belt, the
buckle with the "CENTER" mark must be
used.
Information
If you are not able to pull out the safety
belt from the retractor, firmly pull the belt
out and release it. After release, you will be
able to pull the belt out smoothly.
B0059KO13
To release your seatbelt:
1. Press the release button on the buckle
D and remove the tongue plate C.
B0059KO14
2. To retract the rear center seatbelt, insert the tongue C plate into the web
release hole B. Pull up on the seat belt
web and allow the webbing to retract
automatically. Insert the tongue plate
A into the hole on the belt assembly
cover.

Seats & Safety System3-44

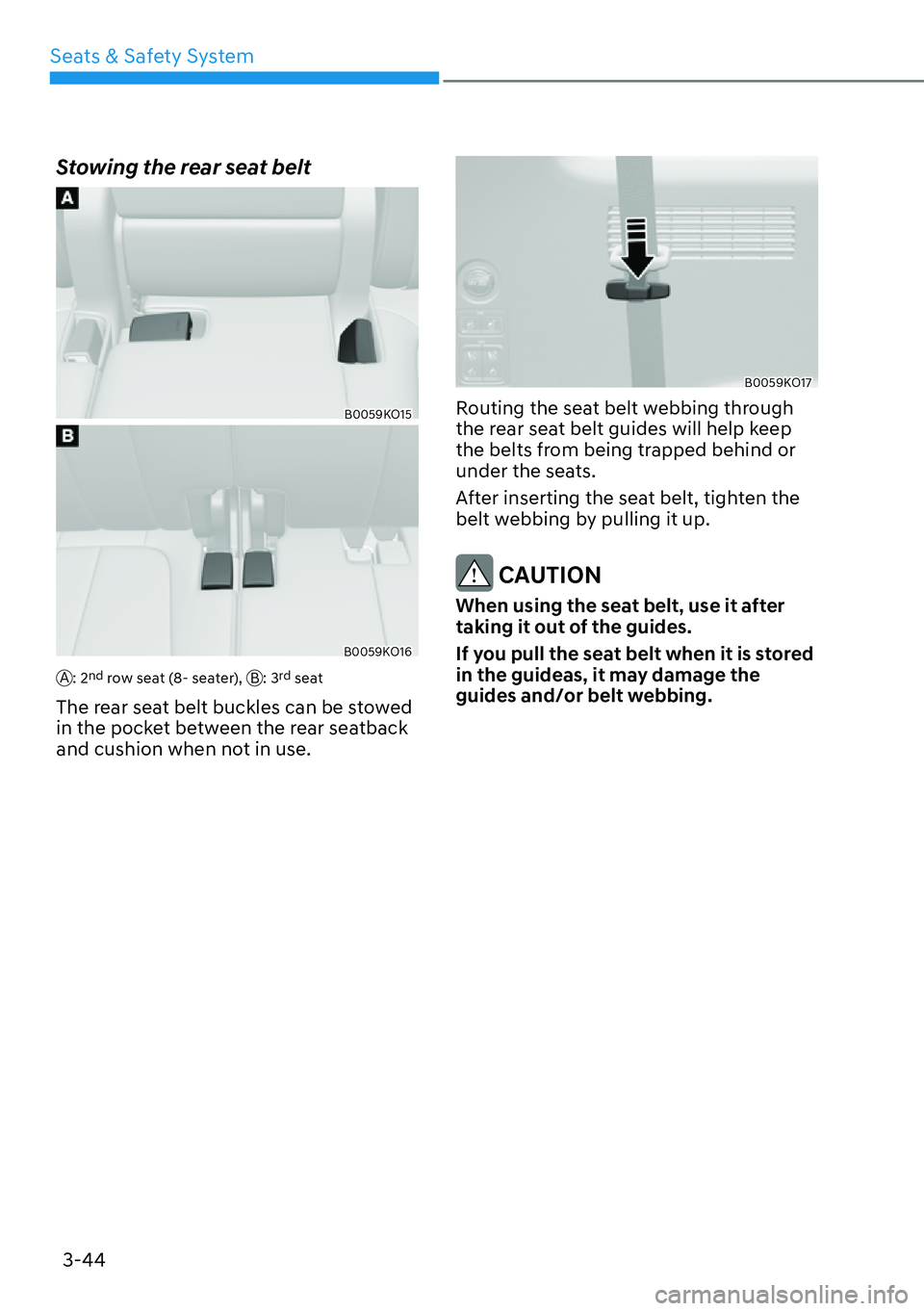

Stowing the rear seat belt
B0059KO15
B0059KO16
A: 2nd row seat (8- seater), B: 3rd seat
The rear seat belt buckles can be stowed
in the pocket between the rear seatback
and cushion when not in use.
B0059KO17
Routing the seat belt webbing through
the rear seat belt guides will help keep
the belts from being trapped behind or
under the seats.
After inserting the seat belt, tighten the
belt webbing by pulling it up.
CAUTION
When using the seat belt, use it after
taking it out of the guides.
If you pull the seat belt when it is stored
in the guideas, it may damage the
guides and/or belt webbing.

03
3-45

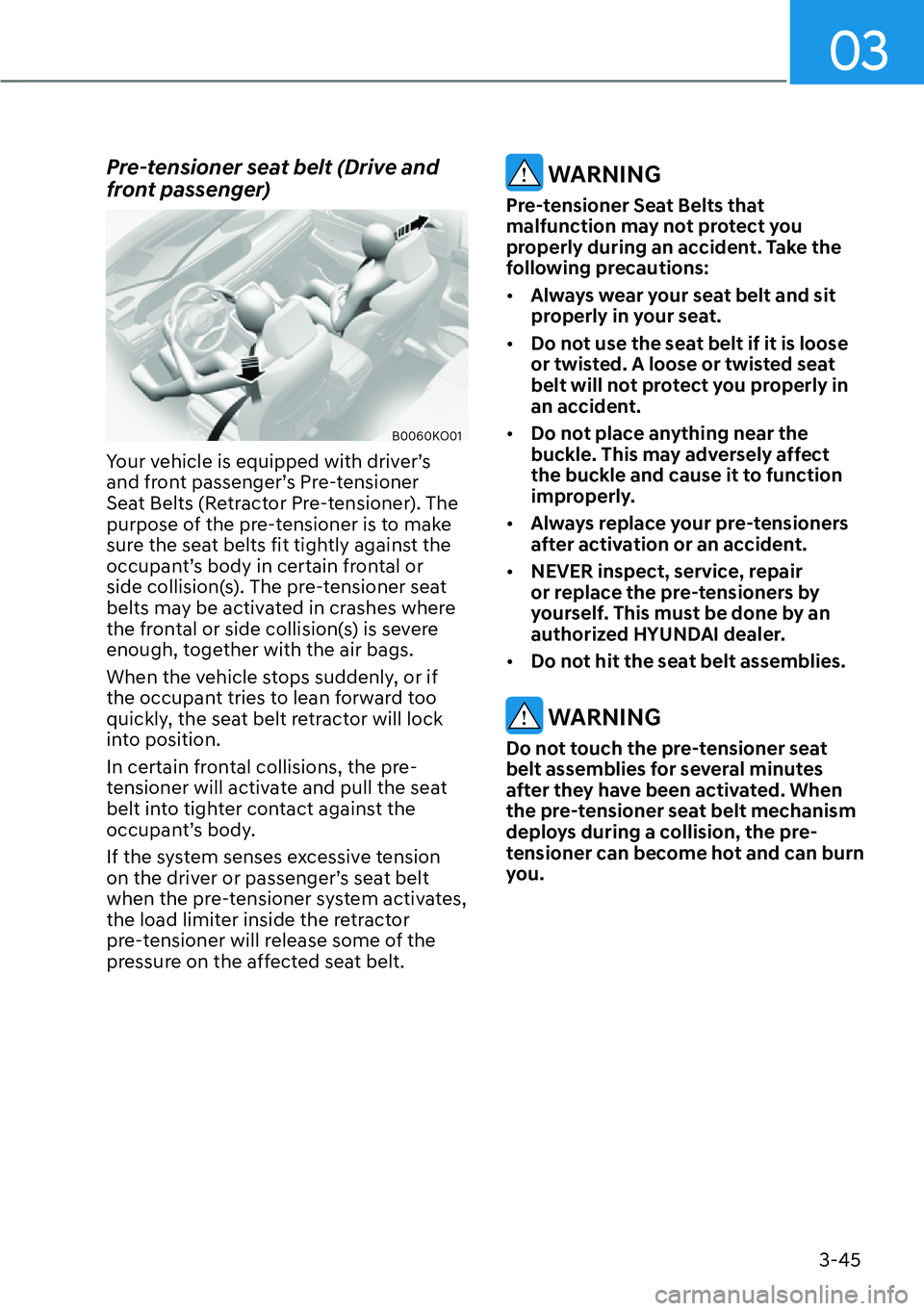

Pre-tensioner seat belt (Drive and
front passenger)
B0060KO01
Your vehicle is equipped with driver’s
and front passenger’s Pre-tensioner
Seat Belts (Retractor Pre-tensioner). The
purpose of the pre-tensioner is to make
sure the seat belts fit tightly against the
occupant’s body in certain frontal or
side collision(s). The pre-tensioner seat
belts may be activated in crashes where
the frontal or side collision(s) is severe
enough, together with the air bags.
When the vehicle stops suddenly, or if
the occupant tries to lean forward too
quickly, the seat belt retractor will lock
into position.
In certain frontal collisions, the pre-
tensioner will activate and pull the seat
belt into tighter contact against the
occupant’s body.
If the system senses excessive tension
on the driver or passenger’s seat belt
when the pre-tensioner system activates,
the load limiter inside the retractor
pre-tensioner will release some of the
pressure on the affected seat belt.
WARNING
Pre-tensioner Seat Belts that
malfunction may not protect you
properly during an accident. Take the
following precautions:

[Always wear your seat belt and sit
properly in your seat.

[ Do not use the seat belt if it is loose
or twisted. A loose or twisted seat
belt will not protect you properly in
an accident.

[ Do not place anything near the
buckle. This may adversely affect
the buckle and cause it to function
improperly.

[ Always replace your pre-tensioners
after activation or an accident.

[ NEVER inspect, service, repair
or replace the pre-tensioners by
yourself. This must be done by an
authorized HYUNDAI dealer.

[ Do not hit the seat belt assemblies.
WARNING
Do not touch the pre-tensioner seat
belt assemblies for several minutes
after they have been activated. When
the pre-tensioner seat belt mechanism
deploys during a collision, the pre-
tensioner can become hot and can burn
you.

Seats & Safety System3-46
CAUTION
Body work on the front area of the
vehicle may damage the pre-tensioner
seat belt system. Therefore, have the
system be serviced by an authorized
HYUNDAI dealer.
The Pre-Tensioner Seat Belt System
consists mainly of the following
components. Their locations are shown
in the illustration:
B0702EU01
M SRS air bag warning light
N Retractor pre-tensioner
O SRS control module
NOTICE
The sensor that activates the SRS
control module is connected with the
pre–tensioner seat belts. The SRS air
bag warning light on the instrument
cluster will illuminate for approximately
3~6 seconds after the ignition switch is
in the ON position, and then it should
turn off.
If the pre-tensioner is not working
properly, the warning light will
illuminate even if the SRS air bag is not
malfunctioning. If the warning light
does not illuminate, stays illuminated
or illuminates when the vehicle is
being driven, have the pre-tensioner
seat belts and/or SRS control module
inspected by an authorized HYUNDAI
dealer as soon as possible.
Information

[ Both the driver's and front passenger's
pre-tensioner seat belts may be
activated in certain frontal or side
collisions or rollovers.

[ When the pre-tensioner seat belts are
activated, a loud noise may be heard
and fine dust, which may appear to be
smoke, may be visible in the passenger
compartment. These are normal
operating conditions and are not
hazardous.

[ Although it is non-toxic, the fine dust
may cause skin irritation and should
not be inhaled for prolonged periods.
Wash all exposed skin areas thoroughly
after an accident in which the pre-
tensioner seat belts were activated.

[ The pre-tensioner seat belt system may
get adversely affected by installing an
audio system to the center console or
welding/painting the frontal vehicle
body.
In this case, consult an authorized
HYUNDAI dealer. The air bag
warning light illuminates, if there is a
malfunction with the pre-tensioner seat
belt system.

[ In following situations, immediately
have the air bag system and the pre-
tensioner seat belt system checked by
an authorized HYUNDAI dealer.

- The air bag warning light does not
illuminate at all after turning ON the
engine

- The air bag warning light remains
ON over 3~6 seconds after turning
ON the engine

03
3-47
Additional Seat Belt Safety
Precautions
Seat belt use during pregnancy
The seat belt should always be used
during pregnancy. The best way to
protect your unborn child is to protect
yourself by always wearing the seat belt.
Pregnant women should always wear
a lap-shoulder seat belt. Place the
shoulder belt across your chest, routed
between your breasts and away from
your neck. Place the lap belt below your
belly so that it fits SNUGLY across your
hips and pelvic bone, under the rounded
part of the belly.
WARNING

[A pregnant woman or a patient is
more vulnerable to any imapacts on
the abdomen during an abrupt stop
or accident. If you are in an accident
while pregnant, we recommend you
consult your doctor.

[ To reduce the risk of serious injury or
death to an unborn child during an
accident, pregnant women should
NEVER place the lap portion of the
seat belt above or over the area of
the abdomen where the unborn child
is located.
Seat belt use and children
Infant and small children
All 50 states have Child Restraint System
law

s which require children to t ravel
in approved Child Restraint System
devices, including booster seats. The
age at which seat belts can be used
instead of Child Restraint System differs
among states, so you should be aware of
the specific requirements in your state,
and where you are travelling. Infant and
Child Restraint System must be properly
placed and installed in a rear seat.
For more information refer to the “Child
Restraint Systems” section in this
chapter.
WARNING
ALWAYS properly restrain infants and
small children in a Child Restraint
System appropriate for the child’s
height and weight.
To reduce the risk of serious injury or
death to a child and other passengers,
NEVER hold a child in your lap or arms
when the vehicle is moving. The violent
forces created during an accident will
tear the child from your arms and throw
the child against the interior of the
vehicle.
Small children are best protected from
injury in an accident when properly
restrained in the rear seat by a Child
Restraint System that meets the
requirements of the Federal Motor
Vehicle Safety Standards. Before buying
any Child Restraint System, make sure
that it has a label certifying that it meets
Federal Motor Vehicle Safety Standard
FMVSS 213.
The Child Restraint System must be
appropriate for your child’s height and
weight. Check the label on the Child
Restraint System for this information.
Refer to “Child Restraint Systems”
section in this chapter.

Seats & Safety System3-48

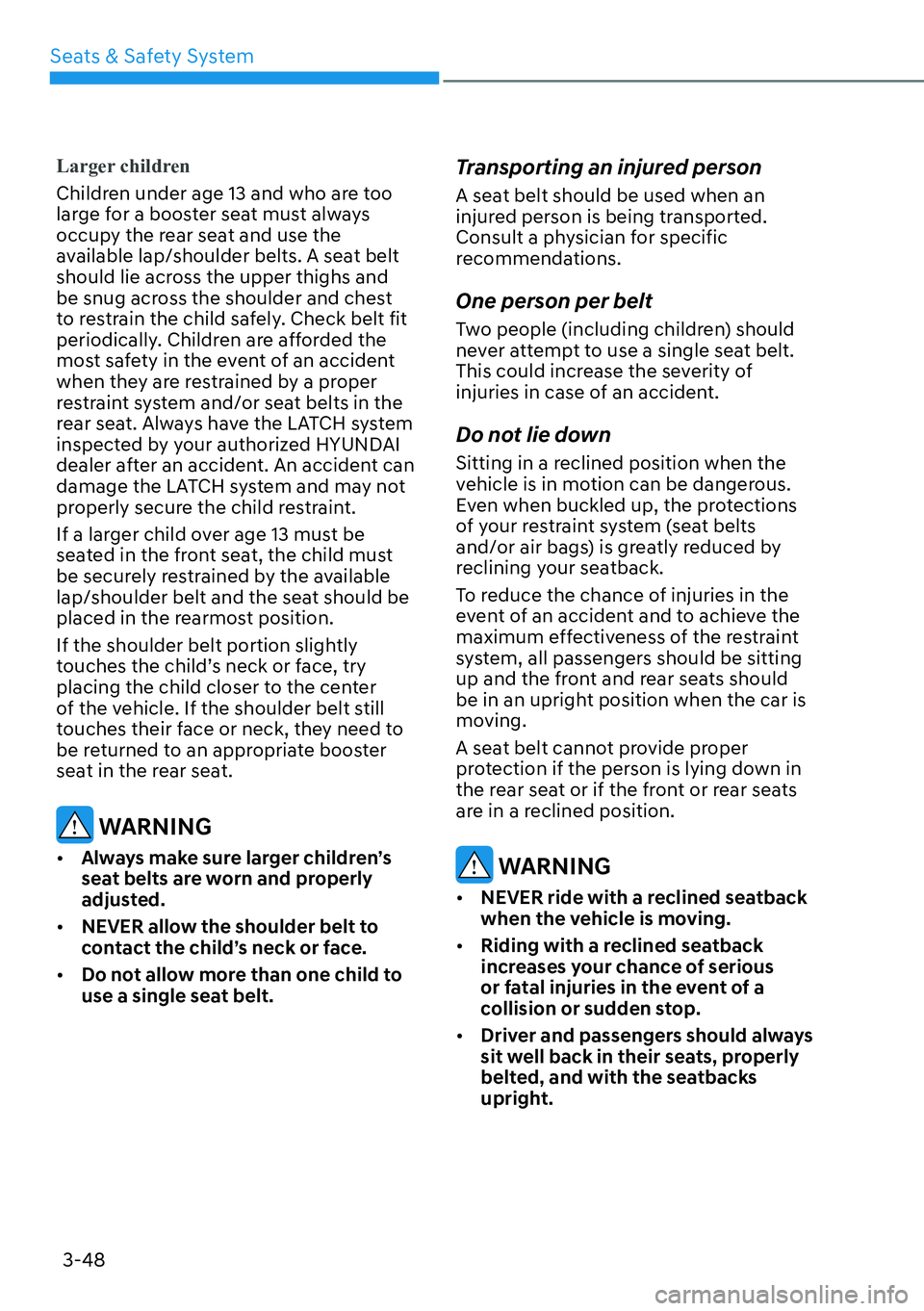

Larger children
Children under age 13 and who are too
lar
ge for a booster seat must always
occupy the rear seat and use the
available lap/shoulder belts. A seat belt
should lie across the upper thighs and
be snug across the shoulder and chest
to restrain the child safely. Check belt fit
periodically. Children are afforded the
most safety in the event of an accident
when they are restrained by a proper
restraint system and/or seat belts in the
rear seat. Always have the LATCH system
inspected by your authorized HYUNDAI
dealer after an accident. An accident can
damage the LATCH system and may not
properly secure the child restraint.
If a larger child over age 13 must be
seated in the front seat, the child must
be securely restrained by the available
lap/shoulder belt and the seat should be
placed in the rearmost position.
If the shoulder belt portion slightly
touches the child’s neck or face, try
placing the child closer to the center
of the vehicle. If the shoulder belt still
touches their face or neck, they need to
be returned to an appropriate booster
seat in the rear seat.
WARNING

[ Always make sure larger children’s
seat belts are worn and properly
adjusted.

[ NEVER allow the shoulder belt to
contact the child’s neck or face.

[ Do not allow more than one child to
use a single seat belt.
Transporting an injured person
A seat belt should be used when an
injured person is being transported.
Consult a physician for specific
recommendations.
One person per belt
Two people (including children) should
never attempt to use a single seat belt.
This could increase the severity of
injuries in case of an accident.
Do not lie down
Sitting in a reclined position when the
vehicle is in motion can be dangerous.
Even when buckled up, the protections
of your restraint system (seat belts
and/or air bags) is greatly reduced by
reclining your seatback.
To reduce the chance of injuries in the
event of an accident and to achieve the
maximum effectiveness of the restraint
system, all passengers should be sitting
up and the front and rear seats should
be in an upright position when the car is
moving.
A seat belt cannot provide proper
protection if the person is lying down in
the rear seat or if the front or rear seats
are in a reclined position.
WARNING

[NEVER ride with a reclined seatback
when the vehicle is moving.

[ Riding with a reclined seatback
increases your chance of serious
or fatal injuries in the event of a
collision or sudden stop.

[ Driver and passengers should always
sit well back in their seats, properly
belted, and with the seatbacks
upright.

03
3-49

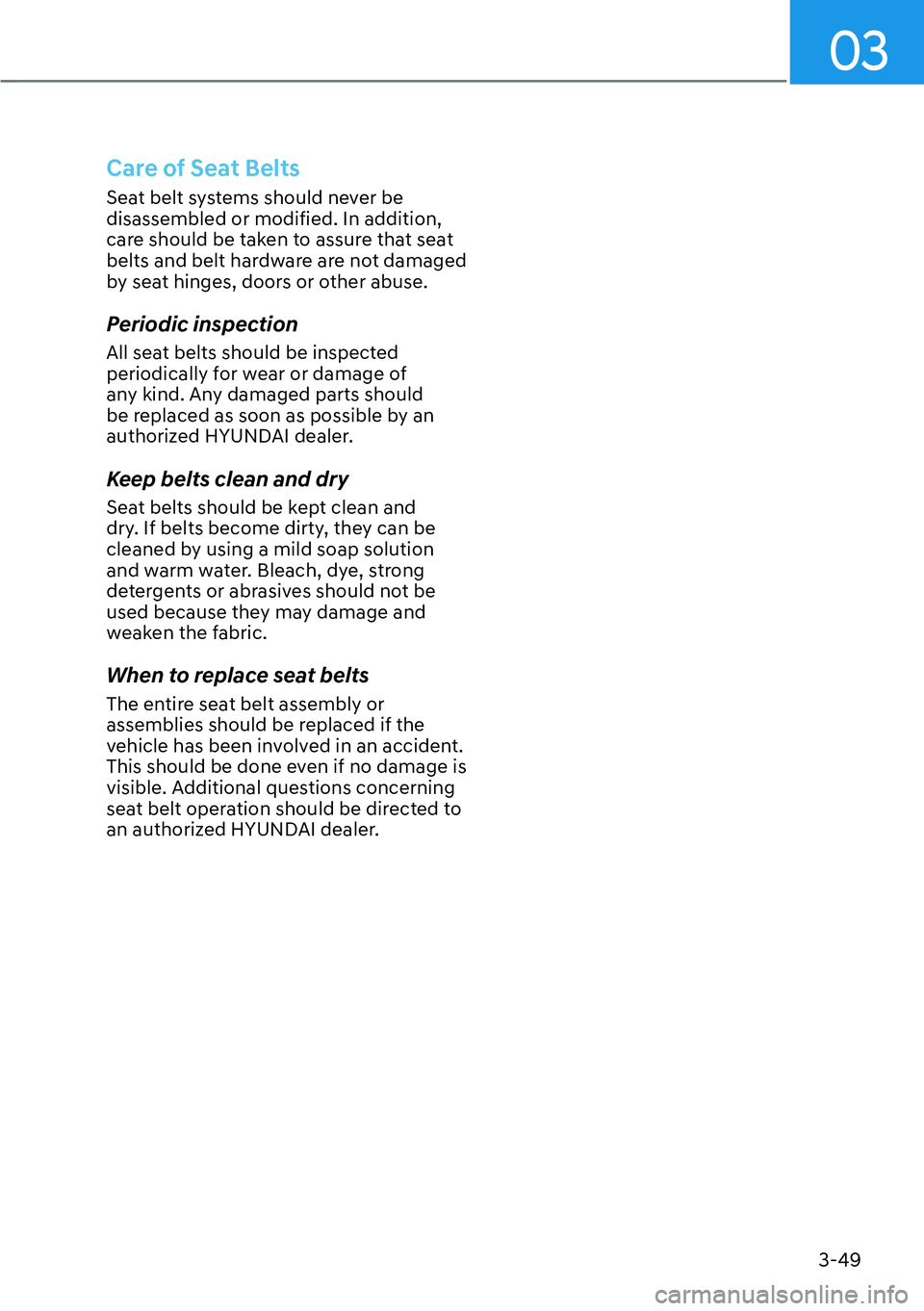

Care of Seat Belts
Seat belt systems should never be
disassembled or modified. In addition,
care should be taken to assure that seat
belts and belt hardware are not damaged
by seat hinges, doors or other abuse.
Periodic inspection
All seat belts should be inspected
periodically for wear or damage of
any kind. Any damaged parts should
be replaced as soon as possible by an
authorized HYUNDAI dealer.
Keep belts clean and dry
Seat belts should be kept clean and
dry. If belts become dirty, they can be
cleaned by using a mild soap solution
and warm water. Bleach, dye, strong
detergents or abrasives should not be
used because they may damage and
weaken the fabric.
When to replace seat belts
The entire seat belt assembly or
assemblies should be replaced if the
vehicle has been involved in an accident.
This should be done even if no damage is
visible. Additional questions concerning
seat belt operation should be directed to
an authorized HYUNDAI dealer.

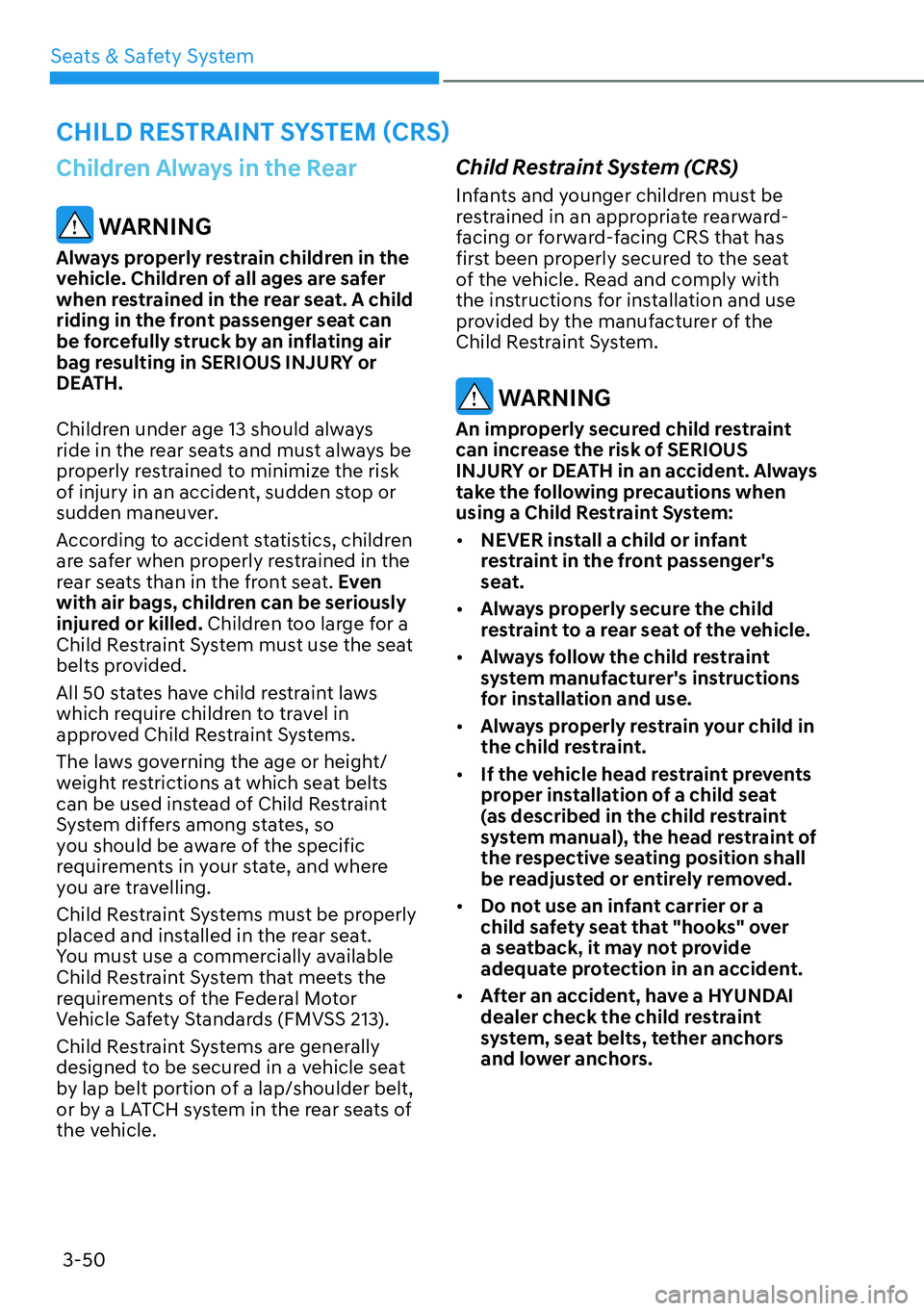

3-50
Seats & Safety System
&+,/'5(675$,176<67(0
