2023 HYUNDAI PALISADE Owners Manual

Convenience Features5-164

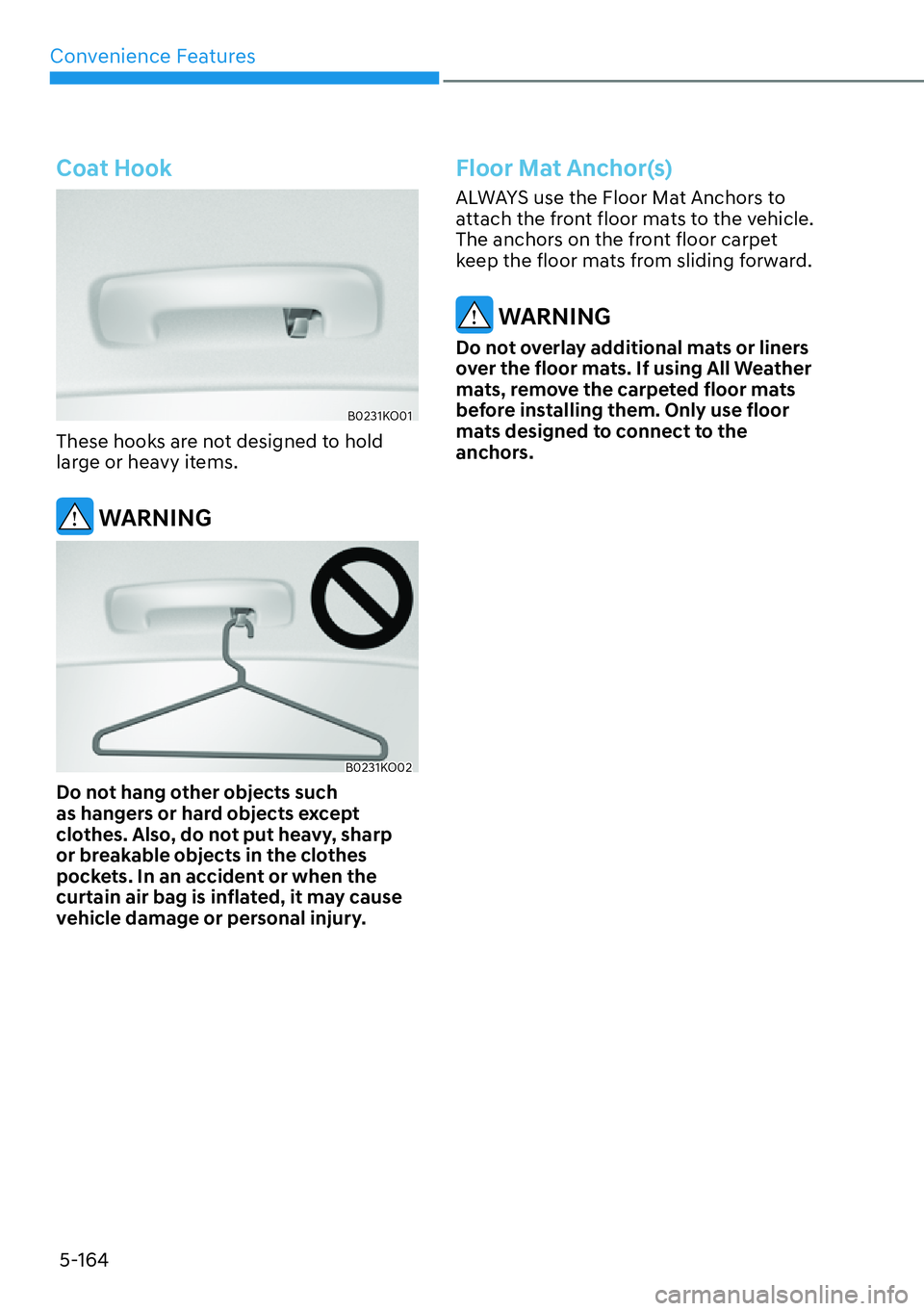

Coat Hook
B0231KO01
These hooks are not designed to hold
large or heavy items.
WARNING
B0231KO02
Do not hang other objects such
as hangers or hard objects except
clothes. Also, do not put heavy, sharp
or breakable objects in the clothes
pockets. In an accident or when the
curtain air bag is inflated, it may cause
vehicle damage or personal injury.
)ORRU0DW$QFKRUV
ALWAYS use the Floor Mat Anchors to
attach the front floor mats to the vehicle.
The anchors on the front floor carpet
keep the floor mats from sliding forward.
WARNING
Do not overlay additional mats or liners
over the floor mats. If using All Weather
mats, remove the carpeted floor mats
before installing them. Only use floor
mats designed to connect to the
anchors.

05
5-165
WARNING
The following must be observed when
installing ANY floor mat to the vehicle.

[Ensure to remove a protective
film attached on the carpet
before attaching a floor mat on
the front floor carpet. Otherwise,
the floor mat may move freely on
the protective film and it could
result in unintentional braking or
accelerating.

[ Ensure that the floor mats are
securely attached to the vehicle’s
floor mat anchor(s) before driving
the vehicle.

[ Do not use ANY floor mat that cannot
be firmly attached to the vehicle’s
floor mat anchors.

[ Do not stack floor mats on top of one
another (for example, all-weather
rubber mat on top of a carpeted floor
mat). Only a single floor mat should
be installed in each position.
NOTICE
Your vehicle was manufactured with
driver’s side floor mat anchors that
are designed to securely hold the floor
mat in place. To avoid any interference
with pedal operation, HYUNDAI
recommends that the HYUNDAI floor
mat designed for use in your vehicle be
installed.
Rear Side Window Sunshades (if
equipped)
Use the rear side window sunshade to
block external light coming through the
rear window glass.
Manual sunshades
B0233KO01
1. Lift the sunshade by the handle A.
2. Hang the sunshade on both sides of the hook B
. If the sunshade is hung
on one side of the hook, the sunshade
may be wrinkled.
NOTICE

[ Do not hang any other object except
the rear side window sunshade on
the hooks.

[ If you pull the rear side window
sunshade or apply force to return
the sunshade to its original position
after use, you may find the sunshade
wrinkled or out of shape. To lower
the sunshade, be sure to put the
handle downward and slowly return
the sunshade to its original position.

[ Sunshades may not work properly if
foreign objects (coins, toys, cookies,
etc.) are stuck in the door. Be careful
that the foreign objects do not get
into the door.

Convenience Features5-166

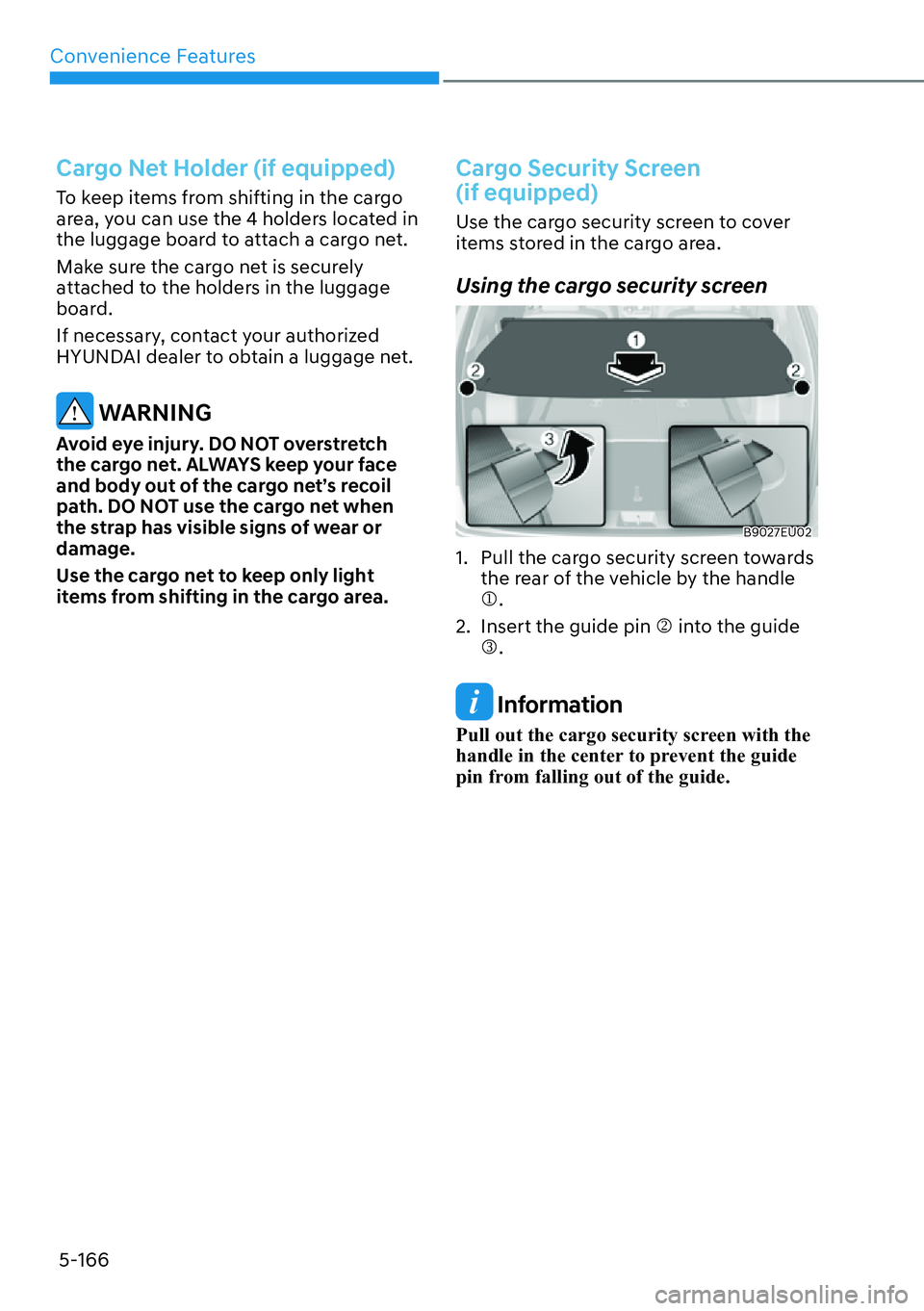

Cargo Net Holder (if equipped)
To keep items from shifting in the cargo
area, you can use the 4 holders located in
the luggage board to attach a cargo net.
Make sure the cargo net is securely
attached to the holders in the luggage
board.
If necessary, contact your authorized
HYUNDAI dealer to obtain a luggage net.
WARNING
Avoid eye injury. DO NOT overstretch
the cargo net. ALWAYS keep your face
and body out of the cargo net’s recoil
path. DO NOT use the cargo net when
the strap has visible signs of wear or
damage.
Use the cargo net to keep only light
items from shifting in the cargo area.
Cargo Security Screen
(if equipped)
Use the cargo security screen to cover
items stored in the cargo area.
Using the cargo security screen
B9027EU02
1. Pull the cargo security screen towards the rear of the vehicle by the handle
M.
2. Insert the guide pin N into the guide O.
Information
Pull out the cargo security screen with the
handle in the center to prevent the guide
pin from falling out of the guide.

05
5-167

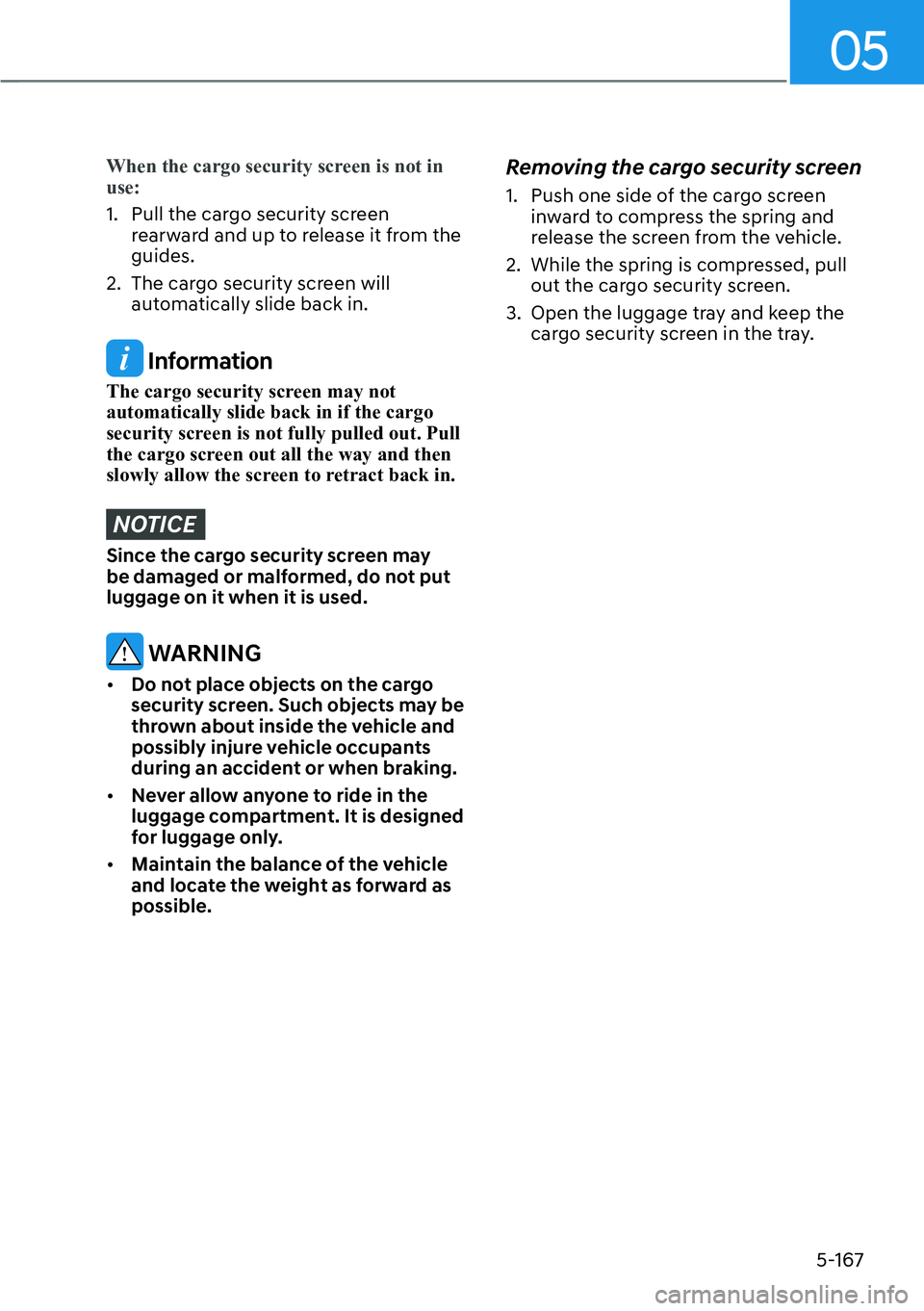

When the cargo security screen is not in
use:
1. Pull the cargo security screen r
earward and up to release it from the
guides.
2. The cargo security screen will automatically slide back in.
Information
The cargo security screen may not
automatically slide back in if the cargo
security screen is not fully pulled out. Pull
the cargo screen out all the way and then
slowly allow the screen to retract back in.
NOTICE
Since the cargo security screen may
be damaged or malformed, do not put
luggage on it when it is used.
WARNING

[Do not place objects on the cargo
security screen. Such objects may be
thrown about inside the vehicle and
possibly injure vehicle occupants
during an accident or when braking.

[ Never allow anyone to ride in the
luggage compartment. It is designed
for luggage only.

[ Maintain the balance of the vehicle
and locate the weight as forward as
possible.
Removing the cargo security screen
1. Push one side of the cargo screen
inward to compress the spring and
release the screen from the vehicle.
2. While the spring is compressed, pull out the cargo security screen.
3. Open the luggage tray and keep the cargo security screen in the tray.

Convenience Features5-168

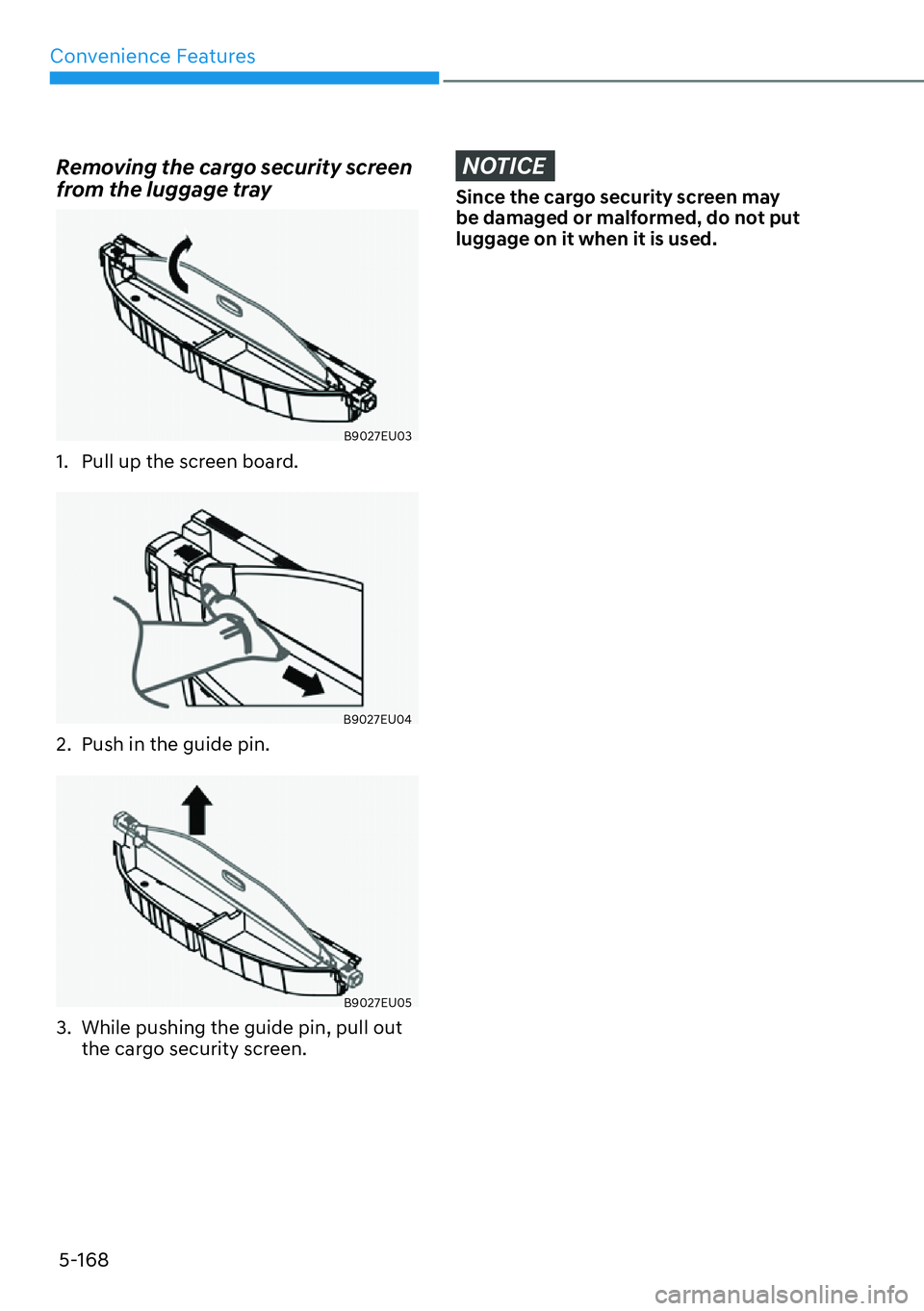

Removing the cargo security screen
from the luggage tray
B9027EU03
1. Pull up the screen board.
B9027EU04
2. Push in the guide pin.
B9027EU05
3. While pushing the guide pin, pull out the cargo security screen.
NOTICE
Since the cargo security screen may
be damaged or malformed, do not put
luggage on it when it is used.

05
5-169
(;7(5,25)($785(6

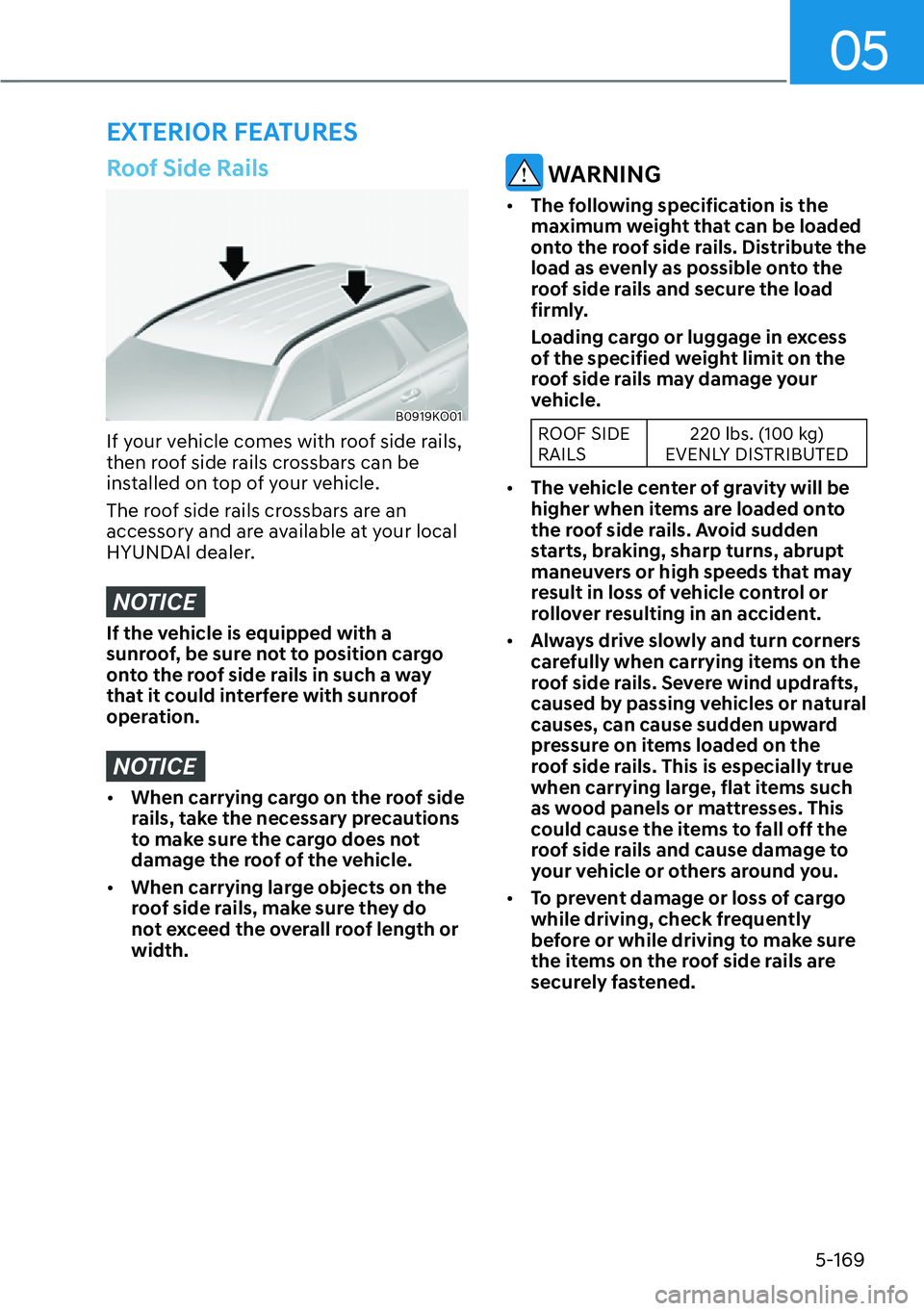

Roof Side Rails
B0919KO01
If your vehicle comes with roof side rails,
then roof side rails crossbars can be
installed on top of your vehicle.
The roof side rails crossbars are an
accessory and are available at your local
HYUNDAI dealer.
NOTICE
If the vehicle is equipped with a
sunroof, be sure not to position cargo
onto the roof side rails in such a way
that it could interfere with sunroof
operation.
NOTICE

[When carrying cargo on the roof side
rails, take the necessary precautions
to make sure the cargo does not
damage the roof of the vehicle.

[ When carrying large objects on the
roof side rails, make sure they do
not exceed the overall roof length or
width.
WARNING

[The following specification is the
maximum weight that can be loaded
onto the roof side rails. Distribute the
load as evenly as possible onto the
roof side rails and secure the load
firmly.
Loading cargo or luggage in excess
of the specified weight limit on the
roof side rails may damage your
vehicle.
ROOF SIDE
RAILS 220 lbs. (100 kg)
EVENLY DISTRIBUTED

[ The vehicle center of gravity will be
higher when items are loaded onto
the roof side rails. Avoid sudden
starts, braking, sharp turns, abrupt
maneuvers or high speeds that may
result in loss of vehicle control or
rollover resulting in an accident.

[ Always drive slowly and turn corners
carefully when carrying items on the
roof side rails. Severe wind updrafts,
caused by passing vehicles or natural
causes, can cause sudden upward
pressure on items loaded on the
roof side rails. This is especially true
when carrying large, flat items such
as wood panels or mattresses. This
could cause the items to fall off the
roof side rails and cause damage to
your vehicle or others around you.

[ To prevent damage or loss of cargo
while driving, check frequently
before or while driving to make sure
the items on the roof side rails are
securely fastened.

Convenience Features5-170

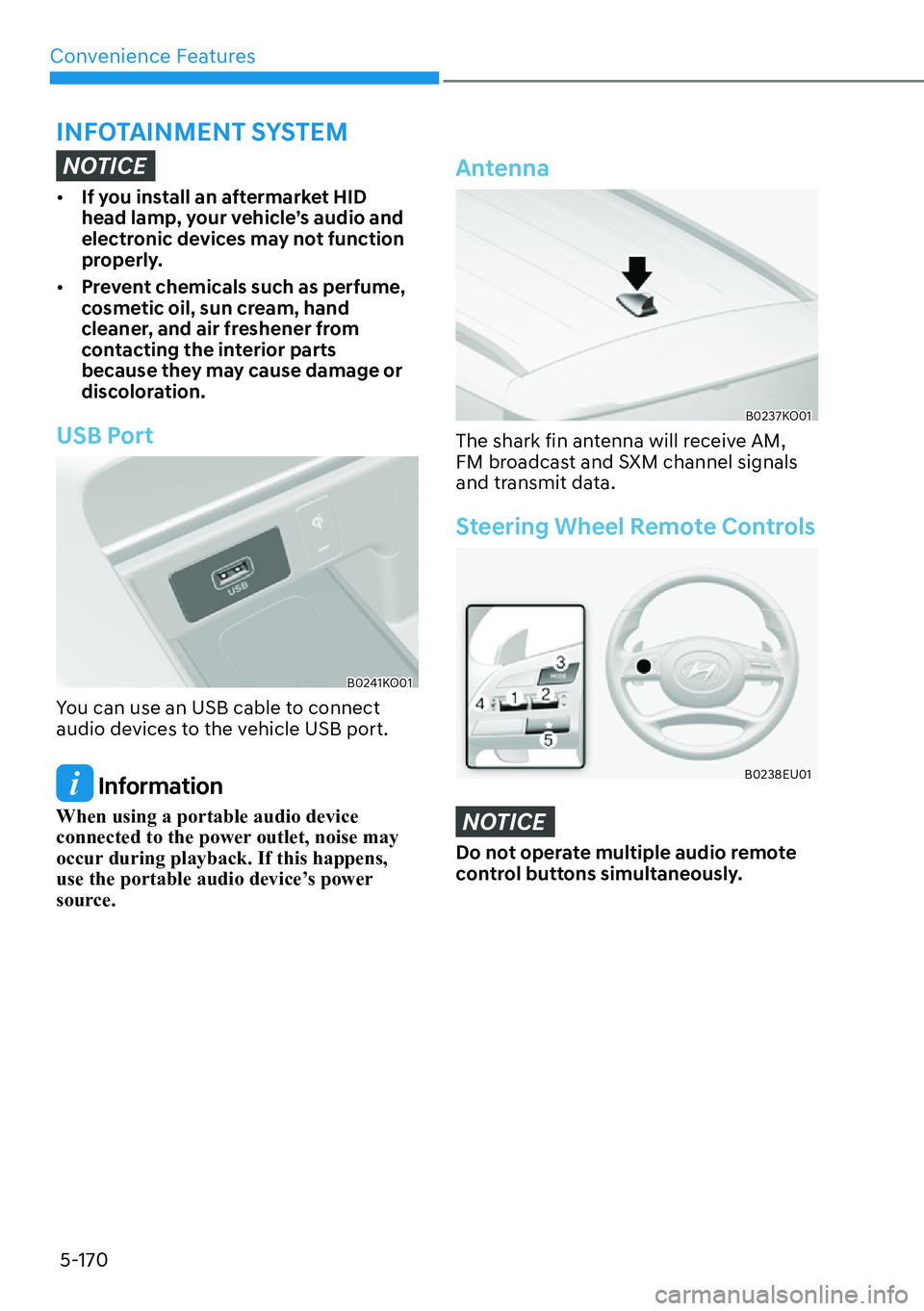

NOTICE

[ If you install an aftermarket HID
head lamp, your vehicle’s audio and
electronic devices may not function
properly.

[ Prevent chemicals such as perfume,
cosmetic oil, sun cream, hand
cleaner, and air freshener from
contacting the interior parts
because they may cause damage or
discoloration.
USB Port
B0241KO01
You can use an USB cable to connect
audio devices to the vehicle USB port.
Information
When using a portable audio device
connected to the power outlet, noise may
occur during playback. If this happens,
use the portable audio device’s power
source.
Antenna
B0237KO01
The shark fin antenna will receive AM,
FM broadcast and SXM channel signals
and transmit data.
Steering Wheel Remote Controls
B0238EU01
NOTICE
Do not operate multiple audio remote
control buttons simultaneously.
,1)27$,10(176<67(0

05
5-171

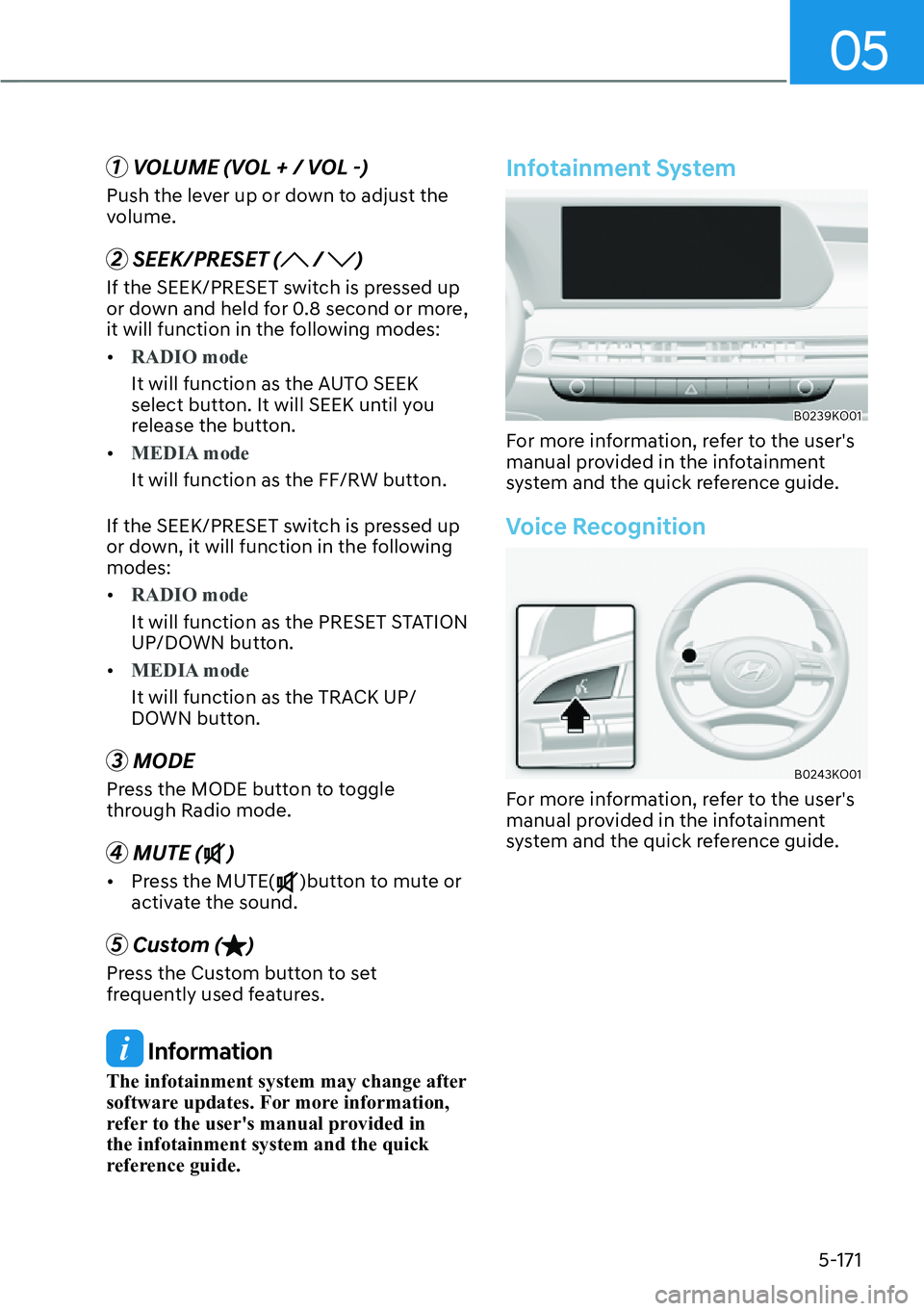

1 VOLUME (VOL + / VOL -)
Push the lever up or down to adjust the
volume.
2 SEEK/PRESET ( / )
If the SEEK/PRESET switch is pressed up
or down and held for 0.8 second or more,
it will function in the following modes:

[RADIO mode
It will function as the AUTO SEEK
select butt

on. It will SEEK until you
release the button.

[ MEDIA mode
It will function as the FF/RW button.
If the SEEK/PRESET s
witch is pressed up
or down, it will function in the following
modes:

[ RADIO mode
It will function as the PRESET STATION
UP/DOWN butt

on.

[ MEDIA mode
It will function as the TRACK UP/
DOWN butt

on.
3 MODE
Press the MODE button to toggle
through Radio mode.
4 MUTE ()

[Press the MUTE()button to mute or
activate the sound.
5 Custom ()
Press the Custom button to set
frequently used features.
Information
The infotainment system may change after
software updates. For more information,
refer to the user's manual provided in
the infotainment system and the quick
reference guide.
Infotainment System
B0239KO01
For more information, refer to the user's
manual provided in the infotainment
system and the quick reference guide.
Voice Recognition
B0243KO01
For more information, refer to the user's
manual provided in the infotainment
system and the quick reference guide.
