2023 HYUNDAI PALISADE Owners Manual

07
7-63
Driver Attention Warning
Malfunction and Limitations
Driver Attention Warning
malfunction
B0337EU01
When Driver Attention Warning is not
working properly, the ‘Check Inattentive
Driving Warning system’ warning
message will appear on the cluster
for several seconds, and the master
(
) warning light will illuminate on the
cluster. If this occurs, have the vehicle
inspected by an authorized HYUNDAI
dealer.
Driver Attention Warning disabled
B0337EU02
When the front windshield where the
front view camera is located is covered
with foreign material, such as snow
or rain, it can reduce the detecting
performance and temporarily limit or
disable Driver Attention Warning. If this
occurs, the ‘Inattentive Driving Warning
disabled. Camera obscured’ warning
message will appear on the instrument
cluster. Driver Attention Warning will
operate properly when snow, rain or
foreign material is removed. If Driver
Attention Warning does not operate
properly after it is removed, have the
vehicle inspected by an authorized
HYUNDAI dealer.
WARNING

[ Driver Attention Warning may not
properly operate in an area (for
example, open terrain) where any
objects are not detected right after
turning ON the engine.

[ If the engine is turned off and
restarted while the camera is
blocked or malfunctioned, the
condition is maintained. Therefore,
Driver Attention Warning may not
operate properly.

Driver Assistance System7-64

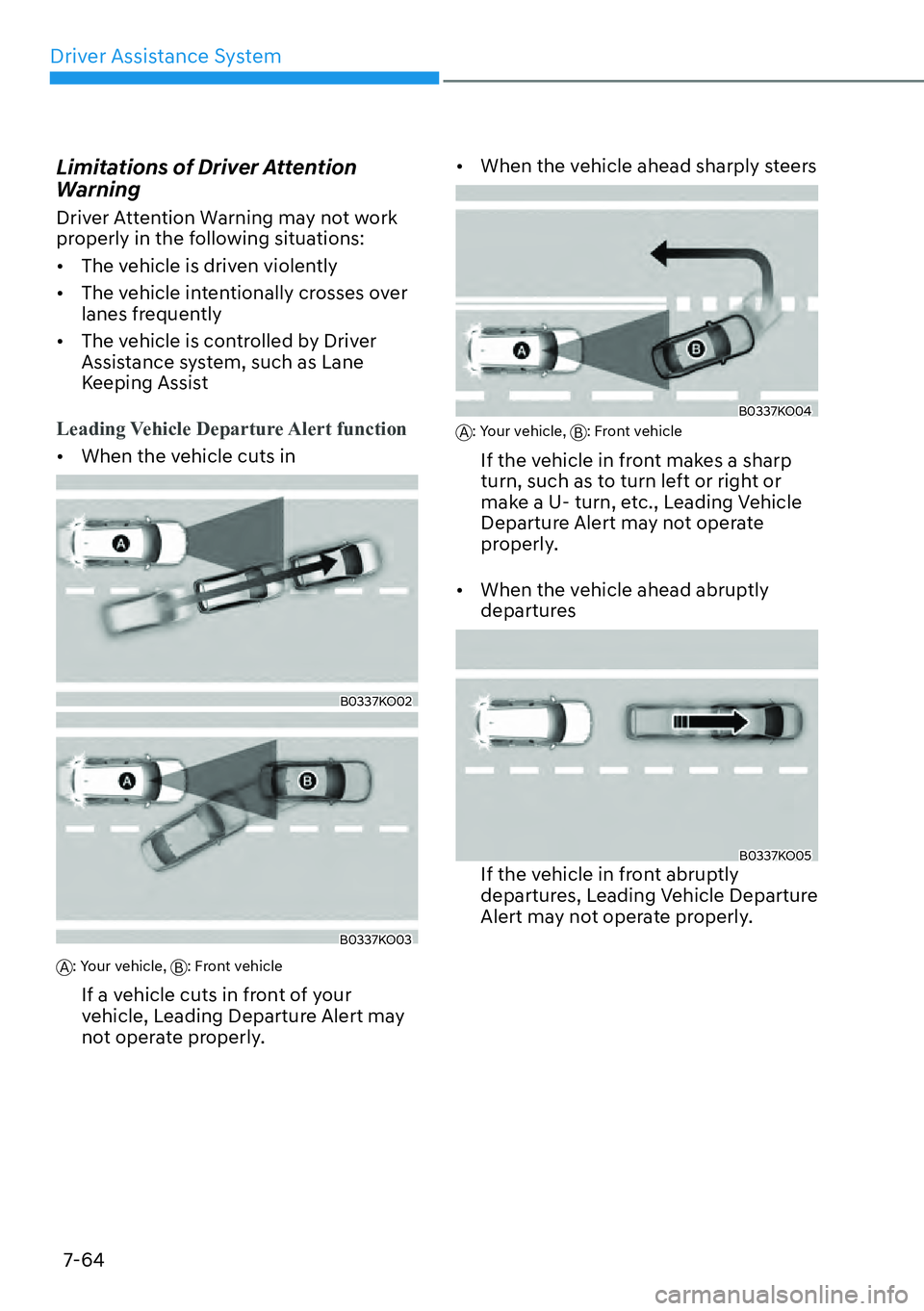

Limitations of Driver Attention
Warning
Driver Attention Warning may not work
properly in the following situations:

[ The vehicle is driven violently

[ The vehicle intentionally crosses over
lanes frequently

[ The vehicle is controlled by Driver
Assistance system, such as Lane
Keeping Assist
Leading Vehicle Departure Alert function

[ When the v
ehicle cuts in
B0337KO02
B0337KO03
A: Your vehicle,
B: Front vehicle
If a vehicle cuts in front of your
vehicle, Leading Departure Alert may
not operate properly.
[
When the vehicle ahead sharply steers
B0337KO04A: Your vehicle,
B: Front vehicle
If the vehicle in front makes a sharp
turn, such as to turn left or right or
make a U- turn, etc., Leading Vehicle
Departure Alert may not operate
properly.

[ When the vehicle ahead abruptly
departures
B0337KO05If the vehicle in front abruptly
departures, Leading Vehicle Departure
Alert may not operate properly.

07
7-65

[When a pedestrian or bicycle is
between you and the vehicle ahead
B0337KO06If there is a pedestrian(s) or bicycle(s)
in between you and the vehicle in
front, Leading Vehicle Departure Alert
may not operate properly.

[ When in a parking lot
B0337KO07If a vehicle parked in front drives away
from you, Leading Vehicle Departure
Alert may alert you that the parked
vehicle is driving away.
[
When driving at a tollgate or
intersection, etc.
B0337KO08If you pass a tollgate or intersection
with lots of vehicles or you drive
where lanes are merged or divided
frequently, Leading Vehicle Departure
Alert may not operate properly.
Information
For more details on the precautions of
the front view camera, refer to “Forward
Collision-Avoidance Assist (FCA)” section
in this chapter.

Driver Assistance System7-66
%/,1'

07
7-67
Operating conditions
When the left or right side turn signal
turns on, the image in that direction is
displayed on the instrument cluster.
Off conditions

[When the turn signal turns off, the
image on the instrument cluster will
turn off.

[ When the hazard warning flasher
is on, Blind-Spot View Monitor will
turn off, regardless of the turn signal
status.

[ When other important warning is
displayed on the instrument cluster,
Blind-Spot View Monitor may turn off.

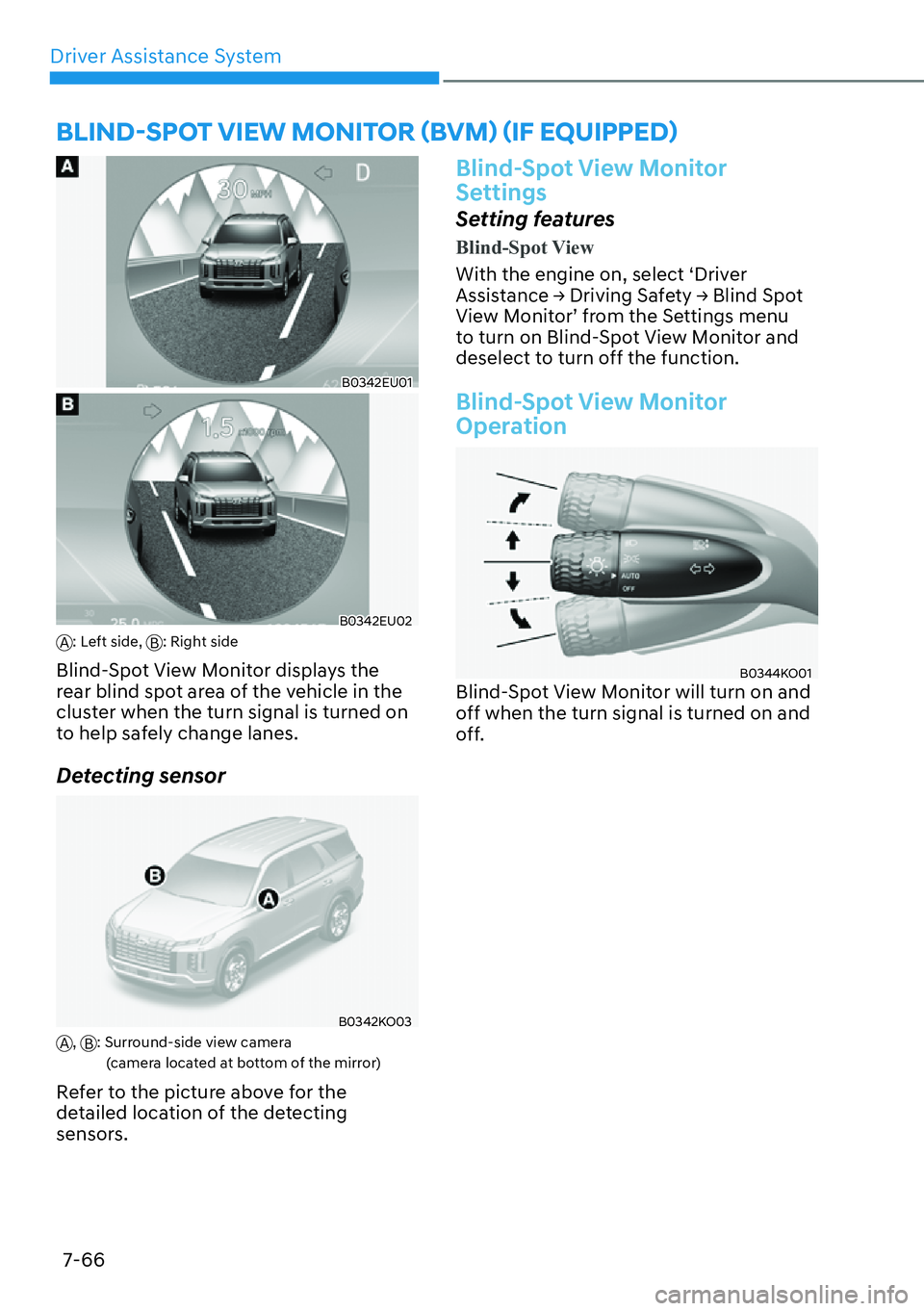

Blind-Spot View Monitor
Malfunction
When Blind-Spot View Monitor is not
working properly, or the cluster display
flickers, or the camera image does
not display properly, have the vehicle
inspected by an authorized HYUNDAI
dealer.
WARNING

[The image shown on the cluster may
differ from the actual distance of the
object. Make sure to directly check
the vehicle's surroundings for safety.

[ Always keep the camera lens clean.
If the lens is covered with foreign
material, it may adversely affect
camera performance and Blind-
Spot View Monitor may not operate
properly.

Driver Assistance System7-68
60$57&58,6(&21752/

07
7-69

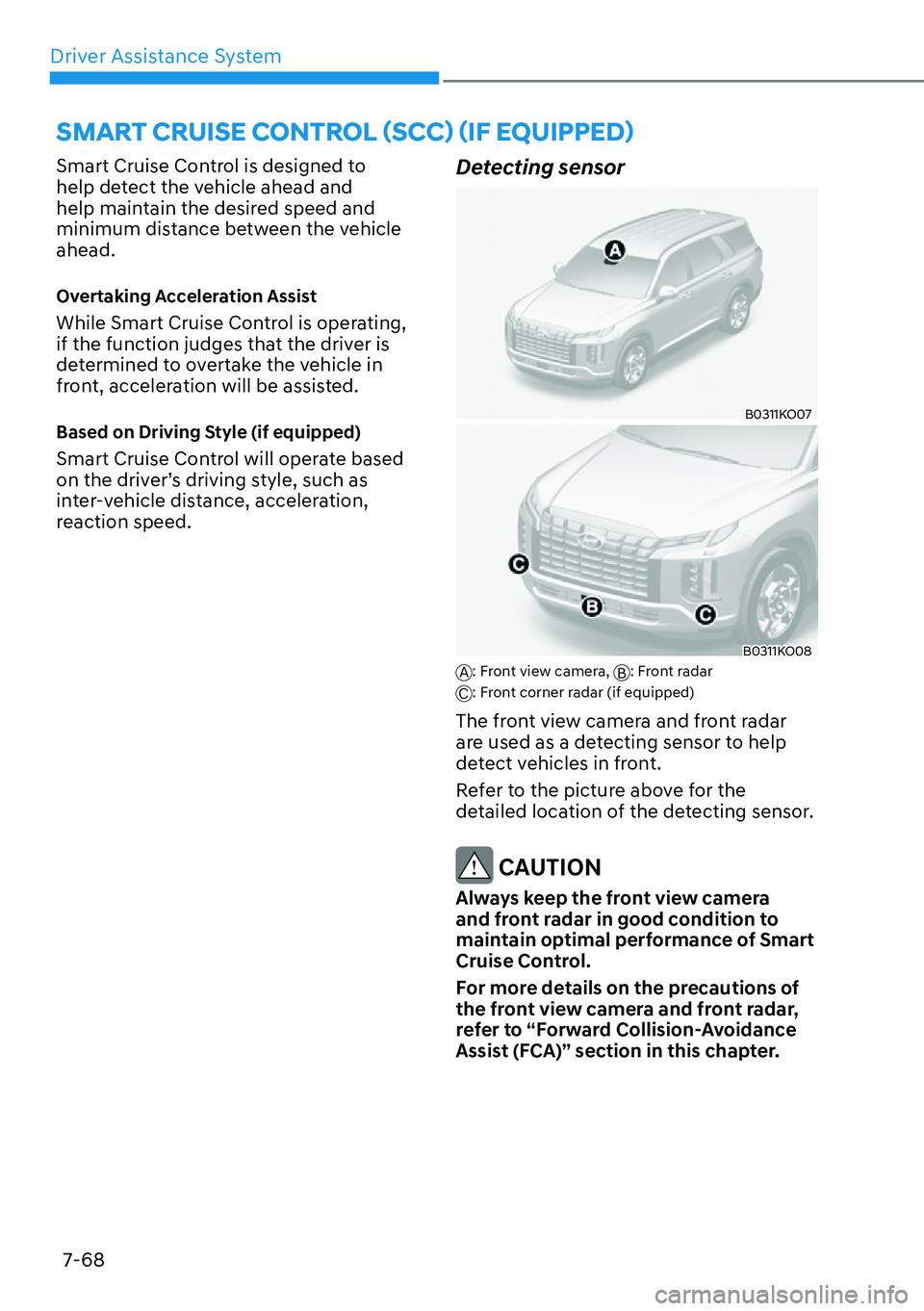

Smart Cruise Control Settings
Smart Cruise Control
B0347EU01
With the engine on, select ‘Driver
$VVLVWDQFH

Driver Assistance System7-70
B0312EU05
Warning Volume
With the engine on, select ‘Driver
$VVLV
WDQFH
